Peservoir-forming pattern of "four-storey" hydrocarbon accumulation in Anchang syncline of northern Guizhou Province
-
摘要:
中国南方地区从震旦纪到古近纪发育多套烃源岩，由于经历多期构造运动，油气保存条件欠佳。60多年来，除四川、江汉、苏北等盆地外，盆外复杂构造区油气调查始终未获重大发现。文章通过对野外地质调查、地球物理勘查和系统的油气成藏条件研究，认为黔北安场向斜五峰-龙马溪组富有机质页岩发育、热演化程度适中，石牛栏组储集性能较好，向斜翼部逆断层封挡，具备良好的页岩气、油气富集成藏条件。在向斜西翼部署实施的安页1井，在栖霞组、石牛栏组、五峰-龙马溪组和宝塔组获得“四层楼”式油气显示。其中，石牛栏组获得日产超过10×104 m3高产工业气流，开辟了南方油气勘查的新区、新层系和新类型。安页1井的突破，证实了黔北-渝东南盆外复杂构造区具有常规、非常规油气同生共存的成藏条件，对邻区广泛发育的残留向斜油气勘探具有重要的指导意义。
Abstract:The Sinian-Paleogene period in South China developed several sets of hydrocarbon source rocks. Because of the multistage tectonic movements, the preservation conditions of oil and gas are poor. Over the past 60 years, oil and gas survey in complex structure areas outside the basins has not made a major breakthrough except for Sichuan, Jianghan and Subei basins. Based on field geological survey, geophysical exploration and researches on hydrocarbon accumulation conditions, the authors hold that, because the Wufeng-Longmaxi Formation has well-developed organic matter-rich shale, moderate thermal evolution, Shiniulan Formation provides good reservoir, and syncline wing is blocked by reverse faults, the shale gas, oil and gas accumulation conditions are very favorable. Well Anye-1 made the "four-storey" type oil and gas breakthrough in the Shiniulan Formation, Wufeng-Longmaxi Formation, Baota Formation and Qixia Formation. In the Shiniulan Formation, more than 10×104 m3 industrial gas is produced everyday. New areas, new layers and new types are therefore opened up for oil and gas exploration in South China. The breakthrough of well Anye-1 confirms the fact that there exist the reservoir-forming conditions for the coexistence of conventional and unconventional oil and gas in the complex structure areas outside the basins in northern Guizhou and southeastern Chongqing. These achievements are of great significance for the development of residual syncline oil and gas exploration in the adjacent areas.
-
Key words:
- Anchang syncline /
- Well Anye-1 /
- Shiniulan Formation /
- Wufeng-Longmaxi Formation /
- Baota Formation /
- Qixia Formation
-
-

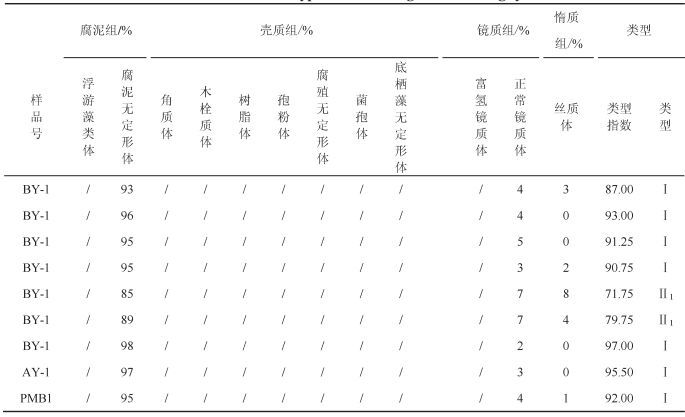

表 1 安场向斜干酪根显微组分鉴定及类型划分
Table 1. Identification and type table of kerogen in Anchang syncline
下载: 导出CSV
-
Chen Lei, Lu Yongchao, Jiang Shu, Li Jianqing, Guo Tonglou, Luo Chan. 2015. Heterogeneity of the Lower Silurian Longmaxi marine shale in the southeast Sichuan Basin of China[J].Marine and Petroleum Geology, 65:232-246. doi: 10.1016/j.marpetgeo.2015.04.003
Guo Tonglou, Liu Ruobing. 2013. Implication from marine shale gas exploration breakthrough in complicated structural area at high thermal stage:Taking Longmaxi formation in well JY1 as an example[J]. Natural Gas Geoscience, 24(4):643-651(in Chinese with English abstract).
Guo Xusheng, Hu Dongfeng, Wen Zhidong, Liu Ruobing. 2014. Major factors controlling the accumulation and high productivity in marine shale gas in the Lower Paleozoic of Sichuan Basin and its periphery:A case study of the Wufeng-Longmaxi Formation of Jiaoshiba area[J]. Geology in China, 41(3):893-901(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201403016.htm
Liang Digang, Guo Tonglou, Chen Jianping, Bian Lizeng, Zhao Zhe. 2008. Some progresses on studies of hydrocarbon generation and accumulation in marine sedimentary regions, Southern China (Part 1):Distribution of four suits of regional marine source rocks[J]. Marine Origin Petroleum Geology, 13(2):1-16(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HXYQ200802001.htm
Ma Dongzhou, Chen Hongde, Zhu Lidong, Lin Liangbiao. 2006. Depositional system and lithofacies and paleogeography of the Silurian Shiniulan Formation in the southern Sichuan Basin, China[J]. Journal of Chengdu University of Technology (Science & Technology Edition), 33(3):228-232. http://en.cnki.com.cn/Article_en/CJFDTOTAL-CDLG200603001.htm
Ma Yongsheng, Guo Tonglou, Fu Xiaoyue, Xiao Zhaohui. 2002. Petroleum geology of marine sequences and exploration potential in Southern China[J]. Marine Origin Petroleum Geology, 7(3):19-29(in Chinese with English abstract).
Ma Zhongwu, Hu Chaoyong, Yan Jiaxin, Xie Xinong. 2008. Biogeochemical records at Shangsi section, northeast Sichuan in China:The Permian paleoproductivity proxies[J]. J Earth Sci., 19:461-470. https://www.researchgate.net/profile/Zhongwu_Ma/publication/248577758_Biogeochemical_Records_at_Shangsi_Section_Northeast_Sichuan_in_China_The_Permian_Paleoproductivity_Proxies/links/5551a8d108ae956a5d25fa18.pdf
Nie Haikuan, Tang Xuan, Bian Ruikang. 2009. Controlling factors for hale gas accumulation and prediction of potential development areain shale gas reservoir of south China[J]. Acta Petrolei Sinica, 30(4):484-491(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYXB200904003.htm
Nie Haikuan, Zhang Jinchuan, Bao Shujing, Bian Ruikang, Song Xiaojiao, Liu Jianbin. 2012. Shale gas accumulation conditions of the Upper Ordovician-Lower Silurian in Sichuan Basin and its periphery[J]. Oil and Gas Geology, 33(3):337-345(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYYT201203004.htm
Pu Boling, Jiang Youlu, Wang Yi, Bao Shujing, Liu Xinjin. 2010. Reservoir-forming conditions and favorable exploration zones of shale gas in Lower Silurian Longmaxi Formation of Sichuan Basin[J]. Acta Petrolei Sinica, 31(2):225-230(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SYXB201002009.htm
Rana Bo, Liu Shugen, Jansa Luba, Sun Wei, Yang Di, Ye Yuehao, Wang Shiyu, Luo Chao, Zhang Xuan, Zhang Changjun. 2015. Origin of the Upper Ordovieian-Lower Silurian cherts of the Yangtze block, South China, And their palaeogeographic significance[J]. Journal of Asian Earth Sciences, 10(8):1-15. https://www.researchgate.net/publication/276170635_Origin_of_the_Upper_Ordovician-lower_Silurian_cherts_of_the_Yangtze_block_South_China_and_their_palaeogeographic_significance
Wang Yuman, Dong Dazhong, Li Jianzhong, Wang Shejiao, Li Xinjing, Wang Li, Cheng Keming, Huang Jinliang. 2012. Reservoir characteristics of shale gas in Longmaxi Formation of the Lower Silurian, southern Sichuan[J]. Acta Petrolei Sinica, 33(4):551-561(in Chinese with English abstract). doi: 10.1038/aps.2012.9
Wei Xiangfeng, Huang Jing, Li Yuping, Wang Qingbo, Liu Ruobing, Wen Zhidong. 2014. The main factors controlling the enrichment and high production of Da'anzhai member continental shale gas in Yuanba area[J]. Geology in China, 41(3):970-981(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201403022.htm
Wu Kunyu, Zhang Tingshan, Yang Yang, Liang Xing, Zhou Songyuan, Zhang Zhao. 2016. Geological characteristics of Wufeng Longmaxi shale gas reservoir in the Huangjinba gas field, Zhaotong National Shale Gas Demonstration Area[J]. Geology in China, 43(1):275-287(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201601020.htm
Zhang Chunming, Zhang Weisheng, Guo Yinghai. 2012. Sedimentary environment and its effect on hydrocarbon source rocks of Longmaxi Formation in southeast Sichuan and northern Guizhou[J]. Earth Science Frontiers, 1(1):136-145(in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY201201016.htm
Zhang Jinchuan, Nie Haikuan, Xu Bo, Jiang Shengling, Zhang Peixian, Wang Zongyu. 2008. Geological condition of shale gas accumulation in Sichuan Basin[J]. Natural Gas Industry, 28(2):151-156(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRQG200802057.htm
Zou Caineng, Dong Dazhong, Wang Shejiao, Li Jianzhong, Li Xinjing, Wang Yuman, Li Denghua, Cheng Keming. 2010. Geological characteristics, formation mechanism and resource potential of shale gas in China[J]. Petroleum Exploration and Development, 37(6):641-653(in Chinese with English abstract). doi: 10.1016/S1876-3804(11)60001-3
郭彤楼, 刘若冰. 2013.复杂构造区高演化程度海相页岩气勘探突破的启示-以四川盆地东部盆缘JY1井为例[J].天然气地球科学, 24(4):643-651. http://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201304000.htm
郭旭升, 胡东风, 文治东, 刘若冰. 2014.四川盆地及周缘下古生界海相页岩气富集高产主控因素-以焦石坝地区五峰组-龙马溪组为例[J].中国地质, 41(3):893-901. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20140316&flag=1
梁狄刚, 郭彤楼, 陈建平, 边立曾, 赵喆. 2008.中国南方海相生烃成藏研究的若干新进展 (一) 南方四套区域性海相烃源岩的分布[J].海相油气地质, 13(2):1-16. http://www.cnki.com.cn/Article/CJFDTOTAL-HXYQ200802001.htm
马东洲, 陈洪德, 朱利东, 林良彪. 2006.川南下志留统石牛栏组沉积体系与岩相古地理[J].成都理工大学学报 (自然科学版), 33(3):228-232. http://www.cnki.com.cn/Article/CJFDTOTAL-CDLG200603001.htm
马永生, 郭彤楼, 付孝悦, 肖朝晖. 2002.中国南方海相石油地质特征及勘探潜力[J].海相油气地质, 7(3):19-29. http://www.cnki.com.cn/Article/CJFDTOTAL-HXYQ200203004.htm
聂海宽, 唐玄, 边瑞康. 2009.页岩气成藏控制因素及中国南方页岩气发育有利区预测[J].石油学报, 30(4):484-491. doi: 10.7623/syxb200904002
聂海宽, 张金川, 包书景, 边瑞康, 宋晓蛟, 刘建斌. 2012.四川盆地及其周缘上奥陶统-下志留统页岩气聚集条件[J].石油与天然气地质, 33(3):337-345. http://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201203004.htm
蒲泊伶, 蒋有录, 王毅, 包书景, 刘鑫金. 2010.四川盆地下志留统龙马溪组页岩气成藏条件及有利地区分析[J].石油学报, 31(2):225-230. doi: 10.7623/syxb201002008
王玉满, 董大忠, 李建忠, 王社教, 李新景, 王黎, 程克明, 黄金亮. 2012.川南下志留统龙马溪组页岩气储层特征[J].石油学报, 33(4):551-561. doi: 10.7623/syxb201204003
魏祥峰, 黄静, 李宇平, 王庆波, 刘若冰, 文治东. 2014.元坝地区大安寨段陆相页岩气富集高产主控因素[J].中国地质, 41(3):970-981. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20140322&flag=1
伍坤宇, 张廷山, 杨洋, 梁兴, 周松源, 张朝. 2016.昭通示范区黄金坝气田五峰-龙马溪组页岩气储层地质特征[J].中国地质, 43(1):275-287. doi: 10.12029/gc20160120 http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20160120&flag=1
张春明, 张维生, 郭英海. 2012.川东南-黔北地区龙马溪组沉积环境及对烃源岩的影响[J].地学前缘, 1(1):136-145. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201201016.htm
张金川, 聂海宽, 徐波, 姜生玲, 张培先, 汪宗余. 2008.四川盆地页岩气成藏地质条件[J].天然气工业, 28(2):151-156. http://www.cnki.com.cn/Article/CJFDTOTAL-TRQG200802057.htm
邹才能, 董大忠, 王社教, 李建忠, 李新景, 王玉满, 李登华, 程克明. 2010.中国页岩气形成机理、地质特征及资源潜力[J].石油勘探与开发, 37(6):641-653. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201006003.htm
-
