Geochemical characteristics of clastic rocks from the Jurassic Zhiluo Formation in Lingwu, Ningxia and analysis of tectonic background of the source area
-
摘要:
研究目的 直罗组在整个侏罗纪演化过程中处于湖进与湖退序列的转换时期，其构造背景对研究鄂尔多斯盆地西缘断褶带发育的启动时限意义重大。
研究方法 本文采用XRF和ICP-MS对宁夏灵武侏罗系直罗组16件碎屑岩样品进行了主微量元素及稀土元素测试分析，旨在揭示灵武直罗组碎屑岩地球化学特征及源区构造背景。
研究结果 主量元素间相关系数较低，微量元素及稀土元素自身相关系数较高，Al2O3与微量元素Co、Ni、Cr、V、Sc、Li、Cs、Be、Ga、Tl、Cu、Pb、Zn、Sn等元素之间相关系数多大于0.9，TiO2与Nb之间的相关系数为0.98，整体显示了沉积物源以陆源碎屑为主；富集集中型（K>1、CV>1）元素有Zr、U、CaO元素；富集分散型（K>1、CV＜1）元素有Al2O3、Fe2O3、MgO、Sr、Ba、U、Co、V、Sc、Li、Pb；贫乏分散型（K＜1、CV＜1）元素有SiO2、TiO2、MnO、Na2O、K2O、P2O5、Rb、Th、Nb、Ta、Ni、Cr、Cs、Be、Ga、Tl、Cu、Zn、As、Sn及稀土元素；缺乏贫乏集中型（K＜1、CV>1）元素。
结论 主量元素特征氧化物组合的平均值TiO2（0.54）、TFe2O3+MgO（4.58）、Al2O3/SiO2（0.18）与活动大陆边缘相似，微量元素蛛网图显示直罗组岩石富集Rb、K、U等大离子亲石元素，强烈亏损Nb、Sr、P、Ti，稀土元素球粒陨石标准化配分曲线总体表现为轻稀土富集，重稀土相对亏损的平缓右倾模式，泥岩CIA（70.76~81.88），砂岩ICV（1.02~1.6）>泥岩ICV（0.7~1.14），泥岩ICV基本小于或等于1，指示灵武直罗组没有或经历了很弱的再旋回作用，属于构造活动背景下的初次沉积，分化程度中等。地球化学特征表明灵武直罗组源区构造背景主要与活动大陆边缘相关，与大陆岛弧也有较多联系，总体显示为活动大陆边缘或活动陆缘消减带，而且可能为安第斯型活动大陆边缘。
Abstract:This paper is the result of geological survey engineering.
Objective The Zhiluo Formation represents a transitional phase in the lake's advancement and retreat within the broader context of Jurassic geological evolution. Its tectonic background holds paramount importance in exploring the inception timeline of fault-fold belt development along the western margin of the Ordos Basin. This study focuses on the Zhiluo Formation, specifically clastic rocks, from the Jurassic period in the Lingwu area, Ningxia.
Methods We conducted analyses using X-ray and ICP-MS techniques to uncover the geochemical characteristics of clastic rocks and the structural context of the source region.
Results Our results reveal that major element correlation coefficients are generally low, while trace elements and REE exhibit high values. Notably, correlation coefficients between Al2O3 and trace elements such as Co, Ni, Cr, V, Sc, Li, Cs, Be, Ga, Tl, Cu, Pb, Zn, and Sn exceed 0.9, and the correlation coefficients between TiO2 and Nb are at 0.98. This suggests that the primary source of sediment is terrigenous clastic material. Enrichment concentration-type elements (K>1, CV>1) include Zr, U, and CaO, while enrichment dispersion-type elements (K>1, CV < 1) consist of Al2O3, Fe2O3, MgO, Sr, Ba, U, Co, V, Sc, Li, and Pb. Poorly dispersive elements (K < 1, CV < 1) encompass SiO2, TiO2, MnO, Na2O, K2O, P2O5, Rb, Th, Nb, Ta, Ni, Cr, Cs, Be, Ga, Tl, Cu, Zn, As, Sn, and REE. No elements fall under the poor concentration type (K < 1, CV>1).
Conclusions The average values for key oxide combinations of main elements are TiO2 (0.54), TFe2O3+MgO (4.58), Al2O3/SiO2 (0.58), and Al2O3/SiO2 (0.18), indicating similarity to an active continental margin. A trace element spider diagram demonstrates the rocks of the Zhiluo Formation's richness in Rb, K, and U, which are large ion lithophile elements, and a significant deficit in Nb, Sr, P, and Ti. The chondrite-standardized REE distribution curve depicts a gentle right-leaning pattern, signifying LREE enrichment and HREE relative depletion. In terms of geochemical indices, the CIA (70.76-81.88) for mudstone exceeds the ICV (1.02-1.6) for sandstone, while mudstone ICV (0.7-1.14) remains mostly less than or equal to 1. This suggests that the Zhiluo Formation in the Lingwu area exhibits little to no recycling and is characteristic of primary sedimentation in the context of tectonic activity with a moderate degree of differentiation. Correlation diagrams indicates that tectonic background of the source region is primarily associated with an active continental margin. Additionally, it exhibits some links to continental island arc systems, suggesting an active continental margin or an active continental margin subduction zone, potentially resembling an Andean-type active continental margin.
-
Key words:
- Jurassic /
- Zhiluo Formation /
- geochemistry of clastic rocks /
- tectonic background /
- geological survey engineering /
- Lingwu /
- Ningxia
-
-
图 3 灵武直罗组泥岩（a）和砂岩（b）微量元素原始地幔标准化蛛网图（标准化值据Sun and McDonough, 1989）
Figure 3.
图 4 灵武直罗组砂岩、泥岩稀土元素球粒陨石标准化配分图（a、c）与北美页岩标准化配分模式图（b、d）（球粒陨石标准化值据Sun and McDonough, 1989；北美页岩标准化值据Gromet et al., 1984）
Figure 4.
图 8 灵武直罗组样品SiO2-K2O/Na2O构造环境判别图（据Roser and Korsch, 1986）
Figure 8.
图 9 灵武直罗组样品(TFe2O3+MgO)-TiO2（a）和(TFe2O3+MgO)-Al2O3/SiO2（b）构造环境判别图（据Bhatia, 1983）
Figure 9.
图 10 灵武直罗组样品Ti/Zr-La/Sc构造环境判别图（据Bhatia and Crook, 1986）
Figure 10.
图 11 灵武直罗组样品La-Th-Sc（a）和Th-Co-Zr/10（b）构造环境判别图（据Bhatia and Crook, 1986）
Figure 11.
图 12 灵武直罗组样品QFL与QFR图解（a，据Valloni and Maynard, 1981；b，据Crook, 1974）
Figure 12.
表 1 灵武直罗组沉积物主量元素含量分析结果（%）
Table 1. Analytical result (%) of major elements in sediments of Zhiluo Formation in Lingwu
下载: 导出CSV

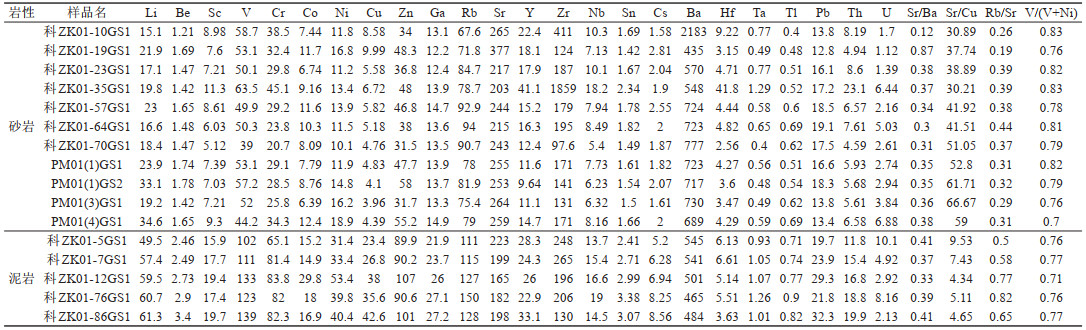

表 2 灵武直罗组沉积物微量元素含量分析结果（10-6）
Table 2. Analytical result (10-6) of trace elements in sediments of Zhiluo Formation in Lingwu
下载: 导出CSV
表 3 灵武直罗组沉积物稀土元素含量分析结果（10-6）
Table 3. Analytical result (10-6) of rare earth element in sediments of Zhiluo Formation in Lingwu
下载: 导出CSV

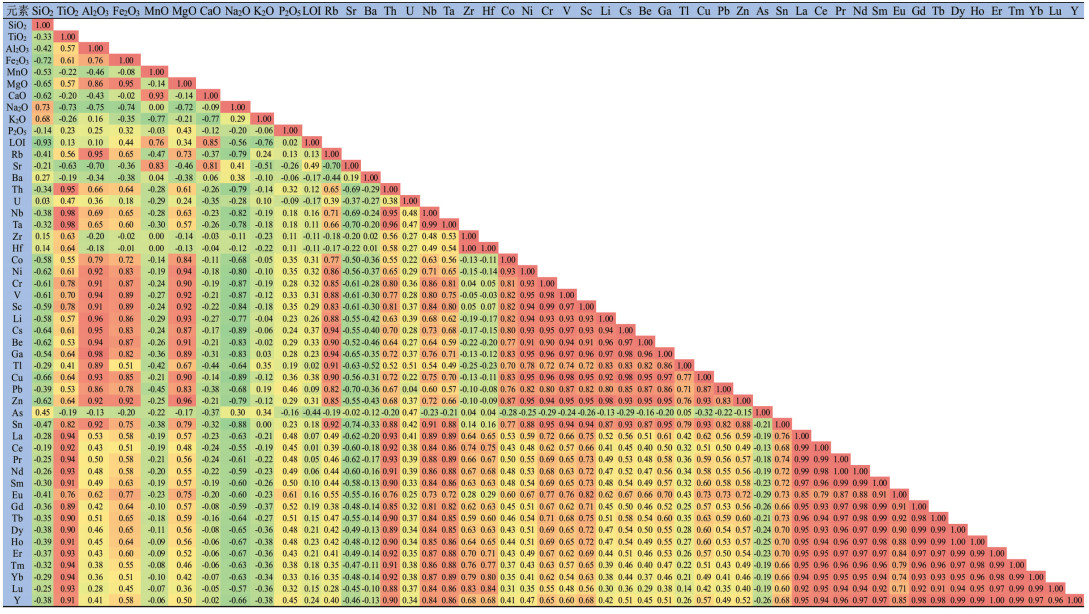

表 4 灵武直罗组沉积物主量、微量、稀土元素相关性分析结果
Table 4. Characteristic element parameters of major, trace and REEs in sediments of Zhiluo Formation in Lingwu
下载: 导出CSV

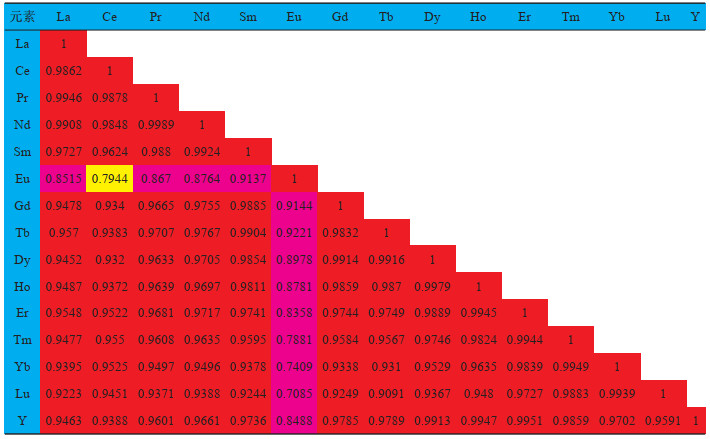

表 5 灵武直罗组沉积物稀土元素相关性分析结果
Table 5. Correlation analysis results of REEs in sediments of Zhiluo Formation, Lingwu
下载: 导出CSV
表 6 灵武直罗组沉积物各元素特征参数统计
Table 6. Statistics of characteristic parameters of elements in sediments of Zhiluo Formation in Lingwu
下载: 导出CSV
表 7 灵武直罗组砂岩与不同构造背景砂岩主量元素特征数值比较
Table 7. Comparison of major element characteristics between sandstone of Zhiluo Formation in Lingwu and sandstone of different structural backgrounds
下载: 导出CSV
-
Absar N, Raza M, Roy M, Naqvi S M, Roy A K. 2009. Composition and weathering conditions of Paleoproterozoic upper crust of Bundelkhand craton, Central India: Records from geochemistry of clastic sediments of 1.9 Ga Gwalior Group[J]. Precambrian Research, 168(3/4): 313-329.
Bai Daoyuan, Zhou Liang, Wang Xianhui, Zhang Xiaoyang, Ma Tieqiu. 2007. Geochemistry of Nanhua-Cambrian sandstones in southeastern Hunan, and its constraints on Neoproterozoic-Early Paleozoic tectonic setting of South China[J]. Acta Geologica Sinica, 81(6): 755-771 (in Chinese with English abstract). http://www.researchgate.net/publication/282174899_Geochemistry_of_Nanhuan_-_Cambrian_sandstones_in_southeastern_Hunan_and_its_constraints_on_Neoproterozoic_-_Early_Paleozoic_tectonic_setting_of_south_China
Bhatia M R. 1983. Plate tectonics and geochemical composition of sandstones[J]. The Journal of Geology, 91(6): 611-627. doi: 10.1086/628815
Bhatia M R. 1985. Rare earth element geochemistry of Australian Paleozoic graywackes and mudrocks: Province and tectonic control[J]. Sedimentary Geology, 45: 97-113. doi: 10.1016/0037-0738(85)90025-9
Bhatia M R, Crook K A. 1986. Trace element characteristics of graywackes and tectonic setting discrimination of sedimentary basins[J]. Contributions to Mineralogy and Petrology, 92(2): 181-193. doi: 10.1007/BF00375292
Cao Daiyong, Xu Hao, Liu Kang, Wei Yingchun, Zhang Wenfeng, Wang Xinguo. 2015. Coalfield tectonic evolution and its controlling factors at the western margin of Ordos Basin[J]. Chinese Journal of Geology, 50(2): 410-427 (in Chinese with English abstract).
Chen Yin, Feng Xiaoxi, Chen Lulu, Jin Ruoshi, Miao Peisen, Sima Xianzhang, Miao Aisheng, Tang Chao, Wang Gui, Liu Zhongren. 2017. An analysis of U-Pb dating of detrital zircons and modes of occurrence of uranium minerals in the Zhiluo Formation of northeastern Ordos Basin and their indication to uranium sources[J]. Geology in China, 44(6): 1190-1206 (in Chinese with English abstract).
Condie K C. 1993. Chemical composition and evolution of the upper continental crust: Contrasting results from surface samples and shales[J]. Chemical Geology, 104(1/4): 1-37.
Cox R, Lowe D R, Cullers R L. 1995. The influence of sediment recycling and basement composition on evolution of mudrock chemistry in the southwestern United States[J]. Geochimica et Cosmochimica Acta, 59(14): 2919-2940. doi: 10.1016/0016-7037(95)00185-9
Crook K A W. 1974. Lithogenesis and geotectonics: The significance of compositional variation in flysch arenites (graywackes)[C]//Sepm Society for Sedimentary Geology: Tulsa, OK, USA, 304-310.
Cullers R L, Basu A, Suttner L J. 1988. Geochemical signature of provenance in sand-size mineral in soil and stream near the tobacco root batholiths, Montana, USA[J]. Chemical Geology, 70: 335-348. doi: 10.1016/0009-2541(88)90123-4
Fedo C M, Nesbitt H W, Young G M. 1995. Unraveling the effects of potassium metasomatism in sedimentary rocks and paleosols, with implications for paleoweathering conditions and provenance[J]. Geology, 23(10): 921-924. doi: 10.1130/0091-7613(1995)023<0921:UTEOPM>2.3.CO;2
Floyd P A, Leveridge B E. 1987. Tectonic environment of the Devonian Gramscatho Basin, South Cornwall: Framework mode and geochemical evidence from Turbiditic sandstones[J]. Journal of the Geological Society, 144(4): 531-542. doi: 10.1144/gsjgs.144.4.0531
Garzanti E, Padoan M, Setti M, Najman Y, Peruta L, Villa I M. 2013. Weathering geochemistry and Sr-Nd fingerprints of equatorial upper Nile and Congo muds[J]. Geochemistry Geophysics Geosystems, 14(2): 292-316. doi: 10.1002/ggge.20060
Geological Survey Institute of Ningxia Hui Autonomous Region. 2017. "China Regional Geology. Ningxia Zhi"[M]. Beijing: Geological Publishing House, 236-240 (in Chinese).
Gromet L P, Haskin L A, Korotev R L, Dymek R F. 1984. The "north american shale composite": Its compilation, major and trace element characteristics[J]. Geochimica et Cosmochimica Acta, 48(12): 2469-2482. doi: 10.1016/0016-7037(84)90298-9
Guo Hu, Chen Lulu, Tang Chao, Zhou Hongying, Zhu Qiang, SiMa Xianzhang, Yu Rengan. 2019. New recognition on the relationship between selenium-bearing minerals and uranium enrichment in Zhiluo Formation of Huangling area, Ordos Basin[J]. Geology in China, 46(1): 207-208 (in Chinese with English abstract).
He Jingwen, Zhu Wenbin, Zheng Bihai, Wu Hailin, Ge Rongfeng, Luo Meng. 2015. Provenance of Sinian Sugetbrak sedimentary rocks in the Aksu area, NW Tarim: Evidence from detrital zircon geochronology[J]. Acta Geological Sinica, 89(1): 149-162 (in Chinese with English abstract).
Jin Ruoshi, Feng Xiaoxi, Teng Xueming, Nie Fengjun, Cao Haiyang, Hou Huiqun, Liu Hongxu, Miao Peisen, Zhao Hualei, Chen Lulu, Zhu Qiang, Zhou Xiaoxi. 2020. Genesis of green sandstone/mudstone from Middle Jurassic Zhiluo Formation in the Dongsheng Uranium Orefield, Ordos Basin and its enlightenment for uranium mineralization[J]. China Geology, 3: 52-66. doi: 10.31035/cg2020002
Kamp P C V D, Leake B E. 1985. Petrography and geochemistry of feldspathic and mafic sediments of the northeastern Pacific margin[J]. Transactions of the Royal Society of Edinburgh Earth Sciences, 76(4): 411-449. doi: 10.1017/S0263593300010646
Lei Kaiyu. 2016. Comparative Research on Sedimentary Characteristics and Provenance of Zhiluo Formation in the Northern Ordos Basin and Southern Ordos Basin[D]. Xi'an: Northwest University (in Chinese with English abstract).
Li Zhiming, Liu Jiajun, Hu Ruizhong, Liu Yuping, Li Chaoyang, He Mingqin. 2003. Tectonic setting and provenance of source rock for sedimentary rocks in Lanping Mesozoic-Cenozoic Basin: Evidences from geochemistry of sandstones[J]. Acta Sedimentolohica Sinica, 21(4): 547-552 (in Chinese with English abstract).
Long Xiaoping, Yuan Chao, Sun Ming, Xiao Wenjiao, Lin Shoufa, Wang MingJing, Cai Keda. 2008. Geochemical characteristics and sedimentary environments of Devonian low metamorphic clastic sedimentary rocks in the southern margin of the Chinese Altai, North Xinjiang[J]. Acta Petrologica Sinica, 24(4): 718-731 (in Chinese with English abstract).
Luo Wei, Liu Chiyang, Zhang Dongdong, Wang Jianqiang, Niu Haiqing, Guo Pei. 2016. Geochemistry characteristics of the Middle Jurassic Zhiluo Formation in Helan Mountain-Liupan Mountain area[J]. Acta Geologica Sinica, 18(6): 1030-1043 (in Chinese with English abstract).
McLennan S M, Taylor S R. 1991. Sedimentary rocks and crustal evolution: Tectonic setting and secular trends[J]. The Journal of Geology, 99(1): 1-21. doi: 10.1086/629470
McLennan S M, Hemming S, Mcdaniel D K, Hanson G N. 1993. Geochemical approaches to sedimentation, provenance, and tectonics[J]. Geological Society of America Special Papers, 284: 21-40.
Miao Zongli, Zhu Lijuan, Hou Mingcai, Chen Anqing, Luo Wen, Shi Xin, Wang Haihong, Liu Yicang, Wang Lianguo, Hou Changbing, Guo Xiaojun, Guo Jinzhe, Shao Xiaoyan. 2018. Sedimentary facies of Middle Jurassic Zhiluo Formation in Yanwu area, Ordos Basin[J]. Journal of Chengdu University of Technology (Natural Science Edition), 45(2): 166-176 (in Chinese with English abstract).
Nesbitt H W. 1979. Movility and fractionation of rare earth elements during weathering of a granodiorite[J]. Nature, 279: 206-210. doi: 10.1038/279206a0
Nesbitt H W, Young G M. 1982. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites[J]. Nature, 299(5885): 715-717. doi: 10.1038/299715a0
Nesbitt H W, MacRae N D, Kronberg B I. 1990. Amazon deep-sea fan muds: Light Ree enriched products of extreme chemical weathering[J]. Earth and Planetary Science Letters, 100: 118-123. doi: 10.1016/0012-821X(90)90180-6
Nesbitt H W, Young G M, Mclennan S M, Keays R R. 1996. Effects of chemical weathering and sorting on the petrogenesis of siliciclastic sediments, with implications for provenance studies[J]. Journal of Geology, 104(5): 525-542. doi: 10.1086/629850
Roser B P, Korsch R J. 1986. Determination of tectonic setting of sandstone-mudstone suites using content and ratio[J]. The Journal of Geology, 94(5): 635-650. doi: 10.1086/629071
Roser B P, Korsch R J. 1988. Provenance signatures of sandstone- mudstone suites determined using discriminant function analysis of major-element data[J]. Chemical Geology, 67(1): 119-139.
Shao L, Stattegger K, Garbe-Schoenberg C. 2001. Sandstone petrology and geochemistry of the Turpan Basin (NW China): Implications for the tectonic evolution of a continental basin[J]. Journal of Sedimentary Research, 71(1): 37-49. doi: 10.1306/041800710037
Song Fang, Niu Zhijun, He Yaoyan, Yang Wengqiang. 2016. U-Pb age of detrital zirconand its restriction of provenance paleogeographic characteristics of Early Nanhua Period in Middle Yangzi[J]. Acta Geologica Sinica, 90(10): 2661-2680 (in Chinese with English abstract).
Su Benxun, Chen Yuelong, Liu Fei, Wang Qiaoyun, Zhang Hongfei, Lan Zhongwu. 2006. Geochemical characteristics and significance of Triassic sandstones of Songpan-Ganzi block[J]. Acta Petrologica Sinica, 22(4): 961-970 (in Chinese with English abstract).
Sun Lixing, Zhang Yun, Zhang Tianfu, Cheng Yinhang, Li Yanfeng, Ma Hailin, Yang Cai, Guo Jiacheng, Lu Chao, Zhou Xiaoguang. 2017. Jurassic sporopollen of Yan'an Formation and Zhiluo Formation in the northeastern Ordos Basin, Inner Mongolia, and its paleoclimatic significance[J]. Earth Science Frontiers, 24(1): 32-47 (in Chinese with English abstract).
Sun S S, McDonough W F. 1989. Chemical and isotopic systematics of oceanic basalts: Implications for mantle compositions and processes[J]. Geological Society London Special Publications, 42: 313-345. doi: 10.1144/GSL.SP.1989.042.01.19
Tao Rui, Deng Jianghong, Wang Chunlin, Gong Tingting. 2019. New understanding of the Devonian Wenquan Formation in Fengqing, western Yunnan[J]. Journal of Stratigraphy, 43(1): 63-73 (in Chinese with English abstract).
Taylor S R, McLennan S M. 1985. The Continental Crust: Its Composition and Evolution[M]. Oxford: Blackwell, 312.
Valloni R, Maynard J B. 1981. Detrital modes of recent deep-sea sands and their relation to tectonic setting: A first approximation[J]. Sedimentology, 28: 75-83. doi: 10.1111/j.1365-3091.1981.tb01664.x
Wronkiewicz D J, Condie K C. 1989. Geochemistry and provenance of sediments from the Pongola Supergroup, South Africa: Evidence for a 3.0-Ga-old continental craton[J]. Geochimica et Cosmochimica Acta, 53(7): 1537-1549. doi: 10.1016/0016-7037(89)90236-6
Wu Sujuan, Zhang Yongsheng, Xing Enyuan. 2016. Geochemistry of Ordovician detrital rocks and its constrains on provenance in Zhuozishan area, Northwest Ordos Basin[J]. Acta Geologica Sinica, 90(8): 1860-1873 (in Chinese with English abstract).
Wu Zhaojian, Han Xiaozhong, Yi Chao, Qi Caiji, Hui Xiaochao, Wang Mingtai. 2013. Geochemistry of sandstones from the Middle Jurassic Zhiluo Formation, Dongsheng District, Northeastern Ordos Basin: Implications for provenance and tectonic setting[J]. Geoscience, 27(3): 557-567 (in Chinese with English abstract).
Xu Daliang, Liu Hao, Wei Yunxu, Peng Lianhong, Deng Xing. 2016. Detrital zircon U-Pb dating of Zhengjiaya Formation from the Shengnongjia area in the Northern Yangtze Block and its tectonic implications[J]. Acta Geologica Sinica, 90(10): 2648-2660 (in Chinese with English abstract).
Xu Zhongjie, Cheng Rihui, Wang Liaoliang, Zhang Li, Shen Yanjie, Yu Zhengfeng. 2013. Mineralogical and element geochemical characteristics of the Late Triassic-Middle Jurassic sedimentary rocks in southwestern Fujian Province: Constraints on changes of basin tectonic settings[J]. Acta Petrologica Sinica, 29(8): 2913-2924 (in Chinese with English abstract).
Xue Rui, Zhao Junfeng, Yan Zhandong, Yang Yao, Zhao Xudong, Zhao Zhongping. 2017. Sedimentary characteristics and evolution of the Jurassic Zhiluo Formation in northern Ordos Basin[J]. Journal of Palaeogeography, 19(6): 999-1012 (in Chinese with English abstract).
Yang Jun, Wang Shanbo, Liu Fei. 2019. Sedimentary facies of the Zhiluo Formation and its relationship with uranium mineralization in the Huanxian area, west of Ordos Basin[J]. Science Technology and Engineering, 19(17): 64-70 (in Chinese with English abstract).
Yi Chao, Han Xiaozhong, Li Xide, Zhang Kang, Chen Xinlu. 2014. Study on sandstone petrologic feature of the Zhiluo Formation and its controls on uranium mineralization in northeastern Ordos Basin[J]. Geological Journal of China Universities, 20(2): 185-197 (in Chinese with English abstract).
Zhang Bin, Liu Hongxu, Yi Chao, Ding Bo, Zhang Yan. 2020. Petrogeochemical characteristics and provenance indication of the sandstone from lower submember, lower member of Zhiluo Formation in Nalinggou Area, Northen Ordos Basin[J]. Uranium Geology, 36(2): 84-95 (in Chinese with English abstract).
Zhang Long, Wu Bailin, Liu Chiyang, Lei Kaiyu, Hou Huiqun, Sun Li, Cun Xiaoni, Wang Jianqiang. 2016. Provenance analysis of the Zhiluo Formation in the sandstone-hosted uranium deposits of the Northern Ordos Basin and implications for uranium mineralization[J]. Acta Geologica Sinica, 90(12): 3441-3453 (in Chinese with English abstract). doi: 10.3969/j.issn.0001-5717.2016.12.012
Zhang Tianfu, Sun Lixing, Zhang Yun, Cheng Yinhang, Li Yanfeng, Ma Hailin, Lu Chao, Yang Cai, Guo Gengwan. 2016. Geochemical characteristics of the Jurassic Yan'an and Zhiluo Formations in the northern margin of Ordos Basin and their paleoenvironmental implications[J]. Acta Geologica Sinica, 90(12): 3454-3472 (in Chinese with English abstract).
Zhang Yan, Yi Chao. 2017. Inversion method of physical properties of optimized logging interpretation in Ordos Basin application of Zhiluo Formation in the northern area[J]. Journal of Minerals, (Supp. ): 280-281 (in Chinese with English abstract).
Zhang Yun, Zhang Tianfu, Cheng Xianyu, Sun Lixin, Cheng Yinhang, Wang Shaoyi, Wang Shanbo, Ma Hailin, Lu Chao. 2022. A brief analysis on the three-dimensional geological structure and uranium mineralization of Jurassic uranium-bearing rock series in the northeastern Ordos Basin[J]. Geology in China, 49(1): 66-80 (in Chinese with English abstract).
Zhang Zilong, Han Xiaozhong, Li Shengxiang. 2008. Geochemical characteristics and uranium metallogenesis of sand bodies in Zhiluo Formation, Ordos Basin[J]. World Nuclear Geology, 25(2): 79-85 (in Chinese with English abstract).
Zhang Zilong, Fan Honghai, Cai Yuqi, Zhao Xingqi, Liu Hongxu, He Feng, Li Ping, Yang Mengjia. 2016. The organic geochemical characteristics of the Zhiluo Formation and its relationship with uranium mineralization in the Huangling area, Ordos Basin[J]. Acta Geologica Sinica, 90(12): 3408-3423 (in Chinese with English abstract).
Zhao Hualei, Chen Lulu, Feng Xiaoxi, Li Jianguo, Chen Yin, Wang Gui. 2018. Features of clay minerals in the Middle Jurassic Zhiluo Formation sandstones of the Nalinggou area in the Ordos Basin and a preliminary comparison with adjacent areas[J]. Geological Journal of China Universities, 24(5): 627-636 (in Chinese with English abstract).
Zhao Jun feng, Liu Chiyang, Liang Jiwei, Wang Xiaomei, Yu Lin, Huang Lei, Liu Yongtao. 2010. Restoration of the origin sedimentary boundary of the Middle Jurassic Zhiluo Formation-Anding Formation in the Ordos Basin[J]. Acta Geologica Sinica, 84(2): 553-569 (in Chinese with English abstract).
Zhao Lei. 2011. Sedimentary Characteristics and its Hydrogeological Significance of Jurassic Zhiluo Formation in the East of Ningxia Province[D]. Shandong: Shandong University of Science and Technology (in Chinese with English abstract).
Zhao Yingli, 2010. Late Paleozoic Tectonic Evolution of the Central and Southern Grate Xing'an Ranges: Constrains from Provenance Characteristics of Permian Sandstones[D]. Changchun: Jilin University (in Chinese with English abstract).
Zhao Yingli, Liu Yongjiang, Han Guoqing, Wu Lina, Li Weimin, Wen Quanbo, Liang Chengyue. 2012. Geochemical characteristics of major elements in the Permian sandstones from the central and southern Great Xing'an Ranges and discriminations on their tectonic environment of the provenance[J]. Journal of Jilin University (Earth Science Edition), (S2): 285-297 (in Chinese with English abstract).
柏道远, 周亮, 王先辉, 张晓阳, 马铁球. 2007. 湘东南华南系—寒武系砂岩地球化学特征及对华南新元古代—早古生代构造背景的制约[J]. 地质学报, 81(6): 755-771.
曹代勇, 徐浩, 刘亢, 魏迎春, 占文锋, 王信国. 2015. 鄂尔多斯盆地西缘煤田构造演化及其控制因素[J]. 地质科学, 50(2): 410-427.
陈印, 冯晓曦, 陈路路, 金若时, 苗培森, 司马献章, 苗爱生, 汤超, 王贵, 刘忠仁. 2017. 鄂尔多斯盆地东北部直罗组内碎屑锆石和铀矿物赋存形式简析及其对铀源的指示[J]. 中国地质, 44(6): 1190-1206. http://geochina.cgs.gov.cn/cn/article/doi/10.12029/gc20170608
郭虎, 陈路路, 汤超, 周红英, 朱强, 司马献章, 俞礽安. 2019. 鄂尔多斯盆地黄陵地区直罗组含硒矿物与铀富集关系的新认识[J]. 中国地质, 46(1): 207-208. http://geochina.cgs.gov.cn/cn/article/doi/10.12029/gc20190115
何景文, 朱文斌, 郑碧海, 吴海林, 葛荣峰, 罗梦. 2015. 塔里木西北缘阿克苏地区震旦系苏盖特布拉克组沉积物源分析: 碎屑锆石年代学证据[J]. 地质学报, 89(1): 149-162.
雷开宇. 2016. 鄂尔多斯盆地北部和南部直罗组沉积—物源对比研究及其意义[D]. 西安: 西北大学.
李志明, 刘家军, 胡瑞忠, 刘玉平, 李朝阳, 何明勤. 2003. 兰坪中新生代盆地沉积岩源区构造背景和物源属性研究——砂岩地球化学证据[J]. 沉积学报, 21(4): 547-552.
龙晓平, 袁超, 孙敏, 肖文交, 林寿发, 王毓靖, 蔡克大. 2008. 北疆阿尔泰南缘泥盆系浅变质碎屑沉积岩地球化学特征及其形成环境[J]. 岩石学报, 24(4): 718-731.
罗伟, 刘池洋, 张东东, 王建强, 牛海青, 郭佩. 2016. 贺兰山—六盘山地区中侏罗统直罗组地球化学特征及其地质意义[J]. 古地理学报, 18(6): 1030-1043.
缪宗利, 朱莉娟, 侯明才, 陈安清, 罗文, 石鑫, 王海红, 刘一仓, 王联国, 侯长冰, 郭小军, 郭京蜇, 邵晓岩. 2018. 鄂尔多斯盆地演武地区中侏罗统直罗组沉积相[J]. 成都理工大学学报(自然科学版), 45(2): 166-176.
宁夏回族自治区地质调查院. 2017. 《中国区域地质志·宁夏志》[M]. 北京: 地质出版社, 236-240.
宋芳, 牛志军, 何垚砚, 杨文强. 2016. 中扬子地区南华纪早期碎屑锆石U-Pb及其对物源特征和古地理格局的约束[J]. 地质学报, 90(10): 2661-2680.
苏本勋, 陈岳龙, 刘飞, 王巧云, 张宏飞, 兰中伍. 2006. 松潘—甘孜地块三叠系砂岩的地球化学特征及其意义[J]. 岩石学报, 22(4): 961-970.
孙立新, 张云, 张天福, 程银行, 李艳峰, 马海林, 杨才, 郭佳成, 鲁超, 周晓光. 2017. 鄂尔多斯北部侏罗纪延安组、直罗组孢粉化石及其古气候意义[J]. 地学前缘, 24(1): 32-47.
陶瑞, 邓江红, 王春林, 龚婷婷. 2019. 滇西凤庆习谦泥盆系温泉组地层新认识[J]. 地层学杂志, 43(1): 63-73.
吴素娟, 张永生, 邢恩袁. 2016. 桌子山地区奥陶系乌拉力克组碎屑岩地球化学特征及其对物源的制约[J]. 地质学报, 90(8): 1860-1873.
吴兆剑, 韩效忠, 易超, 祁才吉, 惠小朝, 王明太. 2013. 鄂尔多斯盆地东胜地区直罗组砂岩的地球化学特征与物源分析[J]. 现代地质, 27(3): 557-567.
徐大良, 刘浩, 魏运许, 彭练红, 邓新. 2016. 扬子北缘神农架地区郑家垭组碎屑锆石年代学及其构造意义[J]. 地质学报, 90(10): 2648-2660.
许中杰, 程日辉, 王嘹亮, 张莉, 沈艳杰, 于振锋. 2013. 闽西南地区晚三叠—中侏罗世沉积岩矿物和元素地球化学特征: 对盆地构造背景转变的约束[J]. 岩石学报, 29(8): 2913-2924.
薛锐, 赵俊峰, 闫占冬, 杨瑶, 赵旭东, 赵中平. 2017. 鄂尔多斯盆地北部侏罗系直罗组沉积特征与演化[J]. 古地理学报, 19(6): 999-1012.
杨君, 王善博, 刘飞. 2019. 鄂尔多斯盆地西缘环县地区直罗组沉积相及其与铀矿化的关系[J]. 科学技术与工程, 19(17): 64-70.
易超, 韩效忠, 李西得, 张康, 陈心路. 2014. 鄂尔多斯盆地东北部直罗组砂岩岩石学特征与铀矿化关系研究[J]. 高校地质学报, 20(2): 185-197. doi: 10.3969/j.issn.1006-7493.2014.02.003
张宾, 刘红旭, 易超, 丁波, 张艳. 2020. 鄂尔多斯盆地北部纳岭沟地区直罗组下段下亚段砂岩岩石地球化学特征及对物源的指示[J]. 铀矿地质, 36(2): 84-95.
张龙, 吴柏林, 刘池洋, 雷开宇, 侯惠群, 孙莉, 寸小妮, 王建强. 2016. 鄂尔多斯盆地北部砂岩型铀矿直罗组物源分析及其铀成矿意义[J]. 地质学报, 90(12): 3441-3453.
张天福, 孙立新, 张云, 程银行, 李艳锋, 马海林, 鲁超, 杨才, 郭根万. 2016. 鄂尔多斯盆地北缘侏罗纪延安组、直罗组泥岩微量、稀土元素地球化学特征及其古沉积环境意义[J]. 地质学报, 90(12): 3454-3472.
张艳, 易超. 2017. 最优化测井解释物性反演方法在鄂尔多斯盆地北部地区直罗组中的应用[J]. 矿物学报, (增刊): 280-281.
张云, 张天福, 程先钰, 孙立新, 程银行, 王少轶, 王善博, 马海林, 鲁超. 2022. 鄂尔多斯盆地东北部侏罗纪含铀岩系三维地质结构与铀成矿规律浅析[J]. 中国地质, 49(1): 66-80. http://geochina.cgs.gov.cn/cn/article/doi/10.12029/gc20220105
张字龙, 韩效忠, 李胜祥. 2008. 鄂尔多斯盆地直罗组砂体地球化学特征及其铀成矿作用[J]. 世界核地质科学, 25(2): 79-85.
张字龙, 范洪海, 蔡煜琦, 赵兴齐, 刘红旭, 贺锋, 李平, 杨梦佳. 2016. 鄂尔多斯盆地黄陵地区直罗组有机地球化学特征及其与铀成矿关系[J]. 地质学报, 90(12): 3408-3423.
赵华雷, 陈路路, 冯晓曦, 李建国, 陈印, 王贵. 2018. 鄂尔多斯盆地纳岭沟地区直罗组砂岩粘土矿物特征及初步对比研究[J]. 高校地质学报, 24(5): 627-636.
赵俊峰, 刘池洋, 梁积伟, 王晓梅, 喻林, 黄雷, 刘永涛. 2010. 鄂尔多斯盆地直罗组—安定组沉积期原始边界恢复[J]. 地质学报, 84(4): 553-569.
赵蕾. 2011. 宁东地区侏罗系直罗组沉积特征及其水文地质意义[D]. 青岛: 山东科技大学.
赵英利. 2010. 大兴安岭中南部二叠纪砂岩物源分析对晚古生代区域构造演化的制约[D]. 长春: 吉林大学.
赵英利, 刘永江, 韩国卿, 吴琳娜, 李伟民, 温泉波, 梁琛岳. 2012. 大兴安岭中南段二叠纪砂岩主量元素地球化学特征及物源区构造环境的判别[J]. 吉林大学学报(地球科学版), 42(S2): 258-297.
-
