PHYSICAL MODEL EXPERIMENTAL STUDY ON DEFORMATION AND FAILURE OF OVERLYING ROCK SLOPE UNDER THE CONDITION OF STEEP COAL SEAM MINING
-

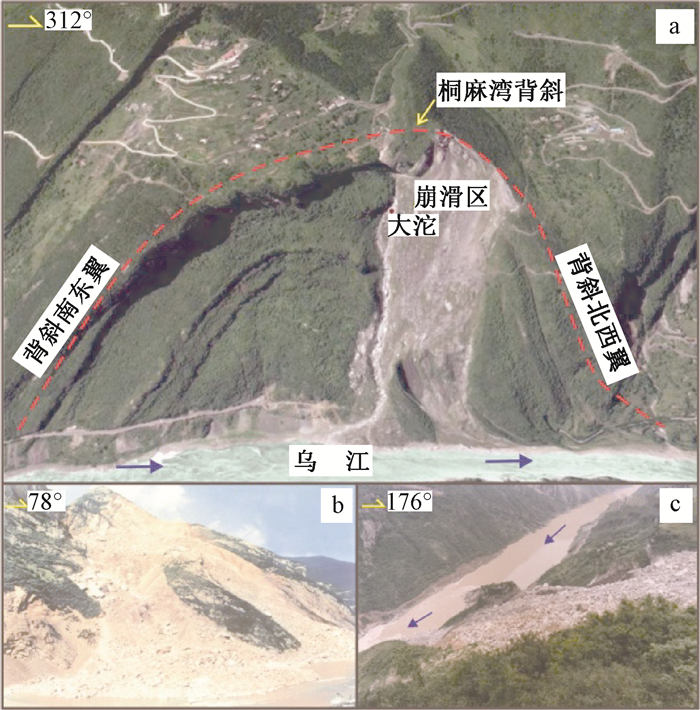

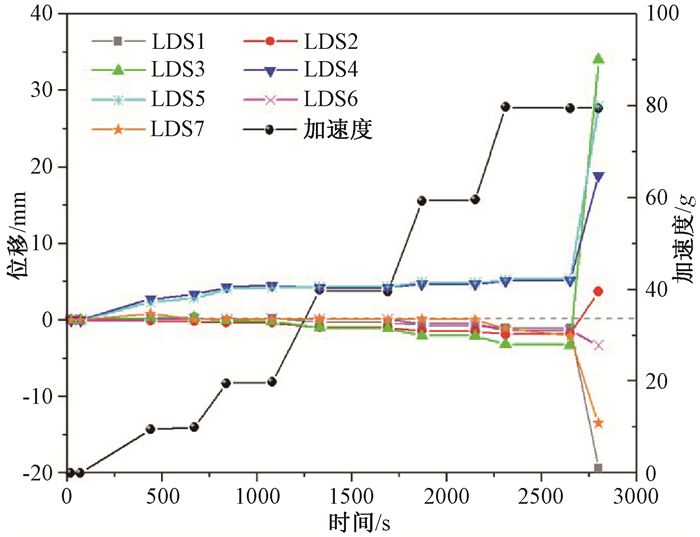

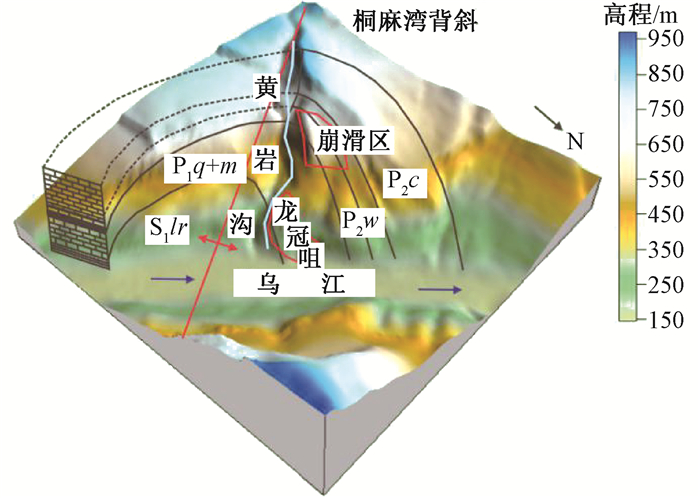

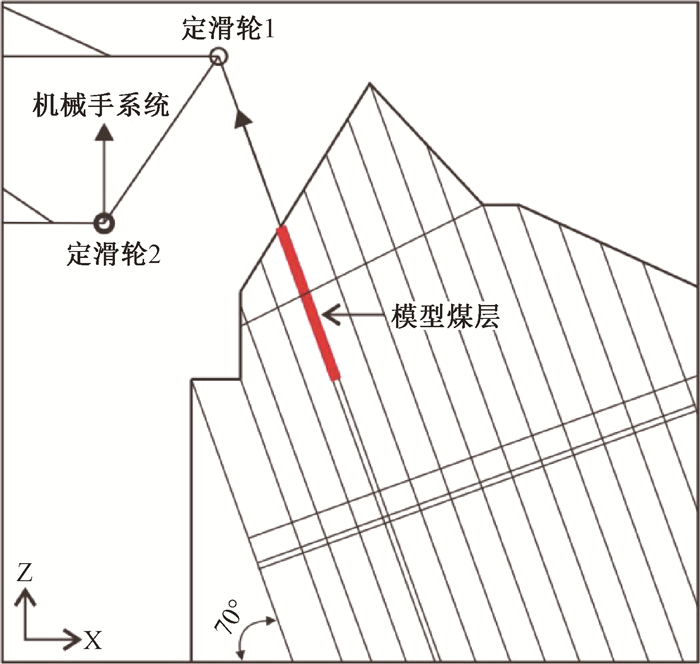

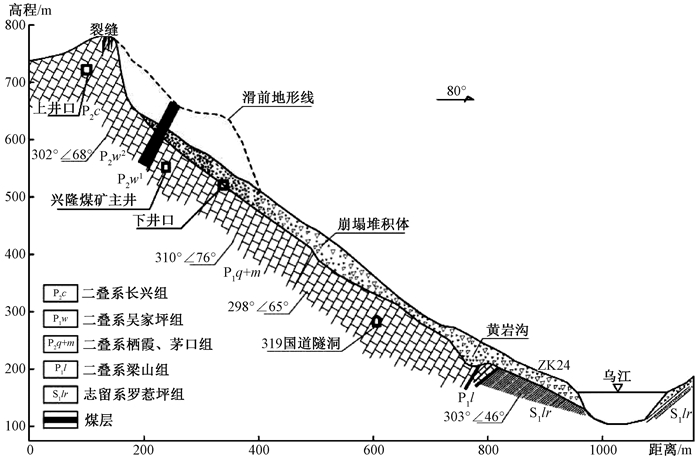

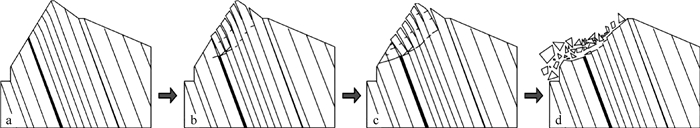

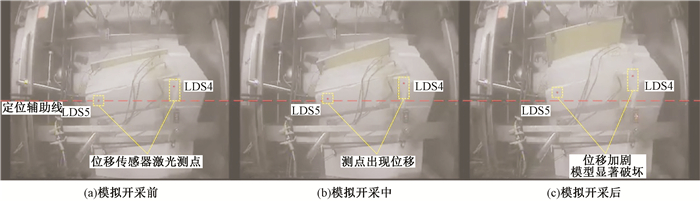

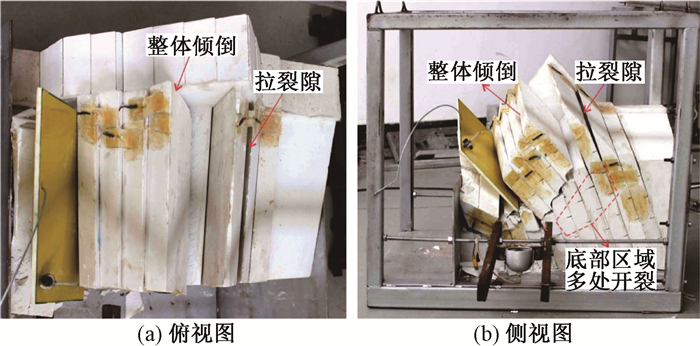

摘要: 大型岩质滑坡是中国西南岩溶矿区的主要地质灾害类型，其破坏和成灾过程具有复合性。以我国重庆武隆鸡冠岭滑坡为例，通过离心物理模型试验研究了地下开采条件下陡倾灰岩斜坡的变形失稳机制。试验时随着煤层模型板被拔出，上覆岩层在拟重力作用下开始出现位移与层间错动，当煤层模型被拔出150 mm时，模型山体发生显著破坏。试验结果表明：陡倾灰岩斜坡在长期重力作用下，会出现弯曲倾倒的变形，随着地下煤层逐渐采空，上覆陡倾层状岩体失去支撑，岩层层面分离并产生拉张裂缝，岩体变形加剧发生倾倒破坏，并对煤层下部的稳定岩体形成挤压，下伏稳定岩体发生剪切破坏，最终导致鸡冠岭以倾倒-滑移的复合模式整体失稳。这一研究对中国西南山区大型岩质滑坡的早期识别与失稳机制分析具有指导意义。Abstract: Major rockslide is the main type of geological hazards in the mining mountainous areas of southwestern China. The failure modes and behaviors of this kind of rockslides are complex. Taking the Jiguanling landslide as an example, centrifuge modelling was taken to analyze the failure mechanism of a steep-dip carbonate slope which was induced by goaf in this study. With the model plate of coal seam was pulling out, the overlying strata began to move and dislocate under centrifugal acceleration. The model rock slope failed completely when the model plate was pulled out about 150mm.The experimental results show that the deformation tendency of bending and toppling appeared in steep-dip and layered limestone slopes by gravity. With the underground mining of coal seams, overlying steep-dip and layered rock slope lost its support, then strata got separated and tension fissures were generated. These rock strata were toppled due to severe deformation. The underlying stable rock mass was squeezed by the toppled overlying strata, and shear failure occurred. In the end, the Jiguangling rock slope was failed with the composite mode of toppling-sliding. This study could be a guide of early identification and failure mechanism analysis for major rockslides in mountainous area of southwestern China.
-
Key words:
- steep-dip and layered slope /
- underground goaf /
- failure /
- centrifuge model /
- toppling-sliding
-
-

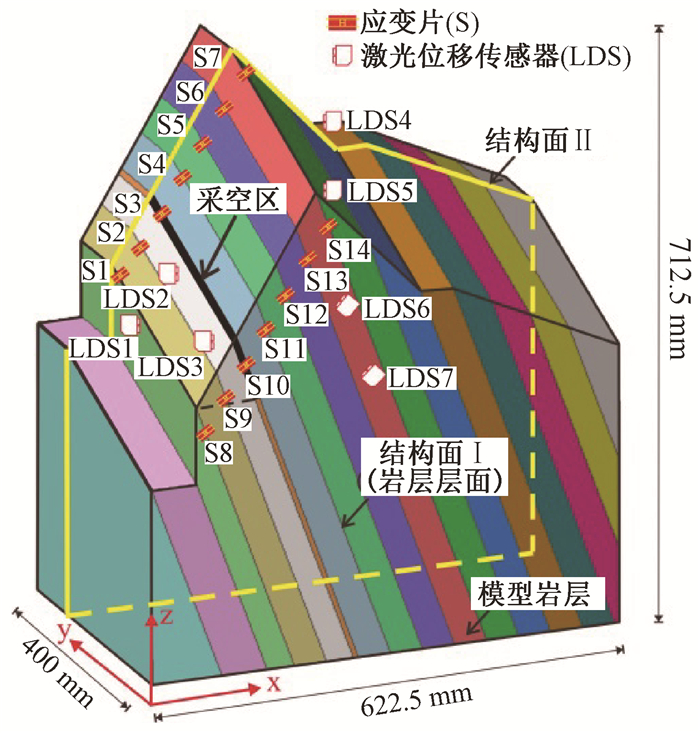

表 1 鸡冠岭滑坡离心模型试验主要物理量比尺关系
Table 1. Scale relation of physical model experiment on the Jiguangling rockslide
物理量 原型与模型比例关系 原型与模型比例数值 长度 1:1/CL 800 加速度 1:n 1:80 容重 1:n/q 1:1248 位移 1:1/CL 800 弹性模量 1:n/qCL 15.6 粘聚力c 1:n/qCL 15.6 内摩擦角φ 1:1 1:1 泊松比υ 1:1 1:1 抗拉强度 1:n/qCL 15.6 注：表中CL为离心试验几何相似比；n为试验离心加速度；q为离心试验容重相似比
下载: 导出CSV
-
Yin Y P. Recent catastrophic landslides and mitigation in China[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2011, 3(1):10~18. doi: 10.3724/SP.J.1235.2011.00010
Yin Y P, Sun P, Zhang M, et al. Mechanism on apparent dip sliding of oblique inclined bedding rockslide at Jiweishan, Chongqing, China[J]. Landslides, 2011, 8(1):49~65. doi: 10.1007/s10346-010-0237-5
Yin Y P, Sun P, Zhu J L, et al. Research on catastrophic rock avalanche at Guanling, Guizhou, China[J]. Landslides, 2011, 8(4):517~525. doi: 10.1007/s10346-011-0266-8
Li W X, Mei S H, Zai S H, et al. Fuzzy models for analysis of rock mass displacements due to underground mining in mountainous areas[J]. International Journal of Rock Mechanics and Mining Sciences, 2006, 43(4):503~511. doi: 10.1016/j.ijrmms.2005.09.008
Marschalko M, Fuka M, Třeslín L. Influence of mining activity on selected landslide in the Ostrava-karviná coalfield[J]. Acta Montanistica Slovaca, 2008, 13(1):58~65. https://www.researchgate.net/publication/26503965_Influence_of_Mining_Activity_on_Selected_Landslide_in_the_Ostrava-Karvina_Coalfield
Marschalko M, Hofrichterova L, Lahuta H. Utilization of geophysical method of multielectrode resistivity measurements on a slope deformation in the mining district[C]//8th International Scientific Conference on Modern Management of Mine Producing, Geology and Environmental Protection. Sofia, 2008, 315~324.
http://www.researchgate.net/publication/284988200_Utilization_of_geophysical_method_of_multielectrode_resistivity_measurements_on_a_slope_deformatin_in_the_mining_district Altun A O, Yilmaz I, Yildirim M. A short review on the surficial impacts of underground mining[J]. Scientific Research and Essays, 2010, 5(21):3206~3212. http://cn.bing.com/academic/profile?id=6fcbfbd78c79d9540abe039ad71d9058&encoded=0&v=paper_preview&mkt=zh-cn
Tang F Q. Research on mechanism of mountain landslide due to underground mining[J]. Journal of Coal Science and Engineering (China), 2009, 15(4):351~354. doi: 10.1007/s12404-009-0403-3
宋彦辉, 聂德新, 陈龙.采动斜坡变形破坏模式分析及预测[J].灾害学, 2003, 18(2):32~37. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zhx200302007
SONG Yanhui, NIE Dexin, CHEN Long. Analysis on deformation and failure model of excavating slope and prediction[J]. Journal of Catastrophology, 2003, 18(2):32~37. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zhx200302007
梅松华, 盛谦, 李文秀.地表及岩体移动研究进展[J].岩石力学与工程学报, 2004, 23(S1):4535~4539. https://www.wenkuxiazai.com/doc/735cb415f18583d04964596a.html
MEI Songhua, SHENG Qian, LI Wenxiu. Research advances in surface and rock-mass movement[J]. Chinese Journal of Rock Mechanics and Engineering, 2004, 23(S1):4535~4539. (in Chinese with English abstract) https://www.wenkuxiazai.com/doc/735cb415f18583d04964596a.html
范士凯.采空区上边坡稳定问题[J].资源环境与工程, 2006, 20(S1):617~627. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hbdk2006z1005
FAN Shikai. A discussion on the slope stability on the goaf[J]. Resources Environment & Engineering, 2006, 20(S1):617~627. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hbdk2006z1005
Brady B H G, Brown E T. Rock mechanics:for underground mining[M]. 3rd ed. India:Springer, 2006, 484~517.
Zhang D S, Fan G W, Wang X F. Characteristics and stability of slope movement response to underground mining of shallow coal seams away from gullies[J]. International Journal of Mining Science and Technology, 2012, 22(1):47~50. doi: 10.1016/j.ijmst.2011.06.005
Marschalko M, Yilmaz I, Bednárik M, et al. Influence of underground mining activities on the slope deformation genesis:doubrava vrchovec, doubrava ujala and staric case studies from Czech republic[J]. Engineering Geology, 2012, 147~148:37~51. doi: 10.1016/j.enggeo.2012.07.014
Lana M S. Numerical modeling of failure mechanisms in phyllite mine slopes in Brazil[J]. International Journal of Mining Science and Technology, 2014, 24(6):777~782. doi: 10.1016/j.ijmst.2014.10.007
孙玉科, 姚宝魁.盐池河磷矿山体崩坍破坏机制的研究[J].水文地质工程地质, 1983, (1):1~7. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGYJ198606003017.htm
SUN Yuke, YAO Baokui. Mechainism research on the collapse of Yanchi river mining area[J]. Hydrogeology and Engineering Geology, 1983, (1):1~7. (in Chinese) http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGYJ198606003017.htm
Hoek E. Progressive caving induced by mining an inclined ore body[J]. Transactions of the Institution of Mining and Metallurgy, Section A:Mining Technology, 1974, 83(815):33~39. https://www.researchgate.net/publication/284300864_Progressive_caving_induced_by_mining_an_inclined_ore_body
赵建军, 肖建国, 向喜琼, 等.缓倾煤层采空区滑坡形成机制数值模拟研究[J].煤炭学报, 2014, 39(3):424~429. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=mtxb201403005
ZHAO Jianjun, XIAO Jianguo, XIANG Xiqiong, et al. Failure mechanism numerical simulation of mining landslide with gentle bedding coal strata[J]. Journal of China Coal Society, 2014, 39(3):424~429. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=mtxb201403005
Brown E T, Ferguson G A. Progressive hanging wall caving at Gath's mine, Rhodesia[J]. Transactions of the Institution of Mining and Metallurgy, 1979, 88:A92~105.
Alejano L R, Ferrero A M, Ramírez-Oyanguren P, et al. Comparison of limit-equilibrium, numerical and physical models of wall slope stability[J]. International Journal of Rock Mechanics and Mining Sciences, 2011, 48(1):16~26. doi: 10.1016/j.ijrmms.2010.06.013
Majdi A, Amini M. Analysis of geo-structural defects in flexural toppling failure[J]. International Journal of Rock Mechanics and Mining Sciences, 2011, 48(2):175~186. doi: 10.1016/j.ijrmms.2010.11.007
Agliardi F, Crosta G B, Meloni F, et al. Structurally-controlled instability, damage and slope failure in a porphyry rock mass[J]. Tectonophysics, 2013, 605:34~47. doi: 10.1016/j.tecto.2013.05.033
李滨, 王国章, 冯振, 等.地下采空诱发陡倾层状岩质斜坡失稳机制研究[J].岩石力学与工程学报, 2015, 34(6):1148~1161. http://cdmd.cnki.com.cn/Article/CDMD-82501-1012371283.htm
LI Bin, WANG Guozhang, FENG Zhen, et al. Failure mechanism of steeply inclined rock slopes induced by underground mining[J]. Chinese Journal of Rock Mechanics and Engineering, 2015, 34(6):1148~1161. (in Chinese with English abstract) http://cdmd.cnki.com.cn/Article/CDMD-82501-1012371283.htm
李滨, 王国章, 冯振, 等.陡倾层状岩质斜坡极限平衡稳定分析[J].岩土工程学报, 2015, 37(5):839~846. doi: 10.11779/CJGE201505009
LI Bin, WANG Guozhang, FENG Zhen, et al. Limit equilibrium and stability analysis of steep stratified rock slope[J]. Chinese Journal of Geotechnical Engineering, 2015, 37(5):839~846. (in Chinese with English abstract) doi: 10.11779/CJGE201505009
陈自生, 张晓刚. 1994~04~30四川省武隆县鸡冠岭滑坡→崩塌→碎屑流→堵江灾害链[J].山地研究, 1994, 12(4):225~229. http://www.cnki.com.cn/Article/CJFDTOTAL-SDYA201403011.htm
CHEN Zisheng, ZHANG Xiaogang. A hazard-chain of landslide→collapse→debris flow→river stoppage in Wulong county, Sichuan province on April 30, 1994[J]. Mountain Research, 1994, 12(4):225~229. (in Chinese with English abstract) http://www.cnki.com.cn/Article/CJFDTOTAL-SDYA201403011.htm
殷跃平, 康宏达, 何思为, 等.乌江鸡冠岭危岩体整治爆破工程方案[J].中国地质灾害与防治学报, 1994, 5(S1):324~331. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGDH4S1.052.htm
YIN Yueping, KANG Hongda, HE Siwei, et al. Explosive engineering of Jiguanling dangerous rockmass prevention of the Wu River[J]. The Chinese Journal of Geological Hazard and Control, 1994, 5(S1):324~331. (in Chinese with English abstract) http://www.cnki.com.cn/Article/CJFDTOTAL-ZGDH4S1.052.htm
刘传正, 黄学斌, 黎力.乌江鸡冠岭山崩堵江地质灾害及其防治对策[J].水文地质工程地质, 1995, (4):6~11. http://www.cnki.com.cn/Article/CJFDTOTAL-SWDG504.002.htm
LIU Chuanzheng, HUANG Xuebin, LI Li. Landslide dam in Wu River and its control counter measure in Jiguanling M t[J]. Hydrogeology & Engineering Geology, 1995, (4):6~11. (in Chinese with English abstract) http://www.cnki.com.cn/Article/CJFDTOTAL-SWDG504.002.htm
-
