Ore-controlling rules of fault structures in the Wangjiaping gold deposit in Shanyang County, Shaanxi Province
-
摘要:
陕西山阳王家坪金矿是南秦岭地区新发现的卡林型金矿床，受构造控制明显，矿化蚀变发育。该矿区位于龙头沟背斜北翼，馒头山—大坪—银花河断裂F2及其次级断裂F2-1贯穿全区，矿体赋存于其南侧次级层间断裂内。在野外地质调查与划分成矿期次的基础上，梳理了构造类型及其特征，总结了构造控矿规律，提出了找矿方向。研究表明，该矿床的形成经历了3期，其中热液成矿期中的石英硫化物阶段是主要成矿阶段。梳理出该矿床东西向、北东向、北西向和近南北向向4组断裂构造，其中，东西向构造是主要的含矿断裂，具有导矿和储矿的作用，是印支期造山过程的产物；北东、北西和近南北向构造，叠加于东西向构造之上，与燕山期以来主要构造活动有关，虽然对矿体具有破坏作用，但有利于隐伏矿体次生氧化富集；高品位的主矿体正位于东西向构造和北东、北西等构造组成的"井"字型构造中部；Ⅱ号矿体具有明显的向西侧伏特征，计算侧伏角约36°。F2断裂及其南侧次级层间断裂（如F2-1断裂）、Ⅲ号矿体深部和Ⅱ号矿体侧伏方向具有较大找矿潜力，是进一步找矿的首要地段。
Abstract:The Wangjiaping gold deposit in Shanyang County, Shaanxi province, is a newly discovered carlin-type gold deposit in the southern Qinling orogeny, characterized by obvious ore-controlling structure and developed mineralization and alteration. The mining area is located in the north wing of the Longtougou anticline. The Mantoushan-Daping-Yinghuahe fault F2 and its secondary fault F2-1 run through the whole area, and the ore body occurs in the south of the secondary interbedded fault. Based on the field survey and the classification of metallogenic periods, the tectonic types and their characteristics were sorted out, the tectonic ore-controlling rules were summarized, and the prospecting direction was proposed. Three periods about the ore-forming processes have been identified based on the detail petrography observation. The quartz-sulfides stage is the major ore-forming stage. Four trends of faults have been discovered in the Wangjiaping deposit. It is believed that the EW-trend fault was the main ore-bearing structure formed at Indosinian period, which also acted as the major ore-transmitting structure. The other trends of faults, including NE, NW and near SN-trend ones, were formed at Yanshanian Period, obviously cutting and shifting the ore bodies. The "#"-type structure formed by the NE, NW and EW-trend structures promoted the oxidation enrichment of the ore bodies, leading to the rich orebodies. Based on the study of ore-forming tectonic system of the deposit, the regularity of lateral prostration was discovered firstly, and the plunge angle is about 36° according to the calculation. The fault F2 and its secondary faults (e.g.F2-1) in the south, the deep part of orebody Ⅲ and the lateral direction area of orebody Ⅱ have great prospecting potential, and they are the primary areas for further prospecting.
-
-

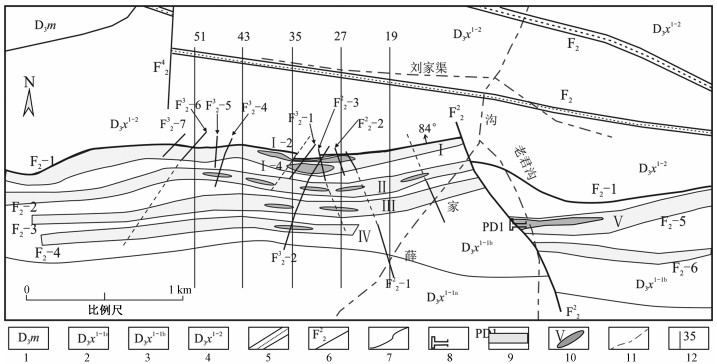

图 2 王家坪金矿矿区构造简图(据刘新伟等，2016a修改)
Figure 2.
表 1 王家坪金矿区东西向断裂构造角砾岩分析结果(×10-6)
Table 1. Trace elements concentrations in the EW faults in the Wangjiaping gold deposit(×10-6)
样号 Cu Pb Zn W Mo As Sb Bi Hg Ag Au* wy01 24.2 35.3 43.8 2.00 2.57 30.9 4.66 0.39 0.499 0.23 9.22 wy02 11.6 20.2 18.5 0.69 2.27 18.6 1.63 0.10 0.097 0.05 3.33 wy03 65.5 14.1 15.1 0.94 1.50 39.6 5.25 0.07 0.102 0.08 5.94 wy04 8.82 16.7 17.8 0.68 1.84 15.7 0.81 0.09 0.064 0.03 2.53 wy05 20.4 22.1 41.4 1.28 5.56 17.2 1.73 0.36 0.108 0.10 3.51 wy06 15.5 21.2 31.2 1.46 15.7 210 6.16 0.12 0.110 0.04 8.26 wy07 16.5 10.9 93.3 5.58 1.81 29.6 1.13 0.13 0.038 0.04 2.75 *单位为×10-9；测试单位：有色金属西北矿产地质测试中心，采用ICP-MS测试。
下载: 导出CSV
-
CHEN P, SHI W, 2015. The Mid-Late Jurassic kinematic model and mechanical mechanism of the ductile shear zones in the south Qinling structural belt[J]. Advances in Earth Science, 30(1):69-77. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/dqkxjz201501007
FANG W X, LIU J J, 2013. Dynamics of the late paleozoic apart-pull basin and its relationship with mineralization of gold-silver-polymetallic-barite-siderite deposits in Zha-Shan-Shang, Shaanxi Province[J]. Acta Sedimentologica Sinica, 31(2):193-209. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=cjxb201302001
FENG Y K, 1996. Research method for pitch of vein gold orebody and its application[J]. Gold Geology, 2(2):36-40. (in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-HJDZ602.006.htm
FIELDING I O H, JOHNSON S P, ZI J W, et al., 2020. Gold metallogeny of the northern Capricorn Orogen:the relationship between crustal architecture, fault reactivation and hydrothermal fluid flow[J]. Ore Geology Reviews, 122:103515. https://www.sciencedirect.com/science/article/pii/S0169136819302136
GAO J S, WANG R T, ZHANG F X, et al., 2006. Geology and geochemistry of the Xiajiadian gold deposit in the Cambrian black rock series in the South Qinling[J]. Geology in China, 33(6):1371-1378. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdizhi200606021
GROFF J A, 2020. Genetic implications of regional vs. fracture-controlled fluid flow in carlin-type gold deposits, Nevada[J]. Ore Geology Reviews, 117:103282. doi: 10.1016/j.oregeorev.2019.103282
GUAN L X, WANG K Q, HUANG H, et al., 2006. Continent collision mechanism of gold mineralization and temporal and spatial orientation of gold mineralized Zone, Qinling[J]. Geological Review, 52(4):467-476. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/OA000005019
GUO Z C, ZHOU Z F, 2006. Exploration practice of huijiabao-anticline gold deposit, southwest Guizhou and establishment on two-story -building model[J]. Guizhou Geology, 23(3):176-181, 186. (in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-GZDZ200603002.htm
HAN S H, 1983. Unusual occurrence of ore bodies and analytical method for determining the elements of the occurrence[J]. Nonferrous Metals, 35(2):10-16. (in Chinese with English abstract) https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CJFQ&dbname=CJFD7984&filename=YOUS198302001&v=MzEyMzkxRnJDVVI3cWZZT2RuRnkzZ1VyelBQQ0xlZmJLeEZ0TE1yWTlGWllSOGVYMUx1eFlTN0RoMVQzcVRyV00=
HU X S, LI J B, LIU X W, et al., 2015. Geology, mineralization type and ore prospecting of gold deposit in Zhongcun of Shanyang and Xianghe of Shangnan Area[J]. Geology of Shaanxi, 33(2):70-77. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=sxdizhi201502012
HU X S, YUAN L X, ZHU H Z, et al., 2010. Geological and geochemical characteristics and genesis of longtougou gold deposit in Shaanxi Province[J]. Gold Science and Technology, 18(2):1-5. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hjkxjs201002001
LI H, ZHANG A Y, SHEN A L, 2000. Main microbe group in the supergene zones of Mingshan gold deposit in northwestern Guangxi and their metallogenic significance[J]. Geochimica, 29(1):50-55. (in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQHX200001008.htm
LI X F, XIANG H, LIAO J H, 2016. Study of occrurence of wangjiaping native gold deposit in the Shanyang County, Shaanxi Province[J]. Mining and Metallurgy, 25(2):77-82. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ky201602019
LIANG W Y, 1996. Study on enrichment law of ore-controling factors and optimization of prospecting targets in gold deposits in eastern Shanxi Province[R]. Xi'an: Xi'an Institute of Geology. (in Chinese)
LIU X W, HU X S, GUO C L, et al., 2015. The Metallogenic Prospecting Prediction study report of longtougou Gold deposit[R]. Xi'an: Xi'an Northwest Research Institute of Nonferrous Metals Co., Ltd. (in Chinese)
LIU X W, HU X S, WANG M L, et al., 2016a. The exploration report of wangjiaping gold deposit in Shanyang country, Shaanxi Province[R]. Xi'an: Shanyang Zongheng Mining Company. (in Chinese)
LIU X W, WANG C, HAN L, et al., 2016b. Geological geochemical characteristics and genesis of Wangjiaping gold deposit[J]. Gold Science and Technology, 24(4):39-46. (in Chinese with English abstract) http://www.en.cnki.com.cn/Article_en/CJFDTOTAL-HJKJ201604006.htm
LIU X W, WANG C, LI Y, et al., 2016c. Geological characteristics and metallogenic regularities of Wangjiaping gold deposit, Shaanxi[J]. Mineral Exploration, 7(4):592-597. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytgcj201604011
MA M T, GUAN G Y, 1993. The evolution of iron minerals in an oxidation zone of metal mineral deposits and its relation with the gold secondary enrichment[J]. Liaoning Geology(1):45-50. (in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTotal-LOAD199301004.htm
MA Z P, LV B S, WANG Z X, 2016. Geological and geochemical comprehensive characteristics and ore-controlling regularity of tongshugou gold deposit in Shanyang County[J]. Value Engineering, 35(20):168-171. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jzgc201620054
MUNTEAN J L, CLINE J S, SIMON A C, et al., 2011. Magmatic-hydrothermal origin of Nevada's Carlin-type gold deposits[J]. Nature Geoscience, 4(2):122-127. http://d.old.wanfangdata.com.cn/NSTLQK/10.1038-ngeo1064/
NUTT C J, HOFSTRA A H, 2003. Alligator ridge district, east-central nevada:carlin-type gold mineralization at shallow depths[J]. Economic Geology, 98(6):1225-1241. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ023180804/
SHAO L Q, 2017. Study of geological characteristics and metallogenic mechanism of Wangjiaping gold deposit, Shanyang County, Shannxi Province[D]. Xi'an: Chang'an University. (in Chinese with English abstract)
https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CMFD&dbname=CMFD201801&filename=1017869232.nh&v=MTI5Mjg3RGgxVDNxVHJXTTFGckNVUjdxZllPZG5GeXprVTczTVZGMjZHYnUrRjlQUHJaRWJQSVI4ZVgxTHV4WVM= TAN M T, 2013. Research of structural ore controlling regularity in Xiaoqinling gold field[D]. Wuhan: China University of Geosciences (Wuhan). (in Chinese with English abstract)
https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CDFD&dbname=CDFD1214&filename=1014150572.nh&v=MDg3NzJyWkViUElSOGVYMUx1eFlTN0RoMVQzcVRyV00xRnJDVVI3cWZZT2RuRnl6a1U3dkxWRjI2R3JLOUh0VEw= WU F F, WANG Z Q, WANG T, et al., 2012. SHRIMP zircons U-Pb ages and geochemical characteristics of the banbanshan K-feldspar granite in Shanyang, southern Qinling Orogenic Belt[J]. Journal of Mineralogy and Petrology, 32(2):63-73. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/kwys201202009
WU F F, 2013. Research on the magmatite and its metallogenic tectonic setting in the Shanyang-Zhashui area, middle Qinling Orogenic Belt[D]. Beijing: Chinese Academy of Geological Sciences. (in Chinese with English abstract)
https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CDFD&dbname=CDFD1214&filename=1013233488.nh&v=MDUzNDc3SGRYRXA1RWJQSVI4ZVgxTHV4WVM3RGgxVDNxVHJXTTFGckNVUjdxZllPZG5GeXprVUxyTVZGMjZIYkc= XU S K, LIU H T, FENG A, et al., 2019. Characteristics of ore-control structures and a metallogenic model of gold-silver deposits in the Xiaoshan area, Henan Province[J]. Geology and Exploration, 55(6):1356-1366. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/dzykt201906002
XU X Y, CHEN J L, ZHANG E P, et al., 2014. Geology map description of Qinlin orogen and its adjacent area (scale 1:500000)[M]. Xi'an:Xi'an Map Press, 1-44. (in Chinese)
XUE Y S, LIU X W, HU X S, et al., 2020. Scheelite geochemical signatures and symbiotic calcite Sm-Nd isotope dating from Xianggou Gold deposit, Shaan xi province, Central China[J/OL]. Geology in China: 1-34[2020-03-12]. http://kns.cnki.net/kcms/detail/11.1167.P.20200309.2005.004.html. (in Chinese with English abstract)
YANG X K, HAN K, WU X, et al., 2016. The structural deformation and tectonic evolution of intra-continental orogeny in South Qinling orogen:structural deformation analysis of the northern part of Shiquan-Hanyin belt in the late Indosinian-Yanshanian period[J]. Earth Science Frontiers, 23(4):72-80. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/dxqy201604006
ZHAI Y S, YAO S Z, CAI K Q, 2011. Mineral deposits[M]. 3rd ed. Beijing:Geological Publishing House:96-106. (in Chinese)
ZHANG G J, LIU H X, 2012. Study on the shape of main ore control fault plane of Hedong Gold Mine[J]. China Mine Engineering, 41(5):28-30. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysks201205009
ZHANG G W, GUO A L, DONG Y P, et al., 2019. Rethinking of the qinling orogen[J]. Journal of Geomechanics, 25(5):746-768. (in Chinese with English abstract) http://d.old.wanfangdata.com.cn/Periodical/dzlxxb201905009
ZHANG H H, CHEN H, BAI H, et al., 2018. Geological model for prospecting prediction in "Trinity" prospecting area in the Xiaoqinling gold deposit in Shannxi and its prospecting significance[J]. Journal of Geomechanics, 24(3):350-370. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzlxxb201803008
ZHANG L, DU D Q, ZHANG H B, et al., 2012. Study on structural ore control of Huijiapu gold mine field in Southwestern Guizhou:tectonic significance of the "Two-stairs" model[J]. Gold, 33(9):13-18. (in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-HJZZ201209003.htm
ZHU L M, ZHANG G W, LI B, et al., 2009. Some key metallogenetic events of Qinling orogenic belt and their deposit examples[J]. Journal of Northwest University (Natural Science Edition), 39(3):381-391. (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xbdxxb200903005
陈鹏, 施炜, 2015.南秦岭造山带韧性剪切系中-晚侏罗世运动学分析与力学机制探讨[J].地球科学进展, 30(1):69-77. doi: 10.11867/j.issn.1001-8166.2015.01.0069
方维萱, 刘家军, 2013.陕西柞-山-商晚古生代拉分断陷盆地动力学与成矿作用[J].沉积学报, 31(2):193-209. http://www.cnki.com.cn/Article/CJFDTotal-CJXB201302000.htm
冯友库, 1996.脉金矿体侧伏研究方法及应用[J].黄金地质, 2(2):36-40. http://www.cqvip.com/Main/Detail.aspx?id=2028827
高菊生, 王瑞廷, 张复新, 等, 2006.南秦岭寒武系黑色岩系中夏家店金矿床地质地球化学特征[J].中国地质, 33(6):1371-1378. http://d.old.wanfangdata.com.cn/Periodical/zgdizhi200606021
关连绪, 王科强, 黄辉, 等, 2006.秦岭大陆碰撞金成矿机制与金矿带时空定位[J].地质论评, 52(4):467-476. http://d.old.wanfangdata.com.cn/Periodical/dzlp200604005
郭振春, 周忠斌, 2006.黔西南灰家堡背斜金矿勘查实践及"两层楼"模式的建立[J].贵州地质, 23(3):176-181, 186. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gzdz200603003
韩书和, 1983.矿体侧伏及确定侧伏要素的解析法[J].有色金属, 35(2):10-16. http://www.cnki.com.cn/Article/CJFDTotal-YOUS198302001.htm
胡西顺, 原莲肖, 朱红周, 等, 2010.陕西龙头沟金矿床的地质地球化学特征及成因探讨[J].黄金科学技术, 18(2):1-5. http://d.old.wanfangdata.com.cn/Periodical/hjkxjs201002001
胡西顺, 李建斌, 刘新伟, 等, 2015.山阳中村-商南湘河一带金矿成矿地质背景、矿床类型与找矿方向[J].陕西地质, 33(2):70-77. doi: 10.3969/j.issn.1001-6996.2015.02.012
李红, 张爱云, 申爱丽, 2000.桂西北明山金矿床表生带微生物类群特征及其成矿作用探讨[J].地球化学, 29(1):50-55. http://d.old.wanfangdata.com.cn/Periodical/dqhx200001008
李小菲, 向虹, 廖经慧, 2016.陕西山阳县王家坪原生金矿金的赋存状态研究[J].矿冶, 25(2):77-82. http://d.old.wanfangdata.com.cn/Periodical/ky201602019
梁文艺, 1996.陕西山阳东部金矿控矿因素富集规律及找矿靶区优选研究[R].陕西: 西安地质学院.
刘新伟, 胡西顺, 郭彩莲, 等, 2015.陕西省阳县龙头沟地区金矿成矿规律与成矿预测研究[R].西安: 西安西北有色地质研究院有限公司.
刘新伟, 胡西顺, 王民良, 等, 2016a.陕西省山阳县王家坪金矿勘探地质报告[R].西安: 山阳纵横矿业公司.
刘新伟, 汪超, 韩璐, 等, 2016b.王家坪金矿床地质地球化学特征及成因探讨[J].黄金科学技术, 24(4):39-46. http://d.old.wanfangdata.com.cn/Periodical/hjkxjs201604007
刘新伟, 汪超, 李英, 等, 2016c.陕西王家坪金矿床地质特征及成矿规律[J].矿产勘查, 7(4):592-597. http://d.old.wanfangdata.com.cn/Periodical/ytgcj201604011
马民涛, 关广岳, 1993.金属矿床氧化带中铁矿物的演化及其与金次生富集的关系[J].辽宁地质(1):45-50. http://www.cnki.com.cn/Article/CJFDTotal-LOAD199301004.htm
马忠平, 吕百顺, 王增轩, 2016.山阳县桐树沟金矿地质化探综合特征及控矿规律[J].价值工程, 35(20):168-171. http://d.old.wanfangdata.com.cn/Periodical/jzgc201620054
邵乐奇, 2017.陕西省山阳县王家坪金矿床地质特征和成矿机制探讨[D].西安: 长安大学.
http://cdmd.cnki.com.cn/Article/CDMD-10710-1017869232.htm 谭满堂, 2013.小秦岭地区金矿构造控矿规律研究[D].武汉: 中国地质大学(武汉).
http://cdmd.cnki.com.cn/Article/CDMD-10491-1014150572.htm 吴发富, 王宗起, 王涛, 等, 2012.南秦岭山阳板板山钾长花岗岩体SHRIMP锆石U-Pb年龄与地球化学特征[J].矿物岩石, 32(2):63-73. http://d.old.wanfangdata.com.cn/Periodical/kwys201202009
吴发富, 2013.中秦岭山阳-柞水地区岩浆岩及其成矿构造环境研究[D].北京: 中国地质科学院.
http://cdmd.cnki.com.cn/Article/CDMD-82501-1013233488.htm 徐书奎, 刘洪涛, 冯昂, 等, 2019.河南省崤山地区金银矿床控矿构造特征与成矿模式[J].地质与勘探, 55(6):1356-1366. http://d.old.wanfangdata.com.cn/Periodical/dzykt201906002
徐学义, 陈隽璐, 张二朋, 等, 2014.秦岭及邻区地质图及说明书[M].西安:西安地图出版社.
薛玉山, 刘新伟, 胡西顺, 等, 2020.陕西山阳县香沟金钨矿区白钨矿原位微区分析及方解石Sm-Nd同位素定年[J/OL].中国地质: 1-34[2020-03-12]. wwz http://kns.cnki.net/kcms/detail/11.1167.P.20200309.2005.004.html. http://kns.cnki.net/kcms/detail/11.1167.P.20200309.2005.004.html.
杨兴科, 韩珂, 吴旭, 等, 2016.南秦岭陆内造山构造变形特征与演化:石泉-汉阴北部一带晚印支-燕山期构造变形分析[J].地学前缘, 23(4):72-80. http://d.old.wanfangdata.com.cn/Periodical/dxqy201604006
翟裕生, 姚书振, 蔡克勤, 2011.矿床学[M]. 3版.北京:地质出版社:96-106.
张国君, 刘洪晓, 2012.河东金矿主控矿断裂面形态研究[J].中国矿山工程, 41(5):28-30. http://d.old.wanfangdata.com.cn/Periodical/ysks201205009
张国伟, 郭安林, 董云鹏, 等, 2019.关于秦岭造山带[J].地质力学学报, 25(5):746-768. https://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20190508&journal_id=dzlxxb
张欢欢, 陈虹, 白和, 等, 2018.陕西小秦岭金矿床"三位一体"勘查区找矿预测地质模型及找矿意义[J].地质力学学报, 24(3):350-370. https://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20180307&journal_id=dzlxxb
张蕾, 杜定全, 张晗彬, 等, 2012.黔西南灰家堡金矿田的构造控矿模式研究:"两层楼"模式的构造意义[J].黄金, 33(9):13-18. http://www.cqvip.com/QK/90449X/201209/43232478.html
朱赖民, 张国伟, 李犇, 等, 2009.与秦岭造山有关的几个关键成矿事件及其矿床实例[J].西北大学学报(自然科学版), 39(3):381-391. http://d.old.wanfangdata.com.cn/Periodical/xbdxxb200903005
-
