Improving the inversion accuracy of shallow shear wave velocity structure based on microtremor method: A case study of Haikou Jiangdong New District
-
摘要:
微动方法不受地震源时空分布的限制，已成为探测浅层地下横波速度空间结构的重要方法。在海口江东新区开展微动与钻孔、横波测井的对比试验，试验显示：微动反演结果与测井曲线形态一致，对应深度地层的横波速度基本吻合，取得了一定的应用效果；但在分层上微动和钻孔结果并非完全对应，就波速而言，微动结果未反演出一个波速差异较小界面，钻孔结果未区分出一个波速差异较大界面，对两者在微动反演结果中的影响机制进行研究，有助于提高对微动反演模型的认识，获得更合理的反演结果。基于波速差异较小和较大界面，设计物性分层模型、地质分层模型以及组合模型，从频散曲线形态、软弱夹层、分层变化等方面讨论两类界面影响反演结果的规律。结果显示：物性分层模型反演结果能更好地反映出软弱层位置；改变界面主要影响相邻地层，增加波速差异较小和较大界面，分别使相邻地层波速误差增大和减小；波速差异较大界面对相邻层波速的影响程度要小于差异较小界面，误差大幅变化主要是由波速差异较小界面引起，反演对波速差异较小界面更敏感。微动方法在海口江东新区实际应用研究表明，合并模型中波速差异较小界面或增设波速差异较大的界面，不改变地层局部的变化趋势时，有助于提高波速的反演精度。选取实测数据反演得到二维微动横波速度剖面，结合钻孔提供工程基岩面的埋深及起伏信息，为海口江东新区场地条件评价和地下空间利用规划提供可靠依据。
Abstract:Objective The microtremor survey method is not limited by the spatiotemporal distribution of seismic sources and has become an effective method for observing the structure of shallow shear wave velocity. An experiment to compare microtremor, drilling, and shear wave logging was conducted in Jiangdong New District. The experiment showed that the microtremor inversion results were consistent with the logging curve shape, and the shear wave velocities of the strata and the corresponding depths were basically in agreement. Thus, good application results can be achieved. However, it was found that the microtremor inversion strata and the drilled strata did not completely correspond. In terms of wave velocity, the microtremor results could not reveal an interface with a small difference in wave velocity, while the drilling data did not distinguish an interface with a large difference in wave velocity. The study of the influence mechanism of the two factors on the microtremor inversion results is helpful to improve the understanding of the microtremor inversion model and to obtain more reasonable inversion results.

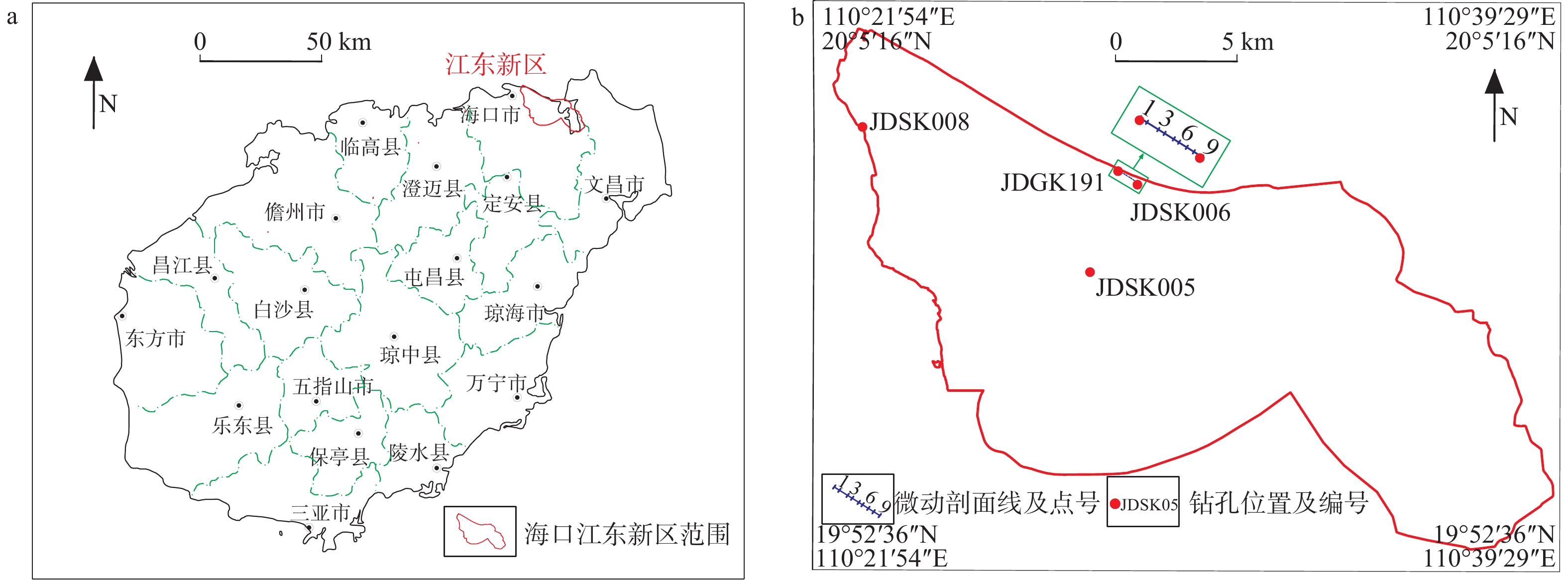

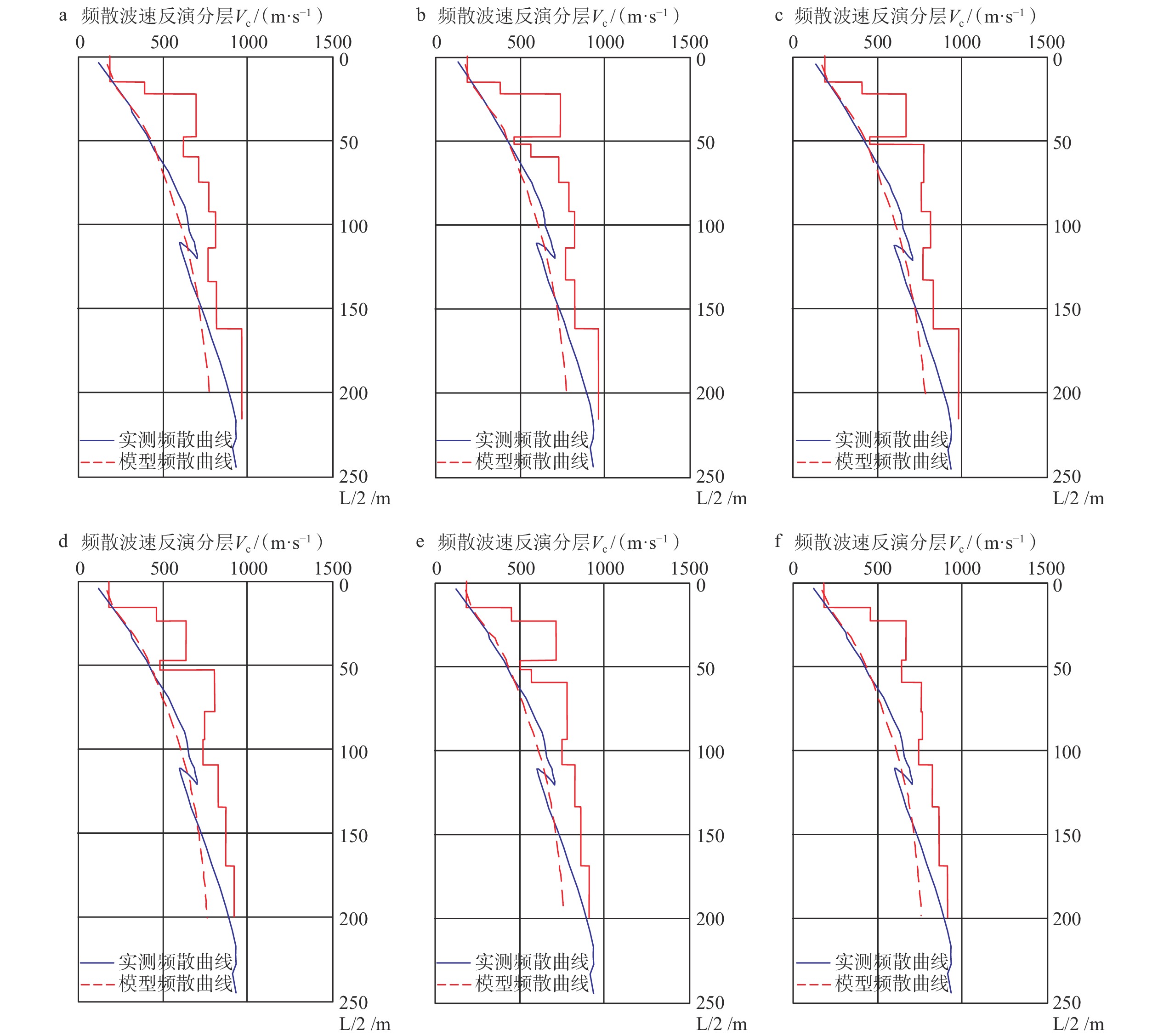

Methods On the basis of a small or a large wave velocity difference, a physical stratification model, a geological stratification model, and a combined model are designed. The factors and rules affecting the inversion results are discussed by dispersion curves, low-velocity layers, layer variations, and inversion method.
Results The inversion results of the physical property stratification model can better reflect the location of a weak layer. Changing the interface mainly affects the adjacent layers. Adding interfaces with small and large differences in wave velocity increases and decreases the wave velocity errors of the adjacent layers, respectively. The interface with a large velocity difference has less influence on the velocity of the adjacent layers than an interface with a small velocity difference. A large error change is mainly caused by an interface with a small velocity difference, and the inversion is more sensitive to an interface with a small velocity difference.
Conclusion The practical application of the microtremor method in Jiangdong New District of Haikou shows that it is helpful to improve the inversion accuracy of the wave velocity by merging the interfaces with smaller wave velocity differences or adding interfaces with larger wave velocity differences, without changing the local trend of the layer velocity.

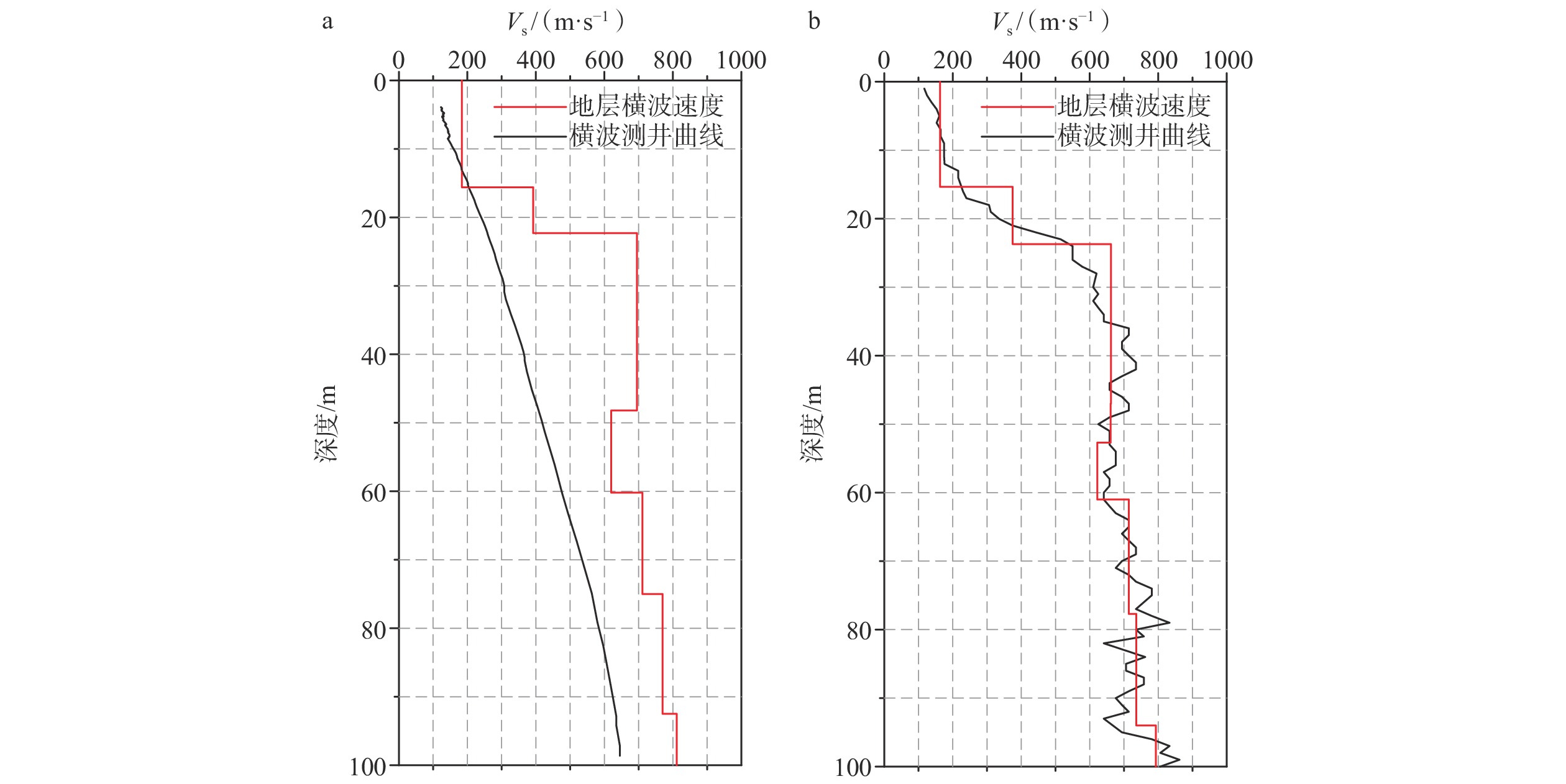

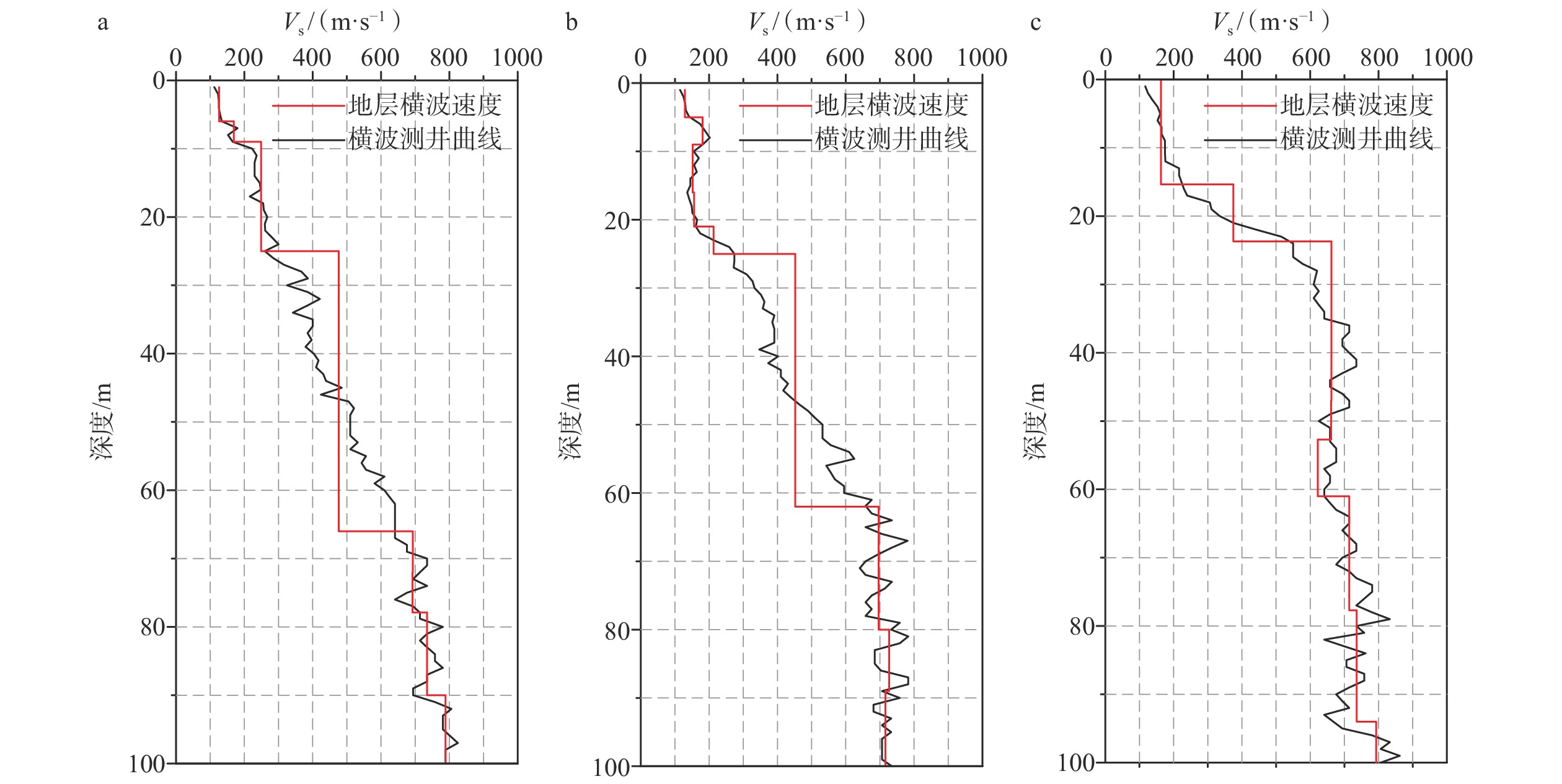

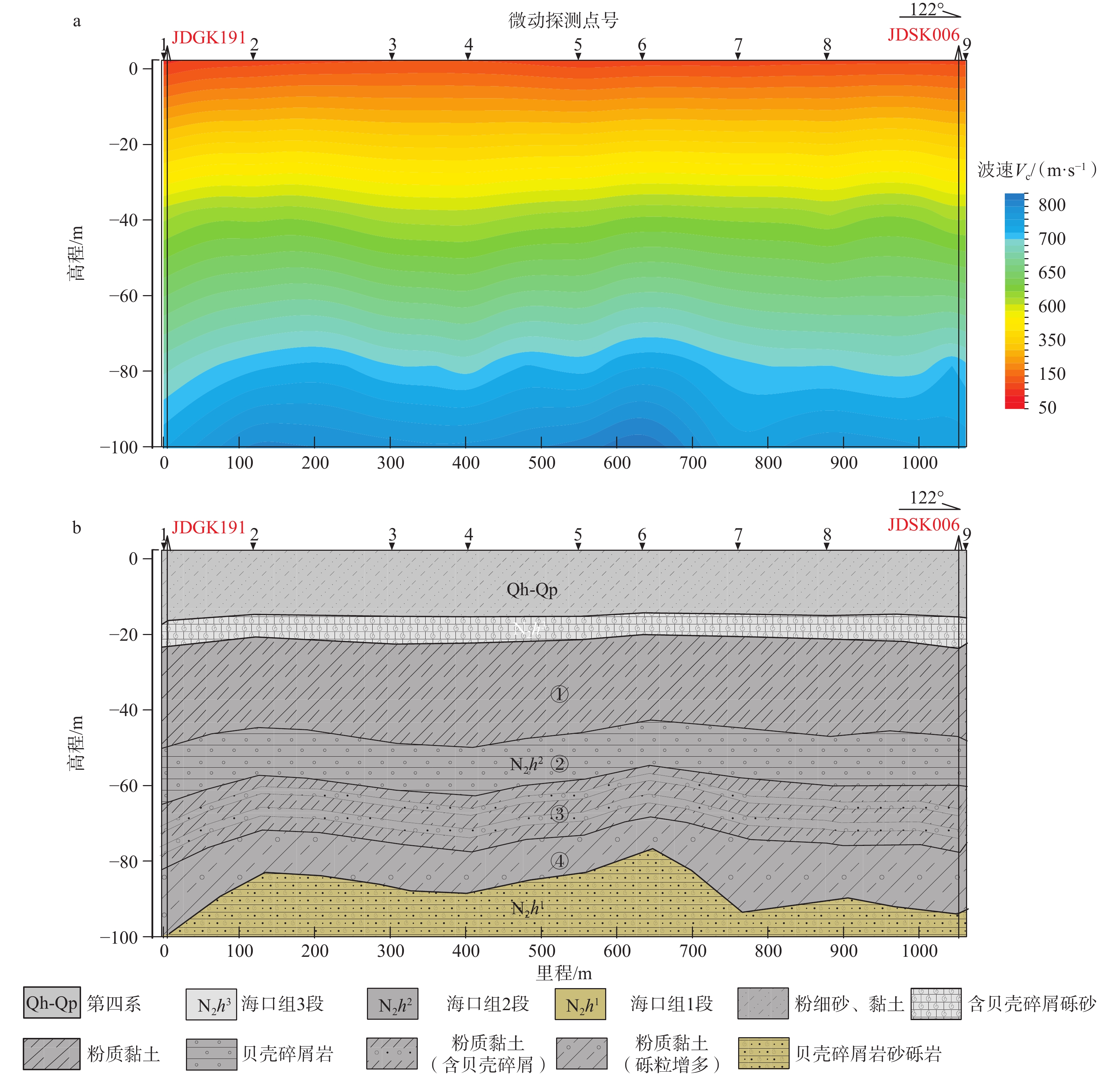

Significance The 2D microtremor shear wave velocity section was obtained by inverting the measured data. Combined with the depth and undulation information of the bedrock surface provided by drilling, it provides a reliable basis for the site condition evaluation and the underground space utilization planning of Haikou Jiangdong New District.
-
-

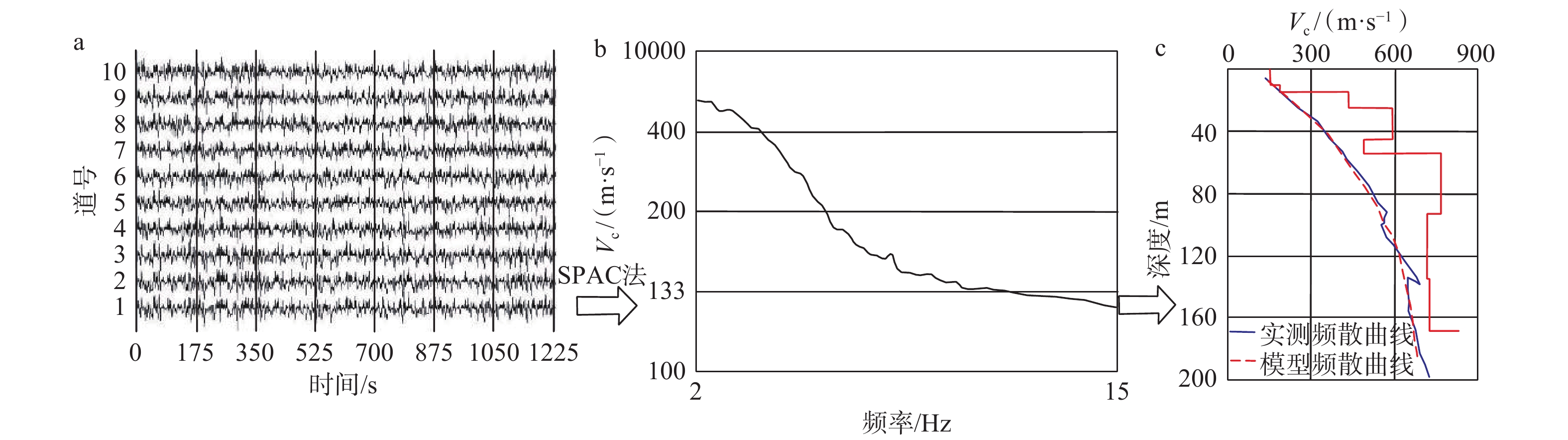

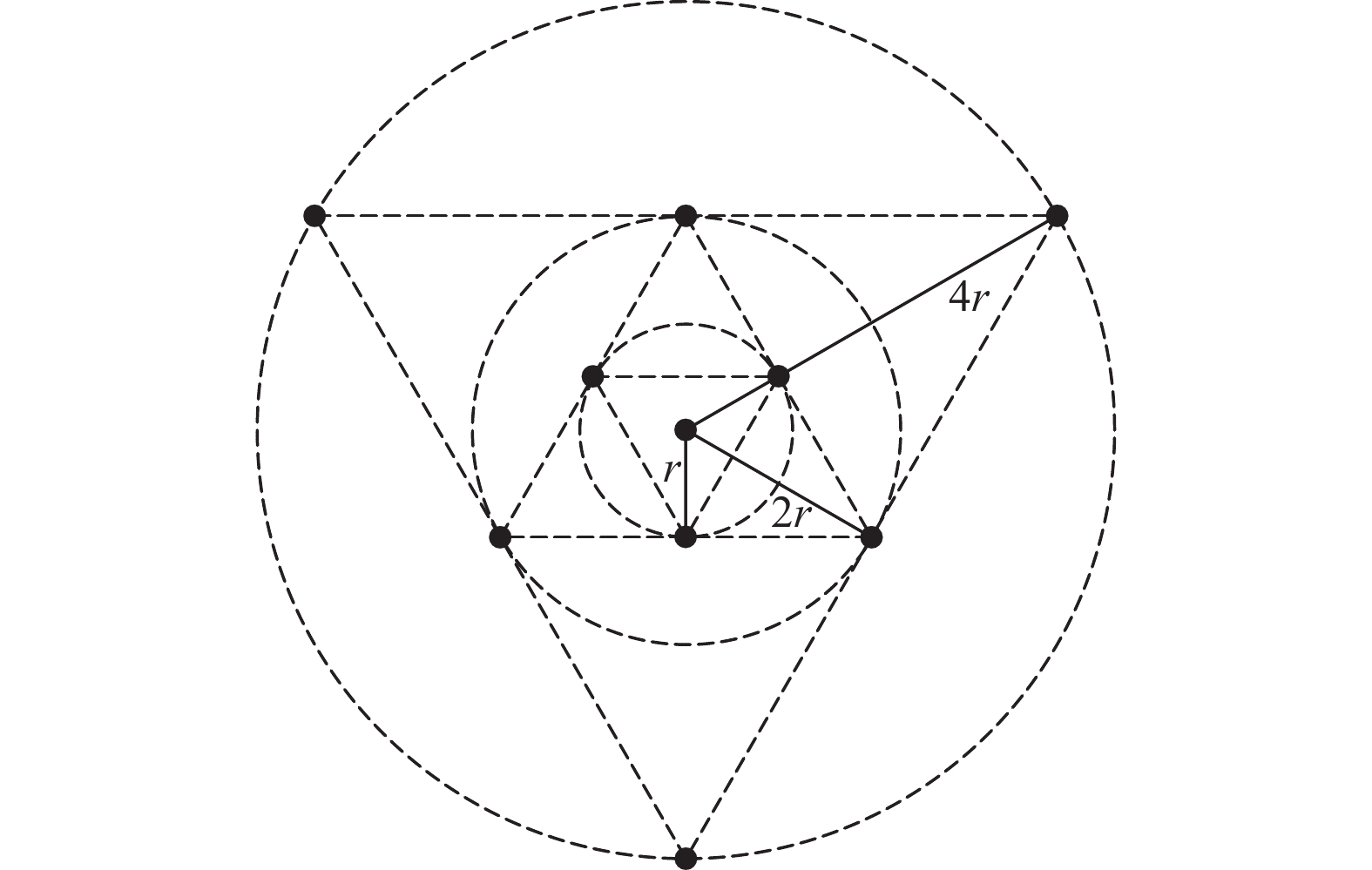

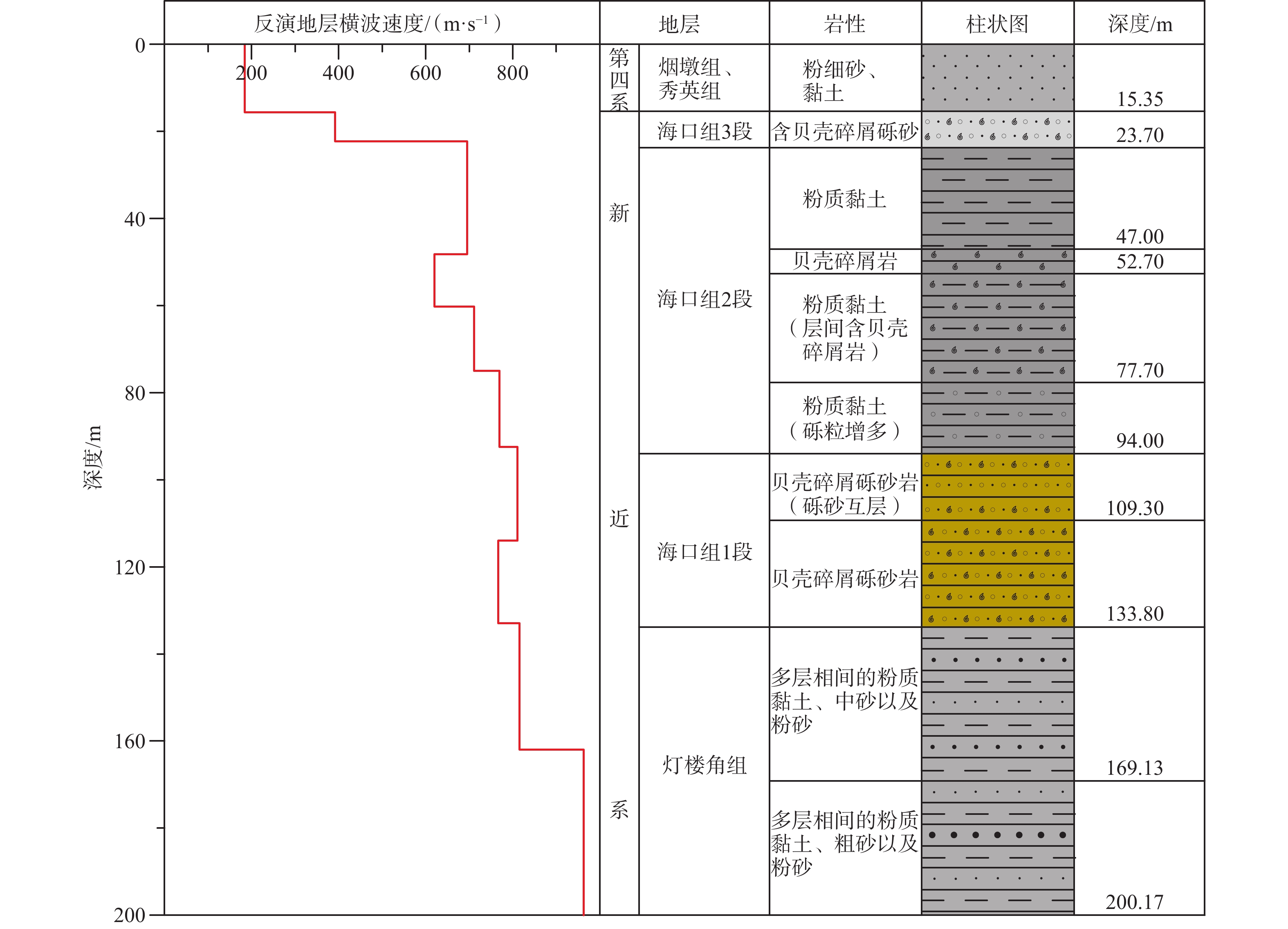

表 1 微动反演结果与JDSK006钻孔钻遇地层、孔中测井结果对比
Table 1. Comparison of microtremor inversion results with geological strata and logging results of borehole JDSK006
钻孔钻遇地层 孔中测井 微动反演结果 底界深度
相对误差/%层速度绝对
误差/（m/s）测井波速
标准差/（m/s）土的
类型时代单元 岩性名称 底界
深度/m层速度/
（m/s）底界
深度/m层速度/
（m/s）第四系烟墩组、秀英组 粉细砂、黏土 15.35 163 15.6 184 1.62 21 30.8 软弱土−
中软土新近系海口组3段 含贝壳碎屑砾砂 23.70 375 22.3 392 6.09 17 76.0 中硬土 新近系海口组2段 粉质黏土 47.00 646 48.2 695 2.52 49 50.5 坚硬土 贝壳碎屑岩 52.70 675 — — — — — 软质岩 粉质黏土
（层间含贝壳碎屑）— 666 60.2 620 4.55 46 30.7 坚硬土 77.70 714 75.0 711 3.54 3 38.4 坚硬土 粉质黏土
（砾粒增多）94.00 736 92.5 770 1.62 34 30.5 坚硬土 新近系海口组1段 贝壳碎屑砂砾岩（砾砂互层） 109.30 793 114.0 811 4.21 18 52.7 较硬岩 贝壳碎屑砂砾岩 133.80 — 133.0 767 0.60 — — 较硬岩 新近系灯楼角组 多层相间的粉质黏土、中砂及粉砂 169.13 — 162.0 816 4.31 — — 坚硬土 多层相间的粉质黏土、粗砂及粉砂 200.17 — 216.0 963 — — — 坚硬土
下载: 导出CSV

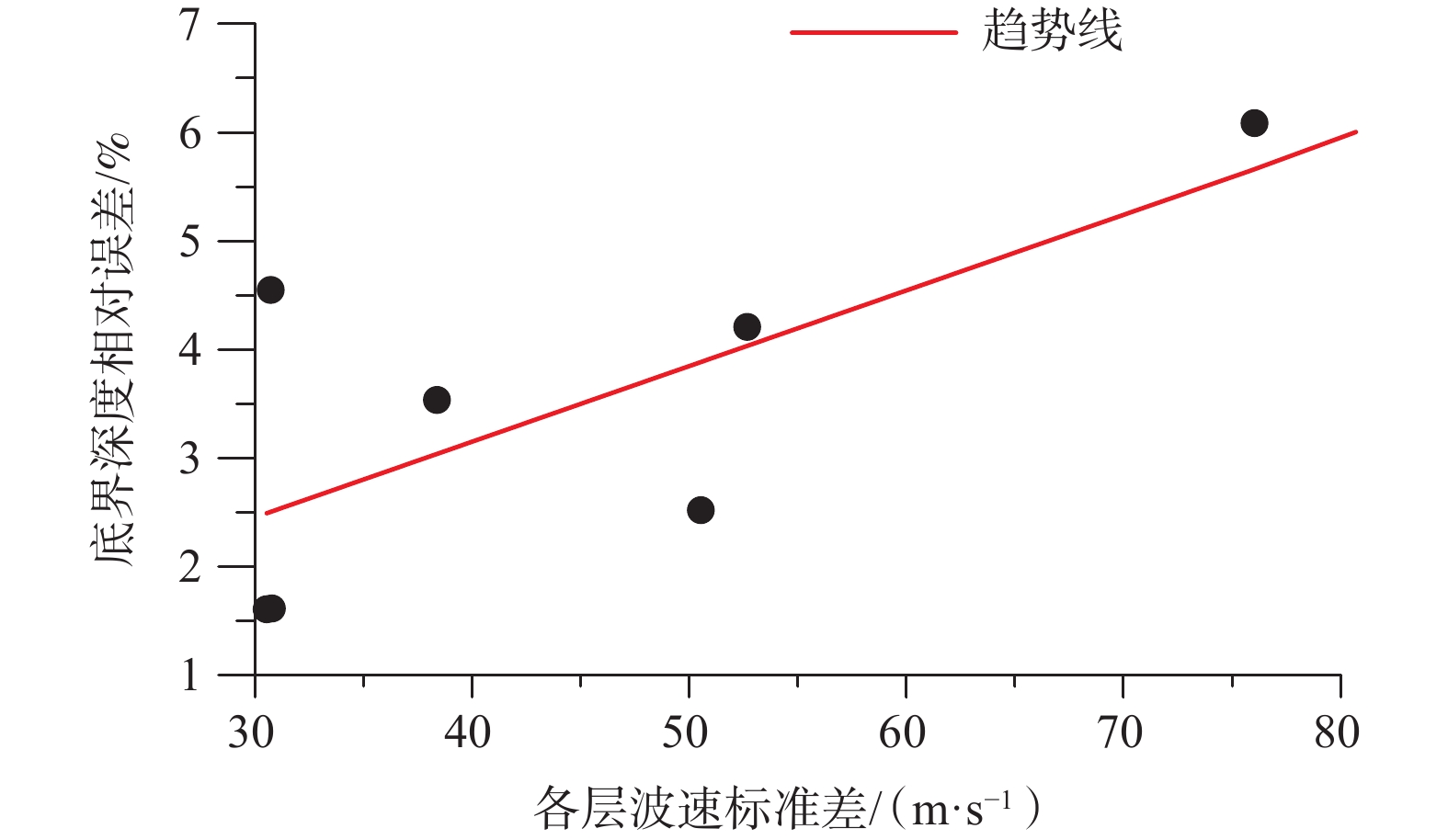

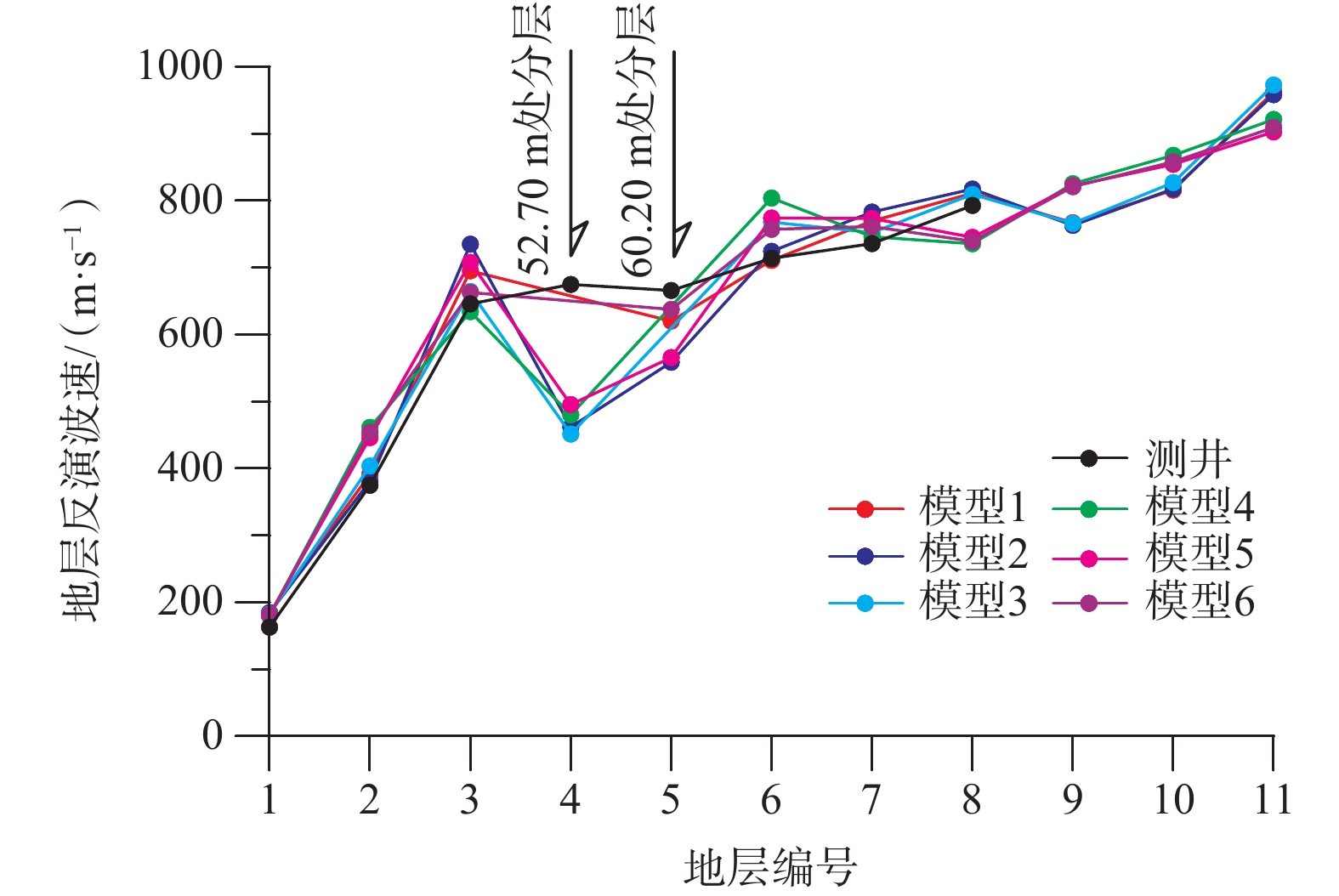

表 2 模型1—3微动反演结果及误差分析
Table 2. Results and error analysis of microtremor inversion in models 1-3
层编号 钻探分层
深度/m测井横波
波速/（m/s）模型1 模型2 模型3 分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）1 15.35 163.00 15.60 183.89 20.89 15.60 184.69 21.69 15.60 182.61 19.61 2 23.70 375.00 22.30 391.58 16.58 22.30 381.00 6.00 22.30 403.77 28.77 3 47.00 646.00 48.20 695.34 49.34 48.20 735.18 89.18 48.20 664.50 18.50 4 52.70 675.00 — — — 52.65 461.90 213.10 52.65 451.50 223.50 5 — 666.00 60.20 620.23 45.77 60.20 558.77 107.23 — — — 6 77.70 714.00 75.00 711.01 2.99 75.00 724.49 10.49 75.00 768.07 54.07 7 94.00 736.00 92.50 769.67 33.67 92.60 783.18 47.18 92.40 752.54 16.54 8 109.30 793.00 114.00 811.26 18.26 114.00 817.55 24.55 114.00 809.50 16.50 9 133.80 — 133.80 767.25 — 133.20 763.26 — 133.20 766.27 — 10 169.13 — 162.00 816.04 — 162.00 817.78 — 162.00 827.15 — 11 200.17 — 216.00 962.73 — 216.00 958.50 — 216.00 972.89 — 均方相对误差 4.58% 均方相对误差 11.42% 均方相对误差 11.43%
下载: 导出CSV

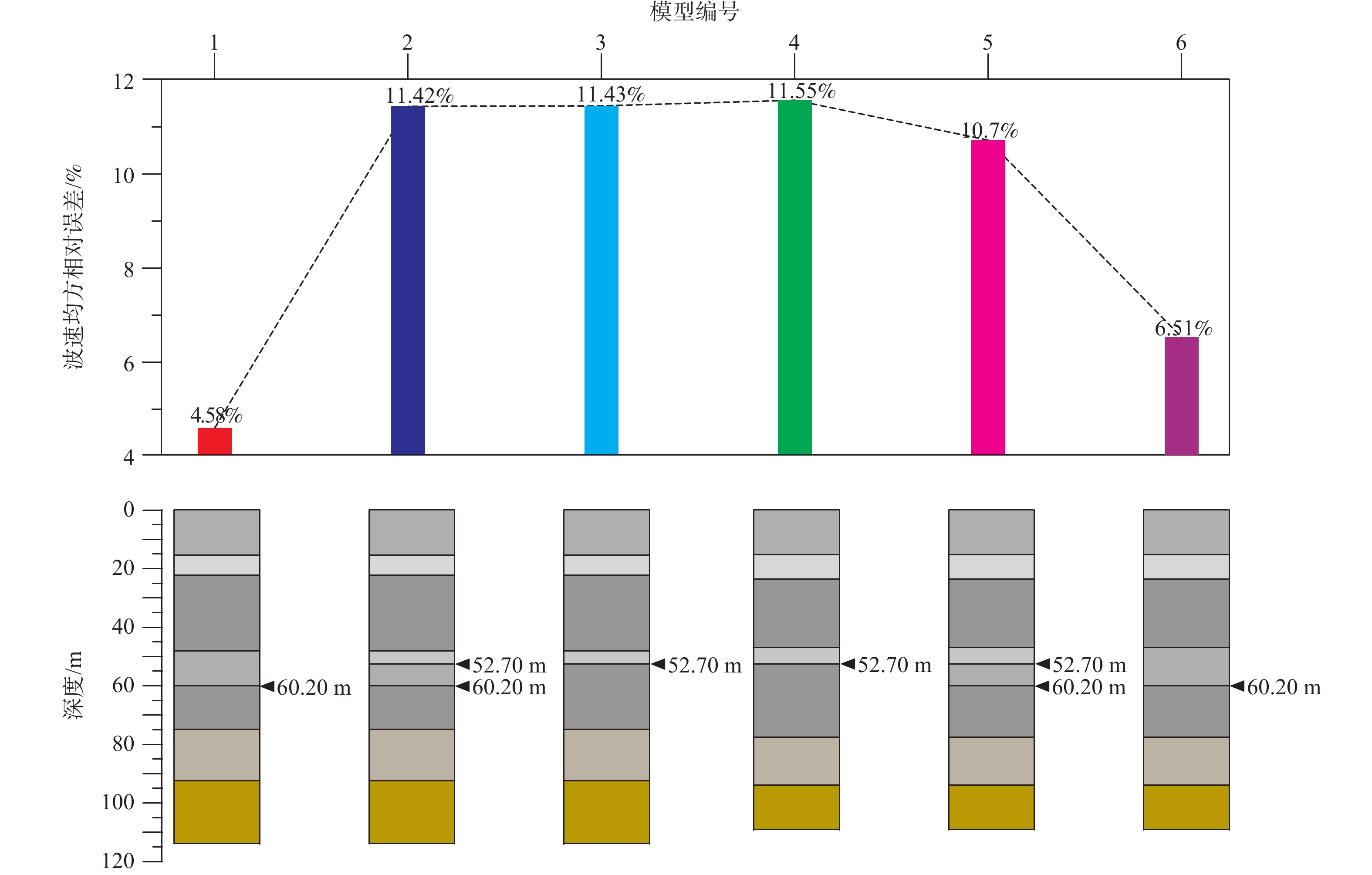

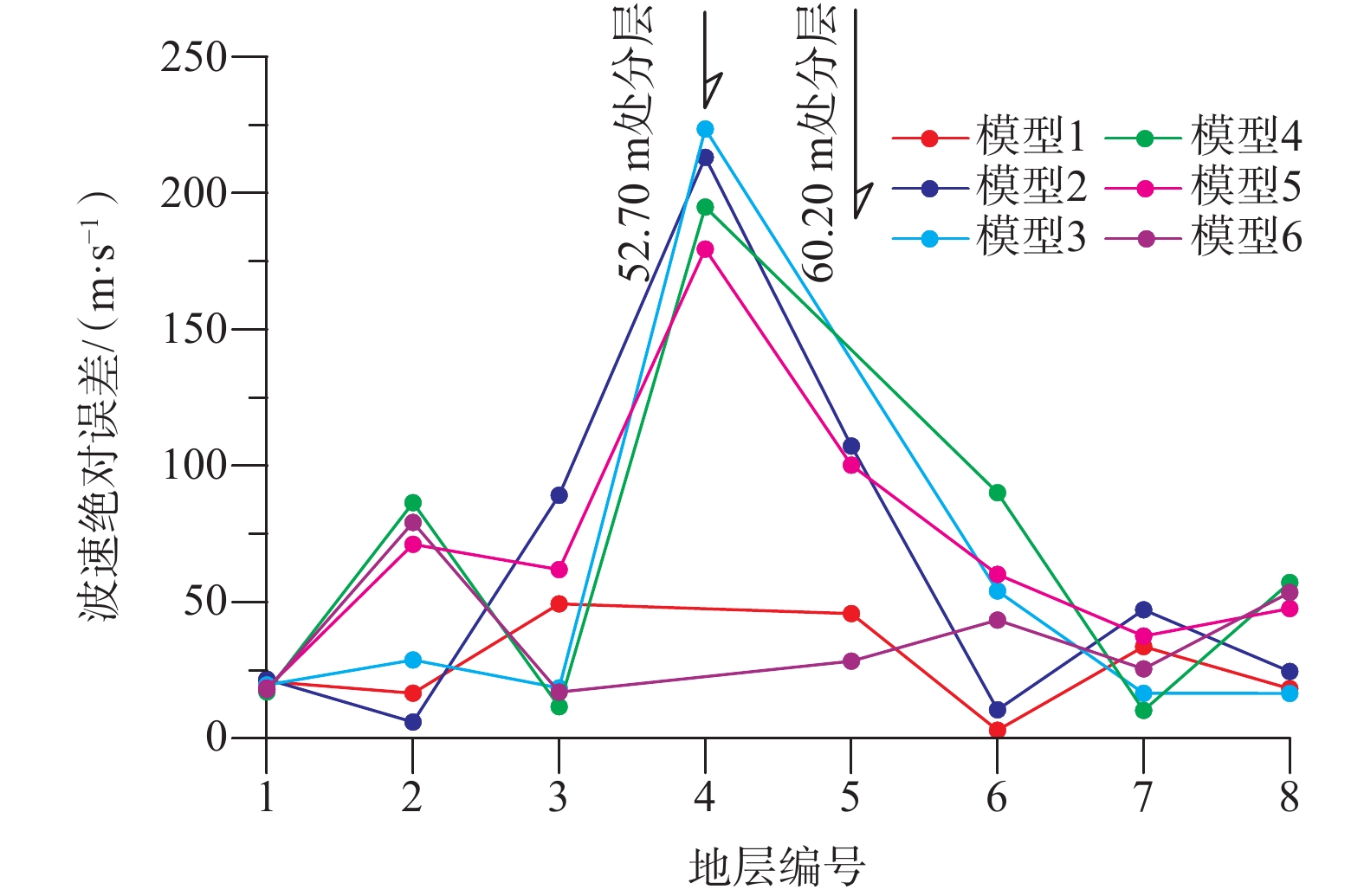

表 3 模型4—6微动反演结果及误差分析
Table 3. Results and error analysis of microtremor inversion in models 4-6
层编号 钻探分层
深度/m测井横波
波速/（m/s）模型4 模型5 模型6 分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）分层深度/
m反演波速/
（m/s）绝对误差/
（m/s）1 15.35 163.00 15.36 180.05 17.05 15.36 181.40 18.40 15.36 180.90 17.90 2 23.70 375.00 23.70 461.45 86.45 23.70 446.18 71.18 23.70 454.21 79.21 3 47.00 646.00 47.00 634.36 11.64 47.00 707.92 61.92 47.00 662.98 16.98 4 52.70 675.00 52.65 480.12 194.88 52.65 495.54 179.46 — — — 5 — 666.00 — — — 60.20 565.78 100.22 60.20 637.67 28.33 6 77.70 714.00 77.60 804.12 90.12 77.60 774.15 60.15 77.60 757.40 43.40 7 94.00 736.00 94.00 746.26 10.26 94.00 773.53 37.53 94.00 761.50 25.50 8 109.30 793.00 109.25 735.83 57.17 109.25 745.37 47.63 109.25 739.47 53.53 9 133.80 — 133.80 825.48 — 133.80 822.23 — 133.80 821.04 — 10 169.13 — 169.20 867.89 — 169.20 854.44 — 169.20 858.23 — 11 200.17 — 200.00 921.52 — 200.00 902.97 — 200.00 909.55 — 均方相对误差 11.55% 均方相对误差 10.70% 均方相对误差 6.51%
下载: 导出CSV
-
