湘南中生代钨锡大规模成矿控制因素：锆石年龄和微量元素的启示

沈宏飞; 李立兴; 李厚民; 李小赛; 孙欣宇; 文一卓; 李文朝; 孟雨红

doi:10.12097/j.issn.1671-2552.2022.2-3.024

湘南中生代钨锡大规模成矿控制因素：锆石年龄和微量元素的启示

1.
中国地质科学院矿产资源研究所自然资源部成矿作用与资源评价重点实验室，北京 100037

2.
中国地质大学(北京)地球科学与资源学院，北京 100083

3.
湖南省湘南地质勘察院，湖南郴州 423000

基金项目:
国家重点研发计划项目《钦杭成矿带湘南段铜锡多金属矿产深部探测技术示范》(编号：2018YFC0603904)

详细信息

作者简介: 沈宏飞(1984-)，男，在读博士生，矿床学专业。E-mail: 276850875@qq.com

通讯作者: 李立兴(1984-)，男，研究员，从事金属矿床成矿作用研究。E-mail：llixing@cags.ac.cn

中图分类号: P534.5;P618.2;P597⁺.3

收稿日期: 2021-09-27

修回日期: 2021-11-29

刊出日期: 2022-03-15

Control of the large-sized Mesozoic W-Sn mineralization in southern Hunan: Insights from zircon geochronology and trace element geochemistry

1.
MNR Key Laboratory of Metallogeny and Mineral Assessment, Institute of Mineral Resources, Chinese Academy of Geological Sciences, Beijing 100037, China

2.
School of Earth Sciences, China University of Geosciences, Beijing 100083, China

3.
Southern Hunan Institute of Geology and Survey, Chenzhou 423000, Hunan, China

More Information

Corresponding author: LI Lixing, llixing@cags.ac.cn

Received Date: 27 September 2021

Revised Date: 29 November 2021

Publish Date: 15 March 2022

摘要

摘要:
以湘南地区震旦系、泥盆系、石炭系和白垩系碎屑岩中碎屑锆石及印支期—燕山期花岗岩中岩浆锆石为对象，通过锆石U-Pb年龄和微量元素地球化学研究，探讨湘南地区中生代钨锡大规模成矿的控制因素。锆石年龄结果表明，碎屑锆石年龄缺乏2.0 Ga左右的谱峰，显示湘南地区震旦纪和晚古生代沉积盆地物源具有华夏陆块的亲缘性，不具扬子陆块亲缘性，可以代表研究区华夏地块岩浆活动的记录；碎屑锆石年龄峰值记录了华夏陆块2.5 Ga、1.3~1.1 Ga、950 Ma、800 Ma、650 Ma和430 Ma六期前中生代构造-岩浆事件，对应早前寒武纪陆壳形成、Grenville碰撞造山运动及Rodinia超大陆的聚合-裂解过程。锆石微量元素分析结果表明，同一构造-岩浆事件锆石的δEu、LREE/HREE、Y/Ho、Nb/Ta值变化幅度均较大，LREE/HREE和Nb/Ta值不随时代变新而变小(反而有变大的趋势)，表明岩浆分异程度与时代无关。但是，锆石∑REE、Y、Th、U、Nb和Ta含量，以及LREE/HREE和Nb/Ta值随时代变新而增高，表明岩浆源区的成分成熟度逐渐增高。湘南地区钨锡矿化规模随着时代变新而增大，在中生代达到顶峰，这一趋势与地壳成熟度的不断增高密切相关。锆石微量元素特征可作为示踪钨锡成矿规模的重要指标。
- 钨锡矿床 /
- 锆石 /
- 分异程度 /
- 源区成分成熟度 /
- 湘南 /
- 矿产勘查工程
Abstract:
Based on detrital zircons from Sinian, Devonian, Carboniferous and Cretaceous clastic rocks and magmatic zircons from Indosinian-Yanshanian granites in southern Hunan, the control of Mesozoic W-Sn large-sized mineralization in southern Hunan are discussed through zircon U-Pb geochronology and trace element geochemistry.Zircon geochronology shows that the detrital zircon age is lacking of the peak at 2.0 Ga, indicating that the provenance of the Sinian and Late Paleozoic sedimentary basins in southern Hunan is related to the Cathaysia block, but not to the Yangtze block, which can represent the record of the Cathaysia block magmatic activity in the study area.The age spectrum peaks of detrital zircons records six periods of pre-Mesozoic tectonic-magmatic events of the Cathaysia Block, including 2.5 Ga, 1.3~1.1 Ga, 950 Ma, 800 Ma, 650 Ma, and 430 Ma, respectively.These periods correspond to the early formation of Precambrian continental crust, Grenville collision orogeny event, and the amalgamation and splitting of the Rodinia supercontinent.The zircon δEu, LREE/HREE, Y/Ho, and Nb/Ta values of the same tectonic-magmatic event in South Hunan vary greatly. With the age getting younger, the LREE /HREE and Nb/Ta values tend to be larger, suggesting that the magma differentiation degree has nothing to do with age.The zircon ∑REE, Y, Th, U, Nb and Ta contents as well as LREE/HREE and Nb/Ta values increase with ages becoming younger, suggesting that the compositional maturity of source area increases accordingly.The results indicate that the scale of tungsten-tin mineralization in southern Hunan increases with times and reaches its peak in Mesozoic, which is closely related to the increasing crustal maturity.The zircon trace elements can be used as an important index to trace the scale of W-Sn mineralization.
- W-Sn deposit /
- zircon /
- differentiation degree /
- compositional maturity of source area /
- southern Hunan /
- mineral exploration engineering

HTML全文

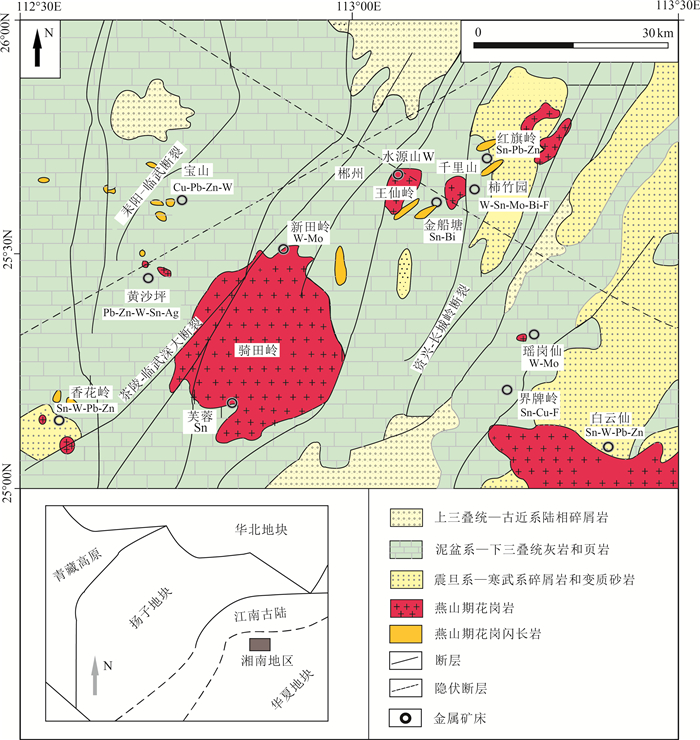

图 1 湘南地区地质矿产简图(据参考文献[10]修改)

Figure 1.

下载: 全尺寸图片幻灯片

图 2 湘南地区岩浆岩和沉积岩中代表性锆石阴极发光(CL)图像及测点位置

Figure 2.

下载: 全尺寸图片幻灯片

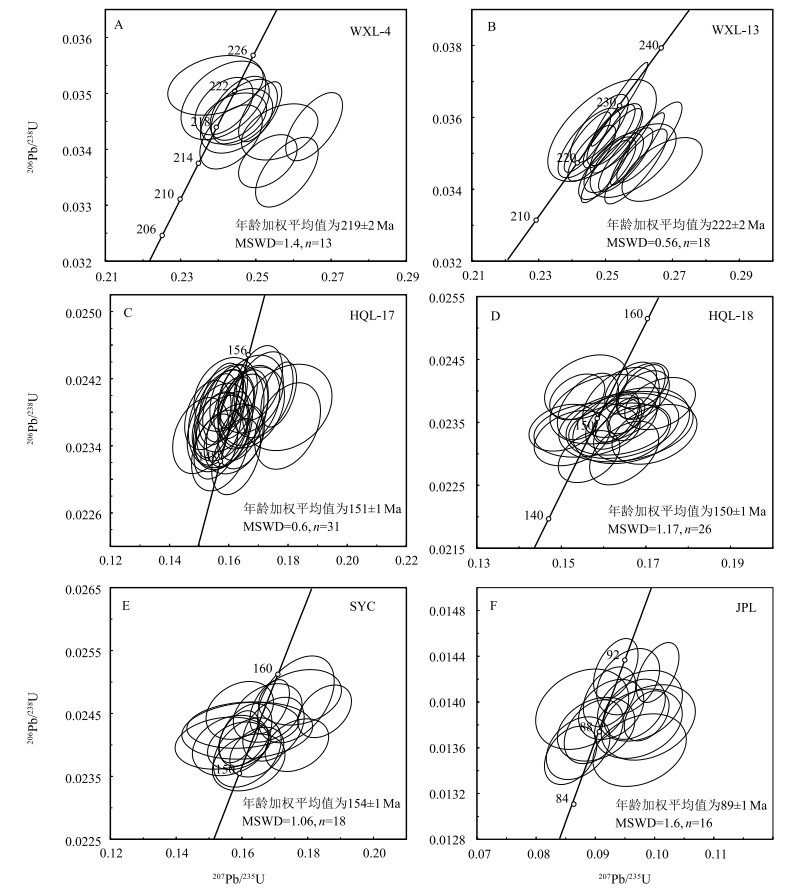

图 3 湘南地区中生代岩浆岩锆石U-Pb谐和图

Figure 3.

下载: 全尺寸图片幻灯片

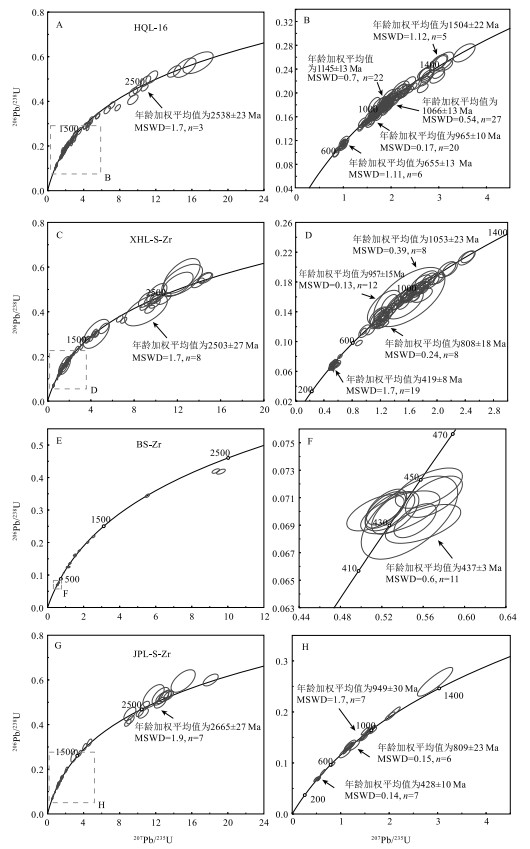

图 4 湘南地区震旦系和上古生界沉积岩锆石U-Pb谐和图

Figure 4.

下载: 全尺寸图片幻灯片

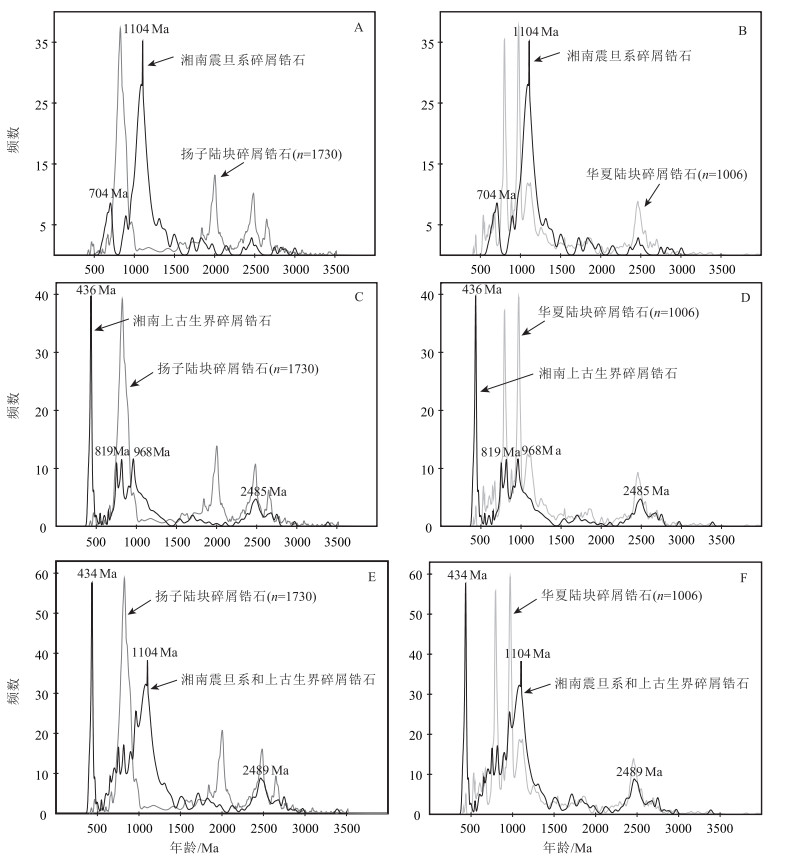

图 5 湘南地区震旦系和上古生界沉积岩中碎屑锆石年龄谱图(华夏陆块碎屑锆石数据据参考文献[30, 33-34]，扬子陆块碎屑锆石数据据参考文献[28-29, 31])

Figure 5.

下载: 全尺寸图片幻灯片

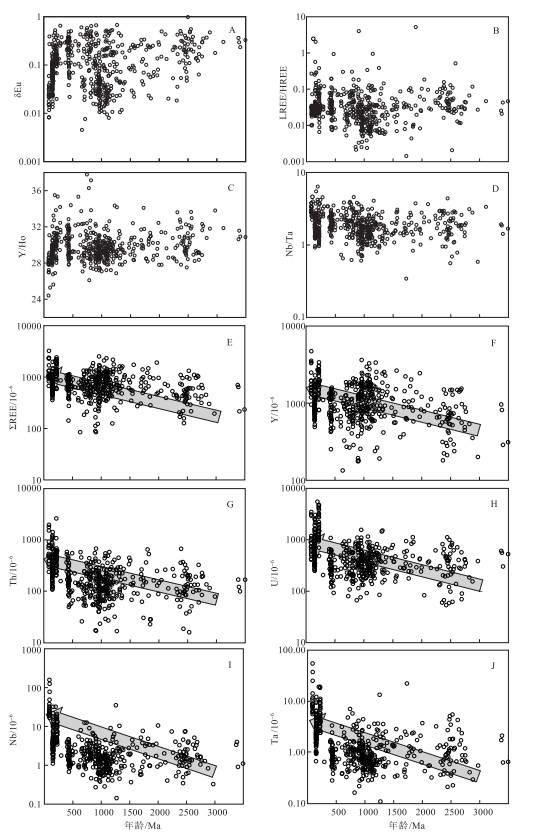

图 6 锆石微量元素与年龄二元图解

Figure 6.

下载: 全尺寸图片幻灯片

表 1 湘南地区中生代钨锡矿床中花岗岩锆石U-Th-Pb分析结果

Table 1. U-Th-Pb isotopic results of magmatic zircons from granite of the Mesozoic W-Sn deposits in southern Hunan

测试点	元素/10^-6		Th/U	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁷Pb/²³⁵U	1σ	²⁰⁶Pb/²³⁸U	1σ	年龄/Ma				谐和度
测试点	Th	U	Th/U	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁷Pb/²³⁵U	1σ	²⁰⁶Pb/²³⁸U	1σ	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁶Pb/²³⁸U	1σ	谐和度
WXL-4-1	433	928	0.47	0.0541	0.0013	0.2563	0.0067	0.0343	0.0003	376.0	55.6	217.5	2.1	93%
WXL-4-2	394	1272	0.31	0.0559	0.0012	0.2583	0.0055	0.0336	0.0004	450.0	15.7	213.0	2.6	90%
WXL-4-4	174	423	0.41	0.0649	0.0013	0.9672	0.0204	0.1082	0.0013	772.2	42.6	662.2	7.5	96%
WXL-4-5	594	1453	0.41	0.0545	0.0011	0.2532	0.0051	0.0338	0.0003	390.8	46.3	214.2	1.9	93%
WXL-4-6	227	1296	0.18	0.0516	0.0010	0.2434	0.0055	0.0342	0.0004	264.9	50.9	216.9	2.4	98%
WXL-4-7.1	358	545	0.66	0.1527	0.0017	8.7412	0.1204	0.4148	0.0039	2376.2	19.1	2236.8	17.8	96%
WXL-4-7.2	369	477	0.77	0.1563	0.0018	9.1678	0.1260	0.4251	0.0040	2416.4	18.7	2283.8	18.1	96%
WXL-4-9	384	1512	0.25	0.0517	0.0011	0.2469	0.0058	0.0347	0.0004	333.4	50.0	219.7	2.4	98%
WXL-4-11	197	535	0.37	0.1636	0.0021	10.0918	0.1679	0.4465	0.0049	2494.4	21.0	2379.8	22.1	97%
WXL-4-13	457	1675	0.27	0.0560	0.0010	0.2655	0.0050	0.0344	0.0004	453.8	43.5	218.1	2.5	90%
WXL-4-14	348	702	0.50	0.0493	0.0017	0.2393	0.0084	0.0351	0.0004	164.9	88.0	222.7	2.2	97%
WXL-4-15	99	753	0.13	0.0759	0.0010	1.8414	0.0301	0.1759	0.0019	1091.7	26.7	1044.3	10.7	98%
WXL-4-16	2603	2836	0.92	0.0525	0.0007	0.2512	0.0038	0.0347	0.0004	305.6	34.3	219.7	2.2	96%
WXL-4-17	1071	1070	1.00	0.0511	0.0012	0.2441	0.0058	0.0346	0.0003	255.6	51.8	219.0	1.9	98%
WXL-4-18	246	994	0.25	0.0501	0.0014	0.2414	0.0074	0.0349	0.0005	198.2	64.8	221.0	2.9	99%
WXL-4-19	246	1428	0.17	0.0503	0.0010	0.2415	0.0051	0.0348	0.0003	209.3	44.4	220.3	2.1	99%
WXL-4-20	202	992	0.20	0.0514	0.0011	0.2457	0.0052	0.0347	0.0004	257.5	48.1	220.1	2.4	98%
WXL-4-21	158	206	0.77	0.0544	0.0019	0.3497	0.0118	0.0468	0.0005	390.8	77.8	294.8	3.3	96%
WXL-4-22	437	539	0.81	0.0745	0.0010	1.8409	0.0284	0.1792	0.0019	1057.4	27.8	1062.5	10.5	99%
WXL-4-23	383	1214	0.32	0.0514	0.0012	0.2449	0.0063	0.0345	0.0004	257.5	55.5	218.7	2.4	98%
WXL-13-2.1	494	3178	0.16	0.0520	0.0007	0.2533	0.0052	0.0353	0.0006	283.4	34.3	223.9	3.7	97%
WXL-13-2.2	313	1726	0.18	0.0541	0.0010	0.2631	0.0064	0.0353	0.0007	376.0	38.0	223.7	4.6	94%
WXL-13-5	421	2746	0.15	0.0515	0.0007	0.2526	0.0054	0.0355	0.0006	264.9	33.3	225.0	3.5	98%
WXL-13-6	556	3809	0.15	0.0512	0.0006	0.2511	0.0051	0.0355	0.0006	250.1	23.1	224.7	3.6	98%
WXL-13-7	325	1896	0.17	0.0525	0.0009	0.2505	0.0057	0.0346	0.0006	305.6	6.5	219.2	3.6	96%
WXL-13-8	415	4244	0.10	0.0525	0.0006	0.2500	0.0048	0.0345	0.0006	309.3	32.4	218.6	3.6	96%
WXL-13-9	582	4753	0.12	0.0532	0.0007	0.2560	0.0054	0.0348	0.0006	338.9	31.5	220.7	3.7	95%
WXL-13-10	679	2212	0.31	0.0502	0.0008	0.2451	0.0061	0.0353	0.0006	211.2	38.9	223.6	4.0	99%
WXL-13-11	624	3035	0.21	0.0543	0.0010	0.2591	0.0062	0.0346	0.0007	383.4	45.4	219.5	4.3	93%
WXL-13-12	468	4621	0.10	0.0539	0.0010	0.2596	0.0053	0.0351	0.0007	368.6	42.6	222.5	4.1	94%
WXL-13-13	314	1075	0.29	0.0536	0.0014	0.2583	0.0085	0.0348	0.0007	366.7	57.4	220.5	4.2	94%
WXL-13-14	430	4744	0.09	0.0502	0.0006	0.2446	0.0046	0.0353	0.0006	211.2	27.8	223.7	3.5	99%
WXL-13-15	241	483	0.50	0.0505	0.0017	0.2490	0.0107	0.0356	0.0009	216.7	77.8	225.7	5.8	99%
WXL-13-16	286	4069	0.07	0.0508	0.0006	0.2459	0.0047	0.0350	0.0005	235.3	27.8	221.8	3.2	99%
WXL-13-17	206	1136	0.18	0.0560	0.0014	0.2669	0.0079	0.0346	0.0006	453.8	57.4	219.0	3.7	90%
WXL-13-18	381	5491	0.07	0.0518	0.0008	0.2218	0.0047	0.0311	0.0005	276.0	41.7	197.2	3.1	96%
WXL-13-19	466	1486	0.31	0.0509	0.0008	0.2542	0.0056	0.0364	0.0008	235.3	37.0	230.3	4.8	99%
WXL-13-20	570	3241	0.18	0.0526	0.0009	0.2525	0.0059	0.0347	0.0005	322.3	37.0	220.1	3.4	96%
WXL-13-21	621	2005	0.31	0.0505	0.0009	0.2481	0.0057	0.0357	0.0006	216.7	40.7	226.0	3.9	99%
HQL-17-1	323	727	0.44	0.0482	0.0014	0.1585	0.0048	0.0239	0.0003	109.4	68.5	152.1	1.8	98%
HQL-17-2	681	1617	0.42	0.0487	0.0009	0.1613	0.0033	0.0240	0.0002	200.1	44.4	152.8	1.6	99%
HQL-17-3	156	356	0.44	0.0490	0.0020	0.1570	0.0063	0.0233	0.0003	146.4	91.7	148.7	2.0	99%
HQL-17-4	118	311	0.38	0.0516	0.0019	0.1714	0.0068	0.0240	0.0003	333.4	80.5	152.9	2.1	95%
HQL-17-5	110	337	0.33	0.0504	0.0021	0.1674	0.0073	0.0240	0.0003	216.7	96.3	153.0	1.9	97%
HQL-17-6	166	270	0.62	0.0479	0.0020	0.1564	0.0069	0.0236	0.0003	94.5	96.3	150.5	2.2	98%
HQL-17-7	456	1104	0.41	0.0483	0.0012	0.1593	0.0038	0.0240	0.0002	116.8	57.4	152.7	1.6	98%
HQL-17-8	246	469	0.52	0.0501	0.0020	0.1616	0.0066	0.0235	0.0003	198.2	92.6	149.6	1.7	98%
HQL-17-9	262	365	0.72	0.0511	0.0022	0.1676	0.0074	0.0239	0.0003	255.6	100.0	152.0	2.0	96%
HQL-17-10	229	625	0.37	0.0487	0.0025	0.1591	0.0084	0.0238	0.0004	131.6	123.1	151.3	2.6	99%
HQL-17-11	445	965	0.46	0.0492	0.0013	0.1617	0.0044	0.0239	0.0002	166.8	58.3	152.0	1.5	99%
HQL-17-13	201	476	0.42	0.0505	0.0018	0.1672	0.0066	0.0239	0.0003	220.4	49.1	152.1	2.0	96%
HQL-17-14	249	563	0.44	0.0487	0.0018	0.1579	0.0062	0.0236	0.0003	131.6	87.0	150.1	1.8	99%
HQL-17-15.1	121	316	0.38	0.0483	0.0019	0.1571	0.0062	0.0236	0.0003	122.3	97.2	150.5	1.7	98%
HQL-17-15.2	205	476	0.43	0.0497	0.0017	0.1602	0.0051	0.0236	0.0003	189.0	79.6	150.4	1.9	99%
HQL-17-17	107	395	0.27	0.0466	0.0020	0.1505	0.0063	0.0235	0.0003	27.9	100.0	149.9	1.9	94%
HQL-17-18	224	514	0.44	0.0482	0.0016	0.1561	0.0053	0.0236	0.0003	122.3	77.8	150.4	1.8	97%
HQL-17-19	353	873	0.40	0.0501	0.0015	0.1649	0.0055	0.0238	0.0003	198.2	70.4	151.7	1.9	97%
HQL-17-21	315	562	0.56	0.0503	0.0015	0.1648	0.0056	0.0238	0.0004	209.3	38.0	151.4	2.2	97%
HQL-17-22	213	559	0.38	0.0483	0.0015	0.1556	0.0049	0.0234	0.0003	116.8	72.2	149.0	1.6	98%
HQL-17-23	300	712	0.42	0.0467	0.0015	0.1529	0.0052	0.0238	0.0003	35.3	87.0	151.4	1.7	95%
HQL-17-24.1	144	319	0.45	0.0557	0.0023	0.1799	0.0074	0.0236	0.0003	438.9	94.4	150.6	2.1	89%
HQL-17-24.2	335	784	0.43	0.0509	0.0014	0.1700	0.0054	0.0241	0.0003	235.3	63.0	153.8	1.8	96%
HQL-17-26	220	516	0.43	0.0481	0.0021	0.1589	0.0071	0.0240	0.0003	105.6	105.5	153.0	1.8	97%
HQL-17-27	201	465	0.43	0.0508	0.0017	0.1625	0.0055	0.0233	0.0003	235.3	77.8	148.3	1.9	96%
HQL-17-28	798	1384	0.58	0.0533	0.0011	0.1769	0.0040	0.0240	0.0003	342.7	48.1	153.0	1.6	92%
HQL-17-29	377	760	0.50	0.0504	0.0015	0.1642	0.0052	0.0235	0.0003	213.0	66.7	149.8	1.6	96%
HQL-17-30	534	1180	0.45	0.0477	0.0014	0.1573	0.0049	0.0239	0.0003	83.4	68.5	152.2	2.0	97%
HQL-17-31	259	1148	0.23	0.0477	0.0013	0.1559	0.0045	0.0238	0.0003	87.1	66.7	151.4	2.1	97%
HQL-17-32	144	299	0.48	0.0545	0.0028	0.1798	0.0100	0.0239	0.0003	394.5	116.7	152.0	2.1	90%
HQL-17-34	239	429	0.56	0.0488	0.0021	0.1587	0.0067	0.0238	0.0003	139.0	103.7	151.7	2.0	98%
HQL-18-1	129	255	0.51	0.0517	0.0029	0.1644	0.0088	0.0234	0.0003	272.3	127.8	149.4	2.2	96%
HQL-18-2	437	879	0.50	0.0464	0.0012	0.1538	0.0043	0.0239	0.0002	20.5	63.0	152.3	1.5	95%
HQL-18-3.1	125	249	0.50	0.0495	0.0028	0.1603	0.0086	0.0237	0.0004	168.6	129.6	151.0	2.3	99%
HQL-18-3.2	289	825	0.35	0.0520	0.0016	0.1649	0.0054	0.0230	0.0003	283.4	72.2	146.7	2.1	94%
HQL-18-5	190	349	0.55	0.0471	0.0019	0.1558	0.0065	0.0241	0.0003	53.8	92.6	153.3	2.1	95%
HQL-18-6	257	534	0.48	0.0495	0.0016	0.1566	0.0048	0.0230	0.0003	172.3	78.7	146.3	1.7	99%
HQL-18-7	379	1251	0.30	0.0507	0.0011	0.1692	0.0041	0.0241	0.0002	227.8	51.8	153.4	1.5	96%
HQL-18-8	513	1102	0.47	0.0500	0.0011	0.1664	0.0040	0.0240	0.0003	194.5	56.5	153.2	1.7	97%
HQL-18-9	867	1933	0.45	0.0501	0.0010	0.1632	0.0034	0.0236	0.0003	198.2	46.3	150.3	1.7	97%
HQL-18-10	221	567	0.39	0.0501	0.0019	0.1641	0.0060	0.0238	0.0004	211.2	80.5	151.7	2.3	98%
HQL-18-11	179	295	0.61	0.0513	0.0027	0.1665	0.0091	0.0234	0.0004	253.8	120.4	149.4	2.5	95%
HQL-18-12	671	1574	0.43	0.0503	0.0012	0.1630	0.0036	0.0235	0.0003	209.3	53.7	150.0	1.6	97%
HQL-18-13	295	311	0.95	0.0506	0.0024	0.1635	0.0078	0.0234	0.0003	233.4	109.2	149.1	1.7	96%
HQL-18-14	159	337	0.47	0.0537	0.0021	0.1720	0.0066	0.0233	0.0003	366.7	54.6	148.5	2.0	91%
HQL-18-15	183	343	0.53	0.0481	0.0024	0.1561	0.0083	0.0234	0.0003	105.6	111.1	149.0	1.8	98%
HQL-18-16	658	1626	0.40	0.0511	0.0011	0.1693	0.0041	0.0239	0.0003	255.6	50.0	152.5	1.6	95%
HQL-18-17	717	1445	0.50	0.0514	0.0012	0.1668	0.0038	0.0236	0.0002	257.5	51.8	150.1	1.4	95%
HQL-18-18	248	501	0.50	0.0480	0.0019	0.1526	0.0059	0.0232	0.0003	98.2	92.6	148.2	1.8	97%
HQL-18-19	432	956	0.45	0.0502	0.0013	0.1624	0.0044	0.0235	0.0003	205.6	61.1	149.6	1.7	97%
HQL-18-20	505	689	0.73	0.0517	0.0017	0.1667	0.0060	0.0233	0.0003	272.3	75.9	148.7	1.9	94%
HQL-18-21	1217	2569	0.47	0.0510	0.0010	0.1689	0.0037	0.0240	0.0003	239.0	42.6	152.8	1.8	96%
HQL-18-22	382	942	0.41	0.0478	0.0015	0.1563	0.0048	0.0238	0.0003	100.1	75.0	151.3	2.2	97%
HQL-18-23	1041	2516	0.41	0.0508	0.0009	0.1653	0.0030	0.0236	0.0002	231.6	71.3	150.4	1.2	96%
HQL-18-24	273	583	0.47	0.0529	0.0016	0.1734	0.0055	0.0238	0.0003	324.1	68.5	151.6	1.7	93%
HQL-18-25	124	268	0.46	0.0507	0.0030	0.1653	0.0105	0.0234	0.0004	227.8	139.8	149.3	2.3	96%
HQL-18-26	475	808	0.59	0.0468	0.0017	0.1504	0.0053	0.0234	0.0002	35.3	85.2	149.2	1.5	95%
HQL-18-27	485	1087	0.45	0.0564	0.0009	0.5318	0.0091	0.0684	0.0007	477.8	37.0	426.5	4.0	98%
SYC-1	212	577	0.37	0.0484	0.0042	0.1616	0.0131	0.0242	0.0003	116.8	192.6	154.3	1.9	98%
SYC-2	1153	3045	0.38	0.0474	0.0035	0.1603	0.0112	0.0243	0.0002	77.9	161.1	154.9	1.5	97%
SYC-4	307	710	0.43	0.0466	0.0031	0.1543	0.0096	0.0240	0.0003	33.4	142.6	153.1	1.7	95%
SYC-6	1406	2383	0.59	0.0521	0.0026	0.1777	0.0083	0.0248	0.0003	300.1	147.2	157.6	1.8	94%
SYC-7	404	912	0.44	0.0471	0.0021	0.1593	0.0068	0.0245	0.0003	53.8	100.0	156.3	1.9	95%
SYC-9.1	656	1380	0.48	0.0546	0.0016	0.1852	0.0054	0.0245	0.0003	398.2	64.8	156.2	1.7	90%
SYC-9.2	251	449	0.56	0.0495	0.0021	0.1616	0.0068	0.0239	0.0004	168.6	127.8	152.1	2.3	99%
SYC-11	193	327	0.59	0.0475	0.0023	0.1566	0.0077	0.0240	0.0003	76.0	111.1	152.8	2.0	96%
SYC-12	213	486	0.44	0.0499	0.0023	0.1621	0.0073	0.0237	0.0003	190.8	110.2	151.1	1.9	99%
SYC-15	1092	2132	0.51	0.0496	0.0010	0.1684	0.0040	0.0246	0.0003	176.0	52.8	156.7	1.8	99%
SYC-16	217	453	0.48	0.0497	0.0020	0.1678	0.0069	0.0245	0.0003	189.0	125.0	156.1	1.9	99%
SYC-17	240	585	0.41	0.0503	0.0017	0.1645	0.0054	0.0239	0.0003	205.6	79.6	152.2	1.6	98%
SYC-18	222	504	0.44	0.0517	0.0021	0.1764	0.0077	0.0247	0.0005	333.4	92.6	157.4	2.9	95%
SYC-19	339	719	0.47	0.0513	0.0020	0.1696	0.0062	0.0243	0.0003	253.8	88.9	154.5	2.1	97%
SYC-20	291	661	0.44	0.0481	0.0018	0.1589	0.0061	0.0240	0.0002	105.6	90.7	152.8	1.6	97%
SYC-21	449	1146	0.39	0.0478	0.0011	0.1591	0.0040	0.0241	0.0003	87.1	53.7	153.7	1.7	97%
SYC-22	259	620	0.42	0.0534	0.0019	0.1767	0.0064	0.0240	0.0003	346.4	84.3	152.9	1.7	92%
SYC-23	282	630	0.45	0.0486	0.0016	0.1611	0.0053	0.0242	0.0003	127.9	80.5	153.9	2.1	98%
JPL-1	400	331	1.21	0.0582	0.0017	0.5377	0.0156	0.0672	0.0008	600.0	63.0	419.4	4.6	95%
JPL-2	791	1063	0.74	0.0487	0.0016	0.0955	0.0035	0.0142	0.0002	200.1	79.6	90.8	1.2	97%
JPL-3	491	714	0.69	0.0469	0.0020	0.0871	0.0035	0.0136	0.0002	42.7	100.0	87.1	1.2	97%
JPL-4	297	409	0.73	0.0461	0.0027	0.0878	0.0052	0.0139	0.0002	400.1	261.1	89.2	1.5	95%
JPL-5	1954	2933	0.67	0.0474	0.0011	0.0935	0.0025	0.0143	0.0002	77.9	55.6	91.5	1.1	99%
JPL-7	386	614	0.63	0.0486	0.0019	0.0927	0.0036	0.0139	0.0002	127.9	92.6	89.2	1.1	99%
JPL-8	697	974	0.72	0.0464	0.0017	0.0858	0.0029	0.0135	0.0002	20.5	85.2	86.7	1.1	96%
JPL-10	533	726	0.73	0.0478	0.0018	0.0897	0.0033	0.0137	0.0002	87.1	85.2	88.0	1.2	99%
JPL-13	334	537	0.62	0.0479	0.0023	0.0901	0.0043	0.0138	0.0002	100.1	111.1	88.1	1.2	99%
JPL-14	494	655	0.75	0.0520	0.0027	0.0975	0.0052	0.0136	0.0002	287.1	116.7	86.9	1.3	91%
JPL-17	467	859	0.54	0.0503	0.0017	0.0966	0.0034	0.0139	0.0002	209.3	79.6	89.2	1.1	95%
JPL-18	1770	3475	0.51	0.0512	0.0014	0.1005	0.0024	0.0143	0.0002	250.1	67.6	91.3	1.1	93%
JPL-19	238	424	0.56	0.0515	0.0026	0.0973	0.0049	0.0138	0.0002	264.9	116.7	88.4	1.3	93%
JPL-20.1	390	497	0.78	0.0511	0.0025	0.0975	0.0047	0.0140	0.0002	255.6	119.4	89.4	1.3	94%
JPL-20.2	917	740	1.24	0.0518	0.0025	0.0989	0.0052	0.0138	0.0002	276.0	108.3	88.5	1.4	92%
JPL-23	752	1185	0.63	0.0479	0.0015	0.0924	0.0029	0.0140	0.0002	94.5	75.9	89.9	1.1	99%
JPL-24	1516	3099	0.49	0.0516	0.0013	0.0987	0.0025	0.0139	0.0001	333.4	57.4	88.9	0.9	92%

下载: 导出CSV

表附表 1 湘南地区沉积岩中碎屑锆石U-Th-Pb定年结果

Table 附表 1. U-Th-Pb isotopic results of detrital zircon from sedimentary rocks in southern Hunan

测试点	元素/10^-6		Th/U	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁷Pb/²³⁵U	1σ	²⁰⁶Pb/²³⁸U	1σ	年龄/Ma				谐和度
测试点	Th	U	Th/U	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁷Pb/²³⁵U	1σ	²⁰⁶Pb/²³⁸U	1σ	²⁰⁷Pb/²⁰⁶Pb	1σ	²⁰⁶Pb/²³⁸U	1σ	谐和度
HQL-16-1	133	341	0.39	0.0644	0.0017	0.9833	0.0508	0.1111	0.0052	766.7	57.4	679.2	30.4	97%
HQL-16-2	120	563	0.21	0.0635	0.0013	0.9379	0.0269	0.1080	0.0028	724.1	43.4	661.0	16.1	98%
HQL-16-3	294	594	0.50	0.0857	0.0011	2.5258	0.0702	0.2136	0.0052	1331.5	30.6	1248.1	27.5	97%
HQL-16-4	97	459	0.21	0.0741	0.0012	1.6642	0.0494	0.1627	0.0040	1042.6	32.6	971.8	22.2	97%
HQL-16-5	80	533	0.15	0.0777	0.0012	1.8960	0.0591	0.1771	0.0048	1138.9	29.6	1051.3	26.4	97%
HQL-16-6	26	926	0.03	0.0642	0.0009	0.9568	0.0228	0.1083	0.0021	746.3	29.6	662.6	12.0	97%
HQL-16-7	72	282	0.25	0.0674	0.0015	1.0216	0.0367	0.1105	0.0032	850.0	-150.9	675.4	18.4	94%
HQL-16-8	528	837	0.63	0.1115	0.0012	4.5837	0.0961	0.2986	0.0052	1824.4	19.3	1684.2	25.7	96%
HQL-16-9.1	67	399	0.17	0.0735	0.0012	1.6512	0.0593	0.1631	0.0050	1029.3	33.3	974.1	27.9	98%
HQL-16-9.2	65	219	0.30	0.0734	0.0015	1.6882	0.0600	0.1678	0.0050	1025.0	40.7	1000.2	27.6	99%
HQL-16-11	49	353	0.14	0.0759	0.0013	1.6833	0.0531	0.1617	0.0042	1092.3	35.2	966.3	23.5	96%
HQL-16-12.1	176	317	0.56	0.0784	0.0013	1.9309	0.0589	0.1799	0.0050	1166.7	33.3	1066.4	27.1	97%
HQL-16-12.2	71	212	0.33	0.0780	0.0015	2.0274	0.0901	0.1888	0.0074	1146.3	37.5	1114.8	39.9	99%
HQL-16-14.1	282	491	0.57	0.0726	0.0011	1.5131	0.0383	0.1515	0.0030	1011.1	31.5	909.1	16.7	97%
HQL-16-14.2	54	359	0.15	0.0798	0.0012	2.1403	0.0608	0.1952	0.0050	1194.4	34.3	1149.2	27.0	98%
HQL-16-16	45	340	0.13	0.0746	0.0012	1.8978	0.0643	0.1845	0.0054	1059.0	36.1	1091.6	29.4	98%
HQL-16-17	132	624	0.21	0.1694	0.0018	10.7637	0.2603	0.4612	0.0101	2553.7	-15.0	2444.9	44.5	97%
HQL-16-18	111	162	0.68	0.0724	0.0017	1.6477	0.0908	0.1635	0.0071	998.2	47.1	976.1	39.3	98%
HQL-16-19	102	92	1.11	0.0743	0.0022	1.8171	0.0856	0.1807	0.0088	1050.0	60.6	1070.8	48.0	98%
HQL-16-20	111	196	0.57	0.0723	0.0016	1.6339	0.0581	0.1658	0.0054	994.4	46.0	988.7	30.1	99%
HQL-16-22	32	555	0.06	0.0813	0.0012	2.3136	0.0645	0.2064	0.0051	1231.5	-4.6	1209.4	27.2	99%
HQL-16-23	187	302	0.62	0.0718	0.0013	1.6037	0.0552	0.1615	0.0047	981.2	35.2	965.3	26.2	99%
HQL-16-24	248	1098	0.23	0.0724	0.0010	1.5995	0.0393	0.1599	0.0032	996.0	32.4	956.4	17.8	98%
HQL-16-25.1	333	695	0.48	0.0925	0.0011	2.6642	0.0744	0.2080	0.0050	1479.6	23.3	1217.9	26.8	92%
HQL-16-25.2	394	792	0.50	0.0936	0.0011	3.1795	0.0732	0.2462	0.0052	1501.9	20.8	1418.7	27.1	97%
HQL-16-27	222	520	0.43	0.0825	0.0011	2.2798	0.0557	0.2006	0.0046	1257.4	25.9	1178.6	24.9	97%
HQL-16-28	96	558	0.17	0.0805	0.0013	2.2563	0.0935	0.2020	0.0073	1209.3	33.3	1186.2	38.9	98%
HQL-16-29	488	588	0.83	0.0768	0.0011	1.8734	0.0460	0.1772	0.0040	1116.7	29.6	1051.8	22.1	98%
HQL-16-30	51	139	0.37	0.0776	0.0016	2.1890	0.1258	0.2035	0.0109	1138.9	46.8	1194.3	58.3	98%
HQL-16-31.1	206	472	0.44	0.0766	0.0013	1.6999	0.0449	0.1608	0.0038	1122.2	32.3	961.4	21.3	95%
HQL-16-31.2	90	407	0.22	0.0779	0.0013	1.7236	0.0533	0.1599	0.0043	1143.5	26.9	956.4	23.8	93%
HQL-16-33	445	443	1.01	0.0928	0.0013	2.9970	0.0846	0.2337	0.0062	1484.3	25.6	1353.8	32.5	96%
HQL-16-34.1	57	501	0.11	0.0749	0.0012	1.6819	0.0468	0.1624	0.0040	1066.4	31.5	969.8	22.1	96%
HQL-16-34.2	76	521	0.15	0.0758	0.0012	1.7160	0.0466	0.1640	0.0042	1100.0	29.6	979.0	23.3	96%
HQL-16-34.3	40	434	0.09	0.0744	0.0012	1.6434	0.0501	0.1598	0.0044	1051.6	31.5	955.8	24.5	96%
HQL-16-37	50	821	0.06	0.1513	0.0016	7.7820	0.2057	0.3712	0.0092	2360.8	18.5	2035.2	43.2	91%
HQL-16-38.1	54	706	0.08	0.0699	0.0011	1.3630	0.0396	0.1410	0.0034	924.1	33.3	850.1	19.5	97%
HQL-16-38.2	56	884	0.06	0.0688	0.0009	1.3574	0.0342	0.1426	0.0033	892.3	27.8	859.5	18.6	98%
HQL-16-40	196	290	0.68	0.0757	0.0015	1.8494	0.0682	0.1772	0.0062	1087.0	36.1	1051.8	33.8	98%
HQL-16-41	242	320	0.76	0.0730	0.0013	1.5294	0.0537	0.1512	0.0046	1013.0	37.0	907.5	25.5	96%
HQL-16-42	68	429	0.16	0.0743	0.0012	1.8103	0.0564	0.1756	0.0046	1050.0	33.3	1043.0	25.3	99%
HQL-16-43	271	453	0.60	0.0881	0.0013	2.7571	0.0800	0.2257	0.0058	1387.0	23.1	1311.9	30.7	97%
HQL-16-44.1	88	449	0.19	0.0763	0.0011	1.8072	0.0452	0.1716	0.0039	1103.4	29.9	1020.8	21.3	97%
HQL-16-44.2	149	388	0.38	0.0742	0.0013	1.7403	0.0522	0.1694	0.0043	1047.2	35.2	1008.6	23.8	98%
HQL-16-44.3	162	248	0.65	0.0761	0.0013	1.9131	0.0722	0.1815	0.0060	1098.2	34.4	1075.1	32.7	99%
HQL-16-47.1	115	155	0.74	0.2067	0.0030	16.6933	1.1068	0.5730	0.0322	2879.9	23.0	2920.1	131.8	99%
HQL-16-47.2	135	185	0.73	0.1998	0.0023	15.2228	0.8210	0.5507	0.0286	2824.4	19.1	2828.0	119.0	99%
HQL-16-49.1	127	368	0.35	0.0874	0.0013	2.7630	0.0819	0.2289	0.0062	1370.1	27.9	1328.9	32.5	98%
HQL-16-49.2	74	257	0.29	0.0866	0.0015	3.0010	0.1132	0.2500	0.0084	1351.5	31.6	1438.3	43.3	97%
HQL-16-51.1	673	864	0.78	0.0763	0.0011	1.5943	0.0377	0.1512	0.0029	1105.6	28.6	907.6	16.1	93%
HQL-16-51.2	40	1558	0.03	0.0713	0.0009	1.5710	0.0344	0.1598	0.0032	968.5	27.0	955.6	18.0	99%
HQL-16-53	57	191	0.30	0.0627	0.0017	1.0116	0.0691	0.1168	0.0068	698.2	59.3	712.2	39.5	99%
HQL-16-54	408	825	0.49	0.0812	0.0009	2.2203	0.0525	0.1980	0.0042	1227.8	21.1	1164.3	22.4	98%
HQL-16-55	154	249	0.62	0.0749	0.0015	1.7815	0.0638	0.1725	0.0053	1066.4	38.0	1026.1	29.4	98%
HQL-16-56	172	228	0.75	0.0889	0.0017	3.0995	0.1392	0.2529	0.0104	1411.1	37.0	1453.2	53.5	98%
HQL-16-57	294	508	0.58	0.0791	0.0010	1.9882	0.0480	0.1822	0.0039	1173.8	25.9	1078.8	21.2	97%
HQL-16-58.1	28	901	0.03	0.1136	0.0013	4.8109	0.1109	0.3068	0.0063	1857.7	20.4	1724.8	31.2	96%
HQL-16-58.2	28	1120	0.03	0.1130	0.0013	4.6045	0.1114	0.2952	0.0064	1847.2	52.8	1667.5	32.0	95%
HQL-16-60	262	407	0.64	0.0825	0.0013	2.2642	0.0633	0.1993	0.0049	1257.4	29.6	1171.5	26.4	97%
HQL-16-61	113	284	0.40	0.1347	0.0019	7.1282	0.2260	0.3829	0.0104	2161.1	24.7	2089.7	48.6	98%
HQL-16-62	76	377	0.20	0.1323	0.0018	6.6214	0.2383	0.3612	0.0111	2128.7	24.1	1987.8	52.6	96%
HQL-16-63	367	517	0.71	0.0801	0.0011	1.9447	0.0524	0.1760	0.0041	1199.7	27.8	1045.3	22.7	95%
HQL-16-64.1	84	387	0.22	0.0769	0.0013	1.9238	0.0607	0.1823	0.0054	1118.2	35.2	1079.4	29.2	99%
HQL-16-64.2	100	410	0.24	0.0771	0.0011	1.8354	0.0509	0.1730	0.0043	1124.1	28.2	1028.8	23.6	97%
HQL-16-66	261	411	0.63	0.0802	0.0012	2.1697	0.0701	0.1959	0.0053	1266.7	28.2	1153.4	28.6	98%
HQL-16-67	118	460	0.26	0.0782	0.0011	1.9561	0.0615	0.1812	0.0050	1153.7	32.4	1073.8	27.1	97%
HQL-16-68.1	193	1449	0.13	0.0848	0.0009	2.4675	0.0513	0.2110	0.0038	1310.8	16.2	1234.1	20.1	97%
HQL-16-68.2	226	1515	0.15	0.0849	0.0010	2.3990	0.0480	0.2052	0.0036	1322.2	50.0	1203.4	19.2	96%
HQL-16-70.1	93	447	0.21	0.1563	0.0020	9.5300	0.3133	0.4420	0.0132	2416.7	22.2	2359.4	59.0	98%
HQL-16-70.2	101	350	0.29	0.1592	0.0020	9.9592	0.3040	0.4541	0.0128	2447.2	21.3	2413.6	56.7	99%
HQL-16-72.1	67	229	0.29	0.0627	0.0016	0.9969	0.0403	0.1162	0.0039	698.2	55.6	708.7	22.3	99%
HQL-16-72.2	125	442	0.28	0.0645	0.0013	1.0334	0.0377	0.1162	0.0034	766.7	40.7	708.4	19.9	98%
HQL-16-74	129	296	0.44	0.1608	0.0018	10.8711	0.3764	0.4902	0.0157	2464.5	14.0	2571.5	68.1	97%
HQL-16-75	72	310	0.23	0.0740	0.0014	1.6380	0.0508	0.1609	0.0042	1042.6	37.0	962.0	23.5	97%
HQL-16-76.1	136	275	0.49	0.0618	0.0016	0.8421	0.0441	0.0987	0.0040	666.4	55.6	606.7	23.5	97%
HQL-16-76.2	70	193	0.36	0.0630	0.0016	0.8479	0.0391	0.0978	0.0036	709.3	53.7	601.4	21.3	96%
HQL-16-78.1	81	525	0.15	0.0755	0.0011	1.8214	0.0491	0.1757	0.0043	1083.3	28.5	1043.4	23.5	99%
HQL-16-78.2	65	890	0.07	0.0747	0.0010	1.7415	0.0486	0.1691	0.0039	1061.1	32.4	1007.0	21.5	98%
HQL-16-78.3	94	600	0.16	0.0788	0.0011	1.8537	0.0562	0.1709	0.0046	1168.5	28.2	1017.2	25.1	95%
HQL-16-81	118	643	0.18	0.0891	0.0012	2.6950	0.0764	0.2198	0.0054	1405.6	21.3	1280.8	28.6	96%
HQL-16-82.1	261	714	0.37	0.0803	0.0011	1.8608	0.0521	0.1687	0.0043	1205.6	28.1	1004.8	23.5	93%
HQL-16-82.2	264	756	0.35	0.0781	0.0011	1.9101	0.0493	0.1777	0.0038	1150.0	26.7	1054.4	21.0	97%
HQL-16-84.1	62	286	0.22	0.1044	0.0014	4.1517	0.1418	0.2889	0.0093	1705.6	24.4	1636.0	46.3	98%
HQL-16-84.2	129	466	0.28	0.1054	0.0012	4.2008	0.1435	0.2890	0.0089	1720.7	21.8	1636.7	44.4	97%
HQL-16-86	17	304	0.06	0.0676	0.0012	1.4055	0.0594	0.1500	0.0054	857.4	38.9	900.8	30.2	98%
HQL-16-87.1	106	554	0.19	0.0759	0.0011	2.0793	0.0735	0.1984	0.0059	1094.4	29.6	1166.5	31.9	97%
HQL-16-87.2	142	225	0.63	0.0763	0.0013	1.9781	0.0748	0.1894	0.0068	1103.4	2.8	1118.1	37.1	99%
HQL-16-89	190	260	0.73	0.0741	0.0014	1.7904	0.0635	0.1758	0.0053	1055.6	38.9	1044.2	29.2	99%
HQL-16-90	82	242	0.34	0.1112	0.0018	4.8145	0.1492	0.3166	0.0093	1820.4	28.6	1773.2	45.7	99%
HQL-16-91	131	154	0.85	0.0958	0.0016	3.5334	0.1506	0.2673	0.0101	1544.1	26.9	1526.9	51.4	99%
HQL-16-92	224	594	0.38	0.0738	0.0011	1.6134	0.0466	0.1588	0.0040	1038.9	28.6	949.9	22.1	97%
HQL-16-93	169	210	0.81	0.0741	0.0014	1.9572	0.0987	0.1923	0.0089	1055.6	38.9	1134.0	48.2	97%
HQL-16-94	248	416	0.60	0.1200	0.0015	5.5377	0.1704	0.3349	0.0092	1966.7	27.9	1862.2	44.2	97%
HQL-16-95	288	392	0.74	0.0838	0.0013	2.6835	0.0845	0.2323	0.0061	1287.0	30.1	1346.4	31.7	98%
HQL-16-96	101	358	0.28	0.0757	0.0011	1.9343	0.0655	0.1851	0.0053	1087.0	29.6	1095.0	28.9	99%
HQL-16-97	89	371	0.24	0.0618	0.0014	1.0050	0.0368	0.1176	0.0032	666.4	50.9	716.9	18.3	98%
HQL-16-98	114	178	0.64	0.0738	0.0016	1.8936	0.0690	0.1865	0.0058	1035.2	42.6	1102.3	31.6	97%
HQL-16-99	172	199	0.87	0.0697	0.0018	1.7639	0.0942	0.1811	0.0071	920.4	54.2	1072.8	39.0	96%
HQL-16-100	98	262	0.37	0.0853	0.0016	2.7503	0.1072	0.2336	0.0078	1321.3	39.8	1353.3	40.6	99%
HQL-16-101	543	1154	0.47	0.0751	0.0011	1.8485	0.0456	0.1787	0.0037	1070.1	28.2	1060.1	20.3	99%
HQL-16-102	129	432	0.30	0.1209	0.0016	5.5607	0.1451	0.3329	0.0072	1969.4	24.1	1852.5	34.7	96%
HQL-16-103	547	1101	0.50	0.0713	0.0009	1.4736	0.0343	0.1497	0.0029	968.5	27.0	889.2	16.2	97%
HQL-16-104	85	302	0.28	0.1904	0.0022	14.0431	0.4857	0.5339	0.0171	2745.4	18.1	2757.8	71.9	99%
HQL-16-105	245	687	0.36	0.0619	0.0011	0.9924	0.0325	0.1157	0.0030	672.2	37.0	705.6	17.4	99%
HQL-16-106	577	378	1.53	0.0613	0.0012	0.8746	0.0281	0.1043	0.0033	650.0	47.2	639.3	19.3	99%
HQL-16-107	142	274	0.52	0.0759	0.0012	1.9920	0.0610	0.1908	0.0056	1094.4	31.5	1125.8	30.2	98%
HQL-16-108	148	835	0.18	0.0593	0.0010	0.8450	0.0223	0.1033	0.0023	576.0	37.0	633.6	13.5	98%
HQL-16-109.1	258	223	1.15	0.0758	0.0013	1.9895	0.0838	0.1904	0.0077	1088.6	33.6	1123.8	41.7	98%
HQL-16-109.2	312	337	0.93	0.0733	0.0013	1.8746	0.0660	0.1853	0.0059	1021.9	35.2	1095.8	32.2	97%
HQL-16-111.1	102	337	0.30	0.0699	0.0012	1.4373	0.0464	0.1488	0.0042	927.8	30.6	894.2	23.6	98%
HQL-16-111.2	169	655	0.26	0.0693	0.0010	1.4345	0.0362	0.1495	0.0032	909.3	29.6	898.3	18.1	99%
HQL-16-113	199	736	0.27	0.0741	0.0010	1.6630	0.0399	0.1625	0.0036	1055.6	27.8	970.4	19.7	97%
HQL-16-114	160	326	0.49	0.0697	0.0013	1.6275	0.0572	0.1698	0.0057	920.4	43.5	1011.2	31.2	96%
HQL-16-115.1	168	256	0.66	0.0737	0.0014	1.8710	0.0683	0.1834	0.0057	1033.0	38.9	1085.5	30.9	98%
HQL-16-115.2	109	180	0.61	0.0733	0.0014	1.8300	0.0838	0.1791	0.0067	1033.3	38.1	1062.1	36.5	99%
HQL-16-117.1	165	220	0.75	0.0860	0.0013	3.0023	0.1231	0.2512	0.0089	1338.9	29.6	1444.6	45.6	97%
HQL-16-117.2	447	375	1.19	0.0839	0.0011	2.7100	0.0787	0.2334	0.0062	1300.0	24.8	1352.4	32.7	98%
HQL-16-119	62	174	0.36	0.0712	0.0018	1.5410	0.0612	0.1590	0.0064	964.8	45.4	951.3	35.3	99%
HQL-16-120	171	213	0.80	0.1647	0.0021	11.5607	0.4348	0.5083	0.0186	2505.6	21.3	2649.2	79.6	96%
HQL-16-121.1	136	178	0.76	0.0795	0.0015	2.3795	0.0894	0.2160	0.0073	1187.0	36.0	1260.8	38.9	98%
HQL-16-121.2	148	193	0.76	0.0782	0.0014	2.2279	0.0670	0.2067	0.0057	1153.7	35.2	1211.4	30.4	98%
HQL-16-123	203	233	0.87	0.1678	0.0033	9.4583	0.3852	0.4075	0.0146	2535.5	33.0	2203.6	67.0	92%
HQL-16-124	101	321	0.31	0.0751	0.0011	1.9541	0.0703	0.1879	0.0061	1072.2	29.6	1110.0	32.9	99%
HQL-16-125	113	618	0.18	0.0638	0.0011	0.9993	0.0276	0.1136	0.0027	744.5	35.2	693.6	15.7	98%
HQL-16-126	95	298	0.32	0.0757	0.0013	1.8526	0.0581	0.1772	0.0047	1087.0	34.4	1051.4	25.9	98%
HQL-16-127.1	165	697	0.24	0.0764	0.0010	1.7926	0.0481	0.1709	0.0049	1105.6	25.9	1017.1	27.0	97%
HQL-16-127.2	216	689	0.31	0.0762	0.0011	1.8505	0.0470	0.1759	0.0038	1101.9	27.8	1044.4	20.9	98%
HQL-16-129	242	504	0.48	0.0728	0.0012	1.6212	0.0437	0.1615	0.0036	1007.1	33.0	964.9	19.8	98%
HQL-16-130.1	194	226	0.86	0.0796	0.0016	2.0509	0.0804	0.1866	0.0063	1187.0	39.7	1103.1	34.3	97%
HQL-16-130.2	200	251	0.80	0.0786	0.0015	1.9242	0.0813	0.1773	0.0065	1162.7	37.3	1052.1	35.5	96%
HQL-16-130.3	218	262	0.83	0.0757	0.0015	1.8599	0.0579	0.1806	0.0056	1087.0	40.3	1070.3	30.7	99%
HQL-16-130.4	205	285	0.72	0.0768	0.0013	1.8582	0.0686	0.1755	0.0058	1116.7	34.4	1042.4	31.7	97%
HQL-16-134	158	606	0.26	0.1066	0.0017	3.3336	0.1145	0.2244	0.0059	1742.6	25.0	1304.8	30.8	86%
HQL-16-135	429	341	1.26	0.0759	0.0016	1.5630	0.0610	0.1495	0.0049	1100.0	41.5	898.1	27.7	93%
HQL-16-136	1162	668	1.74	0.1160	0.0013	4.4386	0.1061	0.2771	0.0057	1896.0	20.4	1576.7	28.7	91%
HQL-16-137	112	356	0.32	0.0762	0.0012	1.9397	0.0628	0.1842	0.0050	1101.9	-0.2	1090.1	27.1	99%
HQL-16-138	120	438	0.27	0.0746	0.0011	1.9456	0.0580	0.1897	0.0052	1057.4	30.4	1119.8	28.3	97%
HQL-16-139	130	489	0.27	0.0763	0.0011	1.9240	0.0656	0.1829	0.0055	1101.9	29.2	1082.6	30.0	99%
HQL-16-140	122	158	0.78	0.0767	0.0015	1.9183	0.0912	0.1814	0.0079	1122.2	38.9	1074.4	43.4	98%
HQL-16-141	224	681	0.33	0.0872	0.0020	2.2344	0.0841	0.1839	0.0045	1364.8	44.0	1088.5	24.8	90%
HQL-16-142	241	315	0.76	0.0650	0.0014	1.0373	0.0393	0.1154	0.0034	775.9	46.3	704.2	19.9	97%
HQL-16-143.1	47	508	0.09	0.0711	0.0011	1.6025	0.0423	0.1638	0.0038	961.1	32.3	978.1	21.1	99%
HQL-16-143.2	66	404	0.16	0.0725	0.0011	1.6885	0.0506	0.1696	0.0049	998.2	30.4	1010.2	26.9	99%
HQL-16-145	108	189	0.57	0.0741	0.0016	1.7347	0.0649	0.1705	0.0054	1055.6	38.0	1015.1	29.7	99%
HQL-16-146.1	68	373	0.18	0.0947	0.0013	2.9709	0.1024	0.2266	0.0068	1524.1	27.3	1316.7	36.0	93%
HQL-16-146.2	73	451	0.16	0.0793	0.0012	1.9738	0.0576	0.1810	0.0049	1188.9	29.6	1072.2	26.8	96%
HQL-16-148.1	231	784	0.29	0.0714	0.0010	1.4682	0.0343	0.1492	0.0030	970.1	27.8	896.3	17.0	97%
HQL-16-148.2	374	577	0.65	0.0723	0.0012	1.6002	0.0495	0.1606	0.0043	994.4	33.3	960.1	23.8	98%
HQL-16-150.1	145	902	0.16	0.0761	0.0011	1.8984	0.0465	0.1810	0.0040	1098.2	27.8	1072.6	21.7	99%
HQL-16-150.2	125	713	0.18	0.0756	0.0011	1.8790	0.0506	0.1800	0.0040	1083.3	34.3	1067.1	21.7	99%
HQL-16-152	30	944	0.03	0.1060	0.0012	4.3403	0.0966	0.2970	0.0060	1731.8	21.4	1676.4	29.6	98%
HQL-16-153	368	388	0.95	0.0665	0.0010	1.6451	0.0812	0.1795	0.0085	821.9	31.5	1064.2	46.6	92%
HQL-16-154.1	71	330	0.22	0.0778	0.0014	2.1980	0.0917	0.2040	0.0069	1142.6	35.2	1196.6	37.0	98%
HQL-16-154.2	48	451	0.11	0.0772	0.0013	2.0241	0.0672	0.1911	0.0057	1127.8	30.6	1127.1	31.1	99%
XHL-S-Zr-1	144	290	0.50	0.0988	0.0016	3.7337	0.1335	0.2746	0.0096	2000.0	31.0	1564.3	48.6	99%
XHL-S-Zr-2.1	362	244	1.48	0.1085	0.0017	4.4857	0.1455	0.3013	0.0099	1775.9	28.2	1697.6	48.9	98%
XHL-S-Zr-2.2	649	318	2.04	0.1102	0.0016	4.5344	0.1326	0.2985	0.0082	1802.8	25.9	1683.8	40.7	96%
XHL-S-Zr-4.1	132	158	0.83	0.0664	0.0018	1.2013	0.0735	0.1308	0.0072	820.4	56.6	792.4	40.9	98%
XHL-S-Zr-4.2	139	273	0.51	0.0667	0.0018	1.1383	0.0485	0.1237	0.0043	827.8	55.6	751.6	24.8	97%
XHL-S-Zr-6	173	557	0.31	0.0671	0.0011	1.2480	0.0391	0.1341	0.0034	842.6	35.2	811.3	19.2	98%
XHL-S-Zr-7	439	580	0.76	0.0661	0.0011	1.2213	0.0353	0.1339	0.0034	809.3	33.3	790.9	19.6	99%
XHL-S-Zr-8	267	364	0.73	0.0565	0.0013	0.5247	0.0168	0.0673	0.0017	472.3	51.8	419.9	10.3	98%
XHL-S-Zr-9	224	226	0.99	0.0685	0.0019	1.1578	0.0445	0.1246	0.0047	883.3	52.8	757.3	26.9	96%
XHL-S-Zr-10	142	200	0.71	0.0787	0.0016	2.1367	0.0851	0.1967	0.0070	1165.7	40.7	1157.5	37.8	99%
XHL-S-Zr-11	79	76	1.04	0.0593	0.0025	1.2839	0.1266	0.1577	0.0165	576.0	90.7	943.8	92.1	88%
XHL-S-Zr-12.1	101	949	0.11	0.0708	0.0011	1.2015	0.0405	0.1225	0.0035	950.0	32.9	745.1	20.3	92%
XHL-S-Zr-12.2	90	573	0.16	0.0712	0.0011	1.6565	0.0501	0.1684	0.0047	964.8	31.9	1003.2	25.7	98%
XHL-S-Zr-14	257	273	0.94	0.0535	0.0016	0.5141	0.0249	0.0693	0.0025	350.1	68.5	431.7	15.2	97%
XHL-S-Zr-15	259	819	0.32	0.0674	0.0010	1.3178	0.0341	0.1416	0.0032	850.0	32.3	853.9	18.0	99%
XHL-S-Zr-16.1	63	970	0.07	0.0768	0.0010	1.6892	0.0420	0.1590	0.0035	1116.7	21.3	951.4	19.2	94%
XHL-S-Zr-16.2	199	271	0.74	0.1429	0.0020	6.4896	0.2076	0.3275	0.0087	2264.8	24.1	1826.1	42.4	88%
XHL-S-Zr-18.1	76	309	0.24	0.0679	0.0013	1.2488	0.0484	0.1330	0.0044	864.8	37.8	805.0	25.1	97%
XHL-S-Zr-18.2	279	428	0.65	0.0716	0.0013	1.5849	0.0548	0.1610	0.0056	972.2	36.3	962.6	30.9	99%
XHL-S-Zr-20	215	287	0.75	0.0552	0.0018	0.5354	0.0277	0.0694	0.0025	420.4	76.8	432.7	15.0	99%
XHL-S-Zr-21.1	223	400	0.56	0.0758	0.0018	1.6679	0.0565	0.1594	0.0043	1100.0	50.9	953.4	24.0	95%
XHL-S-Zr-21.2	79	229	0.35	0.0739	0.0015	1.7278	0.0757	0.1696	0.0070	1038.9	42.6	1009.9	38.6	99%
XHL-S-Zr-23	191	418	0.46	0.1904	0.0022	13.9080	0.3928	0.5293	0.0143	2746.0	18.4	2738.6	60.4	99%
XHL-S-Zr-24.1	37	59	0.63	0.1617	0.0028	12.4160	1.1176	0.5605	0.0514	2473.8	29.3	2868.7	212.3	91%
XHL-S-Zr-24.2	86	201	0.43	0.1597	0.0019	8.1923	0.4459	0.3698	0.0186	2453.7	19.8	2028.4	87.8	89%
XHL-S-Zr-26.1	121	558	0.22	0.2846	0.0035	23.4553	0.7957	0.5916	0.0171	3388.0	19.1	2995.9	69.2	91%
XHL-S-Zr-26.2	168	607	0.28	0.2820	0.0036	20.4831	0.5892	0.5228	0.0125	3375.9	20.1	2711.0	53.0	86%
XHL-S-Zr-28	309	362	0.85	0.0539	0.0017	0.5139	0.0222	0.0693	0.0022	364.9	69.4	431.8	13.0	97%
XHL-S-Zr-29	145	185	0.78	0.0964	0.0018	3.6400	0.1348	0.2751	0.0101	1555.3	35.2	1566.5	51.2	99%
XHL-S-Zr-30	389	352	1.11	0.0691	0.0013	1.4243	0.0476	0.1488	0.0041	901.9	38.9	894.1	23.1	99%
XHL-S-Zr-31	264	577	0.46	0.1042	0.0016	4.0107	0.1215	0.2781	0.0072	1699.7	27.9	1581.8	36.4	96%
XHL-S-Zr-32	82	165	0.50	0.0869	0.0016	3.2626	0.1635	0.2696	0.0118	1359.0	35.2	1538.9	59.7	95%
XHL-S-Zr-33.1	125	552	0.23	0.0650	0.0011	1.1612	0.0326	0.1293	0.0031	775.9	37.0	784.1	17.7	99%
XHL-S-Zr-33.2	130	453	0.29	0.0660	0.0015	0.8968	0.0314	0.0980	0.0024	807.1	46.3	602.6	14.3	92%
XHL-S-Zr-35	548	405	1.35	0.0568	0.0013	0.6279	0.0205	0.0800	0.0019	487.1	82.4	496.2	11.2	99%
XHL-S-Zr-36	261	361	0.72	0.1309	0.0016	6.6707	0.1971	0.3686	0.0099	2109.6	21.3	2022.7	46.6	97%
XHL-S-Zr-37.1	137	98	1.40	0.1639	0.0024	12.4452	1.2437	0.5424	0.0463	2498.2	24.8	2793.4	193.6	94%
XHL-S-Zr-37.2	247	1121	0.22	0.1587	0.0017	7.9235	0.2065	0.3613	0.0085	2442.3	18.2	1988.5	40.1	88%
XHL-S-Zr-39	176	217	0.81	0.0586	0.0021	0.5549	0.0286	0.0695	0.0032	553.7	79.6	432.9	19.0	96%
XHL-S-Zr-40	189	249	0.76	0.0541	0.0021	0.5239	0.0301	0.0692	0.0025	376.0	87.0	431.5	14.9	99%
XHL-S-Zr-41	96	162	0.59	0.0687	0.0020	1.3381	0.0641	0.1423	0.0061	900.0	58.5	857.9	34.3	99%
XHL-S-Zr-42	181	212	0.85	0.0597	0.0021	0.5673	0.0270	0.0691	0.0024	594.5	108.3	430.9	14.7	94%
XHL-S-Zr-43	82	862	0.09	0.0704	0.0010	1.5410	0.0381	0.1589	0.0034	938.9	23.1	950.8	19.1	99%
XHL-S-Zr-44.1	130	452	0.29	0.0714	0.0013	1.5719	0.0550	0.1589	0.0041	968.5	37.5	950.5	22.8	99%
XHL-S-Zr-44.2	60	388	0.16	0.0686	0.0013	1.4816	0.0580	0.1571	0.0054	887.0	40.0	940.6	30.0	98%
XHL-S-Zr-46	102	816	0.13	0.0616	0.0011	0.9584	0.0276	0.1134	0.0030	661.1	32.4	692.7	17.6	98%
XHL-S-Zr-47	484	290	1.67	0.0751	0.0014	1.7391	0.0562	0.1687	0.0050	1072.2	36.0	1004.8	27.5	98%
XHL-S-Zr-48	178	228	0.78	0.0684	0.0016	1.4336	0.0667	0.1515	0.0060	879.6	47.1	909.4	33.3	99%
XHL-S-Zr-49	269	621	0.43	0.1411	0.0016	7.0437	0.1888	0.3620	0.0090	2240.4	20.2	1991.5	42.4	93%
XHL-S-Zr-50.1	196	355	0.55	0.1925	0.0023	14.6102	0.4378	0.5504	0.0154	2764.8	19.8	2826.9	64.1	98%
XHL-S-Zr-50.2	226	405	0.56	0.1907	0.0024	14.5311	0.4170	0.5535	0.0148	2747.8	20.4	2839.7	61.3	98%
XHL-S-Zr-52.1	137	377	0.36	0.0943	0.0013	3.1318	0.0967	0.2411	0.0068	1513.9	26.5	1392.4	35.3	96%
XHL-S-Zr-52.2	147	511	0.29	0.0801	0.0011	2.0333	0.0546	0.1843	0.0043	1198.2	27.8	1090.5	23.5	96%
XHL-S-Zr-54	437	640	0.68	0.0602	0.0016	0.5778	0.0285	0.0689	0.0020	609.3	55.5	429.6	12.2	92%
XHL-S-Zr-55.1	172	279	0.62	0.1035	0.0014	4.3687	0.1523	0.3068	0.0101	1688.0	29.8	1724.9	49.9	98%
XHL-S-Zr-55.2	214	281	0.76	0.1037	0.0015	4.2510	0.1508	0.2982	0.0100	1691.1	26.1	1682.2	49.8	99%
XHL-S-Zr-57.1	99	302	0.33	0.2879	0.0033	21.3775	0.6376	0.5388	0.0148	3406.5	18.2	2778.4	62.1	87%
XHL-S-Zr-57.2	167	527	0.32	0.3050	0.0035	23.8114	0.6565	0.5663	0.0139	3495.6	16.8	2892.6	57.1	88%
XHL-S-Zr-59	668	664	1.01	0.1534	0.0019	8.9406	0.2575	0.4231	0.0110	2384.3	20.2	2274.5	50.0	97%
XHL-S-Zr-60	53	174	0.31	0.0629	0.0019	0.9752	0.0536	0.1139	0.0056	705.6	64.8	695.5	32.2	99%
XHL-S-Zr-61	54	67	0.81	0.0602	0.0026	1.2518	0.1555	0.1458	0.0152	613.0	92.6	877.6	85.3	93%
XHL-S-Zr-62	242	419	0.58	0.0610	0.0017	0.5362	0.0210	0.0641	0.0020	638.9	52.8	400.7	11.9	91%
XHL-S-Zr-63.1	363	409	0.89	0.0560	0.0013	0.4875	0.0153	0.0634	0.0015	453.8	17.6	396.1	9.4	98%
XHL-S-Zr-63.2	580	659	0.88	0.0579	0.0013	0.5109	0.0160	0.0645	0.0018	524.1	48.1	402.9	11.0	96%
XHL-S-Zr-65	116	214	0.54	0.0699	0.0014	1.5519	0.0632	0.1617	0.0057	924.1	40.7	966.4	31.7	98%
XHL-S-Zr-66	180	211	0.85	0.0660	0.0015	1.2403	0.0600	0.1352	0.0055	805.6	49.2	817.4	31.2	99%
XHL-S-Zr-67.1	86	462	0.19	0.0828	0.0015	2.4140	0.0754	0.2120	0.0061	1264.8	35.2	1239.6	32.7	99%
XHL-S-Zr-67.2	149	697	0.21	0.0827	0.0012	2.4411	0.0660	0.2138	0.0052	1264.8	28.2	1249.2	27.8	99%
XHL-S-Zr-69	23	167	0.14	0.0705	0.0018	1.5925	0.0718	0.1637	0.0065	942.6	46.1	977.2	36.3	98%
XHL-S-Zr-70	40	62	0.65	0.1675	0.0031	12.0418	0.9347	0.5226	0.0359	2533.0	31.9	2710.0	152.2	96%
XHL-S-Zr-71.1	101	391	0.26	0.0735	0.0013	1.7256	0.0597	0.1709	0.0058	1027.8	36.0	1016.9	32.1	99%
XHL-S-Zr-71.2	116	398	0.29	0.0714	0.0012	1.5789	0.0441	0.1605	0.0043	968.5	5.6	959.8	23.9	99%
XHL-S-Zr-73	197	194	1.01	0.1553	0.0020	9.9882	0.3438	0.4654	0.0151	2405.6	22.2	2463.5	66.4	98%
XHL-S-Zr-74	332	210	1.58	0.0688	0.0014	1.2284	0.0571	0.1280	0.0048	894.4	75.0	776.5	27.2	95%
XHL-S-Zr-75	190	133	1.43	0.0718	0.0018	1.8455	0.1026	0.1835	0.0075	988.9	50.8	1086.2	40.9	97%
XHL-S-Zr-76.1	137	231	0.59	0.0723	0.0015	1.5968	0.0633	0.1607	0.0059	994.4	42.6	960.9	32.6	99%
XHL-S-Zr-76.2	158	191	0.83	0.0723	0.0015	1.7686	0.0998	0.1764	0.0086	995.4	42.6	1047.5	47.0	98%
XHL-S-Zr-78.1	98	203	0.48	0.1518	0.0020	9.5753	0.4218	0.4539	0.0186	2368.5	23.6	2412.6	82.4	99%
XHL-S-Zr-78.2	67	67	1.01	0.1535	0.0028	10.1072	0.6174	0.4810	0.0298	2384.9	31.3	2531.8	129.9	96%
XHL-S-Zr-80	125	114	1.09	0.0662	0.0025	1.3253	0.0739	0.1508	0.0081	813.0	78.5	905.4	45.6	94%
XHL-S-Zr-81	192	248	0.77	0.0714	0.0014	1.5937	0.0517	0.1623	0.0045	968.5	40.7	969.4	25.1	99%
XHL-S-Zr-82	168	271	0.62	0.0550	0.0014	0.4946	0.0189	0.0654	0.0020	409.3	62.0	408.6	11.9	99%
XHL-S-Zr-83	222	189	1.17	0.0691	0.0076	0.8194	0.0872	0.0870	0.0043	901.9	228.2	537.5	25.3	87%
XHL-S-Zr-84	129	188	0.69	0.0549	0.0021	0.5278	0.0296	0.0698	0.0031	405.6	83.3	434.7	18.4	98%
XHL-S-Zr-85.1	264	362	0.73	0.0742	0.0011	1.8857	0.0618	0.1840	0.0053	1047.8	27.8	1088.6	29.1	98%
XHL-S-Zr-85.2	271	270	1.00	0.0781	0.0012	1.9927	0.0689	0.1850	0.0056	1150.0	31.5	1094.3	30.6	98%
XHL-S-Zr-87	58	740	0.08	0.0713	0.0009	1.4822	0.0337	0.1509	0.0031	968.5	24.5	906.3	17.5	98%
XHL-S-Zr-88	159	262	0.61	0.0548	0.0017	0.5477	0.0238	0.0726	0.0023	405.6	65.7	451.6	14.0	98%
XHL-S-Zr-89	313	380	0.82	0.0536	0.0016	0.5086	0.0203	0.0690	0.0020	353.8	75.0	430.2	11.9	96%
XHL-S-Zr-90.1	77	572	0.13	0.0691	0.0012	1.4182	0.0440	0.1495	0.0044	901.9	30.6	898.2	24.5	99%
XHL-S-Zr-90.2	50	439	0.11	0.0706	0.0011	1.6451	0.0518	0.1692	0.0047	946.3	30.1	1007.7	25.7	97%
XHL-S-Zr-92	112	201	0.56	0.0639	0.0015	1.1785	0.0463	0.1359	0.0056	738.9	51.8	821.7	31.6	96%
XHL-S-Zr-93	175	205	0.85	0.0564	0.0020	0.5512	0.0276	0.0716	0.0028	477.8	77.8	446.0	17.0	99%
XHL-S-Zr-94	363	295	1.23	0.0678	0.0013	1.3276	0.0449	0.1428	0.0042	861.1	40.0	860.2	23.7	99%
XHL-S-Zr-95.1	109	279	0.39	0.0878	0.0071	1.9408	0.2928	0.1476	0.0051	1388.9	157.0	887.8	28.9	79%
XHL-S-Zr-95.2	107	418	0.25	0.0743	0.0011	1.8089	0.0561	0.1770	0.0048	1050.9	29.2	1050.7	26.2	99%
XHL-S-Zr-97	218	411	0.53	0.0666	0.0011	1.2274	0.0399	0.1344	0.0041	833.3	35.2	823.0	23.3	99%
XHL-S-Zr-98	157	426	0.37	0.0751	0.0012	1.7875	0.0569	0.1732	0.0047	1072.2	33.3	1029.7	25.8	98%
XHL-S-Zr-99	111	131	0.85	0.1464	0.0021	9.0892	0.4555	0.4532	0.0222	2305.6	24.7	2409.5	98.4	97%
XHL-S-Zr-100	328	398	0.82	0.1597	0.0021	9.9868	0.3308	0.4551	0.0132	2453.7	22.2	2417.7	58.5	99%
XHL-S-Zr-101	164	83	1.97	0.1261	0.0023	7.9907	0.6751	0.4628	0.0375	2044.1	31.6	2452.0	165.4	90%
XHL-S-Zr-102	133	213	0.62	0.0551	0.0016	0.5114	0.0227	0.0686	0.0027	416.7	66.7	427.8	16.5	98%
XHL-S-Zr-104	121	541	0.22	0.0727	0.0016	1.2434	0.0494	0.1235	0.0033	1005.6	41.7	750.5	18.7	91%
XHL-S-Zr-105	71	349	0.20	0.0809	0.0013	2.1815	0.0706	0.1970	0.0061	1218.2	31.5	1159.2	32.9	98%
XHL-S-Zr-106	486	362	1.34	0.0735	0.0013	1.5278	0.0569	0.1515	0.0054	1027.8	34.4	909.6	30.3	96%
XHL-S-Zr-107.1	127	285	0.45	0.0793	0.0019	1.7895	0.0957	0.1622	0.0064	1188.9	46.3	969.2	35.5	92%
XHL-S-Zr-107.2	72	511	0.14	0.0667	0.0013	1.0575	0.0421	0.1151	0.0041	831.5	43.5	702.4	23.6	95%
XHL-S-Zr-109	153	291	0.53	0.0771	0.0014	1.9183	0.0741	0.1804	0.0061	1125.0	37.0	1069.0	33.6	98%
XHL-S-Zr-110	111	148	0.75	0.0852	0.0018	2.7180	0.1351	0.2305	0.0100	1320.4	40.7	1337.1	52.4	99%
XHL-S-Zr-111	185	795	0.23	0.1661	0.0021	9.4407	0.2979	0.4110	0.0119	2518.2	20.8	2219.6	54.4	92%
XHL-S-Zr-112	167	266	0.63	0.1692	0.0022	10.7423	0.4461	0.4585	0.0171	2550.3	22.2	2433.0	75.8	97%
XHL-S-Zr-113	224	326	0.69	0.0757	0.0013	1.7919	0.0631	0.1725	0.0056	1087.0	35.6	1025.7	30.6	98%
XHL-S-Zr-114.1	23	486	0.05	0.1129	0.0021	5.2154	0.3003	0.3256	0.0155	1847.2	33.3	1817.2	75.4	97%
XHL-S-Zr-114.2	29	415	0.07	0.0751	0.0012	1.8631	0.0658	0.1787	0.0052	1072.2	30.7	1059.8	28.6	99%
XHL-S-Zr-116	519	584	0.89	0.0571	0.0011	0.5070	0.0157	0.0643	0.0015	494.5	44.4	401.7	8.8	96%
XHL-S-Zr-117	578	663	0.87	0.0777	0.0010	1.8167	0.0418	0.1699	0.0036	1138.9	21.3	1011.6	20.0	96%
XHL-S-Zr-118	206	270	0.76	0.1639	0.0019	9.9060	0.3432	0.4371	0.0140	2498.2	19.6	2337.5	62.8	96%
XHL-S-Zr-119	145	139	1.04	0.0640	0.0027	1.1781	0.0893	0.1341	0.0081	740.4	88.9	811.2	46.2	97%
XHL-S-Zr-120	182	247	0.74	0.0610	0.0043	0.5719	0.0440	0.0692	0.0036	638.9	151.8	431.2	21.5	93%
XHL-S-Zr-121	168	375	0.45	0.0663	0.0033	1.2133	0.1045	0.1326	0.0090	816.7	103.7	802.5	51.2	99%
XHL-S-Zr-122	256	669	0.38	0.0738	0.0047	1.5409	0.1758	0.1511	0.0137	1036.7	129.6	907.1	76.7	95%
XHL-S-Zr-123	277	996	0.28	0.1622	0.0131	9.1054	1.3059	0.4072	0.0465	2479.6	136.1	2202.1	213.2	93%
XHL-S-Zr-124	150	177	0.85	0.1086	0.0107	4.5038	0.8002	0.3010	0.0428	1775.9	181.2	1696.2	212.3	97%
XHL-S-Zr-125	146	357	0.41	0.0731	0.0085	1.6096	0.3325	0.1598	0.0262	1016.7	237.5	955.6	145.8	98%
JPL-S-Zr-2-21.1	84	60	1.40	0.1506	0.0027	11.5003	1.0280	0.5513	0.0489	2353.7	30.2	2830.4	203.4	90%
JPL-S-Zr-2-21.2	94	137	0.69	0.1478	0.0022	9.1324	0.4429	0.4479	0.0199	2320.7	25.3	2386.0	88.6	98%
JPL-S-Zr-2-23	52	80	0.65	0.0661	0.0030	1.0910	0.0790	0.1199	0.0066	809.3	89.8	730.3	37.9	97%
JPL-S-Zr-2-24.1	97	138	0.70	0.1737	0.0023	12.5471	0.6255	0.5267	0.0261	2593.5	21.8	2727.4	110.4	96%
JPL-S-Zr-2-24.2	19	54	0.35	0.1571	0.0030	14.0316	1.8895	0.6480	0.0851	2425.0	32.7	3220.4	333.2	84%
JPL-S-Zr-2-26	79	385	0.20	0.2188	0.0023	18.1005	0.5543	0.5997	0.0175	2971.9	17.0	3028.5	70.7	98%
JPL-S-Zr-2-27.1	191	403	0.47	0.1783	0.0022	13.0239	0.4631	0.5264	0.0162	2638.9	20.1	2726.3	68.5	98%
JPL-S-Zr-2-27.2	84	121	0.69	0.1615	0.0024	11.7614	0.7798	0.5278	0.0338	2472.2	25.0	2732.1	142.8	94%
JPL-S-Zr-2-29	201	641	0.31	0.0648	0.0010	1.0923	0.0286	0.1221	0.0028	768.5	30.4	742.7	16.1	99%
JPL-S-Zr-2-30	211	487	0.43	0.0579	0.0013	0.5427	0.0194	0.0678	0.0019	524.1	50.0	423.0	11.5	96%
JPL-S-Zr-2-31.1	121	729	0.17	0.1638	0.0019	10.2325	0.2655	0.4520	0.0107	2495.4	20.4	2404.2	47.5	97%
JPL-S-Zr-2-31.2	133	713	0.19	0.1761	0.0023	12.7200	0.4664	0.5199	0.0170	2616.4	22.2	2698.7	72.0	98%
JPL-S-Zr-2-33	147	370	0.40	0.0561	0.0013	0.5326	0.0188	0.0690	0.0019	457.5	19.4	429.8	11.3	99%
JPL-S-Zr-2-34.1	355	585	0.61	0.0646	0.0010	1.0884	0.0313	0.1220	0.0030	761.1	33.3	742.2	17.0	99%
JPL-S-Zr-2-34.2	125	177	0.70	0.0658	0.0016	1.1963	0.0540	0.1327	0.0054	1200.0	50.0	816.0	31.0	99%
JPL-S-Zr-2-36	175	291	0.60	0.0672	0.0012	1.5011	0.0508	0.1623	0.0050	855.6	38.9	969.7	27.6	95%
JPL-S-Zr-2-37	88	438	0.20	0.0713	0.0011	1.5921	0.0496	0.1617	0.0041	968.5	-0.9	966.4	23.0	99%
JPL-S-Zr-2-38.1	57	93	0.62	0.0494	0.0025	0.5368	0.0498	0.0769	0.0047	168.6	113.9	477.8	28.1	90%
JPL-S-Zr-2-38.2	134	256	0.52	0.0521	0.0016	0.4872	0.0264	0.0676	0.0029	287.1	75.0	421.7	17.8	95%
JPL-S-Zr-2-40	117	474	0.25	0.0718	0.0012	1.6089	0.0587	0.1629	0.0053	988.9	34.7	973.1	29.5	99%
JPL-S-Zr-2-41	121	464	0.26	0.0567	0.0013	0.5340	0.0180	0.0686	0.0019	479.7	50.0	427.7	11.3	98%
JPL-S-Zr-2-42	187	477	0.39	0.0958	0.0013	3.5921	0.1235	0.2720	0.0085	1546.3	24.5	1550.7	43.0	99%
JPL-S-Zr-2-43	154	813	0.19	0.0701	0.0010	1.4478	0.0376	0.1498	0.0032	931.5	29.6	900.1	18.2	99%
JPL-S-Zr-2-44	17	85	0.20	0.0830	0.0020	2.9491	0.2408	0.2590	0.0186	1270.1	47.4	1484.8	95.3	93%
JPL-S-Zr-2-45	325	569	0.57	0.1838	0.0019	13.4289	0.3645	0.5299	0.0134	2688.0	16.7	2741.0	56.7	98%
JPL-S-Zr-2-46	17	635	0.03	0.0703	0.0010	1.4666	0.0370	0.1515	0.0036	938.9	29.6	909.4	20.0	99%
JPL-S-Zr-2-47	313	361	0.87	0.0562	0.0018	0.5415	0.0245	0.0704	0.0026	461.2	72.2	438.7	15.9	99%
JPL-S-Zr-2-48.1	141	489	0.29	0.0617	0.0013	0.8337	0.0316	0.0976	0.0028	664.8	44.4	600.1	16.6	97%
JPL-S-Zr-2-48.2	183	251	0.73	0.0637	0.0016	1.1453	0.0561	0.1307	0.0057	731.5	55.6	790.1	32.2	97%
JPL-S-Zr-2-50	27	201	0.13	0.0767	0.0013	2.1066	0.0813	0.1992	0.0070	1122.2	33.3	1171.0	37.6	98%
JPL-S-Zr-2-51	218	213	1.02	0.0636	0.0018	1.1909	0.0760	0.1345	0.0068	727.8	26.9	813.6	38.7	97%
JPL-S-Zr-2-52.1	61	70	0.87	0.1842	0.0029	15.0468	0.8869	0.5950	0.0332	2690.4	25.9	3009.8	134.2	93%
JPL-S-Zr-2-52.2	105	90	1.16	0.1847	0.0026	16.2660	1.1247	0.6418	0.0457	2696.0	23.9	3195.9	179.3	90%
JPL-S-Zr-2-54.1	120	395	0.30	0.1586	0.0018	8.9068	0.2374	0.4079	0.0104	2440.4	18.5	2205.3	47.6	94%
JPL-S-Zr-2-54.2	96	467	0.21	0.1585	0.0017	9.2009	0.2709	0.4215	0.0121	2439.8	17.9	2267.3	54.7	96%
JPL-S-Zr-2-56	355	318	1.12	0.0763	0.0012	2.0195	0.0675	0.1918	0.0054	1105.6	31.9	1130.9	29.3	99%
JPL-S-Zr-2-57	238	444	0.54	0.0662	0.0010	1.2210	0.0355	0.1338	0.0032	813.0	26.9	816.4	18.3	99%
JPL-S-Zr-2-58.1	133	274	0.49	0.1823	0.0023	12.4999	0.4254	0.4979	0.0160	2673.8	21.0	2604.9	68.8	98%
JPL-S-Zr-2-58.2	104	286	0.36	0.1795	0.0023	13.1026	0.4700	0.5289	0.0172	2650.0	21.3	2736.7	72.5	98%
JPL-S-Zr-2-60	108	432	0.25	0.1621	0.0021	10.7799	0.3458	0.4827	0.0143	2479.6	20.8	2539.0	62.1	98%
JPL-S-Zr-2-61	100	489	0.20	0.0715	0.0012	1.6437	0.0490	0.1671	0.0043	972.2	33.3	996.0	23.9	99%
JPL-S-Zr-2-62.1	139	216	0.64	0.0546	0.0023	0.5050	0.0243	0.0684	0.0025	394.5	94.4	426.7	15.1	97%
JPL-S-Zr-2-62.2	218	210	1.04	0.0782	0.0047	1.7049	0.2625	0.1314	0.0128	1153.7	125.0	795.7	72.7	76%
JPL-S-Zr-2-64	250	202	1.24	0.0644	0.0016	1.1707	0.0555	0.1321	0.0054	753.7	51.8	795.7	30.7	98%
JPL-S-Zr-2-65	51	304	0.17	0.1706	0.0021	10.6189	0.3749	0.4504	0.0144	2564.8	20.4	2397.0	63.8	96%
JPL-S-Zr-2-66	221	394	0.56	0.0705	0.0011	1.4658	0.0524	0.1507	0.0047	943.5	33.3	905.0	26.6	98%
JPL-S-Zr-2-67	107	350	0.31	0.0713	0.0012	1.5911	0.0573	0.1618	0.0049	966.4	39.8	966.6	27.0	99%
JPL-S-Zr-2-68	159	308	0.52	0.0575	0.0017	0.5454	0.0270	0.0691	0.0027	522.3	66.7	430.8	16.5	97%
JPL-S-Zr-2-69.1	66	290	0.23	0.0563	0.0016	0.6323	0.0327	0.0816	0.0038	464.9	30.6	505.9	22.6	98%
JPL-S-Zr-2-69.2	79	491	0.16	0.0827	0.0020	2.1005	0.1372	0.1743	0.0083	1264.8	48.5	1035.9	45.5	89%
JPL-S-Zr-2-71	181	346	0.52	0.1056	0.0015	4.6518	0.1727	0.3191	0.0106	1724.4	25.8	1785.4	51.7	98%
JPL-S-Zr-2-72	81	158	0.51	0.0681	0.0016	1.2771	0.0725	0.1339	0.0060	872.2	43.5	810.2	34.2	96%
JPL-S-Zr-2-73	102	441	0.23	0.0740	0.0011	1.6686	0.0491	0.1635	0.0041	1042.6	29.6	976.3	22.4	97%
JPL-S-Zr-2-74	90	286	0.31	0.1003	0.0014	4.1240	0.1530	0.2996	0.0104	1628.7	25.6	1689.2	51.7	98%
JPL-S-Zr-2-75	71	397	0.18	0.0715	0.0013	1.4737	0.0513	0.1496	0.0041	972.2	4.6	898.9	22.9	97%
BS-Zr-1	128	286	0.45	0.0657	0.0014	1.2271	0.0252	0.1359	0.0016	798.2	43.4	821.7	9.2	98%
BS-Zr-4	83	153	0.54	0.0677	0.0018	1.2585	0.0327	0.1357	0.0017	857.4	-138.9	820.0	9.6	99%
BS-Zr-5	101	144	0.70	0.0646	0.0026	0.6204	0.0248	0.0701	0.0012	761.1	83.3	436.9	7.0	88%
BS-Zr-6	93	108	0.86	0.0695	0.0024	1.1886	0.0424	0.1242	0.0015	914.5	70.4	754.6	8.5	94%
BS-Zr-7	227	260	0.87	0.0707	0.0015	1.5387	0.0333	0.1581	0.0017	947.8	42.6	946.1	9.6	99%
BS-Zr-8	104	244	0.43	0.0823	0.0047	0.8043	0.0479	0.0710	0.0009	1251.5	108.3	442.2	5.2	69%
BS-Zr-9	105	233	0.45	0.0848	0.0016	2.5520	0.0546	0.2184	0.0025	1322.2	37.0	1273.3	13.0	98%
BS-Zr-10	452	751	0.60	0.0610	0.0010	0.8962	0.0170	0.1065	0.0011	638.9	35.2	652.6	6.4	99%
BS-Zr-13	153	282	0.54	0.0806	0.0014	2.2292	0.0454	0.2004	0.0022	1213.0	35.2	1177.5	12.0	98%
BS-Zr-14	91	199	0.46	0.0965	0.0031	2.3931	0.0809	0.1798	0.0024	1566.7	60.6	1066.1	12.9	84%
BS-Zr-15	145	222	0.65	0.0537	0.0020	0.5139	0.0183	0.0699	0.0009	366.7	85.2	435.6	5.2	96%
BS-Zr-16	16	861	0.02	0.1668	0.0020	9.6201	0.1606	0.4180	0.0050	2525.6	20.5	2251.4	22.9	93%
BS-Zr-17	294	575	0.51	0.0651	0.0011	1.2052	0.0228	0.1344	0.0016	777.5	35.2	812.9	9.4	98%
BS-Zr-18	353	627	0.56	0.0542	0.0013	0.5246	0.0129	0.0703	0.0009	388.9	51.8	438.1	5.2	97%
BS-Zr-19	146	255	0.57	0.0630	0.0020	0.7695	0.0241	0.0889	0.0011	709.3	66.7	548.8	6.7	94%
BS-Zr-20	304	349	0.87	0.0630	0.0014	1.0806	0.0259	0.1245	0.0014	707.1	46.3	756.3	8.1	98%
BS-Zr-21	79	313	0.25	0.0585	0.0019	0.5704	0.0182	0.0711	0.0010	546.3	70.4	442.6	6.0	96%
BS-Zr-22	85	248	0.34	0.0636	0.0019	0.6052	0.0182	0.0691	0.0008	729.3	63.0	430.9	5.1	89%
BS-Zr-23	96	162	0.59	0.0575	0.0025	0.5958	0.0272	0.0752	0.0011	509.3	98.1	467.3	6.8	98%
BS-Zr-24	157	513	0.31	0.0706	0.0011	1.5707	0.0269	0.1613	0.0015	946.3	26.9	963.9	8.5	99%
BS-Zr-25	53	154	0.35	0.0574	0.0022	0.5655	0.0214	0.0717	0.0010	509.3	85.2	446.3	5.8	98%
BS-Zr-26	96	125	0.76	0.1186	0.0042	1.2407	0.0448	0.0761	0.0011	1936.1	63.1	472.5	6.5	46%
BS-Zr-27	70	133	0.53	0.0674	0.0019	1.4968	0.0440	0.1615	0.0021	851.5	59.3	965.1	11.9	96%
BS-Zr-28	214	218	0.98	0.0632	0.0014	1.0763	0.0257	0.1236	0.0015	714.5	48.1	751.4	8.4	98%
BS-Zr-29	153	148	1.04	0.0560	0.0027	0.5379	0.0253	0.0699	0.0010	450.0	105.5	435.8	6.2	99%
BS-Zr-30	88	242	0.36	0.1216	0.0023	3.6027	0.0902	0.2139	0.0032	1988.9	33.2	1249.4	17.1	78%
BS-Zr-31	145	579	0.25	0.0551	0.0013	0.5330	0.0151	0.0699	0.0010	416.7	56.5	435.5	6.2	99%
BS-Zr-32	123	262	0.47	0.0549	0.0017	0.5279	0.0158	0.0700	0.0009	405.6	65.7	436.2	5.6	98%
BS-Zr-33	50	611	0.08	0.0543	0.0013	0.5235	0.0129	0.0701	0.0009	383.4	55.6	436.8	5.3	97%
BS-Zr-34	216	353	0.61	0.0579	0.0014	0.5522	0.0135	0.0693	0.0008	524.1	51.8	432.1	4.9	96%
BS-Zr-35	102	254	0.40	0.1615	0.0111	1.8672	0.1867	0.0798	0.0016	2472.2	116.7	495.1	9.7	26%
BS-Zr-36	84	120	0.70	0.0591	0.0025	0.5600	0.0240	0.0691	0.0009	568.6	94.4	430.7	5.6	95%
BS-Zr-37	162	291	0.56	0.1168	0.0015	5.5390	0.0777	0.3439	0.0035	1909.3	23.6	1905.4	16.8	99%
BS-Zr-38	220	389	0.56	0.1610	0.0020	9.3333	0.1371	0.4199	0.0046	2466.4	20.4	2259.9	20.9	95%
BS-Zr-39	156	251	0.62	0.0728	0.0016	1.7530	0.0412	0.1746	0.0020	1007.1	45.2	1037.3	11.2	99%
BS-Zr-40	229	506	0.45	0.0616	0.0014	0.6429	0.0153	0.0759	0.0011	661.1	50.0	471.5	6.4	93%
BS-Zr-41	200	263	0.76	0.0570	0.0031	0.5468	0.0308	0.0695	0.0020	500.0	118.5	433.4	12.0	97%
BS-Zr-42	68	305	0.22	0.1475	0.0115	4.1544	0.3493	0.2021	0.0078	2317.0	139.7	1186.4	41.8	66%

下载: 导出CSV

表 2 湘南地区中生代钨锡矿床花岗岩锆石微量元素组成

Table 2. Trace elements composition of magmatic zircon from granite of the Mesozoic W-Sn deposits in southern Hunan 10^-6

测试点	Ti	Rb	Sr	Y	Nb	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Hf	Ta
WXL-4-1	1.86	0.34	8.55	1339	5.32	49.63	162.99	19.01	86.95	24.82	1.63	43.34	12.19	127	45	199	41	366	72	10814	3.68
WXL-4-2	16.43	11.08	1.14	1327	7.86	5.70	27.78	3.43	16.22	14.13	1.36	36.75	12.88	137	46	198	43	407	79	11966	3.67
WXL-4-4	10.05	3.38	0.31	880	4.51	0.03	14.72	0.08	1.27	3.03	0.11	17.27	6.43	77	31	138	29	263	50	9636	1.88
WXL-4-5	10.25	1.02	4.45	1754	10.83	26.60	95.40	10.52	48.35	19.61	1.52	50.77	16.25	180	61	258	54	487	93	11247	4.59
WXL-4-6	4.27	0.00	0.20	1289	4.69	0.19	13.40	0.13	1.63	3.39	0.40	21.84	8.96	115	43	195	43	395	77	12664	3.69
WXL-4-7.1	11.32	0.00	0.18	969	3.28	0.04	29.16	0.09	1.62	3.09	0.68	19.21	6.57	81	32	149	33	321	68	9117	1.29
WXL-4-7.2	12.64	0.17	0.24	1323	1.81	0.01	25.10	0.28	4.09	7.19	1.35	32.04	10.42	117	45	197	43	396	80	9248	0.92
WXL-4-9	4.15	0.13	0.16	1722	7.26	0.50	20.43	0.54	3.11	6.65	0.97	33.76	13.06	154	58	256	56	525	103	12059	5.04
WXL-4-11	31.43	1.30	0.38	1471	1.88	0.06	5.15	0.15	3.39	6.74	0.36	37.97	12.27	141	53	222	45	392	76	10057	1.23
WXL-4-13	8.67	0.01	2.46	1852	13.10	15.88	67.19	7.29	32.23	19.82	1.68	53.46	17.91	196	65	272	58	518	98	11934	4.41
WXL-4-14	7.16	0.00	0.17	1148	3.95	0.01	27.39	0.10	1.71	3.60	0.72	18.54	7.45	99	38	179	41	396	80	11729	2.66
WXL-4-15	12.25	0.38	0.30	3277	1.36	0.02	1.74	0.08	1.50	5.45	0.10	41.51	19.47	273	112	525	114	1044	196	12594	0.90
WXL-4-16	11.87	0.53	0.43	2692	18.99	2.31	98.84	1.28	11.23	14.01	2.22	70.71	24.82	269	94	390	78	697	128	8805	9.17
WXL-4-17	13.14	0.49	0.04	1501	4.89	0.01	37.03	0.23	4.02	8.28	1.18	39.15	13.09	147	53	220	44	392	74	8498	2.42
WXL-4-18	0.95	0.61	1.34	1463	4.28	6.39	29.56	2.36	13.01	8.35	0.77	29.67	11.07	131	47	216	48	438	87	11908	3.27
WXL-4-19	1.96	0.01	0.20	1737	6.19	0.01	13.28	0.05	1.24	3.47	0.60	26.88	11.45	145	58	265	60	577	113	12528	5.41
WXL-4-20	5.56	0.00	0.18	814	4.54	0.03	16.14	0.08	1.28	2.73	0.35	15.22	5.89	70	27	122	28	272	53	10474	4.32
WXL-4-21	4.62	0.31	0.88	1097	1.78	0.62	14.63	0.26	2.79	3.63	0.94	19.27	6.77	85	35	173	40	394	86	9428	0.65
WXL-4-22	12.50	0.00	0.25	2301	1.77	0.06	15.47	0.45	8.35	14.40	1.93	67.06	20.63	232	82	340	67	574	109	8366	0.77
WXL-4-23	0.64	0.00	0.14	1497	4.00	0.01	15.73	0.13	1.83	5.72	0.60	31.21	12.06	138	50	220	47	437	82	11639	3.10
WXL-13-2.1	9.78	0.09	0.42	2577	9.34	0.67	17.45	0.62	5.03	6.78	0.80	44.43	19.15	230	86	378	84	755	146	12062	6.98
WXL-13-2.2	4.19	0.61	0.19	2246	6.12	0.89	16.83	0.94	7.04	8.09	0.96	42.14	17.12	202	73	335	74	695	134	12432	4.39
WXL-13-5	1.70	0.44	0.38	3041	12.76	0.26	15.71	0.28	2.34	6.45	0.81	39.07	18.04	250	100	477	108	1006	196	11530	8.11
WXL-13-6	6.86	0.00	2.30	1907	13.04	1.64	26.01	0.79	4.85	5.80	0.67	31.15	12.82	164	62	288	64	594	113	12361	11.15
WXL-13-7	3.92	0.32	0.20	1994	13.19	0.44	22.89	0.43	3.91	6.09	0.81	32.35	14.33	172	66	309	69	646	127	11903	7.65
WXL-13-8	1.68	0.35	4.25	2637	17.67	5.68	36.34	2.87	14.99	7.67	0.75	34.84	15.06	212	84	420	99	964	187	12266	18.30
WXL-13-9	6.52	0.23	1.87	2632	20.91	1.26	30.08	1.25	7.92	9.58	1.42	38.74	17.08	220	87	410	96	932	176	12677	19.18
WXL-13-10	7.63	0.26	0.16	2029	9.87	0.23	22.83	0.38	3.67	6.30	0.77	41.46	15.73	189	69	302	64	579	109	12458	5.82
WXL-13-11	14.73	0.26	0.39	2557	16.54	5.75	37.57	5.08	29.35	25.01	2.90	73.75	25.12	266	86	362	75	671	126	11547	5.89
WXL-13-12	7.37	0.09	0.20	2728	10.64	5.70	33.96	4.36	24.91	14.66	1.61	52.99	20.22	248	89	398	86	800	152	13076	7.40
WXL-13-13	5.60	0.05	0.14	1813	3.83	0.59	16.62	0.48	3.65	7.39	0.90	36.29	13.84	168	61	272	58	548	104	11144	2.63
WXL-13-14	3.05	0.45	0.30	3379	13.48	0.37	12.50	0.26	1.51	6.00	0.69	44.28	21.23	287	109	518	116	1098	211	13572	10.46
WXL-13-15	3.78	0.03	0.01	813	3.43	0.01	17.00	0.12	1.81	3.71	0.22	18.05	6.40	75	29	124	26	239	46	9576	2.42
WXL-13-16	3.83	0.54	0.27	2445	9.97	0.01	7.78	0.02	0.30	3.43	0.45	28.83	14.78	204	80	387	89	857	166	14540	9.18
WXL-13-17	0.00	2.10	0.14	1107	4.44	0.51	13.23	0.41	2.86	3.11	0.42	18.98	7.55	96	36	172	38	358	70	12799	4.37
WXL-13-18	7.09	0.00	6.37	2705	32.05	2.62	27.77	3.28	18.12	14.31	4.51	41.51	18.30	238	86	416	96	917	175	13161	19.20
WXL-13-19	7.00	0.53	0.21	1633	7.31	0.13	18.44	0.23	2.81	6.33	0.71	31.67	12.22	150	54	242	52	485	93	12341	3.98
WXL-13-20	6.82	0.43	0.92	2998	15.41	3.70	31.31	2.09	11.45	9.13	0.95	48.11	20.50	261	100	468	104	979	191	13159	9.43
WXL-13-21	8.40	0.15	0.47	1879	6.09	1.36	26.88	0.67	4.46	6.74	0.77	38.21	14.45	171	62	278	57	533	100	11367	4.70
HQL-17-1	4.89	0.32	0.14	817	4.01	0.01	18.09	0.04	1.15	2.58	0.19	16.39	5.93	73	28	130	27	248	49	10442	2.41
HQL-17-2	4.62	0.00	0.15	936	6.03	0.02	21.20	0.08	1.59	2.87	0.16	15.58	6.00	78	31	147	33	325	65	11217	4.09
HQL-17-3	8.70	0.00	0.07	628	2.83	0.02	12.90	0.06	0.62	2.00	0.23	12.39	4.65	57	21	98	20	191	37	9908	1.59
HQL-17-4	7.35	0.10	0.03	525	2.41	0.00	11.53	0.05	0.56	1.30	0.19	9.26	3.49	43	18	81	18	171	34	10365	1.71
HQL-17-5	5.00	0.00	0.19	622	1.80	0.00	8.12	0.04	0.65	1.60	0.10	10.57	4.22	54	21	97	21	193	40	10912	1.45
HQL-17-6	9.92	0.16	0.04	1072	1.48	0.02	11.99	0.18	2.56	5.30	0.70	27.27	9.13	104	37	157	31	274	52	9222	1.01
HQL-17-7	5.05	0.00	0.08	894	4.74	0.02	19.21	0.07	1.35	2.96	0.22	15.36	5.75	74	29	139	31	300	58	10985	3.32
HQL-17-8	7.81	0.00	0.04	903	1.98	0.00	11.56	0.08	1.50	2.67	0.20	19.18	6.93	84	30	141	29	267	52	10164	1.58
HQL-17-9	16.77	0.07	0.81	1851	1.60	14.06	45.24	4.81	27.93	16.01	1.20	54.99	17.29	187	66	270	53	462	86	9569	0.94
HQL-17-10	12.61	0.15	0.11	1002	3.28	0.00	14.17	0.09	1.71	4.40	0.40	21.62	7.66	93	34	152	31	284	56	10488	2.28
HQL-17-11	6.57	0.00	0.13	914	4.54	0.00	20.10	0.07	1.21	2.84	0.20	17.70	6.66	79	31	140	31	287	57	10834	2.87
HQL-17-13	6.49	0.00	0.07	731	3.39	0.00	14.19	0.03	0.93	2.43	0.19	13.91	5.30	63	25	111	24	228	44	10276	2.25
HQL-17-14	5.47	0.00	0.13	709	2.95	0.00	15.70	0.06	0.77	2.31	0.28	13.68	4.95	63	24	107	24	222	43	9788	1.82
HQL-17-15.1	0.59	0.00	0.13	491	2.78	0.01	11.60	0.03	0.69	1.30	0.09	9.34	3.39	41	16	76	16	152	30	10273	1.76
HQL-17-15.2	6.78	0.60	0.06	849	4.14	0.00	15.71	0.05	1.03	2.83	0.12	16.15	6.06	74	29	129	28	249	48	10438	2.64
HQL-17-17	3.83	0.00	0.08	589	1.95	0.00	7.33	0.03	0.33	1.19	0.10	9.53	3.87	49	20	91	20	199	40	10687	2.11
HQL-17-18	10.99	0.00	0.13	622	2.72	0.01	15.45	0.07	0.74	2.11	0.14	11.39	4.32	52	21	96	21	199	39	10065	1.85
HQL-17-19	0.00	0.09	3.34	792	3.69	59.51	150.56	18.01	77.17	17.74	0.48	26.82	6.59	72	26	118	26	248	50	11217	2.63
HQL-17-21	8.66	0.36	0.34	1674	1.92	0.02	13.63	0.16	3.05	8.26	0.62	40.26	13.52	156	58	246	51	451	85	10091	1.30
HQL-17-22	1.91	0.03	0.09	1036	2.68	0.00	11.75	0.05	1.32	2.88	0.24	20.13	7.14	91	36	162	34	315	60	11228	1.98
HQL-17-23	6.80	0.36	0.11	799	3.18	0.01	17.65	0.06	1.06	2.33	0.14	15.79	5.55	72	27	121	26	252	49	10633	2.36
HQL-17-24.1	6.80	0.17	0.05	606	2.83	0.01	11.87	0.05	1.18	2.39	0.16	12.36	4.51	56	21	92	20	178	36	9671	1.57
HQL-17-24.2	3.91	0.00	0.06	797	3.44	0.00	15.49	0.04	1.05	2.48	0.18	13.36	5.48	66	27	124	28	272	55	10567	2.82
HQL-17-26	4.57	0.02	0.10	792	3.16	0.01	15.01	0.06	0.94	2.38	0.13	14.09	5.41	66	27	122	26	247	49	10443	2.51
HQL-17-27	5.38	0.00	0.14	704	3.13	0.00	14.43	0.09	1.08	2.39	0.23	14.32	5.01	61	24	106	23	214	41	10027	1.80
HQL-17-28	7.90	0.18	0.08	1502	10.06	0.06	31.66	0.19	3.67	6.38	0.23	32.34	11.44	139	52	225	47	431	82	10260	4.76
HQL-17-29	6.81	0.46	0.02	842	4.14	0.01	18.66	0.09	1.01	3.11	0.19	17.49	6.00	73	28	126	28	254	49	10488	2.64
HQL-17-30	3.52	0.36	0.24	1038	5.07	0.64	23.00	0.23	2.20	3.49	0.14	20.50	7.48	93	35	157	35	317	62	11065	3.32
HQL-17-31	3.79	0.16	0.20	914	5.27	0.15	9.48	0.08	0.87	1.85	0.08	14.38	5.82	77	31	145	33	311	63	12782	5.44
HQL-17-32	8.77	13.76	0.93	670	2.45	0.29	12.39	0.12	1.12	2.88	0.17	14.93	4.98	61	23	102	21	195	38	9758	1.41
HQL-17-34	11.58	0.32	0.10	1167	2.38	0.02	13.81	0.12	2.67	5.67	0.46	29.84	10.47	114	42	176	35	315	60	9894	1.61
HQL-18-1	11.33	0.04	0.12	793	2.54	0.02	9.82	0.11	1.34	2.82	0.37	18.20	6.45	74	27	118	25	227	44	8994	1.48
HQL-18-2	12.98	0.47	0.12	1088	6.95	5.04	33.02	1.58	8.49	6.78	0.17	29.07	9.38	105	39	167	33	299	56	10284	4.02
HQL-18-3.1	7.29	0.00	0.02	667	1.95	0.00	12.64	0.04	0.72	1.44	0.22	12.08	4.78	60	23	104	21	192	38	10566	0.98
HQL-18-3.2	11.56	0.00	0.73	822	4.21	0.15	16.65	0.13	1.38	2.66	0.30	16.86	6.68	80	30	136	31	286	54	10412	3.23
HQL-18-5	7.55	0.14	0.11	980	2.34	0.01	12.05	0.13	1.79	3.90	0.41	22.63	7.89	90	34	146	30	270	52	9511	1.75
HQL-18-6	7.63	0.42	0.59	906	3.78	6.91	31.74	2.07	11.49	5.44	0.35	21.63	7.32	83	32	135	28	256	49	10059	2.18
HQL-18-7	6.76	0.26	0.06	1020	6.20	0.31	12.61	0.10	1.07	2.62	0.11	16.38	6.95	86	33	156	34	319	62	12746	4.89
HQL-18-8	3.54	0.27	0.11	1267	7.88	0.02	23.01	0.11	2.03	5.39	0.15	28.13	10.11	117	44	193	40	348	66	10741	4.28
HQL-18-9	4.52	0.10	0.22	1630	11.46	0.00	25.25	0.11	2.65	6.26	0.13	32.77	12.65	148	56	251	52	458	86	11248	6.41
HQL-18-10	8.21	0.24	0.22	1260	2.38	0.00	9.60	0.05	1.65	4.00	0.24	26.72	9.57	114	42	192	40	359	70	10812	1.90
HQL-18-11	6.21	0.32	0.00	1458	1.10	0.01	9.62	0.10	2.30	5.87	0.61	35.21	12.13	136	51	221	44	388	73	9831	0.67
HQL-18-12	0.38	0.22	0.28	1268	9.78	0.07	25.12	0.15	1.91	4.55	0.15	25.84	9.18	113	42	193	42	390	75	11528	5.28
HQL-18-13	5.21	0.02	0.08	1717	1.83	0.08	20.82	0.47	6.55	10.55	2.61	53.32	16.59	176	61	246	49	422	80	8881	1.07
HQL-18-14	11.32	0.03	0.14	740	1.98	0.00	12.62	0.03	0.66	2.18	0.26	15.03	5.38	68	25	114	24	220	42	10437	1.31
HQL-18-15	7.07	0.14	0.14	755	2.44	0.00	17.04	0.06	1.05	2.25	0.20	15.68	6.09	69	26	115	24	213	41	11185	1.53
HQL-18-16	8.90	0.25	0.00	1297	10.82	0.19	22.78	0.15	2.23	5.29	0.11	24.74	9.41	114	44	199	42	390	73	11523	5.75
HQL-18-17	6.35	0.00	0.05	1182	7.37	0.03	25.46	0.10	1.99	4.47	0.12	25.12	9.05	107	41	182	38	346	68	10998	4.67
HQL-18-18	7.07	0.00	0.00	920	3.53	0.01	15.56	0.10	2.13	3.48	0.34	19.54	7.54	87	32	140	29	263	50	9854	1.98
HQL-18-19	7.36	0.13	0.22	972	3.52	1.58	22.55	0.49	3.00	3.63	0.33	19.19	6.88	83	32	149	32	312	60	10299	2.51
HQL-18-20	4.20	0.09	0.19	1295	4.70	0.02	28.98	0.12	2.00	6.31	0.27	29.86	10.08	120	45	193	39	353	66	10985	2.39
HQL-18-21	2.94	0.57	0.21	1747	21.75	0.13	34.26	0.25	3.05	6.71	0.15	34.10	13.02	158	60	269	57	519	97	11537	9.40
HQL-18-22	3.63	0.00	0.01	963	5.36	0.01	14.30	0.06	1.45	3.71	0.11	20.23	6.97	88	33	147	30	283	54	11763	3.61
HQL-18-23	4.35	0.00	0.18	1613	17.77	0.07	24.63	0.16	1.91	5.49	0.09	29.58	11.54	141	55	248	53	488	93	12100	9.93
HQL-18-24	5.21	0.07	0.10	840	3.59	0.00	16.80	0.06	1.54	3.42	0.29	17.04	6.64	76	29	127	26	244	47	9979	2.02
HQL-18-25	7.52	0.07	0.19	978	1.32	0.00	7.50	0.06	1.10	3.24	0.30	20.90	7.50	89	33	149	31	280	55	10469	0.99
HQL-18-26	8.76	0.00	0.10	1561	4.02	0.00	19.53	0.09	2.60	6.21	0.37	33.74	12.07	143	54	234	48	435	82	9928	2.27
HQL-18-27	2.87	0.06	0.71	1329	4.59	3.56	26.81	1.26	6.69	3.53	0.37	18.58	6.96	99	42	212	51	524	113	11479	3.35
SYC-1	9.57	0.00	0.09	814	3.13	0.00	13.11	0.03	0.38	2.11	0.13	14.09	5.41	72	28	127	28	258	49	11096	1.87
SYC-2	0.00	0.01	0.16	1979	31.96	0.47	22.00	0.37	2.73	6.00	0.08	35.28	13.67	174	68	311	68	625	118	12158	12.21
SYC-4	8.06	0.14	0.04	871	4.64	0.07	19.46	0.10	1.38	3.28	0.18	17.13	6.66	78	30	132	28	260	49	11010	2.86
SYC-6	5.69	0.56	0.44	1937	15.88	18.12	87.66	5.48	25.90	12.48	0.40	44.58	15.28	171	66	294	63	579	110	10639	6.58
SYC-7	3.02	0.00	0.11	978	5.09	0.01	19.64	0.05	1.24	3.79	0.22	21.09	7.52	89	34	151	31	291	56	10636	3.04
SYC-9.1	7.11	0.17	0.25	1116	11.45	0.29	19.84	0.20	2.24	4.25	0.06	22.85	8.21	98	37	171	38	355	67	11328	4.31
SYC-9.2	12.07	0.00	0.12	1267	2.23	0.00	12.69	0.20	3.36	6.88	0.53	32.10	10.40	119	44	185	38	342	64	9870	1.47
SYC-11	10.06	0.00	0.07	1135	1.53	0.01	11.90	0.08	1.53	4.71	0.71	27.55	9.68	110	40	169	34	303	57	9741	1.01
SYC-12	15.97	0.65	0.21	734	3.37	0.01	16.06	0.03	0.94	2.43	0.21	15.83	5.53	69	25	113	24	221	43	10194	1.96
SYC-15	129.35	0.24	0.27	2288	14.07	104.48	213.61	20.18	73.28	15.38	0.25	51.41	17.54	209	81	351	73	648	120	11126	5.45
SYC-16	13.01	0.19	0.16	812	2.70	0.01	13.79	0.08	1.14	2.78	0.28	15.86	6.15	72	27	124	27	244	49	9917	1.76
SYC-17	0.00	0.00	0.01	724	3.47	0.04	14.72	0.06	1.07	2.02	0.19	15.10	5.31	65	25	111	24	226	44	10239	2.29
SYC-18	11.33	2.85	0.03	733	4.10	0.03	14.09	0.08	1.53	3.43	0.32	14.97	5.70	67	25	111	24	212	42	10552	2.07
SYC-19	9.32	0.43	0.10	752	3.91	0.00	17.80	0.07	0.76	2.45	0.13	14.07	5.41	66	25	115	25	236	45	10721	2.55
SYC-20	2.91	0.00	0.09	900	4.38	0.00	18.62	0.09	1.11	3.31	0.17	19.70	6.74	81	31	141	30	268	51	10778	3.04
SYC-21	2.81	0.01	0.11	806	4.73	0.01	16.42	0.04	0.85	2.22	0.06	14.87	5.39	69	27	126	28	261	52	11705	3.69
SYC-22	7.08	0.00	0.02	650	3.31	0.00	15.59	0.01	0.91	1.88	0.14	11.65	4.16	56	22	102	22	211	42	10018	2.21
SYC-23	11.74	0.39	0.00	778	3.68	0.17	17.77	0.10	1.55	2.23	0.15	15.51	5.72	71	26	119	26	236	46	10711	2.33
JPL-1	6.64	0.00	0.12	1027	1.34	0.12	33.85	0.21	2.97	5.29	1.61	23.08	7.52	86	33	156	34	341	70	9657	0.54
JPL-2	0.97	0.18	0.12	2492	25.51	0.00	20.84	0.11	3.36	9.05	0.20	55.77	20.37	241	92	390	77	662	120	11737	8.60
JPL-3	4.80	0.26	0.07	1467	27.27	0.00	19.15	0.07	1.69	5.10	0.13	33.23	11.89	141	53	230	46	400	73	11334	8.94
JPL-4	10.80	0.20	0.12	1330	18.91	0.00	21.65	0.14	2.66	6.24	0.20	32.39	11.64	130	47	203	39	355	66	10599	5.62
JPL-5	7.18	0.60	0.62	3380	124.79	0.00	26.68	0.12	3.00	9.18	0.12	60.86	23.68	295	117	525	108	945	170	12371	37.43
JPL-7	4.96	0.20	0.22	1588	22.09	0.00	17.47	0.11	2.14	6.14	0.16	34.64	12.89	152	57	244	48	427	80	11116	7.79
JPL-8	6.33	0.06	0.19	1966	37.48	0.00	19.20	0.09	2.41	6.98	0.13	42.32	15.24	185	70	303	60	522	98	11395	10.84
JPL-10	7.50	0.00	0.18	1728	29.97	0.28	24.80	0.21	2.44	7.79	0.20	38.30	14.09	169	61	265	52	448	83	10921	8.94
JPL-13	6.95	0.00	0.00	1187	20.69	0.01	17.05	0.07	1.63	4.34	0.11	26.10	9.21	117	43	187	37	326	62	11365	7.38
JPL-14	2.23	0.08	0.20	1418	24.66	0.04	21.11	0.10	1.83	5.11	0.18	31.63	11.37	135	50	218	43	369	71	10673	8.16
JPL-17	4.35	0.23	0.11	1490	32.55	0.00	14.76	0.06	1.09	4.20	0.11	27.43	10.71	139	53	236	49	431	81	12191	11.77
JPL-18	0.00	0.77	0.24	4713	77.79	0.06	18.87	0.17	2.11	10.31	0.11	77.85	32.67	418	166	757	154	1351	246	13351	25.20
JPL-19	6.58	0.41	0.26	957	16.71	0.00	15.82	0.05	0.87	3.08	0.08	21.02	7.42	94	34	151	30	264	51	11591	6.05
JPL-20.1	6.72	0.46	0.10	1592	19.50	0.01	24.59	0.16	2.63	6.88	0.21	37.26	13.37	156	57	246	48	412	77	10821	6.61
JPL-20.2	7.80	0.95	0.26	3537	23.79	0.09	36.35	0.60	11.21	21.34	1.15	108.52	35.48	383	131	519	98	836	150	9870	6.27
JPL-23	3.78	0.33	0.13	1938	48.74	0.02	19.91	0.10	1.70	5.84	0.09	37.24	14.26	179	68	302	62	538	99	11893	14.23
JPL-24	1.03	0.00	0.22	3311	157.93	0.01	17.62	0.05	1.31	4.98	0.06	46.67	21.17	283	116	536	117	1042	192	13448	54.87

下载: 导出CSV

表附表 2 湘南地区沉积岩中碎屑锆石微量元素组成

Table 附表 2. Trace element composition of detrital zircon from sedimentary rocks in southern Hunan 10^-6

测试点	Ti	Rb	Sr	Y	Nb	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Hf	Ta
HQL-16-1	6.71	0.00	0.18	1246	0.56	0.03	2.74	0.31	5.36	11.20	1.13	40.72	12.62	129	44	180	37	330	57	8341	0.33
HQL-16-2	4.75	0.39	0.14	906	2.62	0.01	5.92	0.05	0.97	2.88	0.01	17.85	6.64	83	32	144	30	272	50	10263	1.39
HQL-16-3	7.90	0.29	0.00	821	2.27	0.01	19.44	0.03	1.09	2.12	0.19	15.34	5.47	71	28	129	28	255	48	10521	1.34
HQL-16-4	3.39	0.45	0.09	1701	0.64	0.02	0.92	0.05	1.64	3.52	0.12	27.45	11.13	149	60	271	58	537	96	11440	0.46
HQL-16-5	9.01	0.21	0.42	1314	0.69	0.08	1.28	0.09	1.61	4.16	0.16	31.34	12.88	142	43	158	30	243	41	12114	0.56
HQL-16-6	2.57	0.00	0.02	327	2.70	0.00	1.43	0.01	0.26	0.67	0.04	4.45	1.68	23	10	55	15	174	43	11118	1.08
HQL-16-7	11.13	2.95	0.37	840	2.00	0.01	5.73	0.09	1.70	3.76	0.16	20.54	7.10	80	31	130	26	244	44	9035	0.91
HQL-16-8	5.32	0.17	0.06	879	4.81	0.00	48.16	0.02	1.18	2.19	0.62	15.34	5.78	71	29	135	29	275	49	10352	2.37
HQL-16-9.1	10.80	0.00	0.13	1260	0.78	0.00	1.88	0.03	0.90	2.92	0.10	19.31	8.74	111	44	192	39	351	62	11845	0.84
HQL-16-9.2	11.87	0.13	0.08	1353	0.53	0.00	1.26	0.07	1.23	3.77	0.18	24.99	9.61	121	46	208	42	398	73	10966	0.36
HQL-16-11	5.66	0.42	0.02	631	0.58	0.00	0.58	0.02	0.86	2.81	0.08	20.14	7.08	70	21	82	16	148	27	12299	0.46
HQL-16-12.1	6.98	0.00	0.20	1146	0.79	0.00	7.06	0.26	3.92	5.88	0.84	29.32	9.44	107	39	170	35	316	59	9180	0.44
HQL-16-12.2	8.93	0.31	0.09	581	0.76	0.02	3.39	0.03	1.32	1.39	0.19	11.82	4.09	51	19	89	19	187	36	9152	0.59
HQL-16-14.1	7.97	0.24	0.22	1309	4.89	0.00	12.73	0.07	2.68	6.15	0.18	32.24	11.04	130	48	205	40	361	65	10116	1.70
HQL-16-14.2	6.56	0.08	0.16	239	0.41	0.02	0.54	0.03	1.05	2.60	0.06	15.40	4.19	33	8	25	4	28	4	12009	0.36
HQL-16-16	8.00	0.00	0.08	884	0.28	0.00	0.44	0.05	0.78	3.75	0.07	27.63	9.63	100	29	105	19	160	28	12101	0.28
HQL-16-17	3.63	0.00	0.00	291	1.24	0.01	5.40	0.01	0.17	0.54	0.12	3.19	1.33	18	9	48	13	157	35	12674	1.15
HQL-16-18	8.57	0.28	0.20	1289	1.67	0.02	4.99	0.27	5.37	8.81	0.94	44.11	12.96	137	47	187	36	305	54	8899	0.70
HQL-16-19	20.92	0.18	0.12	1101	1.56	0.09	4.59	0.23	3.27	6.01	0.48	31.03	9.92	109	39	164	32	281	52	9102	0.76
HQL-16-20	15.02	0.00	0.15	1620	1.14	0.00	2.07	0.10	1.67	4.78	0.10	32.68	11.85	146	55	248	51	474	85	10128	0.62
HQL-16-22	2.90	0.01	0.08	264	2.11	0.01	1.43	0.00	0.00	0.20	0.03	2.08	1.02	18	8	46	12	134	31	11583	2.69
HQL-16-23	12.55	0.18	0.21	1383	2.64	0.00	5.91	0.11	1.73	5.64	0.14	30.22	10.73	130	49	211	44	379	71	10987	1.56
HQL-16-24	7.06	0.55	0.17	1456	1.86	0.00	6.29	0.06	0.72	3.23	0.22	23.00	9.68	124	50	233	49	463	89	11363	1.42
HQL-16-25.1	9.28	1.06	0.41	874	1.95	0.10	10.96	0.12	1.59	2.96	0.26	17.42	6.07	75	29	136	29	258	49	10733	1.41
HQL-16-25.2	6.36	0.00	0.12	1131	1.88	0.02	13.70	0.09	2.13	4.54	0.35	24.36	8.12	101	39	174	37	324	61	10181	1.30
HQL-16-27	3.72	0.00	0.20	1437	35.03	58.98	173.84	21.70	108.99	29.47	0.69	53.46	13.28	144	53	232	47	407	74	11911	13.44
HQL-16-28	6.16	0.55	1.76	1503	5.47	0.17	8.41	0.16	1.76	3.81	0.75	23.01	9.09	123	51	254	60	603	123	9865	2.80
HQL-16-29	2.10	0.00	0.31	494	1.55	0.04	29.89	0.24	2.67	4.14	1.35	17.90	4.35	46	16	69	14	139	29	11498	0.87
HQL-16-30	6.61	0.37	0.71	620	1.10	0.12	5.35	0.11	0.90	2.24	0.67	13.38	4.63	57	21	92	19	174	34	8461	0.55
HQL-16-31.1	5.80	0.05	0.27	1746	1.37	0.00	4.35	0.18	3.64	8.55	0.68	52.73	17.04	182	64	263	51	422	78	11022	0.85
HQL-16-31.2	6.09	0.53	0.05	1662	1.06	0.00	1.70	0.08	1.48	4.54	0.17	34.69	13.20	160	58	245	50	433	80	11301	0.63
HQL-16-33	4.70	0.00	0.00	1168	2.76	0.00	36.29	0.20	3.25	5.77	0.97	26.96	8.46	97	39	176	39	370	75	9925	1.36
HQL-16-34.1	2.86	0.00	0.05	614	0.66	0.01	0.80	0.04	1.03	2.71	0.13	21.14	7.83	74	20	72	12	94	16	12044	0.75
HQL-16-34.2	4.33	0.12	0.09	843	0.38	0.01	0.57	0.07	0.86	4.99	0.11	33.79	11.12	97	29	104	20	166	30	12299	0.35
HQL-16-34.3	2.71	0.26	0.00	406	0.74	0.02	0.69	0.01	0.32	2.37	0.08	14.72	4.96	50	14	48	8	64	12	11713	1.02
HQL-16-37	4.08	0.00	0.60	313	0.67	0.08	1.36	0.04	0.86	2.98	0.65	15.86	4.72	37	10	34	7	72	18	13532	0.70
HQL-16-38.1	5.98	0.11	0.28	1858	6.76	0.01	2.15	0.02	0.27	1.66	0.07	14.50	8.51	136	63	335	83	832	172	12752	3.60
HQL-16-38.2	1.34	0.08	0.17	2036	6.26	0.00	2.01	0.01	0.23	1.67	0.04	14.64	8.70	145	69	377	96	952	201	12851	3.18
HQL-16-40	0.00	0.27	0.01	1853	1.15	0.08	17.83	0.71	10.73	14.81	1.75	59.36	17.42	192	68	278	56	481	95	7182	0.44
HQL-16-41	16.39	0.00	0.15	1189	4.04	0.03	11.19	0.06	1.90	4.69	0.12	26.89	9.35	112	42	183	37	321	61	10332	2.19
HQL-16-42	3.54	0.09	0.19	2957	0.55	0.00	0.48	0.04	1.10	3.33	0.05	31.51	15.85	233	101	477	104	951	182	11811	0.56
HQL-16-43	18.37	0.25	0.17	1272	2.48	0.22	14.06	0.13	1.61	3.73	0.16	22.49	9.01	111	44	194	40	368	68	11452	1.55
HQL-16-44.1	9.91	0.00	0.21	1483	0.83	0.00	1.11	0.04	1.20	3.92	0.06	23.76	10.15	131	51	222	47	422	77	12041	0.62
HQL-16-44.2	10.27	0.00	0.12	1804	0.65	0.01	2.30	0.27	3.80	9.42	0.28	44.07	15.05	175	64	268	55	486	90	11690	0.64
HQL-16-44.3	11.88	0.50	0.23	1725	0.78	0.03	2.78	0.27	4.00	8.56	0.21	43.67	14.96	169	62	261	51	463	85	11101	0.48
HQL-16-47.1	9.46	0.00	3.26	353	0.83	1.49	24.40	0.44	2.66	1.97	0.69	7.62	2.70	29	11	54	12	126	28	8978	0.30
HQL-16-47.2	6.30	0.00	0.03	536	1.28	0.00	23.92	0.09	1.38	2.01	0.82	12.94	3.75	45	17	80	19	202	43	8741	0.41
HQL-16-49.1	10.69	0.00	0.45	2278	1.61	0.13	3.29	0.11	1.65	5.01	0.17	33.63	14.13	189	77	356	76	718	137	11263	1.09
HQL-16-49.2	4.20	0.48	0.26	2531	0.95	0.01	1.18	0.06	1.71	5.58	0.09	45.98	18.81	229	86	353	69	586	103	12219	0.53
HQL-16-51.1	6.99	0.00	1.29	1159	4.65	0.32	38.88	0.25	3.24	4.71	2.64	21.73	7.74	91	38	182	43	424	89	10834	1.27
HQL-16-51.2	6.11	0.00	0.13	899	1.93	0.00	0.36	0.01	0.20	0.70	0.05	7.96	4.98	77	29	121	25	224	41	14167	2.74
HQL-16-53	26.23	0.00	0.12	707	0.99	0.00	1.70	0.05	0.85	2.82	0.08	16.11	5.63	65	24	105	21	186	34	9776	0.54
HQL-16-54	0.55	0.08	0.25	929	6.26	0.04	22.17	0.07	1.29	1.91	0.42	14.38	5.53	73	31	148	34	339	66	11005	3.67
HQL-16-55	11.04	0.46	0.48	1274	1.48	1.86	21.92	0.71	6.46	8.35	1.47	37.86	11.35	124	44	185	38	332	61	9331	0.72
HQL-16-56	11.61	0.07	0.16	1659	0.95	0.04	5.74	0.31	4.82	8.56	1.16	45.51	13.90	160	59	245	47	416	77	9300	0.64
HQL-16-57	7.70	0.46	0.30	1678	1.71	0.02	9.01	0.16	3.06	7.66	1.27	37.46	12.28	147	58	267	57	528	103	9549	0.82
HQL-16-58.1	14.99	0.26	0.05	578	0.96	0.02	0.52	0.02	0.52	1.78	0.05	16.63	6.26	64	19	62	11	86	14	12458	0.85
HQL-16-58.2	13.28	1.38	0.52	803	0.98	0.06	0.61	0.07	0.92	2.26	0.15	15.53	6.56	79	26	98	18	146	25	12530	1.18
HQL-16-60	2.59	0.00	0.12	1258	2.28	0.01	14.98	0.18	3.85	7.16	1.12	33.58	10.55	116	44	188	39	349	67	9757	1.38
HQL-16-61	15.36	0.17	0.08	1123	0.40	0.00	1.78	0.19	4.94	11.11	0.19	50.15	13.80	127	39	149	27	220	39	11376	0.32
HQL-16-62	6.40	0.00	0.04	521	1.18	0.00	7.98	0.05	1.06	1.90	0.27	11.74	4.05	45	18	81	18	170	37	10507	0.56
HQL-16-63	4.44	0.16	1.09	1611	4.59	0.06	14.49	0.21	3.21	6.49	1.00	35.76	12.51	154	57	252	51	459	88	10280	2.23
HQL-16-64.1	9.66	0.00	0.00	1542	0.77	0.01	0.97	0.07	1.70	5.15	0.16	37.96	13.76	156	52	215	42	362	65	11386	0.45
HQL-16-64.2	11.26	0.00	0.33	1784	0.81	0.00	1.11	0.08	1.96	6.42	0.23	45.28	16.40	181	62	243	47	395	73	11269	0.57
HQL-16-66	5.38	0.22	0.03	843	3.91	0.07	27.24	0.09	1.44	1.84	0.24	13.61	5.38	70	29	136	30	285	57	11458	2.03
HQL-16-67	5.64	0.08	0.08	1531	0.63	0.09	1.36	0.13	2.12	6.65	0.18	45.35	16.08	166	52	196	37	302	53	12028	0.39
HQL-16-68.1	3.22	0.27	0.09	1202	2.64	0.01	3.86	0.09	1.81	5.85	0.29	38.76	12.91	124	38	146	28	227	41	11414	2.33
HQL-16-68.2	0.84	0.06	0.10	1427	2.39	0.12	4.33	0.17	2.56	7.46	0.37	50.69	15.76	155	46	169	31	253	46	11827	1.90
HQL-16-70.1	2.62	0.33	0.06	579	1.36	0.00	10.34	0.03	0.34	1.58	0.17	7.76	3.41	45	19	90	20	194	38	11806	1.43
HQL-16-70.2	0.00	0.00	0.19	611	1.17	0.00	9.83	0.02	0.51	1.21	0.13	9.20	3.76	49	21	97	22	206	41	11451	0.99
HQL-16-72.1	16.51	0.09	0.14	784	0.89	0.00	3.62	0.11	1.79	4.12	0.18	20.11	6.61	76	28	118	24	215	42	8375	0.42
HQL-16-72.2	7.75	1.05	0.18	952	1.95	0.03	6.57	0.14	2.07	3.99	0.09	22.55	7.79	91	34	149	30	264	50	8952	0.94
HQL-16-74	6.38	0.00	0.18	757	1.47	0.01	12.51	0.11	2.32	3.97	0.38	19.59	6.20	71	26	114	23	204	38	9622	1.06
HQL-16-75	16.86	0.98	0.28	1097	1.30	0.39	2.83	0.12	2.07	3.26	0.18	20.32	7.57	101	39	176	38	358	70	11050	0.71
HQL-16-76.1	6.22	0.15	0.15	1171	0.89	0.01	11.06	0.37	7.08	10.47	2.22	43.55	11.95	123	41	165	31	282	53	8830	0.39
HQL-16-76.2	12.46	0.10	0.08	499	1.00	0.01	9.40	0.13	1.63	3.65	0.71	14.92	4.48	48	17	73	15	138	26	8969	0.38
HQL-16-78.1	6.65	0.19	0.13	715	0.64	0.01	1.12	0.12	2.24	7.19	0.22	45.49	12.18	97	23	67	10	74	12	11522	0.41
HQL-16-78.2	7.14	0.87	0.62	1638	1.58	0.02	0.83	0.05	1.23	6.55	0.14	46.07	17.00	177	53	187	33	265	44	11613	0.88
HQL-16-78.3	277.98	0.00	0.38	1198	3.61	0.04	1.41	0.13	2.06	6.72	0.27	42.09	14.29	136	39	140	25	201	34	12283	0.88
HQL-16-81	7.70	0.10	0.03	1401	1.30	0.41	4.16	0.08	1.47	4.35	0.19	24.82	9.44	122	48	221	48	445	85	11204	1.07
HQL-16-82.1	34.02	6.18	4.16	3355	2.45	2.07	24.90	2.80	20.74	21.28	4.83	82.35	28.28	318	112	482	94	831	150	9927	1.22
HQL-16-82.2	4.50	0.22	0.34	1300	1.97	0.06	8.62	0.14	1.84	4.19	0.26	22.83	9.22	114	44	198	41	382	69	11173	1.86
HQL-16-84.1	8.93	0.00	0.33	1432	0.58	0.09	1.74	0.12	1.56	3.60	0.19	24.18	9.74	124	48	213	44	387	72	11645	0.34
HQL-16-84.2	7.47	0.06	1.61	2219	0.90	0.22	4.54	0.47	3.77	6.31	0.93	40.75	15.80	196	74	323	65	573	105	11545	0.58
HQL-16-86	3.20	0.30	0.00	175	0.27	0.01	1.53	0.03	0.96	2.93	0.51	10.91	2.38	19	6	26	7	72	16	11324	0.22
HQL-16-87.1	12.06	0.00	0.19	1813	0.98	0.01	1.86	0.17	3.53	7.32	0.20	43.98	15.70	173	61	253	50	435	79	10844	0.80
HQL-16-87.2	12.58	0.15	0.12	1642	0.68	0.03	3.17	0.30	4.39	9.89	0.35	48.90	15.47	164	58	238	45	392	72	10232	0.53
HQL-16-89	14.38	0.05	0.11	790	0.98	0.00	8.34	0.06	1.80	4.18	0.14	20.92	6.78	78	27	119	25	225	42	11200	0.76
HQL-16-90	18.21	5.34	0.34	2024	1.60	0.00	2.35	0.04	0.83	3.13	0.09	24.04	10.88	152	67	325	72	690	132	11289	1.05
HQL-16-91	8.82	0.34	0.12	768	0.99	0.02	11.84	0.08	2.02	3.46	0.33	19.53	5.90	70	26	115	24	224	43	9762	0.62
HQL-16-92	9.42	0.00	0.18	1388	1.46	0.02	2.25	0.12	2.70	5.13	0.17	31.38	10.75	126	48	215	44	409	78	11505	0.86
HQL-16-93	15.86	0.18	2.42	728	0.82	49.87	78.57	4.86	19.30	6.97	1.66	20.55	6.36	69	24	103	21	195	38	8478	0.46
HQL-16-94	9.04	0.00	0.02	666	1.73	0.00	21.97	0.05	1.21	3.79	0.20	18.00	5.89	65	23	100	20	176	33	10490	1.07
HQL-16-95	7.57	0.41	0.34	930	2.74	2.73	33.80	0.80	5.29	4.51	0.89	19.86	7.00	83	32	143	30	280	55	9666	1.41
HQL-16-96	8.01	0.26	0.21	1662	0.78	0.04	1.44	0.10	2.25	5.69	0.17	38.48	14.26	164	57	237	47	408	74	11493	0.62
HQL-16-97	15.39	0.30	0.11	1136	1.15	0.03	2.25	0.10	1.97	4.82	0.04	27.43	9.24	109	38	163	32	280	51	11253	0.70
HQL-16-98	8.25	0.11	0.07	858	1.78	0.03	9.27	0.15	2.86	5.14	0.46	25.12	7.61	86	30	125	25	225	42	10265	1.09
HQL-16-99	8.53	0.13	0.09	1263	1.66	0.05	18.55	0.33	5.90	7.85	2.78	36.24	10.48	118	42	182	37	343	66	7567	0.61
HQL-16-100	12.32	0.07	0.18	1843	0.65	0.01	1.86	0.07	1.25	4.41	0.05	30.29	11.56	158	62	285	59	536	101	10945	0.54
HQL-16-101	3.71	0.00	0.25	1211	4.47	13.68	48.71	3.86	17.73	6.68	0.15	20.84	8.11	101	40	186	40	370	69	11498	3.19
HQL-16-102	7.66	0.08	0.56	2446	3.57	0.02	9.32	0.08	1.45	4.21	0.61	26.00	12.40	192	83	416	94	899	177	12034	2.12
HQL-16-103	43.94	5.99	0.53	816	5.62	0.27	14.85	0.18	1.22	3.09	0.24	12.49	5.30	71	27	131	29	276	51	11680	4.16
HQL-16-104	0.00	0.00	0.10	446	1.59	0.00	7.02	0.02	0.52	0.82	0.19	7.67	3.15	38	15	68	14	134	26	11471	1.20
HQL-16-105	2.23	0.00	0.14	1727	1.95	0.47	5.31	0.32	4.35	6.32	0.26	38.57	14.13	165	60	263	52	459	86	10205	1.04
HQL-16-106	6.49	0.00	0.07	1003	7.99	0.01	60.72	0.06	1.37	3.42	0.33	20.68	7.28	89	33	148	30	269	50	10972	2.46
HQL-16-107	8.12	0.00	0.15	655	1.10	0.00	10.06	0.02	0.92	2.06	0.47	12.75	4.53	58	23	104	21	206	40	10010	0.77
HQL-16-108	5.82	0.08	0.07	134	1.35	0.02	16.52	0.01	0.57	1.93	0.59	7.01	1.90	16	4	14	2	16	3	11092	2.07
HQL-16-109.1	15.35	0.00	0.00	1064	1.53	0.02	31.12	0.17	3.22	6.46	1.70	28.34	9.09	99	36	159	33	308	60	8562	0.81
HQL-16-109.2	6.75	0.11	0.02	941	2.90	0.02	36.44	0.11	1.95	4.28	0.82	21.82	7.12	86	31	146	30	292	57	9278	1.38
HQL-16-111.1	5.79	0.03	0.01	549	1.08	0.00	3.41	0.09	1.43	3.22	0.28	19.03	5.78	60	20	76	14	122	22	10069	0.71
HQL-16-111.2	8.81	0.32	0.01	372	1.10	0.00	2.50	0.04	0.58	1.63	0.05	10.22	3.45	39	13	52	10	84	15	10317	0.79
HQL-16-113	10.73	0.19	0.28	1567	3.14	9.17	21.95	2.40	12.60	8.66	0.34	37.64	13.06	151	55	237	49	447	85	11884	4.47
HQL-16-114	7.19	0.28	0.13	897	1.13	0.02	7.42	0.07	1.37	3.01	0.18	19.44	6.64	83	32	140	28	249	47	9989	0.74
HQL-16-115.1	7.72	0.00	0.14	815	1.21	0.01	12.52	0.06	1.27	2.54	0.25	15.62	5.58	69	28	130	27	263	51	9335	0.68
HQL-16-115.2	6.95	0.22	0.11	580	0.78	0.01	10.77	0.04	0.69	1.86	0.28	10.23	4.00	49	20	91	20	190	38	9712	0.46
HQL-16-117.1	5.76	0.00	0.78	415	1.41	1.33	32.42	0.36	2.60	3.14	0.93	12.01	3.64	39	14	60	13	118	24	9138	0.76
HQL-16-117.2	7.12	0.43	0.15	669	1.75	0.04	37.98	0.15	3.20	4.81	1.85	22.14	5.97	65	22	95	20	189	38	9200	0.74
HQL-16-119	9.17	0.05	0.14	598	0.64	0.02	1.70	0.19	2.56	7.59	0.37	41.80	11.54	92	19	51	7	47	7	10865	0.30
HQL-16-120	1.56	0.00	0.60	748	0.90	0.60	20.04	0.33	3.07	3.75	1.19	18.95	5.57	64	24	112	25	249	52	9017	0.39
HQL-16-121.1	14.98	0.15	0.00	776	1.19	0.00	9.55	0.14	2.83	3.81	0.64	20.09	6.14	71	26	113	23	207	40	8933	0.64
HQL-16-121.2	12.68	0.22	0.06	727	1.06	0.01	11.33	0.11	1.89	4.04	0.57	18.81	5.77	66	24	107	22	195	37	9036	0.66
HQL-16-123	32.49	1.00	4.35	1287	4.06	1.24	51.17	2.03	16.80	15.69	4.20	38.98	12.47	131	42	176	37	340	63	9689	1.85
HQL-16-124	9.08	0.00	0.04	1814	0.86	0.00	1.65	0.07	1.67	4.11	0.09	33.58	12.65	162	63	286	60	538	103	10713	0.67
HQL-16-125	9.41	0.32	0.05	1268	2.76	0.02	3.35	0.07	1.30	3.52	0.18	21.77	8.19	105	42	200	43	405	81	8307	0.88
HQL-16-126	9.84	0.06	0.14	1408	1.07	0.01	1.99	0.07	1.72	3.88	0.07	25.50	9.13	126	49	220	46	430	83	10019	0.64
HQL-16-127.1	7.56	0.00	0.81	1854	0.81	0.00	2.50	0.09	1.70	5.75	0.12	33.41	13.71	171	64	281	58	497	92	10847	0.64
HQL-16-127.2	5.07	0.34	0.20	2031	1.10	0.00	4.38	0.11	2.04	6.18	0.14	40.48	15.29	189	71	306	61	540	99	11125	0.79
HQL-16-129	10.79	0.04	0.22	2462	1.93	0.03	3.97	0.08	1.77	6.46	0.07	41.00	16.18	218	85	392	81	729	139	11039	1.20
HQL-16-130.1	13.47	0.85	0.32	591	1.30	0.14	25.99	0.17	3.01	5.57	2.09	20.45	5.53	59	20	83	17	153	30	8893	0.67
HQL-16-130.2	15.54	0.01	0.11	593	1.59	0.01	26.94	0.13	2.92	5.38	1.98	19.94	5.36	58	20	84	17	162	32	8593	0.68
HQL-16-130.3	16.61	0.19	0.00	469	1.13	0.00	30.40	0.12	2.56	4.42	1.63	16.34	4.59	46	16	66	13	121	24	8940	0.73
HQL-16-130.4	23.04	0.00	0.20	630	1.68	0.01	28.08	0.16	3.27	5.63	1.98	21.33	6.04	61	21	92	19	179	36	8610	0.93
HQL-16-134	19.10	0.00	0.15	613	1.23	0.03	13.12	0.04	1.06	2.54	0.72	11.68	4.14	50	19	90	24	272	61	11687	0.85
HQL-16-135	16.68	0.40	0.24	953	1.41	0.11	23.17	0.43	5.40	8.21	1.54	28.77	8.60	93	32	136	28	251	49	8526	0.73
HQL-16-137	14.62	0.00	0.18	2035	0.90	0.00	1.18	0.07	1.10	4.50	0.12	35.46	15.19	187	68	285	56	482	87	11384	0.60
HQL-16-138	4.87	0.00	0.05	960	1.74	0.02	7.01	0.03	0.74	2.24	0.21	14.38	6.13	81	33	153	34	326	63	11655	1.68
HQL-16-139	3.85	0.30	0.08	1723	1.72	0.01	2.64	0.06	1.32	4.28	0.12	31.03	11.93	153	60	274	58	529	103	11820	1.00
HQL-16-140	15.42	0.00	0.11	1292	1.22	0.10	4.33	0.51	6.31	10.95	0.51	46.38	12.83	137	46	185	36	321	62	8398	0.57
HQL-16-141	13.41	0.39	0.69	928	2.67	0.19	3.80	0.18	1.30	3.94	0.63	19.07	8.09	90	31	132	30	283	60	11794	2.56
HQL-16-142	8.28	0.03	0.08	1556	12.48	0.02	17.14	0.04	1.53	3.79	0.09	27.81	10.62	136	54	247	52	468	84	11743	4.83
HQL-16-143.1	2.25	0.00	0.14	780	0.49	0.00	0.39	0.03	0.74	3.69	0.10	24.80	9.74	96	26	83	14	111	19	12454	0.44
HQL-16-143.2	4.51	0.00	0.00	1187	0.57	0.01	0.52	0.06	1.27	4.65	0.08	34.65	13.14	139	40	132	22	157	26	11722	0.51
HQL-16-145	9.93	0.00	0.10	1563	1.50	0.04	3.50	0.22	3.70	6.69	0.50	36.84	12.87	152	55	230	45	397	73	9348	0.80
HQL-16-146.1	7.22	0.00	0.00	557	0.37	0.00	1.49	0.05	0.99	3.29	0.11	20.64	6.23	59	18	73	14	126	24	12409	0.34
HQL-16-146.2	8.01	0.00	0.18	1053	0.56	0.00	0.89	0.05	0.56	3.19	0.04	21.65	8.22	99	36	147	29	263	48	12649	0.57
HQL-16-148.1	9.43	0.30	0.02	1213	1.78	0.00	6.41	0.14	1.82	4.39	0.49	25.07	8.85	111	42	193	40	369	72	11357	2.19
HQL-16-148.2	0.33	0.00	0.25	1863	1.46	0.05	11.18	0.27	5.28	9.20	1.17	47.01	15.99	185	65	274	55	473	88	8981	1.05
HQL-16-150.1	9.32	0.71	0.10	2749	0.97	0.02	0.80	0.10	2.01	6.71	0.09	56.22	23.71	284	93	345	61	487	83	11478	0.86
HQL-16-150.2	8.92	0.00	0.20	2304	1.03	0.00	0.94	0.05	1.77	5.78	0.14	43.37	18.78	227	78	296	55	442	78	11655	0.80
HQL-16-152	0.00	0.00	0.26	638	7.64	0.02	0.76	0.01	0.19	0.39	0.04	3.97	1.96	34	19	129	44	605	155	12937	22.30
HQL-16-153	8.61	0.37	2.45	756	2.00	3.28	55.44	0.69	4.50	3.54	1.62	18.11	5.06	58	22	103	24	255	60	9603	0.44
HQL-16-154.1	17.94	0.00	0.11	1366	0.70	0.01	1.07	0.09	1.61	6.26	0.13	41.12	14.66	151	46	166	31	259	47	11661	0.42
HQL-16-154.2	0.22	0.17	0.08	1155	0.53	0.01	0.59	0.02	0.93	2.88	0.03	23.51	9.87	116	38	147	28	236	44	12112	0.55
XHL-S-Zr-1	34.18	0.00	1.56	1207	10.51	6.40	38.99	4.49	26.10	11.92	1.79	32.20	10.00	111	43	196	41	372	69	10588	3.75
XHL-S-Zr-2.1	3.34	0.00	0.23	1044	3.14	0.86	55.64	0.29	3.65	6.44	1.01	25.83	8.43	97	37	157	33	306	58	9236	1.31
XHL-S-Zr-2.2	22.42	0.63	3.41	1651	3.47	5.67	78.47	2.14	15.08	12.40	2.45	51.71	15.19	163	59	245	49	434	79	8603	1.24
XHL-S-Zr-4.1	13.88	0.10	0.07	404	1.50	0.02	15.41	0.11	1.40	2.83	0.30	10.36	3.28	38	14	61	13	128	24	9514	1.08
XHL-S-Zr-4.2	6.71	0.38	0.15	265	1.27	0.00	11.48	0.03	0.61	1.17	0.16	5.14	1.74	23	9	41	9	91	19	9500	0.90
XHL-S-Zr-6	2.93	0.00	0.00	575	2.39	0.00	6.11	0.04	0.73	2.21	0.05	11.67	4.50	53	20	92	20	180	34	9797	1.59
XHL-S-Zr-7	2.28	0.14	0.27	1785	9.01	10.29	51.40	3.60	21.92	11.25	0.71	48.12	15.31	181	68	286	57	495	87	9532	2.82
XHL-S-Zr-8	4.98	0.12	0.08	636	1.52	0.04	21.58	0.08	1.30	1.84	0.75	11.73	3.93	51	21	104	24	253	56	9796	0.71
XHL-S-Zr-9	7.36	0.36	1.99	679	2.42	0.04	31.46	0.08	1.18	2.69	1.11	13.57	4.60	53	22	108	26	282	62	8953	0.61
XHL-S-Zr-10	2.87	0.13	0.19	904	9.05	0.03	16.74	0.12	1.52	3.81	0.13	22.05	7.10	86	33	143	29	260	47	9008	3.64
XHL-S-Zr-11	14.17	0.00	0.05	779	0.62	0.01	11.84	0.15	2.68	3.99	1.00	19.84	5.83	71	27	120	25	235	48	8089	0.30
XHL-S-Zr-12.1	16.04	0.70	0.44	1715	1.47	0.41	3.23	0.49	3.55	4.55	1.72	22.19	10.42	146	58	277	64	625	119	12372	1.18
XHL-S-Zr-12.2	2.61	0.00	0.14	2072	0.98	0.02	0.90	0.05	1.14	2.90	0.17	22.78	11.68	168	70	328	73	680	127	11603	0.92
XHL-S-Zr-14	13.30	0.00	0.00	1411	2.45	0.00	26.34	0.10	2.52	4.47	1.78	27.30	9.54	118	49	222	49	481	95	8100	0.80
XHL-S-Zr-15	0.75	0.22	0.08	737	3.62	0.00	7.82	0.03	1.21	2.24	0.08	12.20	4.81	62	25	117	27	262	52	10829	2.53
XHL-S-Zr-16.1	8.74	0.70	12.50	677	1.18	0.02	2.74	0.03	0.78	0.97	0.32	5.59	2.80	47	23	129	34	368	77	10951	1.95
XHL-S-Zr-16.2	1.19	0.54	8.83	651	2.11	0.05	22.95	0.22	4.23	5.49	1.14	26.30	7.23	72	23	90	17	148	28	9736	1.24
XHL-S-Zr-18.1	3.93	0.06	0.63	745	4.30	0.13	7.69	0.08	0.99	1.29	0.49	11.98	4.24	59	26	127	30	301	66	11681	3.43
XHL-S-Zr-18.2	6.90	0.00	1.49	3627	3.87	0.31	23.89	0.42	6.15	11.09	2.38	77.53	27.88	341	132	573	115	1020	191	8639	1.26
XHL-S-Zr-20	7.39	0.00	0.00	670	1.53	0.01	17.08	0.03	1.02	1.74	0.63	9.48	3.51	49	20	108	26	284	66	9315	0.64
XHL-S-Zr-21.1	12.27	0.17	0.23	1215	2.31	0.01	7.99	0.06	1.45	3.68	0.27	24.82	9.37	115	42	183	37	332	61	11009	1.24
XHL-S-Zr-21.2	6.59	0.28	57.34	1052	0.70	0.03	1.68	0.06	0.89	2.21	0.07	16.59	7.11	92	35	149	28	239	41	11546	0.58
XHL-S-Zr-23	1.27	0.22	0.16	487	1.05	0.00	9.95	0.06	0.58	1.09	0.37	7.27	2.76	35	15	77	19	206	47	10035	0.70
XHL-S-Zr-24.1	24.72	0.47	0.04	537	1.28	0.01	5.00	0.10	1.14	2.28	0.42	13.11	4.43	49	18	80	16	145	28	8275	0.59
XHL-S-Zr-24.2	14.07	0.72	0.92	432	2.22	0.03	7.15	0.09	0.78	1.84	0.28	9.65	3.11	38	15	67	15	145	28	9905	0.82
XHL-S-Zr-26.1	15.38	0.21	1.08	815	3.97	0.06	8.68	0.09	1.33	2.22	0.71	14.04	4.80	62	26	126	30	305	61	8923	2.13
XHL-S-Zr-26.2	46.17	2.02	1.49	960	3.36	0.05	9.41	0.17	2.31	3.99	1.50	23.71	7.32	83	31	142	31	304	60	8375	1.74
XHL-S-Zr-28	15.37	0.36	3.90	585	1.51	14.67	53.29	3.39	13.07	4.65	0.94	12.37	3.76	48	19	91	21	220	47	8913	0.93
XHL-S-Zr-29	8.50	0.32	0.21	1515	3.39	0.01	7.04	0.05	1.22	4.06	0.13	28.59	10.48	134	53	230	47	429	77	11993	1.73
XHL-S-Zr-30	16.92	0.00	0.18	1618	1.38	0.04	11.14	0.36	4.97	9.22	0.22	41.18	14.15	157	57	232	46	391	69	10136	0.97
XHL-S-Zr-31	6.78	0.00	0.10	1062	5.10	0.01	20.34	0.05	1.29	2.65	0.39	20.00	7.26	91	36	166	36	334	64	11100	2.55
XHL-S-Zr-32	7.11	0.00	0.00	676	0.86	0.02	4.73	0.19	3.53	4.85	1.08	22.56	6.62	68	24	98	20	188	38	7789	0.57
XHL-S-Zr-33.1	0.32	0.51	0.00	651	3.59	0.01	17.75	0.02	0.12	1.27	0.10	7.53	3.25	43	18	88	21	222	47	11592	5.80
XHL-S-Zr-33.2	4.23	0.96	49.07	567	0.91	0.01	22.81	0.05	0.42	1.42	0.17	9.20	3.25	39	16	74	17	169	36	10831	1.25
XHL-S-Zr-35	11.51	0.10	1.55	957	2.30	0.05	41.70	0.33	4.98	7.66	1.52	32.25	9.69	98	33	135	27	239	44	9561	1.17
XHL-S-Zr-36	1.59	0.41	0.30	933	2.01	0.28	57.27	0.14	1.73	3.42	1.70	23.29	6.99	79	30	136	30	302	65	9621	0.55
XHL-S-Zr-37.1	28.17	0.03	0.07	734	1.47	0.06	20.33	0.45	5.81	8.35	1.58	30.51	8.10	79	26	99	19	162	29	8412	0.69
XHL-S-Zr-37.2	5.84	0.43	0.75	622	4.55	0.12	17.13	0.18	1.64	2.94	0.62	11.59	4.19	51	20	96	22	282	43	11499	2.74
XHL-S-Zr-39	4.85	0.10	0.10	737	1.66	0.26	22.45	0.06	1.81	3.02	0.69	13.11	4.77	58	25	120	27	269	58	10366	0.72
XHL-S-Zr-40	9.64	0.07	0.00	672	1.51	0.09	19.53	0.05	1.41	2.20	0.67	11.75	4.25	55	22	110	25	258	55	9935	0.83
XHL-S-Zr-41	0.00	0.37	0.09	1487	0.88	0.00	2.89	0.12	2.44	5.31	0.64	34.68	11.63	141	54	231	46	410	78	9518	0.47
XHL-S-Zr-42	4.77	0.16	0.00	466	0.99	0.00	22.98	0.08	1.25	2.51	0.98	10.79	3.46	38	15	70	17	176	39	9609	0.52
XHL-S-Zr-43	9.52	0.00	0.10	1254	2.83	0.05	3.33	0.07	0.86	2.77	0.13	21.47	8.58	111	41	198	47	468	94	12259	2.59
XHL-S-Zr-44.1	5.71	0.00	0.04	513	2.25	0.00	2.48	0.00	1.16	4.03	0.09	21.98	6.62	65	17	53	7	53	8	11507	1.68
XHL-S-Zr-44.2	4.01	0.09	0.10	255	1.48	0.00	1.36	0.06	0.72	1.71	0.05	11.72	3.60	32	9	26	4	28	5	11117	0.99
XHL-S-Zr-46	5.72	0.00	2.97	1866	1.49	0.01	1.73	0.05	1.11	3.93	0.17	27.59	11.85	156	63	296	65	594	114	10970	1.45
XHL-S-Zr-47	10.32	0.83	1.23	1641	2.18	0.35	49.10	0.58	6.73	10.27	3.92	41.94	13.17	154	56	247	53	507	101	8010	0.70
XHL-S-Zr-48	11.80	0.23	0.02	1275	3.09	0.02	7.55	0.10	2.54	5.36	0.13	29.32	10.09	122	46	204	42	387	71	10979	1.30
XHL-S-Zr-49	6.87	0.00	0.16	767	7.36	0.01	18.06	0.05	0.84	2.34	0.13	14.22	5.94	69	27	117	25	214	39	10705	3.23
XHL-S-Zr-50.1	2.35	0.00	0.26	772	1.32	0.02	18.78	0.13	1.61	3.46	1.05	16.29	5.08	62	24	119	26	274	59	9225	0.66
XHL-S-Zr-50.2	0.00	0.26	0.17	876	1.66	0.04	24.24	0.09	1.82	2.95	0.81	15.45	5.29	69	28	136	31	319	70	8991	0.88
XHL-S-Zr-52.1	7.04	0.76	0.55	685	1.97	0.24	13.93	0.20	1.88	3.06	0.63	15.37	5.47	59	22	105	24	260	57	11521	1.36
XHL-S-Zr-52.2	1.65	0.00	0.17	803	1.93	0.02	3.10	0.08	1.39	4.01	0.35	29.53	9.41	91	27	107	23	243	53	12082	1.74
XHL-S-Zr-54	4.11	0.00	0.18	1220	4.00	0.85	18.92	0.34	2.53	3.75	0.40	17.62	7.60	97	41	198	45	433	87	11128	2.46
XHL-S-Zr-55.1	11.08	0.21	7.57	393	0.57	0.00	9.69	0.05	0.59	1.29	0.36	7.62	2.52	31	12	61	14	136	30	9614	0.42
XHL-S-Zr-55.2	8.96	0.25	16.80	891	0.69	0.04	10.51	0.25	3.15	4.58	1.38	23.22	6.29	78	29	134	30	280	59	8948	0.46
XHL-S-Zr-57.1	8.82	0.18	0.05	287	0.91	0.00	7.33	0.02	0.42	0.84	0.22	5.39	2.09	24	9	43	10	95	19	10806	0.64
XHL-S-Zr-57.2	12.26	0.28	0.45	311	1.10	0.00	8.24	0.02	0.23	1.49	0.41	6.70	2.33	27	10	46	10	102	20	11033	0.65
XHL-S-Zr-59	13.29	0.92	0.19	1500	2.24	0.11	88.37	0.70	11.78	13.38	4.91	59.50	14.98	152	50	209	41	380	73	8925	0.75
XHL-S-Zr-60	6.07	0.00	0.07	991	1.00	0.01	3.71	0.06	1.78	3.52	0.82	22.10	7.38	91	34	157	33	305	62	7622	0.45
XHL-S-Zr-61	283.95	0.00	1.89	1772	1.91	0.04	6.05	0.11	2.76	6.33	0.90	39.02	13.72	164	62	281	58	532	104	9625	0.50
XHL-S-Zr-62	5.55	0.13	7.59	699	1.72	0.02	14.81	0.07	0.98	1.82	0.39	11.11	3.88	52	22	115	27	276	61	10347	1.13
XHL-S-Zr-63.1	9.59	0.17	0.11	1157	3.81	0.00	35.67	0.14	3.00	4.70	1.24	23.02	7.91	98	39	183	41	405	85	9312	1.60
XHL-S-Zr-63.2	41.33	14.53	3.49	752	2.98	1.30	38.95	0.40	2.63	2.90	0.82	14.63	4.94	60	24	118	28	290	62	10377	1.72
XHL-S-Zr-65	7.64	0.11	0.07	448	1.80	0.00	6.72	0.04	0.76	1.67	0.07	9.39	3.29	42	16	71	15	134	25	11726	1.34
XHL-S-Zr-66	5.64	0.42	1.71	2086	1.82	6.86	37.12	5.75	39.69	24.66	3.31	72.95	20.28	218	74	306	59	495	91	8715	1.09
XHL-S-Zr-67.1	0.78	0.24	0.09	1491	0.62	0.00	0.67	0.05	0.86	4.28	0.12	30.56	12.60	150	52	220	44	372	69	11941	0.65
XHL-S-Zr-67.2	1.06	0.01	0.41	1082	0.69	0.01	0.69	0.02	0.92	3.67	0.33	26.31	9.78	109	37	154	31	286	54	12869	0.71
XHL-S-Zr-69	0.00	0.00	0.09	737	1.18	0.01	2.75	0.01	0.72	2.14	0.15	19.73	8.22	89	25	80	12	86	12	12357	0.69
XHL-S-Zr-70	5.02	0.00	0.00	518	0.64	0.02	13.37	0.08	1.49	2.92	1.18	13.61	4.19	44	17	78	17	171	38	8677	0.23
XHL-S-Zr-71.1	9.02	0.00	0.00	929	0.72	0.02	1.32	0.04	1.52	4.37	0.12	31.54	11.22	114	31	106	18	142	24	11788	0.59
XHL-S-Zr-71.2	14.46	0.73	0.24	1377	0.61	0.00	1.40	0.09	2.05	7.57	0.33	50.03	16.64	168	47	161	28	212	37	11658	0.48
XHL-S-Zr-73	7.16	0.17	0.04	873	1.78	0.22	53.02	0.34	4.88	6.02	1.42	24.47	7.00	76	29	134	29	288	59	8322	0.88
XHL-S-Zr-74	17.20	0.17	0.46	1109	2.39	1.17	25.38	1.17	12.82	11.00	1.48	37.44	10.97	114	38	157	30	271	48	9316	1.14
XHL-S-Zr-75	16.73	1.01	0.13	874	1.66	0.01	5.13	0.11	2.72	5.20	0.17	22.88	7.48	87	31	130	26	229	42	9850	0.92
XHL-S-Zr-76.1	12.13	0.00	0.01	2044	1.31	0.02	2.73	0.08	1.88	6.08	0.13	36.96	14.11	181	72	321	65	578	106	10783	0.75
XHL-S-Zr-76.2	19.04	0.52	0.16	1864	1.55	0.02	4.13	0.20	3.29	7.44	0.25	41.02	14.55	176	65	291	58	508	94	10420	0.86
XHL-S-Zr-78.1	6.99	0.06	0.53	181	0.98	0.03	14.43	0.03	0.49	1.03	0.40	4.16	1.40	14	6	29	7	74	17	10535	0.38
XHL-S-Zr-78.2	0.00	0.00	0.35	223	1.22	0.01	24.27	0.01	0.44	0.83	0.27	4.92	1.59	19	7	34	7	75	16	10617	0.44
XHL-S-Zr-80	6.78	0.04	8.95	1236	2.42	23.43	72.91	7.37	36.22	12.47	1.13	34.83	9.91	114	43	187	39	358	67	9610	1.19
XHL-S-Zr-81	25.16	0.09	0.13	740	1.79	0.03	3.77	0.15	2.82	5.10	0.40	21.78	7.04	72	26	113	23	210	40	9630	0.81
XHL-S-Zr-82	3.31	0.08	0.22	1125	1.81	0.00	19.54	0.07	1.22	3.95	0.76	19.43	7.32	92	37	182	40	390	79	10058	1.04
XHL-S-Zr-83	17.54	0.00	0.09	623	3.38	0.00	27.04	0.04	1.29	2.42	0.23	12.81	4.23	54	21	99	22	203	40	10700	1.51
XHL-S-Zr-84	8.83	0.23	0.06	527	1.08	0.00	13.95	0.04	0.76	1.76	0.51	8.11	3.02	38	17	86	21	221	52	10377	0.62
XHL-S-Zr-85.1	7.77	0.19	0.18	819	1.41	0.02	29.15	0.09	1.30	3.29	0.58	16.04	5.16	66	26	125	28	279	57	10894	0.61
XHL-S-Zr-85.2	11.75	0.23	40.60	937	1.04	120.41	311.66	35.84	154.19	33.13	2.71	38.66	8.65	84	31	142	31	302	62	10143	0.45
XHL-S-Zr-87	6.00	0.00	0.13	1133	0.89	0.01	0.84	0.00	0.19	1.33	0.03	12.78	6.60	92	35	163	35	321	58	12830	1.18
XHL-S-Zr-88	8.07	0.18	0.17	886	1.89	0.01	11.88	0.07	1.10	2.16	0.77	14.73	5.26	69	29	144	33	334	74	9894	0.72
XHL-S-Zr-89	5.30	0.43	6.22	694	1.96	18.50	62.54	4.76	16.61	5.10	0.78	14.03	4.38	52	22	109	26	275	60	9862	1.11
XHL-S-Zr-90.1	10.86	0.25	0.10	178	1.12	0.02	2.27	0.03	1.06	2.49	0.11	14.86	4.47	32	6	12	2	11	2	12707	0.98
XHL-S-Zr-90.2	9.85	0.23	0.03	795	0.62	0.04	1.27	0.06	1.34	3.83	0.25	29.82	10.99	101	26	82	13	98	16	12189	0.70
XHL-S-Zr-92	5.79	0.00	0.00	286	0.46	0.00	12.62	0.01	0.60	0.29	0.37	3.68	1.12	17	8	46	12	159	44	10516	0.16
XHL-S-Zr-93	8.06	0.03	0.09	599	1.00	0.01	16.03	0.04	1.50	2.67	0.89	13.27	3.93	48	19	93	21	220	50	9255	0.46
XHL-S-Zr-94	7.66	0.00	0.70	936	3.12	1.94	49.26	0.61	4.33	4.61	1.36	21.34	6.70	80	30	140	31	299	62	9967	1.13
XHL-S-Zr-95.1	49.21	93.19	3.62	634	2.55	0.04	10.48	0.04	0.88	2.27	0.27	12.26	4.46	54	21	97	21	190	37	11073	1.15
XHL-S-Zr-95.2	7.35	0.00	0.30	479	1.61	0.00	8.20	0.01	0.44	1.04	0.04	7.67	2.97	41	16	77	17	158	31	10874	1.22
XHL-S-Zr-97	7.51	0.00	0.00	1869	1.53	0.03	4.75	0.18	5.19	11.31	0.56	61.41	19.39	208	65	229	40	312	51	11022	0.80
XHL-S-Zr-98	7.86	0.34	0.19	1901	1.85	0.02	3.91	0.12	2.03	5.58	0.20	33.87	13.83	175	64	294	59	522	98	11330	1.17
XHL-S-Zr-99	0.54	0.06	0.04	658	4.02	0.01	17.31	0.11	2.24	4.59	0.07	20.56	6.14	65	23	96	19	166	32	10292	1.37
XHL-S-Zr-100	25.16	0.00	0.08	677	1.76	0.02	10.23	0.13	1.84	3.59	0.68	20.07	6.39	71	23	92	18	149	27	10605	0.97
XHL-S-Zr-101	10.53	0.27	0.00	783	1.05	0.09	43.44	1.20	15.30	18.91	5.09	47.11	11.50	99	28	98	17	135	23	8104	0.43
XHL-S-Zr-102	5.45	0.07	0.10	424	0.98	0.00	14.51	0.04	0.75	1.41	0.42	7.40	2.46	31	13	67	17	184	43	9764	0.73
XHL-S-Zr-104	0.40	0.77	69.63	804	4.46	0.06	14.89	0.05	0.54	1.01	0.75	7.81	2.90	48	21	131	35	431	110	11358	1.17
XHL-S-Zr-105	130.08	4.23	0.47	2543	1.56	0.51	2.43	0.38	3.70	5.66	0.13	43.33	17.05	229	88	399	82	757	143	11306	0.57
XHL-S-Zr-107.1	10.22	4.38	1.36	1681	1.16	0.20	3.60	0.20	3.33	9.44	0.45	46.80	14.71	169	59	249	47	410	77	9118	0.73
XHL-S-Zr-107.2	5.59	0.11	14.54	271	1.68	0.00	3.58	0.05	0.69	1.65	0.26	7.60	2.31	28	9	39	8	70	13	10546	1.31
XHL-S-Zr-109	5.57	0.35	0.10	1755	1.32	0.06	2.22	0.15	3.04	6.26	0.38	36.48	13.05	165	62	282	58	544	105	10445	0.96
XHL-S-Zr-110	5.69	0.43	0.14	836	10.33	0.01	14.68	0.09	1.00	2.55	0.07	17.96	6.18	77	30	133	27	248	47	10340	3.59
XHL-S-Zr-111	3.65	0.45	0.49	713	2.54	0.76	9.88	0.26	1.50	1.14	0.29	8.15	3.34	50	22	119	29	301	66	12451	1.82
XHL-S-Zr-112	1.41	0.04	0.21	733	1.00	0.03	23.22	0.10	1.84	4.50	2.25	22.75	6.19	64	23	111	26	263	59	9857	0.43
XHL-S-Zr-113	5.11	0.16	0.08	834	2.71	0.00	10.59	0.03	0.76	1.63	0.42	11.39	4.42	59	26	136	33	359	81	9697	1.07
XHL-S-Zr-114.1	5.65	0.03	0.04	1082	3.39	0.02	5.45	0.04	0.83	2.12	0.50	12.45	5.18	78	35	190	48	507	105	10277	2.43
XHL-S-Zr-114.2	3.02	0.00	0.43	854	1.96	0.00	4.14	0.02	0.20	1.30	0.53	10.55	4.32	63	28	159	42	469	100	11855	1.47
XHL-S-Zr-116	6.71	0.00	0.10	1331	4.03	0.00	34.03	0.12	1.93	3.94	1.22	23.74	8.54	107	44	214	49	490	103	9300	1.63
XHL-S-Zr-117	1.50	0.00	0.14	601	1.11	0.02	51.94	0.08	0.97	2.50	1.08	13.60	4.15	48	18	90	21	221	48	10251	0.35
XHL-S-Zr-118	15.38	1.73	8.88	335	0.61	3.13	23.64	0.55	3.05	2.09	1.73	9.67	2.75	30	11	50	12	123	28	9179	0.35
XHL-S-Zr-119	4.73	0.00	0.00	494	1.97	0.06	24.22	0.04	0.49	1.33	0.69	8.50	3.16	35	15	75	19	193	42	9768	0.85
XHL-S-Zr-120	4.52	0.00	0.00	458	1.38	0.00	22.58	0.04	0.65	1.95	0.74	9.22	2.91	36	15	69	18	186	43	10648	0.71
XHL-S-Zr-121	0.00	0.71	0.32	591	2.10	0.64	12.65	0.32	1.82	2.30	0.85	11.95	3.94	48	19	84	20	199	40	11237	1.66
XHL-S-Zr-122	0.77	0.13	0.07	1782	1.76	0.03	11.58	0.15	3.35	6.94	0.41	34.40	12.49	154	61	282	62	595	117	10869	1.51
XHL-S-Zr-123	6.65	0.00	0.05	852	2.53	0.00	12.49	0.06	1.62	3.46	0.17	21.02	7.06	80	29	127	26	229	43	10872	1.82
XHL-S-Zr-124	6.32	0.40	0.01	894	1.88	0.01	12.57	0.16	2.36	4.91	0.43	23.48	7.64	85	31	132	27	231	43	9560	0.99
XHL-S-Zr-125	8.58	0.80	0.00	1784	1.70	0.01	2.32	0.08	1.03	3.64	0.15	29.64	11.65	157	62	288	60	536	102	11213	0.93
JPL-S-Zr-2-21.1	0.00	0.00	0.00	561	1.70	0.00	24.60	0.06	1.05	1.82	0.23	11.88	3.80	49	18	81	16	143	29	9594	0.58
JPL-S-Zr-2-21.2	3.85	0.00	0.04	515	1.53	0.01	19.89	0.08	0.83	1.80	0.26	8.64	3.14	39	16	80	18	172	36	10092	0.65
JPL-S-Zr-2-23	2.81	0.00	0.10	465	0.82	0.00	10.40	0.07	1.32	2.67	0.83	10.25	3.12	38	15	73	18	192	45	9541	0.44
JPL-S-Zr-2-24.1	14.27	0.32	0.09	902	1.33	0.00	8.48	0.09	1.49	3.81	0.67	20.09	6.88	82	31	135	27	238	46	9031	0.67
JPL-S-Zr-2-24.2	9.68	0.18	0.13	303	0.97	0.02	8.24	0.04	0.62	0.74	0.21	6.24	1.92	24	10	44	10	95	19	9852	0.79
JPL-S-Zr-2-26	2.27	0.40	0.04	200	0.33	0.00	4.72	0.02	0.03	0.30	0.08	2.62	0.94	14	6	34	9	100	24	11412	0.56
JPL-S-Zr-2-27.1	14.72	0.00	0.09	637	5.11	0.01	9.54	0.05	1.04	2.47	0.32	13.54	4.82	58	22	96	20	177	34	9125	2.82
JPL-S-Zr-2-27.2	11.82	0.15	0.09	650	7.31	0.00	11.86	0.08	1.92	2.52	0.18	13.85	5.17	59	23	95	19	176	35	9184	4.43
JPL-S-Zr-2-29	0.44	0.30	0.18	976	12.50	0.02	10.58	0.08	0.91	2.16	1.54	17.78	6.24	77	32	159	38	381	77	9174	7.08
JPL-S-Zr-2-30	5.67	0.19	2.81	1186	4.64	6.74	30.70	1.61	8.20	3.94	1.06	19.03	6.77	90	37	185	43	429	94	9816	1.58
JPL-S-Zr-2-31.1	50.03	0.31	0.13	532	1.96	0.01	9.11	0.11	2.46	5.23	0.60	22.30	6.54	61	18	71	14	145	29	11502	3.50
JPL-S-Zr-2-31.2	40.10	0.29	0.20	1484	3.38	0.00	4.47	0.16	2.01	5.78	1.59	34.72	11.51	138	53	233	50	476	95	9954	4.31
JPL-S-Zr-2-33	4.08	0.20	0.04	742	1.30	0.02	6.86	0.10	1.95	2.27	0.83	14.15	4.78	57	23	115	27	276	61	10105	0.80
JPL-S-Zr-2-34.1	4.79	0.64	0.26	571	3.50	0.09	14.36	0.08	0.79	2.07	0.24	11.10	3.86	46	18	90	21	207	42	11011	1.64
JPL-S-Zr-2-34.2	12.56	0.42	0.00	544	3.76	0.02	12.00	0.10	1.56	2.74	0.06	14.36	4.92	54	20	82	17	149	28	9461	1.17
JPL-S-Zr-2-36	7.34	0.00	0.00	1111	1.33	0.01	4.04	0.09	1.58	3.95	0.05	21.65	7.91	100	38	172	36	322	59	12307	1.26
JPL-S-Zr-2-37	11.75	0.00	0.02	727	0.40	0.00	1.52	0.05	1.30	3.73	0.06	23.76	8.28	83	25	87	15	120	21	12319	0.41
JPL-S-Zr-2-38.1	9.54	0.00	0.05	844	1.91	0.06	9.95	0.13	1.91	3.20	0.64	19.98	6.66	79	30	129	27	235	46	8614	0.72
JPL-S-Zr-2-38.2	4.52	0.00	0.15	1344	2.28	0.03	14.13	0.08	1.73	4.50	0.71	25.49	9.49	115	47	210	44	416	79	10253	1.22
JPL-S-Zr-2-40	5.49	0.03	0.19	1155	1.12	0.00	3.30	0.03	0.82	2.31	0.09	17.56	6.84	96	39	183	39	352	66	12098	0.79
JPL-S-Zr-2-41	8.81	0.15	0.19	805	1.42	0.02	1.81	0.11	1.52	2.44	0.45	11.35	4.30	54	25	134	33	364	81	8502	0.52
JPL-S-Zr-2-42	11.94	0.10	0.12	560	4.47	0.03	21.25	0.06	0.59	1.48	0.38	8.34	3.52	44	17	89	21	223	47	13235	2.87
JPL-S-Zr-2-43	7.09	0.28	0.09	1077	2.98	0.00	3.29	0.03	0.65	3.37	0.11	26.10	9.80	106	36	146	29	263	49	10850	1.53
JPL-S-Zr-2-44	1.93	0.00	0.12	191	0.14	0.00	0.91	0.01	0.11	0.18	0.17	1.58	0.77	10	6	34	10	127	36	9497	0.11
JPL-S-Zr-2-45	4.40	0.17	0.06	1542	3.94	0.00	12.65	0.14	2.45	5.39	0.37	33.88	11.38	137	53	229	46	418	77	10150	2.38
JPL-S-Zr-2-46	7.86	0.00	0.18	179	0.44	0.00	0.31	0.01	0.30	1.96	0.18	10.07	3.27	28	6	15	2	15	3	11133	0.28
JPL-S-Zr-2-47	21.90	0.00	0.02	1479	1.30	0.08	14.86	0.50	8.75	9.71	1.28	35.99	11.13	128	50	220	48	434	83	9682	0.82
JPL-S-Zr-2-48.1	9.95	0.03	0.60	676	5.45	1.35	13.18	0.53	3.28	1.97	0.31	8.49	3.21	45	21	114	30	311	66	11491	3.16
JPL-S-Zr-2-48.2	3.94	0.56	6.97	1026	2.67	38.31	101.70	10.88	52.62	13.97	1.27	28.74	8.69	93	35	156	33	310	60	9512	1.24
JPL-S-Zr-2-50	8.32	0.12	0.12	908	0.41	0.00	0.45	0.03	0.32	1.90	0.08	16.83	7.06	84	31	126	26	225	42	12311	0.29
JPL-S-Zr-2-51	0.59	0.01	0.00	891	1.91	0.00	27.34	0.13	1.72	3.12	0.64	18.16	5.92	75	30	136	29	285	56	9146	0.76
JPL-S-Zr-2-52.1	20.99	0.00	0.07	557	1.84	0.01	7.74	0.05	1.03	2.17	0.37	12.65	4.52	52	20	82	17	149	28	9166	0.71
JPL-S-Zr-2-52.2	17.89	0.12	0.00	971	1.65	0.01	10.00	0.26	2.99	5.59	1.18	28.15	8.52	96	33	138	27	232	42	8851	0.88
JPL-S-Zr-2-54.1	19.61	0.04	0.05	278	0.34	0.00	3.95	0.03	0.53	1.92	0.43	10.37	3.04	30	10	34	6	49	9	10812	0.21
JPL-S-Zr-2-54.2	12.79	0.00	0.05	211	0.49	0.00	4.78	0.04	0.30	1.13	0.22	6.11	1.83	21	7	27	5	44	8	11032	0.39
JPL-S-Zr-2-56	12.52	0.31	0.00	1477	0.98	0.07	13.08	0.51	6.24	9.83	1.93	46.81	13.45	146	52	216	43	385	76	7557	0.56
JPL-S-Zr-2-57	9.54	0.29	0.60	594	2.09	12.85	34.77	3.55	16.18	6.63	0.09	14.81	5.00	55	21	89	18	166	30	10645	1.13
JPL-S-Zr-2-58.1	16.48	0.00	0.14	1471	3.26	0.02	8.34	0.06	0.75	2.52	0.46	23.12	8.91	121	50	236	51	471	90	11953	1.73
JPL-S-Zr-2-58.2	20.73	0.12	0.18	1412	2.65	0.02	7.23	0.08	0.86	2.62	0.51	22.03	8.58	114	49	218	46	419	81	11470	1.42
JPL-S-Zr-2-60	4.63	0.05	0.14	636	7.54	0.01	8.81	0.05	0.83	2.21	0.12	12.57	4.68	60	23	104	21	192	36	11442	5.13
JPL-S-Zr-2-61	6.29	0.00	0.11	1615	0.59	0.02	0.98	0.03	1.12	3.98	0.06	31.41	12.90	155	55	233	46	400	74	11990	0.58
JPL-S-Zr-2-62.1	5.54	0.45	1.07	880	2.72	3.98	25.09	1.47	7.28	4.97	0.68	20.06	6.83	77	29	136	29	271	54	9245	0.98
JPL-S-Zr-2-62.2	9.43	7.94	0.75	1664	1.52	0.09	15.46	0.33	5.46	10.53	1.71	50.58	14.74	166	58	241	47	413	78	8740	0.72
JPL-S-Zr-2-64	6.76	0.07	0.10	1134	2.67	0.19	20.38	0.21	3.15	4.67	0.60	25.44	8.48	106	40	176	36	327	63	8380	0.87
JPL-S-Zr-2-65	7.64	0.04	0.00	238	1.36	0.01	5.34	0.00	0.14	0.29	0.14	2.87	1.05	16	7	39	10	109	25	10745	1.23
JPL-S-Zr-2-66	6.98	0.07	0.14	783	2.32	0.01	5.61	0.09	1.36	4.61	0.19	24.07	7.38	80	27	109	21	191	37	9918	1.07
JPL-S-Zr-2-67	12.03	0.00	0.03	496	1.70	0.01	5.63	0.03	0.81	2.92	0.23	17.87	5.90	58	17	60	10	79	13	12000	0.75
JPL-S-Zr-2-68	3.50	0.11	0.12	937	1.60	0.00	9.25	0.12	1.86	3.93	0.73	19.90	6.64	81	31	144	31	294	59	10356	0.88
JPL-S-Zr-2-69.1	8.44	0.37	0.16	1331	1.14	0.01	2.14	0.07	1.35	3.70	0.31	26.34	10.22	122	45	201	41	371	71	10924	0.64
JPL-S-Zr-2-69.2	6.66	0.07	0.15	722	1.18	0.00	3.78	0.01	0.77	2.54	0.13	16.28	5.72	68	25	111	24	239	48	11456	1.28
JPL-S-Zr-2-71	4.36	0.18	0.15	632	3.74	0.01	16.11	0.04	0.35	1.33	0.07	10.49	3.99	54	21	102	23	217	43	11293	2.23
JPL-S-Zr-2-72	1.55	0.47	0.18	663	1.34	0.00	8.96	0.08	1.60	2.79	1.03	15.15	4.81	55	22	106	24	234	50	8513	0.58
JPL-S-Zr-2-73	0.00	0.16	0.15	2362	1.33	0.00	1.33	0.07	1.43	5.11	0.10	37.46	15.82	203	81	371	78	700	132	12102	1.09
JPL-S-Zr-2-74	5.36	0.00	0.01	362	2.83	0.00	19.61	0.02	0.33	1.32	0.32	7.20	2.52	31	12	54	11	109	23	10553	1.96
JPL-S-Zr-2-75	6.12	0.37	0.06	193	1.12	0.02	1.26	0.22	2.69	5.97	0.47	23.69	5.42	35	6	14	2	14	2	12611	1.10
BS-Zr-1	1.67	0.00	0.14	751	1.52	0.00	4.44	0.04	1.25	2.72	0.12	16.88	6.29	70	26	118	24	217	40	10082	1.04
BS-Zr-4	8.15	0.18	0.05	693	1.48	0.00	10.26	0.06	1.31	1.86	0.89	13.12	4.39	55	22	105	24	250	55	8916	0.58
BS-Zr-5	20.77	11.31	0.26	1535	1.32	0.00	3.40	0.13	2.98	6.87	0.45	40.45	13.41	150	55	224	44	386	69	8017	0.63
BS-Zr-6	3.01	0.53	1.29	812	2.25	2.90	33.66	1.01	5.08	3.87	1.15	18.46	5.73	69	26	121	27	253	52	9367	0.69
BS-Zr-7	5.61	0.00	0.66	971	2.16	0.04	15.54	0.09	1.83	4.04	0.23	21.51	7.60	87	33	144	30	266	48	10141	1.42
BS-Zr-8	1.01	0.00	0.11	1163	2.09	0.00	6.47	0.03	1.11	3.26	0.27	22.18	8.39	104	40	181	39	362	67	10066	1.00
BS-Zr-9	5.16	0.00	0.06	2419	0.45	0.02	1.58	0.11	2.40	7.21	0.36	46.44	17.88	219	85	368	76	668	124	10318	0.33
BS-Zr-10	0.73	0.00	0.10	1078	2.34	0.02	50.94	0.13	2.27	3.73	2.14	20.11	6.94	82	32	157	37	390	83	10057	0.60
BS-Zr-13	15.48	0.00	0.09	2125	1.32	0.00	4.91	0.13	2.63	7.05	0.89	44.62	15.98	197	75	327	67	598	111	10273	0.71
BS-Zr-14	91.44	0.09	0.19	2636	0.73	0.11	1.45	0.16	3.24	6.79	0.19	51.47	19.64	243	93	402	81	703	129	10876	0.35
BS-Zr-15	4.93	0.00	0.19	1480	2.40	0.00	14.21	0.08	2.17	5.10	0.37	29.53	10.71	132	52	229	50	455	86	10423	1.03
BS-Zr-16	16.38	0.25	0.24	1489	3.82	0.09	0.87	0.04	0.35	1.17	0.20	11.55	6.34	111	50	260	66	685	136	10451	5.52
BS-Zr-17	9.07	0.11	0.00	839	1.78	0.01	11.10	0.12	1.42	3.82	0.74	18.13	6.03	73	27	128	29	290	59	9354	1.10
BS-Zr-18	1.44	0.00	0.13	583	2.41	0.00	16.40	0.05	1.03	1.83	0.66	11.96	3.83	46	18	90	22	230	50	10366	1.41
BS-Zr-19	6.60	0.70	0.33	803	2.21	0.08	38.16	0.09	1.23	3.10	0.81	14.31	5.21	65	25	122	28	275	56	10759	0.75
BS-Zr-20	0.00	0.07	0.00	1853	2.77	0.02	18.40	0.27	5.05	9.90	0.94	49.10	15.21	175	65	279	57	510	96	9019	1.28
BS-Zr-21	8.24	0.16	0.03	627	0.85	0.05	2.16	0.08	1.39	3.86	0.22	20.37	6.00	66	22	80	15	131	24	10500	0.65
BS-Zr-22	13.58	0.00	0.11	253	0.68	0.02	3.32	0.14	2.98	7.33	0.70	24.50	4.88	37	8	23	3	24	4	9573	0.28
BS-Zr-23	7.77	0.00	0.18	1371	1.03	0.11	5.82	0.14	2.95	5.72	0.60	30.06	10.61	126	48	210	43	391	76	9568	0.53
BS-Zr-24	6.92	0.40	0.09	1847	0.77	0.02	1.30	0.07	1.66	6.89	0.11	43.91	16.26	194	64	254	48	396	69	11697	0.63
BS-Zr-25	19.08	0.05	0.03	1590	0.86	0.00	1.30	0.09	2.89	5.49	0.33	36.45	12.02	146	56	251	52	483	92	9088	0.38
BS-Zr-26	8.76	0.58	0.22	1185	1.06	0.02	8.57	0.16	3.11	5.00	1.14	29.13	9.44	113	42	178	36	315	61	8749	0.49
BS-Zr-27	4.52	0.00	0.00	627	0.89	0.01	6.95	0.05	1.29	2.06	0.20	13.92	4.55	55	21	99	22	204	40	8362	0.49
BS-Zr-28	13.00	0.30	0.04	656	2.32	0.00	28.41	0.05	1.07	1.74	0.44	9.92	3.58	47	20	103	26	272	58	10031	1.06
BS-Zr-29	10.09	0.49	0.05	1468	1.50	0.03	14.17	0.22	3.46	7.61	2.47	41.78	12.77	144	52	224	46	418	79	8064	0.65
BS-Zr-30	1.51	0.52	0.23	824	0.92	0.03	7.46	0.09	1.29	2.50	0.61	11.26	5.32	71	25	105	22	203	39	10525	0.64
BS-Zr-31	2.47	0.00	0.09	1186	2.38	0.06	2.51	0.06	0.92	2.70	0.36	20.56	7.94	103	41	189	41	384	77	9847	1.12
BS-Zr-32	8.87	0.00	3.22	1256	1.23	6.23	24.30	3.17	21.75	12.03	0.67	38.09	11.21	125	45	194	39	340	64	9086	0.68
BS-Zr-33	2.05	0.00	0.10	433	0.95	0.01	1.11	0.01	0.77	1.84	0.22	13.75	4.50	44	14	59	12	104	20	11875	0.88
BS-Zr-34	9.48	0.00	0.04	1306	3.04	0.01	13.45	0.21	4.33	10.21	0.33	47.09	14.09	140	45	169	32	270	48	10009	1.15
BS-Zr-35	4.09	0.21	0.09	791	1.82	0.00	6.81	0.02	0.66	1.20	0.27	10.70	4.47	60	26	129	31	300	64	9471	1.14
BS-Zr-36	12.20	0.12	0.03	1116	1.36	0.02	8.82	0.23	3.50	5.52	1.31	29.55	9.15	108	39	171	35	320	62	8172	0.56
BS-Zr-37	18.87	0.72	0.05	1388	3.31	0.00	10.21	0.13	2.13	5.23	0.39	31.09	11.32	126	48	213	43	380	71	9860	1.74
BS-Zr-38	0.33	0.22	0.13	412	1.70	0.02	23.60	0.01	0.86	1.39	0.48	7.56	2.49	32	13	64	15	158	34	10435	1.15
BS-Zr-39	5.70	0.00	0.00	1562	1.09	0.00	2.15	0.26	4.36	8.07	0.40	44.01	13.77	156	58	238	47	412	79	9102	0.49
BS-Zr-40	9.90	0.08	0.59	476	2.88	3.22	303.25	0.99	6.34	3.47	1.00	9.52	3.17	40	14	65	15	157	38	11764	0.82
BS-Zr-41	9.26	0.08	0.42	1117	3.47	0.01	21.52	0.12	2.23	4.13	1.31	21.55	7.65	95	38	177	39	376	78	9429	1.40
BS-Zr-42	9.70	0.15	0.00	818	0.52	0.06	1.37	0.17	3.39	9.58	0.31	48.56	14.23	114	27	85	13	95	16	11044	0.37

下载: 导出CSV

参考文献(49)

[1]	Chen L, Wang Z, Yan Z, et al. Zircon and cassiterite U-Pb ages, petrogeochemistry and metallogenesis of Sn deposits in the Sibao area, northern Guangxi: constraints on the Neoproterozoic granitic magmatism and related Sn mineralization in the western Jiangnan Orogen, South China[J]. Mineralogy and Petrology, 2018, 112(4) : 437-463. doi: 10.1007/s00710-018-0554-2
[2]	Xiang L, Wang R, Erdmann Saskia S, et al. Neoproterozoic mineralization in a hydrothermal cassiterite-sulfide deposit at Jiumao, northern Guangxi, South China: Mineral-scale constraints on metal origins and ore-forming processes[J]. Ore Geology Reviews, 2018, 94: 172-192. doi: 10.1016/j.oregeorev.2018.01.013
[3]	Zhang S, Zhang R, Lu J, et al. Neoproterozoic tin mineralization in South China: geology and cassiterite U-Pb age of the Baotan tin deposit in northern Guangxi[J]. Mineralium Deposita, 2019, 54(8) : 1125-1142. doi: 10.1007/s00126-019-00862-y
[4]	Li S, Feng Z, Qin Y, et al. The relationship between ductile shear zone and mineralization in the Jiufeng Sn deposit, northern Guangxi, South China: Evidence from structural analysis and cassiterite U-Pb dating[J]. Ore Geology Reviews, 2020, 124: 103655. doi: 10.1016/j.oregeorev.2020.103655
[5]	杨振, 王汝成, 张文兰, 等. 桂北牛塘界加里东期花岗岩及其矽卡岩型钨矿成矿作用研究[J]. 中国科学: 地球科学, 2014, 7: 1357-1373. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201407002.htm
[6]	陈文迪, 张文兰, 王汝成, 等. 桂北苗儿山—越城岭地区独石岭钨(铜) 矿床研究: 对复式岩体多时代差异性成矿的启示[J]. 中国科学: 地球科学, 2016, 46(12) : 1602-1625. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201612004.htm
[7]	豆浩然, 张文兰, 王汝成, 等. 桂北牛塘界加里东期钨矿床年代学、成矿流体性质及其演化[J]. 地质学报, 2018, 92(11) : 2269-2300. doi: 10.3969/j.issn.0001-5717.2018.11.006
[8]	Du S, Wen H, Qin C, et al. Caledonian ore-forming event in the Laojunshan mining district, SE Yunnan Province, China: In situ LA- MC-ICP-MS U-Pb dating on cassiterite[J]. Geochemical Journal, 2015, 49: 11-22. doi: 10.2343/geochemj.2.0326
[9]	毛景文, 陈懋弘, 袁顺达, 等. 华南地区钦杭成矿带地质特征和矿床时空分布规律[J]. 地质学报, 2011, 85(5) : 636-658. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201105006.htm
[10]	彭建堂, 胡瑞忠, 袁顺达, 等. 湘南中生代花岗质岩石成岩成矿的时限[J]. 地质论评, 2008, 54(5) : 617-625. doi: 10.3321/j.issn:0371-5736.2008.05.006
[11]	蒋少涌, 赵葵东, 姜耀辉, 等. 十杭带湘南-桂北段中生代A型花岗岩带成岩成矿特征及成因讨论[J]. 高校地质学报, 2008, 14(4) : 496-509. doi: 10.3969/j.issn.1006-7493.2008.04.004
[12]	马收先, 李厚民, 孙燕, 等. 湘南地区锡石结晶控制因素——来自阴极发光图像、微量元素和年龄的证据[J]. 地质通报, 2021, 40(10) : 1737-1756. http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=20211017&flag=1
[13]	Li H, Wu J, Evans N J, et al. Zircon geochronology and geochemistry of the Xianghualing A-type granitic rocks: Insights into multi-stage Sn-polymetallic mineralization in South China[J]. Lithos, 2018, 312/313: 1-20. doi: 10.1016/j.lithos.2018.05.001
[14]	Yuan S, Mao J, Cook N J, et al. A Late Cretaceous tin metallogenic event in Nanling W-Sn metallogenic province: Constraints from U-Pb, Ar-Ar geochronology at the Jiepailing Sn-Be-F deposit, Hunan, China[J]. Ore Geology Reviews, 2015, 65: 283-293. doi: 10.1016/j.oregeorev.2014.10.006
[15]	卢友月, 付建明, 程顺波, 等. 湘南界牌岭锡多金属矿床含矿花岗斑岩SHRIMP锆石U-Pb年代学研究[J]. 华南地质与矿产, 2013, 29(3) : 199-206. https://www.cnki.com.cn/Article/CJFDTOTAL-HNKC201303005.htm
[16]	王艳丽, 彭齐鸣, 祝新友, 等. 湖南界牌岭锡多金属矿地球化学、年代学特征及成矿区带归属[J]. 地质与勘探, 2014, 50(3) : 475-485. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKT201403008.htm
[17]	Zhang R, Lu J, Wang R, et al. Constraints of in situ zircon and cassiterite U-Pb, molybdenite Re-Os and muscovite ⁴⁰Ar-³⁹Ar ages on multiple generations of granitic magmatism and related W-Sn mineralization in the Wangxianling area, Nanling Range, South China[J]. Ore Geology Reviews, 2015, 65: 1021-1042. doi: 10.1016/j.oregeorev.2014.09.021
[18]	蔡明海, 张文兵, 彭振安, 等. 湘南荷花坪锡多金属矿床成矿年代研究[J]. 岩石学报, 2016, 32(7) : 2111-2123. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201607013.htm
[19]	Belousova E A, Griffin W L, O'Reilly S Y, et al. Igneous zircon: trace element composition as an indicator of source rock type[J]. Contributions to Mineralogy and Petrology, 2002, 143: 602-622. doi: 10.1007/s00410-002-0364-7
[20]	吴福元, 刘小驰, 纪伟强, 等. 高分异花岗岩的识别与研究[J]. 中国科学: 地球科学, 2017, 47(7) : 745-765. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201707001.htm
[21]	杨明桂, 黄水保, 楼法生, 等. 中国东南陆区岩石圈结构与大规模成矿作用[J]. 中国地质. 2009, 36(3) : 528-543. doi: 10.3969/j.issn.1000-3657.2009.03.004
[22]	张国伟, 郭安林, 王岳军, 等. 中国华南大陆构造与问题[J]. 中国科学: 地球科学, 2013, 43(10) : 1553-1582. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201310003.htm
[23]	赵葵东, 蒋少涌, 姜耀辉, 等. 湘南骑田岭岩体芙蓉超单元的锆石SHRIMP U-Pb年龄及其地质意义[J]. 岩石学报, 2006, 10: 2611-2616. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200610022.htm
[24]	袁顺达, 刘晓菲, 王旭东, 等. 湘南红旗岭锡多金属矿床地质特征及Ar-Ar同位素年代学研究[J]. 岩石学报, 2012, 28(12) : 3787-3797. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201212001.htm
[25]	Elhlou S, Belousova E, Griffin W L, et al. Trace element and isotopic composition of GJ red zircon standard by laser ablation[J]. Geochimica et Cosmochimica Acta, 2006, 70(Suppl. 1) : A158.
[26]	Sláma J, Košler J, Condon D J, et al. Plešovice zircon-a new natural reference material for U-Pb and Hf isotopic microanalysis[J]. Chemical Geology, 2008, 249: 1-35. doi: 10.1016/j.chemgeo.2007.11.005
[27]	侯可军, 李延河, 田有荣. LA-MC-ICP-MS锆石微区原位U-Pb定年技术[J]. 矿床地质, 2009, 28(4) : 481-492. doi: 10.3969/j.issn.0258-7106.2009.04.010
[28]	Ferry J M, Watson E B. New thermodynamic models and revised calibrations for the Ti-in-zircon and Zr-in-rutile thermometers[J]. Contributions to Mineralogy and Petrology, 2007, 154: 429-437. doi: 10.1007/s00410-007-0201-0
[29]	Liu X, Gao S, Diwu C, et al. Precambrian crustal growth of Yangtze Craton as revealed by detrital zircon studies[J]. American Journal of Science, 2008, 308(4) : 421-468. doi: 10.2475/04.2008.02
[30]	Wang L, Griffin W L, Yu J, et al. Precambrian crustal evolution of the Yangtze Block tracked by detrital zircons from Neoproterozoic sedimentary rocks[J]. Precambrian Research, 2010, 177(1/2) : 131-144.
[31]	Yao J, Shu L, Santosh M. Detrital zircon U-Pb geochronology, Hf-isotopes and geochemistry—New clues for the Precambrian crustal evolution of Cathaysia Block, South China[J]. Gondwana Research, 2011, 20(2/3) : 553-567.
[32]	Xu Y, Du Y Cawood P A, et al. Detrital zircon provenance of Upper Ordovician and Silurian strata in the northeastern Yangtze Block: Response to orogenesis in South China[J]. Sedimentary Geology, 2012, 267/268: 63-72. doi: 10.1016/j.sedgeo.2012.05.009
[33]	舒良树. 华南构造演化的基本特征[J]. 地质通报, 2012, 31(7) : 1035-1053. doi: 10.3969/j.issn.1671-2552.2012.07.003 http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=20120703&flag=1
[34]	Li X, Li Z, Li W. Detrital zircon U-Pb age and Hf isotope constrains on the generation and reworking of Precambrian continental crust in the Cathaysia Block, South China: A synthesis[J]. Gondwana Research, 2014, 25(3) : 1202-1215. doi: 10.1016/j.gr.2014.01.003
[35]	Yang Z, Jiang S. Detrital zircons in metasedimentary rocks of Mayuan and Mamianshan Group from Cathaysia Block in northwestern Fujian Province, South China: New constraints on their formation ages and paleogeographic implication[J]. Precambrian Research, 2019, 320: 13-30. doi: 10.1016/j.precamres.2018.10.004
[36]	王鹏鸣, 于津海, 孙涛, 等. 湘东新元古代沉积岩的地球化学和碎屑锆石年代学特征及其构造意义[J]. 岩石学报, 2012, 28(12) : 3841-3857. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201212005.htm
[37]	王鹏鸣, 于津海, 孙涛, 等. 湘桂震旦—寒武纪沉积岩组成的变化——对华南构造演化的指示[J]. 中国科学: 地球科学, 2013.43(11) : 1893-1906, 1-7. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201311017.htm
[38]	张雄, 曾佐勋, 刘伟, 等. 湘南—桂东北地区寒武—奥陶纪沉积岩碎屑锆石U-Pb年代学特征及其地质意义[J]. 中国地质, 2016, 43(1) : 153-173. doi: 10.3969/j.issn.1000-3657.2016.01.012
[39]	Shu L, Faure M, Yu J, et al. Geochronological and geochemical features of the Cathaysia block (South China) : new evidence for the Neoproterozoic breakup of Rodinia[J]. Precambrian Research, 2011, 187: 263-276. doi: 10.1016/j.precamres.2011.03.003
[40]	向磊, 舒良树. 华南东段前泥盆纪构造演化: 来自碎屑锆石的证据[J]. 中国科学: 地球科学, 2010, 40(10) : 1377-1388. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201010008.htm
[41]	Zhang Y, Shu L, Chen X. Study of geochemistry, geochronology and petro-genesis of the Early Paleozoic granitic plutons in the central-southern Jiangxi Province[J]. Science in China (Earth Sciences), 2011, 54(10) : 1492-1510. doi: 10.1007/s11430-011-4249-3
[42]	缑雪清, 冯佐海, 肖宇, 等. 桂北龙胜花岗岩体LA-ICP-MS锆石U-Pb年代学研究[J]. 桂林理工大学学报, 2020, 40(3) : 470-479. doi: 10.3969/j.issn.1674-9057.2020.03.002
[43]	Green T H. Significance of Nb/Ta as an indicator of geochemical processes in the crust-mantle system[J]. Chemical Geology, 1995, 120: 347-359. doi: 10.1016/0009-2541(94)00145-X
[44]	Bau M. Controls on the fractionation of isovalent trace elements in magmatic and aqueous systems: Evidence from Y/Ho, Zr/Hf, and lanthanide tetrad effect[J]. Contributions to Mineralogy and Petrology, 1996, 123: 323-333. doi: 10.1007/s004100050159
[45]	郭春丽, 曾令森, 高利娥, 等. 福建河田高分异花岗岩的矿物和全岩地球化学找矿标志研究[J]. 地质学报, 2017, 91(8) : 1796-1817. doi: 10.3969/j.issn.0001-5717.2017.08.010
[46]	赵振华, 增田彰正, 夏巴尼M B. 稀有金属花岗岩的稀土元素四分组效应[J]. 地球化学, 1992, 12: 221-233. doi: 10.3321/j.issn:0379-1726.1992.03.003
[47]	Gelman S E, Deering C D, Bachmann O, et al. Identifying the crystal graveyards remaining after large silicic eruptions[J]. Earth and Planetary Science Letters, 2014, 403: 299-306. doi: 10.1016/j.epsl.2014.07.005
[48]	华仁民, 张文兰, 陈培荣, 等. 初论华南加里东花岗岩与大规模成矿作用的关系[J]. 高校地质学报, 2013, 19(1) : 1-11. doi: 10.3969/j.issn.1006-7493.2013.01.003
[49]	冯毅, 覃小锋, 王宗起, 等. 桂北一洞锡多金属矿床LA-MC-ICP-MS锡石U-Pb测年及其地质意义[J]. 矿产与地质, 2020, 34(3) : 477-485. https://www.cnki.com.cn/Article/CJFDTOTAL-KCYD202003011.htm

施引文献

资源附件(0)

访问统计

图(6)

表(4)

计量

文章访问数: 1805
PDF下载数: 79
施引文献: 0

湘南中生代钨锡大规模成矿控制因素：锆石年龄和微量元素的启示

1. 中国地质科学院矿产资源研究所自然资源部成矿作用与资源评价重点实验室，北京 100037 2. 中国地质大学(北京)地球科学与资源学院，北京 100083 3. 湖南省湘南地质勘察院，湖南 郴州 423000

作者简介: 沈宏飞(1984-)，男，在读博士生，矿床学专业。E-mail: 276850875@qq.com

通讯作者: 李立兴(1984-)，男，研究员，从事金属矿床成矿作用研究。E-mail：llixing@cags.ac.cn

Control of the large-sized Mesozoic W-Sn mineralization in southern Hunan: Insights from zircon geochronology and trace element geochemistry

Corresponding author: LI Lixing, llixing@cags.ac.cn

计量

出版历程

目录

1.
中国地质科学院矿产资源研究所自然资源部成矿作用与资源评价重点实验室，北京 100037

2.
中国地质大学(北京)地球科学与资源学院，北京 100083

3.
湖南省湘南地质勘察院，湖南郴州 423000
