摘要:

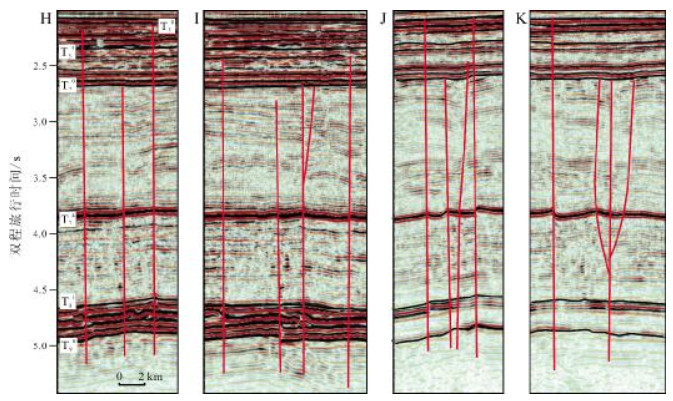

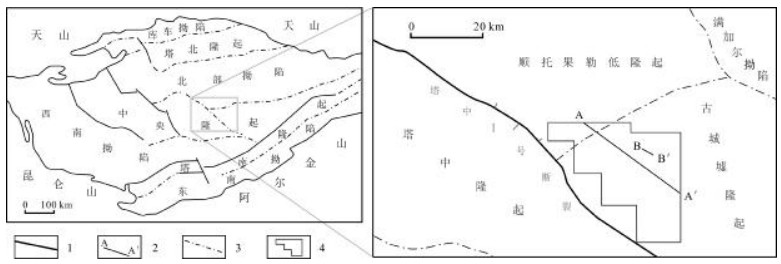

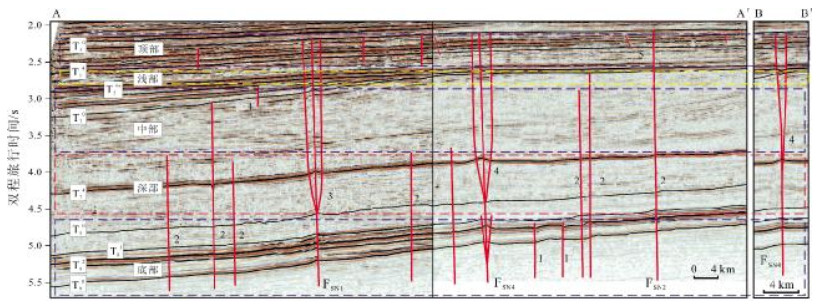

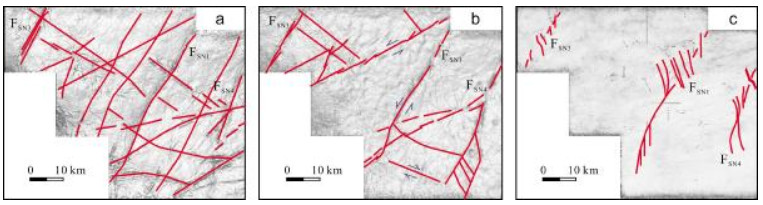

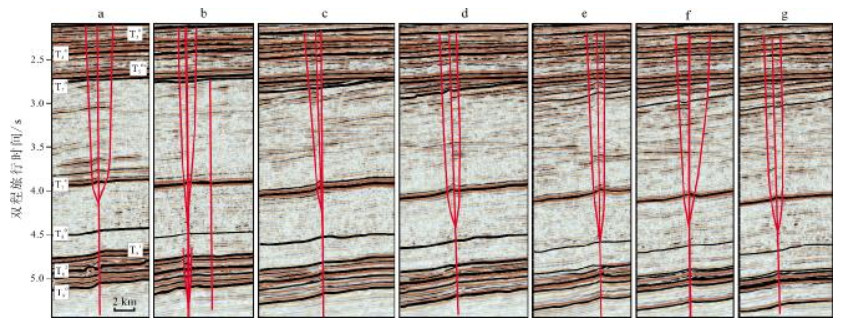

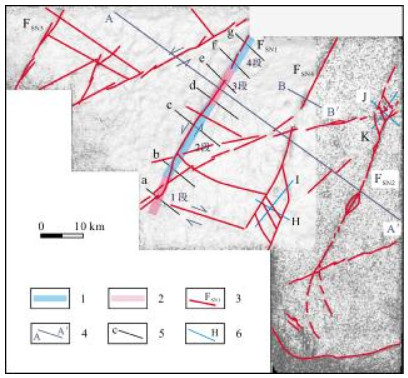

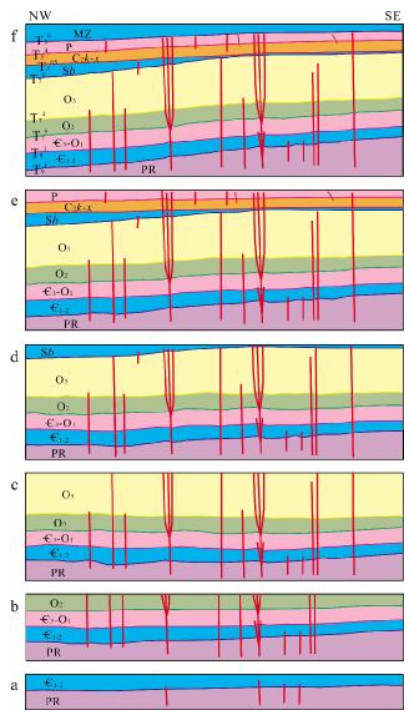

顺南地区位于塔里木盆地塔中隆起北部.受多期构造应力影响，该地区以走滑断裂大量发育为典型特征.对三维地震资料的精细解释和深入分析结果表明，研究区走滑断裂具有垂向分层、平面分段、多期次构造叠加的特征.顺南地区主要发育北东、北东东和北西向3组走滑断裂.北东向断裂活动性强，平面上发育雁列式断层及马尾状构造，剖面上主要发育对称花状、正花状与负花状上下分层叠置的复合花状构造.北东东和北西向断裂活动性较弱，剖面上以单条直立走滑断裂为主，平面上呈线性延伸或由多段同向走滑断层连接而成.根据断层构造样式和受力性质，将顺南1断裂沿走向划分为4段：2个复合花状-拉张段和2个简单花状-挤压段，拉张段和挤压段沿走向交替出现.顺南走滑断裂的形成主要经历了5期构造运动：加里东早期、加里东中期Ⅰ幕、加里东中期Ⅲ幕、加里东晚期-海西早期和海西晚期.其中，加里东中期Ⅰ幕和加里东中期Ⅲ幕为该区主要断层活动期.
Abstract:Shunnan area, located in the northern Tazhong uplift of Tarim Basin, is affected by multi-stage tectonic stress with a large number of developed strike-slip faults. Detailed interpretation and deep analysis of 3D seismic data show the faults are varied in vertical and plane views with multi-stage structural superposition. There are mainly 3 groups, i.e. NE, NEE, and NW, of strike-slip faults developed in the study area. The NE-trending faults are highly active, with en echelon and horsetail structures developed on the plane, and composite flower structures of symmetric flower, positive and negative flowers superimposed on the profile; while the NEE and NW faults are less active, with single vertical strike-slip fault dominated on the profile, and linear extension or multi-section synthetic strike-slip faults connected on the plane. According to the structural style and stress property, the FSN1 can be divided into 4 segments along the strike, including 2 composite flower-tensional segments and 2 simple flower-compressional segments, which occur alternately along the strike. The strike-slip faults mainly went through 5 stages of tectonic movements:the Early Caledonian, Episode I of Middle Caledonian, Episode Ⅲ of Middle Caledonian, Late Caledonian-Early Hercynian and Late Hercynian, among which, the second and third are the main stages for fault activity.
-
Key words:
- strike-slip fault /
- tectonic evolution /
- flower structure /
- 3D seismic interpretation /
- Tarim Basin
-
-
[1] 何治亮, 金晓辉, 沃玉进, 等.中国海相超深层碳酸盐岩油气成藏特点及勘探领域[J].中国石油勘探, 2016, 21(1):3-14. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgsykt201601003
[2] 顾忆, 万旸璐, 黄继文, 等. "大埋深、高压力"条件下塔里木盆地超深层油气勘探前景[J].石油实验地质, 2019, 41(2):157-164. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=sysydz201902002
[3] 朱光有, 曹颖辉, 闫磊, 等.塔里木盆地8000 m以深超深层海相油气勘探潜力与方向[J].天然气地球科学, 2018, 29(6):755-772. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqdqkx201806002
[4] 朱光有, 杨海军, 朱永峰, 等.塔里木盆地哈拉哈塘地区碳酸盐岩油气地质特征与富集成藏研究[J].岩石学报, 2011, 27(3):827-844. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201103020
[5] 焦方正.塔里木盆地顺托果勒地区北东向走滑断裂带的油气勘探意义[J].石油与天然气地质, 2017, 38(5):831-839. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz201705002
[6] Deng S, Li H L, Zhang Z P, et al. Structural characterization of intracratonic strike-slip faults in the central TarimBasin[J]. AAPG Bulletin, 2019, 103(1):109-137, doi:10.1306/06071817354.
[7] 邬光辉, 成丽芳, 刘玉魁, 等.塔里木盆地寒武-奥陶系走滑断裂系统特征及其控油作用[J].新疆石油地质, 2011, 32(3):239-243. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xjsydz201103007
[8] 马德波, 邬光辉, 朱永峰, 等.塔里木盆地深层走滑断层分段特征及对油气富集的控制:以塔北地区哈拉哈塘油田奥陶系走滑断层为例[J].地学前缘, 2019, 26(1):225-237. http://www.cnki.com.cn/Article/CJFDTotal-DXQY201901022.htm
[9] 邬光辉, 杨海军, 屈泰来, 等.塔里木盆地塔中隆起断裂系统特征及其对海相碳酸盐岩油气的控制作用[J].岩石学报, 2012, 28(3):793-805. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201203008
[10] Kim Y S, Peacock D C P, Sanderson D J. Fault damage zones[J]. Journal of Structural Geology, 2004, 26(3):503-517. doi: 10.1016/j.jsg.2003.08.002
[11] 李明刚, 吴克强, 康洪全, 等.走滑构造变形特征及其形成圈闭分布[J].特种油气藏, 2015, 22(2):44-47. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=tzyqc201502010
[12] Dooley T P, Schreurs G. Analogue modelling of intraplate strike-slip tectonics:a review and new experimental results[J]. Tectonophysics, 2012, 574-575:1-71. doi: 10.1016/j.tecto.2012.05.030
[13] Xiao Y, Wu G H, Lei Y L, et al. Analogue modeling of through-going process and development pattern of strike-slip fault zone[J]. Petroleum Exploration and Development, 2017, 44(3):368-376. doi: 10.1016/S1876-3804(17)30043-5
[14] 赵亚男, 吴孔友, 郝良柱, 等.油气盆地内小断层识别及发育机理研究——以惠民凹陷江家店地区为例[J].地质与资源, 2019, 28(2):184-192. http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract8395.shtml
[15] 肖凡, 苏朝光, 吴孔友, 等.惠民凹陷临北地区小断层识别及形成机理物理模拟[J].地质与资源, 2019, 28(6):570-575. http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract9533.shtml
[16] 刘军, 任丽丹, 李宗杰, 等.塔里木盆地顺南地区深层碳酸盐岩断裂和裂缝地震识别与评价[J].石油与天然气地质, 2017, 38(4):703-710. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz201704007
[17] 张继标, 张仲培, 汪必峰, 等.塔里木盆地顺南地区走滑断裂派生裂缝发育规律及预测[J].石油与天然气地质, 2018, 39(5):955-963, 1055. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz201805010
[18] 甄素静.塔里木盆地塔中北坡走滑断裂样式特征及其形成机理[D].北京: 中国石油大学(北京), 2016.
[19] 甄素静, 汤良杰, 李宗杰, 等.塔中北坡顺南地区走滑断裂样式、变形机理及石油地质意义[J].天然气地球科学, 2015, 26(12):2315-2324. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqdqkx201512011
[20] 李培军, 陈红汉, 唐大卿, 等.塔里木盆地顺南地区中-下奥陶统NE向走滑断裂及其与深成岩溶作用的耦合关系[J].地球科学, 2017, 42(1):93-104. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx201701007
[21] 付晨阳, 汤良杰, 曹自成, 等.塔中北坡走滑断裂横向变形差异及其油气地质意义[J].石油实验地质, 2017, 39(6):783-789. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=sysydz201706008
[22] 黄太柱.塔里木盆地塔中北坡构造解析与油气勘探方向[J].石油实验地质, 2014, 36(3):257-267. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=sysydz201403002
[23] 云露, 曹自成.塔里木盆地顺南地区奥陶系油气富集与勘探潜力[J].石油与天然气地质, 2014, 35(6):788-797. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz201406006
[24] 陈汉林, 杨树锋, 厉子龙, 等.塔里木盆地二叠纪大火成岩省发育的时空特点[J].新疆石油地质, 2009, 30(2):179-182. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xjsydz200902008
[25] 汤良杰, 漆立新, 邱海峻, 等.塔里木盆地断裂构造分期差异活动及其变形机理[J].岩石学报, 2012, 28(8):2569-2583. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201208022
[26] 何登发, 贾承造, 德生, 等.塔里木多旋回叠合盆地的形成与演化[J].石油与天然气地质, 2005, 26(1):64-77. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz200501010
[27] 汤良杰.塔里木盆地构造演化与构造样式[J].地球科学-中国地质大学学报, 1994, 19(6):742-754. http://www.cnki.com.cn/Article/CJFDTotal-DQKX199406005.htm
[28] 李本亮, 管树巍, 李传新, 等.塔里木盆地塔中低凸起古构造演化与变形特征[J].地质论评, 2009, 55(4):521-530. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzlp200904007
[29] 任建业, 张俊霞, 阳怀忠, 等.塔里木盆地中央隆起带断裂系统分析[J].岩石学报, 2011, 27(1):219-230. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201101014
[30] 张仲培, 王毅, 云金表, 等.塔中地区断裂不同演化阶段对油气聚集的控制[J].石油与天然气地质, 2009, 30(3):316-323, 315. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syytrqdz200903010
-
