HYDROCARBON GENERATION POTENTIAL OF BEIPIAO FORMATION FROM LLD1 WELL IN NIUYINGZI BASIN, WESTERN LIAONING
-
摘要:

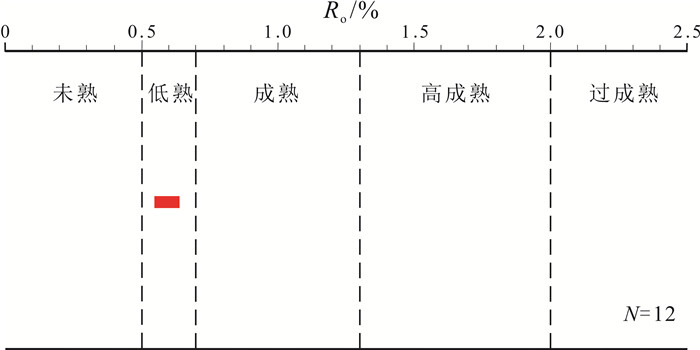

通过岩石热解、饱和烃色谱-质谱、镜质体反射率等分析测试，对辽西牛营子盆地辽凌地1井侏罗系北票组烃源岩的有机质丰度、类型及成熟度进行了详细分析，综合评价了其生烃潜力.研究结果表明，侏罗系北票组有机碳含量分布在0.75%~37.9%，平均值为11.68%，有机质类型为Ⅲ型和Ⅱ2型，镜质体反射率Ro主要分布于0.57%~0.62%之间，平均为0.60%，属于低成熟演化阶段.综合评价认为，牛营子盆地侏罗系北票组具有一定的生烃潜力.
Abstract:Through analysis of rock pyrolysis, saturated hydrocarbon gas chromatography-mass spectrometry and vitrinite reflectance (Ro), the paper studies the abundance, types and maturity of organic matters in the source rocks of Jurassic Beipiao Formation from LLD1 well of Niuyingzi Basin in western Liaoning, and comprehensively evaluates the hydrocarbon generation potential. The results show the TOC is 0.75%-37.9%, averagely 11.68%, with the Ⅲ- and Ⅱ2-type of organic matters. The Ro values mainly range from 0.57% to 0.62%, averagely 0.60%, belonging to the low maturity stage. From the above, it is concluded that the Jurassic Beipiao Formation in Niuyingzi Basin has certain hydrocarbon generation potential.
-
Key words:
- hydrocarbon generation potential /
- source rock /
- LLD1 well /
- Beipiao Formation /
- Niuyingzi Basin
-
-
表 1 北票组烃源岩地球化学分析数据表
Table 1. Geochemical analysis data of Beipiao Formation source rocks
样品编号 TOC/% (S1+S2)/10-3 氯仿沥青"A"/% TI Tmax /℃ Ro /% LLD1-1534.2 5.25 17.79 0.047 25.3 437 0.62 LLD1-1538.5 3.68 14.31 0.528 12 432 0.62 LLD1-1545 1 4.35 0.034 -35.25 436 0.57 LLD1-1560 4.45 4.4 0.061 -14 432 0.57 LLD1-1570 2.9 0.96 0.019 -8.75 428 0.59 LLD1-1584 1.84 9.71 0.078 -4.5 430 0.59 LLD1-1598 5.52 1.57 0.053 8.75 429 0.61 LLD1-1620 6.09 52.86 0.088 -15.75 418 0.59 LLD1-1644 18.47 128.25 0.115 -25.75 419 0.59 LLD1-1669 11.93 45.43 0.158 -29.5 446 0.6 LLD1-1679 11.2 46.91 0.169 -27.75 424 0.62 LLD1-1688 25.58 177.61 0.214 -39.75 419 0.62 测试单位:长江大学油气资源与勘探技术教育部重点实验室.
下载: 导出CSV
表 2 有机质丰度评价标准
Table 2. Evaluation criteria for organic matter abundance of source rocks
指标 湖盆水体类型 非生油岩 生油岩类型 差 中等 好 最好 TOC/% 淡水-半咸水 < 0.4 0.4~0.6 > 0.6~1.0 > 1.0~2.0 > 2.0 咸水-超咸水 < 0.2 0.2~0.4 > 0.4~0.6 > 0.6~0.8 > 0.8 氯仿沥青“A”/% < 0.015 0.015~0.050 > 0.050~0.100 > 0.100~0.200 > 0.200 HC/10-6 < 100 100~200 > 200~500 > 500~1000 > 1000 (S1+S2)/10-3 < 2 2-6 > 6-20 > 20
下载: 导出CSV
表 3 干酪根类型指数分类表
Table 3. Classification of kerogen types
干酪根类型 Ⅰ Ⅱ1 Ⅱ2 Ⅲ TI TI≥80 40≤TI＜80 0≤TI＜40 TI＜0
下载: 导出CSV
-
[1] Davis G A, 郑亚东, 王琮, 等.中生代燕山褶皱冲断带的构造演化——以河北省和辽宁省为重点的研究[J].北京地质, 2002, 14(4):1-40. https://www.cnki.com.cn/Article/CJFDTOTAL-JBDZ200204000.htm
Davis G A, Zheng Y D, Wang C, et al. Mesozoic tectonic evolution of the Yanshan fold and thrust belt with emphasis on Hebei and Liaoning Provinces, northern China[J]. Beijing Geology, 2002, 14(4):1-40. https://www.cnki.com.cn/Article/CJFDTOTAL-JBDZ200204000.htm
[2] 马寅生, 崔盛芹, 曾庆利, 等.燕山地区燕山期的挤压与伸展作用[J].地质通报, 2002, 21(4/5):218-223. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2002Z1006.htm
Ma Y S, Cui S Q, Zeng Q L, et al. Yanshanian compression and extension in the Yanshan area[J]. Geological Bulletin of China, 2002, 21(4/5):218-223. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2002Z1006.htm
[3] Meng Q R, Hu J M, Jin J Q, et al. Tectonics of the late Mesozoic wide extensional basin system in the China-Mongolia border region[J]. Basin Research, 2003, 15(3):397-415. doi: 10.1046/j.1365-2117.2003.00209.x
[4] 宗文明, 郜晓勇, 孙求实, 等.华北北部凌源-宁城盆地蓟县系洪水庄组生烃潜力分析——以小庄户剖面为例[J].地质与资源, 2017, 26(4):370-376. doi: 10.3969/j.issn.1671-1947.2017.04.007 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract8555.shtml
Zong W M, Gao X Y, Sun Q S, et al. Evaluation of the hydrocarbon generating potential of the Jixianan Hongshuizhuang Formation in Lingyuan-Ningcheng Basin, Northern China:A case study of Xiaozhuanghu geological profile[J]. Geology and Resources, 2017, 26(4):370-376. doi: 10.3969/j.issn.1671-1947.2017.04.007 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract8555.shtml
[5] 宗文明, 郜晓勇, 孙求实, 等.华北北部凌源-宁城盆地中元古界下马岭组生烃潜力分析:以小庄户剖面为例[J].世界地质, 2017, 36(4):1161-1169. doi: 10.3969/j.issn.1004-5589.2017.04.014
Zong W M, Gao X Y, Sun Q S, et al. Evaluation of hydrocarbon generation potential in Middle Proterozoic Xiamaling Formation of Lingyuan-Ningcheng Basin in Northern China:A case study of Xiaozhuanghu geological section[J]. Global Geology, 2017, 36(4):1161-1169. doi: 10.3969/j.issn.1004-5589.2017.04.014
[6] 张亚明, 陈振东, 周秀艳.辽西地区中上元古界生烃量评价[J].辽宁工程技术大学学报(自然科学版), 2002, 21(1):22-24. doi: 10.3969/j.issn.1008-0562.2002.01.007
Zhang Y M, Chen Z D, Zhou X Y. The evaluation of producing hydrocarbon of medium-up Proterozoic earthen the west of Liaoning[J]. Journal of Liaoning Technical University (Natural Science), 2002, 21(1):22-24. doi: 10.3969/j.issn.1008-0562.2002.01.007
[7] 秦婧, 钟宁宁, 齐雯, 等.华北北部洪水庄组有机岩石学[J].石油与天然气地质, 2010, 31(3):367-374. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201003019.htm
Qin J, Zhong N N, Qi W, et al. Organic petrology of the Hongshuizhuang Formation in northern North China[J]. Oil & Gas Geology, 2010, 31(3):367-374. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201003019.htm
[8] 杨时杰.辽西建昌地区中-新元古界原生油气藏成藏条件分析[J].海相油气地质, 2013, 18(3):12-18. doi: 10.3969/j.issn.1672-9854.2013.03.002
Yang S J. Conditions of hydrocarbon accumulation in Meso-Neoproterozoic primary oil reservoirs in Jianchang area, Western Liaoning[J]. Marine Origin Petroleum Geology, 2013, 18(3):12-18. doi: 10.3969/j.issn.1672-9854.2013.03.002
[9] 马满兴, 幕德梁, 李正达.建昌盆地中新元古界石油地质条件研究[J].特种油气藏, 2013, 20(2):60-64. doi: 10.3969/j.issn.1006-6535.2013.02.014
Ma M X, Mu D L, Li Z D. Study on petroleum geology conditions of Middle-Upper Proterozoic Eratherm in Jianchang Basin[J]. Special Oil and Gas Reservoirs, 2013, 20(2):60-64. doi: 10.3969/j.issn.1006-6535.2013.02.014
[10] 陈树旺, 公繁浩, 杨建国, 等.松辽盆地外围油气基础地质调查工程进展与未来工作方向[J].中国地质调查, 2016, 3(6):1-9. https://www.cnki.com.cn/Article/CJFDTOTAL-DZDC201606001.htm
Chen S W, Gong F H, Yang J G, et al. Progress and orientation of the project about fundamental geological survey on oil and gas resources in the periphery area of Songliao Basin[J]. Geological Survey of China, 2016, 3(6):1-9. https://www.cnki.com.cn/Article/CJFDTOTAL-DZDC201606001.htm
[11] 李永飞, 陈树旺.辽西地区金岭寺-羊山盆地油气资源调查新发现[J].地质通报, 2014, 33(9):1463-1464. doi: 10.3969/j.issn.1671-2552.2014.09.023
Li Y F, Chen S W. The new discovery of oil and gas resources survey in Jinlingsi-Yangshan basin[J]. Geological Bulletin of China, 2014, 33(9):1463-1464. (in Chinese) doi: 10.3969/j.issn.1671-2552.2014.09.023
[12] 张坤, 李永飞, 唐友军, 等.辽西金羊盆地北票组油砂饱和烃地球化学特征——以SZK02井为例[J].地质通报, 2015, 34(10):1929-1937. doi: 10.3969/j.issn.1671-2552.2015.10.017
Zhang K, Li Y F, Tang Y J, et al. Saturated hydrocarbon geochemical characteristics of the oil sand from Beipiao formation in Jinyang Basin, western Liaoning Province:a case study of SZK02 Well[J]. Geological Bulletin of China, 2015, 34(10):1929-1937. doi: 10.3969/j.issn.1671-2552.2015.10.017
[13] 甄甄, 李永飞, 郜晓勇, 等.金羊盆地SZK01井下侏罗统北票组沉积相及其有机质特征[J].世界地质, 2016, 35(1):207-215. doi: 10.3969/j.issn.1004-5589.2016.01.021
Zhen Z, Li Y F, Gao X Y, et al. Characteristics of sedimentary facies and organic matter of Lower Jurassic Beipiao Formation of Well SZK01 in Jinyang Basin[J]. Global Geology, 2016, 35(1):207-215. doi: 10.3969/j.issn.1004-5589.2016.01.021
[14] 孙守亮, 李永飞, 郜晓勇, 等.辽西金羊盆地下侏罗统北票组页岩气地球化学特征及其成因[J].地质通报, 2017, 36(4):575-581. doi: 10.3969/j.issn.1671-2552.2017.04.011
Sun S L, Li Y F, Gao X Y, et al. An analysis of the genesis and geochemical characteristics of shale gas in Lower Jurassic Beipiao formation in Jinyang Basin[J]. Geological Bulletin of China, 2017, 36(4):575-581. doi: 10.3969/j.issn.1671-2552.2017.04.011
[15] 张涛, 李永飞, 孙守亮, 等.辽宁金羊盆地羊D1井油砂地球化学特征及意义[J].地质通报, 2017, 36(4):582-590. doi: 10.3969/j.issn.1671-2552.2017.04.012
Zhang T, Li Y F, Sun S L, et al. Saturated hydrocarbon geochemical characteristics of the oil sand from YD1 well in Jinyang Basin and its significance for oil and gas exploration[J]. Geological Bulletin of China, 2017, 36(4):582-590. doi: 10.3969/j.issn.1671-2552.2017.04.012
[16] 孙求实, 宗文明, 王斯佳, 等.辽西牛营子盆地中元古界推覆体下发现早中侏罗世新地层[J/OL]. https://kns.cnki.net/kcms/detail/detail.aspx?dbcode=CAPJdbname=CAPJLASTfilename=DIZI20210108001v=x2y3ikbbaik9ZlG6dXXFse6qgd5Ncptcjie6fuv9XJTKhPeU3esQfCuNfU%25mmd2FoBMVb, 2021-01-11.
Sun Q S, Zong W M, Wang S J, et al. The new discovery of the Jurassic strata under the middle Proterozoic thrust-nappe in Niuyingzi depression, westhern Liaoning Province[J/OL]. https://kns.cnki.net/kcms/detail/detail.aspx?dbcode=CAPJ&dbname=CAPJLASTfilename=DIZI20210108001v=x2y3ikbbaik9ZlG6dXXFse6qgd5Ncptcjie6fuv9XJTKhPeU3esQfCuNfU%25mmd2FoBMVb, 2021-01-11.
[17] 张长厚, 王根厚, 王果胜, 等.辽西地区燕山板内造山带东段中生代逆冲推覆构造[J].地质学报, 2002, 76(1):64-76. doi: 10.3321/j.issn:0001-5717.2002.01.009
Zhang C H, Wang G H, Wang G S, et al. Thrust tectonics in the eastern segment of the intraplate Yanshan Orogenic Belt, Western Liaoning Province, North China[J]. Acta Geologica Sinica, 2002, 76(1):64-76. doi: 10.3321/j.issn:0001-5717.2002.01.009
[18] 李志明, 徐二社, 秦建中, 等.烃源岩评价中的若干问题[J].西安石油大学学报(自然科学版), 2010, 25(6):8-12, 27. doi: 10.3969/j.issn.1673-064X.2010.06.002
Li Z M, Xu E S, Qin J Z, et al. Some problems on the evaluation of source rock[J]. Journal of Xi'an Shiyou University (Nature Science Edition), 2010, 25(6):8-12, 27. doi: 10.3969/j.issn.1673-064X.2010.06.002
[19] 中国石油天然气总公司. SY/T 5735-1995陆相烃源岩地球化学评价方法[S].北京: 石油工业出版社, 1996.
China National Petroleum Corporation. SY/T 5735-1995 Continental source rock geochemistry evaluation method[S]. Beijing: Petroleum Industry Press, 1996. (in Chinese)
[20] 金强, 查明, 赵磊.柴达木盆地西部第三系盐湖相有效生油岩的识别[J].沉积学报, 2001, 19(1):125-129, 135. doi: 10.3969/j.issn.1000-0550.2001.01.021
Jin Q, Zha M, Zhao L. Identification of effective source rocks in the Tertiary Evaporate Facies in the Western Oaidam Basin[J]. Acta Sedimentologica Sinica, 2001, 19(1):125-129, 135. doi: 10.3969/j.issn.1000-0550.2001.01.021
[21] 刘光祥.中上扬子北缘中古生界海相烃源岩特征[J].石油实验地质, 2005, 27(5):490-495. doi: 10.3969/j.issn.1001-6112.2005.05.011
Lu G X. Characteristics of Middle Palaeozoic marine source rock in the north margin of middle and upper Yangtze region[J]. Petroleum Geology & Experiment, 2005, 27(5):490-495. doi: 10.3969/j.issn.1001-6112.2005.05.011
[22] 卢双舫, 张敏.油气地球化学[M].北京:石油工业出版社, 2008:206-213.
Lu S F, Zhang M. Oil and gas geochemistry[M]. Beijing:Petroleum Industry Press, 2008:206-213. (in Chinese)
[23] Shanmugam G. Significance of coniferous rain forests and related organic matter in generating commercial quantities of oil, Gippsland Basin, Australia[J]. AAPG Bulletin, 1985, 69(8):1241-1254.
[24] 陈义才, 李坤, 刘四兵, 等.石油与天然气有机地球化学[M]. 2版.北京:地质出版社, 2015:40-42.
Chen Y C, Li K, Liu S B, et al. Organic geochemistry of oil and gas[M]. 2nd ed. Beijing:Geological Publishing House, 2015:40-42.
[25] 曹庆英.透射光下干酪根显微组分鉴定及类型划分[J].石油勘探与开发, 1985, 12(5):14-23. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK198505002.htm
Cao Q Y. Identification of microcomponents and types of kerogen under transmitted light[J]. Petroleum Exploration and Development, 1985, 12(5):14-23. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK198505002.htm
[26] 卢进才, 魏仙样, 魏建设, 等.内蒙古西部额济纳旗及邻区石炭系-二叠系烃源岩干酪根C同位素的特征和影响因素[J].地质通报, 2010, 29(2/3):384-391. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2010Z1026.htm
Lu J C, Wei X Y, Wei J S, et al. Kerogen carbon isotopic features and influencing factors of Carboniferous-Permian hydrocarbon source rocks in Ejina Banner and its vicinities, western Inner Mongolia, China[J]. Geological Bulletin of China, 2010, 29(2/3):384-391 https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2010Z1026.htm
[27] 秦建中.中国烃源岩[M].北京:科学出版社, 2005:8-78.
Qin J Z. China source rock[M]. Beijing:Science Press, 2005:8-78. (in Chinese)
-
