Effect of Citric Acid on Phosphate Tailings Cementation Filling Bleeding and the Drag Reduction Performance
-
摘要:

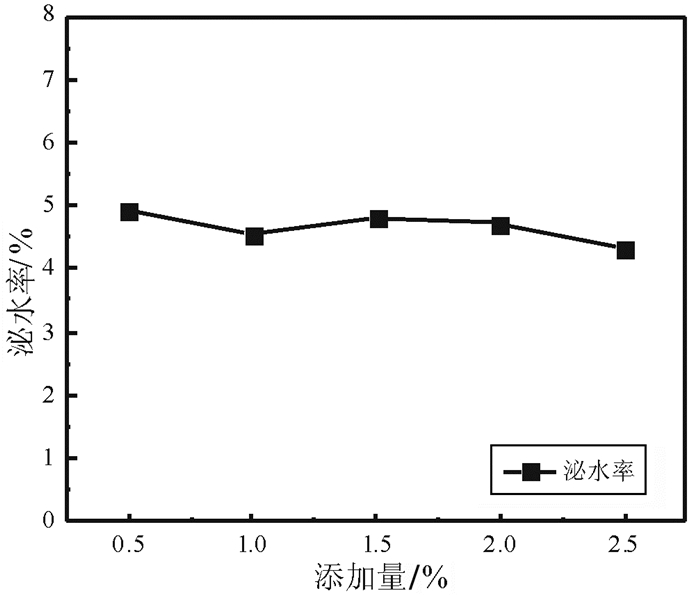

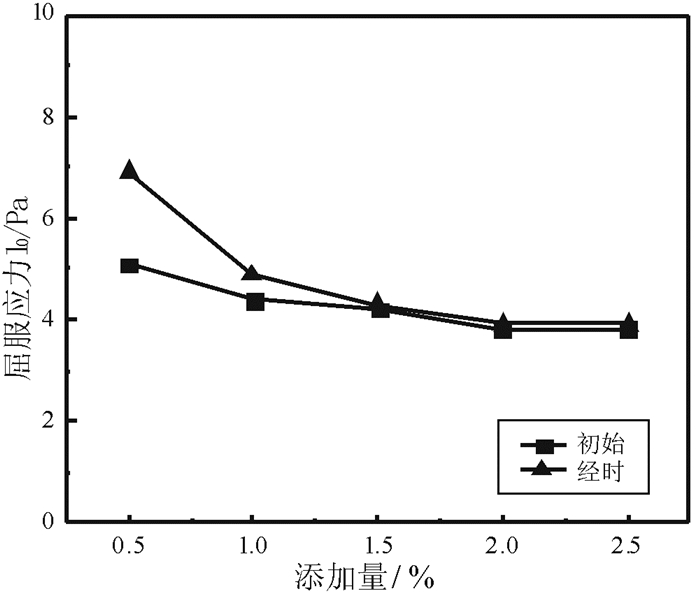

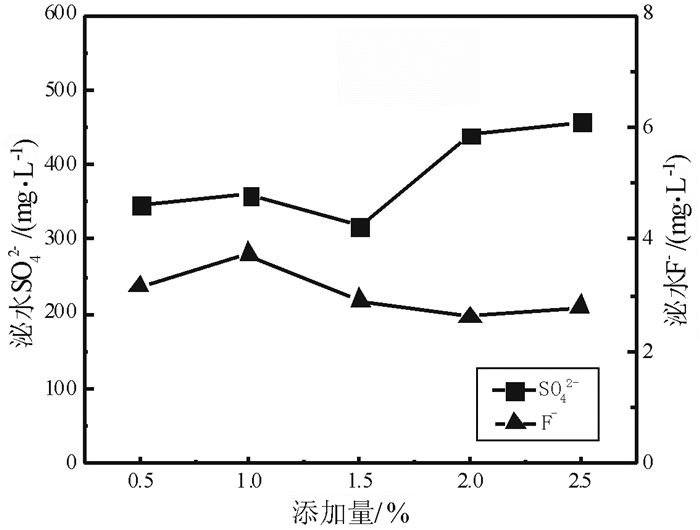

以贵州某磷尾矿为骨料，粉煤灰和水泥为胶凝材料制备胶结充填料浆，研究柠檬酸添加量对充填料浆泌水中SO42-、F-以及泌水率的影响。采用扩展度法、流动度法及L型管法来研究柠檬酸对磷尾矿充填料浆流动性能的影响。结果表明：柠檬酸的加入导致料浆泌水中SO42-含量升高、F-含量降低，但对泌水率的影响较小。柠檬酸对充填料浆具有缓凝效果，能改善料浆流动性能。
Abstract:Taking phosphate tailings in Guizhou as the aggregate, fly ash and cement were used as cementitious material to prepare cemented filling slurry. The effect of different amounts of citric acid on SO42-, F- in filling slurry bleeding and the bleeding rate was studied. The extended degree method, the fluidity method and the L tube method were employed to study the effect of different amount of citric acid on the flow performance of phosphate tailings slurry. The results showed that adding citric acid resulted in the increase of SO42- and decrease of F- in slurry bleeding, but had little effect on the bleeding rate. In addition, citric acid exhibited a retarding effect on the filling slurry, which could improve the fluidity of the slurry.
-
Key words:
- citric acid /
- phosphate tailings /
- cemented filling /
- bleeding /
- drag reduction performance
-
-
表 1 试样的矿物组成
Table 1. Mineral compositions of the sample
磷尾矿 含量/% 粉煤灰 含量/% 水泥 含量/% 白云石 87.85 石英 65.56 硅酸三钙 54.15 氟磷灰石 6.13 石膏 15.23 硅酸二钙铝酸三钙 22.08 10.83 方解石 3.17 赤铁矿 10.29 铁铝酸四钙 6.33 石英其它 2.850 方解石其它 7.111.81 石膏其它 5.011.60
下载: 导出CSV
表 2 柠檬酸对充填料浆流动度、扩展度经时损失率的影响
Table 2. Effect of citric acid dosage on the loss rates of flowability and expandability
添加量/% 0.5 1.0 1.5 2.0 2.5 流动度经时损失率/% 27.56 8.29 8.84 4.37 2.91 扩展度经时损失率/% 3.04 1.13 4.01 2.46 1.37
下载: 导出CSV
-
[1] 陈兴.论充填采矿法与环保的关系[J].金属矿山, 2015(S1):84-89. http://www.cnki.net/kcms/doi/10.13265/j.cnki.jxlgdxxb.2016.02.023.html
[2] 田均兵. 矿渣基固化剂的应用研究[D]. 贵阳: 贵州大学, 2016.
http://cdmd.cnki.com.cn/Article/CDMD-10657-1016777770.htm [3] 严捍东, 钟国才.聚羧酸类减水剂的研究现状和发展方向[J].贵州大学学报(自然科学版), 2017, 34(1):23-28. http://www.cqvip.com/QK/97069A/2004004/11442167.html
[4] 刘中和, 陈洪芬.柠檬酸渣作缓凝剂替代二水石膏生产通用硅酸盐水泥的作用机理[J].河南建材, 2011(2):52-54. https://www.wenkuxiazai.com/doc/53fb61070740be1e650e9afa.html
[5] 黄远来, 邱跃琴, 高贺然.磷尾矿充填料浆有害离子固化试验研究[J].矿业研究与开发, 2016, 36(12):93-96. http://www.cnki.com.cn/Article/CJFDTotal-KYKB201604081.htm
[6] 金恒, 邱跃琴, 张覃, 等.磷尾矿制备胶结充填材料试验研究[J].化工矿物与加工, 2013(12):21-24. http://doi.wanfangdata.com.cn/10.3969/j.issn.1674-6082.2014.12.017
[7] 杨丽. 磷尾矿充填体中有害元素的溶出行为研究[D]. 贵阳: 贵州大学, 2015.
http://d.g.wanfangdata.com.cn/Thesis_D786701.aspx [8] 刑晓飞. L型管中砂浆流变参数的研究[D]. 开封: 河南大学, 2013.
http://cdmd.cnki.com.cn/Article/CDMD-10475-1013350487.htm [9] 杨超. 金属矿山尾矿高浓度管道输送技术研究[D]. 淄博: 山东理工大学, 2011.
http://cdmd.cnki.com.cn/Article/CDMD-10433-1011174684.htm -
图(6)
表(2)
计量
- 文章访问数: 480
- PDF下载数: 43
- 施引文献: 0
