The Experimental Research and Industrial Practice on Improving Quality and Reducing Impurities by Flotation from a Low Grade Magnesite Ore in Liaoning
-
摘要:
辽宁某菱镁矿选厂所处理矿石属高硅高钙型低品位菱镁矿矿石，生产现场采用反-正浮选工艺流程，存在反浮选捕收剂泡沫流动性差和选择性差，对有用矿物的夹带严重，流程运行不稳定且难以实现闭路循环，正浮选脱钙效果差，菱镁矿损失大、回收率低（MgO回收率仅35%）等问题。由于技术经济指标欠佳而处于停产状态。针对原流程存在的问题，提出采用等可浮反浮选-正浮选强化脱杂新工艺，其中，等可浮反浮选作业在弱酸性矿浆pH（6.0左右）环境中，以水玻璃为调整剂，BK-428（阳离子型捕收剂）为捕收剂，脱除含硅钙脉石；正浮选作业在弱碱性矿浆pH（9.0左右）环境中，以六偏磷酸钠为抑制剂，BK410B（阴离子型捕收剂）为捕收剂，强化脱除含钙硅脉石，从而实现低品位菱镁矿的提质降杂。在系统的实验室试验和选矿扩大连选试验研究的基础上，进行了新工艺的工业试验研究。工业试验最终从MgO品位为42.94%、SiO2含量4.14%和CaO含量2.91%的低品位菱镁矿矿石中获得了MgO品位为47.14%、回收率为76.02%的菱镁矿精矿，精矿中SiO2和CaO含量分别降至0.28%和0.53%。
Abstract:A magnesite ore treated in a mineral processing plant in Liaoning province belongs to low-grade ore bearing high silicon and calcium, and the reverse-direct flotation flowsheet was adopted, but there was in a state of shutdown due to the poor technical and economic indexes caused by the problems existing in the original flowsheet such as poor liquidity and selectivity of collector froth, severe entrainment of useful mineral, unstable flowsheet operation and the difficulty in implementation of closed-circuit production in the reverse flotation stage, poor effect of calcium removal in the direct flotation stage, big loss and low recovery of magnesite (only 35% of MgO recovery), etc. Based on the problems existing in the original flowsheet, it was proposed in this paper to treat the ore by the process of iso-flotability reverse-direct flotation, namely, iso-flotability reverse flotation with water glass as regulator and novel anionic collector BK-428 under condition of weak acidic pulp (pH 6.0) was adopted to remove silicate and dolomite, and direct flotation by sodium hexametaphosphate as regulator and cationic collector BK410B under condition of weak alkali pulp (pH 9.0) was used to further remove dolomite and silicate, and it could realize the quality improvement and impurities reduction of low-grade magnesite ore. By this new process, based on the systematic laboratory tests and continuous pilot tests, the industrial tests were carried out and the magnesite concentrate with a MgO grade of 47.14% and a recovery rate of 76.02% was obtained from the low grade magnesite ore with MgO 42.94%, while SiO2 and CaO content in concentrate decreased from 4.14% and 2.91% to 0.28% and 0.53% respectively.
-
Key words:
- low-grade magnesite ore /
- silicate minerals /
- dolomite /
- iso-flotability /
- reverse flotation /
- direct flotation
-
-
表 1 原矿多元素化学分析结果 /%
Table 1. Multi-element analysis results of run-of-mine ore
成分 MgO SiO2 CaO Fe2O3 Al2O3 P S K2O Na2O 烧失 含量 42.90 4.15 2.93 0.43 0.42 0.041 < 0.005 0.088 0.12 48.41
下载: 导出CSV
表 2 MgO、SiO2物相分析结果 /%
Table 2. Analysis results of MgO, SiO2 phase
相别 菱镁矿 硅酸盐 其他 白云石 合计 相别 石英 其他硅酸盐 合计 含量 40.04 0.64 0.21 1.98 42.87 含量 2.96 1.21 4.17 MgO分布率 93.40 1.50 0.48 4.62 100.00 SiO2分布率 70.97 20.03 100.00
下载: 导出CSV

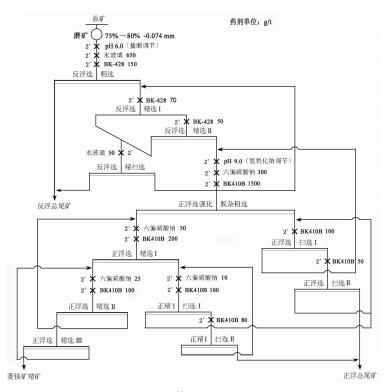

表 3 等可浮反浮选—正浮选强化脱杂工艺闭路试验结果
Table 3. The closed-circuit results of iso-flotability reverse—direct flotation
产品名称 产率
/%品位/% 回收率/% MgO SiO2 CaO MgO SiO2 CaO 菱镁矿精矿 71.63 46.60 0.24 0.57 77.78 4.17 14.30 反浮总尾矿 14.67 33.03 23.51 3.67 11.29 82.79 18.95 正浮总尾矿 13.70 34.24 3.96 13.83 10.93 13.04 66.75 原矿 100.00 42.92 4.17 2.84 100.00 100.00 100.00
下载: 导出CSV
表 4 选矿扩大连续试验指标 /%
Table 4. The results of continuous pilot flotation test
产品名称 产率 品位 回收率 MgO SiO2 CaO MgO SiO2 CaO 菱镁矿精矿 69.06 46.58 0.22 0.51 75.03 3.67 12.03 反浮总尾矿 16.30 34.03 19.58 3.88 12.94 77.19 21.50 正浮总尾矿 14.64 35.25 5.60 13.65 12.04 19.14 66.48 原矿 100.00 42.87 4.13 2.94 100.00 100.00 100.00
下载: 导出CSV

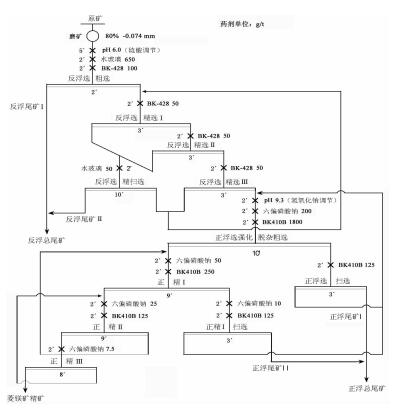

表 5 低品位菱镁矿工业试验指标 /%
Table 5. The industrial test results of low-grade magnesite ore
产品名称 产率 品位 回收率 MgO SiO2 CaO MgO SiO2 CaO 菱镁矿精矿 69.25 47.14 0.28 0.53 76.02 4.63 12.63 反浮总尾矿 18.98 38.28 17.84 3.79 16.93 81.78 24.75 正浮总尾矿 11.77 25.73 4.78 15.48 7.05 13.59 62.63 原矿 100.00 42.94 4.14 2.91 100.00 100.00 100.00
下载: 导出CSV
表 6 选矿主要药剂成本估算
Table 6. The estimate reagent cost of mineral processing
药剂名称 用量/(g·t-1) 单价/(元·t-1) 金额/元 BK-428 320 23 000 7.36 BK410B 2 130 10 000 21.30 NaOH 180 3 000 0.54 水玻璃 700 1 000 0.70 六偏磷酸钠 385 7 500 2.89 盐酸 1 800 500 0.90 合计 33.69
下载: 导出CSV
-
[1] Sally Jewell, Suzette M. Kimball. Mineral commodity summaries 2017[M]. Virginia:USGS, 2017:102-103.
[2] 石建军, 李银文, 王鹏, 等.中国菱镁矿选矿现状分析[J].轻金属, 2011(s1):51-53. http://www.cqvip.com/QK/91164X/2011S1/1003575741.html
[3] 王星亮. 低品位菱镁矿浮选提纯研究[D]. 沈阳: 东北大学, 2008.
[4] 王倩倩. 菱镁矿矿石精细提纯研究[D]. 沈阳: 东北大学, 2013.
[5] 李晓安, 代淑娟, 周凌嘉, 等.辽宁某菱镁矿三级风化粉矿除硅提镁试验研究[J].非金属矿, 2012, 35(1):18-20. http://www.cqvip.com/QK/95615X/201201/40529293.html
[6] 王金良, 杨秀花.菱镁矿除钙可选性研究[J].中国非金属矿工业导刊, 2010(4):26-29. http://industry.wanfangdata.com.cn/yj/Detail/Periodical?id=Periodical_ysjs-xk201502012
[7] 程龙, 魏明安.油酸钠浮选体系中菱镁矿有效抑制剂的研究[J].有色金属(选矿部分), 2012(6):75-78. http://www.cnki.com.cn/Article/CJFDTOTAL-KYZZ201004006.htm
[8] 朱阳戈, 谭欣, 闫志刚, 等.低品位菱镁矿浮选试验研究[J].轻金属, 2014(2):1-4. http://d.wanfangdata.com.cn/Periodical_kygc201404013.aspx
[9] 谭欣, 郑桂兵, 尹琨, 等.辽宁某低品位菱镁矿除杂可选性研究[J].有色金属(选矿部分), 2015(2):54-57. http://industry.wanfangdata.com.cn/yj/Detail/Periodical?id=...
[10] 王金良, 孙体昌.粒度和调整剂对石英与菱镁矿浮选分离的影响[J].中国有色金属学报, 2008, 18(11):2082-2086. doi: 10.3321/j.issn:1004-0609.2008.11.022
-
