Study on Mechanism of Composite Collectors and Combined Inhibitors in Flotation Separation Experiments of Micro-fine Monaziteand Fluorite
-
摘要:

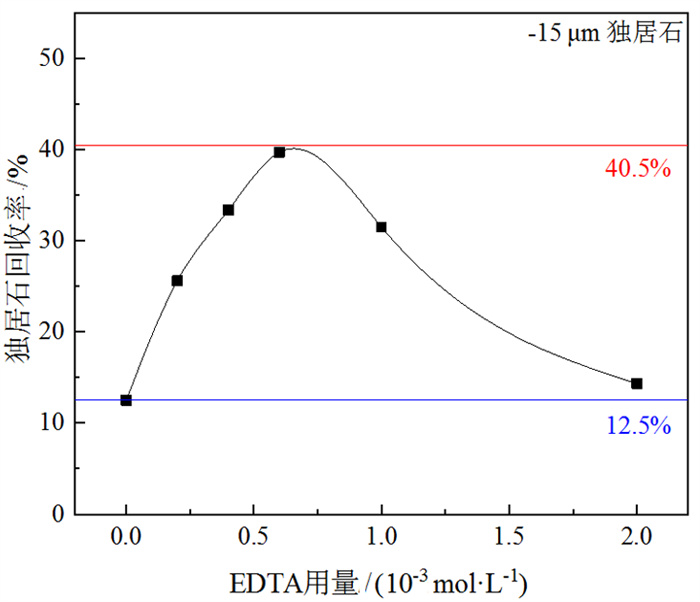

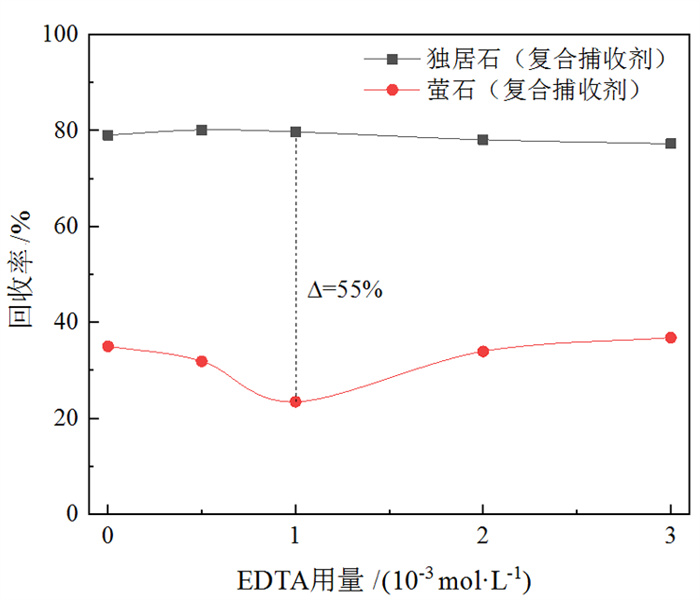

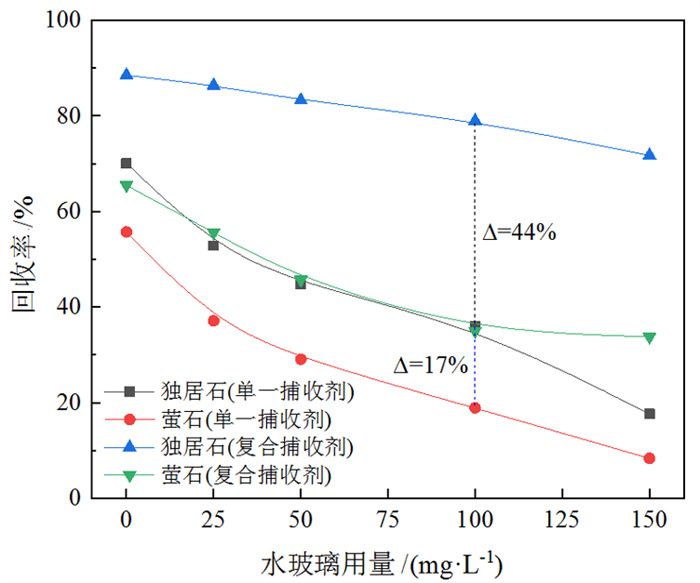

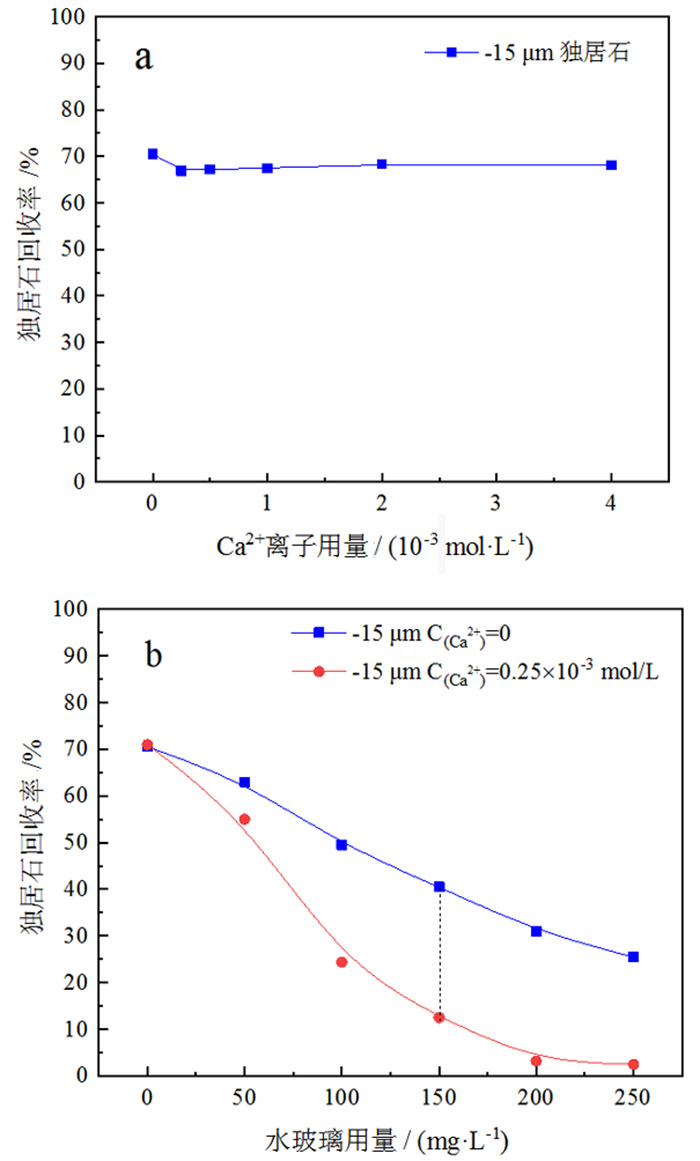

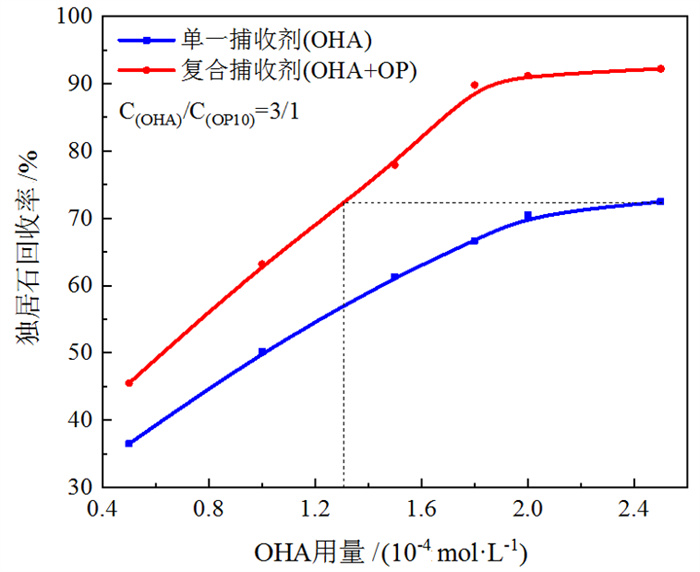

为提高微细粒(-15 μm)独居石和萤石的浮选分离效果, 通过浮选试验、XPS测试和显微聚团分析, 对组合抑制剂水玻璃+乙二胺四乙酸(EDTA)和复合捕收剂辛基羟肟酸(OHA)+辛基酚聚氧乙烯醚(OP)在独居石和萤石浮选分离试验中的应用效果和作用机理进行了分析。结果表明, 针对-15 μm独居石和萤石质量比1 GA6FA 1的人工混合矿, 联合使用组合抑制剂和复合捕收剂, 可以得到独居石回收率80%、萤石回收率24.4%的浮选精矿, 相比于仅使用单一抑制剂或单一捕收剂时, 独居石的浮选回收率及独居石与萤石的浮选分离效果明显提高; EDTA能够络合清除独居石表面的Ca2+离子, 提高抑制剂对萤石的选择性抑制作用; OP和OHA可以协同吸附在独居石表面, 促使微细粒独居石疏水聚团, 从而提高其浮选回收。
Abstract:To improve the flotation separation of micro-fine (-15 μm) monazite and fluorite, the flotation test, XPS test, and microaggregation analysis were used to investigate the application effect and mechanism of the combined inhibitors sodium silicate + ethylenediamine tetraacetic acid (EDTA) and composite collectors octyl hydroxamic acid (OHA) + octylphenol ethoxylate (OP) in flotation tests. The results showed that employing the combined inhibitors and composite collectors for the artificial mixed ores of -15 μm monazite and fluorite with a mass ratio of 1 GA6FA 1, a flotation concentrate with a recovery of 80% monazite and 24.4% fluorite was obtained. Furthermore, as compared to results obtained with only a single inhibitor or collector, both the flotation recovery of monazite and the flotation separation of monazite from fluorite were significantly improved. Additionally, EDTA was able to complex and remove Ca2+ ions from the surface of monazite, as well as facilitate the selective inhibition of fluorite by inhibitors. OP and OHA could synergistically adsorb on monazite surface, promoting hydrophobic agglomeration of micro-fine monazite and thereby improving the flotation recovery of monazite.
-
Key words:
- combined inhibitors /
- composite collectors /
- hydrophobic agglomeration /
- monazite /
- fluorite /
- micro-fine particle /
- rare earth
-
-
表 1 经Ca2+、EDTA及水玻璃单独或联合处理前后独居石表面相对原子浓度
Table 1. Atomic concentration for elements on monazite surfaces in the absence and presence of Ca2+、EDTA and sodium silicate individually or in combination
/% 样品 相对原子浓度 Ce La C O P Th Ca Si 独居石 4.19 1.75 35.35 48.42 9.56 0.73 - - 独居石+水玻璃 2.64 1.7 33.51 51.64 7.48 0.8 - 2.23 独居石+Ca2+ +水玻璃 2.04 1.26 38 45.01 7.31 0.7 1.73 3.95 独居石+Ca2++ EDTA+水玻璃 2.38 1.2 34.59 52.48 7.44 0.86 - 1.05
下载: 导出CSV
-
[1] 杨斌清, 张贤平. 世界稀土生产与消费结构分析[J]. 稀土, 2014, 5(1): 110-118. https://www.cnki.com.cn/Article/CJFDTOTAL-XTZZ201401029.htm
YANG B Q, ZHANG X P. Analysis of global rare earth production and consumption structure[J]. Chinese Rare Earths, 2014, 5(1): 110-118. https://www.cnki.com.cn/Article/CJFDTOTAL-XTZZ201401029.htm
[2] BINNEMANS K, JONES P T, BLANPAIN B, et al. Recycling of rare earths: a critical review[J]. Journal of Cleaner Production, 2013, 51: 1-22. doi: 10.1016/j.jclepro.2012.12.037
[3] JORDENS A, CHENG Y P, WATERS K E. A review of the beneficiation of rare earth element bearing minerals[J]. Minerals Engineering, 2013, 41: 97-114. doi: 10.1016/j.mineng.2012.10.017
[4] 郑强. 综合回收白云鄂博弱磁尾矿中铁, 稀土, 氟和磷的研究[D]. 沈阳: 东北大学, 2017.
ZHENG Q. Studies on comprehensive recovery of iron, rare earth, fluorine and phosphorus from Bayan Obo weakly magnetic tailings[D]. Shenyang: Northeastern University, 2017.
[5] 程建忠, 侯运炳, 车丽萍. 白云鄂博矿床稀土资源的合理开发及综合利用[J]. 稀土, 2007, 28(1): 70-74. doi: 10.3969/j.issn.1004-0277.2007.01.019
CHENG J Z, HOU Y B, CHE L P. Making rational multipurpose use of resources of RE in Bayan Obo deposit[J]. Chinese Rare Earths, 2007, 28(1): 70-74. doi: 10.3969/j.issn.1004-0277.2007.01.019
[6] 王维维, 李二斗, 王其伟, 等. 白云鄂博微细粒稀土矿工艺矿物学及浮选实验研究[J]. 矿产综合利用, 2021(5): 81-85. doi: 10.3969/j.issn.1000-6532.2021.05.012
WANG W W, LI E D, WANG Q W, et al. Study on process mineralogy and flotation test of the Bayan Obo fine grained rare earth ore[J]. Multipurpose Utilization of Mineral Resources, 2021(5): 81-85. doi: 10.3969/j.issn.1000-6532.2021.05.012
[7] ESPIRITU E, DA S G, AZIZI D, et al. Flotation behavior and electronic simulations of rare earth minerals in the presence of dolomite supernatant using sodium oleate collector[J]. Journal of Rare Earths, 2019, 37(1): 101-112. doi: 10.1016/j.jre.2018.04.016
[8] 肖赫, 李梅, 李光柱, 等. 白云鄂博萤石矿脉带颗粒赋存研究[J]. 中国稀土学报, 2021, 39(2): 310-316. https://www.cnki.com.cn/Article/CJFDTOTAL-XTXB202102014.htm
XIAO H, LI M, LI G Z, et al. Occurrence of particles in Bayan Obo fluorite vein belt[J]. Journal of Chinese Rare Earths, 2021, 39(2): 310-316. https://www.cnki.com.cn/Article/CJFDTOTAL-XTXB202102014.htm
[9] 车丽萍, 余永富. 我国稀土矿选矿生产现状及选矿技术发展[J]. 稀土, 2006, 27(1): 95-102. https://www.cnki.com.cn/Article/CJFDTOTAL-XTZZ200601027.htm
CHE L P, YU Y F. Development progress and research connotation of green chemistry of extraction process of rare earth from weathering crust elution-deposited rare[J]. Chinese Rare Earths, 2006, 27(1): 95-102. https://www.cnki.com.cn/Article/CJFDTOTAL-XTZZ200601027.htm
[10] ZHANG W, HONAKER R Q. Flotation of monazite in the presence of calcite part Ⅱ: enhanced separation performance using sodium silicate and EDTA[J]. Minerals Engineering, 2018.
[11] ZHANG C, GAO Z, HU Y, et al. The effect of polyacrylic acid on the surface properties of calcite and fluorite aiming at their selective flotation[J]. Physicochemical Problems of Mineral Processing, 2018, 54(3): 868-877.
[12] LI H, LIU M, LIU Q. The effect of non-polar oil on fine hematite flocculation and flotation using sodium oleate or hydroxamic acids as a collector[J]. Minerals Engineering, 2018, 119: 105-115.
[13] LIU A, FAN M Q, FAN P P. Interaction mechanism of miscible DDA-Kerosene and fine quartz and its effect on the reverse flotation of magnetic separation concentrate[J]. Minerals Engineering, 2014, 65: 41-50.
[14] SIS H, CHANDER S. Improving froth characteristics and flotation recovery of phosphate ores with nonionic surfactants[J]. Minerals Engineering, 2003, 16(7): 587-595.
[15] CAO Z, CHENG Z, WANG J, et al. Synergistic depression mechanism of Ca2+ ions and sodium silicate on bastnaesite flotation[J]. Journal of Rare Earths, 2022, 40(6): 988-995.
[16] 王介良, 曹钊, 李解, 等. 包钢稀土选矿厂稀土浮选药剂优化[J]. 金属矿山, 2013(11): 74-80. https://www.cnki.com.cn/Article/CJFDTOTAL-JSKS201311022.htm
WANG J L, CAO Z, LI J, et al. Optimization of floatation reagents for rare earth ore in dressing plant of Bayan Obo rare earth ore[J]. Metal Mine, 2013(11): 74-80. https://www.cnki.com.cn/Article/CJFDTOTAL-JSKS201311022.htm
[17] CAO Z, CAO Y, QU Q, et al. Separation of bastnsite from fluorite using ethylenediaminetetraacetic acid as depressant[J]. Minerals Engineering, 2019, 134: 134-141.
[18] 王介良, 迈倩琳, 程泽宇, 等. 水玻璃和EDTA对氟碳铈矿与萤石浮选分离作用对比试验研究[J]. 有色金属(选矿部分), 2021(6): 181-188. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXK202106024.htm
WANG J L, MAI Q L, CHENG Z Y, et al. Experimental study on the effect of water glass and EDTA on the flotation separation of bastnaesite and fluorite[J]. Nonferrous Metals (Mineral Processing Section), 2021(6): 181-188. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXK202106024.htm
-
