江西宜丰低品位锂云母矿中锂云母和长石的综合回收研究

杨志兆; 杨思琦; 谢帆欣; 胡鑫; 张永兵; 周贺鹏; 罗仙平

doi:10.13779/j.cnki.issn1001-0076.2022.03.004

江西宜丰低品位锂云母矿中锂云母和长石的综合回收研究

1.
江西省矿冶环境污染控制重点实验室, 江西赣州 341000

2.
钨资源高效开发及应用技术教育部工程研究中心, 江西赣州 341000

基金项目:
国家自然科学基金项目(52064017);江西省重点研发计划(20181BBG70050);江西省自然科学基金项目(20202BABL204034);江西省教育厅科技项目(GJJ190425);江西省青年井冈学者奖励计划; 江西理工大学清江青年英才支持计划资助; 江西省重点研发计划项目(20214BBG74001)

详细信息

通讯作者: 周贺鹏(1985-)，男，副教授，E-mail：zhp0919@163.com

中图分类号: TD955

收稿日期: 2022-05-16

刊出日期: 2022-06-25

Study on Comprehensive Recovery of Lithium Mica and Feldspar from Low Grade Lepidolite Ore in Yifeng of Jiangxi

1.
Jiangxi Provincial Key Laboratory of Environmental Pollution Control of Mining and Metallurgy, Ganzhou 341000, Jiangxi, China

2.
Engineering Research Center for Efficient Development and Application of Tungsten Resources, Ministry of Education, Ganzhou 341000, Jiangxi, China

More Information

Corresponding author: ZHOU Hepeng, zhp0919@163.com

Received Date: 16 May 2022

Publish Date: 25 June 2022

摘要

摘要:
江西宜丰地区锂云母矿风化严重、矿物赋存形式复杂, 锂云母中Li₂O理论品位较低, 为实现该锂云母矿中锂云母和长石的高效回收, 开展了详细的选矿试验研究。研究结果表明, 采用脱泥—浮选—磁选工艺, 首先对原矿进行脱泥, 降低了微细粒脉石矿物在锂云母矿物表面的罩盖, 然后以高选择性捕收剂ZY浮选锂云母, 实现了锂云母与脉石矿物的有效分离, 最终获得含Li₂O 1.73%、回收率75.87%的锂云母精矿; 浮选尾矿经磁场强度为1.5 T的高梯度磁选除铁后, 可获得作业产率为94.31%、含Na₂O 5.78%、K₂O 3.08%、Fe₂O₃ 0.07%、白度为67.21%的长石精矿, 可作为陶瓷原料使用。该工艺处理锂云母矿获得了良好的选矿指标, 实现了锂云母及长石的综合回收。
- 锂云母 /
- 长石 /
- 捕收剂 /
- 综合回收 /
- 浮选 /
- 磁选
Abstract:
The lepidolite ore in Yifeng area of Jiangxi Province is seriously weathered and the occurrence form of minerals is complex. The theoretical grade of Li₂O in lepidolite is low. In order to realize the efficient recovery of lithium and feldspar from the lepidolite ore, the detail beneficiation test research was carried out. The results showed that the process of desliming-flotation-magnetic separation was adopted. First, the raw ore was deslimed to reduce the cover of fine gangue minerals on the surface of lithium mica. Then, the flotation of lithium mica with highly selective collector ZY could effectively separate lepidolite from gangue minerals. The lepidolite concentrate with Li₂O content of 1.73% and recovery rate of 75.87% was obtained. After iron removal from flotation tailings by high gradient magnetic separation with magnetic field intensity of 1.5 T, the feldspar concentrate with operation yield of 94.31%, Na₂O 5.78%, K₂O 3.08%, Fe₂O₃ 0.07% and whiteness of 67.21% could be obtained and used as ceramic material. The process had achieved good beneficiation indexes for the treatment of lepidolite ore, and realized the comprehensive recovery of lepidolite and feldspar.
- lepidolite /
- feldspar /
- collector /
- comprehensive recovery /
- flotation /
- magnetic separation

HTML全文

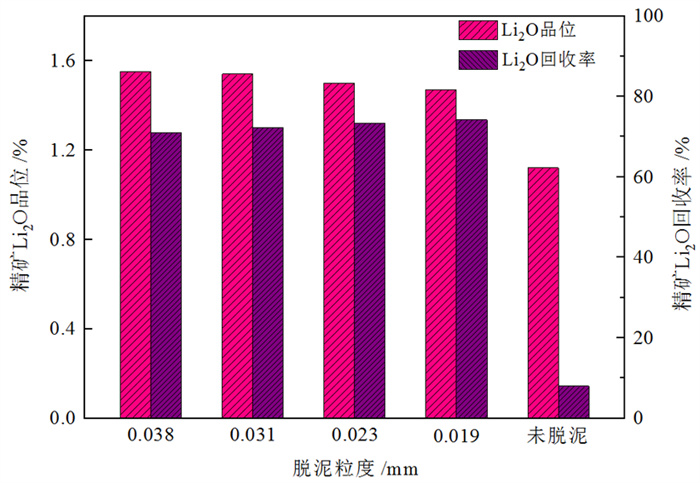

图 1 脱泥粒度对浮选指标的影响

Figure 1.

下载: 全尺寸图片幻灯片

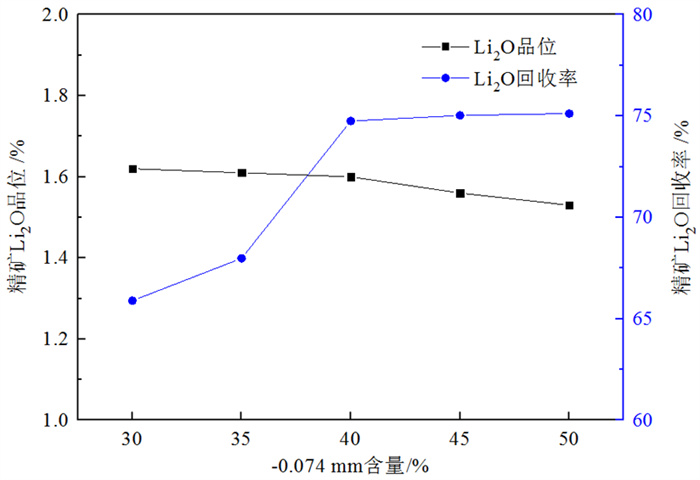

图 2 磨矿细度(-0.074 mm含量)对浮选指标的影响

Figure 2.

下载: 全尺寸图片幻灯片

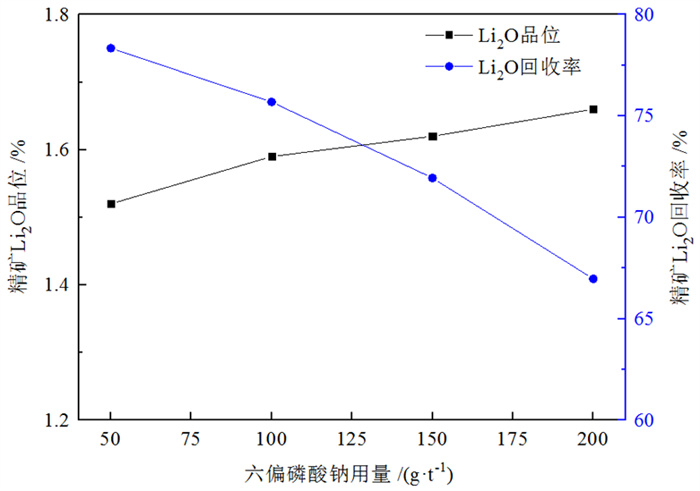

图 3 六偏磷酸钠用量对浮选指标的影响

Figure 3.

下载: 全尺寸图片幻灯片

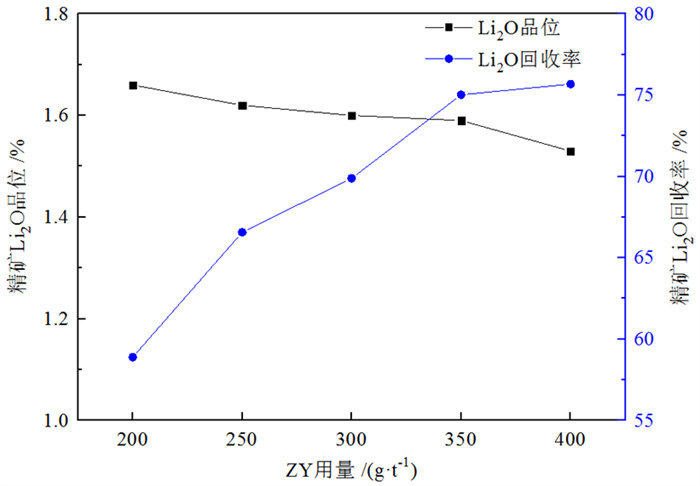

图 4 捕收剂用量对浮选指标的影响

Figure 4.

下载: 全尺寸图片幻灯片

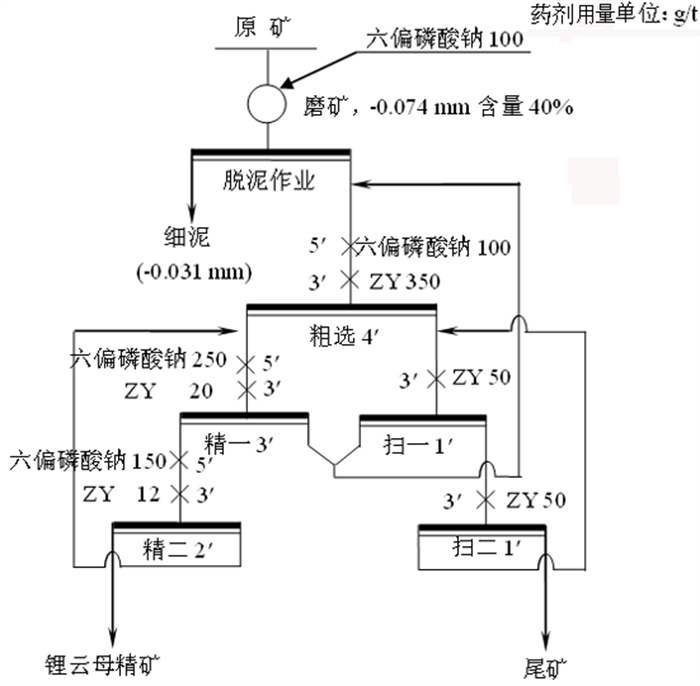

图 5 锂云母浮选闭路试验流程

Figure 5.

下载: 全尺寸图片幻灯片

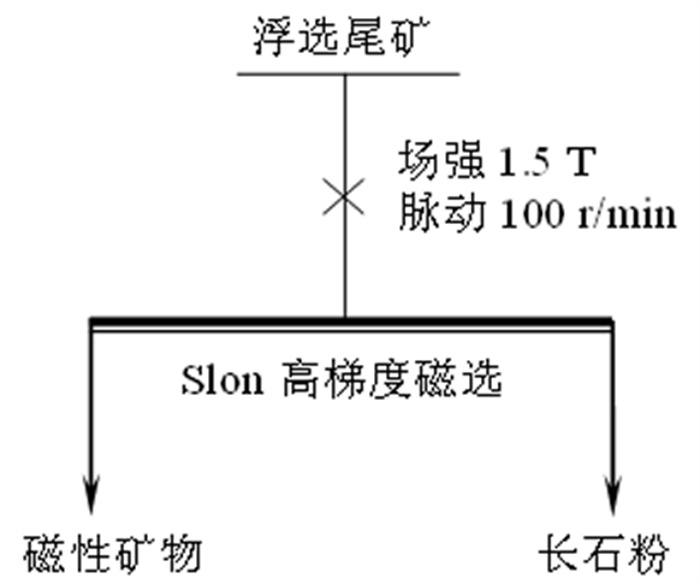

图 6 长石最佳回收试验方案流程

Figure 6.

下载: 全尺寸图片幻灯片

表 1 原矿试样多元素分析结果

Table 1. Multi element analysis results of raw ore samples /%

成分	SiO₂	Al₂O₃	K₂O	Na₂O	CaO	MgO	Fe₂O₃	MnO
含量	69.25	17.65	4.42	4.89	0.65	0.06	1.13	0.22

成分	Li₂O	Rb₂O	Cs₂O	BeO	Nb₂O₅	Ta₂O₅	TiO₂	P₂O₅
含量	0.31	0.16	0.04	0.025	0.007	0.003	0.02	0.56

下载: 导出CSV

表 2 原矿矿物组成分析结果

Table 2. The mineral composition of raw ore /%

矿物名称	钠长石	石英	云母	磷灰石	白榴石	黄玉	高岭石	其他
含量	44.55	39.26	14.39	0.45	0.26	0.15	0.10	0.14

下载: 导出CSV

表 3 捕收剂种类试验结果

Table 3. Test results of collector types /%

捕收种类	产率	Li₂O品位	Li₂O回收率
十二胺	16.75	1.35	74.56
十八胺	17.45	1.31	73.74
椰油胺	15.89	1.43	73.30
ZY	14.86	1.58	75.74

下载: 导出CSV

表 4 锂云母浮选闭路流程试验结果

Table 4. Test results of lithium mica flotation closed circuit process /%

产品名称	产率	Li₂O品位	Li₂O回收率
细泥	17.89	0.26	15.00
锂云母精矿	13.13	1.73	75.87
尾矿	68.98	0.05	9.13
原矿	100.00	0.31	100.00

下载: 导出CSV

表 5 高梯度磁选作业段数试验结果

Table 5. Test results of high gradient magnetic separation operation sections /%

高梯度磁选作业段数	产品名称	作业产率	Fe₂O₃品位	Fe₂O₃分布率
一段强磁选(1.5 T)	磁性矿物	5.77	9.61	89.52
	长石粉	94.23	0.07	10.48
	浮选尾矿	100.00	0.63	100.00
两段强磁选(1.3 T+1.5 T)	磁性矿物	8.39	6.85	91.22
	长石粉	91.61	0.06	8.78
	浮选尾矿	100.00	0.63	100.00

下载: 导出CSV

表 6 长石磁选除杂试验结果

Table 6. Test results of feldspar magnetic separation /%

产品名称	作业产率	Fe₂O₃品位	K₂O品位	Na₂O品位	白度
磁性矿物	5.69	9.91	2.47	1.89	/
长石粉	94.31	0.07	3.08	5.78	67.21
浮选尾矿	100.00	0.63	3.05	5.59	/

下载: 导出CSV
