高分辨扫描电镜和X射线能谱Mapping技术研究碲矿物的成分和形态特征

胡勇平; 于学峰; 郑林伟; 郑遗凡

doi:10.15898/j.cnki.11-2131/td.2015.06.007

高分辨扫描电镜和X射线能谱Mapping技术研究碲矿物的成分和形态特征

1.
浙江省地质矿产研究所, 浙江杭州 310005

2.
山东省地质科学研究院, 山东济南 250013

3.
浙江工业大学化学工程学院, 浙江杭州 310014

基金项目: 国家自然科学基金资助项目(41372086);中国地质大调查项目(12120113015100);国土资源部黏土矿物重点实验室开放课题(2014-K4)

详细信息

作者简介: 胡勇平，教授级高级工程师，从事岩矿分析和应用研究。E-mail: dzkcyjs@aliyun.com

通讯作者: 郑遗凡，教授，矿物及材料表征和应用研究。E-mail: zhengyifan@zjut.edu.cn

中图分类号: P578.15;P575.2;P575.5

收稿日期: 2015-08-19

修回日期: 2015-10-22

录用日期: 2015-11-09

刊出日期: 2015-06-25

Application of High-resolution Scanning Electron Microscope and X-ray Energy Dispersive Spectroscope Mapping Technique to Study the Composition and Morphology of Tellurium Minerals

1.
Institute of Geology and Mineral Resources of Zhejiang Province, Hangzhou 310005, China

2.
Institute of Geological Scientific Research of Shandong Province, Jinan 250013, China

3.
School of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310014, China

More Information

Corresponding author: YU Xue-feng, zhengyifan@zjut.edu.cn

Received Date: 19 August 2015

Revised Date: 22 October 2015

Accepted Date: 09 November 2015

Publish Date: 25 June 2015

摘要

摘要:
X射线能谱元素像分析技术(EDS-Mapping)可直接观察岩石光片中目标元素的分布特征。本文采用高分辨扫描电镜及配置的X射线能谱仪综合分析技术, 对山东归来庄金矿中碲元素和其他元素的分布特征和组合规律进行研究, 定性确定含碲矿物、形态特征及其与其他矿物间的空间关系。结果表明, 研究区金矿中含碲矿物有棱角状碲金银矿、碲化铅等, 以浸染状形貌他形镶嵌于主矿物他形石英和片状云母之间, 颗粒大小从几微米到几百微米极不均匀。对典型含碲矿物的微区成分进一步精确测定, 得到碲金银矿和碲化铅的化学式为Ag_0.85Au_2.55Te₆和Pb_0.52Te_0.48, 其中碲金银矿成分明显异常。本文研究为稀散分布微细矿物的成分、形态分布及与围岩关系建立了一套先进实用的表征方法, 可为含碲金矿的综合利用提供技术支持。
- 碲矿物 /
- 形态特征 /
- 扫描电镜 /
- X射线能谱(EDS)Mapping技术
Abstract:
The X-ray Energy Dispersive Spectrometry EDS-Mapping technique can be used to directly observe distribution characteristic of elements in rock sections. The distribution characteristics and elemental assemblage of tellurium(Te) and some other elements(Au and Ag) from the Guilaizhuang gold field in Shandong Province of China were investigated by high resolution Scanning Electron Microscope(SEM) and X-ray Energy Dispersive Spectroscope(EDS) Mapping techniques and are presented in this paper. The morphological characteristics of possible Te minerals, as well as the spatial relationship between Te minerals and other minerals, were also qualitatively determined. The results show that the Te-bearing minerals in the Zhuojiazhuang gold deposit include angular sylvanite and altait, which were disseminated in the space between anhedral quartz and sheet muscovite. The Te-bearing minerals have particle sizes ranging from a few to hundreds of micrometers. Microanalysis of the Te-bearing minerals indicates that the chemical formulae of sylvanite and altaite are Ag_0.85Au_2.55Te₆ and Pb_0.52Te_0.48, respectively. Sylvanite has an abnormal chemical composition. Through the study, an advanced and practical technique for analyzing the composition and the morphological characteristics of Te minerals and their relationship with wallrock was developed. This study also provides technique support for comprehensive utilization of Te-bearing gold minerals.
- telluride /
- morphological characteristics /
- Scanning Electron Microscope /
- X-ray Energy Dispersive Spectroscope(EDS) Mapping technique

HTML全文

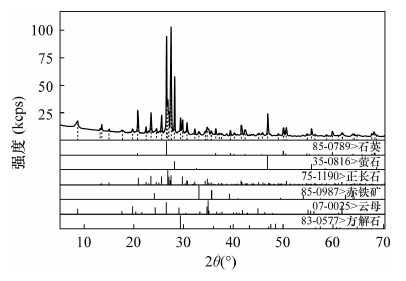

图 1 GL-11样品X射线衍射物相分析图谱

Figure 1.

下载: 全尺寸图片幻灯片

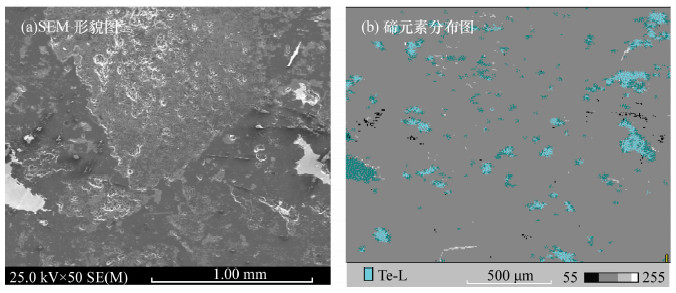

图 2 ZJ-3样品中某典型区域含碲矿物形貌及碲元素分布图

Figure 2.

下载: 全尺寸图片幻灯片

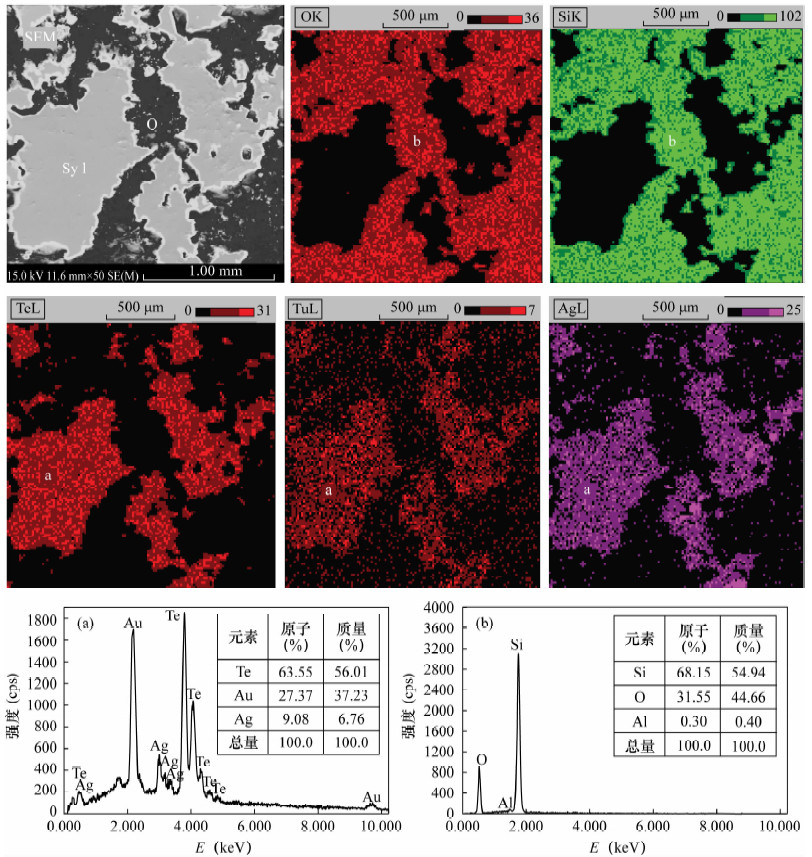

图 3 ZH-b1样品中某区域形貌、元素分布和(a)微区和(b)能谱(SEM：形貌图)

Figure 3.

下载: 全尺寸图片幻灯片

图 4 ZH-b1样品中某区域形貌、元素分布和(a)微区和(b)能谱(SEM：形貌图)

Figure 4.

下载: 全尺寸图片幻灯片

表 1 归来庄金矿中矿石的主要成分和碲元素含量

Table 1. The main composition and the content of Te in the Guilaizhuang gold deposit

样品编号	元素含量(%)									Te含量 (μg/g)	烧失量 (%)
样品编号	Al₂O₃	CaO	Fe₂O₃	K₂O	MgO	Na₂O	SiO₂	SO₃	TiO₂	Te含量 (μg/g)	烧失量 (%)
GL-11	14.96	6.64	2.34	9.84	0.20	0.26	58.53	0.086	0.24	26.6	4.41
GL-31	14.32	9.50	3.27	11.20	2.04	0.29	46.84	1.42	0.26	0.62	10.69
GL-33	13.78	11.23	2.34	10.84	2.46	0.26	45.84	0.054	0.25	26.1	12.32
GL-52	21.62	0.16	5.70	4.20	0.27	0.035	60.54	0.094	0.40	66.1	5.37
GL-62	16.73	2.94	1.12	12.58	0.14	0.36	61.22	0.24	0.21	1.61	2.26
