The Distribution and Exploration Status of Domestic and Foreign Sedimentary-type Lithium Deposits
-

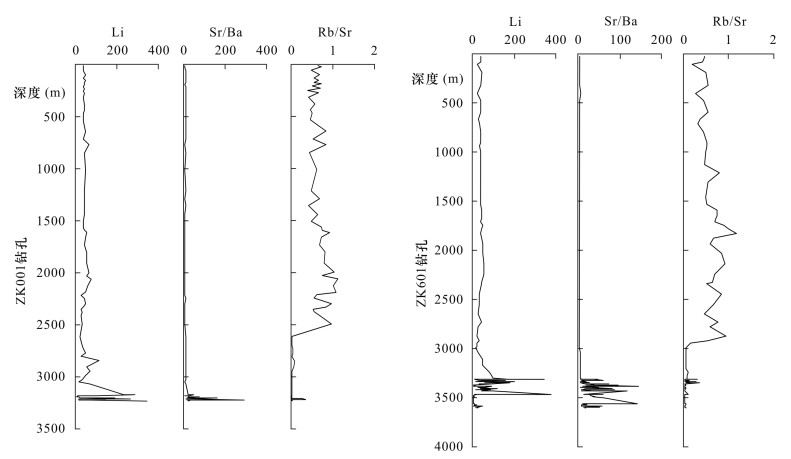

摘要: 随着近几年全球锂矿资源消耗的增加，世界各地掀起了锂矿找矿热。现阶段世界上开发利用的锂矿主要有三种类型：卤水型、伟晶岩型和沉积型，其中沉积型锂矿由于储量巨大，具有重要的地质意义和经济价值。现已发现的沉积型锂矿床主要分布在北美洲，少数分布在南美洲和欧洲，矿石主要以黏土矿为主。本文综述了全球主要沉积型锂矿的勘查开发现状，介绍了北美洲、南美洲、欧洲、亚洲典型的沉积型锂矿以及我国伴生沉积型锂矿矿物特点，有助于对我国沉积型锂矿床的勘查提供启示。对川东黄金口地区钻孔ZK001和钻孔ZK601中的岩心进行了连续取样，共采集196个样品，应用电感耦合等离子体质谱法分析测定其中的元素含量，研究锂的富集特征和沉积环境。研究结果揭示了锂元素主要富集在嘉陵江组的硬石膏和雷口坡组的碳酸盐岩中，含量最高可达103.25μg/g。这种富集可能是由于沉积环境变化和物源改变双重作用的结果，但具体的物质来源以及锂的赋存状态尚不清楚，有待进一步研究。此发现为四川盆地沉积型锂矿的勘查提供重要线索，也为进一步研究锂元素的来源、运移、富集及赋存状态提供了依据。Abstract:
BACKGROUNDWith the increasing consumption of lithium resources in recent years, the boom of lithium exploration and development has grown worldwide. At present, three main types of lithium deposits have been explored and utilized in the world:brine-type, pegmatite-type and sedimentary-type. Among them, sedimentary-type lithium deposits have important geological significance and economic value due to their huge reserves. OBJECTIVESTo understand the distribution and status of exploration and development for domestic and foreign sedimentary-type lithium deposits, and provide experience for the exploration of sedimentary-lithium deposits in China. METHODSThe cores of borehole ZK001 and borehole ZK601 in the Huangjinkou area in Eastern Sichuan Province were continuously sampled and 196 samples were taken. Those samples were used to study lithium enrichment characteristics and depositional environment. Element content of samples was determined by Inductively Coupled Plasma-Mass Spectrometry (ICP-MS). RESULTSSedimentary-type lithium deposits were mainly distributed in North America, but a few were distributed in South America and Europe. The ore was mainly composed of clay minerals. The study of cores from Huangjinkou area revealed that lithium was mainly enriched in the anhydrite of the Jialingjiang Formation and the carbonate rocks of the Leikoupo Formation, with a maximum content of 103.25μg/g. CONCLUSIONSThe enrichment of lithium in the two strata may be due to the dual effects of depositional environment changes and provenance changes, but the specific provenance and occurrence of lithium were still unclear and need further investigation. The discovery of high-lithium strata provide important clues for the exploration of sedimentary-type lithium deposits in the Sichuan Basin, and provide scientific basis for further study on the source, migration, enrichment and occurrence of lithium. -
-
表 1 不同岩性中锂元素含量对比
Table 1. Comparison of lithium content in different rocks or tectonic belts
锂资源地区 砂岩类锂含量
(μg/g)泥岩锂含量
(μg/g)碳酸盐岩锂含量
(μg/g)硬石膏锂含量
(μg/g)四川黄金口ZK001钻孔 36.48 61.49 31.57 103.25 四川黄金口ZK601钻孔 33.27 37.4 73.68 43.19 中国东部 28.5 38 9.5 - 内蒙兴安—吉黑造山带 24 29 7 - 华北地台 21 41 9.5 - 秦岭—大别造山带 26 46 14 - 扬子地台 24 36 10 - 华南褶皱系 37 34 14 -
下载: 导出CSV
-
[1] 王登红, 王瑞江, 付小方, 等.对能源金属矿产资源基地调查评价基本问题的探讨——以四川甲基卡大型锂矿基地为例[J].地球学报, 2016, 37(4):471-480. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqxb201604012
Wang D H, Wang R J, Fu X F, et al.A discussion on the major problems related to geological investigation and assessment for energy metal resources base:A case study of the Jiajika large lithium mineral resource base[J].Acta Geoscientica Sinica, 2016, 37(4):471-480. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqxb201604012
[2] 王登红, 孙艳, 刘喜方, 等.锂能源金属矿产深部探测技术方法与找矿方向[J].中国地质调查, 2018, 5(1):1-9. http://d.old.wanfangdata.com.cn/Periodical/zgdzdc201801001
Wang D H, Sun Y, Liu X F, et al.Deep exploration technology and prospecting direction for lithium energy metal[J].Geological Survey of China, 2018, 5(1):1-9. http://d.old.wanfangdata.com.cn/Periodical/zgdzdc201801001
[3] 刘丽君, 王登红, 刘喜方, 等.国内外锂矿主要类型、分布特点及勘查开发现状[J].中国地质, 2017, 44(2):263-278. http://d.old.wanfangdata.com.cn/Periodical/zgdizhi201702004
Liu L J, Wang D H, Liu X F, et al.The main types, distribution features and present situation of exploration and development for domestic and foreign lithium mine[J].Geology in China, 2017, 44(2):263-278. http://d.old.wanfangdata.com.cn/Periodical/zgdizhi201702004
[4] 李康, 王建平.中国锂资源开发利用现状及对策建议[J].资源与产业, 2016, 18(1):82-86. http://d.old.wanfangdata.com.cn/Periodical/zycy201601013
Li K, Wang J P.China's lithium resource development actuality and approaches[J].Resources & Industries, 2016, 18(1):82-86. http://d.old.wanfangdata.com.cn/Periodical/zycy201601013
[5] 李建康, 刘喜方, 王登红.中国锂矿成矿规律概要[J].地质学报, 2014, 88(12):2269-2283. http://d.old.wanfangdata.com.cn/Periodical/dizhixb201412009
Li J K, Liu X F, Wang D H.The metallogenetic regularity of lithium deposit in China[J].Acta Geologica Sinica, 2014, 88(12):2269-2283. http://d.old.wanfangdata.com.cn/Periodical/dizhixb201412009
[6] Marquee Resources Ltd.Clayton Valley Lithium-Marquee Resources[EB/OL].http://www.marqueeresources.com.au/projects/clayton-valley-lithium/.2018.
[7] Li THIUM-X Ltd.Clayton Valley-LiTHIUM-X[EB/OL].http://www.lithium-x.com/clayton_valley/.2018.
[8] Cypress Development Corp.Clayton Valley Lithium Project, Nevada|Cypress Development Corp.[EB/OL].https://www.cypressdevelopmentcorp.com/projects/nevada/glory-lithium-project-nevada/.2018.
[9] HotCopper.Big Sandy and Lordsburg Lithium Projects-HotCopper[EB/OL].https://hotcopper.com.au/documentdownload?id=uOMxKKzFkiWRTLKhOROKAxjvTDYC6w6%2ByhmZqOByke92GA%3D%3D.2018.
[10] Zenith Minerals Ltd.Burro Creek USA-Zenith Minerals[EB/OL].http://www.zenithminerals.com.au/projects/burro-creek-usa/.2018.
[11] Mining Atlas.Kings Valley[EB/OL].https://mining-atlas.com/project/Kings-Valley-Lithium-Mine-Project.php.2018.
[12] Aimva.Kings Valley Lithium Project, Nevada USA NI 43-101 Technical Report[EB/OL].http://www.aimva.com.au/LiteratureRetrieve.aspx?ID=185311.2018.
[13] Lithium Americas Ltd.Lithium Americas[EB/OL]. http://www.lithiumamericas.com/thacker-pass/.2018
[14] Lithium Australia Ltd.Electra project-Lithium Australia[EB/OL].https://lithium-au.com/electra-project/.2018.
[15] Bacanora Lithium Ltd.Sonora Lithium Bacanora Lithium[EB/OL].http://www.bacanoralithium.com/projects/sonora-lithium/.2018.
[16] Plateau Energy Metals Ltd.Falchani Lithium Project-Plateau Energy Metals[EB/OL].http://plateaue-nergymetals.com/falchani-lithium-project/.2018.
[17] 赵元艺, 符家骏, 李运.塞尔维亚贾达尔盆地超大型锂硼矿床[J].地质论评, 2015, 61(1):34-44. http://d.old.wanfangdata.com.cn/Periodical/dzlp201501003
Zhao Y Y, Fu J J, Li Y.Super large lithium and boron deposit in Jadar Basin, Serbia[J].Geological Review, 2015, 61(1):34-44. http://d.old.wanfangdata.com.cn/Periodical/dzlp201501003
[18] Rio Tinto Ltd.Jadar-Rio Tinto[EB/OL].https://www.riotinto.com/energyandminerals/jadar-4643.aspx#.2018.
[19] 张雪飞, 郑绵平.蒙古国Khukh Del侏罗系沉积锂、钾赋存状态研究[J].地学前缘, 2014, 21(3):55. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201403009.htm
Zhang X F, Zheng M P.Study on the occurrence of lithium and potassium in Jurassic sediments in Khukh Del, Mongolia[J].Earth Science Frontiers, 2014, 21(3):55. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201403009.htm
[20] 王涛, 赵晓东, 李军敏, 等.重庆银矿垭口铝土矿锂的分布特征[J].地质找矿论丛, 2014, 29(4):541-545. http://d.old.wanfangdata.com.cn/Periodical/dzzklc201404010
Wang T, Zhao X D, Li J M, et al.Distribution characteristics of lithium in Yinkuangyakou bauxite deposit, Chongqing[J].Contributions to Geology and Mineral Resources Research, 2014, 29(4):541-545. http://d.old.wanfangdata.com.cn/Periodical/dzzklc201404010
[21] 褚光琛.准格尔煤田煤中稀有金属富集机理的实验模拟[D].邯郸: 河北工程大学, 2015.
Chu G C.Simulated Experiment on Enrichment Mechanism of Rare Mental in Coal of Jungar Coalfield[D].Handan: Hebei University of Enginneering, 2015.
[22] 金中国, 周家喜, 黄智龙, 等.黔北务-正-道地区典型铝土矿床伴生有益元素锂、镓和钪分布规律[J].中国地质, 2015, 42(6):1910-1918. http://www.cnki.com.cn/Article/CJFDTotal-DIZI201506018.htm
Jin Z G, Zhou J X, Huang Z L, et al.The distribution of associated elements Li, Sc and Ga in the typical bauxite deposits over the Wuchuan-Zheng'an-Daozhen bauxite ore district, Northern Guizhou province[J].Geology in China, 2015, 42(6):1910-1918. http://www.cnki.com.cn/Article/CJFDTotal-DIZI201506018.htm
[23] 王登红, 李沛刚, 屈文俊, 等.贵州大竹园铝土矿中钨和锂的发现与综合评价[J].中国科学(地球科学), 2013, 43(1):44-51. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cd201301004
Wang D H, Li P G, Qu W J, et al.Discovery and preliminary study of the high tungsten and lithium contents in the Dazhuyuan bauxite deposit, Guizhou, China[J].Science China:Earth Sciences, 2013, 56:145-152. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cd201301004
[24] Sun Y Z, Zhao C L, Qin S J, et al.Occurrence of some valuable elements in the unique 'high-aluminium coals' from the Jungar coalfield, China[J].Ore Geology Reviews, 2016, 72:659-668. doi: 10.1016/j.oregeorev.2015.09.015
[25] 衣姝, 王金喜.安家岭矿9号煤中锂的赋存状态和富集因素分析[J].煤炭与化工, 2014, 37(9):7-10. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hebhg201409003
Yi S, Wang J X.Lithium occurrences and enrichment factor law in No.9 coal seam of Anjialing mine[J].Coal and Chemical Industry, 2014, 37(9):7-10. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hebhg201409003
[26] 李华, 许霞, 杨恺.山西平朔矿区4号煤中锂、镓资源成矿地质特征研究[J].中国煤炭地质, 2014, 26(12):17-19. doi: 10.3969/j.issn.1674-1803.2014.12.04
Li H, Xu X, Yang K.Lithium and gallium resources metallogenic geological characteristics in coal No.4, Pingshuo mining area, Shanxi[J].Coal Geology of China, 2014, 26(12):17-19. doi: 10.3969/j.issn.1674-1803.2014.12.04
[27] 刘帮军, 林明月.山西平朔矿区9#煤中锂的富集机理及物源研究[J].煤炭技术, 2015, 34(8):115-117. http://d.old.wanfangdata.com.cn/Periodical/mtjs201508045
Liu B J, Lin M Y.Enrichment mechanism and material sources of lithium in Li-bearing coal seam No.9 from Pingshuo mining district of Shanxi Province[J].Coal Technology, 2015, 34(8):115-117. http://d.old.wanfangdata.com.cn/Periodical/mtjs201508045
[28] 刘帮军, 林明月.宁武煤田平朔矿区9号煤中锂的富集机理[J].地质与勘探, 2014, 50(6):1070-1075. http://d.old.wanfangdata.com.cn/Periodical/dzykt201406007
Liu B J, Lin M Y.Enrichment mechanism of lithium in coal seam No.9 of the Pingshuo mining district, Ningwu coalfield[J].Geology and Exploration, 2014, 50(6):1070-1075. http://d.old.wanfangdata.com.cn/Periodical/dzykt201406007
[29] 杨瑞东, 程伟, 高军波, 等.黔西南煤层中铌、铀、钒和锂元素富集与潜在资源评价[J].贵州地质, 2017, 34(2):77-81. doi: 10.3969/j.issn.1000-5943.2017.02.003
Yang R D, Cheng W, Gao J B, et al.Nb, U, V and Li element enrichment of coal seams and potential resource evaluation in Southwest Guizhou[J].Guizhou Geology, 2017, 34(2):77-81. doi: 10.3969/j.issn.1000-5943.2017.02.003
[30] 潘桂棠, 肖庆辉, 陆松年, 等.中国大地构造单元划分[J].中国地质, 2009, 36(1):1-28. http://d.old.wanfangdata.com.cn/Periodical/zgdizhi200901001
Pan G T, Xiao Q H, Lu S N, et al.Subdivison of techonic units in China[J].Geology of China, 2009, 36(1):1-28. http://d.old.wanfangdata.com.cn/Periodical/zgdizhi200901001
[31] 邓国仕, 李军敏, 杨桂花, 等.渝南水江板桥铝土矿区锂的分布规律及其影响因素研究[J].中国矿业, 2014(3):72-79. doi: 10.3969/j.issn.1004-4051.2014.03.019
Deng G S, Li J M, Yang G H, et al.Distribution law of lithium and its influencing factors in Shuijiangbanqiao bauxite mining area, Southern Chongqing[J].China Mining Magazine, 2014(3):72-79. doi: 10.3969/j.issn.1004-4051.2014.03.019
[32] 迟清华.应用地球化学元素丰度数据手册[M].北京:地质出版社, 2007.
Chi Q H.Applied Geochemical Elemental Abundance Data Sheet[M].Beijing:Geological Publishing House, 2007.
[33] 孙倩, 贾玉连, 申洪源, 等.内蒙古黄旗海全新世湖泊沉积物中Rb、Sr分布及其环境意义[J].古地理学报, 2010, 12(4):444-450. http://d.old.wanfangdata.com.cn/Periodical/gdlxb201004008
Sun Q, Jia Y L, Shen H Y, et al.Distribution and environmental implication of Rb, Sr in the Holocene lacustrine sediments of Huangqihai Lake, Inner Mongolia[J].Journal of Palaeogeography, 2010, 12(4):444-450. http://d.old.wanfangdata.com.cn/Periodical/gdlxb201004008
[34] 陈晹, 陈骏, 刘连文, 等.最近13万年来黄土高原Rb/Sr记录与夏季风时空变迁[J].中国科学(地球科学), 2003, 33(6):513-519. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cd200306003
Chen Y, Chen J, Liu L W, et al.The Rb/Sr record of the Loess Plateau and the temporal and spatial changes of the summer monsoon in the past 130000 years[J].Scientia Sinica (Terrae), 2003, 33(6):513-519. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cd200306003
[35] 陈骏, 安芷生.最近800ka洛川黄土剖面中Rb-Sr分布和古季风变迁[J].中国科学(地球科学), 1998, 28(6):498-504. http://www.cnki.com.cn/Article/CJFDTotal-JDXK199806002.htm
Chen J, An Z S.Rb-Sr distribution and paleo-mons change in the recent 800ka Luochuan loess profile[J].Scientia Sinica (Terrae), 1998, 28(6):498-504. http://www.cnki.com.cn/Article/CJFDTotal-JDXK199806002.htm
[36] 章桂芳, 郑卓, Barry Rollet, 等.闽江钻孔沉积物微量元素地球化学研究[J].海洋地质与第四纪地质, 2015, 35(2):81-90. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201502009
Zhang G F, Zheng Z, Rollet B, et al.Trace elements geochemistry of Min River core sediments[J].Marine Geology & Quaternary Geology, 2015, 35(2):81-90. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201502009
[37] 刘建清, 林家善, 冯伟明, 等.四川盆地东南缘中上寒武统白云岩稀土元素特征及成因意义——以贵州毕节长树田剖面为例[J].矿物岩石, 2014(1):87-94. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=kwys201401013
Liu J Q, Lin J S, Feng W M, et al.The REE geochemical characteristics of middle-upper cambrian dolomite in Southeast Sichuan Basin and its significance:A case study of Changshutian profile in Bijie, Guizhou[J].Journal of Mineralogy and Petrology, 2014(1):87-94. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=kwys201401013
-
