Sedimentary evolution and favorable reservoir prediction in the middle of the third member of Shahejie Formation in BZ Oilfield, Bohai Sea
-
摘要:
渤海BZ油田沙三中段为特低渗油藏，发育扇三角洲沉积，由于储层横向变化复杂及对“甜点层”认识不清，制约了油田开发进程。本文重点研究沙三中段沉积演化并对其有利储层进行预测，以指导特低渗油藏的开发。综合区域沉积特征、钻井及地震资料，利用残余厚度法和印模法相结合的方法进行古地貌研究的结果认为，沙三中段主要发育古洼陷、古斜坡、古沟谷和古凸起4种古地貌单元；通过岩芯观察和测井相分析认为，沙三中段主要发育分流河道、河口坝、浊流、分流间湾和前扇三角洲泥沉积微相。综合研究认为，小层沉积微相及厚度与古地貌形态具有较好的相关性。古洼陷储层主要发育分流河道及河口坝优质微相且沉积厚度最大，古斜坡和古沟谷次之，古凸起最差。综合古地貌、沉积微相及演化特征分析，有利储层主要受控于古地貌及沉积微相。以储层厚度和物性综合确定出沙三中段的“甜点”区分布，为特低渗油藏不同井区采取不同的开发策略提供了地质依据。
Abstract:The middle of the third member of Shahejie Formation of the Mid-Eocene (E2s3) in Bohai BZ Oilfield is an ultra-low permeability reservoir where fan delta deposits are developed. Due to the rapid lateral change of the reservoir and the unclear understanding of the "sweet spot" layer, the level of development of the oilfield is restricted. This paper focuses on the sedimentary evolution and favorable reservoir prediction of the middle of E2s3 to guide the development and adjustment of the ultra-low permeability reservoir. Combined with the regional sedimentary characteristics, drilling and seismic data, the residual thickness method and the impression method were used to reconstruct the palaeogeomorphology. Four types of palaeogeomorphic units are developed in the middle of E2s3, including ancient depression, ancient slope, ancient valley, and ancient uplift. Through core observation and well logging facies analysis, we found that distributary channel, estuarine bar, turbidity current, interdistributary bay, and front fan delta mud sedimentary microfacies were developed in the middle of E2s3. According to the research, the sedimentary microfacies and thickness of small layers show good correlation with the ancient geomorphic morphology. The reservoirs in the ancient depression developed mainly distributary channels and estuarine bars with high-quality microfacies and the largest sedimentary thickness, followed by the ancient slope and ancient valley, and the ancient uplift was the worst in this regard. Based on the analysis of palaeogeomorphology, sedimentary microfacies, and evolution characteristics, favorable reservoirs are mainly controlled by the palaeogeomorphology and sedimentary microfacies, and the distribution of "sweet spot" area in the middle of E2s3 was determined comprehensively based on reservoir thickness and physical properties. This study provided a geological basis for oil exploration in ultra-low permeability reservoirs in different development strategies and well areas.
-
-
表 1 BZ油田沙三段沉积微相划分及其特征
Table 1. Sedimentary microfacies division and characteristics of the third member of Shahejie Formation in BZ Oilfield
亚相 微相类型 测井曲线特征 韵律及测井相形态 岩芯特征(照片) 岩相特征描述 单层砂岩厚度/m 扇三角洲前缘 分流河道

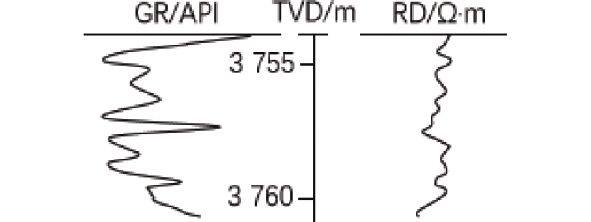

韵律：正韵律
曲线形态：箱型或钟型

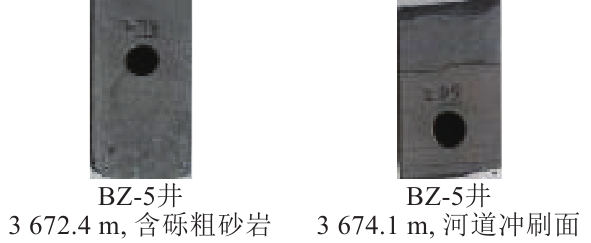

由含砾砂岩及中、粗粒砂岩组成。发育河道冲刷面，少见交错层理 5～15 河口坝

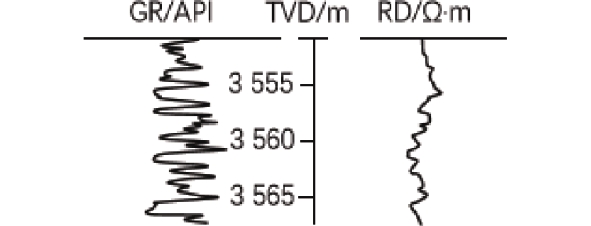

韵律：反韵律、复合韵律
曲线形态：漏斗型
中细砂岩，分选、磨圆均较好，具小型交错层理、波纹交错层理或变形层理 3～5 浊流

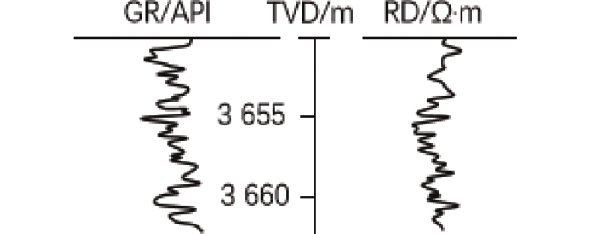

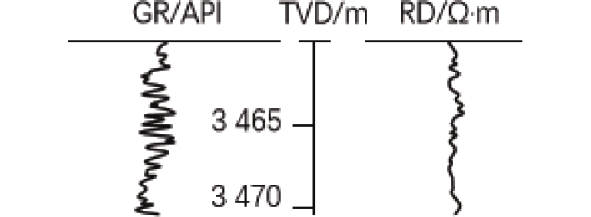

韵律：复合韵律
曲线形态：中幅锯齿型

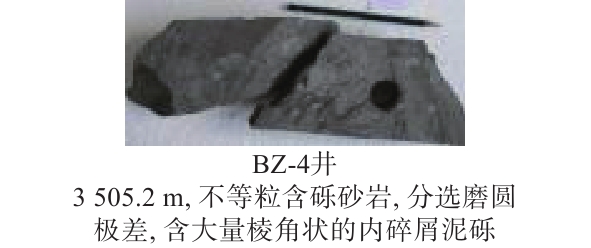

由杂基支撑的砾岩和不等粒含砾砂岩组成，发育变形构造，顶底为渐变接触 1～3 分流间湾
韵律：不明显
曲线形态：低幅锯齿型或平直型

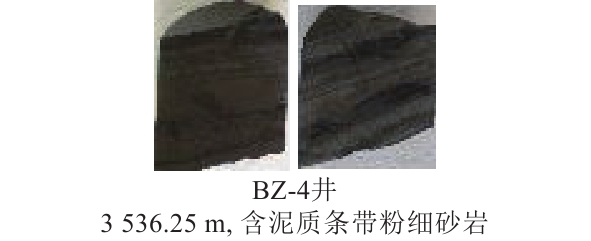

以泥岩、粉砂质泥岩沉积为主，偶见细粒砂岩 <1 前扇三角洲 前扇三角洲泥
韵律：不明显
曲线形态：平直型

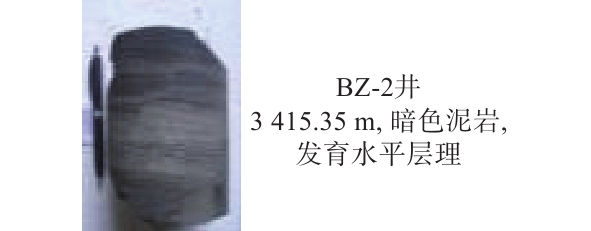

储层不发育，沉积泥岩 0
下载: 导出CSV
-
[1] 贾承造,邹才能,李建忠,等. 中国致密油评价标准、主要类型、基本特征及资源前景[J]. 石油学报,2012,33(3):343-350.
[2] 吴国干,方辉,韩征,等. “十二五”中国油气储量增长特点及“十三五”储量增长展望[J]. 石油学报,2016,37(9):1145-1151.
[3] 贾承造,庞雄奇. 深层油气地质理论研究进展与主要发展方向[J]. 石油学报,2015,36(12):1457-1469.
[4] 廖兴松,付大其,孟立新,等. 大港深层低渗油藏孔隙结构特征及动用潜力评价[J]. 中国科技论文,2021,66(5):549-555.
[5] 杨志成,朱志强,张文彪,等. 基于wheeler域层序研究的中深层储层预测技术研究:以渤海Q油田东块沙河街为[J]. 新疆石油天然气,2018,14(1):32-37.
[6] 蒋有录,刘培,刘华,等. 渤海湾盆地不同凹陷新近系油气成藏条件差异性及聚集模式[J]. 中国石油大学学报(自然科学版),2014,38(1):14-21.
[7] 周军良,胡勇,李超,等. 渤海典型低孔低渗油藏储层预测及效果:以渤海A油田沙河街组二段为例[J]. 海相油气地质,2016,21(4):73-77.
[8] 邓运华,李建平. 渤中25-1油田勘探评价过程中地质认识的突破[J]. 石油勘探与开发,2007,34(6):646-652.
[9] 杨玉卿,潘福熙,田洪,等. 渤中25-1油田沙河街组低孔低渗储层特征及分类评价[J]. 现代地质,2010,24(4):685-693. doi: 10.3969/j.issn.1000-8527.2010.04.006
[10] 吉双文. 渤海湾盆地喜马拉雅运动幕次划分及演化特征[J]. 大庆石油地质与开发,2007,26(4):38-42.
[11] 项华,徐长贵. 渤海海域古近系隐蔽油气藏层序地层学特征[J]. 石油学报,2006,27(2):11-15. doi: 10.3321/j.issn:0253-2697.2006.02.003
[12] 侯贵廷,钱祥麟,蔡东升. 渤海湾盆地中、新生代构造演化研究[J]. 北京大学学报(自然科学版),2001,37(6):845-851.
[13] 郭涛,辛仁臣,刘豪,等. 同沉积断裂构造对沉积相展布的控制[J]. 沉积与特提斯地质,2008,28(1):15-19.
[14] 李慧勇,辛仁臣,李强,等. 黄河口凹陷A区古近系沙河街组三段沉积相[J]. 古地理学报,2007,9(1):25-32.
[15] 邓猛,赵军寿,金宝强,等. 基于古地貌分析的中深层沉积储层质量评价[J]. 断块油气田,2019,26(2):147-152.
[16] 林畅松,夏庆龙,施和生,等. 地貌演化、源汇过程与盆地分析[J]. 地学前缘,2015,22(1):9-20.
[17] 庞小军,王清斌,杜晓峰,等. 渤中凹陷西北缘古近系物源演化及其对储层的影响[J]. 大庆石油地质与开发,2016,35(5):34-41.
[18] 陈延芳,杜晓峰,王清斌,等. 渤海黄河口中洼古地貌对沉积相的控制作用[J]. 东北石油大学学报,2018,42(5):35-43. doi: 10.3969/j.issn.2095-4107.2018.05.004
[19] 崔龙涛,冯栋,秦雁群,等. 鄂尔多斯盆地镇北地区延长组长7古地貌与砂体分布特征[J]. 岩性油气藏,2013,25(5):65-69.
[20] 于雷,王维斌,车飞,等. 鄂尔多斯盆地吴旗油区下侏罗统古地貌特征与油气富集关系[J]. 断块油气田,2014,21(2):147-151.
[21] 耿红柳,胡勇,周军良,等. 渤海古近系扇三角洲精细研究及有利储层预测[J]. 海洋地质前沿,2019,35(4):39-47.
[22] 胡勇,周军良,汪全林,等. 渤海BZ油田低渗储层质量主控因素及开发实践[J]. 中国海上油气,2019,31(1):103-112.
-
