Experimental study on unloading creep of sandstone under temperature-seepage coupling conditions
-
摘要:

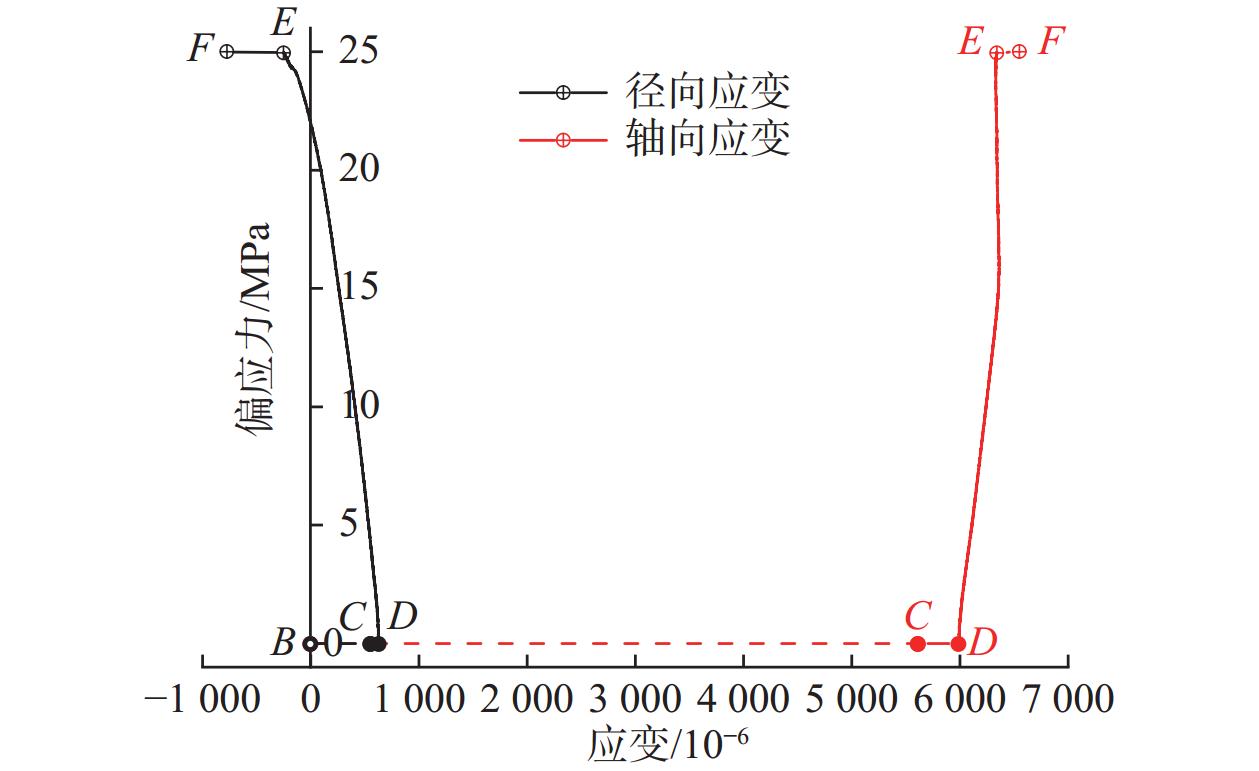

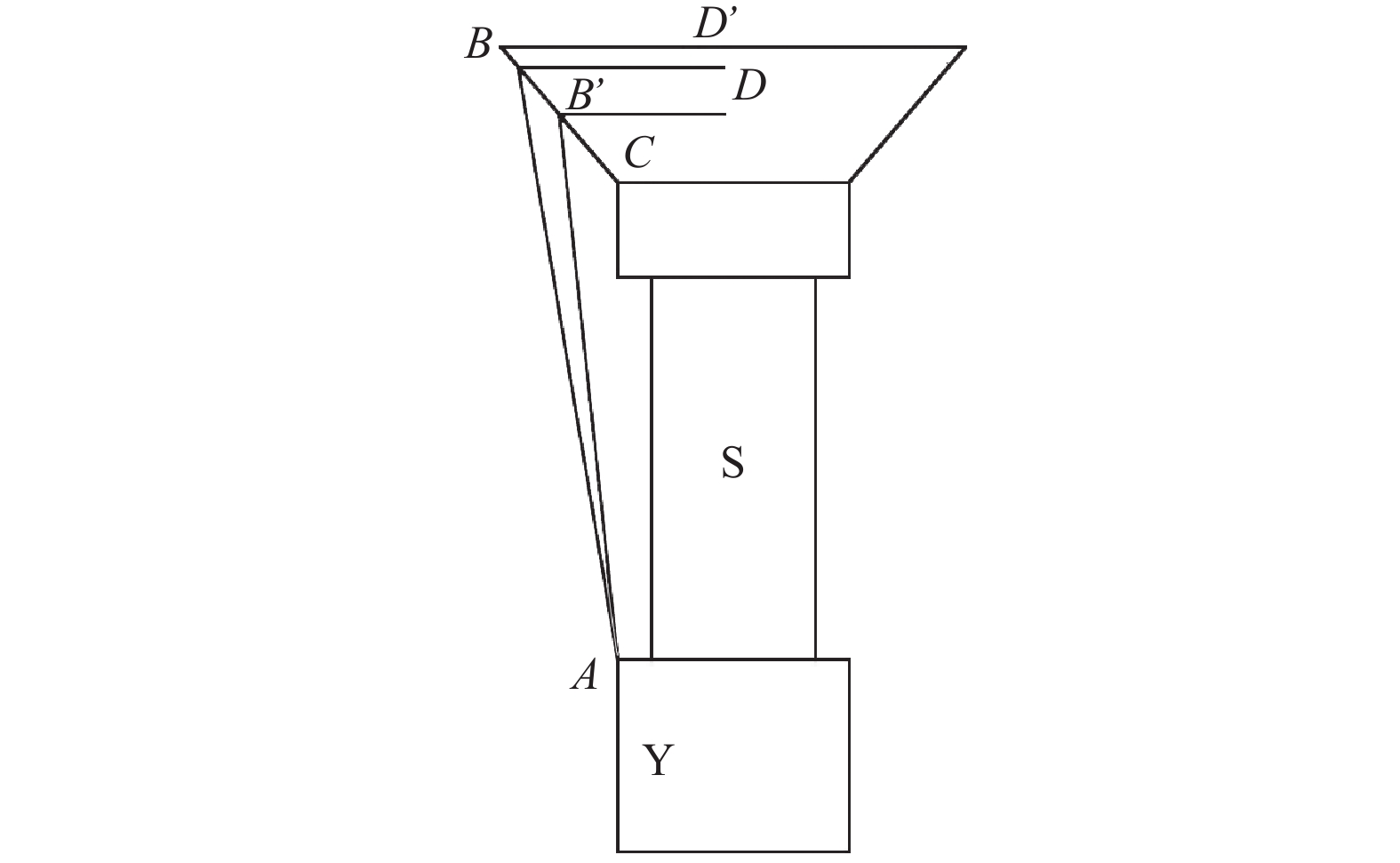

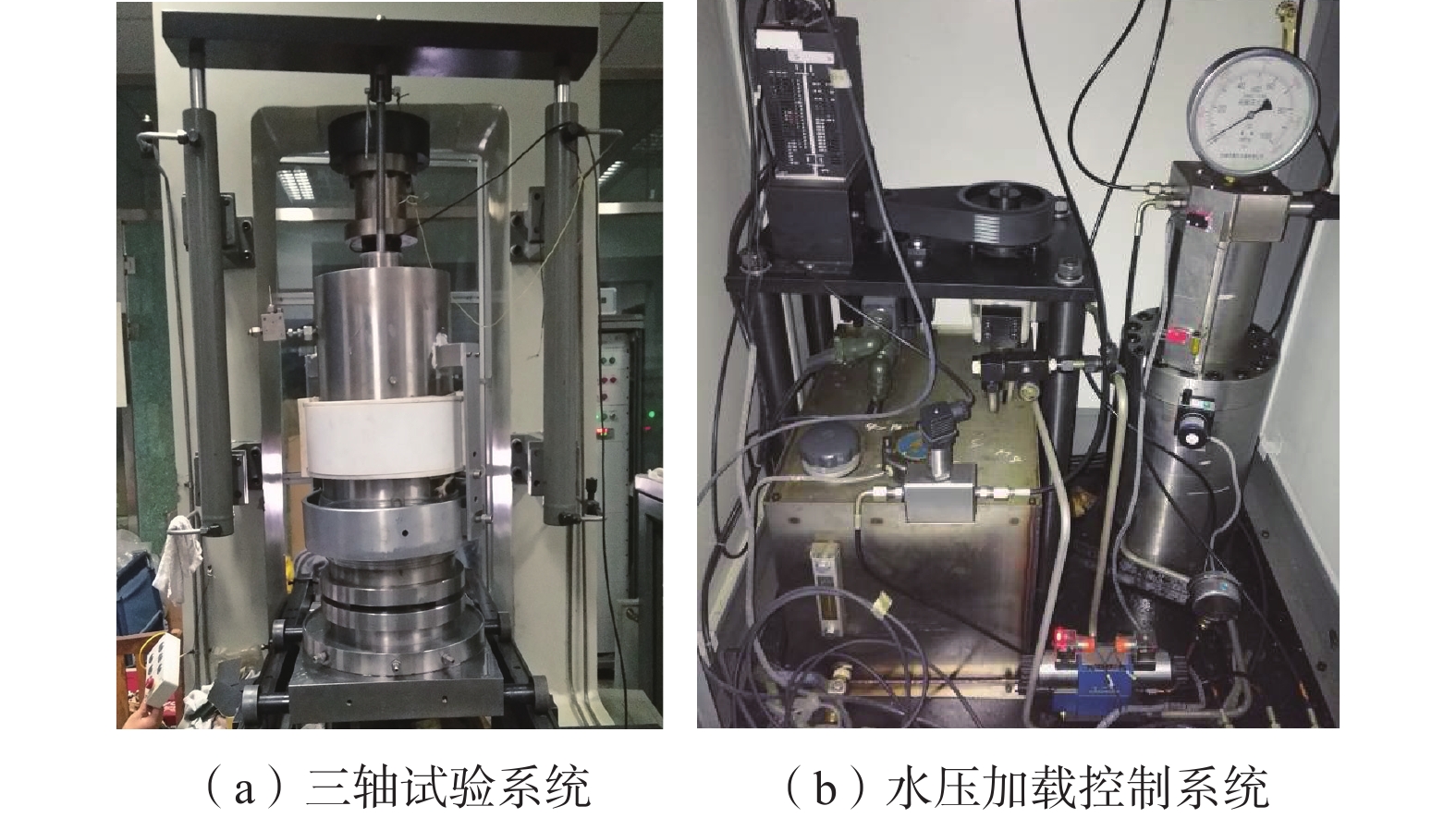

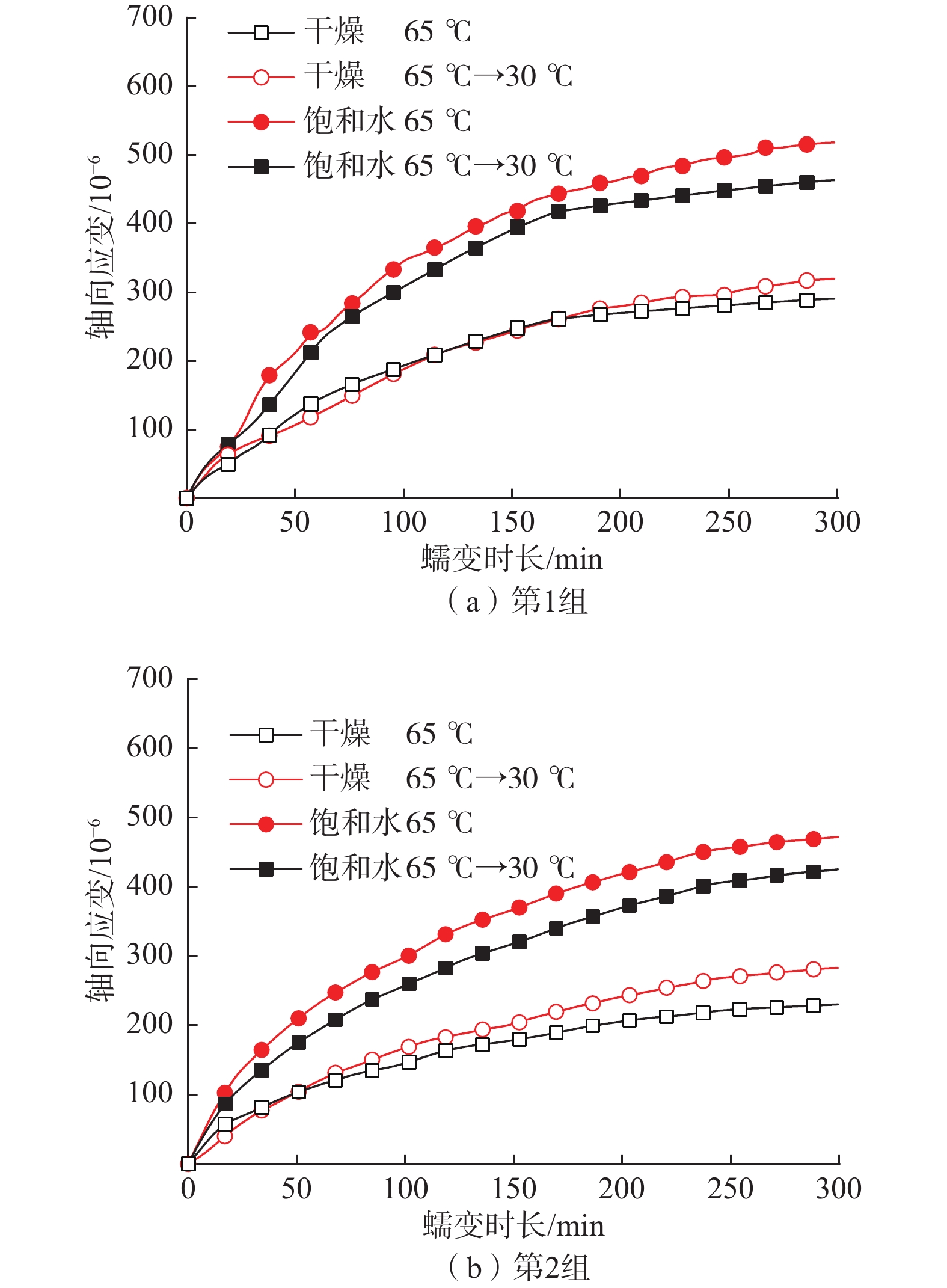

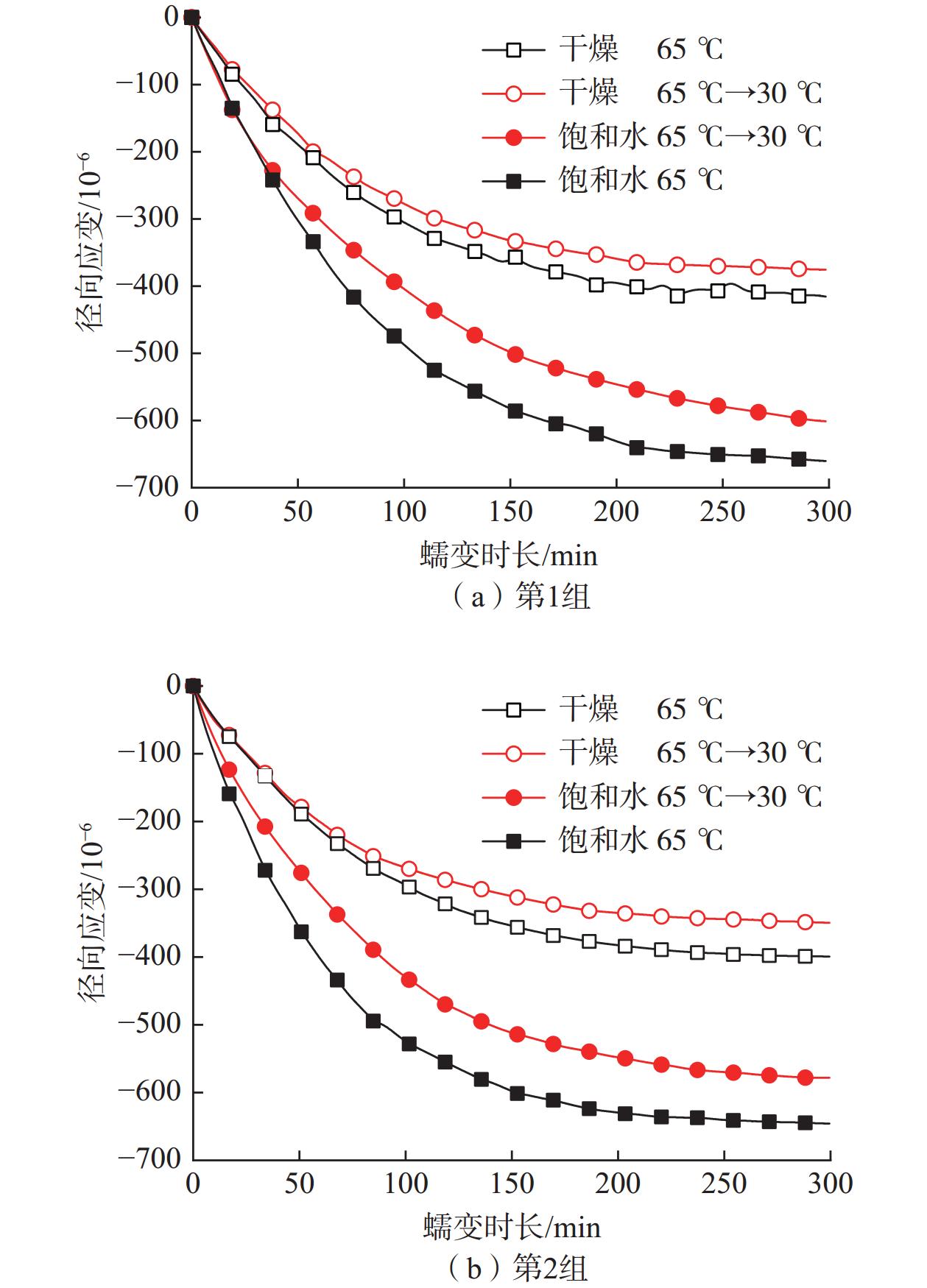

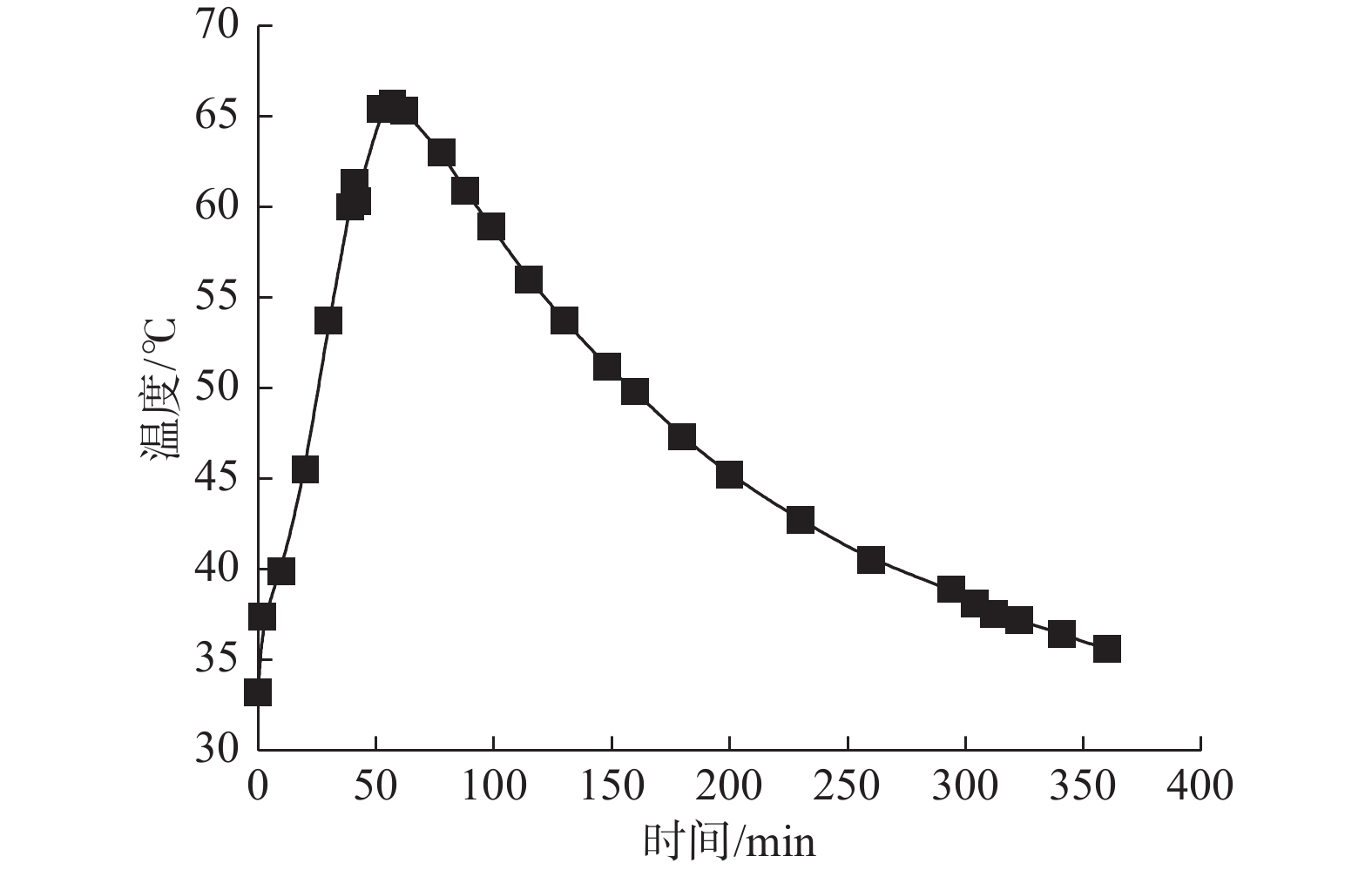

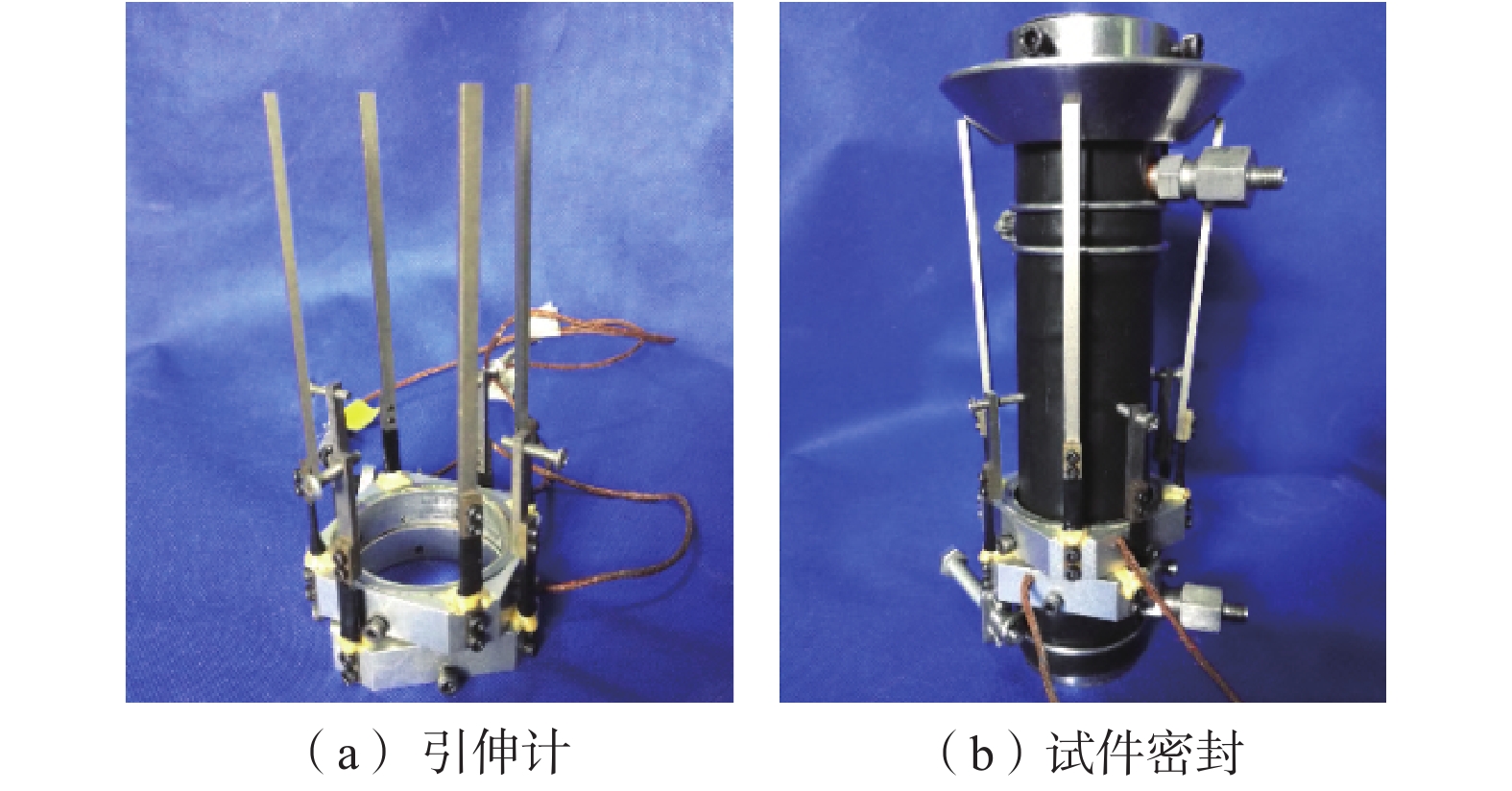

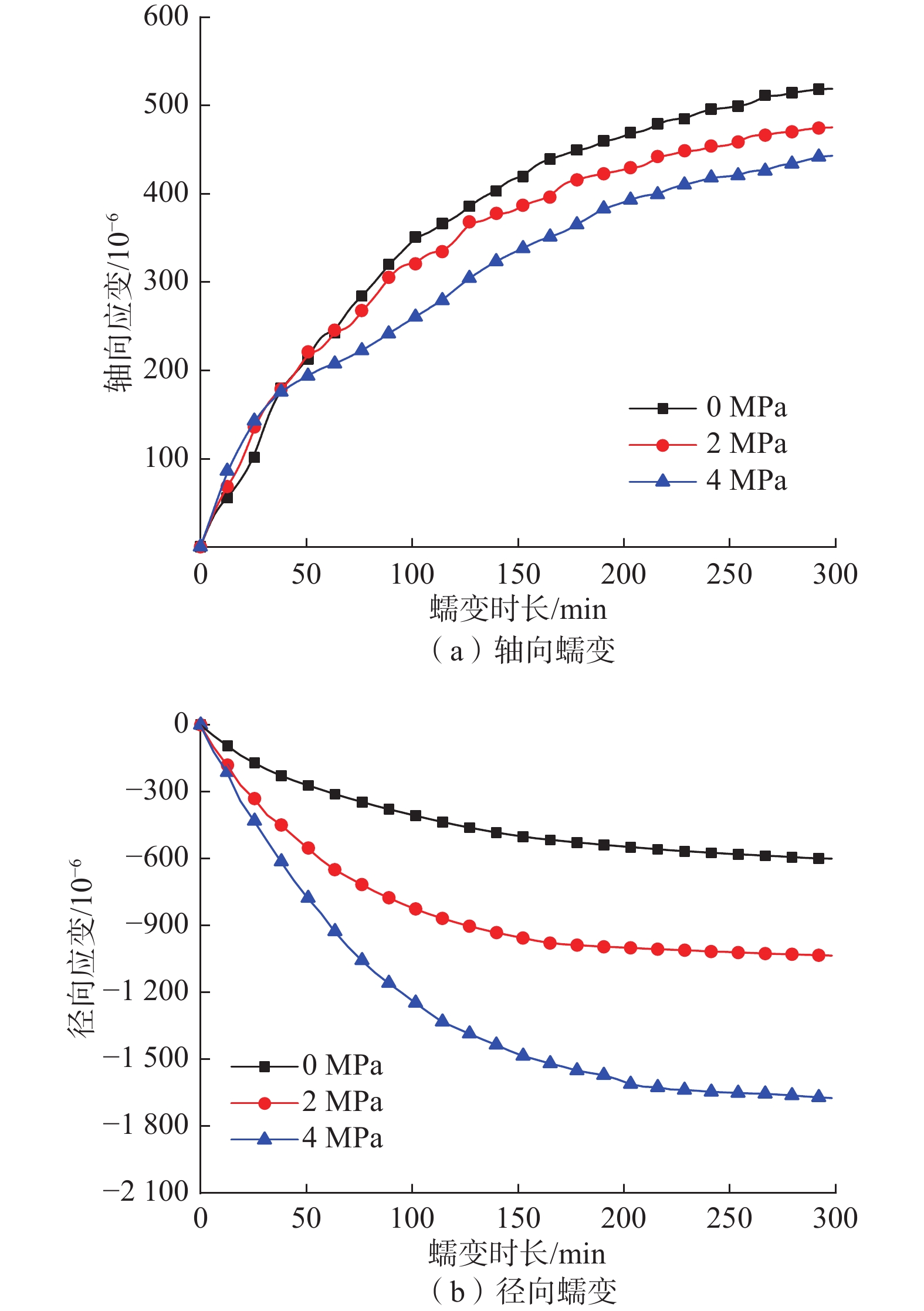

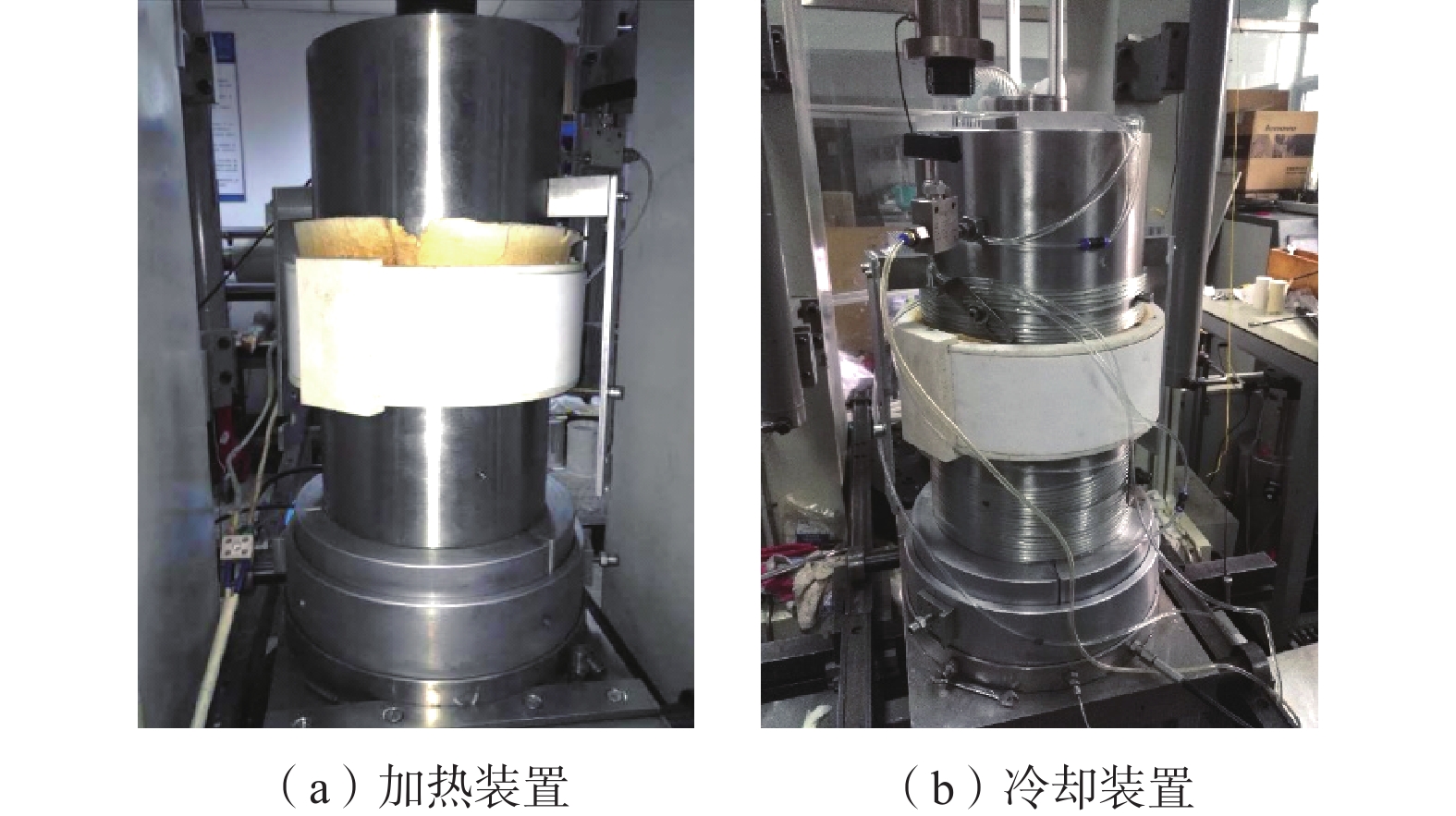

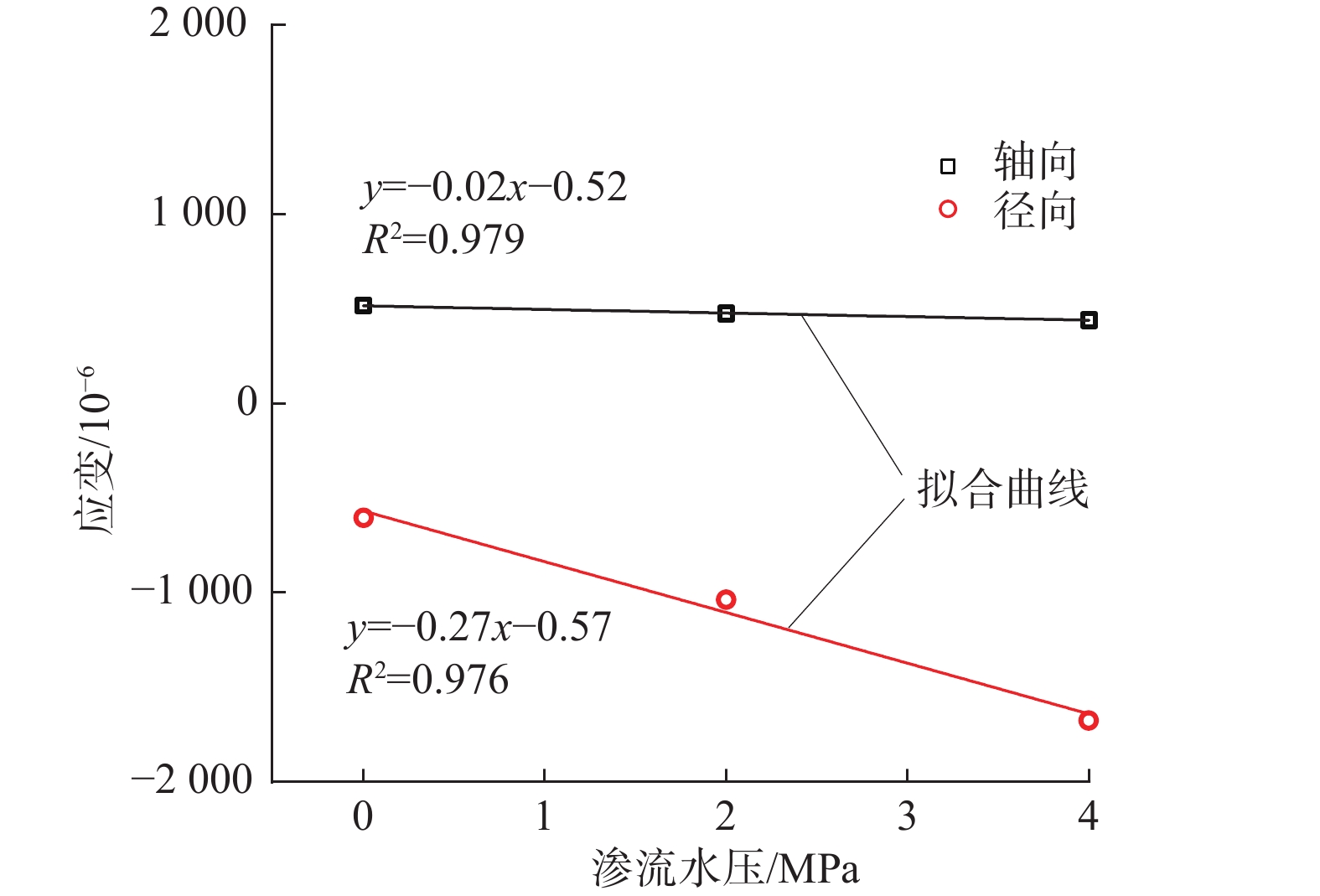

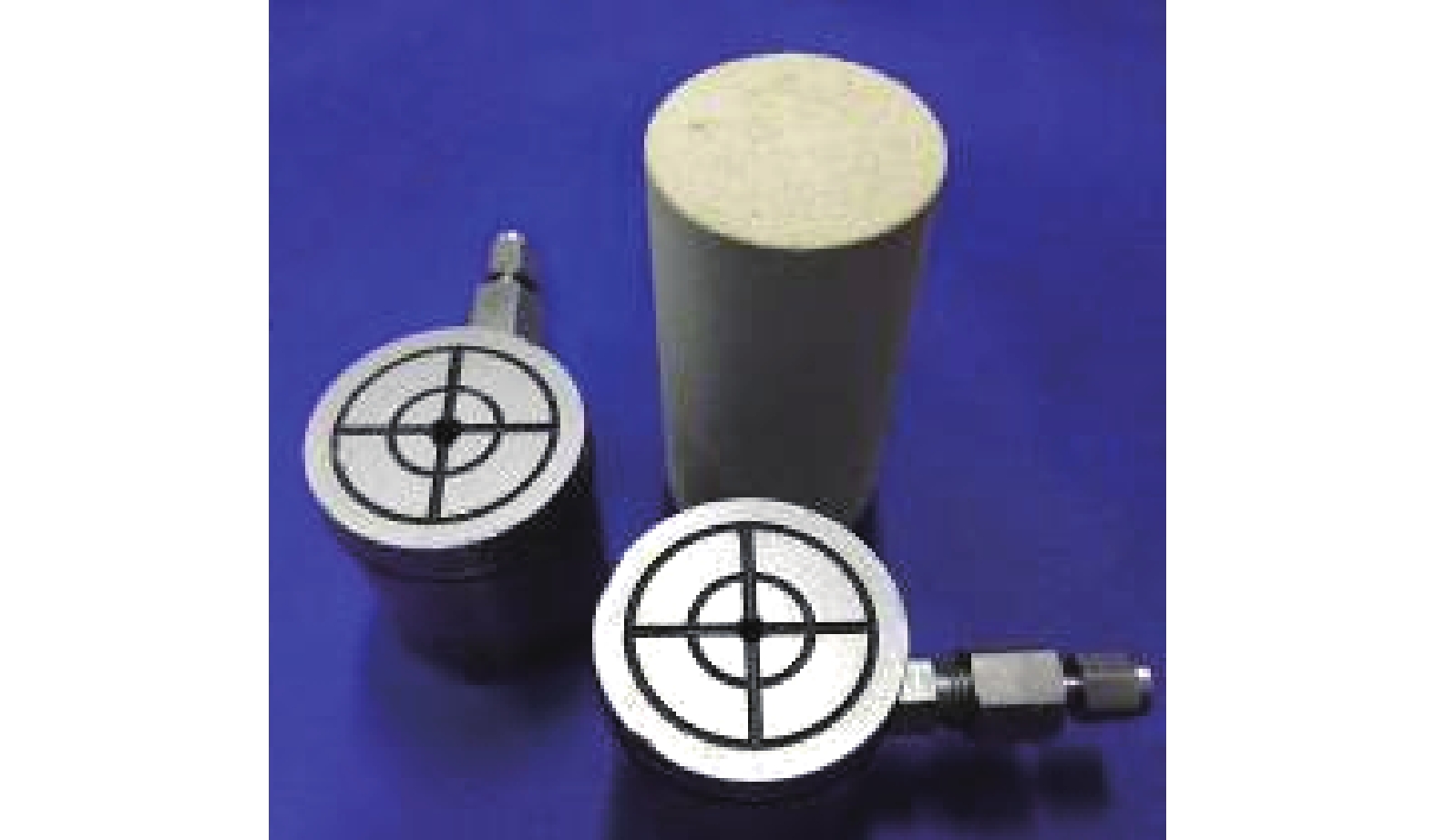

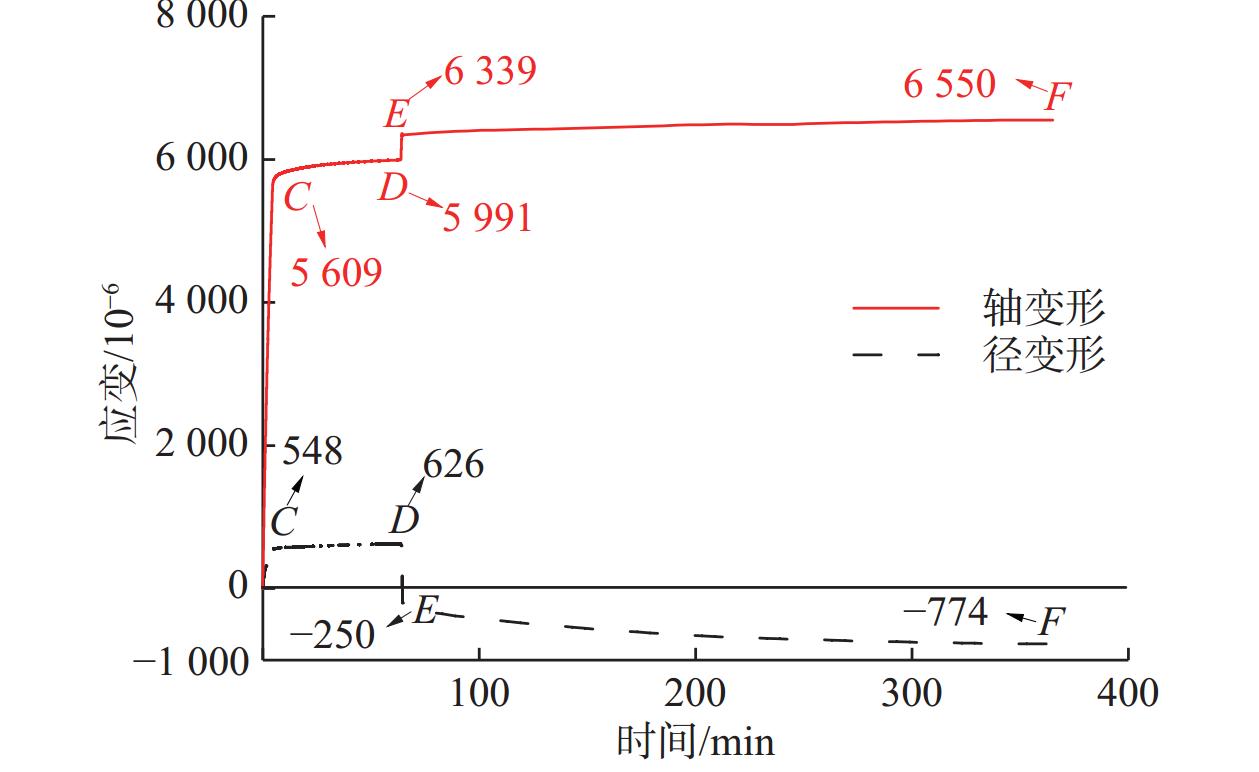

巷道/隧道开挖后环境因素（温度、水）及耦合作用会改变围岩的卸荷蠕变性质，从而对围岩稳定及施工现场的安全维护产生威胁。为研究温度、渗流水及耦合作用对砂岩卸荷蠕变特性的影响，采用自主设计的温度控制系统和改良的孔隙水传导试件密封装置，开展了砂岩试件（φ50 mm×100 mm）三轴卸荷蠕变试验。研究发现：（1）在卸围压后的300 min蠕变时长内，轴向压缩及径向扩容蠕变速度先逐渐增加后放缓，以径向蠕变为主。（2）温度降低（65 °C→30 °C）最终会导致干燥及饱和试件的轴向蠕变量增加，而径向蠕变量减小。（3）随着渗流水压增加，轴向蠕变量减小，渗流水压增加对开挖后轴向蠕变起到抑制作用；而径向蠕变量显著增加，扩容现象明显，渗流水压增加对径向蠕变起到促进作用。（4）随着渗流水压增加，轴向卸荷蠕变速率减小，径向卸荷蠕变速率增大。温度-渗流耦合作用下，卸荷蠕变速率曲线分为衰减阶段和稳定阶段，衰减阶段变形量占主导地位。径向蠕变速率高于轴向，且径向蠕变速率的波动幅度较小，趋于稳定的速度更快。研究结果可为深部地下工程围岩稳定评价提供参考。
Abstract:Environmental factors (such as temperature and water) and their coupling effects will change the unloading creep properties of surrounding rock after tunnel excavation, threatening the stability of surrounding rock and the safety maintenance of construction sites. To analyze the effects of temperature, seepage flow, and their coupling on the creep characteristics of sandstone unloading, the triaxial unloading creep test was carried out on the sandstone specimen (φ50 mm×100 mm) by using the self-designed temperature control system and the improved pore water conduction specimen sealing device. The results show that during the creep time of 300 min after unloading the confining stress, the axial compression and radial expansion creep speed increase gradually and then slow down. The strain is mainly radial creep. The decrease in temperature leads to the increase in axial creep deformation and the decrease in radial creep deformation of the dry and saturated specimens. With the increase in seepage water pressure, the axial strain reduces, and the seepage water pressure suppresses the axial creep deformation, while the radial strain increases significantly, and the expansion phenomenon is obvious. Seepage water pressure promotes radial creep deformation. With the increase of seepage water pressure, the axial unloading creep rate decreases and the radial unloading creep rate increases. Under the coupling effect of temperature and seepage, the creep rate curve of unloading is divided into the attenuation stage and the stable stage, and the deformation in the attenuation stage is dominant. The radial creep rate is higher than the axial creep rate, and the fluctuation amplitude of the radial creep rate is small, which reaches stability fast. This study can provide scientific information for the stability evaluation of surrounding rock in deep underground engineering.
-
Key words:
- excavation unloading /
- temperature /
- seepage /
- creep deformation characteristics
-
-
表 1 砂岩基本力学参数
Table 1. Basic mechanical parameters of sandstone
参数 黏聚力
/MPa内摩擦角
/（º）泊松比 弹性模量
/GPa单轴抗压强度
/MPa取值 20.27 28 0.25 31.2 47.99
下载: 导出CSV

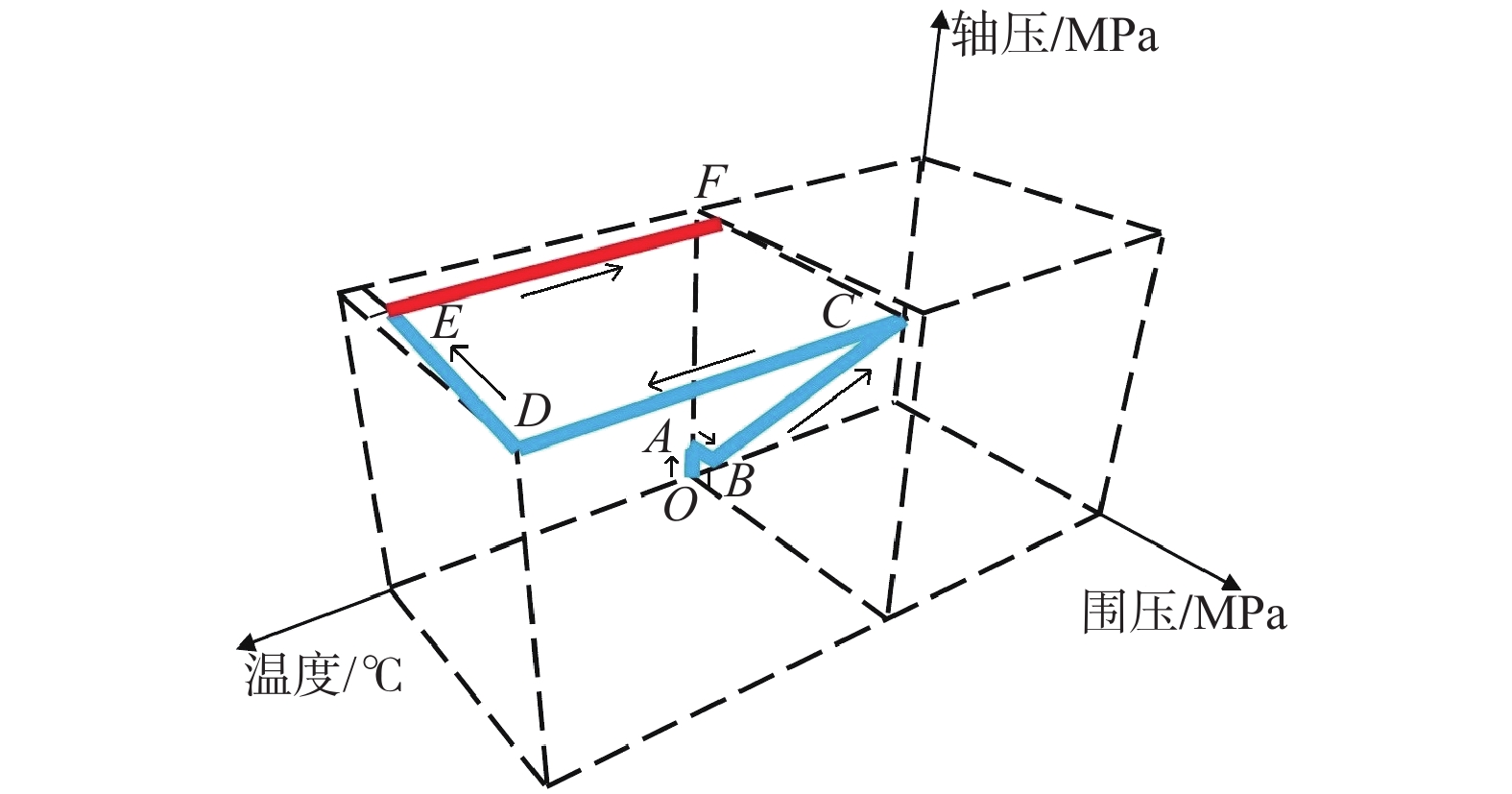

表 2 试验方案表
Table 2. Test schedule
试验名称 轴压/MPa 围压/MPa 渗流水压/MPa 温度/°C 试验1 30 30→5 干燥 65 试验2 30 30→5 干燥 65→30 试验3 30 30→5 0 （饱和水） 65→30 试验4 30 30→5 2 65→30 试验5 30 30→5 4 65→30 试验6 30 30→5 0 （饱和水） 65 试验7 — 30→5 — 65→30 注：—表示无。
下载: 导出CSV
-
[1] 孙钧. 岩土材料流变及其工程应用[M]. 北京:中国建筑工业出版社,2000. [SUN Jun. Rheology of geotechnical materials and their engineering applications[M]. Beijing:China Architecture and Building Press,2000. (in Chinese)]
SUN Jun. Rheology of geotechnical materials and their engineering applications[M]. Beijing: China Architecture and Building Press, 2000. （in Chinese）
[2] 张晓宇,毕焕军,曹峰,等. 渗流作用下黄土含水率变化特征及对隧道工程的影响[J]. 水文地质工程地质,2021,48(4):41 − 47. [ZHANG Xiaoyu,BI Huanjun,CAO Feng,et al. Characteristics of moisture content variation of loess under seepage and its influence on tunnel engineering[J]. Hydrogeology & Engineering Geology,2021,48(4):41 − 47. (in Chinese with English abstract)]
ZHANG Xiaoyu, BI Huanjun, CAO Feng, et al. Characteristics of moisture content variation of loess under seepage and its influence on tunnel engineering[J]. Hydrogeology & Engineering Geology, 2021, 48（4）: 41 − 47. （in Chinese with English abstract）
[3] 杨红伟,许江,聂闻,等. 渗流水压力分级加载岩石蠕变特性研究[J]. 岩土工程学报,2015,37(9):1613 − 1619. [YANG Hongwei,XU Jiang,NIE Wen,et al. Experimental study on creep of rocks under step loading of seepage pressure[J]. Chinese Journal of Geotechnical Engineering,2015,37(9):1613 − 1619. (in Chinese with English abstract)] doi: 10.11779/CJGE201509007
YANG Hongwei, XU Jiang, NIE Wen, et al. Experimental study on creep of rocks under step loading of seepage pressure[J]. Chinese Journal of Geotechnical Engineering, 2015, 37（9）: 1613 − 1619. （in Chinese with English abstract） doi: 10.11779/CJGE201509007
[4] 何峰,李彬,王振伟,等. 煤岩渗流-蠕变耦合试验研究[J]. 金属矿山,2016(8):63 − 68. [HE Feng,LI Bin,WANG Zhenwei,et al. Experimental study on seepage-creep coupling of coal rock[J]. Metal Mine,2016(8):63 − 68. (in Chinese with English abstract)] doi: 10.3969/j.issn.1001-1250.2016.08.013
HE Feng, LI Bin, WANG Zhenwei, et al. Experimental study on seepage-creep coupling of coal rock[J]. Metal Mine, 2016（8）: 63 − 68. （in Chinese with English abstract） doi: 10.3969/j.issn.1001-1250.2016.08.013
[5] ZHAO Zhihong. Thermal influence on mechanical properties of granite:A microcracking perspective[J]. Rock Mechanics and Rock Engineering,2016,49(3):747 − 762. doi: 10.1007/s00603-015-0767-1
[6] 宋勇军,孟凡栋,毕冉,等. 冻融岩石蠕变特性及孔隙结构演化特征研究[J]. 水文地质工程地质,2023,50(6):69 − 79. [SONG Yongjun,MENG Fandong,BI Ran,et al. Research on creep characteristics and pore structure evolution characteristics of freezing-thawing rocks[J]. Hydrogeology & Engineering Geology,2023,50(6):69 − 79. (in Chinese with English abstract)]
SONG Yongjun, MENG Fandong, BI Ran, et al. Research on creep characteristics and pore structure evolution characteristics of freezing-thawing rocks[J]. Hydrogeology & Engineering Geology, 2023, 50（6）: 69 − 79. （in Chinese with English abstract）
[7] 张强勇,张龙云,向文,等. 考虑温度效应的片麻状花岗岩三轴蠕变试验研究[J]. 岩土力学,2017,38(9):2507 − 2514. [ZHANG Qiangyong,ZHANG Longyun,XIANG Wen,et al. Triaxial creep test of gneissic granite considering thermal effect[J]. Rock and Soil Mechanics,2017,38(9):2507 − 2514. (in Chinese with English abstract)]
ZHANG Qiangyong, ZHANG Longyun, XIANG Wen, et al. Triaxial creep test of gneissic granite considering thermal effect[J]. Rock and Soil Mechanics, 2017, 38（9）: 2507 − 2514. （in Chinese with English abstract）
[8] 蔡婷婷,冯增朝,姜玉龙,等. 不同温度应力下煤体蠕变中的渗流规律研究[J]. 岩石力学与工程学报. 2018,37(增刊2):3898 − 3904. [CAI Tingting,FENG Zengchao,JIANG Yulong,et al. Seepage evolution in coal creep under different temperatures and different stresses[J]. Chinese Journal of Rock Mechanics and Engineering,2018,37(Sup 2):3898 − 3904. (in Chinese with English abstract)]
CAI Tingting, FENG Zengchao, JIANG Yulong, et al. Seepage evolution in coal creep under different temperatures and different stresses[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37（Sup 2）: 3898 − 3904. （in Chinese with English abstract）
[9] HÜPERS A,KOPF A J. The thermal influence on the consolidation state of underthrust sediments from the Nankai margin and its implications for excess pore pressure[J]. Earth and Planetary Science Letters,2009,286(1/2):324 − 332.
[10] MONFARED M,SULEM J,DELAGE P,et al. A laboratory investigation on thermal properties of the opalinus claystone[J]. Rock Mechanics and Rock Engineering,2011,44(6):735 − 747. doi: 10.1007/s00603-011-0171-4
[11] 陈卫忠,龚哲,于洪丹,等. 黏土岩温度-渗流-应力耦合特性试验与本构模型研究进展[J]. 岩土力学,2015,36(5):1217 − 1238. [CHEN Weizhong,GONG Zhe,YU Hongdan,et al. Review of thermo-hydro-mechanical coupled tests and constitutive models of clays[J]. Rock and Soil Mechanics,2015,36(5):1217 − 1238. (in Chinese with English abstract)]
CHEN Weizhong, GONG Zhe, YU Hongdan, et al. Review of thermo-hydro-mechanical coupled tests and constitutive models of clays[J]. Rock and Soil Mechanics, 2015, 36（5）: 1217 − 1238. （in Chinese with English abstract）
[12] LIANG Chao,LIU Jianfeng,CHEN Zhaowei,et al. Study on salt rock creep characteristics of wellbore under high temperature and high pressure[J]. Journal of Porous Media,2022,25(3):51 − 69. doi: 10.1615/JPorMedia.2021040126
[13] 李祥春,张良,赵艺良. 常规三轴压力下含瓦斯煤蠕变-渗流演化规律[J]. 工程科学与技术,2018,50(4):55 − 62. [LI Xiangchun,ZHANG Liang,ZHAO Yiliang. Evolution of gas-filled coal creep-seepage under conventional triaxial compression[J]. Advanced Engineering Sciences,2018,50(4):55 − 62. (in Chinese with English abstract)]
LI Xiangchun, ZHANG Liang, ZHAO Yiliang. Evolution of gas-filled coal creep-seepage under conventional triaxial compression[J]. Advanced Engineering Sciences, 2018, 50（4）: 55 − 62. （in Chinese with English abstract）
[14] 江宗斌,姜谙男,李宏,等. 加卸载条件下石英岩蠕变–渗流耦合规律试验研究[J]. 岩土工程学报,2017,39(10):1832 − 1841. [JIANG Zongbin,JIANG Annan,LI Hong,et al. Creep-seepage coupling laws of quartzite under cyclic loading-unloading conditions[J]. Chinese Journal of Geotechnical Engineering,2017,39(10):1832 − 1841. (in Chinese with English abstract)] doi: 10.11779/CJGE201710011
JIANG Zongbin, JIANG Annan, LI Hong, et al. Creep-seepage coupling laws of quartzite under cyclic loading-unloading conditions[J]. Chinese Journal of Geotechnical Engineering, 2017, 39（10）: 1832 − 1841. （in Chinese with English abstract） doi: 10.11779/CJGE201710011
[15] TANG Hao,WANG Dongpo,HUANG Runqiu,et al. A new rock creep model based on variable-order fractional derivatives and continuum damage mechanics[J]. Bulletin of Engineering Geology and the Environment,2018,77(1):375 − 383. doi: 10.1007/s10064-016-0992-1
[16] LYU Cheng,LIU Jianfeng,REN Yi,et al. Study on very long-term creep tests and nonlinear creep-damage constitutive model of salt rock[J]. International Journal of Rock Mechanics and Mining Sciences,2021,146:104873. doi: 10.1016/j.ijrmms.2021.104873
[17] 王力,王世梅,李高,等. 考虑渗流与蠕变耦合作用的水库滑坡变形数值分析[J]. 工程科学与技术,2020,52(1):66 − 74. [WANG Li,WANG Shimei,LI Gao,et al. Numerical analysis on deformation of reservoir landslides considering coupling effect of seepage and creep[J]. Advanced Engineering Sciences,2020,52(1):66 − 74. (in Chinese with English abstract)]
WANG Li, WANG Shimei, LI Gao, et al. Numerical analysis on deformation of reservoir landslides considering coupling effect of seepage and creep[J]. Advanced Engineering Sciences, 2020, 52（1）: 66 − 74. （in Chinese with English abstract）
[18] QIAN Qihu,QI Chengzhi,WANG Mingyang. Dynamic strength of rocks and physical nature of rock strength[J]. Journal of Rock Mechanics and Geotechnical Engineering,2009,1(1):1 − 10. doi: 10.3724/SP.J.1235.2009.00001
[19] 朱杰兵,汪斌,杨火平,等. 页岩卸荷流变力学特性的试验研究[J]. 岩石力学与工程学报,2007,26(增刊2):4552 − 4556. [ZHU Jiebing,WANG Bin,YANG Huoping,et al. Experimental study on rheological mechanical properties of shale under unloading condition[J]. Chinese Journal of Rock Mechanics and Engineering,2007,26(Sup 2):4552 − 4556. (in Chinese with English abstract)]
ZHU Jiebing, WANG Bin, YANG Huoping, et al. Experimental study on rheological mechanical properties of shale under unloading condition[J]. Chinese Journal of Rock Mechanics and Engineering, 2007, 26（Sup 2）: 4552 − 4556. （in Chinese with English abstract）
[20] 黄兴,刘泉声,康永水,等. 砂质泥岩三轴卸荷蠕变试验研究[J]. 岩石力学与工程学报,2016,35(增刊1):2653 − 2662. [HUANG Xing,LIU Quansheng,KANG Yongshui,et al. Triaxial unloading creep experimental study of sandy mudstone[J]. Chinese Journal of Rock Mechanics and Engineering,2016,35(Sup 1):2653 − 2662. (in Chinese with English abstract)]
HUANG Xing, LIU Quansheng, KANG Yongshui, et al. Triaxial unloading creep experimental study of sandy mudstone[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35（Sup 1）: 2653 − 2662. （in Chinese with English abstract）
[21] 侯会明,胡大伟,周辉,等. 考虑开挖损伤的高放废物地质处置库温度-渗流-应力耦合数值模拟方法[J]. 岩土力学,2020,41(3):1056 − 1064. [HOU Huiming,HU Dawei,ZHOU Hui,et al. Thermo-hydro-mechanical coupling numerical simulation method for high-level waste geological repository considering excavation damage[J]. Rock and Soil Mechanics,2020,41(3):1056 − 1064. (in Chinese with English abstract)]
HOU Huiming, HU Dawei, ZHOU Hui, et al. Thermo-hydro-mechanical coupling numerical simulation method for high-level waste geological repository considering excavation damage[J]. Rock and Soil Mechanics, 2020, 41（3）: 1056 − 1064. （in Chinese with English abstract）
[22] 侯公羽,李小瑞,张振铎,等. 使用小型围岩试件模拟与再现巷道围岩开挖卸荷过程的试验系统[J]. 岩石力学与工程学报,2017,36(9):2136 − 2145. [HOU Gongyu,LI Xiaorui,ZHANG Zhenduo,et al. Experimental system for simulating excavation unloading process of rock around roadway by using small cylindrical hollow specimen[J]. Chinese Journal of Rock Mechanics and Engineering,2017,36(9):2136 − 2145. (in Chinese with English abstract)]
HOU Gongyu, LI Xiaorui, ZHANG Zhenduo, et al. Experimental system for simulating excavation unloading process of rock around roadway by using small cylindrical hollow specimen[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36（9）: 2136 − 2145. （in Chinese with English abstract）
[23] 中华人民共和国住房和城乡建设部. 工程岩体试验方法标准: GB/T 50266—2013[S]. 北京: 中国计划出版社, 2013. [Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Standard for test methods of engineering rock mass: GB/T 50266—2013[S]. Beijing: China Planning Press, 2013.(in Chinese)]
Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Standard for test methods of engineering rock mass: GB/T 50266—2013[S]. Beijing: China Planning Press, 2013.（in Chinese）
-
