Variations in pore structures and permeabilities of the ion-adsorption rare earth ores in the zones with different weathering degree before and after leaching
-
摘要:

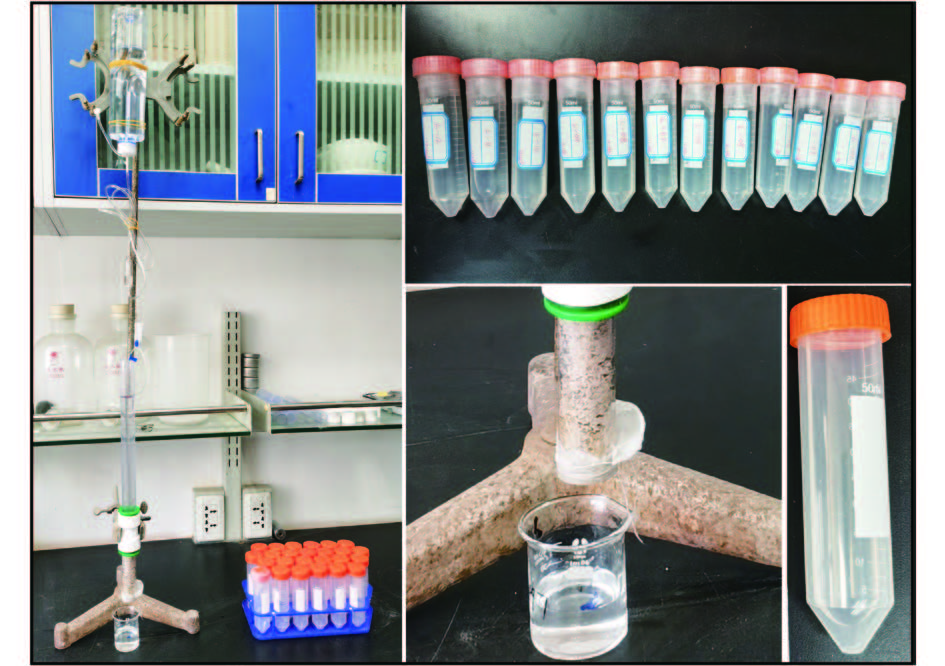

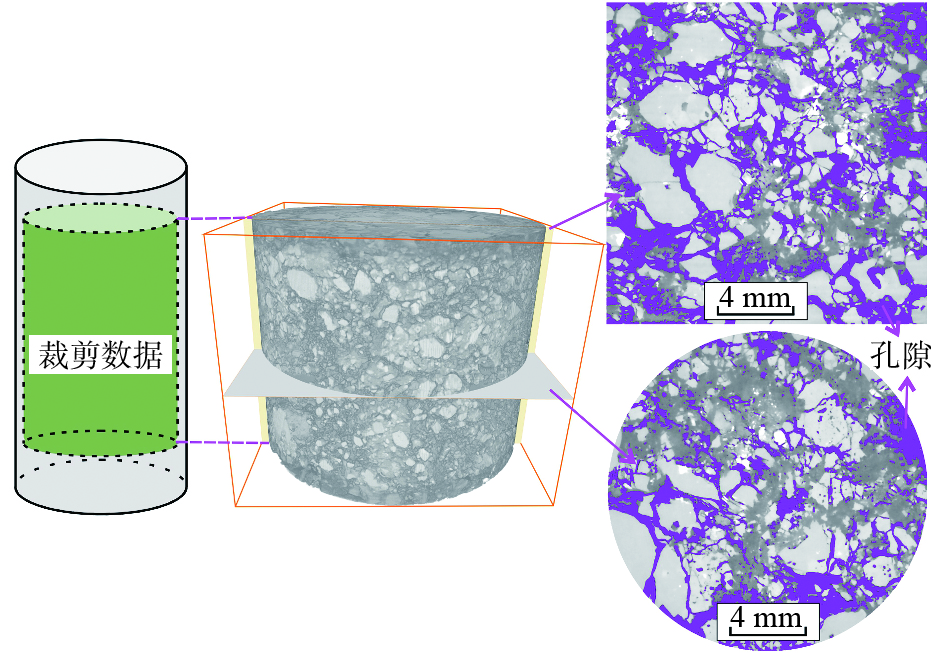

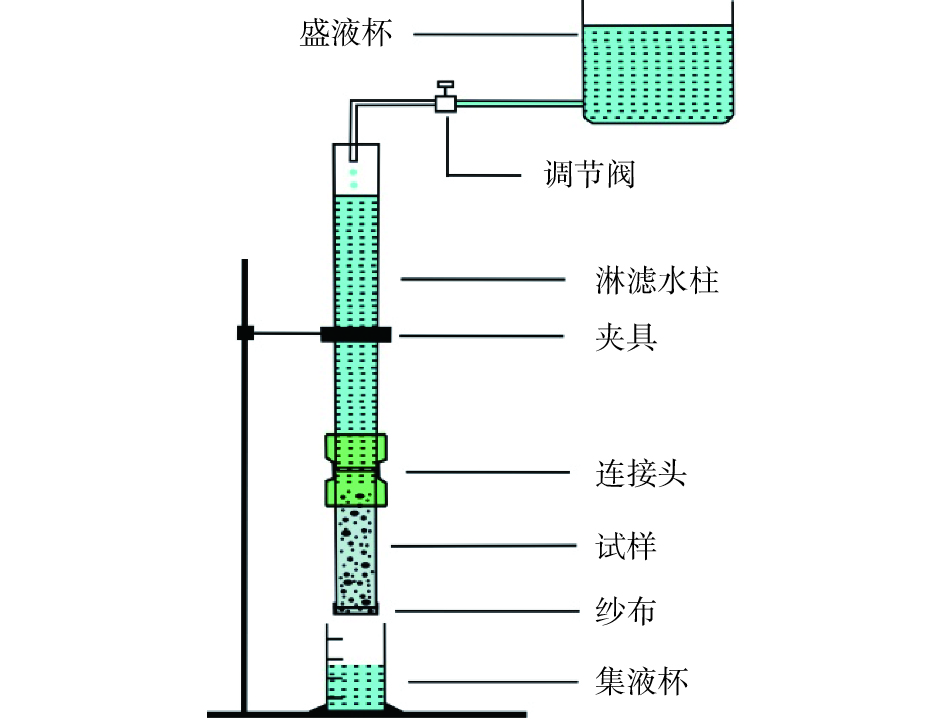

离子型稀土矿是典型的风化壳淋积型稀土矿，这类稀土矿浸出前后渗透性变化是反映稀土矿浸出率的重要指标之一，孔隙结构是控制其渗透系数的关键因素。以往对浸出前后稀土矿孔隙结构和渗透性研究主要集中于风化程度和丰度相对较高的全风化带稀土矿，对其他风化带稀土矿的研究较少。随着稀土资源日渐枯竭，其他风化带稀土矿的开发已受到产业部门的高度重视。研究以江西足洞矿区未开采段残积土、全风化带和强风化带内的原状稀土矿试样为研究对象，通过模拟原地浸矿试验，测试其浸出前后渗透系数，采用X射线计算机层析扫描技术获取浸出前后试样结构，采用三维成像技术构建其三维孔隙结构、提取孔隙结构参数，进而定量分析不同风化程度稀土矿浸出前后孔隙结构参数和渗透系数变化规律。结果显示：（1）浸出后，稀土矿渗透系数和孔隙结构参数中的孔隙度、连通性及平均配位数变化率随风化程度降低呈现减小趋势。其中，强风化带稀土矿的渗透系数和孔隙结构参数变化率最小，反映在丰度相近时，强风化带稀土矿较残积土稀土矿的浸出率更高；（2）浸出前后颗粒级配和矿物成分变化特征显示，不同风化带稀土矿浸出前后孔隙结构和渗透性变化率差异的内在机理是长石及云母颗粒分解作用、离子交换作用强度和团粒分散程度的差异以及由此导致的矿物成分和颗粒级配变化程度的差异。研究结果可为类似离子型稀土矿的充分开发利用提供参考。
Abstract:Ion-adsorption rare earth (RE) ore is a typical kind of rare earth ore derived from the weathering crust of igneous rocks. Variation in permeability of ion-adsorption rare earth ore is one of the indicative factors of mining efficiency. Permeability of the RE ore is controlled by its pore structure. Previous studies mainly kept on the RE ores in completely weathered zones, little on those in the zones with other weathering degrees. With the exhaustion of rare earth resources in the completely weathered zone, the extraction of the RE ore from the zones with other weathering degrees has gained more attention from the industrial sectors. This study shows a study on variations in pore structures and permeabilities of the RE ores in the zones with different weathering degrees, including the residual soil and completely weathered and highly weathered zones. The undisturbed samples were taken from an un-mining section of the Zudong mining area in Jiangxi province. Simulated in situ leaching experiments were conducted on the samples to measure their permeability coefficients before and after leaching. X-ray computer tomography scanning techniques were applied to the capture structure of the samples before and after leaching, and image processing techniques were used to construct their three-dimensional pore structure and extract their pore structure parameters. Variations in pore structure parameters and permeability coefficients of the RE ores from the zones with different weathering degrees were then carried out by a quantitatively comparative analysis. The results indicate that (1) the variation rate in permeability coefficient, and the pore structure parameters, including porosity, connectivity, and average coordination number, decrease with the decrease in weathering degree. Notably, these variation rates for the RE ores in the highly weathered zone are the smallest, indicating the RE ores in this zone are more leachable than those in residual soil if their abundance is not much different. (2) The mechanism leading to their differences was further investigated by the analyses of particle size distribution and mineralogical composition before and after leaching. The analysis results indicate that the differences in their variation of pore structure and permeability among the RE ore in the zones with different weathering degrees are caused by the differences in followings during leaching, including the chemical decomposition of plagioclase and mica, ion exchange, and disaggregation.The results can provide reference for the full development and utilization of similar ion-adsorption rare earth ore.
-
-

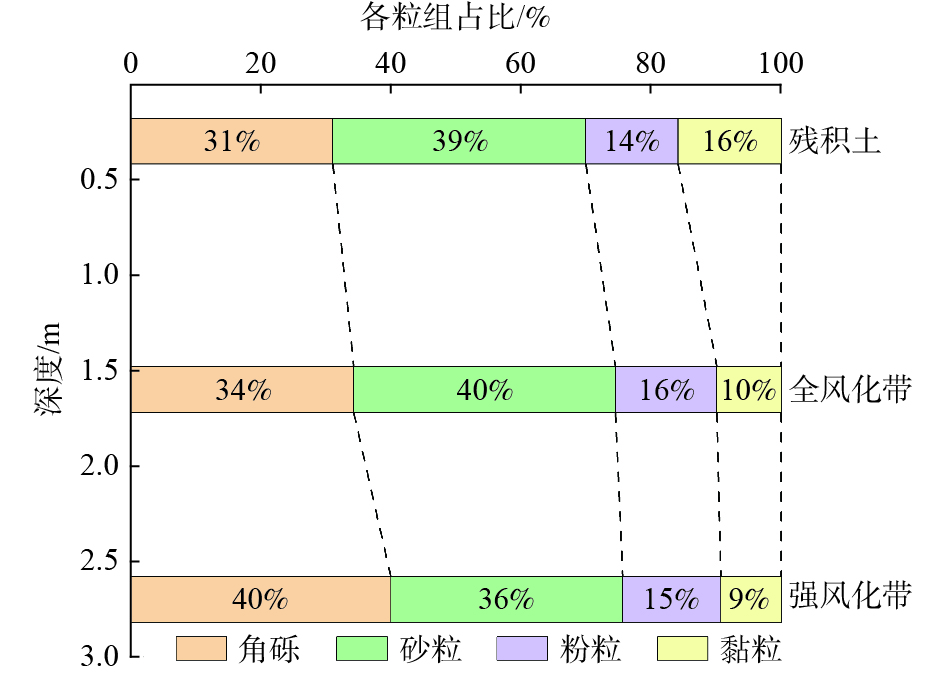

表 1 稀土矿试样的基本物理性质
Table 1. Physical properties of the RE ore samples
编号 试样 天然含水率/% 孔隙度/% 干密度/（kN·m−3） 比重 1-1 残积土 7.33 22.58 17.04 2.71 2-1 全风化带 7.42 21.45 17.16 2.71 3-1 强风化带 7.42 21.07 16.68 2.71
下载: 导出CSV
表 2 稀土矿试样浸出前后矿物组成
Table 2. Mineral composition of the RE ore samples before and after leaching
编号 试样 全土矿物组成/% 石英 长石 云母 黏土矿物 1-1 残积土 浸矿前 52.5 22.7 11.3 13.5 浸矿后 52.5 20.4 9.9 17.2 2-1 全风化带 浸矿前 46.5 28.6 12.8 12.1 浸矿后 49.3 24.5 12.0 14.2 3-1 强风化带 浸矿前 41.1 31.4 16.3 11.2 浸矿后 45.2 28.5 12.4 13.9
下载: 导出CSV
-
[1] 周贺鹏,谢帆欣,张永兵,等. 离子型稀土矿地球化学特征与物性研究[J]. 稀有金属,2022,46(1):78 − 86. [ZHOU Hepeng,XIE Fanxin,ZHANG Yongbing,et al. Geochemical characteristics and physical properties of ion adsorption type rare earth ore[J]. Chinese Journal of Rare Metals,2022,46(1):78 − 86. (in Chinese with English abstract)]
ZHOU Hepeng, XIE Fanxin, ZHANG Yongbing, et al. Geochemical characteristics and physical properties of ion adsorption type rare earth ore[J]. Chinese Journal of Rare Metals, 2022, 46（1）: 78 − 86. （in Chinese with English abstract）
[2] 雒恺,马金龙. 花岗岩风化过程中稀土元素迁移富集机制研究进展[J]. 地球科学进展,2022,37(7):692 − 708. [LUO Kai,MA Jinlong. Recent advances in migration and enrichment of rare earth elements during chemical weathering of granite[J]. Advances in Earth Science,2022,37(7):692 − 708. (in Chinese with English abstract)] doi: 10.11867/j.issn.1001-8166.2022.7.dqkxjz202207003
LUO Kai, MA Jinlong. Recent advances in migration and enrichment of rare earth elements during chemical weathering of granite[J]. Advances in Earth Science, 2022, 37（7）: 692 − 708. （in Chinese with English abstract） doi: 10.11867/j.issn.1001-8166.2022.7.dqkxjz202207003
[3] MOLDOVEANU G A,PAPANGELAKIS V G. Recovery of rare earth elements adsorbed on clay minerals:I. Desorption mechanism[J]. Hydrometallurgy,2012,117:71 − 78.
[4] BORST A M,SMITH M P,FINCH A A,et al. Adsorption of rare earth elements in regolith-hosted clay deposits[J]. Nature Communications,2020,11(1):4386. doi: 10.1038/s41467-020-17801-5
[5] HE Zhengyan,ZHANG Zhenyue,YU Junxia,et al. Process optimization of rare earth and aluminum leaching from weathered crust elution-deposited rare earth ore with compound ammonium salts[J]. Journal of Rare Earths,2016,34(4):413 − 419. (in Chinese with English abstract doi: 10.1016/S1002-0721(16)60042-X
[6] WANG Xiaojun,ZHUO Yulong,DENG Shuqiang,et al. Experimental research on the impact of ion exchange and infiltration on the microstructure of rare earth orebody[J]. Advances in Materials Science and Engineering,2017,2017:4762858.
[7] 王晓军,李永欣,黄广黎,等. 离子吸附型稀土浸矿过程渗透系数与孔隙率关系研究[J]. 稀土,2017,38(5):47 − 55. [WANG Xiaojun,LI Yongxin,HUANG Guangli,et al. Research of permeability and porosity in ion-type rare earth leaching process[J]. Chinese Rare Earths,2017,38(5):47 − 55. (in Chinese with English abstract)]
WANG Xiaojun, LI Yongxin, HUANG Guangli, et al. Research of permeability and porosity in ion-type rare earth leaching process[J]. Chinese Rare Earths, 2017, 38（5）: 47 − 55. （in Chinese with English abstract）
[8] ZHAO Kui,ZHUO Yulong,WANG Xiaojun,et al. Aggregate evolution mechanism during ion-adsorption rare earth ore leaching[J]. Advances in Materials Science and Engineering,2018,2018:4206836.
[9] YIN Shenghua,CHEN Xun,YAN Rongfu,et al. Pore structure characterization of undisturbed weathered crust elution-deposited rare earth ore based on X-ray micro-CT scanning[J]. Minerals,2021,11(3):236. doi: 10.3390/min11030236
[10] 付伟,赵芹,罗鹏,等. 中国南方离子吸附型稀土矿床成矿类型及其母岩控矿因素探讨[J]. 地质学报,2022,96(11):3901 − 3925. [FU Wei,ZHAO Qin,LUO Peng,et al. Mineralization diversity of ion-adsorption type REE deposit in Southern China and the critical influence of parent rocks[J]. Acta Geologica Sinica,2022,96(11):3901 − 3925. (in Chinese with English abstract)] doi: 10.3969/j.issn.0001-5717.2022.11.016
FU Wei, ZHAO Qin, LUO Peng, et al. Mineralization diversity of ion-adsorption type REE deposit in Southern China and the critical influence of parent rocks[J]. Acta Geologica Sinica, 2022, 96（11）: 3901 − 3925. （in Chinese with English abstract） doi: 10.3969/j.issn.0001-5717.2022.11.016
[11] 王运,赵碧波,杨兰,等. 赣南足洞特大离子吸附型重稀土矿床地球化学特征及成矿意义[J]. 稀土,2023,44(6):51 − 63. [WANG Yun, ZHAO Bibo, YANG Lan, et al. Geochemical characteristics and metallogenic implications of extra large-scale ion adsorption type heavy rare earth deposit in Zudong, southern Jiangxi[J]. Chinese Rare Earths,2023,44(6):51 − 63. (in Chinese with English abstract)]
WANG Yun, ZHAO Bibo, YANG Lan, et al. Geochemical characteristics and metallogenic implications of extra large-scale ion adsorption type heavy rare earth deposit in Zudong, southern Jiangxi[J]. Chinese Rare Earths, 2023, 44（6）: 51 − 63. （in Chinese with English abstract）
[12] 池汝安,刘雪梅. 风化壳淋积型稀土矿开发的现状及展望[J]. 中国稀土学报,2019,37(2):129 − 140. [CHI Ru’an, LIU Xuemei. Prospect and development of weathered crust elution-deposited rare earth ore[J]. Journal of the Chinese Society of Rare Earths,2019,37(2):129 − 140. (in Chinese with English abstract)]
CHI Ru’an, LIU Xuemei. Prospect and development of weathered crust elution-deposited rare earth ore[J]. Journal of the Chinese Society of Rare Earths, 2019, 37（2）: 129 − 140. （in Chinese with English abstract）
[13] 柯兆华,邱小英,郭安,等. 离子型稀土矿原地浸矿影响因素研究[J]. 稀有金属与硬质合金,2021,49(4):1 − 5. [KE Zhaohua, QIU Xiaoying, GUO An, et al. Study on influencing factors of in-situ leaching of ionic rare earth ore[J]. Rare Metals and Cemented Carbides,2021,49(4):1 − 5. (in Chinese with English abstract)]
KE Zhaohua, QIU Xiaoying, GUO An, et al. Study on influencing factors of in-situ leaching of ionic rare earth ore[J]. Rare Metals and Cemented Carbides, 2021, 49（4）: 1 − 5. （in Chinese with English abstract）
[14] LI Liang,WANG Li,LIU Qiaochu. Effects of salinity and pH on clay colloid aggregation in ion-adsorption-type rare earth ore suspensions by light scattering analysis[J]. Minerals,2022,13(1):38. doi: 10.3390/min13010038
[15] 解朝阳,张巍,姚东方,等. 基于最大球算法定量表征土体空间孔隙网络[J]. 工程地质学报,2020,28(1):60 − 68. [Xie Chaoyang,Zhang Wei,Yao Dongfang, et al. Quantitative characterization of spatial pore network of soils based on maximal-balls algorithm[J]. Journal of Engineering Geology,2020,28(1):60 − 68. (in Chinese with English abstract)]
Xie Chaoyang, Zhang Wei, Yao Dongfang, et al. Quantitative characterization of spatial pore network of soils based on maximal-balls algorithm[J]. Journal of Engineering Geology, 2020, 28（1）: 60 − 68. （in Chinese with English abstract）
[16] CHEN Lingkang,JIN Xiongwei,CHEN Haixia,et al. Grain size distribution and clay mineral distinction of rare earth ore through different methods[J]. Minerals,2020,10(4):353. doi: 10.3390/min10040353
[17] 李广信,张丙印,于玉贞. 土力学[M]. 3版. 北京:清华大学出版社,2022. [LI Guangxin,ZHANG Bingyin,YU Yuzhen. Soil mechanics[M]. 3rd ed. Beijing:Tsinghua University Press,2022. (in Chinese )]
LI Guangxin, ZHANG Bingyin, YU Yuzhen. Soil mechanics[M]. 3rd ed. Beijing: Tsinghua University Press, 2022. （in Chinese ）
[18] XIAO Yanfei,GAO Guohua,HUANG Li,et al. A discussion on the leaching process of the ion-adsorption type rare earth ore with the electrical double layer model[J]. Minerals Engineering,2018,120:35 − 43. doi: 10.1016/j.mineng.2018.02.015
[19] WILSON G V. Mechanisms of ephemeral gully erosion caused by constant flow through a continuous soil-pipe[J]. Earth Surface Processes and Landforms,2009,34(14):1858 − 1866. doi: 10.1002/esp.1869
[20] 刘德峰,张臻悦,池汝安. 风化壳淋积型稀土矿原地浸出微观渗流机制[J]. 稀土,2020,41(4):1 − 11. [LIU Defeng,ZHANG Zhenyue,CHI Ru’an. Microscopic seepage mechanism during in-situ leaching of weathered crust elution-deposited rare earth ores[J]. Chinese Rare Earths,2020,41(4):1 − 11. (in Chinese with English abstract)]
LIU Defeng, ZHANG Zhenyue, CHI Ru’an. Microscopic seepage mechanism during in-situ leaching of weathered crust elution-deposited rare earth ores[J]. Chinese Rare Earths, 2020, 41（4）: 1 − 11. （in Chinese with English abstract）
[21] 戴传山,祁芸芝,雷海燕,等. 悬浮微小颗粒对多孔介质渗流特性影响的实验研究[J]. 水文地质工程地质,2016,43(6):1 − 6. [DAI Chuanshan,QI Yunzhi,LEI Haiyan,et al. Deposition effect of suspended microparticle on the local permeability in porous media[J]. Hydrogeology & Engineering Geology,2016,43(6):1 − 6. (in Chinese with English abstract)]
DAI Chuanshan, QI Yunzhi, LEI Haiyan, et al. Deposition effect of suspended microparticle on the local permeability in porous media[J]. Hydrogeology & Engineering Geology, 2016, 43（6）: 1 − 6. （in Chinese with English abstract）
-
