宁夏地区咸水层CO<sub>2</sub>封存选区及潜力预测

杨川枫; 刘廷; 程国强; 刁玉杰; 马鑫; 王楠; 李凤洋; 杨凌雪; 马晶; 虎亭; 孙建; 任建国

doi:10.16030/j.cnki.issn.1000-3665.202403013

宁夏地区咸水层CO₂封存选区及潜力预测

1.
宁夏回族自治区水文环境地质调查院，宁夏银川　750021

2.
中国地质调查局水文地质环境地质调查中心, 天津　300304

基金项目: 宁夏回族自治区财政项目（NXCZ20220202）；中国地质调查局地质调查项目（DD20221818）

详细信息

作者简介: 杨川枫（1988—），男，本科，工程师，主要从事水文地质、地质碳储探究。E-mail：13804829831@163.com

通讯作者: 刘廷（1990—），男，硕士，高级工程师，主要从事深部地下空间储气储能、碳封存研究。E-mail：liuting@mail.cgs.gov.cn

中图分类号: X701；X141

收稿日期: 2024-03-06

修回日期: 2024-05-10

刊出日期: 2024-07-15

Potential prediction and storage area selection of CO₂ geological storage in deep saline aquifers in Ningxia region

1.
Institute of Hydrogeology and Environmental Geology of Ningxia Hui Autonomous Region, Yinchuan, Ningxia　750021, China

2.
Center for Hydrogeology and Environmental Geology Survey, CGS, Tianjin　300304, China

More Information

Corresponding author: LIU Ting, liuting@mail.cgs.gov.cn

Received Date: 06 March 2024

Revised Date: 10 May 2024

Publish Date: 15 July 2024

摘要

摘要:
宁夏局部地区高碳排放源集中且碳排量巨大，亟需开展碳封存潜力评价等工作，以支撑未来碳捕集、利用与封存规划与重大示范。文章在宁夏地区碳封存基本地质条件的基础上，采用美国能源部（US-DOE）体积法，评估宁夏地区深部咸水层CO₂封存预测地质潜力约867.421×10⁸ t，预测技术容量约423.34×10⁸ t，主力储层主要集中分布在宁夏东部盐池地区和六盘山盆地。综合封存潜力、盖层封闭性、地质体稳定性、社会环境风险等因素，开展了宁夏地区咸水层封存适宜性初步评价，结果表明：宁夏东部盐池地区储盖层条件良好、构造较稳定、人口密度低，是宁夏地区开展咸水层CO₂封存的有利远景区。
- 宁夏 /
- 深部咸水层 /
- CO₂地质封存 /
- 预测潜力 /
- 远景区
Abstract:
Due to the concentrated carbon emission sources and the enormous carbon emissions in the Ningxia Hui Autonomous, it is necessary to evaluate carbon sequestration potential to support future CCUS planning and major demonstrations. Based on the basic geological conditions for carbon sequestration in Ningxia, this study used the volumetric method of the US Department of Energy (US-DOE) to assess the geological potential for deep saline aquifer sequestration in Ningxia. The results show that the predicted geological potential of carbon sequestration in the deep saline aquifers in Ningxia is approximately 86.742 billion tons, with the predicted technical capacity of about 42.334 billion tons. The main reservoirs are concentrated in the Yanchi area in eastern Ningxia and the Liupan Mountain Basin. A preliminary evaluation of the suitability of saline aquifer sequestration in Ningxia was conducted by considering many factors such as the overall sequestration potential, cap rock integrity, geological stability, and socio-environmental risks. The results indicate that the Yanchi area in eastern Ningxia has favorable reservoir and cap rock conditions, stable structures, and low population density, making it a potential region for CO₂ sequestration in Ningxia.
- Ningxia /
- deep saline aquifers /
- CO₂ geological storage /
- predictive potential /
- promising region

HTML全文

图 1 宁夏地区主要盆地及断裂分布图（据文献[19]略改）

Figure 1.

下载: 全尺寸图片幻灯片

图 2 宁夏地区地震动峰值加速度区划图^[30]

Figure 2.

下载: 全尺寸图片幻灯片

图 3 鄂尔多斯盆地宁夏地区深部咸水层CO₂封存储盖层划分

Figure 3.

下载: 全尺寸图片幻灯片

图 4 六盘山盆地深部咸水层CO₂封存储盖层划分

Figure 4.

下载: 全尺寸图片幻灯片

图 5 银川盆地深部咸水层CO₂封存储盖层划分

Figure 5.

下载: 全尺寸图片幻灯片

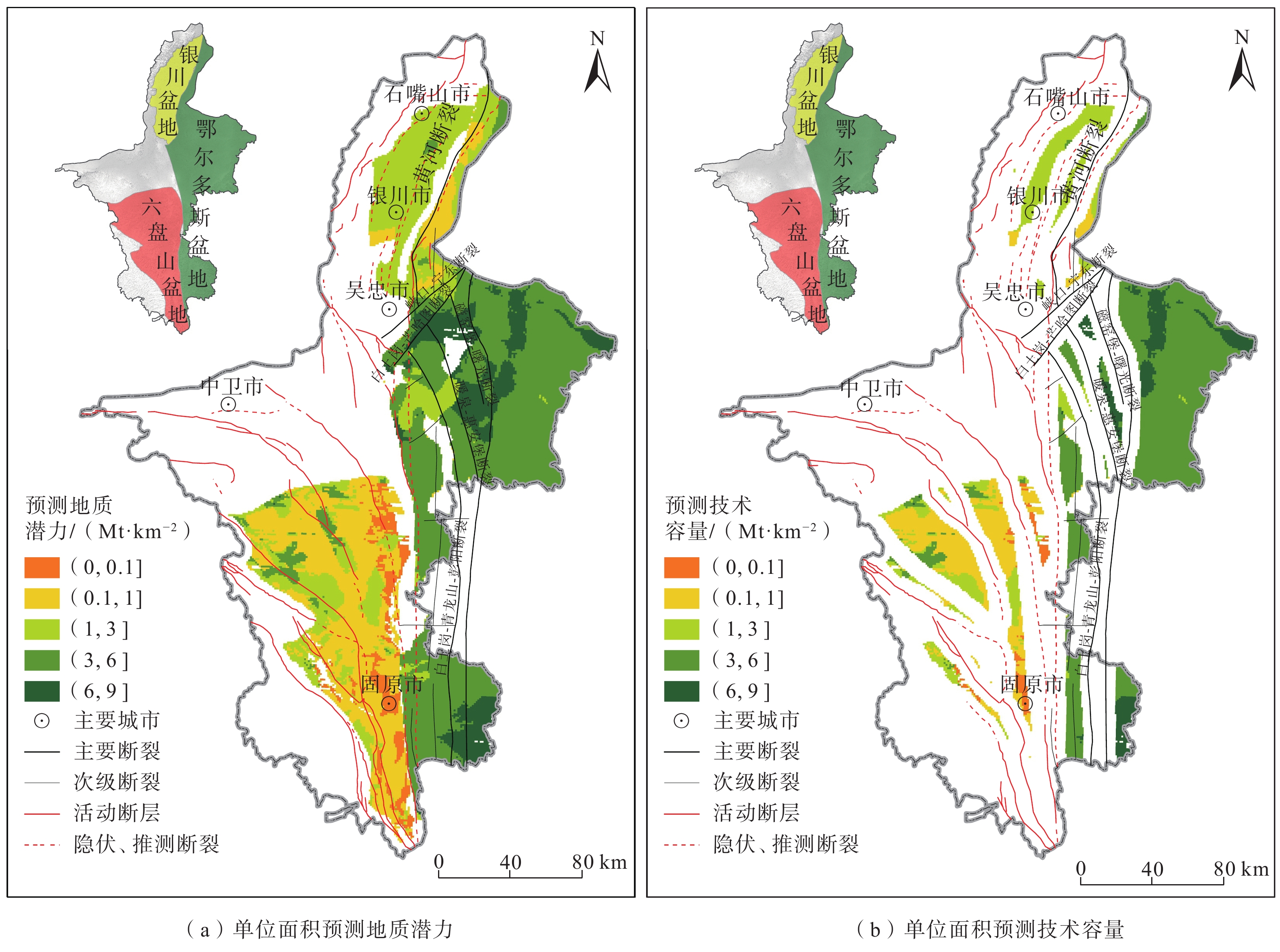

图 6 宁夏地区咸水层CO₂封存潜力预测评价图

Figure 6.

下载: 全尺寸图片幻灯片

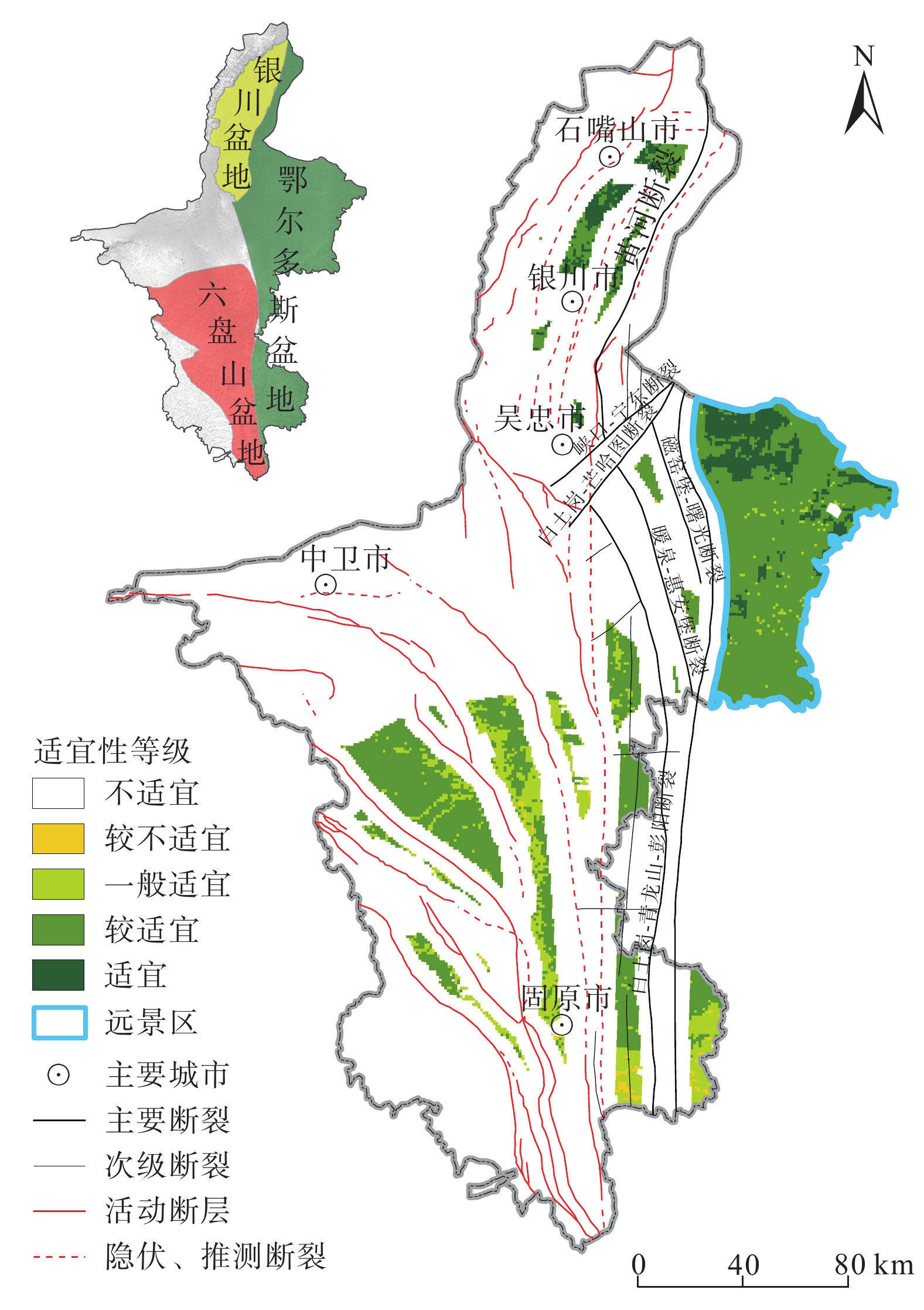

图 7 宁夏地区适宜性评价及远景区分布图

Figure 7.

下载: 全尺寸图片幻灯片

表 1 CO₂地质封存适宜性评价指标及权重

Table 1. Weight of evaluation index of suitability for CO₂ geological storage

一级		二级		三级		关键因素否决条件
指标	权重	指标	权重	指标	权重	关键因素否决条件
地质适宜性评价	0.7	储集条件与封存潜力	0.5	主力（最大）储层潜力占比	0.6
		储集条件与封存潜力	0.5	单位面积封存潜力	0.4
		盖层封闭性	0.3	岩性	0.4
				断裂发育情况	0.3
				厚度	0.2
				埋藏深度	0.1
		地质体稳定性	0.2	地震动峰值加速度	1.0	地震动峰值加速度大于等于0.40 g区域和活动断裂两侧5 km范围内为不适宜区
社会环境风险	0.3	国土空间安全及环境风险	1	地质灾害易发性	0.1
				人口密度	0.6
				地形复杂程度	0.3

下载: 导出CSV
