钻孔岩心游离气对天然气水合物成因的指示意义

黄霞; 王平康; 肖睿; 庞守吉; 张帅; 祝有海

doi:10.16562/j.cnki.0256-1492.2017.05.008

钻孔岩心游离气对天然气水合物成因的指示意义

中国地质调查局油气资源调查中心，北京 100083

基金项目:
国家自然科学基金项目(41202099)

详细信息

作者简介: 黄霞(1982—)，女，博士，副研究员，地质学专业，主要从事油气地质地球化学勘查研究，E-mail：huangxia@live.com

通讯作者: 王平康(1982—)，男，硕士，副研究员，沉积学专业，主要从事天然气水合物调查研究，E-mail：wangpk@cags.ac.cn

中图分类号: P618.13

周立君编辑

收稿日期: 2017-08-15

修回日期: 2017-08-30

刊出日期: 2017-05-28

DETECTING GAS ORIGIN WITH FREE GAS FROM HYDRATE DRILLING CORE

Oil and Gas Survey, China Geological Survey, Beijing 100083, China

More Information

Corresponding author: WANG Pingkang, wangpk@cags.ac.cn

Received Date: 15 August 2017

Revised Date: 30 August 2017

Publish Date: 28 May 2017

摘要

摘要:
中国是世界上少数几个同时在海域和陆域冻土区取得天然气水合物找矿突破的国家，这为我国天然气水合物成矿气源研究提供了良好的研究条件。本文通过对南海神狐海域及祁连山冻土区不同层位、不同赋存状态的水合物气体数据进行分析，研究了各层位烃类气体的地球化学特征，并探讨其成因。研究结果表明，海域和陆域钻孔岩心游离气与水合物气具有基本一致的气体组分特征和同位素特征，表明气体成因类型相同。同一钻孔中，气体随埋深不同表现出不同的气体组分特征，甲烷碳同位素显示负偏，均表明气体存在垂向运移。岩心游离气对水合物成因类型判识具有指示意义，可作为判识水合物或潜在水合物成因类型的一种有效方法。
- 游离气 /
- 天然气水合物 /
- 成因类型
Abstract:
China is one of the few countries in the world which have made breakthroughs in discovery of gas hydrate in both offshore and inland.It has therefore provided good platforms for study of gas origins.In this paper, we collected the data from different layers and different occurrences of the Shenhu area, South China Sea and the permafrost region in the Qilian Mountains.Geochemical studies of hydrocarbon gas are carried out for gas origin.Our results indicate that free gas from drilling cores is of significance and effective to the identification of genetic-type and origin of gas hydrates.If the composition and isotopic characteristics of the free gas are identified with the gas hydrate, it indicates a consistent gas origin.However, if there shows difference in gas composition characteristics and that there is negative deviation of methane carbon isotope in a vertical sequence for the same hole, it means there is vertical migration.As the conclusion, free gas can provide effective information for identifying hydrate or its genetic types.
- free gas /
- gas hydrates /
- genetic type

HTML全文

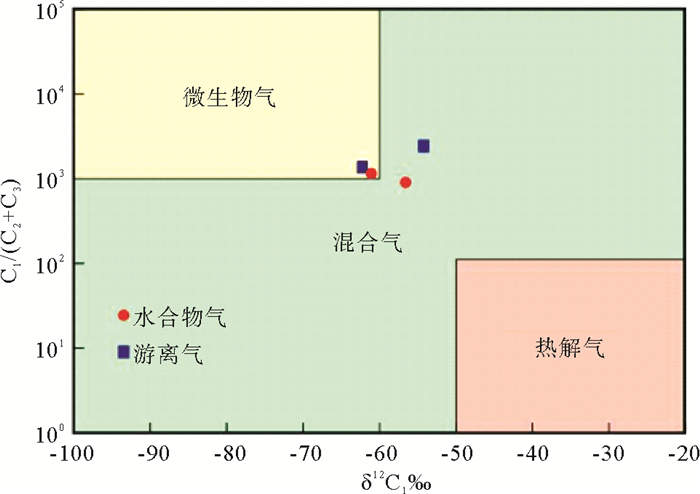

图 1 神狐海域水合物气和岩心游离气δ¹³C₁与C₁/(C₂+C₃)投点图

Figure 1.

下载: 全尺寸图片幻灯片

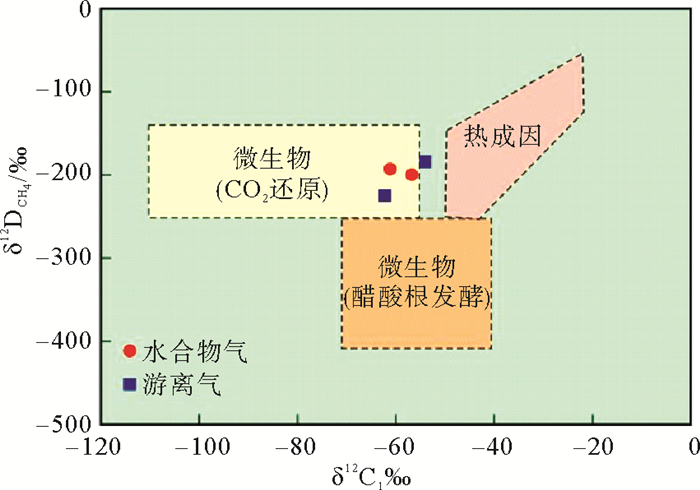

图 2 神狐海域水合物气和岩心游离气甲烷碳和氢同位素值投点图

Figure 2.

下载: 全尺寸图片幻灯片

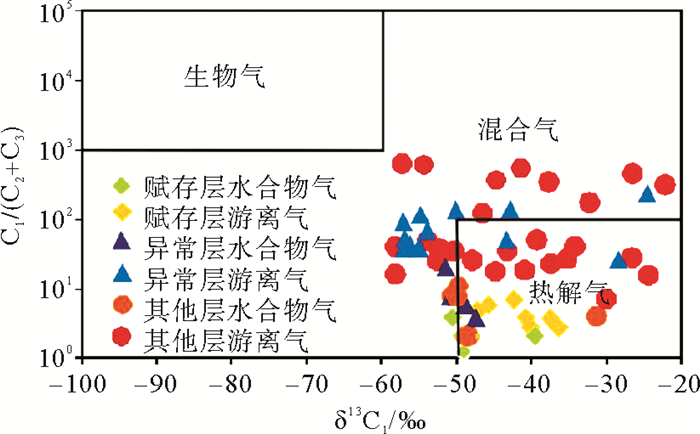

图 3 祁连山冻土区不同层位水合物气和岩心游离气成因类型

Figure 3.

下载: 全尺寸图片幻灯片

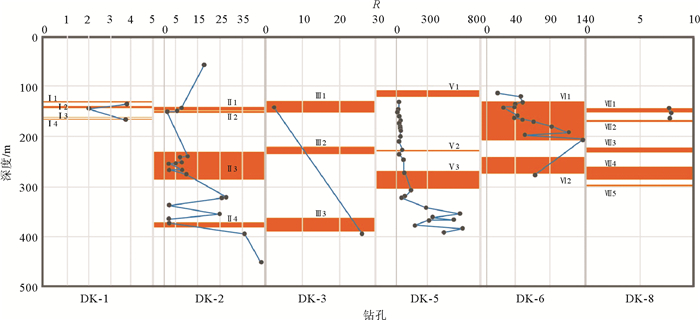

图 4 陆域祁连山冻土区水合物钻孔R值随深度变化

Figure 4.

下载: 全尺寸图片幻灯片

表 1 南海神狐钻探区甲烷同位素及其烃类气体组分

Table 1. Methane isotope and C₁/(C₂+C₃)value of samples from Shenhu area, South China Sea

样品类型	样品编号	采样深度/m	δ¹³C₁ /‰，PDB	δD/‰， VSMOW	C₁/ (C₂+C₃)
水合物气	SH2B-12R	197~198	-56.7	-199	912
水合物气	SH3B-13P	190~191	-60.9	-191	1 094
岩心游离气	SH3B-7P	123~124	-62.2	-225	1 374
岩心游离气	SH5C-11R	114~115	-54.1	-180	2 447

下载: 导出CSV

表 2 祁连山冻土区天然气水合物分布及样品采集信息

Table 2. Gas hydrate distribution in Qilian Mountain permafrost and samples information

孔号	层位	深度/m	水合物层位	储集层主要岩性	水合物样品数	岩心游离气样品数
DK-1	Ⅰ1	133.5~135.5	裂隙、孔隙型水合物层	细砂岩	1
	Ⅰ2	142.9~147.7	裂隙型水合物层	粉砂岩	1
	Ⅰ3	165.3~165.5	裂隙型水合物层	粉砂岩	1
	Ⅰ4	169.0~170.5	水合物异常层	粉砂岩
DK-2			其他层		1	4
	Ⅱ1	144.4~152.0	裂隙、孔隙型水合物层	中砂岩，细砂岩	2	1
	Ⅱ2	152.3~156.6	裂隙型水合物层	油页岩
	Ⅱ3	235.0~291.3	裂隙型水合物层	油页岩，泥岩	8	1
			其他层		3	3
	Ⅱ4	377.3~387.5	水合物异常层	油页岩，中砂岩	1	1
			其他层			2
DK-3	Ⅲ1	133.0~156.0	裂隙型水合物层	泥岩，油页岩	1
	Ⅲ2	225.1~240.0	裂隙型水合物层	泥岩，油页岩
	Ⅲ3	367.7~396.0	水合物异常层	细砂岩，粉砂岩	1
DK-5	Ⅴ1	111.5~124.5	水合物异常层	泥岩，油页岩
			其他层			13
	Ⅴ2	231.56~234.46	水合物异常层	粉砂岩		1
			其他层			2
	Ⅴ3	274.0~310.0	水合物异常层	泥岩，粉砂岩，细砂岩		1
			其他层			10
DK-6			其他层			4
	Ⅵ1	133.81~213.4	水合物异常层	泥岩，油页岩，粉砂岩		10
	Ⅵ2	245.8~280.0	水合物异常层	粉砂岩，油页岩		1
DK-8			其他层		1
	Ⅷ1	147.8~155.93	水合物异常层	细砂岩	1
			其他层		1
	Ⅷ2	171.56~175.01	裂隙型水合物层	泥岩，油页岩
			其他层		1
	Ⅷ3	226.26~236.46	裂隙型水合物层	泥岩，油页岩
	Ⅷ4	265.94~291.24	裂隙、孔隙型水合物层	泥岩，油页岩，泥质粉砂岩	2
	Ⅷ5	301.84~304.28	水合物异常层	泥质粉砂岩

下载: 导出CSV
