Preparation of Barite/Titanium Dioxide Composite Powder by Hydrolysis of Titanium Oxysulfate
-
摘要:

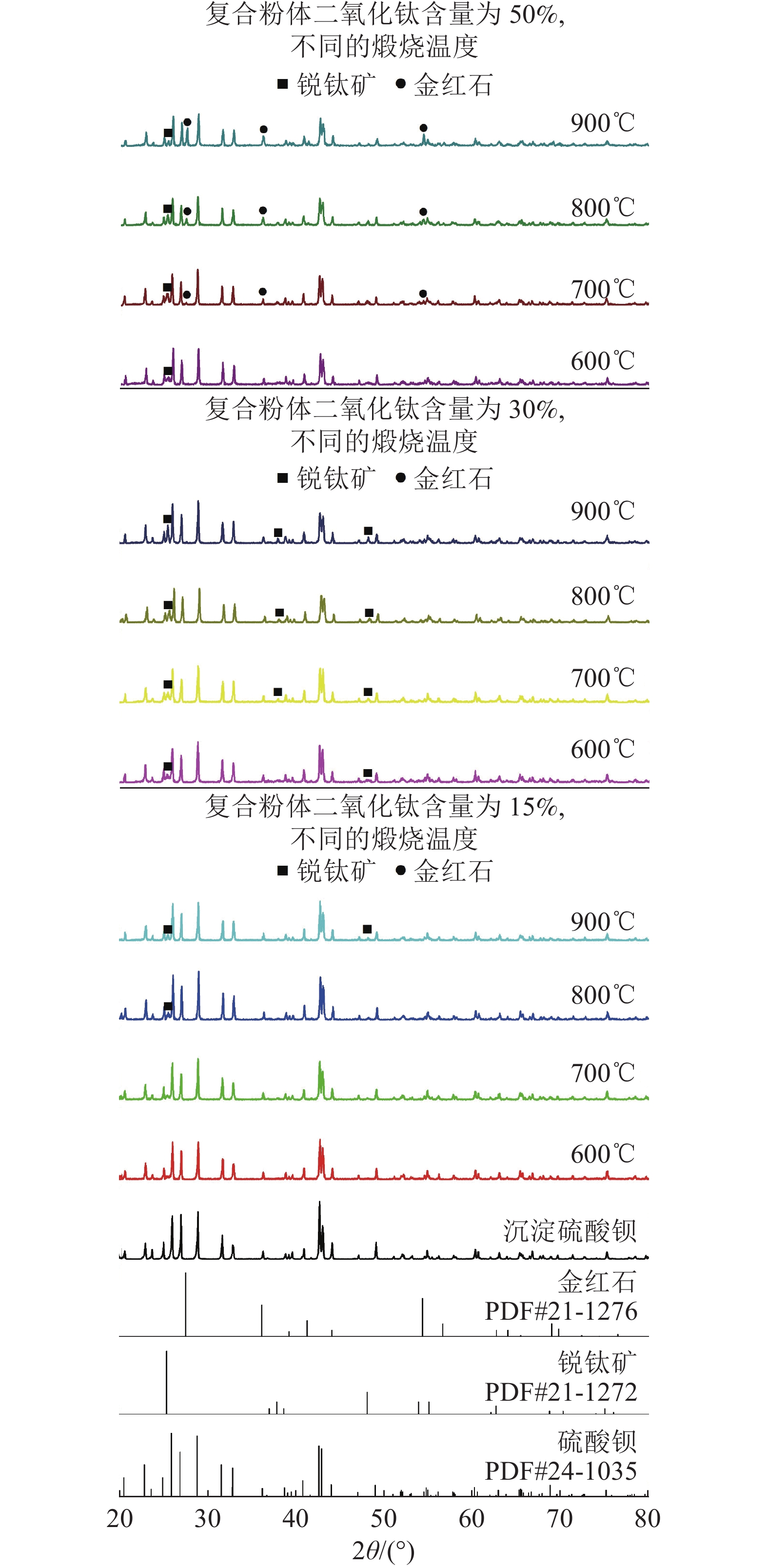

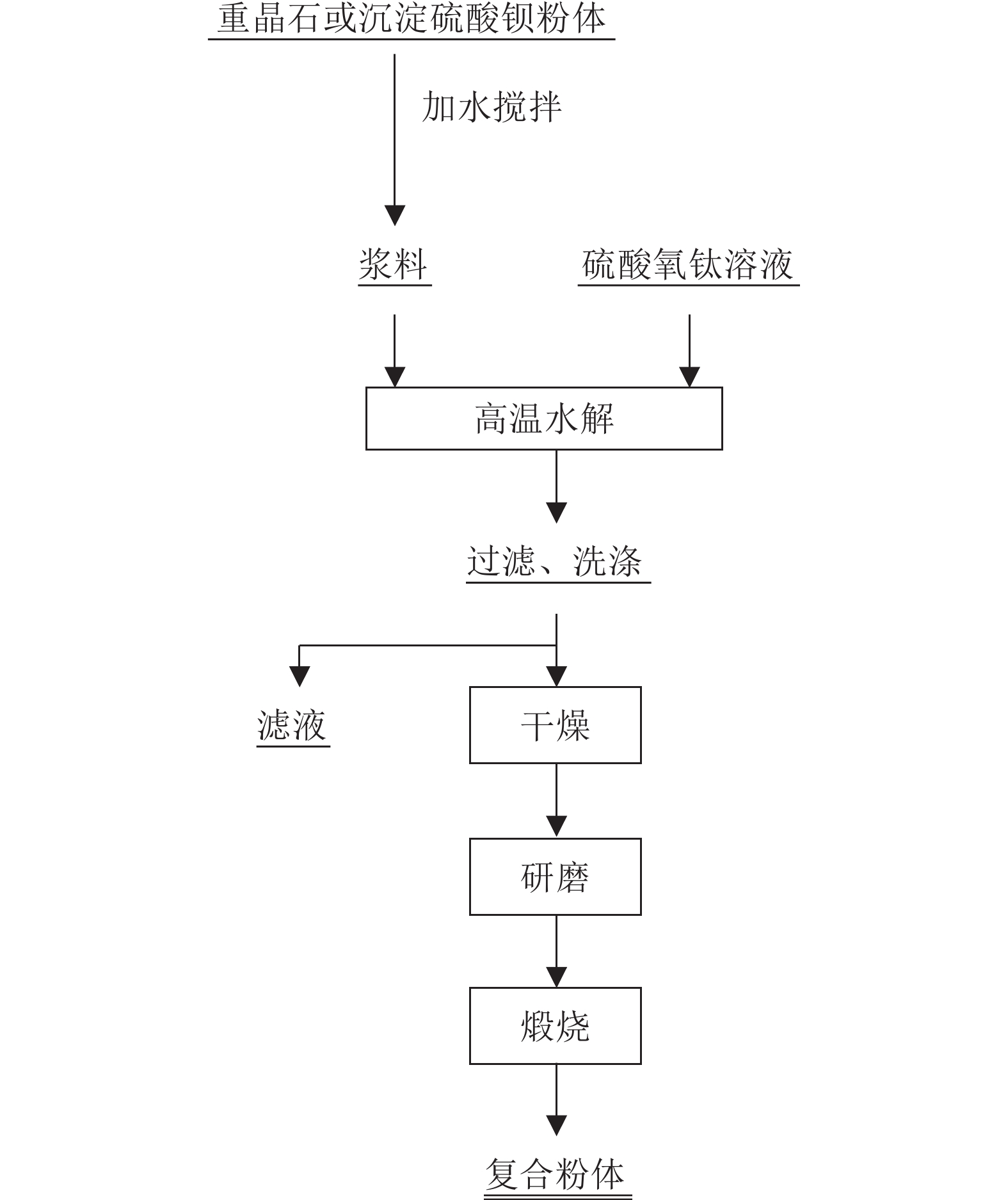

以重晶石微粉(化学成分BaSO4)为基体，以硫酸氧钛为钛源，采用水解法制备重晶石/二氧化钛复合颜料粉体。结果表明：所制备的前驱体随着煅烧温度的提高，包覆层外层的二氧化钛由锐钛矿型向金红石型转化，硫酸钡中的SO42−对其接触的锐钛矿型二氧化钛向金红石型二氧化钛转化具有抑制作用；复合粉形成核壳结构，二氧化钛理论含量占复合粉质量为50%的重晶石/二氧化钛复合粉样品的蓝光白度达到94.70%，遮盖力为18.65 g/m2，吸油值为39.59 g/100 g，具有较好的颜料性能。
Abstract:Barite/titanium dioxide composite pigment powder was prepared by hydrolysis with barite powder (chemical composition BaSO4) as matrix and titanium oxysulfate as titanium source. The results showed that with the increase of calcination temperature of the prepared precursor, the titanium dioxide in the outer layer of the coating was transformed from anatase to rutile, and SO42− in barium sulfate inhibited the transformation of anatase titanium dioxide to rutile titanium dioxide; The composite powder forms a core-shell structure. The barite / titanium dioxide composite powder sample with theoretical titanium dioxide content accounting for 50% of the mass of the composite powder has a blue whiteness of 94.70%, a hiding power of 18.65 g/m2, and an oil absorption value of 39.59 g/100 g, which has good pigment properties.
-
Key words:
- Barite /
- Titanium dioxide /
- Composite powder /
- Pigment properties
-
-

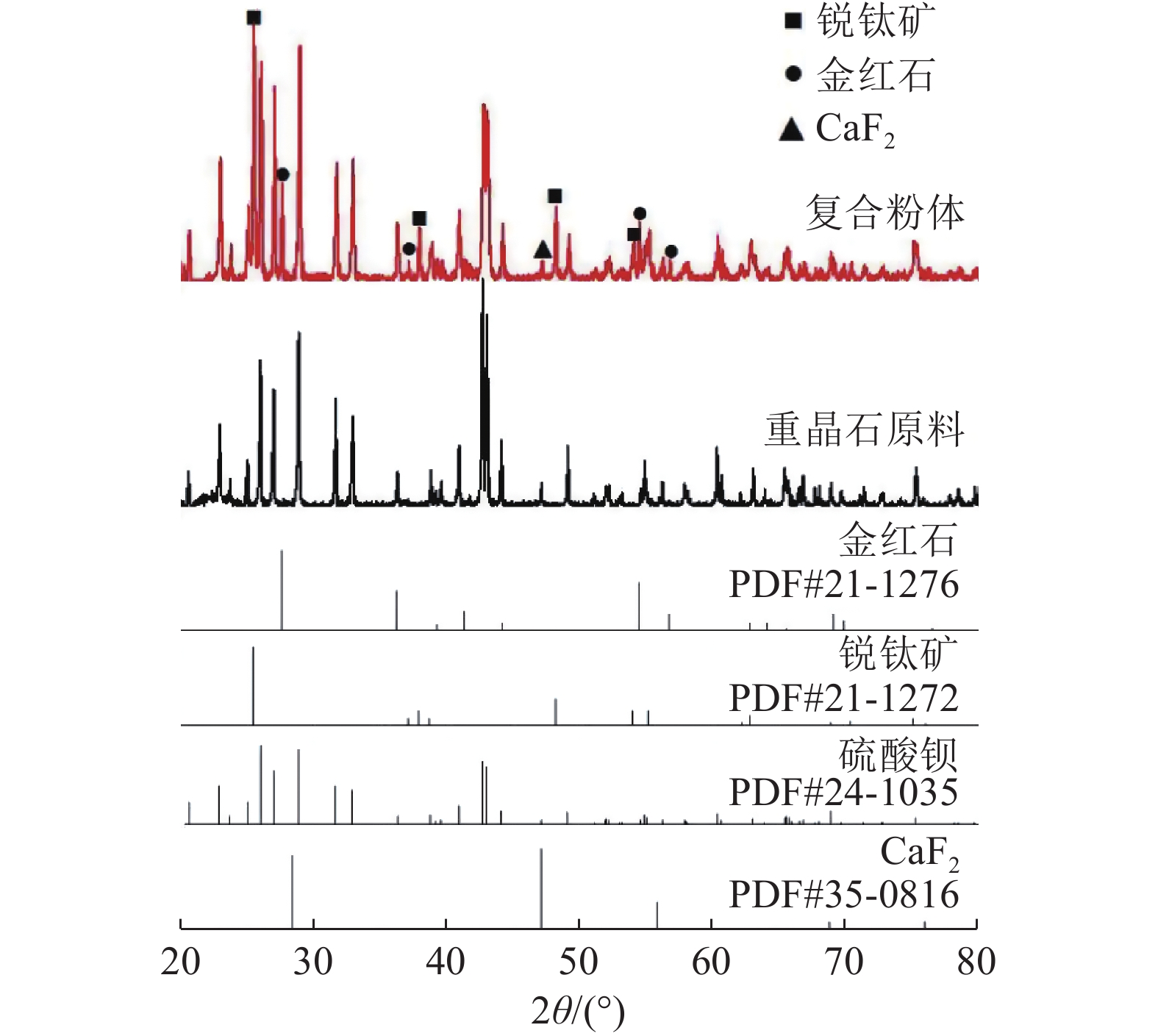

表 1 选区点6的能谱分析元素含量
Table 1. Element content information of EDS test at selected point 6
名称 O F S Ca Ti Ba 合计 含量/% 33.10 0.08 11.20 0.17 4.23 51.23 100.00 原子百分比/% 71.64 0.15 12.09 0.15 3.06 12.92 100.00
下载: 导出CSV
表 2 选区点8的能谱分析元素含量
Table 2. Element content information of EDS test at selected point 8
名称 O F S Ca Ti Ba 合计 含量% 41.09 0.00 0.82 1.14 32.77 24.17 100.00 原子百分比/% 73.75 0.00 0.74 0.82 19.64 5.05 100.00
下载: 导出CSV
表 3 二氧化钛理论质量分数为50%的重晶石/二氧化钛复合粉的的颜料性能
Table 3. Pigment properties of barite/titanium dioxide composite powder with theoretical mass fraction of titanium dioxide of 50%
样品 吸油值/(g·100g−1) 遮盖力/(g·m−2) 蓝光白度/% 39.59 18.65 94.70
下载: 导出CSV
-
[1] 丁浩, 邓雁希, 刘艳改. 以非金属矿物为基体制备钛白代用品材料的研究现状与趋势[J]. 中国矿业, 2006, 15(3):21-24. doi: 10.3969/j.issn.1004-4051.2006.03.006
DING H, DENG Y X, LIU Y G. Present situation and tendency of preparing substitute product of titannium dioxide with the non-metal minerals as the basal body[J]. China Mining Magazine, 2006, 15(3):21-24. doi: 10.3969/j.issn.1004-4051.2006.03.006
[2] 丁浩, 查炎鹏, 任瑞晨. 电气石/TiO2 复合材料的组成与微观形态[J]. 辽宁工程技术大学学报, 2007, 26(1):188-190.
DING H, ZHA Y P, REN R C. Research on component and micromic form of tournuline/TiO2 composite matrial[J]. Journal of Liaoning Technical University, 2007, 26(1):188-190.
[3] 王柏昆, 丁浩. 煅烧高岭土-TiO2复合材料的制备及表征[J]. 中国粉体技术, 2010, 16(2):22-27. doi: 10.3969/j.issn.1008-5548.2010.02.007
WANG B K, DING H. Preparation and characterization of calcined kaolin-TiO2 composites[J]. China Powder Science and Tecnology, 2010, 16(2):22-27. doi: 10.3969/j.issn.1008-5548.2010.02.007
[4] 侯喜锋, 丁浩, 李燚, 等. 硅灰石/TiO2复合颗粒材料的制备及表征[J]. 中国非金属矿工业导刊, 2010(6):26-28. doi: 10.3969/j.issn.1007-9386.2010.06.008
HOU X F, DING H, LI Y, et al. Preparation of wollastonite/TiO2 composite particle and its application[J]. China Non-metallic Mining Industry Herald, 2010(6):26-28. doi: 10.3969/j.issn.1007-9386.2010.06.008
[5] 姜玮, 丁浩, 李渊. 水镁石/TiO2 复合颗粒材料的制备及颜料性能研究[J]. 中国非金属矿工业导刊, 2010(5):36-39. doi: 10.3969/j.issn.1007-9386.2010.05.012
JIANG W, DING H, LI Y. Study on the preparation of brucite/TiO2 composite particleand its pigment property[J]. China Non-metallic Mining Industry Herald, 2010(5):36-39. doi: 10.3969/j.issn.1007-9386.2010.05.012
[6] 敖卫华, 丁浩, 沈凯. 滑石-TiO2 复合白色颜料的制备及其在涂料中的应用[J]. 中国粉体技术, 2017, 23(1):19-22.
AO W H, DING H, SHEN K. Preparation of talc-TiO2 composite white pigment and its application in coating[J]. China Powder Science and Technology, 2017, 23(1):19-22.
[7] 丁浩, 邓雁希, 杜高翔. 表面TiO2包膜对制备CaCO3/TiO2复合材料颜料性能的影响[J]. 功能材料, 2007, 38(S):2495-2498.
DING H, DENG Y X, DU G X. Effect of sursace coting TiO2 on the properties of CaCO3/TiO2 composite material as a pigment[J]. Functional Materials, 2007, 38(S):2495-2498.
[8] 肖志红, 关怀民, 童跃进, 等. 水玻璃滤渣/TiO2复合颜料的制备和性能[J]. 广州化工, 2013, 41(6):78-80. doi: 10.3969/j.issn.1001-9677.2013.06.030
XIAO Z H, GUAN H M, TONG Y J, et al. Preparation and properties of the water glass residue/TiO2 composite pigment[J]. Guangzhou Chemical Industry, 2013, 41(6):78-80. doi: 10.3969/j.issn.1001-9677.2013.06.030
[9] 胡兴航, 周大利, 刘灿. 疏水聚合法制备重晶石 / 钛白粉复合颜料研究[J]. 矿产综合利用, 2021(6):66-72. doi: 10.3969/j.issn.1000-6532.2021.06.012
HU X H, ZHOU D L, LIU C. Preparation of barite / titanium dioxide composite pigment by hydrophobic polymerization[J]. Multipurpose Utilization of Mineral Resources, 2021(6):66-72. doi: 10.3969/j.issn.1000-6532.2021.06.012
-
图(6)
表(3)
计量
- 文章访问数: 1489
- PDF下载数: 201
- 施引文献: 0
