-
摘要:

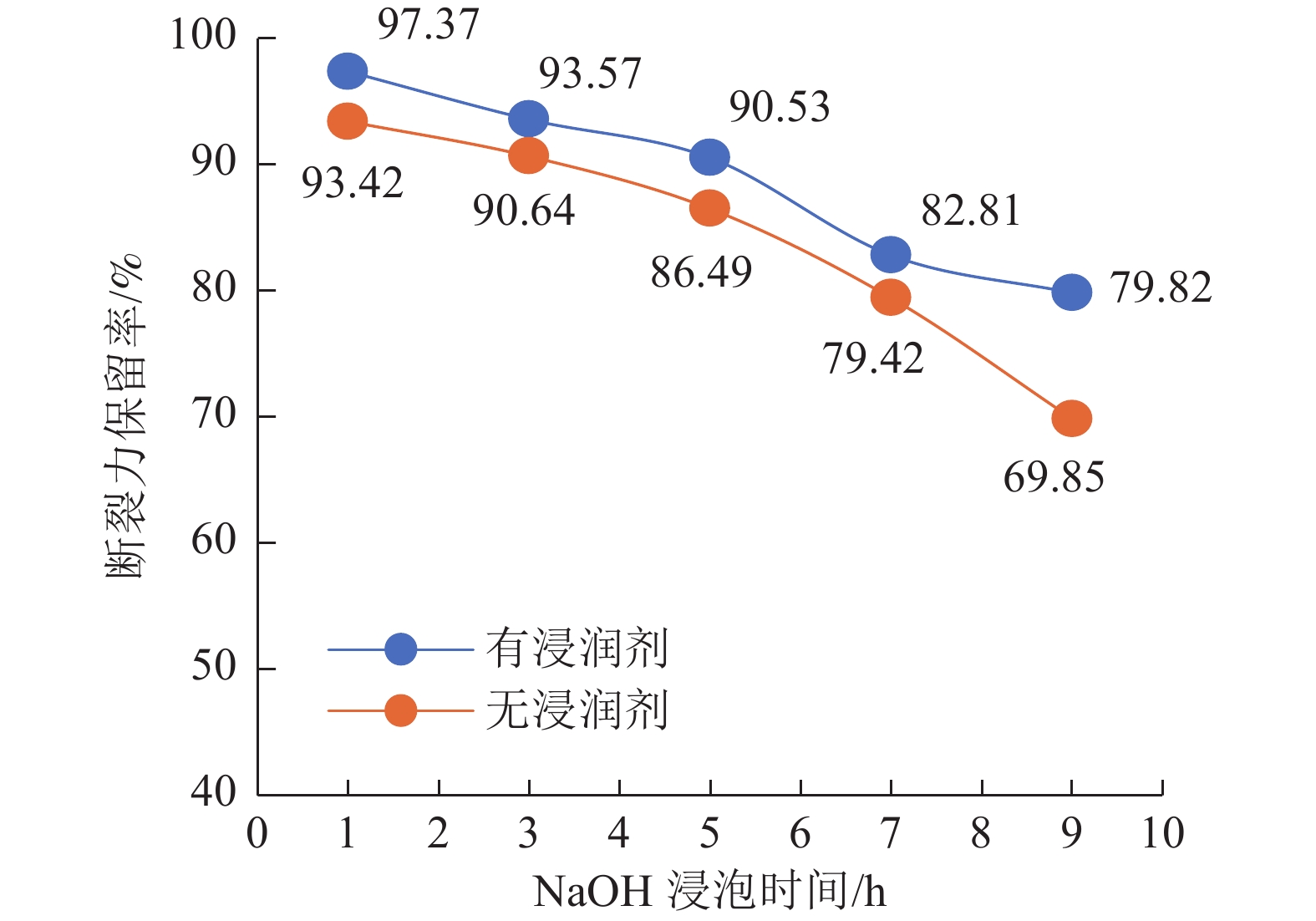

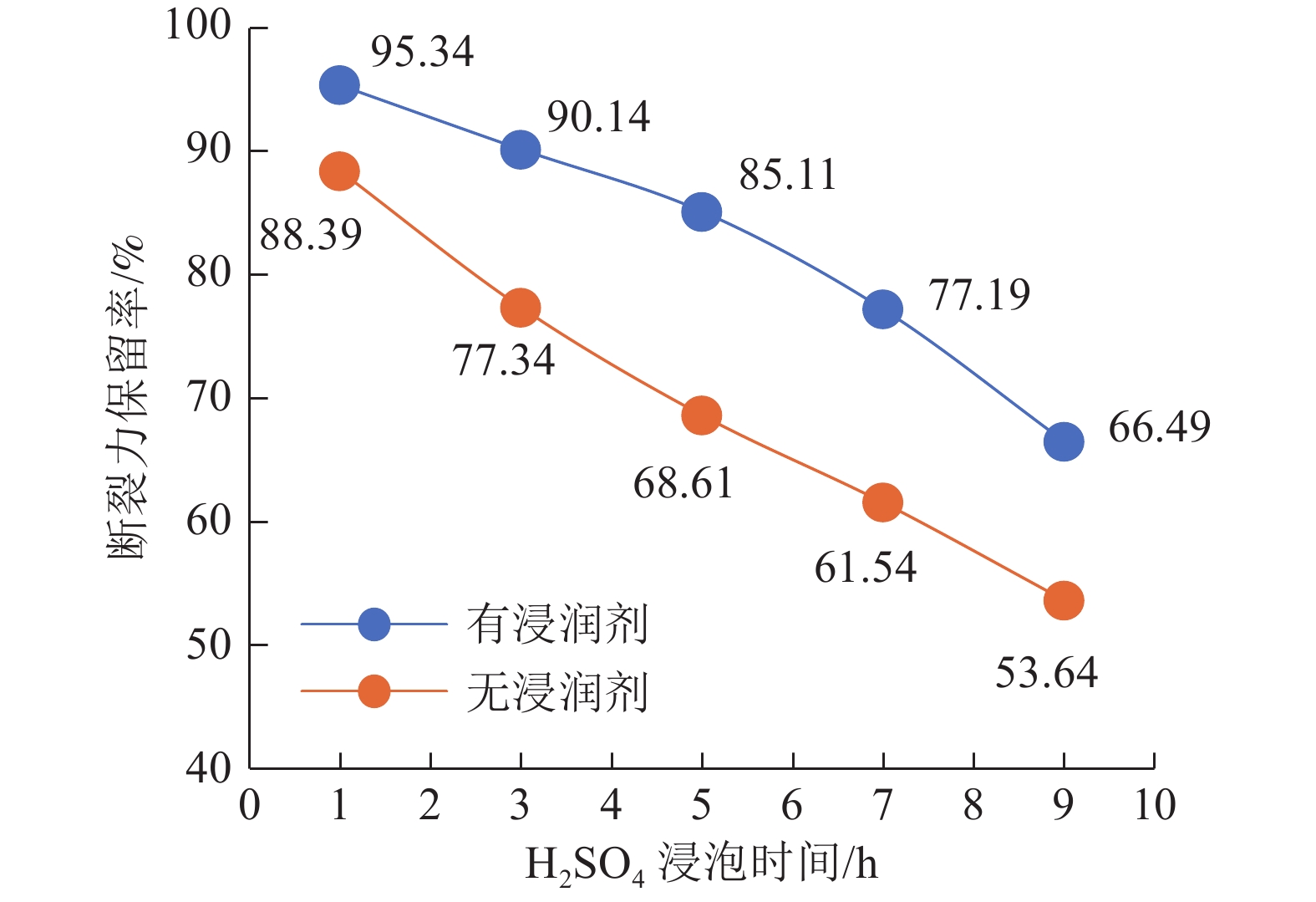

这是一篇陶瓷及复合材料领域的论文。为了探索玄武岩纤维耐酸碱腐蚀性，分别利用3 mol/L硫酸溶液、氢氧化钠溶液浸泡有无浸润剂的玄武岩纤维，并测试了纤维的质量损失率、断裂力保留率及纤维表面SEM。结果表明，随着浸泡时间的增加，在硫酸溶液浸泡下，有浸润剂玄武岩纤维的质量损失率由1.42%增加到7.33%，断裂力保留率由95.34%降至66.49%，无浸润剂玄武岩纤维的质量损失率由3.69%增加到9.40%，断裂力保留率由88.39%降至53.64%；在氢氧化钠溶液浸泡下，有浸润剂玄武岩纤维的质量损失率由0.40%增加到5.41%，断裂力保留率由97.37%降至79.82%，无浸润剂玄武岩纤维的质量损失率由1.50%增加到7.08%，断裂力保留率由93.42%降至69.85%；酸碱腐蚀均造成纤维质量损失，增加纤维表面缺陷，降低纤维断裂力，且相同浓度的硫酸溶液比氢氧化钠溶液，对所用玄武岩纤维的腐蚀更严重。浸润剂对纤维具有保护作用，能减缓酸碱对纤维的腐蚀。
Abstract:This is an article in the field of ceramics and composites. In order to explore the resistance of basalt fiber to acid and alkali corrosion, basalt fiber with or without wetting agent was soaked in 3 mol/L sulfuric acid solution and sodium hydroxide solution, respectively, and the mass loss rate, fracture force retention rate and SEM image of fiber surface were tested. The results showed that with the increase of soaking time, the mass loss rate of basalt fiber with infiltrating agent increased from 1.42% to 7.33%, the fracture force retention rate decreased from 95.34% to 66.49%, the mass loss rate of basalt fiber without infiltrating agent increased from 3.69% to 9.40% and the fracture force retention rate decreased from 88.39% to 53.64%. After soaking in sodium hydroxide solution, the mass loss rate of basalt fiber with wetting-agent increased from 0.40% to 5.41%, the fracture force retention rate decreased from 97.37% to 79.82%, the mass loss rate of basalt fiber without wetting-agent increased from 1.50% to 7.08%, and the fracture force retention rate decreased from 93.42% to 69.85%. Both acid-alkaline corrosion cause fiber quality loss, increase fiber surface defects and reduce fiber breaking force.Sulfuric acid solution with the same concentration corrodes basalt fiber more seriously than sodium hydroxide solution. The soaking agent has a protective effect on the fiber and can slow down the corrosion of acid and alkali on the fiber.
-
-
[1] 张凯军, 霍冀川, 黄阳, 等. 攀西地区某用于制造纤维的玄武岩工艺矿物学研究[J]. 矿产综合利用, 2021(2):163-167.ZHANG K J, HUO J C, HUANG Y, et al. Research on process mineralogy of a basalt ore used to manufacturing fiber in Panxi[J]. Multipurpose Utilization of Mineral Resources, 2021(2):163-167. doi: 10.3969/j.issn.1000-6532.2021.02.028
ZHANG K J, HUO J C, HUANG Y, et al. Research on process mineralogy of a basalt ore used to manufacturing fiber in Panxi[J]. Multipurpose Utilization of Mineral Resources, 2021(2):163-167. doi: 10.3969/j.issn.1000-6532.2021.02.028
[2] 欧阳利军, 许峰, 陆洲导. 玄武岩纤维布增强树脂基复合材料约束高温损伤混凝土轴压力学性能[J]. 复合材料学报, 2018, 35(8): 2002-2013.OUYANG L J, XU F, LU Z D. Axial compressive behavior of basalt fiber reinforced polymer-confined damaged concrete after exposed to elevated temperatures [J]. Acta Materiae Compositae Sinica, 2018, 35(8): 2002-2013.
OUYANG L J, XU F, LU Z D. Axial compressive behavior of basalt fiber reinforced polymer-confined damaged concrete after exposed to elevated temperatures [J]. Acta Materiae Compositae Sinica, 2018, 35(8): 2002-2013.
[3] 陈峰宾, 许斌, 焦华喆, 等. 玄武岩纤维混凝土纤维分布及孔隙结构表征[J]. 中国矿业大学学报, 2021, 50(2):273-280.CHEN F B, XU B, JIAO H Z, et al. Fiber distribution and pore structure characterization of basalt fiber reinforced concrete[J]. Journal of China University of Mining & Technology, 2021, 50(2):273-280.
CHEN F B, XU B, JIAO H Z, et al. Fiber distribution and pore structure characterization of basalt fiber reinforced concrete[J]. Journal of China University of Mining & Technology, 2021, 50(2):273-280.
[4] 华云涛, 尹世平, 王璐晨. 玄武岩纤维筋海水海砂混凝土梁承载性能及使用性能影响因素研究[J]. 建筑结构学报, 2021, 42(2):166-177.HUA Y T, YIN S P, WANG L C. Study on influence factors of bearing capacity and serviceability of BFRP reinforced seawater and sea-sand concrete beams[J]. Journal of Building Structures, 2021, 42(2):166-177.
HUA Y T, YIN S P, WANG L C. Study on influence factors of bearing capacity and serviceability of BFRP reinforced seawater and sea-sand concrete beams[J]. Journal of Building Structures, 2021, 42(2):166-177.
[5] 左颖. 酸碱环境对玄武岩纤维混凝土力学性能的影响[J]. 新型建筑材料, 2021, 48(4):44-46.ZUO Y. Influence of acid and alkali environment on mechanical properties of basalt fiber reinforced concrete[J]. New Building Materials, 2021, 48(4):44-46. doi: 10.3969/j.issn.1001-702X.2021.04.011
ZUO Y. Influence of acid and alkali environment on mechanical properties of basalt fiber reinforced concrete[J]. New Building Materials, 2021, 48(4):44-46. doi: 10.3969/j.issn.1001-702X.2021.04.011
[6] 姚勇, 徐鹏, 刘静, 等. 国内外玄武岩纤维耐腐蚀性能对比研究[J]. 合成纤维工业, 2015, 38(5):9-11+15.YAO Y, XU P, LIU J. Comparative study on corrosion resistance of basalt fibers in China and abroad[J]. China Synthetic Fiber Industry, 2015, 38(5):9-11+15. doi: 10.3969/j.issn.1001-0041.2015.05.003
YAO Y, XU P, LIU J. Comparative study on corrosion resistance of basalt fibers in China and abroad[J]. China Synthetic Fiber Industry, 2015, 38(5):9-11+15. doi: 10.3969/j.issn.1001-0041.2015.05.003
[7] 霍倩, 刘姝瑞, 谭艳君, 等. 连续玄武岩纤维改性方法的研究进展[J]. 纺织科学与工程学报, 2021, 38(1):73-78.HUO Q, LIU S R, TAN Y J, et al. Research progress on modification methods of continuous basalt fiber[J]. Journal of Textile Science and Engineering, 2021, 38(1):73-78. doi: 10.3969/j.issn.2096-5184.2021.01.012
HUO Q, LIU S R, TAN Y J, et al. Research progress on modification methods of continuous basalt fiber[J]. Journal of Textile Science and Engineering, 2021, 38(1):73-78. doi: 10.3969/j.issn.2096-5184.2021.01.012
[8] 王梦尧. 短切玄武岩纤维表面改性及其对水泥基材料性能的影响[D]. 北京: 北京建筑大学, 2020.WANG M Y. Study on modified basalt fibers and it’s cementitious [D]. Beijing: Beijing University of Civil Engineering and Architecture, 2020.
WANG M Y. Study on modified basalt fibers and it’s cementitious [D]. Beijing: Beijing University of Civil Engineering and Architecture, 2020.
[9] 高杰. 玄武岩纤维在酸碱及相对湿度环境下的老化性研究[D]. 上海: 东华大学, 2016.GAO J. Research on basalt fibers aged in acid, alkali and relative humidity environment [D]. Shanghai: Donghua University, 2016.
GAO J. Research on basalt fibers aged in acid, alkali and relative humidity environment [D]. Shanghai: Donghua University, 2016.
[10] Xing Dan, Xi Xiongyu, Ma Pengcheng. Factors governing the tensile strength of basalt fibre[J]. Composites Part A:Applied Science and Manufacturing, 2019, 119:127-133. doi: 10.1016/j.compositesa.2019.01.027
-
下载:
图(4)
计量
- 文章访问数: 686
- PDF下载数: 305
- 施引文献: 0
