磷化工副产物磷铁渣绿色循环真空脱硅

白倩; 荆碧; 李秋霞

doi:10.3969/j.issn.1000-6532.2024.02.020

磷化工副产物磷铁渣绿色循环真空脱硅

云南师范大学化学化工学院，云南　昆明　650500

详细信息

作者简介: 白倩（1990-），女，硕士，研究方向为冶金化学

通讯作者: 李秋霞（1971-），女，博士，教授，研究方向为冶金化学

中图分类号: TD91

收稿日期: 2022-06-28

刊出日期: 2024-04-25

Desilicification Reclying Ferrophosphorus Slag under Vacuum

Faculty of Chemistry and Chemical Engineering, Yunnan Normal University, Kunming 650500, Yunnan, China

More Information

Corresponding author: LI Qiuxia, qiuxiali03@163.com

Received Date: 28 June 2022

Publish Date: 25 April 2024

摘要

摘要:
这是一篇冶金工程领域的论文。为了绿色利用磷化工副产物磷铁渣，本文对磷化工副产物磷铁添加CaO进行脱硅热力学计算并开展实验研究。在温度为900～1700 K范围内，SiO₂和CaO的摩尔比为1∶1～3时，反应生成CaO·SiO₂、2CaO·SiO₂、3CaO·SiO₂和3CaO·2SiO₂的$ \Delta {G_T} $值均小于0，说明添加适量的CaO可以脱除磷化工副产磷铁中的SiO₂。进一步实验研究表明：压力为10～40 Pa，温度为1573 K时，加入适量氧化钙，使原料磷铁中的二氧化硅和氧化钙的摩尔比为1∶1，得到的上层产物主要是以硅酸盐Ca₂SiO₄、Ca₃SiO₅的形式存在，下层产物主要以Fe₂P存在，脱硅磷铁经检测ω（Si）<0.07%，可以作为过渡金属磷化物的前驱体，为磷铁绿色循环与利用提供了新思路。
- 冶金工程 /
- 磷铁渣 /
- 脱硅 /
- 金属磷化物 /
- 真空
Abstract:
This is an article in the field of metallurgical engineering. For recycling theferrophosphorus slag which a by-products of phosphorus chemical industry,the thermodynamic calculations and experimentally investigations of the removal of SiO₂ by added CaO were carried out. The results of thermodynamic calculations of the reaction between SiO₂ and CaO show that: the Gibbs free energy values of generating CaO·SiO₂, 2CaO·SiO₂, 3CaO·SiO₂ and 3CaO·2SiO₂ are less than zero, when the temperature in 900～1700 K range and molar ratio of(SiO₂∶CaO)= 1∶1～3. It is feasible to generate calcium silicate by adding CaO, which can be used as a method of desilicification for ferrophosphorus slag. The experimental results show that:there are two layers of the products,i.e. Ca₂SiO₄, Ca₃SiO₅in the upper layer and Fe₂P in the lower layer when the pressure between 10～40 Pa and the temperature 1573 K and molar ratio of SiO₂∶CaO = 1∶1. The final products were testified to be ω（Si）<0.07%, which can be served as the precursor of transition metal phosphide and the potential feasibility of ferrophosphorus recycling.
- Metallurgical engineering /
- Ferrophosphorus /
- Desilicification /
- Metal phosphide /
- Vacuum

HTML全文

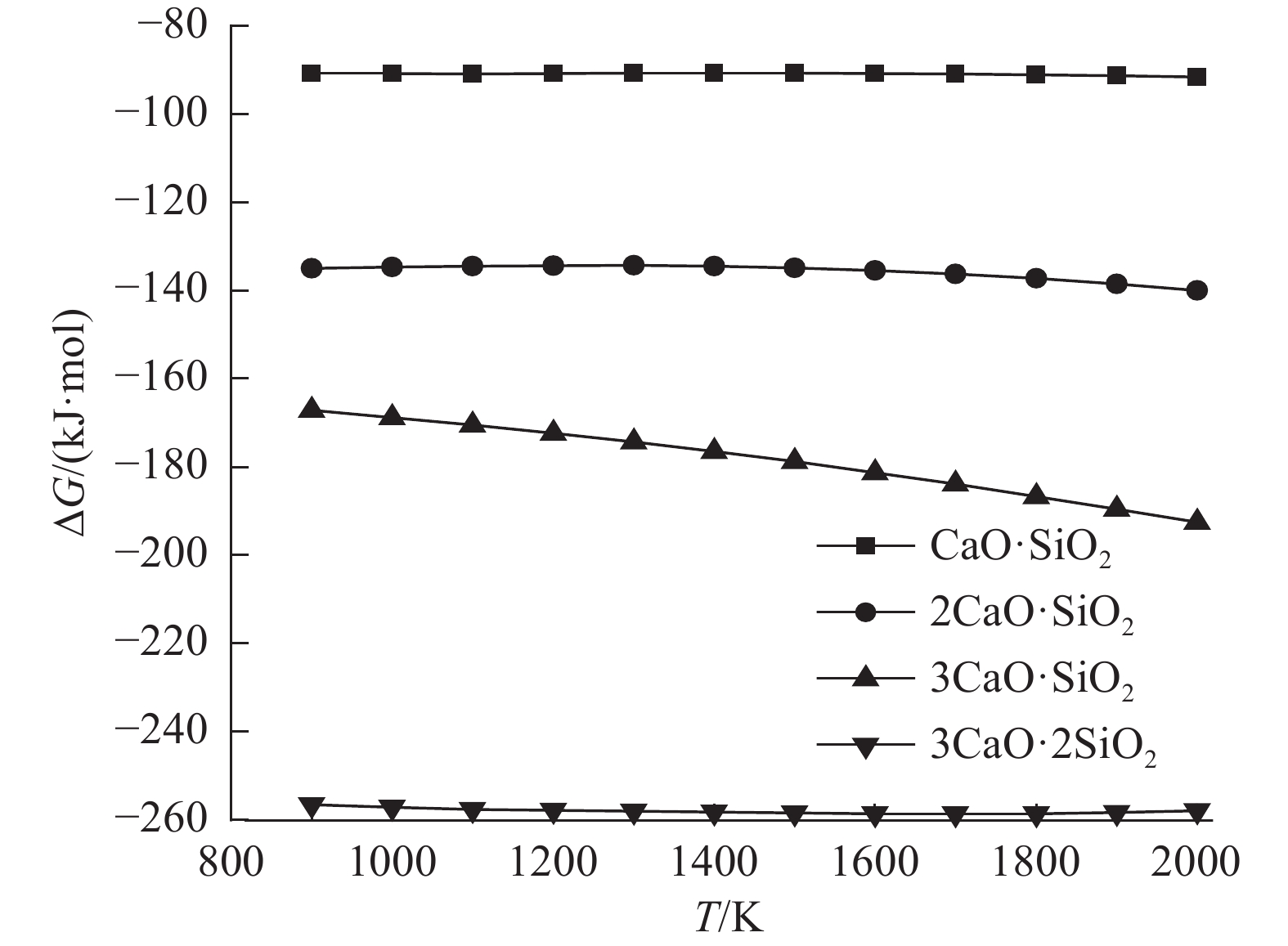

图 1 反应（1）～（4）的ΔG_T-T关系

Figure 1.

下载: 全尺寸图片幻灯片

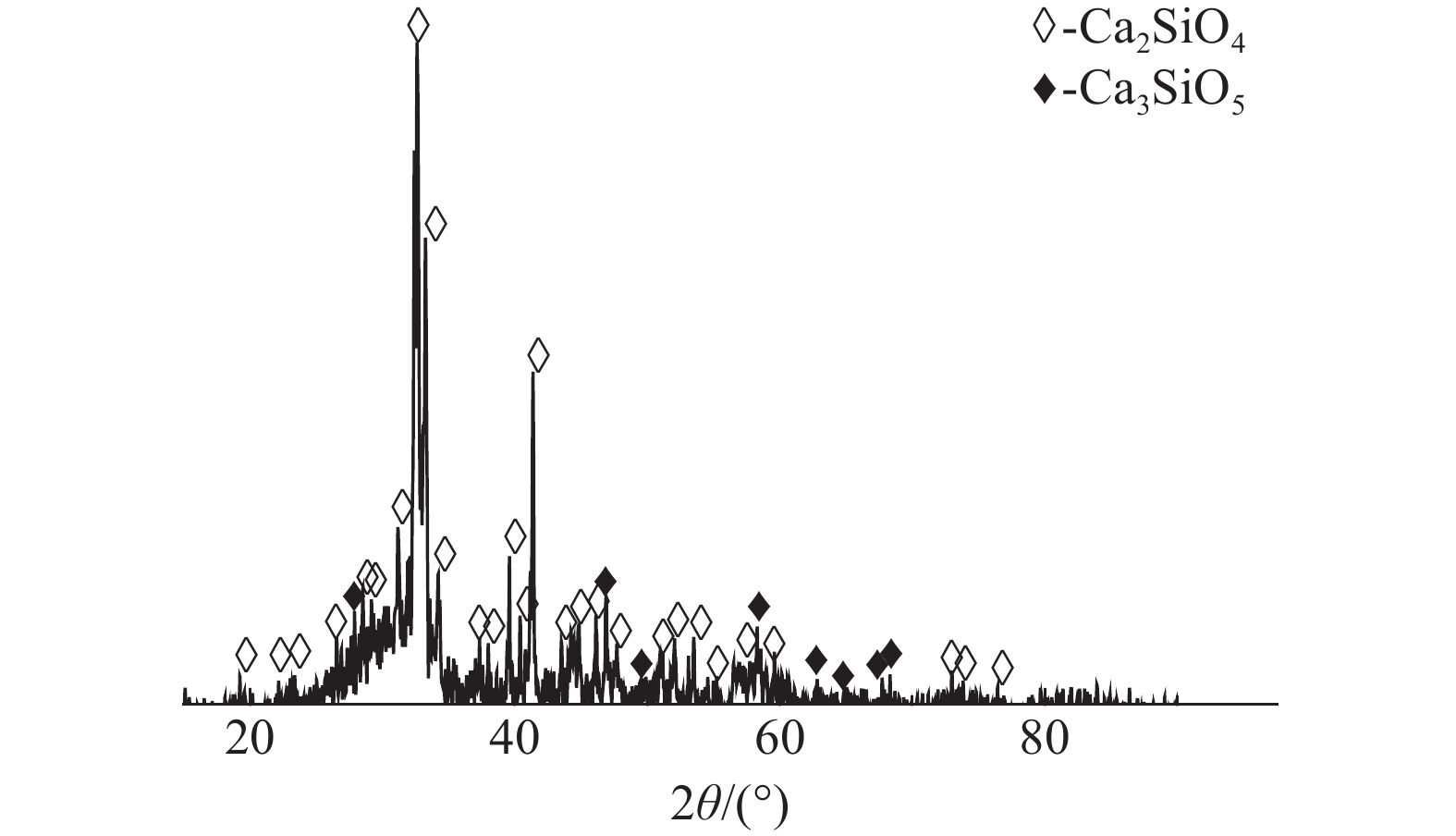

图 2 1573 K反应60 min上层渣样的XRD

Figure 2.

下载: 全尺寸图片幻灯片

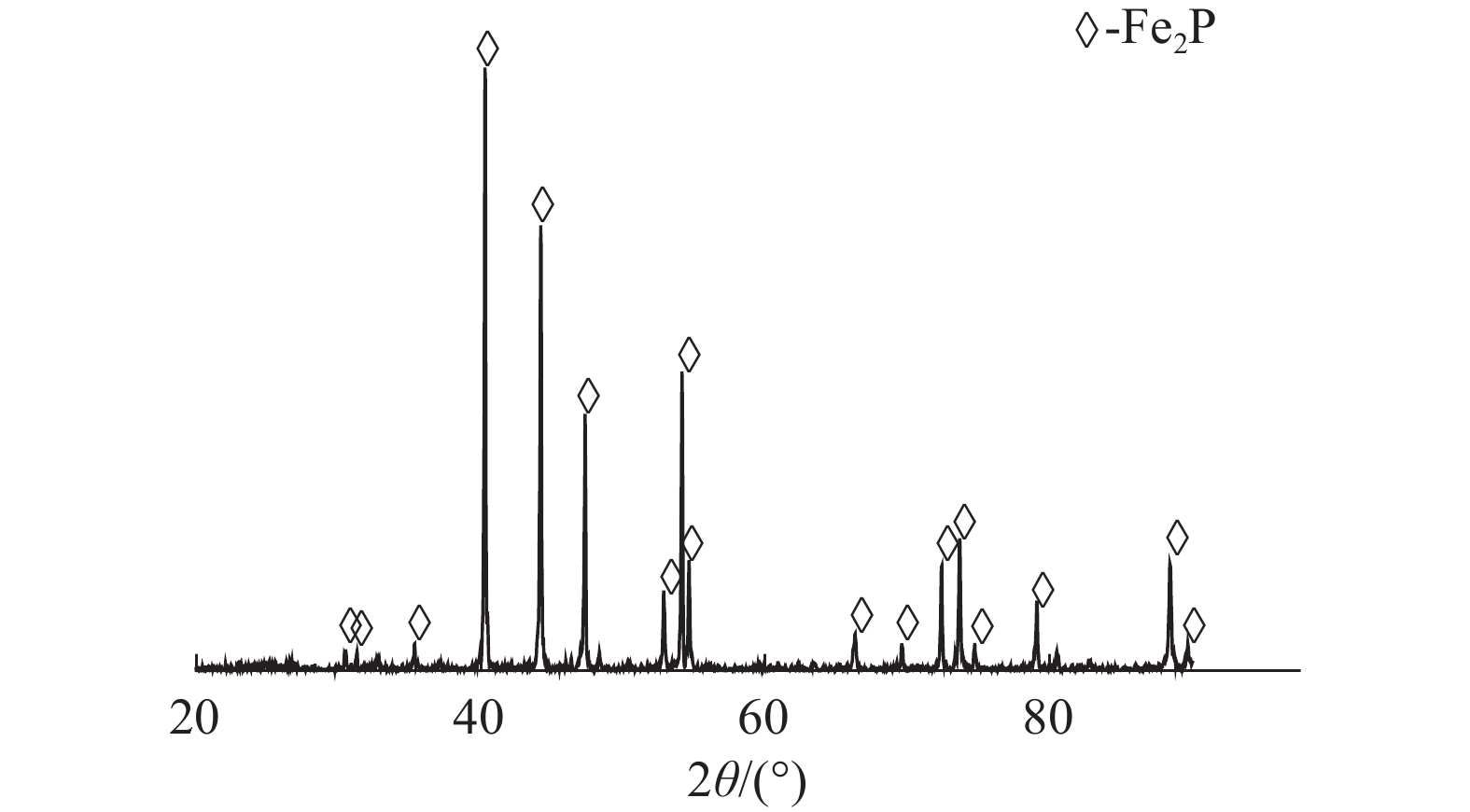

图 3 1573 K保温60 min的下层产品XRD

Figure 3.

下载: 全尺寸图片幻灯片

表 1 磷铁渣的XRF分析结果/ %

Table 1. XRF result of ferrophosphorus slag

Fe P O Si Mn C Ca V Cr Cu Ni Al Mg

73.8 16.3 4.35 1.53 1.24 0.821 0.860 0.249 0.218 0.180 0.167 0.162 0.0971

下载: 导出CSV
