基于Newmark模型的天水市北山地震黄土滑坡危险性评价

程小杰; 杨为民; 向灵芝; 张树轩; 李焕彬

基于Newmark模型的天水市北山地震黄土滑坡危险性评价

1.
中国地质科学院地质力学研究所, 北京 100081

2.
重庆交通大学河海学院, 重庆 400074

3.
中国地质大学(北京)工程技术学院, 北京 100083

4.
中国地质大学(北京)地球科学与资源学院, 北京 100083

基金项目:
中国地质调查局地质调查项目"西秦岭北缘断裂带天水段地震地质灾害调查评价"项目（12120114035601）

详细信息

作者简介: 程小杰(1990-), 男, 硕士研究生, 从事地质灾害、数值模拟等方面的研究。E-mail:845767883@qq.com

通讯作者: 杨为民(1965-), 男, 研究员, 博士, 从事地质灾害、工程地质及活动断裂研究工作。E-mail:snon_72@163.com

中图分类号: P631.8

收稿日期: 2016-12-20

刊出日期: 2017-04-25

RISK ASSESSMENT OF SEISMIC LOESS LANDSLIDE BASED ON NEWMARK MODEL IN BEISHAN, TIANSHUI CITY

1.
Institute of Mechanics, Chinese Academy of Geological Sciences, Beijing 100081, China

2.
School of Hohai, Chongqing Jiaotong University, Chongqing 400074, China

3.
School of Engineering and Technology, China University of Geosciences, Beijing 100083, China

4.
School of Earth Science and Rescource, China University of Geosciences, Beijing 100083, China

More Information

Corresponding author: YANG Wei-min, snon_72@163.com

Received Date: 20 December 2016

Publish Date: 25 April 2017

摘要

摘要:
本文通过天水市北山野外调查和室内分析相结合的方法，开展基于Newmark累积位移法的地震黄土滑坡危险性分析。分析了研究区的孕灾背景，结合现有滑坡和不稳定斜坡的调查数据，在充分考虑了震源方位角和斜坡坡向角的角度关系基础上，对优势坡向角和劣势坡向角下的斜坡易发性进行分析计算，然后用回归方程求出PGA为0.3 g时斜坡的累积位移，最后计算出斜坡在地震荷载下的失稳概率。在此基础上，对北山进行地震黄土滑坡的危险性评价。分析结果表明：在Newmark模型的地震黄土滑坡危险性评估中引入斜坡坡向角和震源方位角关系，有利于提高小区域（大比例尺）风险评估的准确性。
- 天水市北山 /
- 地震黄土滑坡 /
- 危险性评价 /
- Newmark模型
Abstract:
Based on the method of field investigation and indoor analysis of Beishan in Tianshui City, Gansu Procince, the analysis of the hazard analysis of the seismic loess landslide is carried out in this article based on the Newmark accumulated displacement method. Through analyzing the disaster-forming environment, combining with the investigation data of the existing landslides and unstable slopes, in fully consideration of the angle relationship between the azimuth angle of the source and the slope angle of the area, the calculation and comparison of the slope prone angle under the dominant slope angle and the inferior slope angle are carried out.Then the accumulation of slope displacementis calculateby using the regression equation when the PGA is 0.3g. Finally, the probability of instability of slope under earthquake load is calculated. On this basis, the risk assessment of the Seismic loess landslide of Beishan area was carried out. The analysis results show that introducing the relationship between the slope angle and the azimuth of seismic source in the risk assessment of the Loess Landslide in the Newmark model is helpful to improve the accuracy of the risk assessment of the small area (large scale).
- Beishan of Tianshui City /
- seismic loess landslide /
- risk assessment /
- Newmark model

HTML全文

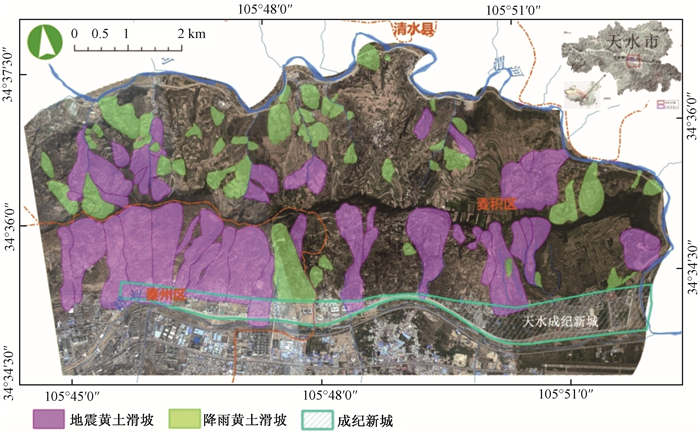

图 1 天水市北山位置和滑坡分布图

Figure 1.

下载: 全尺寸图片幻灯片

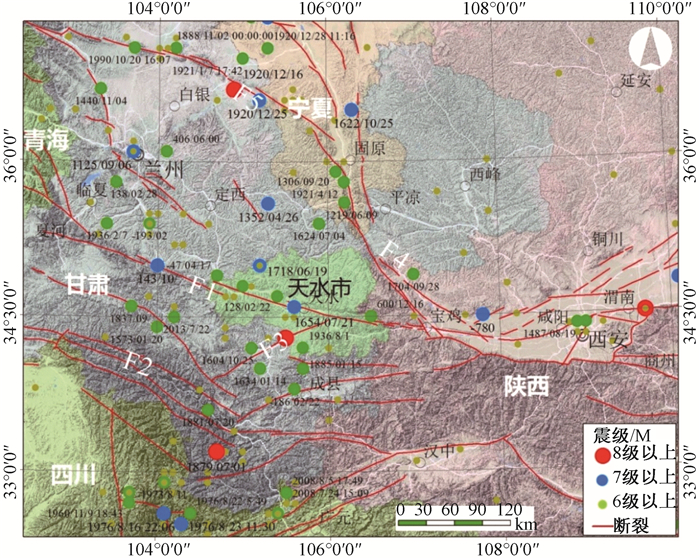

图 2 天水市及周边断裂和历史地震(M_s≥6.0级)分布图

Figure 2.

下载: 全尺寸图片幻灯片

图 3 Newmark模型滑体静力受力图和地震加速度水平分解图

Figure 3.

下载: 全尺寸图片幻灯片

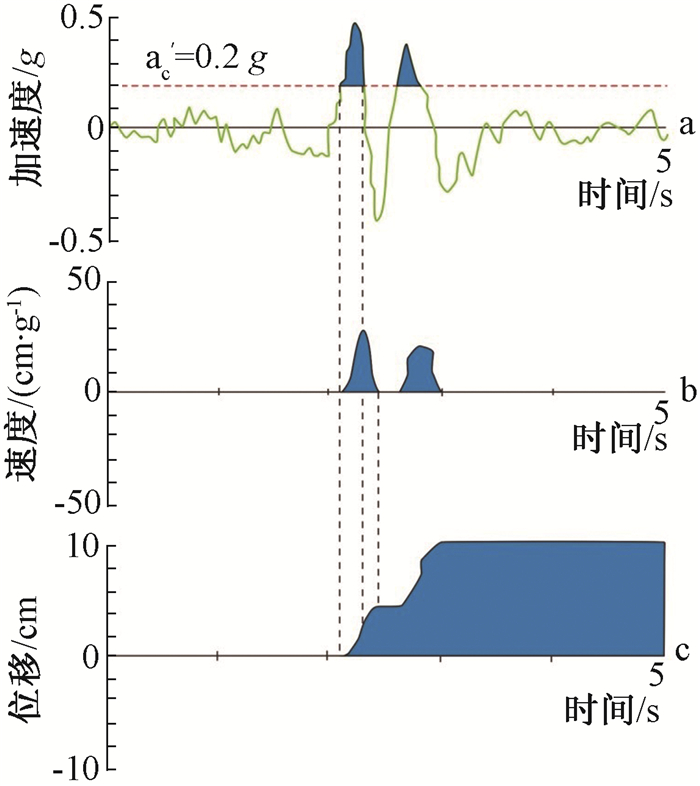

图 4 考虑斜坡坡向角的Newmark累积位移求解原理图

Figure 4.

下载: 全尺寸图片幻灯片

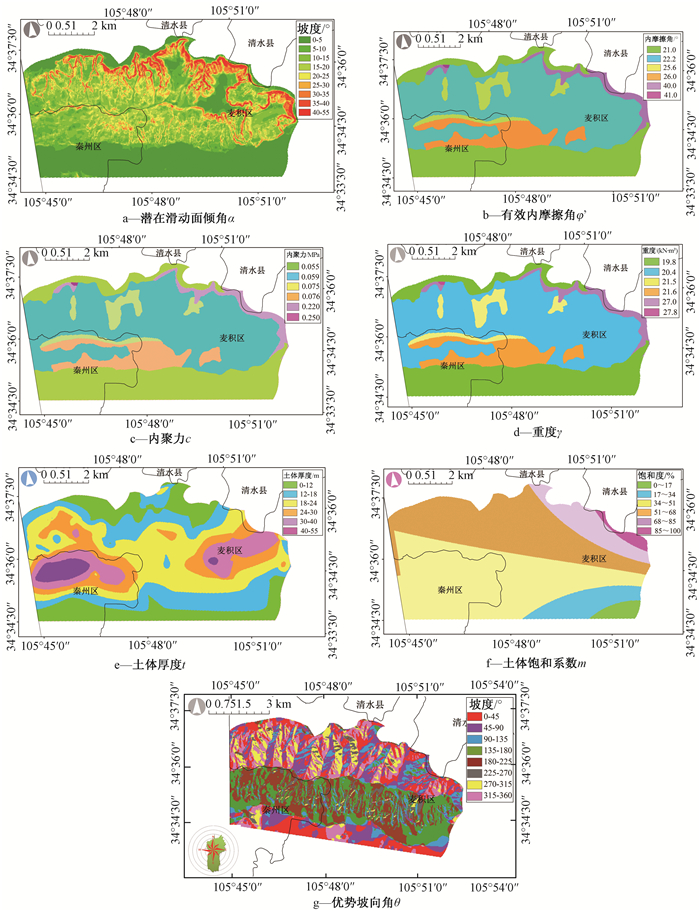

图 5 Fs求解参数因子栅格图

Figure 5.

下载: 全尺寸图片幻灯片

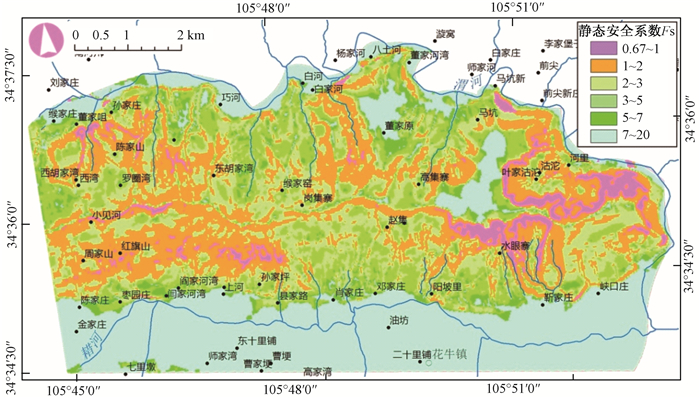

图 6 北山静态安全系数Fs栅格图

Figure 6.

下载: 全尺寸图片幻灯片

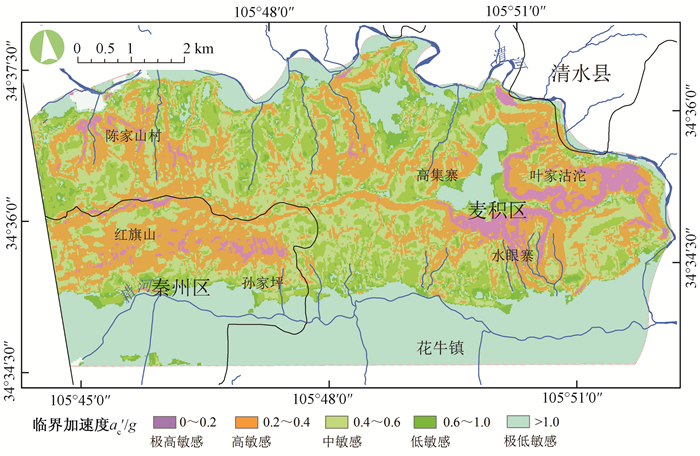

图 7 优势坡向角下的斜坡临界加速度a′_c1

Figure 7.

下载: 全尺寸图片幻灯片

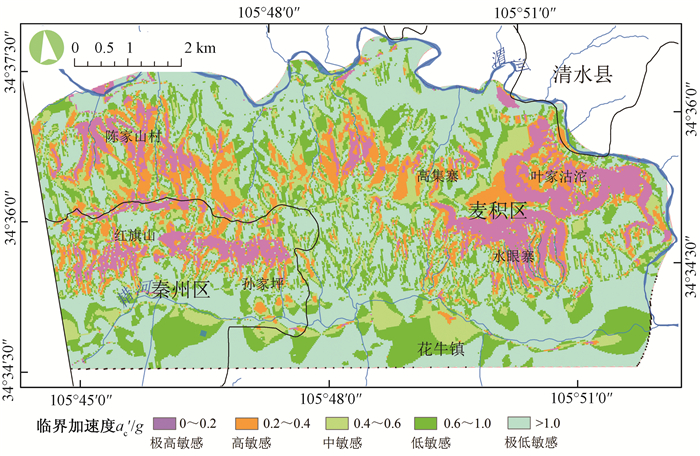

图 8 劣势坡向角下的斜坡临界加速度a′_c2

Figure 8.

下载: 全尺寸图片幻灯片

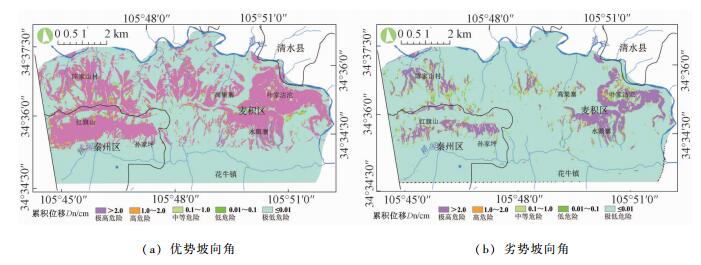

图 9 优势坡向角和劣势坡向角的斜坡累积位移栅格图

Figure 9.

下载: 全尺寸图片幻灯片

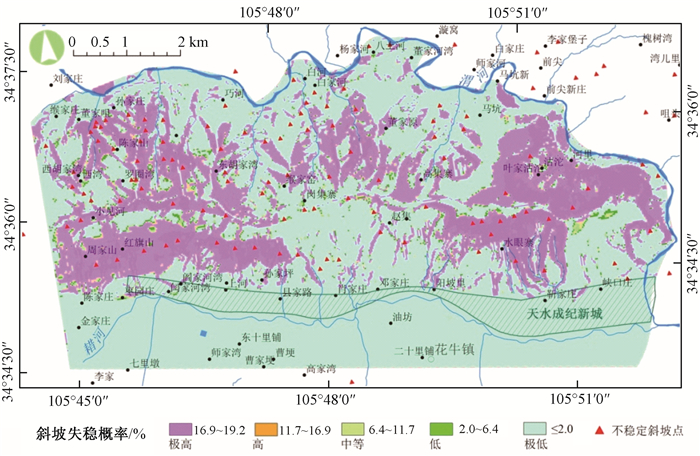

图 10 优势坡向角下斜坡失稳概率图

Figure 10.

下载: 全尺寸图片幻灯片

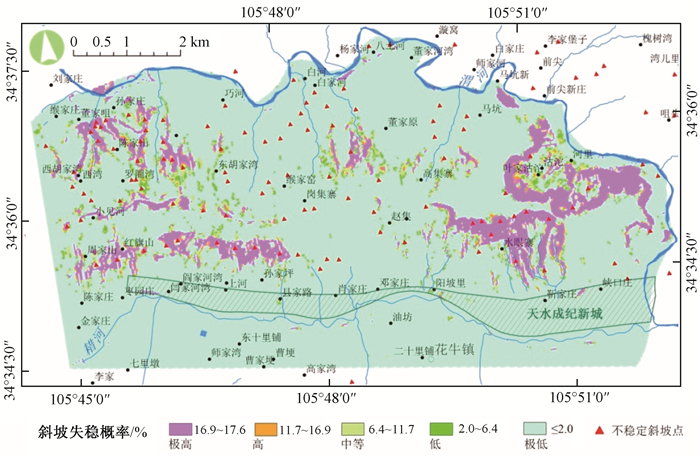

图 11 劣势坡向角下斜坡失稳概率图

Figure 11.

下载: 全尺寸图片幻灯片

表 1 北山岩土体物理力学参数取值表

Table 1. Physical and mechanical parameters of rock and soil in Beishan

岩组	坚硬 (变质岩)	较坚硬 (砂砾岩)	较软(松散沉积物，藉河，红旗山)	软弱(松散堆积物，距河流较近，锻压厂)
φ′/°	40	35	24.5	22.2
c′/Pa	220000	140000	90400	59500
γ/(N·m ^-3)	24500	23000	17800	17500

下载: 导出CSV

表 2 累积位移Dn的Weibull函数拟合参数表

Table 2. The table of Weibull function fitting parameter of cumulative displacement

Dn	P(Dn)
0.005	0.0891
0.05	0.0936
0.5	0.1566
1.5	0.1720
2.0	0.1921

下载: 导出CSV
