PARAMETER MODELING OF LOW PERMEABILITY TIGHT RESERVOIR BASED ON FINE LITHOFACIES CONSTRAINT: A Case Study of C-812 Tight Sandstone Reservoir in No. 92 Wellblock of Honghe Oilfield
-
摘要:
鄂尔多斯盆地红河油田属于低孔、超低渗岩性油气藏.红河油田长8储层主要发育辫状河三角洲前缘水下分流河道和分流间湾两种沉积微相，并且在水下分流河道沉积微相中储层参数变化范围大，非均质性强，用常规的单一沉积相控建模方法无法对储层参数空间分布的非均质性进行充分表征.为了精确描述其储层参数及展布特征，以红河油田92井区长812致密砂岩储层为例，在地质、岩心、测井等资料的基础上，应用基于精细岩相约束的储层参数建模方法建立了研究区三维地质模型，即先用沉积相发育模式约束建立沉积微相模型，再对水下分流河道沉积微相进行岩相细分，在沉积微相模型和不同岩相概率体的双重控制下建立岩相模型，然后以岩相模型为约束建立储层参数模型.结果表明，该方法建立的储层参数模型具有较高的可靠性，与地质认识符合较好，为该区油藏数值模拟提供了精确的地质模型，并为研究区下一步开发方案调整提供了地质依据.
Abstract:The Honghe Oilfield in Ordos Basin is a kind of lithologic reservoir with low porosity and ultra-low permeability, among which the C-8 reservoir mainly develops two types of sedimentary microfacies, including underwater distributary channel and interdistributary bay of braided-river delta front. The reservoir parameters of the former vary widely with strong heterogeneity, and the spatial distribution cannot be adequately characterized by conventional single sedimentary facies-controlled modeling. To accurately describe the reservoir parameters and distribution characteristics, taking the C-812 tight sandstone reservoir in No. 92 wellblock of Honghe Oilfield as an example, the reservoir parameter modeling method based on fine lithofacies constraint is applied to establish the 3D geological model on the basis of geology, core and well logging data. That is, first using the sedimentary facies development pattern constraint to built sedimentary microfacies model, then subdividing the lithofacies of underwater distributary channel microfacies, and establishing the lithofacies model under the dual control of sedimentary microfacies model and probability bodies of different lithofacies, and finally the reservoir parameter models based on lithofacies model constraint. The results show that the reservoir parameter model established by this method is highly reliable and consistent with geological understanding, which provides accurate geological models for reservoir numerical simulation and basis for further development adjustment in the study area.
-
-

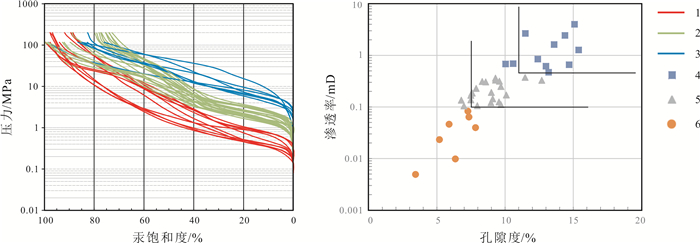

表 1 岩心岩相类型及特征
Table 1. Lithofacies types and characteristics of cores
岩相 岩性 孔隙结构类型 平均排驱压力/MPa 平均最大孔喉半径/μm 孔隙类型 喉道类型 孔隙度/% 渗透率/mD Ⅰ类细砂岩相 细砂岩 Ⅰ类 0.2 0.6 粒间孔为主 中细喉道 > 11 > 0.5 Ⅱ类细砂岩相 细砂岩 Ⅱ类 1 0.3 粒间孔、粒内溶孔 细喉道 7.5~11 0.1~0.5 粉砂岩相 粉砂岩、泥质粉砂岩 Ⅲ类 2.8 0.1 粒内溶孔、晶间微孔 细微喉道 < 7.5 < 0.1
下载: 导出CSV
-
[1] 胡向阳, 熊琦华, 吴胜和.储层建模方法研究进展[J].中国石油大学学报:自然科学版, 2001, 25(1):107-112. http://d.old.wanfangdata.com.cn/Periodical/sydxxb200101027
[2] Journel A G, Huijberegts C J. Mining geostatistics[M]. New York:Academic Press, 1978:135-142.
[3] 吕晓光, 王德发, 姜洪福.储层地质模型及随机建模技术[J].大庆石油地质与开发, 2000, 19(1):10-13. doi: 10.3969/j.issn.1000-3754.2000.01.004
[4] 文钢锋, 王智, 韩军, 等.地质模型反演预测隐蔽油气藏[J].岩性油气藏, 2009, 21(1):94-98. doi: 10.3969/j.issn.1673-8926.2009.01.019
[5] 张淑品, 陈福利, 金勇.塔河油田奥陶系缝洞型碳酸盐岩储集层三维地质建模[J].石油勘探与开发, 2007, 34(2):175-180. doi: 10.3321/j.issn:1000-0747.2007.02.009
[6] 吴胜和, 李宇鹏.储层地质建模的现状与展望[J].海相油气地质, 2007, 12(3):53-60. doi: 10.3969/j.issn.1672-9854.2007.03.009
[7] 李玉君, 邓宏文, 张新培, 等.辽河油田龙10块Es31密井网条件下相控随机建模[J].石油勘探与开发, 2007, 34(6):677-681. doi: 10.3321/j.issn:1000-0747.2007.06.007
[8] 吕晓光, 张永庆, 陈兵, 等.深度开发油田确定性与随机建模结合的相控建模[J].石油学报, 2004, 25(5):60-64. doi: 10.3321/j.issn:0253-2697.2004.05.012
[9] 谢锐杰, 张艳文, 秦刚, 等.相控建模在红连油田精细油藏描述中的应用[J].岩性油气藏, 2011, 23(1):86-89. doi: 10.3969/j.issn.1673-8926.2011.01.015
[10] 惠钢, 董树正, 李凡华, 等.大港埕海二区沙三下亚段相控建模技术[J].科学技术与工程, 2011, 11(15):3427-3434. doi: 10.3969/j.issn.1671-1815.2011.15.015
[11] 左毅, 芦凤明, 刘天鹤.相控建模技术在河流相复杂断块的应用[J].特种油气藏, 2006, 13(1):36-39. doi: 10.3969/j.issn.1006-6535.2006.01.010
[12] 胡望水, 甘永年, 邹小朋.冀东南堡凹陷一号构造1-1区储层建模研究[J].科学技术与工程, 2012, 12(7):1611-1614. doi: 10.3969/j.issn.1671-1815.2012.07.034
[13] 于兴河, 陈建阳, 张志杰, 等.油气储层相控随机建模技术的约束方法[J].地学前缘, 2005, 12(3):237-244. doi: 10.3321/j.issn:1005-2321.2005.03.025
[14] 吴胜和, 张一伟, 李恕军, 等.提高储层随机建模精度的地质约束原则[J].中国石油大学学报:自然科学版, 2001, 25(1):55-58. http://d.old.wanfangdata.com.cn/Periodical/sydxxb200101014
[15] 吴凤, 田飞, 段昕婷, 等.鄂尔多斯盆地南部延长探区长8油层组储层特征及影响因素分析[J].石油地质与工程, 2015, 29(5):50-53. doi: 10.3969/j.issn.1673-8217.2015.05.013
[16] 冉令波, 丁晓琪, 张熙.鄂尔多斯盆地镇泾油田长81小层沉积相类型及沉积演化研究[J].石油天然气学报, 2010, 32(6):341-345. http://www.cnki.com.cn/Article/CJFDTotal-JHSX201006086.htm
[17] 翟治洲.鄂尔多斯盆地白豹区块长81三维地质建模[D].西安: 西北大学, 2013.
http://cdmd.cnki.com.cn/Article/CDMD-10697-1013308782.htm [18] 吉伟平.红河油田HH105井区长8段致密砂岩优质储层预测[D].北京: 中国石油大学, 2016.
http://cdmd.cnki.com.cn/Article/CDMD-11414-1018700145.htm [19] 阮基富, 李新玲, 唐青松.相控建模技术在磨溪气田嘉二段气藏中的应用[J].岩性油气藏, 2013, 25(4):83-88. doi: 10.3969/j.issn.1673-8926.2013.04.016
-
