Recognition, age determination and tectonic significance of the Kunlun River ductile shear zone in the East Kunlun Mountains
-
摘要:

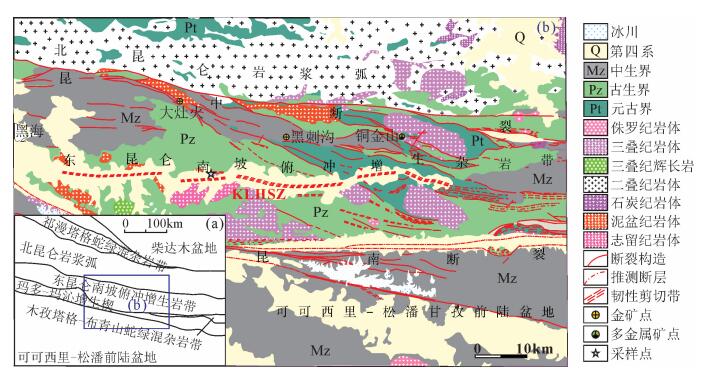

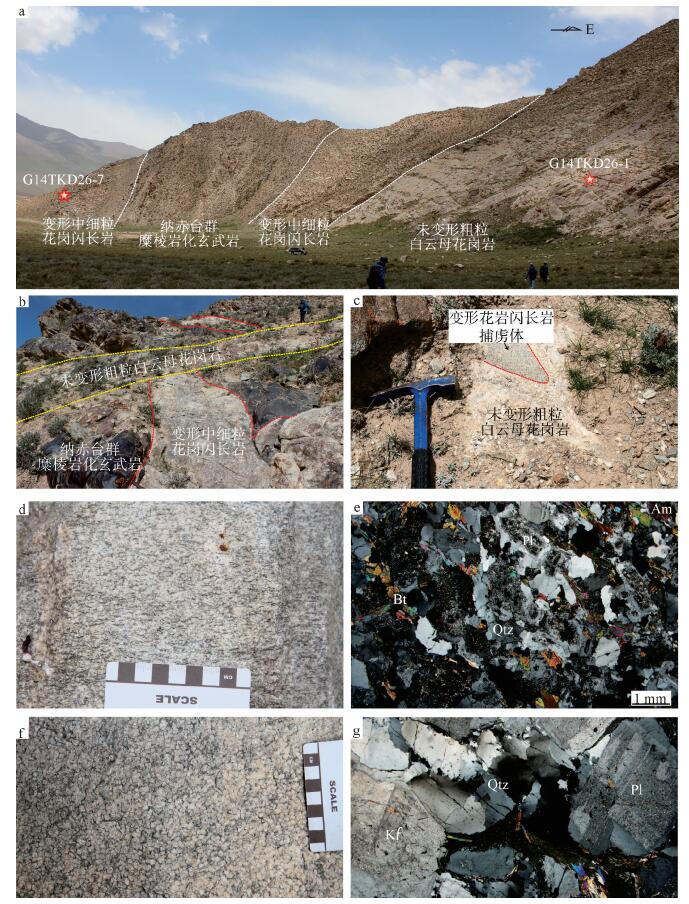

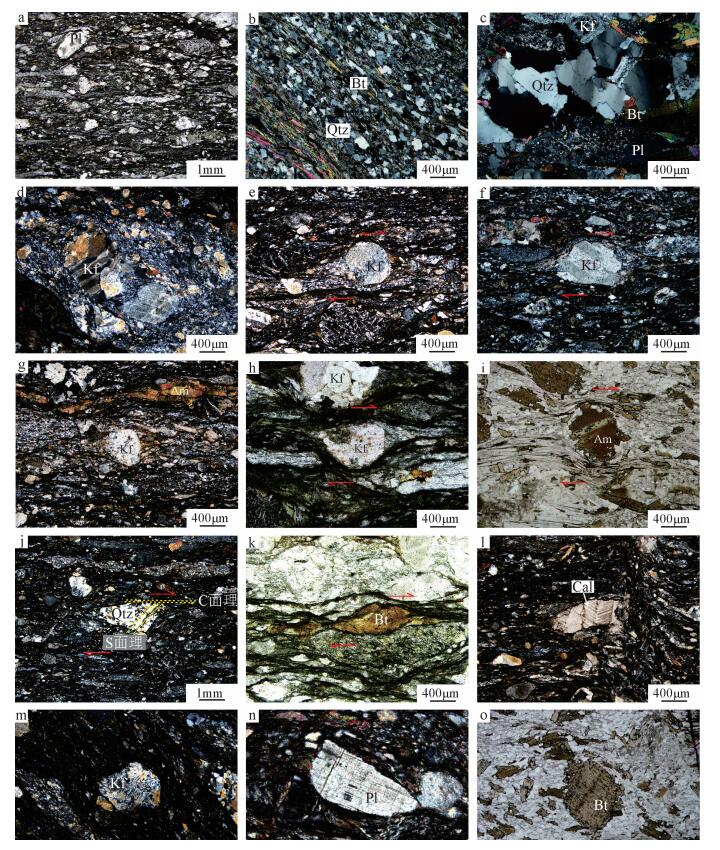

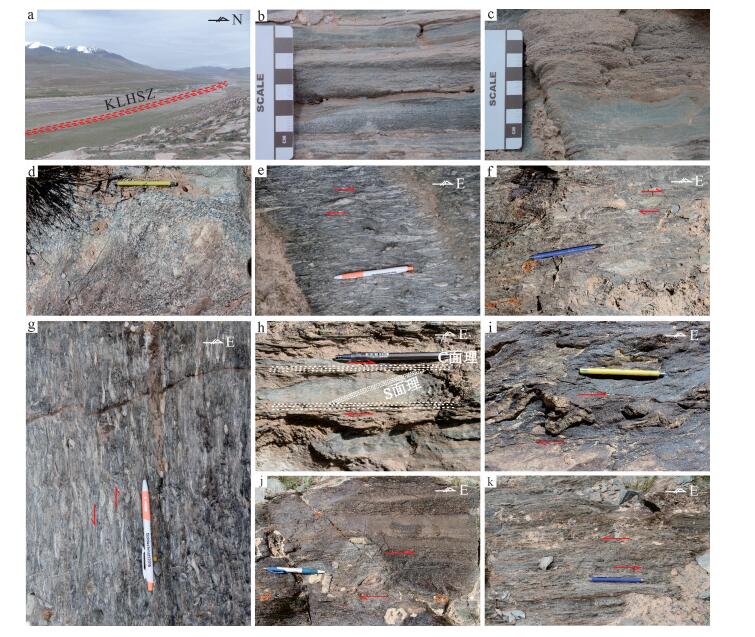

位于东昆仑造山带的青海昆仑河地区发育一条走向近东西向的大型韧性剪切带，卷入韧性剪切变形的岩石主要为中-新元古界万宝沟群变质中基性火山岩、碎屑岩和大理岩，奥陶系纳赤台群变质碎屑岩、玄武岩和大理岩，以及古生代（志留纪）中酸性侵入岩，剪切带内的岩石多已发生糜棱岩化。剪切带中发育的σ型旋转碎斑、S-C组构、糜棱面理、石英脉的不对称褶皱等构造标志，总体指示以右行走滑剪切为主，晚期有左行走滑剪切作用叠加。LA-ICP-MS锆石U-Pb定年结果显示，剪切带中变形的花岗闪长岩及未变形的白云母花岗岩的结晶年龄分别为432.3±1.2Ma和423.3±1.5Ma，从而限定昆仑河韧性剪切带的形成时代介于中-晚志留世432~423Ma之间。结合区域构造演化特点，认为昆仑河韧性剪切带反映了东昆仑原特提斯洋关闭后，昆北与昆南地块于中-晚志留世碰撞造山运动的构造响应，晚期的左行走滑则可能受控于昆南断裂带燕山早期的左行走滑作用。

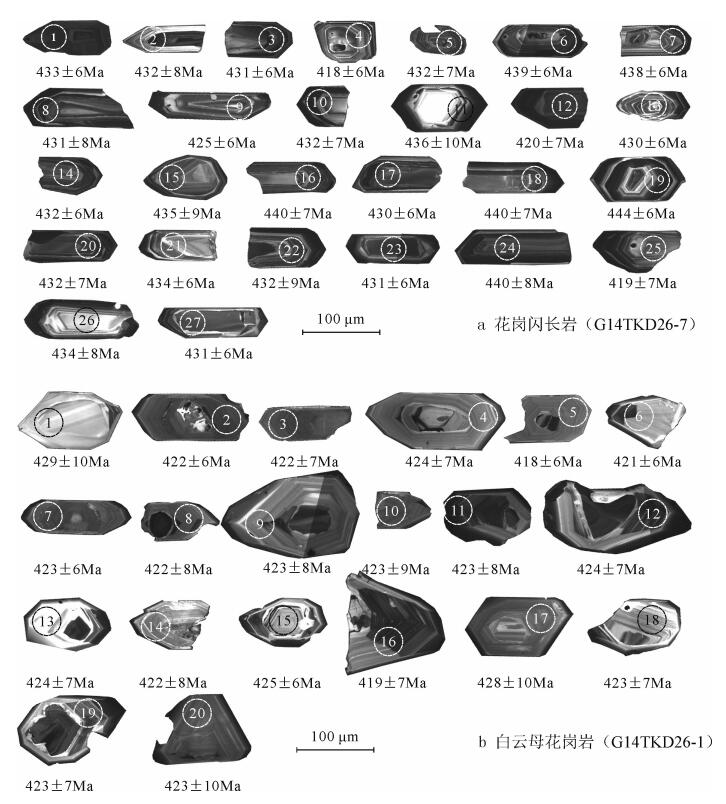

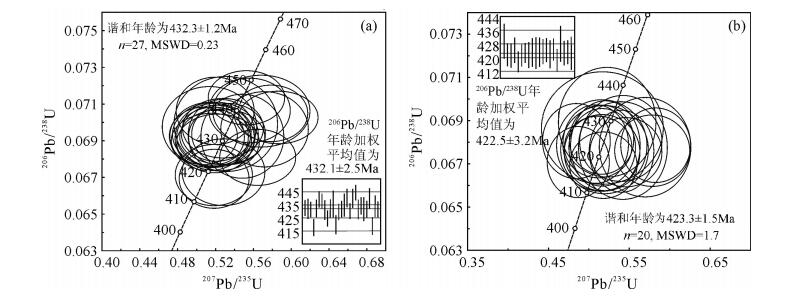

Abstract:Along the Kunlun River of Qinghai Province in the East Kunlun Mountains, a large-scale ductile shear zone is developed. The rocks that involved in the ductile shear deformation and experienced extensive mylonitization include the metamorphosed basic to intermediate volcanic rocks, clastic rocks and marble of the Middle-Upper Proterozoic Wanbaogou Group, the metamorphosed clastic rocks, basalt and marble of the Ordovician Nachitai Group, and the Silurian intermediate to acid intrusive rocks. The structural marks observed in the shear zone, such as the σ-type rotated porphyroclasts, S-C fabrics and the asymmetrical folds of mylonite foliation, indicate in general a dextral strike-slip shear superimposed by a later sinistral shear. Zircon LA-ICP-MS U-Pb ages of the deformed granodiorite and the undeformed muscovite granite in the shear zone are 432.3±1.2Ma and 423.3±1.5Ma, respectively, suggesting that the shear zone formed between ca. 432Ma and 423Ma. Combined with the regional tectonic evolution, it is suggested that the Kunlun River shear zone represents the tectonic response to the collisional orogeny in the Middle-Late Silurian between the North and South Kunlun blocks after the closing of the Proto-Tethys Ocean. The later sinistral shearing was controlled by the strike-slipping of the South Kunlun fault zone in the early Yanshanian period.
-
-
表 1 昆仑河野牛沟公路54km处花岗闪长岩和白云母花岗岩锆石U-Th-Pb同位素测试结果
Table 1. U-Th-Pb isotopic compositions of zircons from the granodiorite and muscovite granite at the locality of 54km on the Yeniugou Highway, Kunlun River
测点 含量/10-6 Th/U 同位素原子比率 同位素年龄/Ma Th U 207Pb/206Pb 1σ 207Pb/235U 1σ 206Pb/238U 1σ 207Pb/206Pb 1σ 207Pb/235U 1σ 206Pb/238U 1σ 花岗闪长岩（G14TKD26-7) 1 73.23 662.98 0.11 0.0536 0.0025 0.5207 0.0244 0.0694 0.0010 354 99.1 426 16.3 433 6.1 2 336.93 827.98 0.41 0.0546 0.0024 0.5264 0.0234 0.0693 0.0013 394 102.8 429 15.6 432 7.8 3 276.93 1187.13 0.23 0.0541 0.0020 0.5210 0.0195 0.0692 0.0010 376 85.2 426 13.0 431 5.9 4 485.36 514.02 0.94 0.0562 0.0028 0.5185 0.0244 0.0669 0.0011 461 107.4 424 16.3 418 6.4 5 246.31 461.16 0.53 0.0554 0.0027 0.5338 0.0257 0.0694 0.0011 428 107.4 434 17.0 432 6.6 6 259.86 572.46 0.45 0.0594 0.0028 0.5786 0.0257 0.0705 0.0010 589 101.8 464 16.5 439 6.1 7 436.51 659.70 0.66 0.0598 0.0028 0.5865 0.0277 0.0703 0.0009 598 97.2 469 17.7 438 5.7 8 258.12 492.99 0.52 0.0541 0.0029 0.5191 0.0276 0.0691 0.0012 376 125.0 425 18.5 431 7.5 9 494.39 771.91 0.64 0.0597 0.0029 0.5646 0.0265 0.0681 0.0010 591 105.5 455 17.2 425 6.1 10 223.08 349.53 0.64 0.0540 0.0032 0.5199 0.0300 0.0693 0.0012 372 133.3 425 20.0 432 7.0 11 187.54 381.41 0.49 0.0552 0.0038 0.5309 0.0361 0.0699 0.0017 420 151.8 432 24.0 436 10.3 12 231.63 721.78 0.32 0.0564 0.0031 0.5285 0.0289 0.0673 0.0012 478 122.2 431 19.2 420 7.3 13 349.17 444.80 0.78 0.0543 0.0030 0.5226 0.0288 0.0689 0.0010 383 124.1 427 19.2 430 6.2 14 288.81 424.32 0.68 0.0529 0.0026 0.5071 0.0237 0.0693 0.0010 324 113.0 417 16.0 432 6.2 15 134.67 301.79 0.45 0.0529 0.0034 0.5136 0.0330 0.0698 0.0014 324 144.4 421 22.1 435 8.7 16 304.10 453.95 0.67 0.0564 0.0028 0.5560 0.0284 0.0707 0.0012 478 111.1 449 18.5 440 7.0 17 340.04 426.48 0.80 0.0538 0.0030 0.5156 0.0280 0.0690 0.0010 361 125.9 422 18.8 430 5.9 18 280.60 441.03 0.64 0.0532 0.0028 0.5196 0.0272 0.0706 0.0012 345 120.4 425 18.2 440 7.3 19 89.16 749.08 0.12 0.0556 0.0027 0.5526 0.0267 0.0713 0.0010 435 107.4 447 17.4 444 5.9 20 366.88 573.34 0.64 0.0541 0.0031 0.5132 0.0274 0.0692 0.0012 376 127.8 421 18.4 432 7.4 21 385.44 400.50 0.96 0.0545 0.0029 0.5278 0.0282 0.0697 0.0011 394 88.0 430 18.8 434 6.5 22 313.86 493.05 0.64 0.0570 0.0030 0.5484 0.0289 0.0692 0.0015 494 116.7 444 19.0 432 9.1 23 1258.66 956.08 1.32 0.0533 0.0027 0.5179 0.0257 0.0692 0.0011 343 110.2 424 17.2 431 6.4 24 298.18 423.49 0.70 0.0578 0.0035 0.5685 0.0339 0.0706 0.0013 520 136.1 457 22.0 440 7.8 25 333.72 584.89 0.57 0.0552 0.0029 0.5182 0.0270 0.0671 0.0011 420 152.8 424 18.0 419 6.6 26 197.87 260.58 0.76 0.0591 0.0032 0.5718 0.0306 0.0696 0.0014 572 118.5 459 19.7 434 8.2 27 658.84 648.82 1.02 0.0543 0.0031 0.5271 0.0297 0.0692 0.0010 387 129.6 430 19.7 431 6.0 白云母花岗岩（G14TKD26-1) 1 94.49 128.12 0.74 0.0559 0.0048 0.5227 0.0398 0.0689 0.0017 450 187.9 427 26.5 430 10.1 2 661.24 486.03 1.36 0.0615 0.0033 0.5783 0.0306 0.0676 0.0011 654 84.2 463 19.7 422 6.6 3 434.43 400.69 1.08 0.0551 0.0034 0.5163 0.0309 0.0675 0.0012 417 137.0 423 20.7 421 7.0 4 156.19 222.23 0.70 0.0573 0.0041 0.5395 0.0336 0.0680 0.0012 506 157.4 438 22.2 424 7.3 5 423.48 410.33 1.03 0.0553 0.0029 0.5179 0.0275 0.0669 0.0010 433 118.5 424 18.4 418 6.1 6 529.82 474.40 1.12 0.0575 0.0031 0.5458 0.0294 0.0675 0.0011 509 123.1 442 19.3 421 6.4 7 652.85 501.93 1.30 0.0537 0.0029 0.5114 0.0275 0.0678 0.0009 367 124.1 419 18.5 423 5.7 8 742.97 580.79 1.28 0.0571 0.0028 0.5404 0.0264 0.0676 0.0013 494 107.4 439 17.4 422 7.6 9 249.56 308.39 0.81 0.0553 0.0032 0.5204 0.0284 0.0678 0.0014 433 127.8 425 19.0 423 8.3 10 198.82 395.06 0.50 0.0598 0.0038 0.5695 0.0374 0.0678 0.0015 594 138.9 458 24.2 423 9.2 11 154.19 264.94 0.58 0.0545 0.0038 0.5160 0.0369 0.0678 0.0014 391 152.8 422 24.7 423 8.4 12 422.89 415.70 1.02 0.0543 0.0029 0.5084 0.0268 0.0679 0.0012 383 122.2 417 18.0 424 7.2 13 602.88 710.45 0.85 0.0512 0.0030 0.4846 0.0277 0.0681 0.0011 250 133.3 401 18.9 424 6.9 14 279.24 308.47 0.91 0.0548 0.0038 0.5194 0.0358 0.0677 0.0013 406 155.5 425 23.9 422 8.1 15 875.14 597.28 1.47 0.0541 0.0029 0.5157 0.0263 0.0681 0.0011 376 125.0 422 17.6 425 6.4 16 467.05 418.63 1.12 0.0521 0.0029 0.4869 0.0254 0.0671 0.0011 300 129.6 403 17.3 419 6.6 17 95.13 161.79 0.59 0.0542 0.0052 0.5167 0.0497 0.0687 0.0017 389 219.4 423 33.3 428 10.4 18 166.37 277.08 0.60 0.0551 0.0030 0.5165 0.0272 0.0678 0.0012 413 122.2 423 18.2 423 7.2 19 323.98 466.74 0.69 0.0617 0.0030 0.5826 0.0285 0.0679 0.0011 665 99.1 466 18.3 423 6.9 20 96.78 172.47 0.56 0.0580 0.0039 0.5421 0.0363 0.0678 0.0016 532 150.0 440 23.9 423 9.6
下载: 导出CSV
-
[1] 钱壮志, 胡正国, 刘继庆.东昆仑北西向韧性剪切带发育的区域构造背景——以石灰沟韧性剪切带为例[J].成都理工学院学报, 1998, 25(2):201-205. http://www.oalib.com/paper/4574317
[2] 许志琴, 李海兵, 杨经绥, 等.东昆仑南缘大型转换挤压构造带和斜向俯冲作用[J].地质学报, 2001, 75(2):156-164. http://www.cqvip.com/QK/95080X/2001002/5182973.html
[3] Liu Y J, Genser J, Neubauer F. 40Ar/39Ar mineral ages from basement rocks in the Eastern Kunlun Mountains, NW China, and their tectonic implications[J]. Tectonophysics, 2005, 398(3):199-224. http://www.academia.edu/2192200/Indosinian_NW-trending_shear_zones_within_the_Truong_Son_belt_Vietnam_sup_40_sup_Ar_sup_39_sup_Ar_Triassic_ages_and_Cretaceous_to_Cenozoic_
[4] 张紫程, 张绪教, 高万里, 等.东昆仑左行走滑韧性剪切带形成时代的锆石U-Pb年龄证据[J].地质力学学报, 2010, 16(1):51-58. http://d.wanfangdata.com.cn/Periodical_dzlxxb201001007.aspx
[5] 潘彤, 拜永山, 孙丰月, 等.青海省东昆仑地区有色、贵金属矿产成矿系列与成矿预测[M].北京:地质出版社, 2011.
[6] 王秉璋, 罗照华, 吴正寿, 等.祁漫塔格地质走廊域古生代-中生代火成岩岩石构造组合研究[M].北京:地质出版社, 2014.
[7] 李小兵, 裴先治, 刘成军, 等.东昆仑东段东昆中构造带韧性剪切作用及其地质意义[J].中国地质, 2014, 41(2):419-436. http://www.cqvip.com/QK/90050X/201402/49343611.html
[8] 李小兵, 裴先治, 陈有炘, 等.东昆仑造山带东段哈图沟-清水泉-沟里韧性剪切带塑性变形及动力学条件研究[J].大地构造与成矿学, 2015, 39(2):208-230. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ddgzyckx201502002
[9] 冯李强, 顾雪祥, 章永梅, 等.东昆仑南缘韧性剪切带变形特征及其形成时代的限定[J].地质通报, 2017, 36(6):987-1000. http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?file_no=20170611&flag=1
[10] Ludwig K R. ISOPLOT 3.00:A geochronological toolkit for Microsoft excel[J]. Berkeley Geochronology Center, Berkeley, 2003, 4:1-74. http://bgc.org/isoplot_etc/isoplot/Isoplot3_75-4_15manual.pdf
[11] Liu Y S, Hu Z C, Gao S, et al. In situ analysis of major and trace elements of anhydrous minerals by LA-ICP-MS without applying an internal standard[J]. Chemical Geology, 2008, 257(1/2):34-43. https://www.researchgate.net/publication/222034389_In_situ_analysis_of_major_and_trace_elements_of_anhydrous_minerals_by_LA-ICP-MSLA-ICP-MS_without_applying_an_internal_standard
[12] Hoskin P W O, Schaltegger U. The composition of zircon and igneous and metamorphic petrogenesis[C]//Reviews in Mineralogy and Geochemistry, 2003, 53: 27-62.
[13] 姜春发, 冯秉贵, 杨经绥, 等. 昆仑地质构造轮廓[C]//中国地质科学院地质研究所文集. 北京: 地质出版社, 1986.
[14] 姜春发, 杨经绥, 冯秉贵, 等.昆仑开合构造[M].北京:地质出版社, 1992.
[15] 潘裕声, 周伟明, 许荣华, 等.昆仑山早古生代地质特征与演化[J].中国科学(D辑), 1996, 26(4):302-307. http://www.cqvip.com/QK/98491X/199604/2081990.html
[16] 殷鸿福, 张克信.东昆仑造山带的一些特点[J].地球科学-中国地质大学学报, 1997, 22(4):339-342. https://www.wenkuxiazai.com/doc/257e5ff249649b6649d7471b-2.html
[17] 杨经绥, 许志琴, 李海兵, 等.东昆仑阿尼玛卿地区古特提斯火山作用和板块构造体系[J].岩石矿物学杂志, 2005, 24(5):369-380. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yskwxzz200505004
[18] 李荣社, 计文化, 赵振明, 等.昆仑早古生代造山带研究进展[J].地质通报, 2007, 26(4):373-382. http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?file_no=20070463&flag=1
[19] 陈能松, 孙敏, 王勤燕, 等.东昆仑造山带昆中带的独居石电子探针化学年龄:多期构造变质事件记录[J].科学通报, 2007, 52(11):1297-1306. doi: 10.3321/j.issn:0023-074X.2007.11.014
[20] Yang J S, Shi R D, Wu C L, et al. Du'ngoi ophiolite in the east Kunlun, northeast Tibetan plateau:evidence for Paleo-Tethyan suture in northwest China[J]. Journal of Earth Science, 2009, 20(2):303-331. doi: 10.1007/s12583-009-0027-y
[21] 武若晨, 顾雪祥, 章永梅, 等.东昆仑造山带早古生代-早中生代构造演化的沉积地球化学记录[J].现代地质, 2017, 31(4):716-733. https://www.researchgate.net/profile/Bin_Liu109/publication/285649933_Early_Paleozoic_tectonic_transition_from_ocean_subduction_to_collisional_orogeny_in_the_Eastern_Kunlun_region_Evidence_from_Huxiaoqin_Mafic_rocks/links/56e0bf9d08aec4b3333d163a.pdf?inViewer=0&pdfJsDownload=0&origin=publication_detail
[22] Yang J S, Robinson P T, Jiang C F, et al. Ophiolites of the Kunlun Mountains, China and their tectonic implications[J]. Tectonophysics, 1996, 15(8):215-231. https://www.sciencedirect.com/science/article/pii/0040195195001999
[23] 陆松年, 于海峰, 赵凤清.青藏高原北部前寒武纪地质初探[M].北京:地质出版社, 2002.
[24] 莫宣学, 罗照华, 邓晋福, 等.东昆仑造山带花岗岩及地壳生长[J].高校地质学报, 2007, 13(3):403-414. http://industry.wanfangdata.com.cn/yj/Detail/Periodical?id=Periodical_gxdzxb200703010
[25] 王晓霞, 胡能高, 王涛, 等.柴达木盆地南缘晚奥陶世万保沟花岗岩:锆石SHRIMP U-Pb年龄、Hf同位素和元素地球化学[J].岩石学报, 2012, 28(9):2950-2962. http://d.wanfangdata.com.cn/Periodical_ysxb98201209022.aspx
[26] 刘彬, 马昌前, 蒋红安, 等.东昆仑早古生代洋壳俯冲与碰撞造山作用的转换:来自胡晓钦镁铁质岩石的证据[J].岩石学报, 2013, 29(6):2093-2106. https://www.researchgate.net/profile/Bin_Liu109/publication/285649933_Early_Paleozoic_tectonic_transition_from_ocean_subduction_to_collisional_orogeny_in_the_Eastern_Kunlun_region_Evidence_from_Huxiaoqin_Mafic_rocks/links/56e0bf9d08aec4b3333d163a.pdf?inViewer=0&pdfJsDownload=0&origin=publication_detail
[27] 刘彬, 马昌前, 张金阳, 等.东昆仑造山带东段早泥盆世侵入岩的成因及其对早古生代造山带作用的指示[J].岩石学报, 2012, 28(6):1785-1807. http://www.ysxb.ac.cn/ysxb/ch/reader/view_abstract.aspx?file_no=20120607
[28] 陈能松, 何蕾, 孙敏, 等.东昆仑造山带早古生代变质峰期和逆冲构造变形年代的精确限定[J].科学通报, 2002, 47(8):628-631. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=kxtb200208016&dbname=CJFD&dbcode=CJFQ
[29] 陆露, 吴珍汉, 胡道功, 等.东昆仑牦牛山组流纹岩锆石U-Pb年龄及构造意义[J].岩石学报, 2010, 26(4):1150-1158. http://www.ysxb.ac.cn/ysxb/ch/reader/view_abstract.aspx?file_no=20100412
[30] 刘战庆, 裴先治, 李瑞保, 等.东昆仑南缘阿尼玛卿构造带布青山地区两期蛇绿岩的LA-ICP-MS锆石U-Pb定年及其构造意义[J].地质学报, 2011, 85(2):185-194. http://www.oalib.com/paper/4873766
[31] 古凤宝.东昆仑地质特征及晚古生代-早中生代构造演化[J].青海地质, 1994, (1):4-14.
[32] 郭正府, 邓晋福, 许志琴, 等.青藏东昆仑晚古生代末-中生代中酸性火成岩与陆内造山过程[J].现代地质, 1998, 12(3):51-59. http://www.cqvip.com/QK/96868X/1998003/3127961.html
[33] 罗照华, 邓晋福, 曹永清, 等.青海省东昆仑地区晚古生代-早中生代火山活动与区域构造演化[J].现代地质, 1999, 13(1):51-56. http://www.oalib.com/paper/4876109
[34] 袁万明, 莫宣学, 喻学惠, 等.东昆仑印支期区域构造背景的花岗岩记录[J].地质论评, 2000, 46(2):203-211. http://www.irgrid.ac.cn/handle/1471x/1014692
[35] 李瑞保, 裴先治, 李佐臣, 等.东昆仑东段晚古生代-中生代若干不整合面特征及其对重大构造事件的响应[J].地学前缘, 2012, 19(5):244-254. http://www.cqvip.com/QK/98600X/201205/44087878.html
[36] Li H B, Xu Z Q, Chen W. Deformational features and tectonic evolution of the south Kunlun strike-slip shear zone, East Kunlun Mountains[J]. Acta Geoscientia Sinica, 1996, (Special Issue):16-21. https://link.springer.com/article/10.1007/s12583-009-0027-y
[37] Li H B, Xu Z Q, Chen W. Southern margin strike-slip fault zone of East Kunlun mountains:an important consequence of intracontinental deformation[J]. Continental Dynamics, 1996, 1(2):146-155. https://www.sciencedirect.com/science/article/pii/S1350448703001513
[38] 罗明非, 莫宣学, 喻学惠, 等.东昆仑香日德地区晚三叠世花岗岩LA-ICP-MS锆石U-Pb定年、岩石成因和构造意义[J].岩石学报, 2014, 30(11):3229-3241. http://d.wanfangdata.com.cn/Periodical_ysxb98201411010.aspx
[39] Hu Y, Niu Y L, Li J Y, et al. Petrogenesis and tectonic significance of the late Triassic mafic dikes and felsic volcanic rocks in the East Kunlun Orogenic Belt, Northern Tibet Plateau[J]. Lithos, 2006, 245:205-222.
① 中国地质大学(武汉)地质调查研究院. 1: 250000不冻泉幅区域地质调查报告. 2006.
-
