NUMERICAL SIMULATION OF TECTONIC STRESS FIELD AND PREDICTION OF OIL-FAVORED AREAS: A CASE STUDY OF THE THIRD MEMBER OF QINGSHANKOU FORMATION IN GUIZIJING REGION OF QIAN'AN AREA, SONGLIAO BASIN
-
摘要:

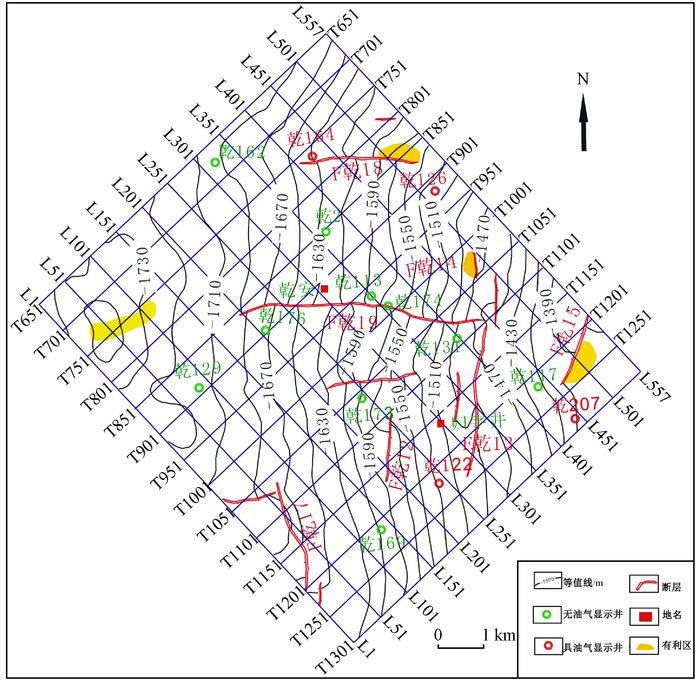

构造应力场在油气运聚成藏中具有重要的作用。明水组沉积末期是松辽盆地乾安地区高台子油层的一个主要成藏期, 期间烃源岩的生、排烃高峰与大规模油气运聚和圈闭的形成在时间上具良好的匹配关系。利用ANSYS有限元模拟软件, 对归字井地区明水组沉积末期构造应力场进行了初步模拟; 同时利用地应力驱动油气运移理论, 对运移势场进行了数值模拟。模拟结果表明, 最大主应力受岩性控制明显, 而最小主应力主要受埋深控制。已有的试油试气资料表明, 具油气显示的井, 大部分都位于地应力区和地势区。依据地应力和运移势场的分布, 并结合地质构造特征, 对油藏有利区进行了预测, 为油田的勘探开发提供了科学依据。

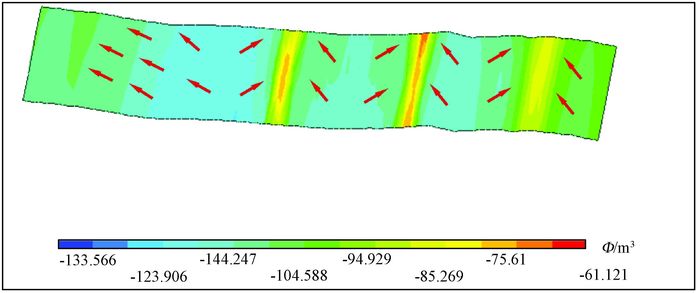

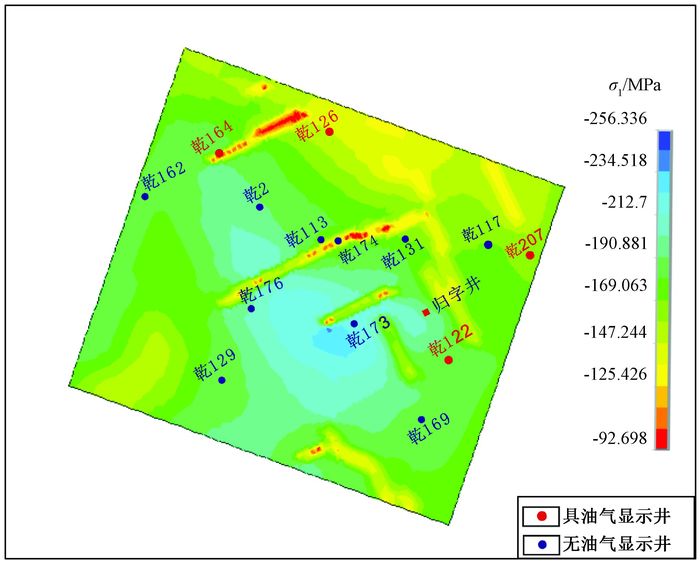

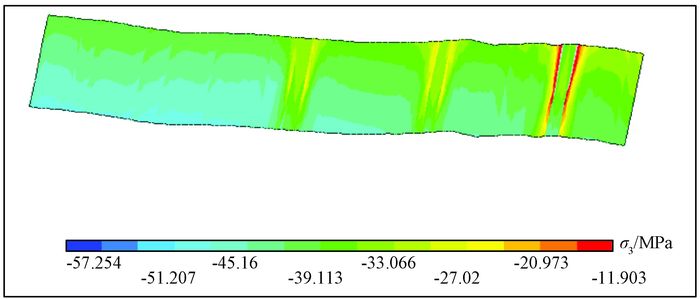

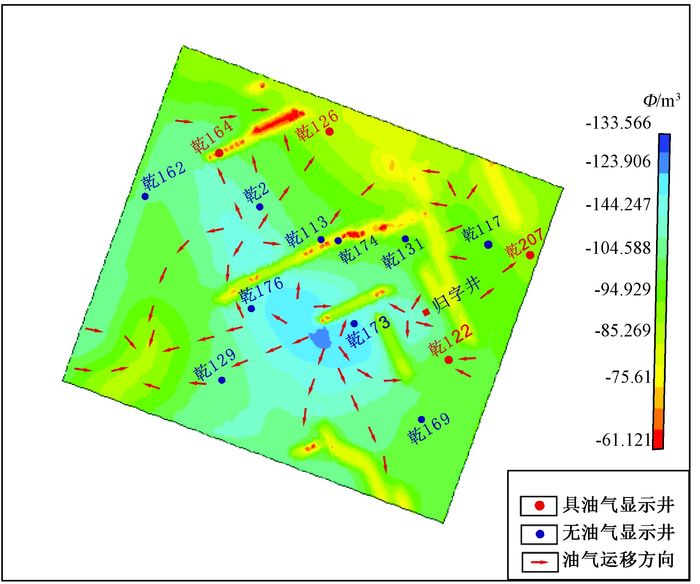

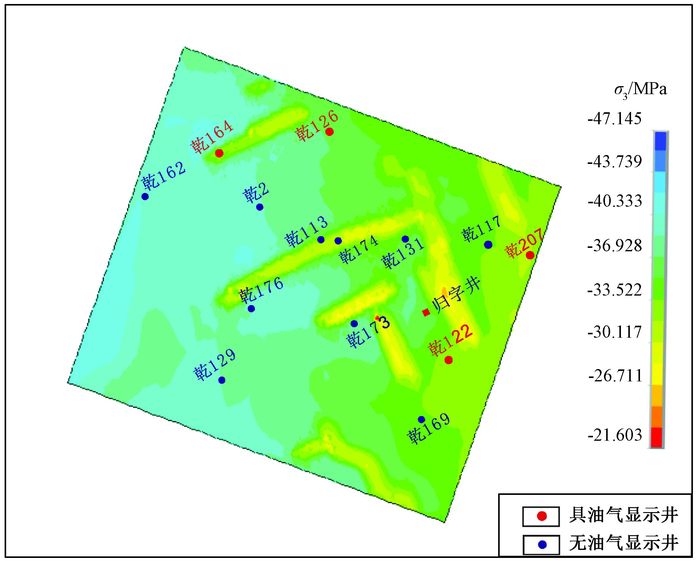

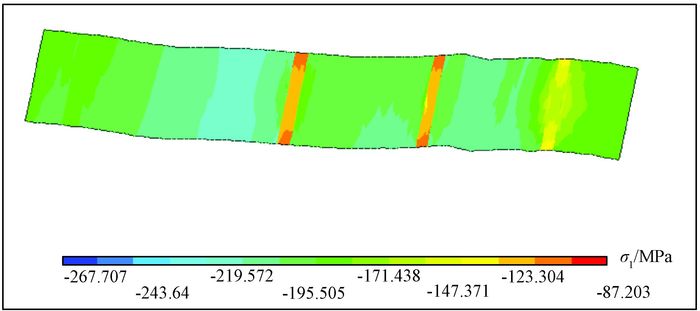

Abstract:Tectonic stress is very important for oil-gas migration and accumulation. Petroleum accumulation for Gaotaizi reservoir in Songliao Basin mainly occurred in the end of Mingshui period. During this period, the peak of hydrocarbon generation and expulsion matches well with large scale hydrocarbon migration and accumulation periods and the formation of accumulations. In this paper, ANSYS is used to primarily simulate the tectonic stress field in the end of Mingshui period in Guizijing region of Qian'an area in South Songliao Basin. According to oil and gas migration mechanics driven by the crustal stress, migration potential field is also simulated. The results show that the first maximum principal stress is mainly controlled by lithology while the minimum principal stress is buried depth. Therefore, the well testing data shows that most wells with a show of oil and gas locate in low stress zone or low potential zone. Based on the distribution of crustal stress, migration potential fields and geologic structure features, the oil-favored areas predicted in this study will provide scientific guide for oil exploration and development.
-
-

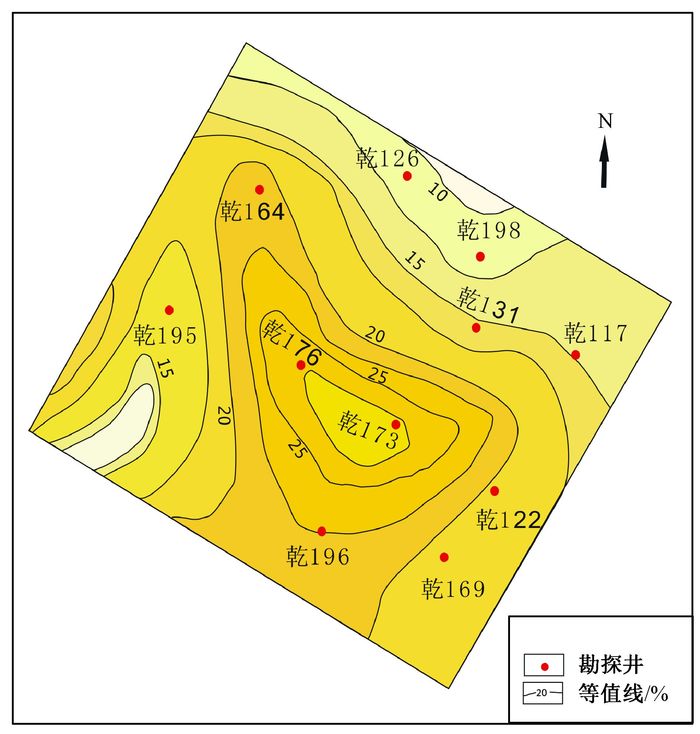

表 1 研究区岩石力学参数
Table 1. Rock mechanics parameters of the model
材料编号 模拟对象 砂地比/% 岩石模量E/103 MPa 泊松比μ 岩石密度ρ/(g·cm-3) 颜色 1 10.0 33.07 0.261 2.20 淡蓝 2 12.5 33.62 0.259 2.22 黄色 3 15.0 34.17 0.257 2.24 紫色 4 17.5 34.72 0.255 2.2 深蓝 5 目的层 20.0 35.26 0.253 2.28 粉红 6 22.5 35.81 0.251 2.30 绿色 7 25.0 36.34 0.249 2.32 土黄 8 27.3 36.90 0.247 2.34 青色 9 30.0 37.45 0.245 2.36 黑色 10 边框 17.5 34.71 0.255 2.26 深蓝 11 断层 - 20.83 0.275 2.14 深红
下载: 导出CSV
-
[1] 王连捷, 张利容, 袁佳音, 等.地应力与油气运移[J].地质力学学报, 1996, 2(2):3~10. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=19960214&journal_id=dzlxxb
WANG Lian-jie, ZHANG Li-rong, YUAN Jia-yin, et al. Crustal stress and oil and gas migration[J]. Journal of Geomechanics, 1996, 2(2): 3~10. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=19960214&journal_id=dzlxxb
[2] 张春明.塔西南群苦恰克构造带油气运移与聚集[J].石油勘探与开发, 1999, 26(5):8~9, 151. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK199905002.htm
ZHANG Chun-ming. Migration and accumulation of oil and gas in Qunkuqiake structural belt, southwest Tarim Basin[J]. Petroleum Exploration and Development, 1999, 26(5): 8~9, 151. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK199905002.htm
[3] 曾联波, 田崇鲁.构造应力场在隐蔽性油气藏勘探中的应用[J].现代地质, 1998, 12(3):301~305. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ803.015.htm
ZENG Lian-bo, TIAN Chong-lu. Application of tectonic stress field in the prospecting of hidden oil and gas reservoir[J]. Modern Geology, 1998, 12(3): 301~305. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ803.015.htm
[4] 刘子良, 梁春秀.松辽盆地南部构造裂缝成因机制及分布方向[J].石油勘探与开发, 1999, 26(5):83~85. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK199905027.htm
LIU Zi-liang, LIANG Chun-xiu. Genetic mechanism and distribution direction of structural fracture in southern Songliao Basin[J]. Petroleum Exploration and Development, 1999, 26(5): 83~85. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK199905027.htm
[5] 周荔青, 张淮.松辽盆地乾安-长岭凹陷大中型岩性-构造复合型油气田形成特征[J].石油实验地质, 2003, 25(5):445~452. doi: 10.11781/sysydz200305445
ZHOU Li-qing, ZHANG Huai. Formation characteristics of large-middle lithologic-structural composite oil and gas fields in the Qian'an-Changling depression of the Songliao Basin[J]. Experimental Petroleum Geology, 2003, 25(5): 445~452. doi: 10.11781/sysydz200305445
[6] 王永春.松辽盆地南部岩性油藏的形成和分布[M].北京:石油工业出版社, 2001:100~204.
WANG Yong-chun. Formation and distribution of lithologic reservoir in southern Songliao Basin[M]. Beijing: Petroleum Industry Press, 2001: 100~204.
[7] 赵维涛, 陈孝珍.有限元法基础[M].北京:科学出版社, 2009:225~241.
ZHAO Wei-tao, CHEN Xiao-zhen. Basis of Finite Element method[M]. Beijing: Science Press, 2009: 225~241.
[8] 穆龙新, 赵国良, 田中元, 等.储层裂缝预测研究[M].北京:石油工业出版社, 2009:227~229.
MU Long-xin, ZHAO Guo-liang, TIAN Zhong-yuan, et al. Study on the prediction of reservoir fracture[M]. Beijing: Petroleum Industry Press, 2009: 227~229.
[9] 杨亮.松辽盆地南部中央坳陷区扶余油层古地貌恢复及构造演化[J].世界地质, 2013, 32(3):565~572. http://www.cnki.com.cn/Article/CJFDTOTAL-SJDZ201303014.htm
YANG Liang. Paleogeomorphological restoration and tectonic evolution of Fuyu reservoir in central depression of southern Songliao Basin[J]. Global Geology, 2013, 32(3): 565~572. http://www.cnki.com.cn/Article/CJFDTOTAL-SJDZ201303014.htm
[10] 陈运平, 赵崇斌, 林舸.深部岩石力学性质及其在大陆构造变形过程研究中的作用[J].大地构造与成矿学, 2008, 32(3):276~284. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200803004.htm
CHEN Yun-ping, ZHAO Chong-bin, LIN Ge. Mechanical properties of deep earth rocks and their roles in the investigation of continental deformation processes[J]. Geotectonica et Metallogenia, 2008, 32(3): 276~284. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200803004.htm
[11] 单玄龙, 胡金祥, 任利军, 等.松辽盆地乾安地区青山口组三段沉积微相特征[J].地质学报, 2008, 82(1):65~71. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200801011.htm
SHAN Xuan-long, HU Jin-xiang, REN Li-jun, et al. Characteristics of sedimentary facies for the Third Member of Qiangshankou Formation in the Qian'an area of the Songliao Basin[J]. Journal of Geology, 2008, 82(1): 65~71. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200801011.htm
[12] 陈志德, 蒙启安, 万天丰, 等.松辽盆地古龙凹陷构造应力场弹-塑性增量法数值模拟[J].地学前缘, 2002, 9(2):483~493. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200202040.htm
CHEN Zhi-de, MENG Qi-An, WAN Tian-feng, et al. Numerical simulation of tectonic stress field in Gulong depression in Songliao Basin using Elastic-Plastic Increment Method[J]. Earth Science Frontiers, 2002, 9(2):483~493. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200202040.htm
[13] 周灿灿. 柏各庄地区构造样式及储层构造裂缝识别与预测[D]. 广州: 中国科学院广州地球化学研究所, 2003: 37~68.
http://cdmd.cnki.com.cn/Article/CDMD-80165-2003092513.htm ZHOU Can-can. Study on the structure mode of Baigezhuang region and the identification and prediction of structure fracture of reservoirs[D].Guangzhou: Guangzhou Institute of Geochemistry, Chinese Academy of Science, 2003: 37~68.
[14] 刘广峰, 陆红军.有限元法开展油气储层地应力研究综述[J].科学技术与工程, 2009, 9(24):7430~7436. doi: 10.3969/j.issn.1671-1815.2009.24.033
LIU Guang-fenG, LU Hong-jun. Application of Finite Element Analysis in reservoir in-situ stress research[J]. Science Technology and Engineering, 2009, 9(24): 7430~7436. doi: 10.3969/j.issn.1671-1815.2009.24.033
[15] 魏春光, 雷茂盛, 万天丰, 等.古龙-徐家围子地区营城组古构造应力场数值模拟-构造裂缝发育区带预测及对比研究[J].石油与天然气地质, 2006, 27(1):78~86. doi: 10.11743/ogg20060113
WEI Chun-guang, LEI Mao-sheng, WAN Tian-feng, et al. Numerical simulation of palaeo-tectonic stress field of Yingcheng Formation in Gulong-Xujiaweizi area: Prediction and comparative study of tectoclase development area[J]. Oil & Gas Geology, 2006, 27(1): 78~86. doi: 10.11743/ogg20060113
[16] 李娟, 舒良树.松辽盆地中、新生代构造特征及其演化[J].南京大学学报:自然科学, 2002, 38(4):525~532. http://www.cnki.com.cn/Article/CJFDTOTAL-NJDZ200204009.htm
LI Juan, SHU Liang-shu. Mesozoic-Cenozoic tectonic feature and evolution of the Songliao Basin, northeastern China[J]. Journal of Nanjing University: Natural Sciences, 2002, 38(4): 525~532. http://www.cnki.com.cn/Article/CJFDTOTAL-NJDZ200204009.htm
[17] 郭巍, 刘招君, 刘群, 等.松辽盆地南部高台子油层成藏动力学[J].吉林大学学报:地球科学版, 2010, 40(3):482~491. http://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201003001.htm
GUO Wei, LIU Zhao-jun, LIU Qun, et al. Research on the hydrocarbon accumulation dynamics of Gaotaizi reservoir in the southern Songliao Basin[J]. Journal of Jilin University: Earth Science Edition, 2010, 40(3): 482~491. http://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201003001.htm
[18] 万天丰, 曹瑞萍.中国中始新世-早更新世构造事件与应力场[J].现代地质, 1992, 6(3):275~286. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ199203004.htm
WAN Tian-feng, CAO Rui-ping. Tectonic events and stress fields of Middle Eocene-Early Pleistocene in China[J]. Geoscience, 1992, 6(3): 275~286. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ199203004.htm
[19] 刘建中, 孙庆友, 徐国明, 等.油气田储层裂缝研究[M].北京:石油工业出版社, 2008:178~182.
LIU Jian-zhong, SUN Qing-you, XU Guo-ming, et al. Study on reservoir fracture in oil and gas fields[M]. Beijing: Petroleum Industry Press, 2008: 178~182.
[20] 李志明, 张金珠.地应力与油气勘探开发[M].北京:石油工业出版社, 1997:7~9.
LI Zhi-ming, ZHANG Jin-zhu. Stress field and oil-gas exploration and development[M]. Beijing: Petroleum Industry Press, 1997: 7~9.
[21] Warpinski N R, Teufel L W. Determination of the effective stress law for permeability and deformation in low-permeability rocks[J]. SPE Formation Evaluation, 1992, 7(2): 123~131. doi: 10.2118/20572-PA
[22] Prabhakara R P. Overburden stress gradient and stress ratio (S & K Factors) of East Geodavari Sub-basin (onshore) and its information pressure and fracture gradient estimates[J]. Bulletin of the Oil and Natural Gas Commission, 1987, 24(2).
[23] Warpinski N R, Teufel L W. In-situ stresses in low-permeability, nonmarine rocks[J]. Journal of Petroleum Technology, 1989, 41(4): 405~414. doi: 10.2118/16402-PA
-
