NUMERICAL SIMULATION OF STRUCTURAL STRESS FIELD IN FUNING SEDIMENTARY PERIOD AND PREDICTION OF THE DEVELOPMENT LAW OF LOWER-ORDER FAULTS IN CHAJIAN SLOPE ZONE
-
摘要:

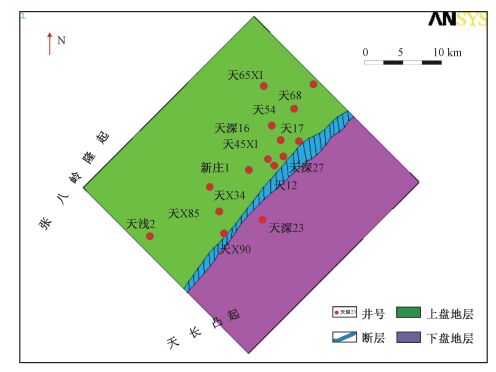

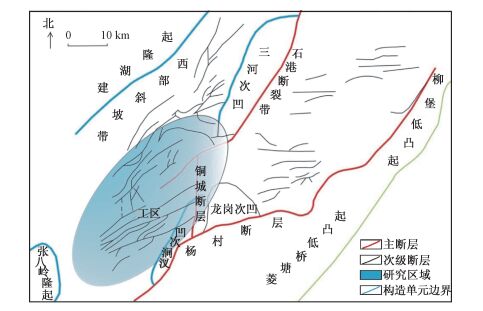

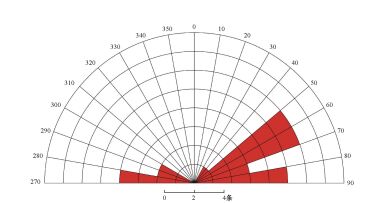

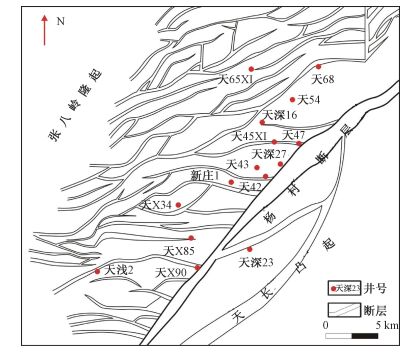

汊涧斜坡带位于金湖凹陷西斜坡南部，第三系沉积期间主要经历了吴堡和三垛运动，形成了复杂的断裂体系，属复杂断块油藏，区内低级序断层较为发育。根据断层平面展布确定阜宁期最小主应力方向为北北西350°，采用有限元法建立地质模型并进行构造应力场数值模拟，计算得出各应力分布，并据此对低级序断层发育规律进行预测。研究表明，汊涧斜坡带阜宁期最大、最小主应力均为水平方向，形成的低级序断层具有张扭性特征；低级序断层的发育主要受最大与最小主应力差值及剪应力控制，主应力差值控制断层优势发育地区，平面剪应力控制断层走向，剖面剪应力控制断层倾向。
Abstract:Chajian slope zone is located in the south of the western slope, Jinhu sag. It has mainly experienced the Wubao and Sanduo tectonic movements during the sedimentation in Tertiary, which formed the complicated fault system and made it into a complex fault-block reservoir. There are many lower-order faults in this area, which makes great influence to the reservoir description and the development deployment, but they cannot be described correctly only based on the seismic data. The determination of the structural stress direction in Funing sedimentary period, which is NW350°, is based on the areal description of the faults. The method of numerical simulation of tectonic stress was applied to make the geological model and simulate the description of structural stress in Funing sedimentary period. The development law of the lower-order faults was predicted according to the description of structural stress. The results show that the maximum and the minimum principal stress were both in the horizontal direction, which usually forms tenso-shear faults. The development of the lower-order fault is mainly influenced by the difference between the maximum and minimum principal stress and the shear stress. In other words, the difference between principal stresses control the advantage area of the fault development, the plane shear stress control the strike of the fault, and the profile shear stress control the dip direction.
-
Key words:
- Chajian slope zone /
- Funing sedimentary period /
- stress field /
- numerical simulation /
- lower-order fault
-
-

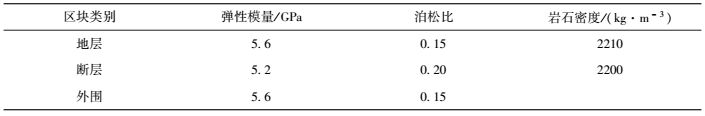

表 1 汊涧斜坡带阜宁期应力场模拟力学参数
Table 1. Mechanical parameters in stress field simulation of Funing Period in Chajian slope zone
下载: 导出CSV
-
[1] 王军, 戴俊生.复杂断块内低级序断层的预测方法[J].西部控矿工程, 2006, 18(S1):164~166. http://www.cnki.com.cn/Article/CJFDTOTAL-XBTK2006S1084.htm
WANG Jun, DAI Jun-sheng. Forecast ways of little faults in complex fault blocks[J]. West-China Exploration Engineering, 2006, 18(S1):164~166. http://www.cnki.com.cn/Article/CJFDTOTAL-XBTK2006S1084.htm
[2] 李阳.我国油藏开发地质研究进展[J].石油学报, 2007, 28(3):75~79. doi: 10.7623/syxb200703014
LI Yang. Progress of research on reservoir development geology in China[J]. Acta Petrolei Sinica, 2007, 28(3):75~79. doi: 10.7623/syxb200703014
[3] 王友启.胜利油田高含水期油藏水驱精细调整技术方向[J].石油钻探技术, 2011, 39(1):101~104. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZT201101020.htm
WANG You-qi. Fine adjustment direction of water flooding in high water cut oil reservoirs of Shengli oilfield[J]. Petroleum Drilling Techniques, 2011, 39(1):101~104. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZT201101020.htm
[4] 能源, 漆家福, 张春峰, 等.金湖凹陷断裂特征及其石油地质意义[J].大地构造与成矿学, 2012, 36(1):16~23. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201201006.htm
NENG Yuan, QI Jia-fu, ZHANG Chun-feng, et al. Structural features of the Jinhu sag in the Subei Basin and its petroleum geological significance[J]. Geotectonica Et Metallogenia, 2012, 36(1):16~23. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201201006.htm
[5] 张宏国, 戴俊生, 王霞田, 等.苏北盆地金湖凹陷西斜坡构造特征及构造演化[J].地球科学与环境学报, 2011, 33(4):349~353. http://www.cnki.com.cn/Article/CJFDTOTAL-XAGX201104003.htm
ZHANG Hong-guo, DAI Jun-sheng, WANG Xia-tian, et al. Structural feature and tectonic evolution of western slope in Jinhu sag, Subei Basin[J]. Journal of Earth Sciences and Environment, 2011, 33(4):349~353. http://www.cnki.com.cn/Article/CJFDTOTAL-XAGX201104003.htm
[6] 叶绍东.金湖凹陷铜城断层构造特征与油气成藏[J].地质力学学报, 2012, 18(2):187~194. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20120209&journal_id=dzlxxb
YE Shao-dong. Structural characteristics of Tongcheng fault and hydrocarbon accumulation in Jinhu sag[J]. Journal of Geomechanics, 2012, 18(2):187~194. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20120209&journal_id=dzlxxb
[7] 戴俊生, 王霞田, 季宗镇, 等.高邮凹陷南断阶东部阜宁期构造应力场及其对断层的控制作用[J].中国石油大学学报:自然科学版, 2011, 35(2):1~5. http://www.cnki.com.cn/Article/CJFDTOTAL-SYDX201102003.htm
DAI Jun-sheng, WANG Xia-tian1, JI Zong-zhen, et al. Structural stress field of Funing sedimentary period and its control on faults in the east of south fault terrace in Gaoyou sag[J]. Journal of China University of Petroleum:Natural Science Edition, 2011, 35(2):1~5. http://www.cnki.com.cn/Article/CJFDTOTAL-SYDX201102003.htm
[8] 戴俊生, 张继标, 冯建伟, 等.高邮凹陷真武断裂带西部低级序断层发育规律预测[J].地质力学学报, 2012, 18(1):11~21. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20120102&journal_id=dzlxxb
DAI Jun-sheng, ZHANG Ji-biao, FENG Jian-wei, et al. Development law and prediction of the lower-order faults in the west of Zhenwu fault zone in Gaoyou sag[J]. Journal of Geomechanics, 2012, 18(1):11~21. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20120102&journal_id=dzlxxb
-
