RELATIONSHIP BETWEEN STRUCTURAL STRESS FIELD AND DEVELOPMENT OF FRACTURES IN FORELAND THRUST BELT
-
摘要:

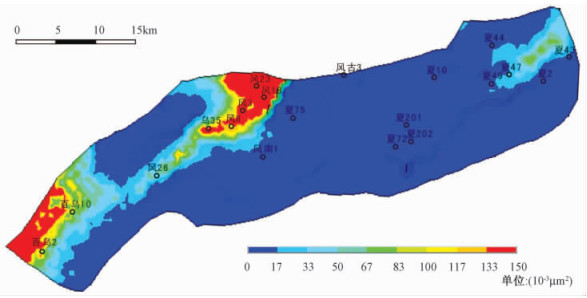

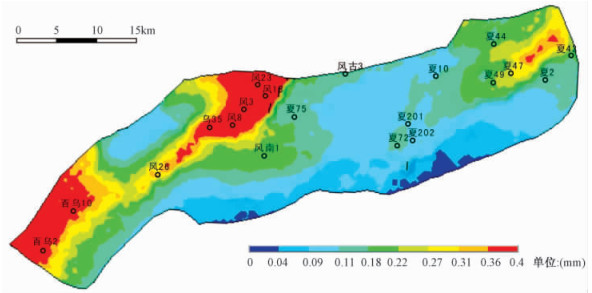

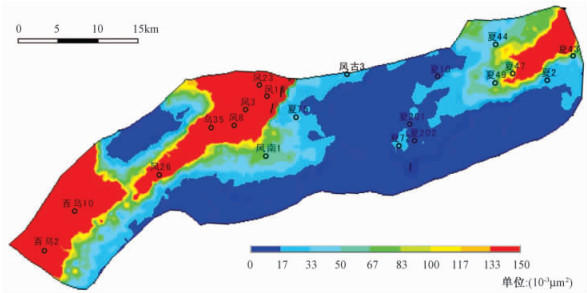

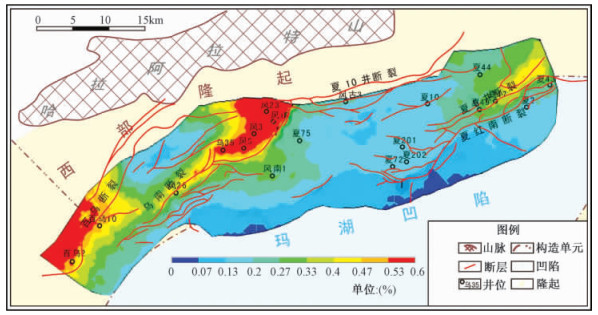

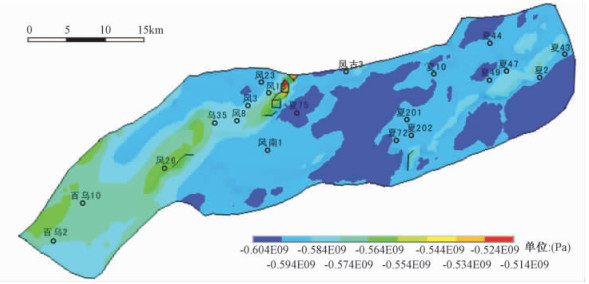

针对前陆冲断带地层裂缝预测难的现状, 在选择适合于研究区破裂准则的基础上, 确立了造缝时期古地应力和现今地应力与裂缝参数之间的关系; 通过构造特征研究确定了造缝时期古地应力的性质和方向, 用断层和裂缝走向统计法、声速法、水力压裂法和声发射法计算了现今地应力的方向和大小; 将古、今地应力场的数值模拟结果代入到裂缝参数计算模型中, 计算出了乌夏前陆冲断带二叠系火山岩-沉积岩混杂地层裂缝的开度、密度、孔隙度和渗透率, 并分析了分布趋势。研究表明, 构造应力和岩性对裂缝发育起决定性作用, 构造应力差异大的地区容易产生裂缝, 且裂缝各项参数较大; 靠近主断层的构造高部位裂缝发育程度较高; 凝灰质和泥质含量越大, 粒度越细, 裂缝越发育。
Abstract:Aiming at the difficulties in predicting the fractures in strata in thrust belt, by selecting the fracture criteria suitable for the Wuxia foreland thrust belts under study, this paper has defined a relation of mechanical parameters with the current stress field and the paleostress field during the formation of the fractures, Based on the study on the Permian reservoir fracture, we have finished a quantitative calculation for fracture aperture and other parameters and drawn a map of distribution of each formation.The results show that structural stress and lithology paly a crucial part in development of the fractures; generally the fractures with greater fractural parameters are relatively easy to form in the areas with evidently different structural stresses; and near the high part of principal faults more fractures are developed, and the strata are more tuffaceous and argillaceous, fine-grained, with more fractures developed.
-
-
表 1 乌夏前陆冲断带二叠系力学参数
Table 1. Mechanical parameters of Permian of Wuxia foreland thrust belt
下载: 导出CSV
-
[1] Pollard D D. Aydin A. Progress in understanding jointing over the past century[M]. Bull. Geol. Soc. Am. 100, 1988: 1811~1204.
[2] 李贺.岩石断裂力学[M].重庆:重庆大学出版社, 1988.125~135, 177~183.
LI He.Rock fracture mechanics[M].Chongqing:Chongqing University Press, 1988.125~135, 177~183.
[3] 郑亚东.结构面力学性质的定量鉴定[J].地质力学学报, 2005, 11(3):197~201. doi: 10.3969/j.issn.1006-6616.2005.03.001 http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20050330&journal_id=dzlxxb
ZHENG Ya-dong.Quantitative caracterization of mechanical properties of deformational zones[J].Journal of Geomechanics, 2005, 11(3):197~201. doi: 10.3969/j.issn.1006-6616.2005.03.001 http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20050330&journal_id=dzlxxb
[4] Price N J.Fault and joint development in brittle and semi-brittle rock[M].Oxford:Pergamon Press, 1966.221~240.
[5] 文世鹏, 李德同.储层构造裂缝数值模拟技术[J].石油大学学报, 1996, 20(5):17~24. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX605.004&dbname=CJFD&dbcode=CJFQ
WEN Shi-peng, LI De-tong.Numerical simulation technology of reservoir fractures[J].Journal of the University of Petroleum, China (Edition of Natural Science), 1996, 20(5):17~24. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX605.004&dbname=CJFD&dbcode=CJFQ
[6] 曹春富, 孙绍春, 张吉昌.利用有限元法定量预测储层构造裂缝[J].特种油气藏, 1997, 4(1):24~28. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=TZCZ199701005&dbname=CJFD&dbcode=CJFQ
CAO Chun-fu, SUN Shao-chun, ZHANG Ji-chang.Quantitative fracture prediction of reservoir by finite element method[J].Special Oil and Gas Reservoirs, 1997, 4(1):24~28. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=TZCZ199701005&dbname=CJFD&dbcode=CJFQ
[7] 丁中一, 钱祥麟, 霍红, 等.构造裂缝定量预测的一种新方法——二元法[J].石油与天然气地质, 1998, 19(1):1~7. doi: 10.3321/j.issn:0253-9985.1998.01.001 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYYT801.000&dbname=CJFD&dbcode=CJFQ
DING Zhong-yi, QIAN Xiang-lin, HUO Hong, et al.A new method for quantitative prediction of tectonic fractures:Two factor method[J].Oil&Gas Geology, 1998, 19(1):1~7. doi: 10.3321/j.issn:0253-9985.1998.01.001 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYYT801.000&dbname=CJFD&dbcode=CJFQ
[8] 陈波, 田崇鲁.储层构造裂缝数值模拟技术的应用实例[J].石油学报, 1998, 19(4):50~54. doi: 10.3321/j.issn:0253-2697.1998.04.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYXB804.009&dbname=CJFD&dbcode=CJFQ
CHEN Bo, TIAN Chong-lu.Numerical simulation technique for structural fractures in a reservoir:Case studies[J].Acta Petrolei Sinica, 1998, 19(4):50~54. doi: 10.3321/j.issn:0253-2697.1998.04.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYXB804.009&dbname=CJFD&dbcode=CJFQ
[9] 谭成轩, 王连捷.三维构造应力场数值模拟在含油气盆地构造裂缝分析中应用初探[J].地球学报, 1999, 20(4):392~394. doi: 10.3321/j.issn:1006-3021.1999.04.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQXB199904010&dbname=CJFD&dbcode=CJFQ
TAN Cheng-xuan, WANG Lian-jie.An approach to the application of 3-D tectonic stress field numerical simulation in structural fissure analysis of the oil-gas-bearing basin[J].Acta Geoscientia Sinica, 1999, 20(4):392~394. doi: 10.3321/j.issn:1006-3021.1999.04.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQXB199904010&dbname=CJFD&dbcode=CJFQ
[10] 冯建伟, 戴俊生, 葛盛权.准噶尔盆地乌夏断裂带构造演化及油气聚集[J].中国石油大学学报(自然科学版), 2008, 32(3):23~27. doi: 10.3321/j.issn:1673-5005.2008.03.005 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX200803007&dbname=CJFD&dbcode=CJFQ
FENG Jian-wei, DAI Jun-sheng, GE Sheng-quan.Structural evolution and pool-forming in Wuxia fault belt of Junggar Basin[J].Journal of China University of Petroleum, 2008, 32(3):23~27. doi: 10.3321/j.issn:1673-5005.2008.03.005 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX200803007&dbname=CJFD&dbcode=CJFQ
[11] 胡传炘.断裂力学及其工程应用[M].北京:北京工业出版社, 1989.67~74.
HU Chuan-xin.Fracture mechanics and its engineering application[M].Beijing:Beijing Industry Press, 1989.67~74.
[12] 王维襄.固体力学[M].武汉:武汉地质学院出版社, 1984.181~184.
WANG Wei-xiang.Solid Mechanics[M].Wuhan:Wuhan University of Geology Press, 1984.181~184.
[13] 王仁, 丁中一, 殷有泉.固体力学基础[M].北京:地质出版社, 1979.82~85, 124~141.
WANG Ren, DING Zhong-yi, YIN You-quan.Bases of Solid mechanics[M].Beijing:Geological Publishing House, 1979.82~85, 124~141.
[14] Chen M, Bai M.Modeling stress-dependent permeability for anisotropic fractured porous rocks[J].International Journal of Rock Mechanics and Mining Science, 1998, 35(8):1113~1119. doi: 10.1016/S0148-9062(98)00167-3
[15] 季宗镇, 戴俊生, 汪必峰, 等.构造裂缝多参数定量计算模型[J].中国石油大学学报(自然科学版), 2010, 34(1):24~28. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX201001007&dbname=CJFD&dbcode=CJFQ
JI Zong-zhen, DAI Jun-sheng, WANG Bi-feng, et al.Multi-parameter quantitative calculation model for tectonic fracture[J].Journal of China University of Petroleum, 2010, 34(1):24~28. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYDX201001007&dbname=CJFD&dbcode=CJFQ
[16] Hicks T W, Pine R J, Willis Richards J, et al.A hydro-thermo-mechanical numerical model for HDR geothermal reservoir evaluation[J].International Journal of Rock Mechanics and Mining Science, 1996, 33(5):499~511. doi: 10.1016/0148-9062(96)00002-2
[17] 程昌钧, 王颖坚, 马文华, 等.弹性力学[M].北京:高等教育出版社, 1999.96~97.
CHENG Chang-jun, WANG Ying-jian, MA Wen-hua, et al.Elastic mechanics[M].Beijing:Higher Education Press, 1999.96~97.
[18] 张逸昆.共轭剪切角的流变学意义[J].地质力学学报, 2007, 13(3):214~216. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20070302&journal_id=dzlxxb
ZHANG Yi-kun.Rheologic implications of conjugate shear angles[J].Journal of Geomechanics, 2007, 13(3):214~216. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20070302&journal_id=dzlxxb
[19] 王平.含油盆地构造力学原理[M].北京:石油工业出版社, 2001.144~145.
WANG Ping.Principles of structure mechanics in oil-bearing basin[M].Beijing:Petroleum Industry Press, 2001.144~145.
[20] 李明, 戴俊生, 冯建伟, 等.乌夏地区二叠系火山岩储集层裂缝特征[J].新疆石油地质, 2007, 28(4):422~424. doi: 10.3969/j.issn.1001-3873.2007.04.010 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XJSD200704013&dbname=CJFD&dbcode=CJFQ
LI Ming, DAI Jun-sheng, FENG Jian-wei, et al.Fracture Characteristic of Permian Volcanic Reservoir in Wu-Xia Area, Junggar Basin[J].Xinjiang Petroleum Geology, 2007, 28(4):422~424. doi: 10.3969/j.issn.1001-3873.2007.04.010 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XJSD200704013&dbname=CJFD&dbcode=CJFQ
-
图(11)
表(1)
