ANALYSIS ON FRACTURE POTENTIAL FOR DIFFERENT TYPES OF ROCKS IN ARCHEAN BURIED HILL: A CASE STUDY OF LIAOHE WESTERN SAG
-
摘要:
太古宇结晶变质岩是潜山的重要储集层岩石类型, 然而对太古宇不同类型变质岩裂缝发育潜力的相对大小迄今还没有明确的标志。通过大量的岩石力学实验、岩心裂缝观测、成像测井资料分析和油田生产实践等相结合的方法, 探索分析太古宇不同岩石类型裂缝发育的相对潜力, 并提出了脆性系数(fb)的概念。岩石力学试验结果表明, 太古宇不同岩性的岩石力学性质存在差异, 脆性系数总体有随暗色矿物增加而减小的趋势; 定向构造发育的片麻岩类岩石的力学参数与变形方向密切相关, 其中片麻理与加载方向夹角大于45°时的脆性系数fb明显小于夹角小于45°时的脆性系数。大量生产实践资料表明, 定向构造发育的片麻岩类容易发育剪裂缝, 而定向构造不发育的粒岩类则容易发育张性裂缝。综合分析揭示, 不同岩性剪裂缝发育潜力从大到小的次序为:片麻岩类→混合花岗岩类→角闪岩; 不同岩性张性裂缝发育潜力从大到小的次序为:混合花岗岩类、浅粒岩→片麻岩类→角闪岩。
Abstract:The Archean crystallization metamorphic rocks are important reservoir rock types in buried hill, and fracture developmental potential for different types of Archean metamorphic rocks have not been yet clearly recognized.Based on a large number of rock mechanics experiments, core fracture observation, imaging logging data, and oil field production practices, the fracture developmental potential for different types of Archean metamorphic rocks has been analyzed.Rock mechanics test results show that the mechanical properties are changable in different Archean lithology, e.g., the brittleness coefficient generally decreases with increase of dark minerals.In addition, rock mechanics parameters are closely related to the loading direction in gneiss which bear well-developed oriented structure.The brittleness coefficient fb gets greater when the angle between gneissosity and the loading direction changes from less than 45° into greater than 45°.A large number of oil production practice data show that shear fracture is more often seen in the gneiss with oriented structure, while tension fracture in the granulite without oriented structure.According to the comprehensive analysis, the development potential of shear fracture in different rocks can be arranged as:gneiss class > mixed granite class > amphibolite; while that of tension fracture as: mixed granite class, light granulite > gneiss class > amphibolite.
-
-

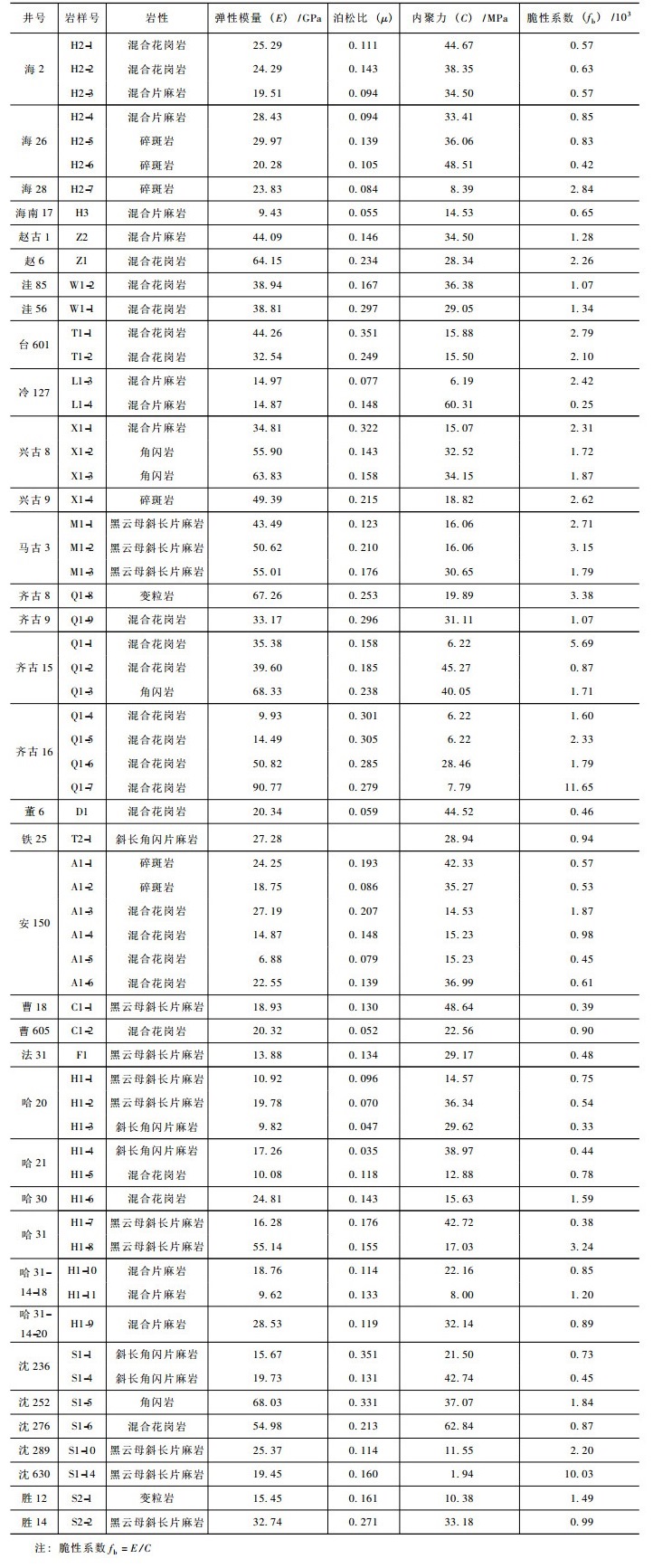

表 2 西部凹陷太古宇不同岩石类型岩石力学试验参数分布
Table 2. A list of parameters used in rock mechanical test for different types of Archean rock in West Depression
下载: 导出CSV
-
[1] 吴智勇, 郭建华, 吴东胜.大民屯凹陷静安堡西侧低潜山变质岩储层裂缝发育特征[J].石油与天然气地质, 2001, 22(4):322~325. doi: 10.3321/j.issn:0253-9985.2001.04.008 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYYT200104007&dbname=CJFD&dbcode=CJFQ
WU Zhi-yong, GUO Jian-hua, WU Dong-sheng.Fractured characteristics of metamorphic reservoirs in low buried-hill in west of Jing'anpu, Damintun depression[J].Oil and Gas Geology, 2001, 22(4):322~325. doi: 10.3321/j.issn:0253-9985.2001.04.008 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=SYYT200104007&dbname=CJFD&dbcode=CJFQ
[2] 邓运华, 彭文绪.渤海锦州25-1S混合花岗岩潜山大油气田的发现[J].中国海上油气, 2009, 21(3):145~151. doi: 10.3969/j.issn.1673-1506.2009.03.001 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=ZHSD200903000&dbname=CJFD&dbcode=CJFQ
DENG Yun-hua, PENG Wen-xu.Discovering large buried-hill oil and gas fields of migmatitic granite on Jinzhou 25-1S in Bohai Sea[J].China Offshore Oil and Gas, 2009, 21(3):145~151. doi: 10.3969/j.issn.1673-1506.2009.03.001 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=ZHSD200903000&dbname=CJFD&dbcode=CJFQ
[3] 李云松.辽河坳陷兴隆台变质岩潜山储层识别及评价[J].中国石油勘探, 2008, 13(5):49~54. doi: 10.3969/j.issn.1672-7703.2008.05.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=KTSY200805011&dbname=CJFD&dbcode=CJFQ
LI Yun-song.Reservoir identification and evaluation in Xinlongtai metamorphic rock buried hill of Liaohe depression[J]. China Petroleum Exploration, 2008, 13(5):49~54. doi: 10.3969/j.issn.1672-7703.2008.05.009 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=KTSY200805011&dbname=CJFD&dbcode=CJFQ
[4] 郝琦, 刘震, 查明, 等.辽河茨榆坨潜山太古宇裂缝型储层特征及其控制因素[J].吉林大学学报(地球科学版), 2006, 36(3):384~390. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=CCDZ200603011&dbname=CJFD&dbcode=CJFQ
HAO Qi, LIU Zhen, ZHA Ming, et al.Characters and controlling factors on the Archean fracture-type reservoirs of the Ciyutuo buried hill in the Liaohe Basin[J].Journal of Jilin University (Earth Science Edition), 2006, 36(3):384~ 390. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=CCDZ200603011&dbname=CJFD&dbcode=CJFQ
[5] 付崇清.辽河油田变质岩潜山测井综合评价[J].大庆石油地质与开发, 2007, 26(5):138~142. doi: 10.3969/j.issn.1000-3754.2007.05.037 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQSK200705038&dbname=CJFD&dbcode=CJFQ
FU Chong-qing.Comprehensive logging evaluation to metamorphic buried hill in Liaohe Oilfield[J].Petroleum Geology and Oilfield Development in Daqing, 2007, 26(5):138~142. doi: 10.3969/j.issn.1000-3754.2007.05.037 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQSK200705038&dbname=CJFD&dbcode=CJFQ
[6] 范高尔夫-拉特. 裂缝油藏工程基础[M]. 陈钟祥, 金玲年, 秦同洛, 译. 北京: 石油工业出版社, 1989. 1~ 439.
Van Golf-LVL. The basis of fractured reservoir engineering[M]. CHEN Zhong-xiang, JIN Ling-nian, QIN Tong-luo, Translated. Beijing: Petroleum Industry Press, 1989. 1~439.
[7] 童亨茂.裂缝网络模型的建立及其在任丘潜山油藏中的应用[J].西安石油大学学报, 2006, 21(3):17~22. doi: 10.3969/j.issn.1673-064X.2006.03.005 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XASY200603005&dbname=CJFD&dbcode=CJFQ
TONG Heng-mao.Fractures network model of analogue outcrop and its application in Renqiu buried hill reservoir[J]. Journal of Xi'an Petroleum University, 2006, 21(3):17~22. doi: 10.3969/j.issn.1673-064X.2006.03.005 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=XASY200603005&dbname=CJFD&dbcode=CJFQ
[8] 柏松章, 唐飞.裂缝性潜山基岩油藏开发模式[M].北京:石油工业出版社, 1997.1~340.
BAI Song-zhang, TANG Fei.Development model of fractured buried hills reservoirs[M].Beijing:Petroleum Industry Press, 1997.1~340.
[9] 童亨茂.储层裂缝描述与预测研究进展[J].新疆石油学院学报, 2004, 25(5):9~14. http://d.old.wanfangdata.com.cn/Periodical/xjsyxyxb200402003
TONG Heng-mao.The progress of fracture description and prediction[J].Journal of Xinjiang Petroleum Institute, 2004, 25(5):9~14. http://d.old.wanfangdata.com.cn/Periodical/xjsyxyxb200402003
[10] Nelson R A.Geologic analysis of naturally fractured reservoirs[M].Houston:Gulf Publishing Company, 1985.1~320.
[11] Pollard D D, Aydin A.Progress in understanding jointing over the past century[J].GSA Bulletin, 1988, 100:1181~1204. doi: 10.1130/0016-7606(1988)100<1181:PIUJOT>2.3.CO;2
[12] Antonellini M, Mollema P N.A natural analog for a fractured and faulted reservoir in dolomite:Triassic Sella Group, Nouthern Italy[J].AAPG Bulletin, 2000, 84(3):314~344. http://cn.bing.com/academic/profile?id=33bf47b2cae1ef40f707cb9ffc924e5b&encoded=0&v=paper_preview&mkt=zh-cn
[13] 童亨茂.成像测井资料在构造裂缝预测和评价中的应用[J].天然气工业, 2006, 26(9):58~61. doi: 10.3321/j.issn:1000-0976.2006.09.017 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=TRQG200609017&dbname=CJFD&dbcode=CJFQ
TONG Heng-mao.Implication of imaging well logging in tectonic fractures prediction and evaluation[J].Natural Gas Industry, 2006, 26(9):58~61. doi: 10.3321/j.issn:1000-0976.2006.09.017 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=TRQG200609017&dbname=CJFD&dbcode=CJFQ
[14] 童亨茂.储层裂缝综合预测方法在GBEIBE油田地应用[J].中国石油勘探, 2007, 12(3):77~80. doi: 10.3969/j.issn.1672-7703.2007.03.015 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=KTSY200703015&dbname=CJFD&dbcode=CJFQ
TONG Heng-mao.Reservoir fractures synthetic prediction method and its application:Take GBEIBE oilfield as an example [J].China Oil Exploration, 2007, 12(3):77~80. doi: 10.3969/j.issn.1672-7703.2007.03.015 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=KTSY200703015&dbname=CJFD&dbcode=CJFQ
[15] 周新桂, 邓宏文, 操成杰.储层构造裂缝定量预测研究及评价方法[J].地球学报, 2003, 24(2):175~180. doi: 10.3321/j.issn:1006-3021.2003.02.015 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQXB200302015&dbname=CJFD&dbcode=CJFQ
ZHOU Xin-gui, DENG Hong-wen, CAO Cheng-jie.The methods for quantitative prediction and evaluation of structural fissures in reservoirs[J].Acta Geoscientia Sinica, 2003, 24(2):175~180. doi: 10.3321/j.issn:1006-3021.2003.02.015 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=DQXB200302015&dbname=CJFD&dbcode=CJFQ
-
图(6)
表(2)
