Hydrochemical characteristics and hydrocarbon response of stratum water of Ahe Formation in Eastern Kuqa Depression
-
摘要:
研究目的 地层水作为油气运移的载体，对油气成藏具有重要意义。塔里木盆地库车坳陷东部侏罗系阿合组油气藏的油水分布关系复杂，地层水特征及其与油气藏的关系缺少系统研究。
研究方法 为了明确地层水化学特征及其与油气藏之间的关系，在对地层水样品筛选的基础上，对库车东部阿合组的地层水测试数据进行分析，研究地层水的水型、矿化度、离子比例系数的分布特征及其油气意义。

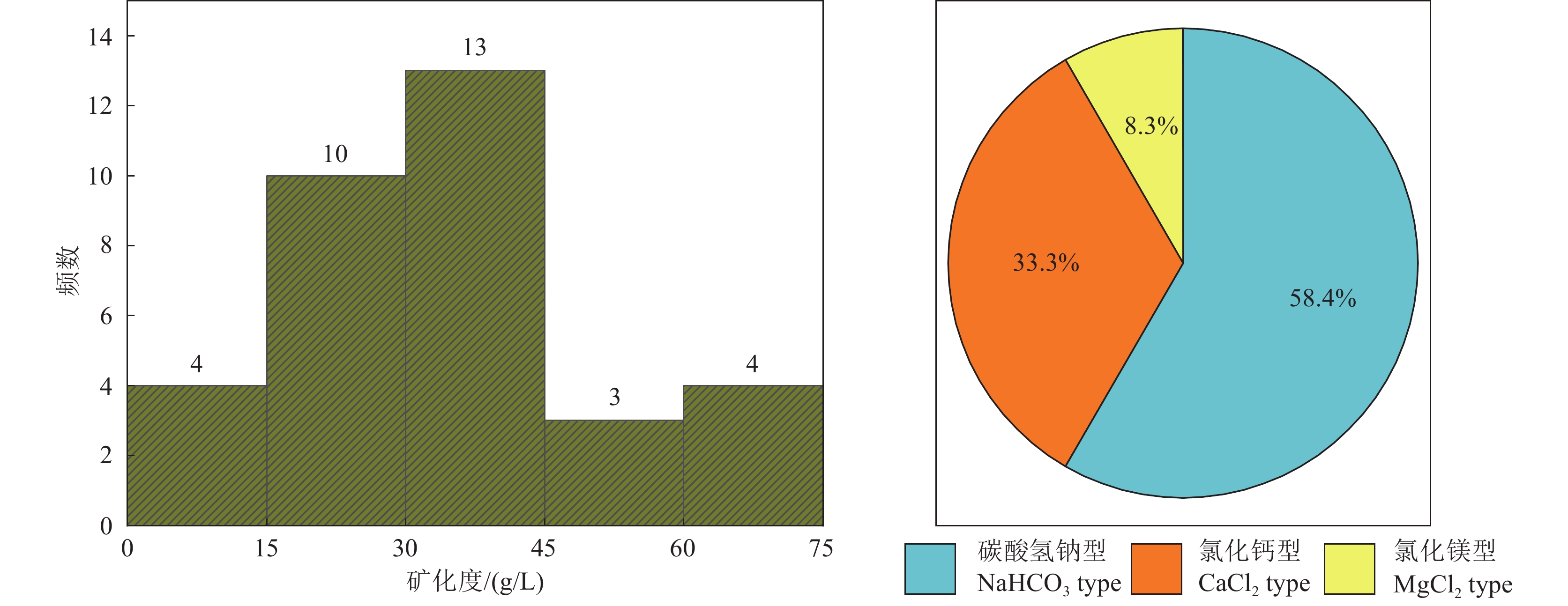

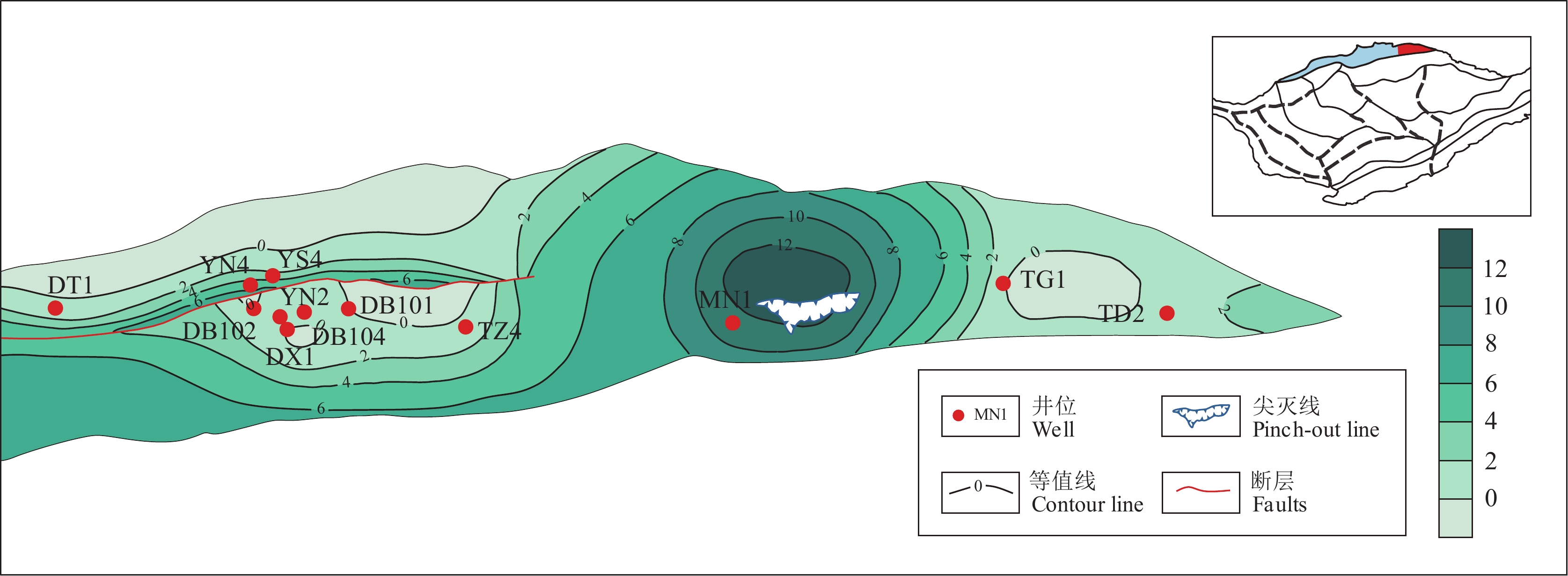

研究结果 阿合组的地层水主要为NaHCO3型，其次为CaCl2型和MgCl2型，矿化度相对较低。地层水的矿化度、离子比例系数具有受构造控制的特点：在构造的开启区、地层的尖灭区，地层水主要为低矿化度的NaHCO3型，钠氯系数、脱硫酸系数较高且变质系数为负值，而封闭性的地层中地层水具有相反的化学特征。
结论 地层水化学特征与油水层的平面分布特征有较好的耦合关系，以迪北油气藏为例，依奇克里克断裂以北虽经历过油气的充注，但已经生成的油气沿着断裂逸散，低矿化度、高钠氯系数、高脱硫酸系数、低变质系数及高高岭石含量表明地层受到了沿断裂进入大气降水的影响；而断裂以南相反的地层水化学特征及高岭石含量反映地层封闭性较好，受大气降水影响小，对应了气藏的分布。地层水的化学特征与油气藏的分布关系为后续致密油气藏的勘探开发和评价提供一定依据。
Abstract:This paper is the result of oil and gas exploration engineering.
Objective As the carrier during the oil and gas migration, stratum water plays an important role in oil and gas accumulation. The oil−water distribution of the Jurassic Ahe Formation (J1a) oil and gas reservoirs in the eastern Kuqa Depression of the Tarim Basin is complicated, and the characteristics of stratum water and its relationship with oil and gas reservoirs are lack of systematic study.
Methods In order to clarify the chemical characteristics of stratum water and its relationship with reservoirs, based on the selection among stratum water samples, the test data of Ahe Formation in eastern Kuqa Depression are obtained to study the distribution of water type, TDS and ion−proportionality coefficients of stratum water and its significance to reservoirs.
Result The stratum water of J1a is mainly NaHCO3 type, followed by CaCl2 and MgCl2 type, and has relatively low salinity. The TDS and ion−proportionality coefficients of stratum water are controlled by tectonics. In the structure opening area and the pinch−out area of the strata, the stratum water is characterized by NaHCO3 type with low TDS, the sodium−chloride coefficient and desulfurization coefficient are high and the metamorphic coefficient is negative. Nevertheless, the stratum water in the closed strata has the opposite hydrochemical feature.
Conclusions There is a good coupling relation between the hydrochemical characteristics of stratum water and the plane distribution of oil and water, with Dibei oilfield as an example, although the strata north of the Yiqikelike fault had been charged, the generated oil and gas had escaped along the fault. The low TDS, high sodium−chloride coefficient, high desulfurization coefficient, low metamorphic coefficient, and high kaolinite content indicate that the strata were affected by the meteoric water that entered along the fault. On the contrary, the hydrochemical characteristics and kaolinite content in the strata south of the fault reflect that the formation was well sealed and less affected by meteoric water, which corresponds to the distribution of gas layers. The connection between the hydrochemical characteristics and the distribution of reservoirs provides a basis for subsequent exploration, development and evaluation of tight oil and gas reservoirs.
-
-
表 1 库车坳陷东部阿合组高岭石含量统计
Table 1. Statistics of kaolinite content in Ahe Formation of eastern Kuqa Depression
井号 井段/m 层位 高岭石含量/% 水分析 最大 最小 平均 Cl−/（mg/L） 矿化度/（mg/L） 水型 YN2 4334~4583 J2kz-J1y 8.0 0.0 1.6 20456.0 37068.0 CaCl2 4612~4946 J1y-J1a 15.0 0.0 7.2 18063.0 33502.0 MgCl2 3216~4378 J2kz-J1y 60.0 21.0 34.6 23902.0 42270.0 NaHCO3 YS4 2715~3432 J2kz-J1y 70.0 27.0 46.3 7237.0 15279.0 NaHCO3 3434~3995 J1y 58.0 13.0 32.3 8967.8 20190.5 NaHCO3
下载: 导出CSV
-
[1] Birkle P, García B M, Padrón C M M. 2009. Origin and evolution of formation water at the Jujo−tecominoacán oil reservoir, Gulf of Mexico. Part 1: Chemical evolution and water−rock interaction[J]. Applied Geochemistry, 24(4): 543−55412. doi: 10.1016/j.apgeochem.2008.12.009
[2] Cai C F, Li K K, Li H T, Zhang B S. 2008. Evidence for Cross Formational hot brine flow from integrated 87Sr/ 86Sr, Ree and fluid inclusions of the Ordovician veins in Central Tarim, China[J]. Applied Geochemistry, 23(8): 2226−2235. doi: 10.1016/j.apgeochem.2008.03.009
[3] Chen J, Liu D, Hou X L, Fan Y K, Jia W L, Peng P A, Zhang B S, Xiao Zhongyao. 2018. Origin and evolution of oilfield waters in the Tazhong oilfield, Tarim Basin, China, and their relationship to multiple hydrocarbon charging events[J]. Marine and Petroleum Geology, 98: 554−568. doi: 10.1016/j.marpetgeo.2018.09.018
[4] Chen J, Liu D, Peng P, Yu C, Zhang B. 2013. The sources and formation processes of brines from the Lunnan Ordovician paleokarst reservoir, Tarim Basin, Northwest China[J]. Geofluids, 13(3): 381−394. doi: 10.1111/gfl.12033
[5] Chen Zhonghong, Zha Ming. 2013. Basin Fluid and Hydrocarbon Accumulation[M]. Beijing: Science Press, 1−361 (in Chinese with English abstract).
[6] Davisson M L, Presser, T S, Criss, R E. 1994. Geochemistry of tectonically expelled fluids from the Northern Coast Ranges, Rumsey Hills, California, USA[J]. Geochimica et Cosmochimica Acta, 58: 1687−1699. doi: 10.1016/0016-7037(94)90530-4
[7] Dou Weitan, Liu Xinshe, Wang Tao. 2010. The origin of formation water and the regularity of gas and water distribution for the Sulige gas field, Ordos Basin[J]. Acta Petrolei Sinica, 31(5): 767−773 (in Chinese with English abstract).
[8] Guan Yunmei, Wang Lansheng, Zhang Jian, Zhang Qi, Shi Yuhua. 2011. Characteristics of mixed liquid of formation water with residual acid and drilling fluid[J]. Natural Gas Exploration and Development, 34(2): 62−64 (in Chinese with English abstract).
[9] Hanor J S. 1994. Physical and chemical controls on the composition of waters in sedimentary basins[J]. Marine and Petroleum Geology, 11(1): 31−45. doi: 10.1016/0264-8172(94)90007-8
[10] He Dengfa, Zhou Xinyuan, Yang Haijun, Lei Ganglin, Ma Yujie. 2009. Geological structure and its controls on giant oil and gas fields in Kuqa Depression, Tarim Basin: A clue from new shot seismic data[J]. Geotectonica et Metallogenia, 33(1): 19−32 (in Chinese with English abstract).
[11] Jiang Zhenxue, Li Feng, Yang Haijun, Li Zhuo, Liu Luofu, Chen Lei, Du Zhongming. 2015. Development characteristics of fractures in Jurassic tight reservoir in Dibei area of Kuqa depression and its reservoir−controlling mode[J]. Acta Petrolei Sinica, 36(S2): 102−111 (in Chinese with English abstract).
[12] Li Guoxin, Yi Shiwei, Lin Shiguo, Gao Yang, Li Mingpeng, Li Dejiang, Wang Changyong. 2018. Reservoir characteristics and major factors influencing the reservoir quality of Lower Jurassic in eastern Kuqa Depression, Tarim Basin[J]. Natural Gas Geoscience, 29(10): 1506−1517 (in Chinese with English abstract).
[13] Li H X, Cai C F. 2017. Origin and evolution of formation water from the Ordovician carbonate reservoir in the Tazhong Area, Tarim Basin, NW China[J]. Journal of Petroleum Science & Engineering, 148: 103−114.
[14] Li Jin, Wang Chao, Li Jian, Ma Wei, Zhang Haizu, Lu Yuhong, Li Dejiang, Liu Mancang. 2019. Source and exploration direction of tight oil and gas in the Dibei section of northern Kuqa depression[J]. China Petroleum Exploration, 24(4): 485−497 (in Chinese with English abstract).
[15] Li Pengchun, Liu Chunxiao, Zhang Yuan, Long Liping, Zhang Lihong. 2007. Geochemical behaviors of the Ordovician formation water in the Tazhong area and its origin and evolution[J]. Oil & Gas Geology, 28(6): 802−808 (in Chinese with English abstract).
[16] Li W, Yang J L, Jiang J W, Liu J M, Liu Z C. 2009. Origin of Upper Triassic formation water in middle Sichuan Basin and its natural gas significance[J]. Petroleum Exploration and Development, 36(4): 428−435. doi: 10.1016/S1876-3804(09)60138-5
[17] Liang Digang, Zhang Shuichang, Zhao Mengjun, Wang Feiyu. 2002. Hydrocarbon accumulation period in Kuqa depression[J]. Chinese Science Bulletin, 47(S1): 56−63 (in Chinese).
[18] Liu Jianliang, Jiang Zhenxue, Li Feng, Wang Ying. 2015. Identification of paleo−oil−water contact of Jurassic Ahe Formation in Dibei Area, Kuqa Depression, Tarim Basin[J]. Xinjiang Petroleum Geology, 36(2): 153−158 (in Chinese with English abstract).
[19] Lu Bin, Li Jian, Ran Qigui, Hao Aisheng. 2015. Geochemical characteristics and genetic type of natural gases in Eastern Kuqa Depression, Tarim Basin[J]. Science Technology and Engineering, 15(6): 52−58 (in Chinese).
[20] Meng Wangcai, Li Yun, Fu Guomin, Li Jing. 2018. Relationship between chemical characteristics of formation water and natural gas accumulation within Shan 2 Member of Shanxi Formation in North Yulin Gas Field[J]. Northwestern Geology, 51(2): 203−208 (in Chinese with English abstract).
[21] Piper A M. 1944. A graphic procedure in the geochemical interpretation of water analyses[J]. Eos Transactions American Geophysical Union, 25: 914−923. doi: 10.1029/TR025i006p00914
[22] Wang Huachao, Han Denglin, Ou Yang Chuanxiang, Zhou Jiayi, Wang Qianqian, Ma Li. 2019. Characteristics and main controlling factors of tight sandstone reservoir of Ahe Formation in northern Kuqa Depression[J]. Lithologic Reservoirs, 31(2): 115−123 (in Chinese with English abstract).
[23] Wang Ke, Zhang Ronghu, Yu Chaofeng, Yang Zhao, Tang Yangang, Wei Hongxing. 2020. Characteristics and controlling factors of Jurassic Ahe reservoir of the northern tectonic belt, Kuqa Depression, Tarim Basin[J]. Natural Gas Geoscience, 31(5): 623−635 (in Chinese with English abstract).
[24] Wang Weifeng, Wang Qian, Shan Xinjian. 2018. Development characteristics and formation mechanism of transverse faults along the Kuqa thrust belt[J]. Geology in China, 45(3): 493−510 (in Chinese with English abstract).
[25] Wang Xiaomei, Zhao Jingzhou, Liu Xinshe, Fan Liyong. 2012. Occurrence state and production mechanism of formation water in tight sandstone reservoirs of Sulige area, Ordos Basin[J]. Petroleum Geology & Experiment, 33(5): 802−810 (in Chinese with English abstract).
[26] Yong Ziquan, Li Junliang, Zhou Zhongli, Zhai Zhonghua, Gong Changming, Zhao Yihua, Song Huanrong, Wang Wei. 2006. The formation−water chemical characters and petroleum significance of the fourth segment reservoirs of Xiangxi group in center of Sichuan basin[J]. Computing Techniques for Geophysical and Geochemical Exploration, 28(1): 41−45 (in Chinese with English abstract).
[27] Zeng Jianhui, Ma Yong, Lin Lamei. 2021. Petroleum Hydrogeology [M]. Qingdao: China University of Petroleum Press, 1−190 (in Chinese with English abstract).
[28] Zhang Baoshou, Yang Haijun, Yang Wenjing, Gu Qiaoyuan, Li Xinsheng. 2009. Formation water identification and characteristics of lower paleozoic carbonate reservoir [C]// Proceedings of the Fifth International Symposium on Hydrocarbon Accumulation Mechanism and Oil and Gas Resources Evaluation. Beijing: China Petroleum Institute (in Chinese).
[29] Zhang Ronghu, Yang Haijun, Wei Hongxing, Yu Chaofeng, Yang Zhao, Wu Jin. 2019. The sandstone characteristics and hydrocarbon exploration signification of Lower Jurassic in middle east section of northern tectonic belt in Kuqa Depression, Tarim Basin[J]. Natural Gas Geoscience, 30(9): 1243−1252 (in Chinese with English abstract).
[30] Zhang S W, Zhang L Y, Bao Y S. 2012. Formation Fluid characteristics and hydrocarbon accumulation in the Dongying Sag, Shengli Oilfield[J]. Petroleum Exploration and Development, 39(4): 423−435. doi: 10.1016/S1876-3804(12)60059-7
[31] Zhang Yongwang, Zeng Jianhui, Qu Zhengyang, Chen Junbing. 2015. Development characteristics and genetic mechanism of authigenic kaolinite in sandstone reservoirs of the Dongying Sag, Bohai Bay Basin[J]. Oil and Gas Geology, 36(1): 73−79 (in Chinese with English abstract).
[32] 陈中红, 查明. 2013. 盆地流体与油气成藏[M]. 北京: 科学出版社, 1−361.
[33] 窦伟坦, 刘新社, 王涛. 2010. 鄂尔多斯盆地苏里格气田地层水成因及气水分布规律[J]. 石油学报, 31(5): 767−773. doi: 10.7623/syxb201005011
[34] 关云梅, 王兰生, 张鉴, 张琦, 施雨华. 2011. 地层水与残酸、钻井液混合液特征分析[J]. 天然气勘探与开发, 34(2): 62−64. doi: 10.3969/j.issn.1673-3177.2011.02.017
[35] 何登发, 周新源, 杨海军, 雷刚林, 马玉杰. 2009. 库车坳陷的地质结构及其对大油气田的控制作用[J]. 大地构造与成矿学, 33(1): 19−32. doi: 10.3969/j.issn.1001-1552.2009.01.003
[36] 姜振学, 李峰, 杨海军, 李卓, 刘洛夫, 陈磊, 杜忠明. 2015. 库车坳陷迪北地区侏罗系致密储层裂缝发育特征及控藏模式[J]. 石油学报, 36(S2): 102−111. doi: 10.7623/syxb2015S2009
[37] 李国欣, 易士威, 林世国, 高阳, 李明鹏, 李德江, 王昌勇. 2018. 塔里木盆地库车坳陷东部地区下侏罗统储层特征及其主控因素[J]. 天然气地球科学, 29(10): 1506−1517. doi: 10.11764/j.issn.1672-1926.2018.09.015
[38] 李谨, 王超, 李剑, 马卫, 张海祖, 卢玉红, 李德江, 刘满仓. 2019. 库车坳陷北部迪北段致密油气来源与勘探方向[J]. 中国石油勘探, 24(4): 485−497. doi: 10.3969/j.issn.1672-7703.2019.04.009
[39] 李鹏春, 刘春晓, 张渊, 龙利平, 张利红. 2007. 塔中奥陶系地层水化学特征及其成因与演化[J]. 石油与天然气地质, 28(6): 802−808. doi: 10.3321/j.issn:0253-9985.2007.06.015
[40] 梁狄刚, 张水昌, 赵孟军, 王飞宇. 2002. 库车拗陷的油气成藏期[J]. 科学通报, 47(S1): 56−63. doi: 10.3321/j.issn:0023-074X.2002.z1.009
[41] 刘建良, 姜振学, 李峰, 王赢. 2015. 库车坳陷迪北地区侏罗系阿合组古油水界面识别[J]. 新疆石油地质, 36(2): 153−158. doi: 10.7657/XJPG20150205
[42] 卢斌, 李剑, 冉启贵, 郝爱胜. 2015. 塔里木盆地库车坳陷东部天然气地球化学特征及成因类型[J]. 科学技术与工程, 15(6): 52−58. doi: 10.3969/j.issn.1671-1815.2015.06.011
[43] 孟旺才, 李云, 付国民, 李晶. 2018. 榆林北部气田山2段地层水化学特征与天然气聚集关系[J]. 西北地质, 51(2): 203−208. doi: 10.3969/j.issn.1009-6248.2018.02.027
[44] 王华超, 韩登林, 欧阳传湘, 周嘉义, 王倩倩, 马力. 2019. 库车坳陷北部阿合组致密砂岩储层特征及主控因素[J]. 岩性油气藏, 31(2): 115−123. doi: 10.12108/yxyqc.20190213
[45] 王珂, 张荣虎, 余朝丰, 杨钊, 唐雁刚, 魏红兴. 2020. 塔里木盆地库车坳陷北部构造带侏罗系阿合组储层特征及控制因素[J]. 天然气地球科学, 31(5): 623−635. doi: 10.11764/j.issn.1672-1926.2020.04.005
[46] 王伟锋, 王乾, 单新建. 2018. 库车前陆冲断带横断层发育特征及其形成机制[J]. 中国地质, 45(3): 493−510. doi: 10.12029/gc20180306
[47] 王晓梅, 赵靖舟, 刘新社, 范立勇. 2012. 苏里格气田西区致密砂岩储层地层水分布特征[J]. 石油与天然气地质, 33(5): 802−810. doi: 10.11743/ogg20120519
[48] 雍自权, 李俊良, 周仲礼, 翟中华, 龚昌明, 赵异华, 宋焕荣, 王威. 2006. 川中地区上三叠统香溪群四段地层水化学特征及其油气意义[J]. 物探化探计算技术, 28(1): 41−45.
[49] 曾溅辉, 马勇, 林腊梅. 2021. 油田水文地质学[M]. 青岛: 中国石油大学出版社, 1−190.
[50] 张宝收, 杨海军, 杨文静, 顾乔元, 李新生. 2009. 塔中下古生界碳酸盐岩地层水的识别与特征[C]//第五届油气成藏机理与油气资源评价国际学术研讨会论文集. 北京: 中国石油学会.
[51] 张荣虎, 杨海军, 魏红兴, 余朝丰, 杨钊, 伍劲. 2019. 塔里木盆地库车坳陷北部构造带中东段中下侏罗统砂体特征及油气勘探意义[J]. 天然气地球科学, 30(9): 1243−1252. doi: 10.11764/j.issn.1672-1926.2019.05.005
[52] 张永旺, 曾溅辉, 曲正阳, 陈俊兵. 2015. 东营凹陷砂岩储层自生高岭石发育特征与成因机制[J]. 石油与天然气地质, 36(1): 73−79. doi: 10.11743/ogg20150109
-
