Geochronology and Geochemical Features of the Late Carboniferous Monzogranite in Xiaowulangou of Xilinhot, Inner Mongolia and Their Geological Implications
-
摘要:
笔者以锡林浩特小乌兰沟地区发育的晚石炭世二长花岗岩为研究对象，开展了岩石学、锆石U−Pb 同位素年代学、岩石地球化学等研究，讨论其构造环境，为进一步研究古亚洲洋闭合时限提供新的依据。LA−ICP−MS 锆石同位素U−Pb测年结果显示，该花岗岩的侵位年龄为（319.5±1.2）Ma，相当于晚石炭世。岩石地球化学研究表明，该岩石具有高Si、富K、贫Mg、贫Ca、低P和Ti的特征，属于高钾钙碱性、过铝质系列岩石；岩石富含大离子亲石元素Rb和高场强元素Th、Ta、Hf，亏损Sr、Ba、Nb；稀土元素以略富集轻稀土、Eu亏损为特征。地球化学特征反映其为I型花岗岩，来源于下地壳的部分熔融。构造环境判别图解显示该岩体形成于活动大陆边缘环境，表明研究区在晚石炭世期间仍存在洋壳的俯冲作用，暗示古亚洲洋此时尚未闭合。
Abstract:This study carried out analyses of petrology, zircon U−Pb isotopic geochronology and rock geochemistry of the Late Carboniferous monzogranite in Xiaolulangou of Xilinhot, in order to make the discussion of tectonic environment and provide a new basis for studying the closure time of the Paleo−Asian Ocean. Based on the LA−ICP−MS zircon U-Pb dating results, determines that the age of emplacement of the granite is (319.5 ±1.2) Ma, and equivalent to Late Carboniferous. Petrological and geochemical data reveal that the rock is characterized by high silicon, high potassium, poor magnesium, low calcium, low phosphorus, and titanium, It belongs to the high−K calc−alkaline and peraluminous series of rocks; The rocks are rich in large Ionic lithophilic elements Rb and high field strength elements Th, Ta, Hf, while depleting Sr, Ba, Nb; Rare earth elements are characterized by slightly enriched light rare earth, Eu losses. The geochemical characteristics reflect that it is partial melting from the low crust. The tectonic environment discriminant diagrams show that this rock is I-type granite representing active continental margin, indicating that the subduction of the oceanic crust during the Late Carboniferous period still existed, which implying that the Paleo−Asian Ocean didn’t close in Late Carboniferous.
-
-
图 1 研究区地质简图（a）和大地构造位置简图（b）（底图据Xiao et al.，2003）
Figure 1.
图 6 小乌兰沟地区晚石炭世二长花岗岩微量元素原始地幔标准化图解（a）和稀土元素球粒陨石标准化图解（b）（标准化数据据Sun et al.，1989）
Figure 6.

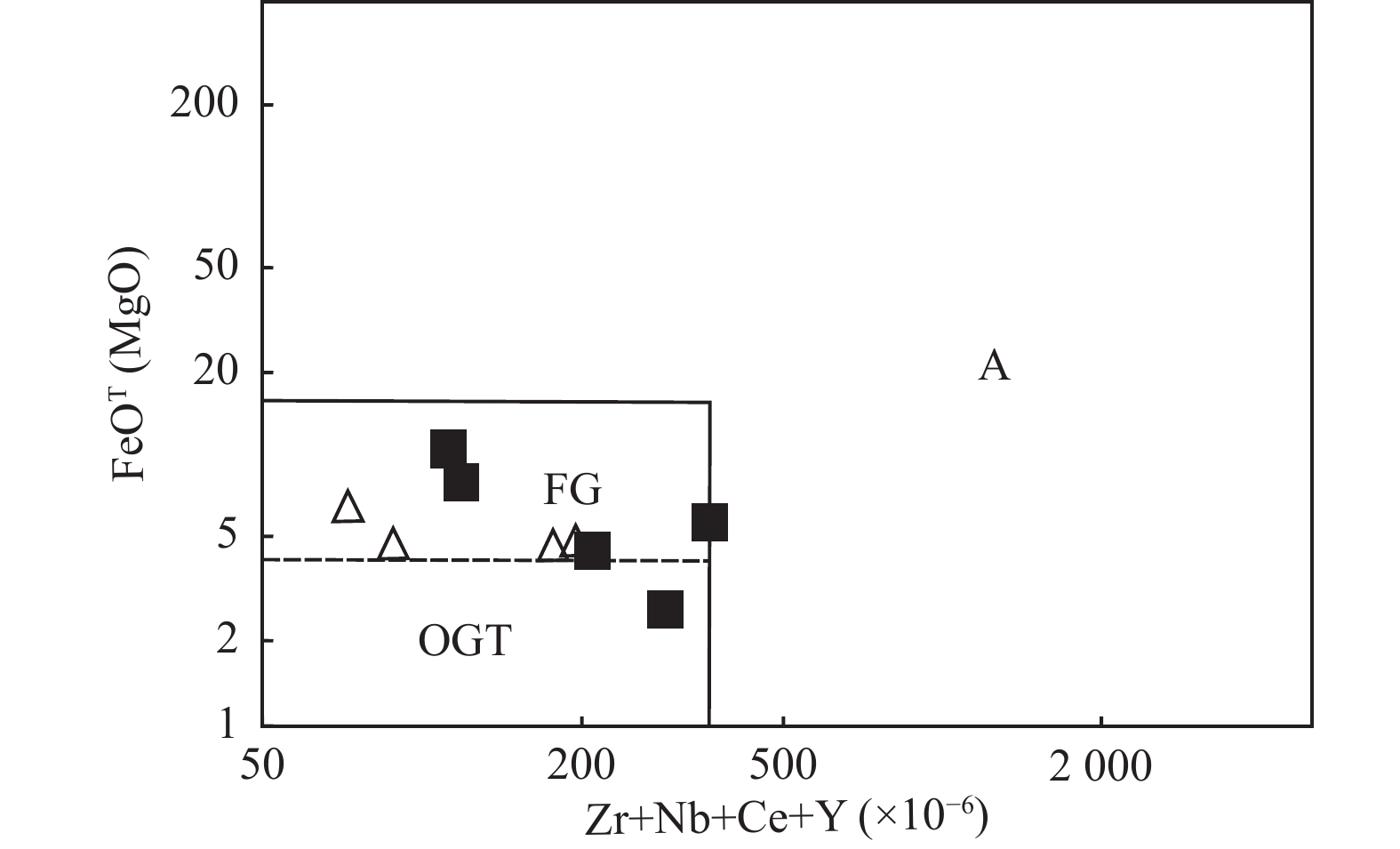

图 7 小乌兰沟地区晚石炭世二长花岗岩的成因类型判别图解（底图据Whalen et al.，1987）
Figure 7.
图 8 晚石炭世二长花岗岩的Nb–Y (a) 和Rb–（Y+Nb）(b) 构造环境判别图（底图据Pearce et al.，1984）
Figure 8.

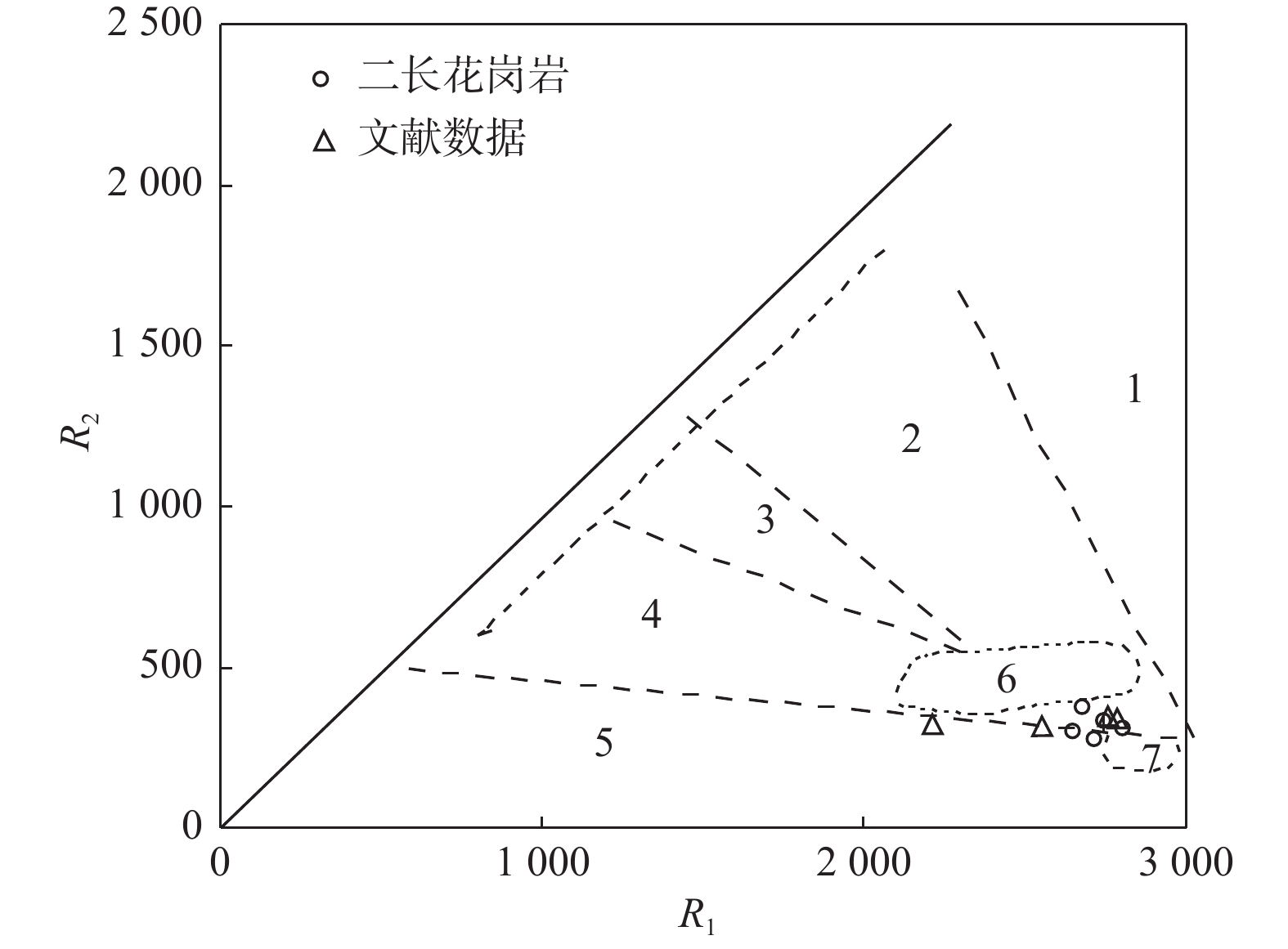

图 9 晚石炭世二长花岗岩的R1-R2构造环境判别图（底图据Batchelor et al.，1985）
Figure 9.
图 10 晚石炭世二长花岗岩的Th/Yb–Ta/Yb判别图解（底图据Gorton et al.，2000）
Figure 10.
表 1 小乌兰沟地区晚石炭世二长花岗岩LA–ICP–MS锆石U–Pb年龄分析结果
Table 1. LA–ICP–MS zircons U–Th–Pb data for the late Carboniferous monzogranite in Xiaowulangou area
点号 含量（10−6） 同位素比值 年龄（Ma） Pb U 206Pb/238U 1σ 207Pb/235U 1σ 207Pb/206Pb 1σ 206Pb/238U 1σ 207Pb/235U 1σ 207Pb/206Pb 1σ 1 20 374 0.0509 0.0003 0.3742 0.0216 0.0533 0.0031 320 2 323 19 344 130 2 38 681 0.0508 0.0003 0.3715 0.0147 0.0530 0.0021 320 2 321 13 329 89 3 75 1446 0.0508 0.0003 0.3700 0.0118 0.0528 0.0017 320 2 320 10 321 72 4 32 616 0.0507 0.0003 0.3736 0.0175 0.0534 0.0025 319 2 322 15 346 104 5 19 382 0.0509 0.0006 0.3716 0.0657 0.0529 0.0093 320 4 321 57 326 399 6 10 190 0.0509 0.0005 0.3709 0.0464 0.0529 0.0068 320 3 320 40 323 293 7 26 510 0.0508 0.0004 0.3717 0.0246 0.0531 0.0035 319 2 321 21 333 149 8 40 784 0.0508 0.0003 0.3704 0.0125 0.0529 0.0017 319 2 320 11 325 75 9 12 230 0.0508 0.0004 0.3709 0.0350 0.0529 0.0050 320 3 320 30 326 216 10 21 402 0.0506 0.0006 0.3711 0.0545 0.0532 0.0078 318 4 320 47 338 334 11 18 350 0.0508 0.0004 0.3724 0.0233 0.0532 0.0033 319 2 321 20 338 141 12 43 786 0.0510 0.0005 0.3730 0.0816 0.0531 0.0114 321 3 322 70 331 486 13 35 606 0.0510 0.0005 0.3734 0.0437 0.0531 0.0060 321 3 322 38 334 258 14 8 143 0.0511 0.0009 0.3774 0.0774 0.0536 0.0111 321 6 325 67 353 470 15 9 183 0.0506 0.0008 0.3710 0.0965 0.0532 0.0142 318 5 320 83 337 606 16 23 418 0.0507 0.0003 0.3698 0.0207 0.0529 0.0030 319 2 319 18 323 127
下载: 导出CSV
表 2 小乌兰沟地区二长花岗岩主量元素（%）分析结果
Table 2. Major elements (%)compositions of the monzogranite in Xiaowulangou area
样 号 岩 性 SiO2 TiO2 Al2O3 Fe2O3 FeO MnO MgO CaO Na2O D2551 细中粒二长花岗岩 77.10 0.06 12.78 0.37 0.29 0.039 0.07 0.39 3.89 D7069 细中粒二长花岗岩 77.40 0.05 12.65 0.34 0.24 0.028 0.05 0.28 3.93 D8209 中粒二长花岗岩 73.79 0.38 13.16 0.77 1.70 0.043 0.88 0.75 3.38 D3129 中粒二长花岗岩 75.19 0.28 12.96 1.29 0.97 0.037 0.38 0.39 3.22 D2560 中粒二长花岗岩 75.99 0.18 12.77 0.69 0.74 0.04 0.32 0.51 3.54 D0064 细中粒二长花岗岩 76.14 0.16 12.47 0.73 0.60 0.042 0.27 0.67 3.51 D2502 中粒二长花岗岩 76.30 0.14 12.62 0.62 0.62 0.033 0.29 0.57 3.32 WHEH-50-GSY01 二长花岗岩 74.11 0.05 14.88 0.47 0.05 0.03 0.07 0.34 4.56 WHEH-46-GSY01 二长花岗岩 76.31 0.06 13.18 0.17 0.19 0.08 0.08 0.35 3.56 样 号 岩 性 K2O P2O5 H2O＋ H2O＋ 烧失量 K2O/Na2O A/CNK FeOT/MgO AR D2551 细中粒二长花岗岩 4.59 0.012 0.34 0.14 0.38 1.18 1.06 8.90 4.62 D7069 细中粒二长花岗岩 4.44 0.012 0.47 0.12 0.57 1.13 1.07 10.92 4.67 D8209 中粒二长花岗岩 4.05 0.083 0.810 0.24 0.87 1.20 1.16 2.72 3.29 D3129 中粒二长花岗岩 4.27 0.055 0.680 0.29 0.90 1.33 1.22 5.61 3.56 D2560 中粒二长花岗岩 4.42 0.04 0.54 0.19 0.70 1.25 1.11 4.20 4.00 D0064 细中粒二长花岗岩 0.035 0.47 0.17 0.88 1.27 1.06 2.22 4.08 0.035 D2502 中粒二长花岗岩 0.033 0.49 0.16 0.63 1.43 1.09 2.18 4.13 0.033 WHEH-50-GSY01 二长花岗岩 0.03 – – – 1.05 1.12 0.71 4.18 0.03 WHEH-46-GSY01 二长花岗岩 0.05 – – – 1.55 1.06 2.38 5.07 0.05 注：–表示无数据；样品D0064、D2502数据引自Zhang等（2020）；样品WHEH-50-GSY01、WHEH-46-GSY01数据引自袁建国等（2017）。测试单位为河北省区域地质矿产调查研究所实验室。
下载: 导出CSV
表 3 小乌兰沟地区二长花岗岩微量元素（10−6）分析结果
Table 3. Trace element (10−6) compositions of the monzogranite in Xiaowulangou area
样 号 岩 性 Cs Rb Sr Ba Ga Nb Ta Zr Hf Th D2551 细中粒二长花岗岩 6.10 251.30 20.00 108.60 13.28 12.31 2.89 54.50 2.70 17.10 D7069 细中粒二长花岗岩 8.08 258.10 10.10 107.60 12.77 8.45 2.87 51.80 3.03 12.19 D8209 中粒二长花岗岩 5.10 155.00 86.40 565 16.00 10.60 0.79 199.00 7.390 16.80 D3129 中粒二长花岗岩 10.30 226.00 79.00 532 18.6 16.60 1.52 236.00 9.460 23.10 D2560 中粒二长花岗岩 8.31 229.17 51.51 294.21 14.33 15.31 1.96 121.93 5.08 20.13 D0064 细中粒二长花岗岩 18.41 238.70 65.00 290.30 10.94 30.84 1.73 93.60 4.40 17.04 D2502 中粒二长花岗岩 1.87 245.9 48.5 161.7 14.4 13.05 1.95 96.7 3.50 34.56 WHEH-50-GSY01 二长花岗岩 – 248.1 18.3 50 17 12.8 1.8 23.3 1.4 8.6 WHEH-46-GSY01 二长花岗岩 – 227.7 26.2 47.6 13.7 14.6 2.3 32.8 1.9 6.5 样 号 岩 性 V Cr Co Ni Li Sc U Th/U Rb/Sr Sr/Ba D2551 细中粒二长花岗岩 23.00 1.90 0.44 7.40 7.30 5.18 0.84 20.36 12.57 0.18 D7069 细中粒二长花岗岩 20.70 1.20 0.18 1.90 11.68 4.30 1.06 11.50 25.55 0.09 D8209 中粒二长花岗岩 66.50 27.30 4.47 5.29 38.9 8.37 0.95 17.68 1.79 0.15 D3129 中粒二长花岗岩 54.6 21.30 3.72 5 29.4 7.58 1.1 21.00 2.86 0.15 D2560 中粒二长花岗岩 40.90 10.97 1.98 4.95 22.93 5.91 1.28 15.73 4.45 0.18 D0064 细中粒二长花岗岩 33.80 3.80 1.29 3.10 39.89 3.70 1.59 10.72 3.67 0.22 D2502 中粒二长花岗岩 46.8 10.3 1.8 7.0 10.4 6.3 2.14 16.15 5.07 0.30 WHEH-50-GSY01 二长花岗岩 26.4 23.2 0.8 – – – 1.7 5.06 13.56 0.37 WHEH-46-GSY01 二长花岗岩 16.6 21.6 0.6 – – – 1.9 3.42 8.69 0.55 注：–表示无数据；样品D0064、D2502数据引自Zhang等（2020）；样品WHEH-50-GSY01、WHEH-46-GSY01数据引自袁建国等（2017）。测试单位为河北省区域地质矿产调查研究所实验室。
下载: 导出CSV
表 4 小乌兰沟地区二长花岗岩稀土元素（10−6）分析结果
Table 4. REE (10−6) compositionsof the monzogranite in Xiaowulangou area
样号 岩性 La Ce Pr Nd Sm Eu Gd Tb Dy Ho D2551 细中粒二长花岗岩 14.02 38.34 3.90 13.40 3.27 0.14 2.93 0.64 4.53 0.93 D7069 细中粒二长花岗岩 10.17 28.03 2.97 10.26 2.95 0.06 3.18 0.81 6.37 1.36 D8209 中粒二长花岗岩 19.4 55.6 5.05 19 4.45 0.6 4.11 0.78 4.69 1.02 D3129 中粒二长花岗岩 27 62.6 7.32 27.5 6.52 0.46 5.59 1.13 7.18 1.48 D2560 中粒二长花岗岩 16.62 44.25 4.36 15.75 3.76 0.31 3.57 0.76 5.28 1.14 D0064 细中粒二长花岗岩 13.64 36.98 3.09 10.77 2.31 0.32 2.40 0.52 3.89 0.86 D2502 中粒二长花岗岩 15.50 43.97 3.81 13.57 3.05 0.25 3.21 0.70 4.99 1.21 WHEH-50-GSY01 二长花岗岩 7.14 15.74 1.71 5.65 1.69 0.09 1.8 0.46 3.63 0.77 WHEH-46-GSY01 二长花岗岩 7.1 13.72 1.61 5.45 1.64 0.12 1.94 0.52 4.26 0.93 样 号 岩 性 Er Tm Yb Lu Y ∑REE LREE/HREE δEu （La/Yb）N Sm/Nd D2551 细中粒二长花岗岩 2.97 0.57 3.39 0.51 23.08 112.62 1.85 0.14 2.97 0.24 D7069 细中粒二长花岗岩 4.20 0.75 4.13 0.65 37.21 113.10 0.93 0.06 1.77 0.29 D8209 中粒二长花岗岩 3.01 0.49 3.01 0.47 27.8 149.48 2.29 0.42 4.62 0.23 D3129 中粒二长花岗岩 4.61 0.73 4.64 0.65 42.8 200.21 1.91 0.23 4.17 0.24 D2560 中粒二长花岗岩 3.57 0.65 4.02 0.60 31.36 136.00 1.67 0.25 2.97 0.24 D0064 细中粒二长花岗岩 2.92 0.59 3.88 0.57 23.35 106.09 1.72 0.41 2.52 0.65 D2502 中粒二长花岗岩 3.73 0.79 5.06 0.78 33.89 134.50 1.47 0.24 2.20 0.69 WHEH-50-GSY01 二长花岗岩 2.41 0.42 2.6 0.38 22.7 67.19 0.91 0.16 1.97 0.91 WHEH-46-GSY01 二长花岗岩 2.95 0.53 3.37 0.48 26.2 70.82 0.76 0.21 1.51 0.92 注：样品D0064、D2502数据引自Zhang等，2020；样品WHEH-50-GSY01、WHEH-46-GSY01数据引自袁建国等，2017。测试单位为河北省区域地质矿产调查研究所实验室。
下载: 导出CSV
-
[1] 鲍庆中, 张长捷, 吴之理, 等. 内蒙古白音高勒地区石炭纪石英闪长岩SHRIMP锆石U-Pb年代学及其意义[J]. 吉林大学学报(地球科学版), 2007, 37(1): 15-23
BAO Qingzhong, ZHANG Changjie, WU Zhili, et al. SHRIMP U-Pb Zircon Geochronology of a Carboniferous Quartz-Diorite in Baiyingaole Area, Inner Mongolia and Its Implications[J]. Journal of Jilin University (Earth Science Edition), 2007, 37(1): 15-23.
[2] 陈斌, 马星华, 刘安坤, 等. 锡林浩特杂岩和蓝片岩的锆石U-Pb年代学及其对索仑缝合带演化的意义[J]. 岩石学报, 2009, 25(12): 3123-3129
CHEN Bin, MA Xinghua, LIU Ankun, et al. Zircon U-Pb ages of the Xilinhot metamorphic complex and blueschist, and implications for tectonic evolution of the Solonker suture[J]. Acta Petrologica Sinica, 2009, 25(12): 3123-3129.
[3] 陈斌, 赵国春, Simon WILDE. 内蒙古苏尼特左旗南两类花岗岩同位素年代学及其构造意义[J]. 地质论评, 2001, 47(4): 361-367 doi: 10.3321/j.issn:0371-5736.2001.04.005
CHEN Bin, ZHAO Guochun, Simon WILDE. Subduction- and Collision-related Granitoids from Southern Sonidzuoqi, Inner Mongolia: Isotopic Ages and Tectonic Implications[J]. Geological Review, 2001, 47(4): 361-367. doi: 10.3321/j.issn:0371-5736.2001.04.005
[4] 方俊钦, 赵盼, 徐备, 等. 内蒙古西乌珠穆沁旗哲斯组宏体化石新发现和沉积相分析[J]. 岩石学报, 2014, 30(7): 1889-1898
FANG Junqin, ZHAO Pan, XU Bei, et al. Sedimentary facies analyses and discovery of gastropods from Zhesi Formation in the south of West Ujimqin, Inner Mongolia and their significances[J]. Acta Petrologica Sinica, 2014, 30(7): 1889-1898.
[5] 黄波, 付冬, 李树才, 等. 内蒙古贺根山蛇绿岩形成时代及构造启示[J]. 岩石学报, 2016, 32(1): 158-176
HUANG Bo, FU Dong, LI Shucai, et al. The age and tectonic implications of the Hegenshan ophiolite in Inner Mongolia[J]. Acta Petrologica Sinica, 2016, 32(1): 158-176.
[6] 康健丽, 肖志斌, 王惠初, 等. 内蒙古锡林浩特早石炭世构造环境: 来自变质基性火山岩的年代学和地球化学证据[J]. 地质学报, 2016, 90(2): 383-397
KANG Jianli, XIAO Zhibin, WANG Huichu, et al. Late Paleozoic Subduction of the Paleo Asian Ocean: Geochronological and Geochemical Evidence from the Meta basic Volcanics of Xilinhot, Inner Mongolia[J]. Acta Geologica Sinica, 2016, 90(2): 383-397.
[7] 李红英, 周志广, 张达, 等. 内蒙古西乌旗格尔楚鲁晚三叠世流纹岩年代学、地球化学特征及其地质意义[J]. 矿物岩石地球化学通报, 2015, 34(3): 546-555 doi: 10.3969/j.issn.1007-2802.2015.03.011
LI Hongying, ZHOU Zhiguang, ZHANG Da, et al. Geochronology, geochemistry and geological significance of late Triassic Rhyolitesin Geerchulu, Xi Ujimqin Qi, Inner Mongolia[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 2015, 34(3): 546–555. doi: 10.3969/j.issn.1007-2802.2015.03.011
[8] 李锦轶, 高立明, 孙桂华, 等. 内蒙古东部双井子中三叠世同碰撞壳源花岗岩的确定及其对西伯利亚与中朝古板块碰撞时限的约束[J]. 岩石学报, 2007, 23(3): 565-582
LI Jinyi, GAO Liming, SUN Guihua, et al. Shuangjingzi middle Triassic syn-collisional crust-derived granite in the East Inner Mongolia and its constraint on the timing of collision between Siberian and Sino-Korean paleo-plates[J]. Acta Petrologica Sinica, 2007, 23(3): 565-582.
[9] 刘建峰, 迟效国, 张兴洲, 等. 内蒙古西乌旗南部石炭纪石英闪长岩地球化学特征及其构造意义[J]. 地质学报, 2009, 83(3): 365-376
LIU Jianfeng, CHI Xiaoguo, ZHANG Xingzhou, et al. Geochemical Characteristic of Carboniferous Quartz Diorite in the Southern Xiwuqi Area, Inner Mongolia and Its Tectonic Significance[J]. Acta Geologica Sinica, 2009, 83(3): 365-376.
[10] 刘建峰, 李锦轶, 迟效国, 等. 内蒙古东南部早三叠世花岗岩带岩石地球化学特征及其构造环境[J]. 地质学报, 2014, 88(9): 1677-1690
LIU Jianfeng, LI Jinyi, CHI Xiaoguo, et al. Petrological and geochemical characteristics of the early Triassic Granite Belt in southeastern Inner Mongolia and its tectonic setting[J]. . Acta Geologica Sinica, 2014, 88(9): 1677-1690.
[11] 刘群, 王挽琼, 邱殿明, 等. 华北板块北缘中段早石炭世构造属性: 察哈尔右翼后旗高分异I型花岗岩地球化学的制约[J]. 吉林大学学报(地球科学版), 2015, 7(4): 1121-1131
LIU Qun, WANG Wanqiong, QIU Dianming, et al. Early Carboniferous Tectonic Attribute of the Central-Northern Margin of North China Craton: Constraints from Geochemistry of Highly Fractionated Ⅰ-Type Granites in Cahayouhouqi Area[J]. Journal of Jilin University (Earth Science Edition), 2015, 7(4): 1121-1131.
[12] 马士委, 周志广, 柳长峰, 等. 内蒙古西乌旗地区晚石炭世石英闪长岩的岩石成因及构造意义[J]. 中国地质, 2016, 43(6): 1932-1946
MA Shiwei, ZHOU Zhiguang, LIU Changfeng, et al. Petrogenesis and tectonic significance of Late Carboniferous quartz diorite in Xi Ujimqin Banner, Inner Mongolia[J]. Geology in China, 2016, 43(6): 1932-1946.
[13] 任收麦, 黄宝春. 晚古生代以来古亚洲洋构造域主要块体运动学特征初探[J]. 地球物理学进展, 2002, 17(1): 113-120 doi: 10.3969/j.issn.1004-2903.2002.01.015
REN Shoumai, HUANG Baochun. Preliminary Study on Post-Late Paleozoic Kinematics of the Main Blocks of the Paleo-Asian Ocean[J]. Progress in Geophysics, 2002, 17(1): 113-120. doi: 10.3969/j.issn.1004-2903.2002.01.015
[14] 邵济安, 唐克东, 何国琦. 内蒙古早二叠世构造古地理的再造[J]. 岩石学报, 2014, 30(7): 1858-1866
SHAO Ji’an, TANG Kedong, HE Guoqi. Early Permian tectono-palaeogeographic reconstruction of Inner Mongolia, China[J]. Acta Petrologica Sinica, 2014, 30(7): 1858-1866.
[15] 邵济安, 何国琦, 唐克东. 华北北部二叠纪陆壳演化[J]. 岩石学报, 2015a, 31(1): 47-55
SHAO Ji’an, HE Guoqi, TANG Kedong. The evolution of Permian continental crust in northern part of North China[J]. Acta Petrologica Sinica, 2015a, 31(1): 47-55.
[16] 邵济安, 田伟, 唐克东, 等. 内蒙古晚石炭世高镁玄武岩的成因和构造背景[J]. 地学前缘, 2015b, 22(5): 171-181
SHAO Ji’An, TIAN Wei, TANG Kedong et al. Petrogenesis and tectonic settings of the Late Carboniferous high Mg basalts of Inner Mongolia[J]. Earth Science Frontiers, 2015b, 22(5): 171-181.
[17] 尚庆华. 北方造山带内蒙古中､东部地区二叠纪放射虫的发现及意义[J]. 科学通报, 2004, 49(24): 2574-2579 doi: 10.1360/csb2004-49-24-2574
SHANG Qinghua. Discovery and significance of Permian radiolarians in the central and eastern Inner Mongolia of the northern orogenic belt[J]. Chinese Science Bulletin, 2004, 49(24): 2574-2579. doi: 10.1360/csb2004-49-24-2574
[18] 唐克东, 张允平. 内蒙古缝合带的构造演化. 见: 肖序常, 汤耀庆编. 古中亚复合巨型缝合带南缘构造演化[M]. 北京: 北京科学技术出版社, 1991
TANG Kedong, ZHANG Yunping. The tectonic evolution of the Inner Mongolia suture zone. See: XIAO Xuchang, TANG Yaoqing eds. Tectonic evolution of the southern margin of the Paleo-Central Asian composite giant suture zone[M]. Beijing: Beijing Science and Technology Publishing House, 1991.
[19] 王强, 赵振华, 熊小林. 桐柏—大别造山带燕山晚期A型花岗岩的厘定[J]. 岩石矿物学杂志, 2000, 19(4): 297-306
WANG Qiang, ZHAO Zhenhua, Xiong Xiaolin. The Ascertainment of Late-Yanshanian A-type Granite in Tongbai-Dabie Orogenic Belt[J]. Acta Petrologica et Mineralogica, 2000, 19(4): 297-306.
[20] 王树庆, 胡晓佳, 杨泽黎, 等. 兴蒙造山带中段锡林浩特跃进地区石炭纪岛弧型侵入岩年代学､地球化学､Sr-Nd-Hf 同位素特征及其地质意义[J]. 地球科学, 2018, 43(3): 672-695
Wang Shuqing, HU Xiaojia, Yang Zeli, et al. Geochronology, Geochemistry, Sr-Nd-Hf Isotopic Characteristics and Geological Significance of Carboniferous Yuejin Arc Intrusive Rocks of Xilinhot, Inner Mongolia[J]. Earth Science, 2018, 43(3): 672-695.
[21] 徐备, Charvet J, 张福勤. 内蒙古北部苏尼特左旗蓝片岩岩石学和年代学研究[J]. 地质科学, 2001, 36(4): 424-434
XU Bei, Charvet J, ZHANG Fuqin. Primary Study on Petrology and Geochrononology of Blueschists in Sunitezuoqi, Northern Inner Mongolia[J]. Chinese Journal of Geology, 36(4): 424-434.
[22] 徐备, 赵盼, 鲍庆中, 等. 兴蒙造山带前中生代构造单元划分初探[J]. 岩石学报, 2014, 30(7): 1841-1857
XU Bei, ZHAO Pan, BAO Qingzhong, et al. Preliminary study on the pre-Mesozoic tectonic unit division of the Xing-Meng Orogenic Belt (XMOB)[J]. Acta Petrologica Sinica, 2014, 30(7): 1841-1857.
[23] 徐备, 陈斌. 内蒙古北部华北板块与西伯利亚板块之间中古生代造山带的结构及演化[J]. 中国科学: 地球科学, 1997, 27(3): 227-232
XU Bei, CHEN Bin. Framework and Evolution of the Middle Paleozoic Orogenic Belt between Siberian and North China Plates in Northern Inner Mongolia[J]. Science in China(Series D-Earth Sciences), 1997, 27(3): 227-232.
[24] 张拴宏, 赵越, 刘建民, 等. 华北地块北缘晚古生代-早中生代岩浆活动期次､特征及构造背景[J]. 岩石矿物学杂志, 2010, 29(6): 824-842 doi: 10.3969/j.issn.1000-6524.2010.06.017
ZHANG Shuanhong, ZHAO Yue, LIU Jianmin, et al. Geochronology, geochemistry and tectonic setting of the Late Paleozoic-Early Mesozoic magmatism in the northern margin of the North China Block: A preliminary review[J]. Acta Petrologica et Mineralogica, 2010, 29(6): 824-842. doi: 10.3969/j.issn.1000-6524.2010.06.017
[25] 张金凤, 白新会. 内蒙古苏尼特右旗温都尔庙地区早石炭世火山岩的发现及其构造意义[J]. 岩石学报, 2016, 32(9): 2780-2792
ZHANG Jinfeng, BAI Xinhui. The Early Carboniferous volcanic rocks in Ondor Sum area of Sonid Right Banner, Inner Mongolia: Discovery and its tectonic significance[J]. Acta Petrologica Sinica, 2016, 32(9): 2780-2792.
[26] 袁建国, 任永健, 姜振宁, 等. 内蒙古锡林浩特毛登牧场早石炭世花岗岩锆石U-Pb 年龄､地球化学特征及其地质意义[J]. 现代地质, 2017, 31(6): 1131-1146 doi: 10.3969/j.issn.1000-8527.2017.06.003
YUAN Jianguo, REN Yongjian, JIANG Zhenning, et al. Zircon U-Pb Dating and Geochemistry of Granites in Early Carboniferous in Maodeng of Xilin Hot, Inner Mongolia and Their Geological Implications[J]. Geoscience, 2017, 31(6): 1131-1146. doi: 10.3969/j.issn.1000-8527.2017.06.003
[27] 周志广, 谷永昌, 柳长峰, 等. 内蒙古东乌珠穆沁旗满都胡宝拉格地区早-中二叠世华夏植物群的发现及地质意义[J]. 地质通报, 2010, 29(1): 21-25 doi: 10.3969/j.issn.1671-2552.2010.01.003
ZHOU Zhiguang, GU yongchang, LIU Changfeng, et al. Discovery of Early-Middle Permian cathaysian flora in Manduhubaolage area, Dong Ujimqin Qi, Inner Mongolia, China and its geological significance[J]. Geological Bulletin of China, 2010, 29(1): 21-25. doi: 10.3969/j.issn.1671-2552.2010.01.003
[28] 朱永峰, 孙世华, 毛骞, 等. 内蒙古锡林格勒杂岩的地球化学研究: 从Rodinia聚合到古亚洲洋闭合后碰撞造山的历史记录[J]. 高校地质学报, 2004, 10(3): 343-355
ZHU Yongfeng, SUN Shihua, MAO Qian, et al. Geochemistry of the Xilingele Complex, Inner Mongolia: A Historic Record from Rodinia Accretion to Continental Collision after Closure of the Paleo-Asian Ocean[J]. Geological Journal of China Universities, 2004, 10(3): 343-355.
[29] Anderson T. Correction of common Pb in U-Pb analyses that donot report 204Pb[J]. Chemical Geology, 2002, 192(1-2): 59-79. doi: 10.1016/S0009-2541(02)00195-X
[30] Batchelor R A, Bowden P. Petrogenetic interpretation of granitoid rock series using multicationic parameters[J]. Chemical Geology, 1985, 48(1): 43-55.
[31] Chen B, Jahn B M, Wilde S, et al. Two contrasting Paleozoic magmatic belts in northern Inner Mongolia, China: Petrogenesis and tectonic implications[J]. Tectonophysics, 2000, 328: 157-182. doi: 10.1016/S0040-1951(00)00182-7
[32] Cox K G, Bell J D, Pankhurst R J. The Interpretation of Igneous Rocks[M].London: George Allen and Unwin, 1979.
[33] Gorton M P and Schandl E S. From continents to island arces: a geochemical index of tectonic setting for arc-ralated and within-plate felsic to intermediate volcanic rocks[J]. Canadian Mineralogist, 2000, 38: 1065-1073. doi: 10.2113/gscanmin.38.5.1065
[34] Jahn B M, Litvinovsky B A, Zanvilevich A N, et al. Peralkaline granitoid magmatism in the MongolianTransbaikalian Belt: Evolution, petrogenesis and tectonic significance[J]. Lithos, 2009, 113(3-4): 521-539. doi: 10.1016/j.lithos.2009.06.015
[35] Jian P, Liu D Y, Kröner A, et al. Evolution of a Permian intraoceanic arc-trench system in the Solonker suture zone, Central Asian Orogenic Belt, China and Mongolia[J]. Lithos, 2010, 118(1-2): 169-190. doi: 10.1016/j.lithos.2010.04.014
[36] Jian P, Liu D Y, Kröner A, et al. Time Scale of the Early to Mid-Paleozoic Orogenic Cycle of the Longlived Central Asian Orogenic Belt, Inner Mongolia of China: Implications for Continental Growth[J]. Lithos, 2008, 101(3-4): 233-259. doi: 10.1016/j.lithos.2007.07.005
[37] Ludwig K R. Isoplot/EX, version 3.0 A Geochronological Toolkit for Microsoft Excel[J]. Berkeley: Geochronol Center Special Publication, 2003, 4: 1-70.
[38] Liu Y S, Wang X H, Wang D B, et al. Triassic high-Mg adakitic andesites from Linxi, Inner Mongolia: Insights into the fate of the Paleo-Asian ocean crust and fossil slab-derived melt-peridotite interaction[J]. Chemical Geology, 2012, 328: 89-128. doi: 10.1016/j.chemgeo.2012.03.019
[39] Liu J F, Li J Y, Chi X G, et al. A late–Carboniferous to early early–Permian subduction–accretion complex in Daqing pasture, southeastern Inner Mongolia: Evidence of northward subduction beneath the Siberian paleoplate southern margin[J]. Lithos, 2013, 177: 285–296. doi: 10.1016/j.lithos.2013.07.008
[40] Liu J F, Li J Y, Chi X G, et al. The tectonic setting of early Permian bimodal volcanism in Central Inner Mongolia: Continental rift, post-collisional extension, or active continental margin[J]. International Geology Review, 2016, 58: 737–755. doi: 10.1080/00206814.2015.1108249
[41] Maniar P D, Piccoli P M. Tectonic discrimination of granitoids[J]. Geological society of America Bulletin, 1989, 101(5): 635-643. doi: 10.1130/0016-7606(1989)101<0635:TDOG>2.3.CO;2
[42] Pearce J A, Harris N B W, Tindle A G. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks [J]. Journal of Petrology, 1984, 25(4): 956-983. doi: 10.1093/petrology/25.4.956
[43] Rickwood P C. Boundary lines within petrologic diagrams which use oxides of major and minor elements[J]. Lithos, 1989, 22: 247-263. doi: 10.1016/0024-4937(89)90028-5
[44] Sun S S, Mcdonough W F. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes [J]. Geological Society of London, Special Publications, 1989, 42(1): 313-345. doi: 10.1144/GSL.SP.1989.042.01.19
[45] Tang K D. Tectonic development of the Paleozoic foldbelts on thenorthern margin of the Sino- Korean Craton[J]. Tectonics, 1990, 9(2): 249-260. doi: 10.1029/TC009i002p00249
[46] Tischendort G, Paelchen. Zur Klassifikation von Granitoiden/Classification of granitoids[J]. Zeitschrift fuer Geologische Wissenschaften, 1985, 13(5): 615-627.
[47] Whalen J B, Currie K L, Chappell B W. A-typegranites: Geochemicalcharacteristics, dirimination and petrogenesis[J]. Contributions to Mineralogy and Petrology, 1987, 95: 407-419. doi: 10.1007/BF00402202
[48] Wu F Y, Jahn B, Wiled S A, et al. Highly Fractionated I-Type Granites in NE China(I): Geochronology and Petrogenesis [J]. Lithos, 2003, 66: 541-573.
[49] Xiao W J, Windley B F, Hao J, et al. Accretion leading to collision and the Permian Solonker suture, Inner Mongolia, China: Termination of the central Asian orogenic belt[J]. Tectonics, 2003, 22(6): 1069-1089.
[50] Zhang X H, Wide S A, Zhang H F, et al. Early Permian high-K calc-alkaline volcanic rocks from Inner Mongolia, North China: geochemistry, origin and tectonic implications[J]. Journal of Geological Society, 2011, 168: 525-543. doi: 10.1144/0016-76492010-094
[51] Zhang X F, Pang Z S, Liu J L, et al. Geochronological and geochemical features of the Xiaowulangou complex plutons, Xilinhot, Inner Mongolia, and their geological significance[J]. Geological Journal , 2020, 55: 2269-2299. doi: 10.1002/gj.3762
-
