Petroleum Geological Characteristics and Main Control Factors of Hydrocarbon Accumulation in Termit Basin, West Africa
-
摘要:

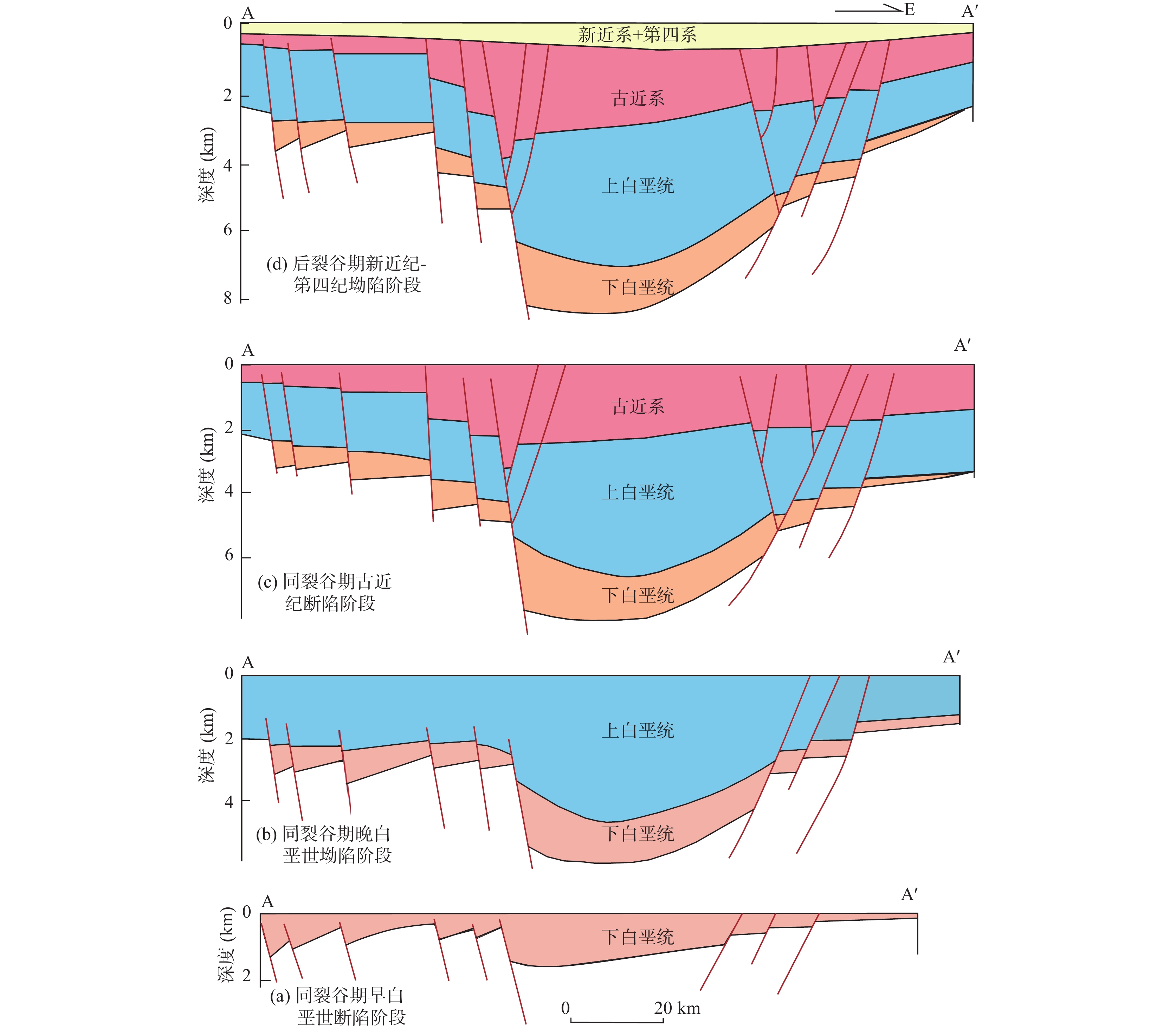

西非Termit盆地是中国石油在非洲极为重要的勘探开发区块。在充分利用钻井、分析化验和地震资料基础上，开展了Termit盆地石油地质特征和成藏主控因素研究，研究表明：①Termit盆地历经前裂谷期、同裂谷期、后裂谷期三大构造演化阶段，同裂谷期发育早晚两期裂谷作用形成中生代—新生代叠置裂谷盆地，宏观具有“东西分带、南北分块”的构造结构特征，控制圈闭的形成与分布。②发育上白垩统Yogou组分布广（18000 km2）、厚度大（600～1400 m）、成熟度适中（Ro值为0.7%～1.3%）的海相烃源岩，配置上白垩统Yogou组顶部发育的海相三角洲、古近系Sokor 1组辫状河三角洲砂体，及古近系Sokor 2 组区域性分布的泥岩盖层，形成了上、下两套成藏组合；③明确古近系、白垩系成藏主控因素，古近系为“下生上储”的次生油气藏，油气平面和垂向分布受生烃灶、区域盖层、油源断层和优势沉积相控制，白垩系为“自生自储”原生油藏，油气富集受区域构造活动强度和白垩系内幕构造控制。④构建了基于海相广覆式烃源岩的跨世代油气成藏模式，明确Dinga断阶带、Fana凸起和Araga地堑是古近系油气勘探的有利区带，造活动相对较弱的Moul凹陷及Dinga断阶带南部是白垩系油气勘探的有利区带。地质认识指导勘探部署，在尼日尔Termit盆地获得了重大勘探突破，累计探明石油地质储量超7亿t，为中国石油海外油气增储上产奠定了坚实的基础。
Abstract:The Termit basin is a very important exploration and development block of CNPC in Africa. The petroleum geological characteristics and main controlling factors of hydrocarbon accumulation have been studied base on the drilling, analysis and seismic data ,in the Termit basin. The research shows that: ① The Termit basin has undergone three tectonic evolution stages: pre-rift period, synrift period and post-rift period, and the meso-Cenozoic superimposed rift basin was formed by two stages of early and late rifting during synrift period. The macrostructure features of "east-west zoning and north-south segmentation" control the formation and distribution of traps. ② The Upper Cretaceous Yogou Formation is widely distributed (18000 km2), with a large thickness (600～1400 m) and moderate maturity (Ro: 0.7%～1.3%) Marine source rocks, with Marine delta developed at the top of Upper Cretaceous Yogou Formation, braid river delta sand body of Paleogene Sokor1 member, and mudstone cover of Paleogene overlying Sokor2 formation regionally distributed, formed a good reservoir-cap association. ③ The main controlling factors of hydrocarbon accumulation in Paleogene and Cretaceous are identified. Paleogene is a secondary hydrocarbon reservoir with "lower generation and upper reservoir", the plane and vertical distribution of oil and gas is controlled by hydrocarbon generation focus, regional cap layer, oil source fault and dominant sedimentary facies, while Cretaceous is a "self-generated and self-storage" primary reservoir, and oil and gas enrichment is controlled by regional tectonic activity intensity and Cretaceous insider structure. ④ A cross-generation hydrocarbon accumulation model based on widely covered Marine source rocks is constructed, and the Dinga fault-step belt, Fana uplift and Araga Graben are identified as favorable zones for hydrocarbon exploration in Paleogene, while the Moul sag and the southern part of Dinga fault-step belt are favorable zones for hydrocarbon exploration in Cretaceous. Geological knowledge guided exploration and deployment, achieved a major exploration breakthrough in the Termit Basin in Niger, and accumulated proved oil geological reserves exceeded 700 million tons, laying a solid foundation for CNPC to increase overseas oil and gas reserves and production.
-
-
表 1 Termit盆地生储盖层综合评价表
Table 1. Comprehensive evaluation table of source-reservoir-cap in Termit basin
层位 烃源岩 储集层 盖层 TOC（%） Ro（%） 厚度（m） 分布面积（km2） 孔隙度（%） 渗透率（mD） 厚度（m） 范围 平均 范围 平均 范围 平均 Sokor2组 10.2～32.6 22.6 1～1040 201.8 300～900 Sokor1组 0.4～25 2.6 ＜0.5 200～300 2700 8.1～38.1 21.9 0.5～8770 1061 5～30 Yogou组 0.5～16 2.3 0.5～1.6 400～1400 7200 6.7～31.4 18.9 0.1～3038 52.7 5～40 Donga组 0.6～2.5 1.2 ＞1.5 200～500 18000 1.1～28 6.1 0.1～343 24.7 200～500 K1组 0.46～1.5 0.9 ＞2.0 100～200 / 0.5～5 1.3 0.1～124 18.6 4～20
下载: 导出CSV
-
[1] 邓运华, 薛永安, 于水, 等. 浅层油气运聚理论与渤海大油田群的发现[J]. 石油学报, 2017, 38(1): 1-8 doi: 10.7623/syxb201701001
DENG Yunhua, XUE Yongan, YU Shui, et al. Shallow hydrocarbon migration and accumulation theory and discovery of giant oilfield group in Bohai Sea[J]. Acta Petrolei Sinica, 2017, 38(1): 1-8. doi: 10.7623/syxb201701001
[2] 窦立荣, 袁圣强, 刘小兵. 中国油公司海外油气勘探进展和发展对策[J]. 中国石油勘探, 2022, 27(2): 1-10 doi: 10.3969/j.issn.1672-7703.2022.02.001
DOU Lirong, YUAN Shengqiang, LIU Xiaobing. Progress and development countermeasures of overseas oil and gas exploration of Chinese oil corporations[J]. China PetroleumExploration, 2022, 27(2): 1-10. doi: 10.3969/j.issn.1672-7703.2022.02.001
[3] 付吉林, 孙志华, 刘康宁. 尼日尔Agadem区块古近系层序地层及沉积体系研究[J]. 地学前缘, 2012, 19(1): 58-67
FU Jilin, SUN Zhihua, LIU Kangning. The study on sequence stratigraphy and sedimentary systems of Paleogene in Agadem Block, Niger[J]. Earth Science Frontiers, 2012, 19(1): 58-67.
[4] 高岗, 梁晓伟, 朱康乐, 等. 鄂尔多斯盆地长7段源储组合特征与油气成藏模式[J] 西北地质, 2021, 54(3): 199-205
GAO Gang, LIANG Xiaowei, ZHU Kangle, et al. Characteristics of Source-reservoir Assemblage and Hydrocarbon Accumulation Model of Chang 7 Member in Ordos Basin[J] Northwestern Geology, 2021, 54(3): 199-205.
[5] 何羽, 任丽, 邓楠. 鄂尔多斯盆地南部ywb地区中生界小断层特征及其油气勘探意义[J] 西北地质, 2020, 53(1): 189-194
HE Yu, REN Li, DENG Nan. The Characteristics of the Small Faults in Mesozoic Strata of ywb Area In the South of Ordoa Basin and Its Significance for Oil and Gas Exploration[J]. Northwestern Geology, 2020, 53(1): 189-194.
[6] 贾茹, 付晓飞, 孟令东, 等. 断裂及其伴生微构造对不同类型储层的改造机理[J]. 石油学报, 2017, 38(3): 286-296
JIA Ru, FU Xiaofei, MENG Lingdong, et al. Transformation mechanism of fault and its associated microstructures for different kinds of reservoirs[J]. Acta Petrolei Sinica, 2017, 38(3): 286-296.
[7] 刘邦, 潘校华, 万仑昆 等. 东尼日尔盆地海侵的微体古生物和地球化学证据. 现代地质. 2011, 25(5): 996-1005
LIU Bang, PAN Xiaohua, WAN Lunkun, et al. Marine Transgression of the Eastern Niger Basin in the late Cretaceous: Paleotological and Geochemical Evidence [J]. Geoscience, 2011, 25(5): 996-1005.
[8] 刘邦, 潘校华, 万仑坤, 等. 东尼日尔Termit盆地叠置裂谷的演化: 来自构造和沉积充填的制约[J]. 现代地质. 2012a, 26(2): 318-325
LIU Bang, PAN Xiaohua, WAN Lunkun, et al. Polyphase Rift Evolution of the Termit Basin, Eastern Niger: Constraints from Structural and Sedimentary Records [J]. Geoscience, 2012a, 36(2): 318-325.
[9] 刘邦, 潘校华, 万仑坤 等. 东尼日尔Termit盆地构造演化及古近系油气成藏主控因素. 石油学报. 2012b, 33(3): 394-403
LIU Bang, PAN Xiaohua, WAN Lunkun, et al. Strutcural evolution and main controlling factors of the paleogene hydracarbon accumulation in Termit Basin, eastern Niger [J]. Acta Petrolei Sinica, 2012b, 33(3): 394-403.
[10] 刘计国, 郑凤云, 毛凤军, 等. 尼日尔Termit盆地古近系Sokor1组储层特征及其主控因素[J]. 岩石学报. 2022, 38(9): 2581-2594.
LIU Jiguo, ZHENG Fengyun, MAO Fengjun, et al. Reservoir characteristics and its controlling factors of the Paleogene Sokor1 Formation in Termit BasinNiger. Acta Petrologica Sinica, 2022, 38(9);2581-2594.
[11] 吕明胜, 薛良清, 万仑坤, 等. 西非裂谷系Termit盆地古近系油气成藏主控因素分析[J]. 地学前缘, 2015, 22(6): 207-216
LV Mingsheng, XUE Liangqing, WAN Lunkun, et al. Main controlling factors of Paleogene hydrocarbon accumulation of Termit Basin, West African rift sysstem[J]. Earth Science Frontiers. 2015, 22(6): 207-216.
[12] 毛凤军, 刘邦, 刘计国, 等. 中西非裂谷Termit盆地原油甾类生物标志物组成及原油族群[J]. 西安石油大学学报(自然科学版). 2016, 31(3): 8-16
MAO Fengjun, LIU Bang, LIU Jiguo, et al. Composition of Steroid Biomarkers in Oils from Termit Basin, Western and Central Africa Rift Systems. Journal of Xi'an Shiyou University (Natural Science Edition). 2016, 31(3): 8-16.
[13] 聂朝民, 熊正祥, 李玉英, 等. 尼日尔Agadem区块油气成藏模式的认识[J]. 录井工程. 2013, 24(3): 81-87
NIE Chaomin, XIONG Zhengxiang, LI Yuying, et al. Approach to Hydrocarbon Accumulation models in Block Agadem, Niger[J]. Mud Logging Engineering, 2013, 24(3): 81-87.
[14] 汤戈, 孙志华, 苏俊青, 等. 西非Termit盆地白垩系层序地层与沉积体系研究[J]. 中国石油勘探, 2015, 20(4): 81-88 doi: 10.3969/j.issn.1672-7703.2015.04.009
TANG Ge, SUN Zhihua, SU Junqing, et al. Study of cretaceous sequential stratigraphy and sedimentary system in Termit Basin of West Africa[J]. China Petroleum Exploration, 2015, 20(4): 81-88. doi: 10.3969/j.issn.1672-7703.2015.04.009
[15] 童晓光, 窦立荣, 田作基, 等. 苏丹穆格莱特盆地的地质模式和成藏模式[J]. 石油学报, 2004, 25(1): 19-24 doi: 10.3321/j.issn:0253-2697.2004.01.004
TONG Xiaoguang, DOU Lirong, TIAN Zuoji, et al. Geological mode and hydrocarbon accumulation mode in Muglad passive rift basin of Sudan [J]. Acta Petrolei Sinica, 2004, 25(1): 19-24. doi: 10.3321/j.issn:0253-2697.2004.01.004
[16] 王大鹏, 殷进垠, 田纳新, 等. 西非北部塞内加尔盆地油气富集规律与勘探方向[J]. 西北地质, 2023, 56(5): 61−71.
WANG Dapeng, YIN Jinyin, TIAN Naxin, et al. Hydrocarbon Accumulation Characteristics and Future Exploration Direction in Senegal Basin, Northwest Africa[J]. Northwestern Geology, 2023, 56(5): 61−71.
[17] 王振升, 汤戈, 苏俊青, 等. 尼日尔Moul凹陷白垩系Yogou组海陆过渡相沉积与成藏条件[J]. 天然气地球科学, 2016a, 27(7): 1153-1163
WANG Zhensheng, TANG Ge, SU Junqing, et al. Marine-continental transitional sedimentation and hydrocarbon accumulation condition of Cretaceous Yogou Formation in Moul Sag, Niger[J]. Natural Gas Geoscience, 2016a, 27(7): 1153-1163.
[18] 王振升, 汤戈, 苏俊青, 等. 西非Termit盆地白垩纪层序充填样式的时空演化规律研究[J]. 地层学杂志, 2016b, 40(1): 100-106 doi: 10.19839/j.cnki.dcxzz.2016.01.013
WANG Zhensheng, TANG Ge, SU Junqing, et al. Spatial-temporal evolution of the cretaceous sedimentary sequences and basin filling patterns in the Termit basin of West Africa[J]. Journal of Stratigraphy, 2016b, 40(1): 100-106. doi: 10.19839/j.cnki.dcxzz.2016.01.013
[19] 魏建设, 赵琳雁, 周俊林, 等. 银额盆地吉格达凹陷原油地球化学特征及其意义[J]. 西北地质, 2023, 56(5): 332−342.
WEI Jianshe, ZHAO Linyan, ZHOU Junlin, et al. Geochemical Characteristics of Crude Oil in Jigeda Sag of Yingen–Ejin Basin and Its Significances[J]. Northwestern Geology, 2023, 56(5): 332−342.
[20] 于瑞, 王靓靓, 陈喜峰. 非洲油气工业发展现状与中-非合作前景分析[J]. 自然资源情报, 2022, 9: 7-14 doi: 10.3969/j.issn.1674-3709.2022.03.002
YU Rui, WANG Liangliang, CHEN Xifeng. Analysis on the development status of African oil and gas industry and the prospect of China-Africa[J]. Journal of Natural Resources, 2022, 9: 7-14. doi: 10.3969/j.issn.1674-3709.2022.03.002
[21] 张庆莲, 侯贵廷, 潘校华, 等. Termit盆地构造变形的力学机制[J]. 大地构造与成矿学, 2013, 37(3): 377-383 doi: 10.3969/j.issn.1001-1552.2013.03.003
ZHANG Qinglian, HOU Guiting, PAN Xiaohua, et al. Mechanics of Termit basin in central Africa rift systems[J]. Geotectonica et Metallogenia, 2013, 37(3): 377-383. doi: 10.3969/j.issn.1001-1552.2013.03.003
[22] 赵贤正, 蒲秀刚, 王家豪, 等. 断陷盆地缓坡区控砂控藏机制与勘探发现——以歧口凹陷歧北缓坡带为例[J]. 石油学报, 2017, 38(7): 729-739 doi: 10.7623/syxb201707001
ZHAO Xianzheng, PU Xiugang, WANG Jiahao, et al. Sand and reservoir controlling mechanism and exploration discovery in the gentle slope of fault basin: a case study of Qibei slope in Qikou sag[J]. Acta Petrolei Sinica, 2017, 38(7): 729-739. doi: 10.7623/syxb201707001
[23] 周立宏, 苏俊青, 董晓伟, 等. 尼日尔Termit裂谷型叠合盆地油气成藏特征与主控因素[J]. 石油勘探与开发, 2017, 44(3): 330-339 doi: 10.11698/PED.2017.03.02
ZHOU Lihong, SU Junqing, DONG Xiaowei, et al. Controlling factors of hydrocarbon accumulation in Termit rift superimposed basin, Niger[J]. Petroleum Exploration and Development, 2017, 44(3): 330-339. doi: 10.11698/PED.2017.03.02
[24] 周立宏, 汤戈, 苏俊青, 等. 西非Termit叠合裂谷盆地构造沉积演化及控藏机理[J]. 石油学报. 2018, 39(2): 129-140
ZHOU Lihong, TANG Ge, SU Junqing, et al. Tectonic-sedimentary evolution and reservoir controlling mechanism of Termit superimposed rift basin in West Africa[J. Acta Petrolei Sinica. 2018, 39(2): 129-140.
[25] Genik G J. Petroleum Geology of Cretaceous-Tertiary rift basins in Niger, Chad, and Central African Republic[J]. AAPG Bulletin, 1993, 77: 1405-1434.
[26] Genik G J. Regional framework, structural and petroleum aspects of rift basins in Niger, Chad and the Central African Republic[J]. Tectonophysics, 1992, 213: 169-185. doi: 10.1016/0040-1951(92)90257-7
[27] Guiraud R, Bosworth W, Thierry J, et al. Phanerozoic geological evolution of Northern and Central Africa: an overview[J]. Journal of African Earth Sciences, 2005, 43(1-3): 83-143. doi: 10.1016/j.jafrearsci.2005.07.017
[28] Klemme H D. Petroleum basins classifications and characteristics[J]. Journal of Petroleum Geology, 1980, 3(2): 187-207. doi: 10.1111/j.1747-5457.1980.tb00982.x
-
图(9)
表(1)
