Study on Water Migration and Evolution Characteristics of Ecologically Protected Loess Slopes with Different Inclinations
-
摘要:

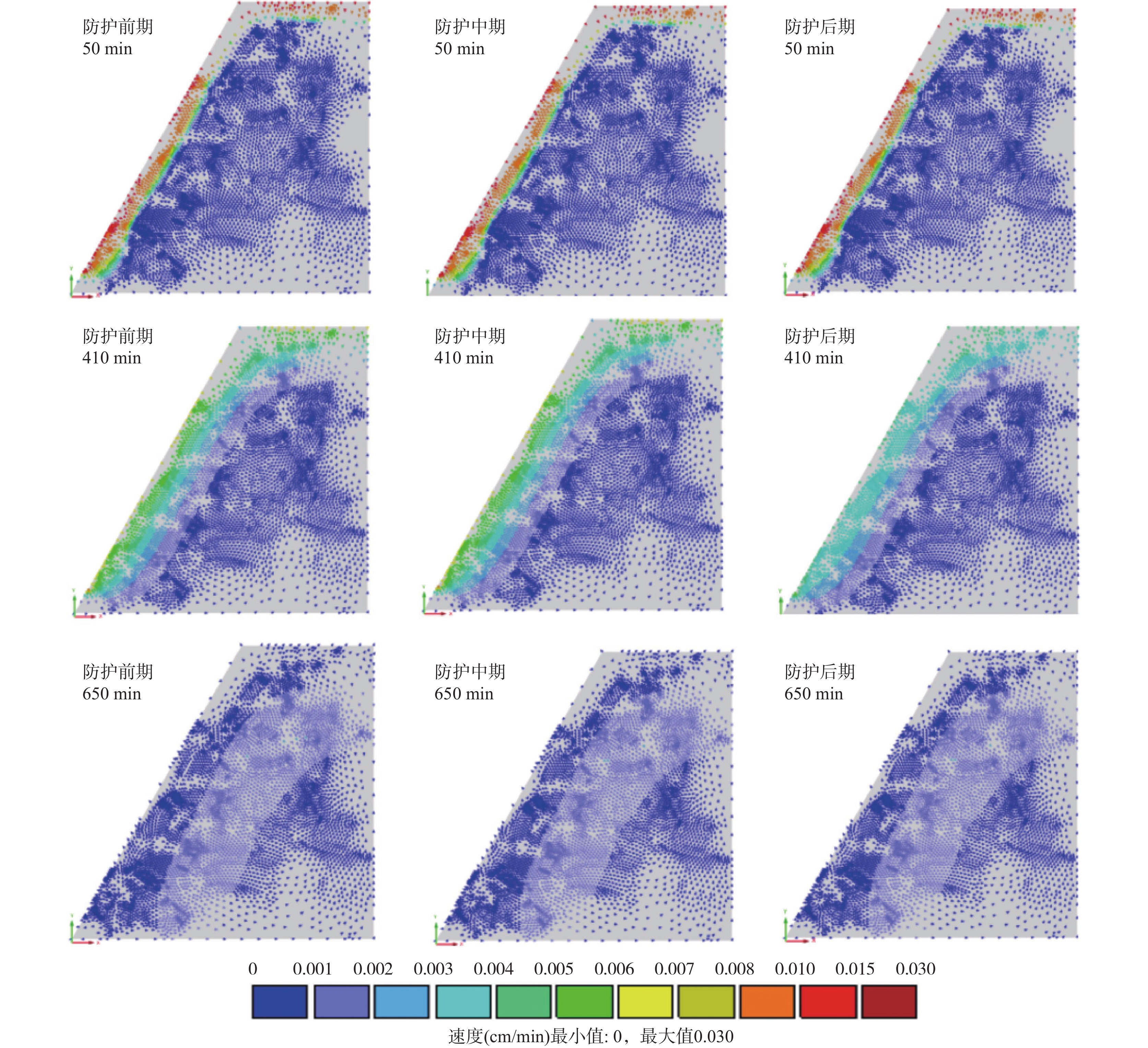

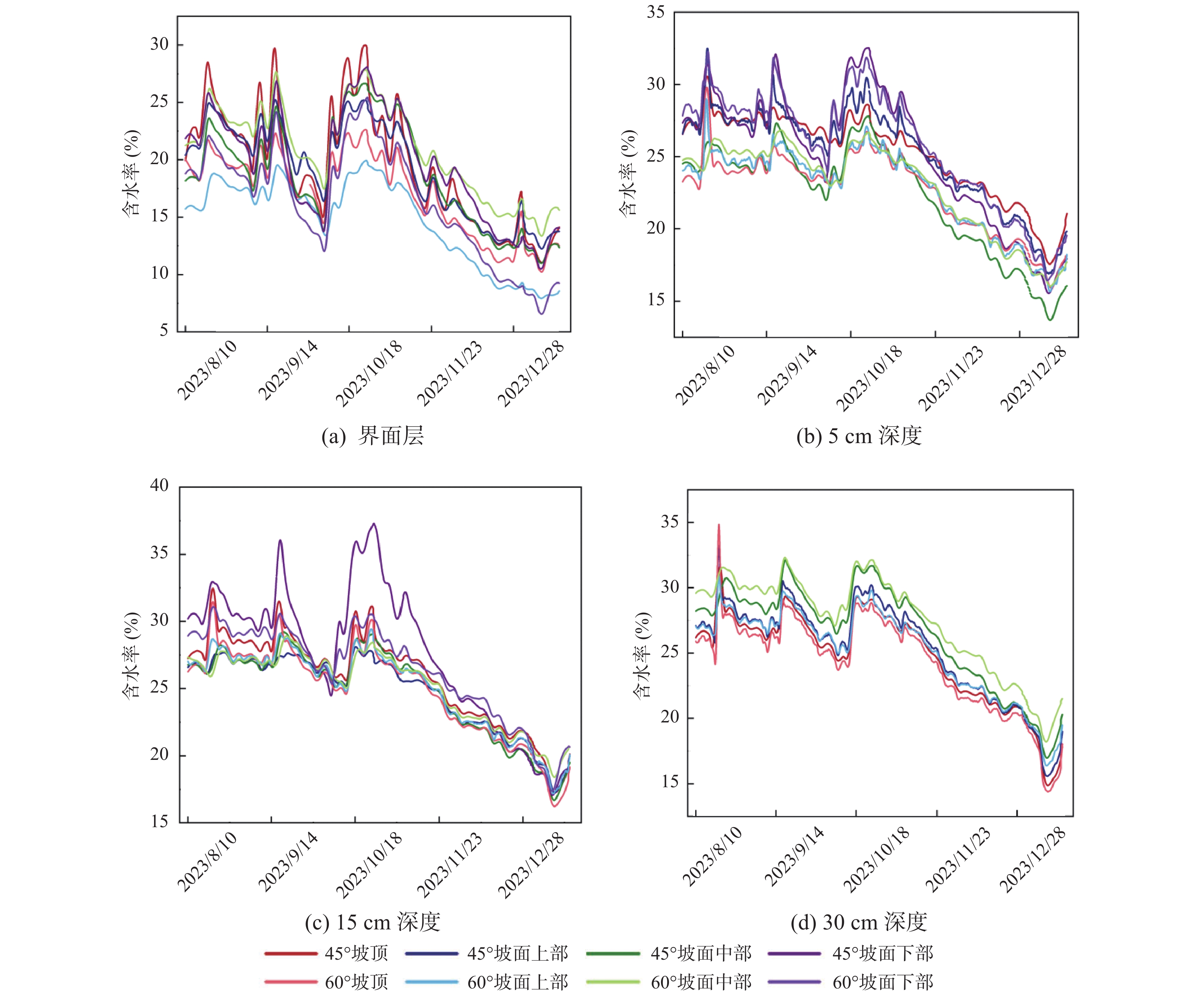

黄土边坡广泛分布于中国西北地区，在强降雨条件下极易发生失稳灾害。生态防护已成为保护黄土边坡的有效手段，但不同坡度的生态防护黄土边坡，会导致其内部水分迁移特征及防护效果的差异。因此，为研究不同坡度对生态防护黄土边坡水分迁移与演化特征的影响，本研究以45°和60°两个坡度的生态防护黄土边坡模型为基础，采用时间序列分析法和Hydrus-2D水分迁移模拟软件，解释了生态防护黄土边坡的水分动态演化规律，揭示了降雨强度、降雨历时和植物生长周期对含水率响应模式的影响，并分析了不同防护阶段和不同坡度下边坡土壤水分迁移的规律。研究结果表明，整个监测期间，60°边坡的整体含水率略低于45°边坡，且60°边坡的土壤水分在坡面下部随土层分布的差异性更加显著，而45°边坡在坡顶时表现更明显；随着降雨强度的增加，坡体内部水分对降雨事件响应的滞后时间显著缩短，而边坡内部水分响应的滞后时间及其达到最强响应的滞后时间则随着降雨事件历时的延长而相应增加，植被防护能够有效增大边坡水分对降雨响应的滞后时间，60°边坡内部对所研究降雨事件响应的滞后时间均慢于45°边坡；针对强降雨事件，生态防护可以有效降低水分入渗速率，不同防护时期水分迁移速率表现为：防护前期＞防护中期＞防护后期，同时植物对60°边坡的水分迁移速率影响更为显著，且60°边坡水分入渗响应速率比45°边坡更慢。
Abstract:Loess slopes are widely distributed in northwest China and are particularly susceptible to instability during heavy rainfall. Ecological protection has emerged as an effective means of safeguarding these slopes; however, varying ecological protection methods can lead to differences in the characteristics of internal water migration and overall protective efficacy. Therefore, this study aims to investigate the effects of different slope angles on the water migration and evolution characteristics of ecologically protected loess slopes. To achieve this, time series analysis and Hydrus-2D simulation software were utilized to elucidate the dynamic evolution of water within ecologically protected loess slopes, focusing on slope models with angles of 45° and 60°. The study revealed how rainfall intensity, duration, and plant growth stages impact the water content response model and examined the rules governing soil water transfer under different protection stages and slope angles. The results indicate that during the whole monitoring period, the overall moisture content of the 60° slope is slightly lower than that of the 45° slope, and the soil moisture distribution of the 60° slope with soil layer was more pronounced in the lower part of the slope, while the 45° slope is more obvious at the top. As rainfall intensity increased, the response lag time of internal slope water to rainfall significantly decreased, whereas extending the duration of rainfall events led to an increase in both the response lag time and the time to reach peak response. Vegetation protection effectively prolonged the lag time of the response of water inside slope to rainfall events. Additionally, the response of the 60° slope was slower than that of the 45° slope. For intense rainfall events, ecological protection can effectively reduce the water infiltration rate, and the water migration rate in different protection periods is as follows: early protection ＞ middle protection ＞ late protection. Furthermore, the effect of vegetation on the water migration rate was more significant on the 60° slope, where water infiltration occurred more slowly than on the 45° slope.
-
Key words:
- ecological slope protection /
- slope /
- water migration and evolution /
- time series analysis /
- Hydrus2D /
- loess plateau
-
-

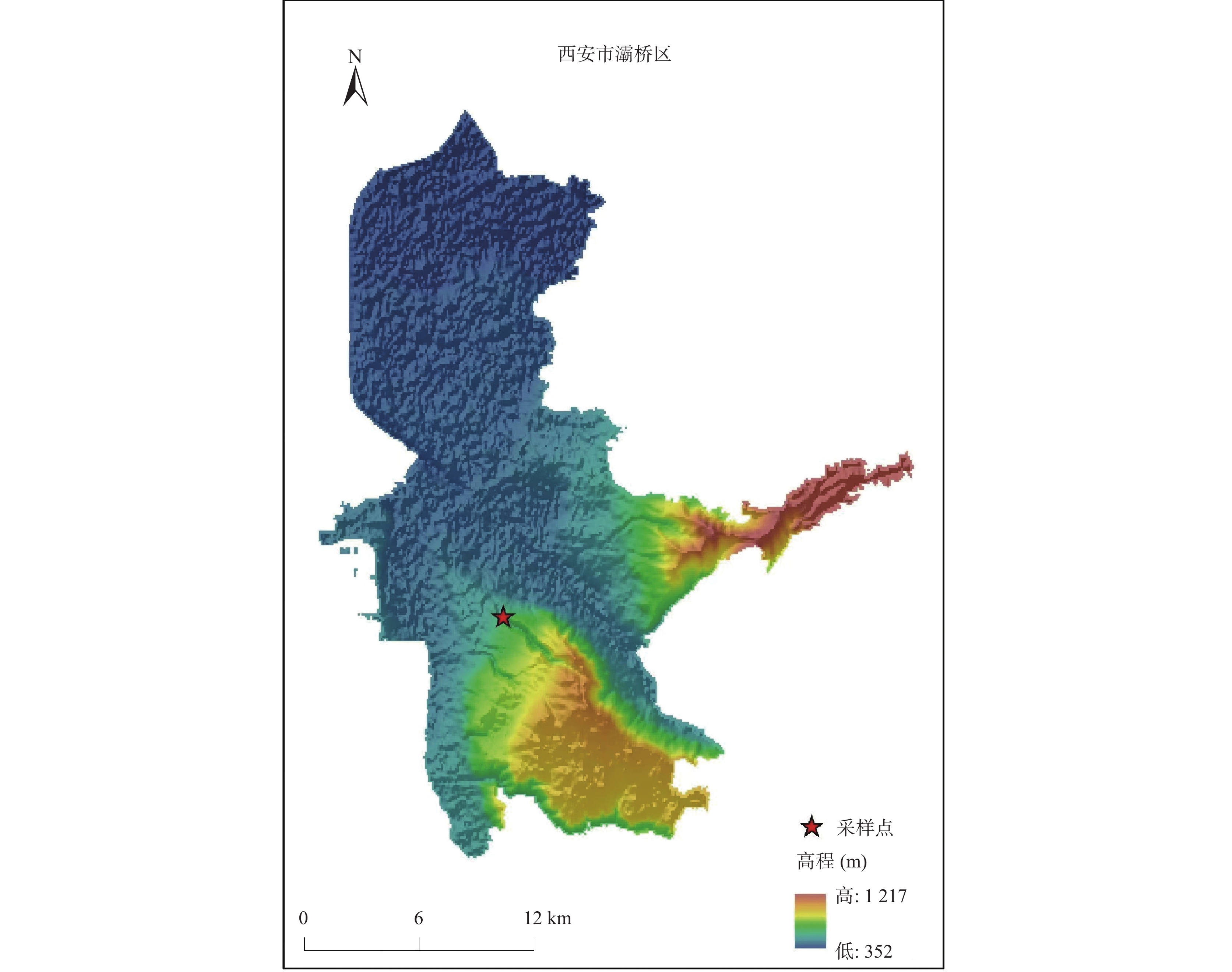

表 1 基材材料配比
Table 1. Substrate material ratio
添加材料 黄土(%) 瓜尔胶(%) 木纤维(%) SAP(%) 改良剂(%) 基层 97.3 1 1.5 0.1 0.1 面层 94.3 0.5 5 0.1 0.1
下载: 导出CSV

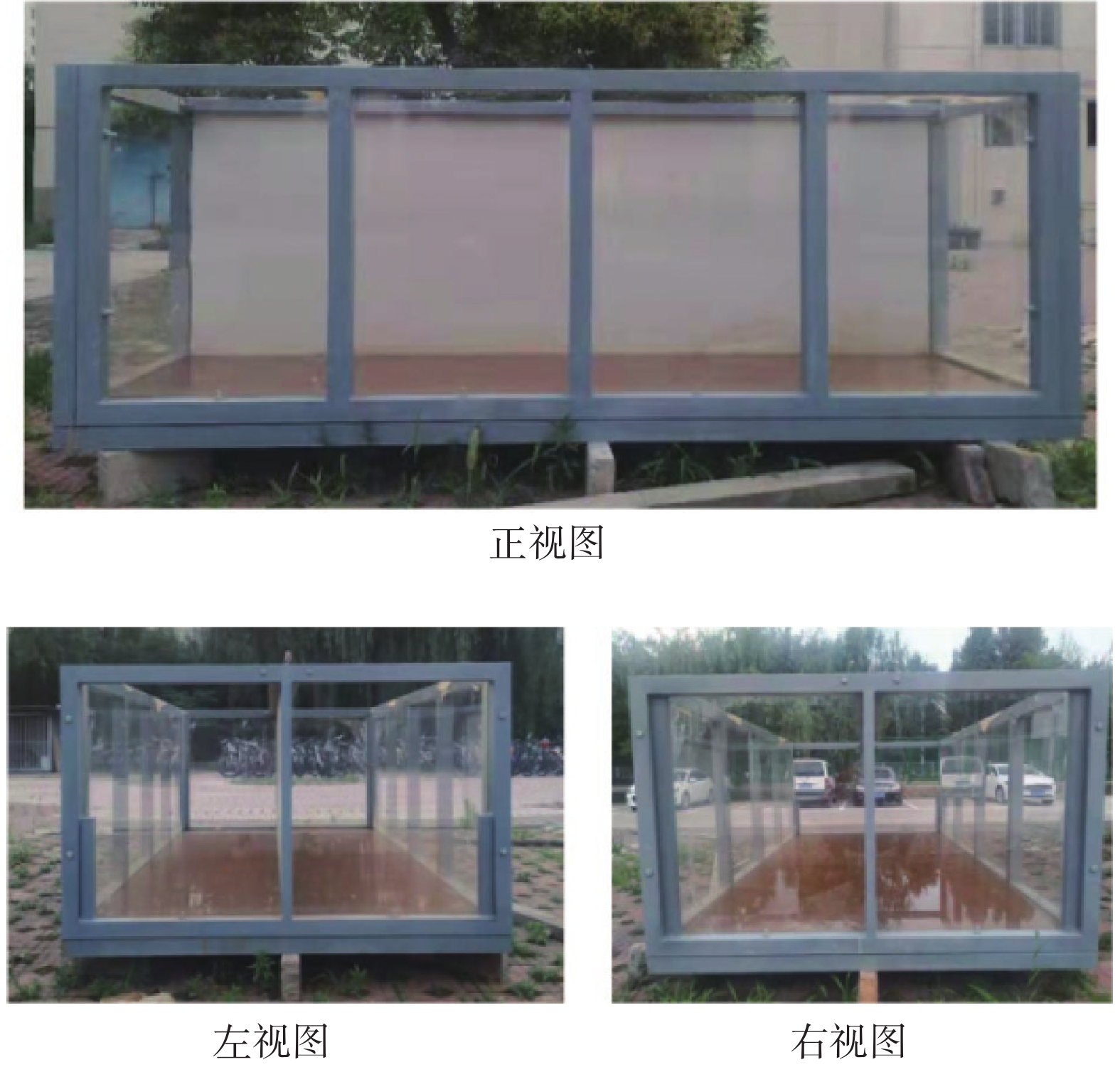

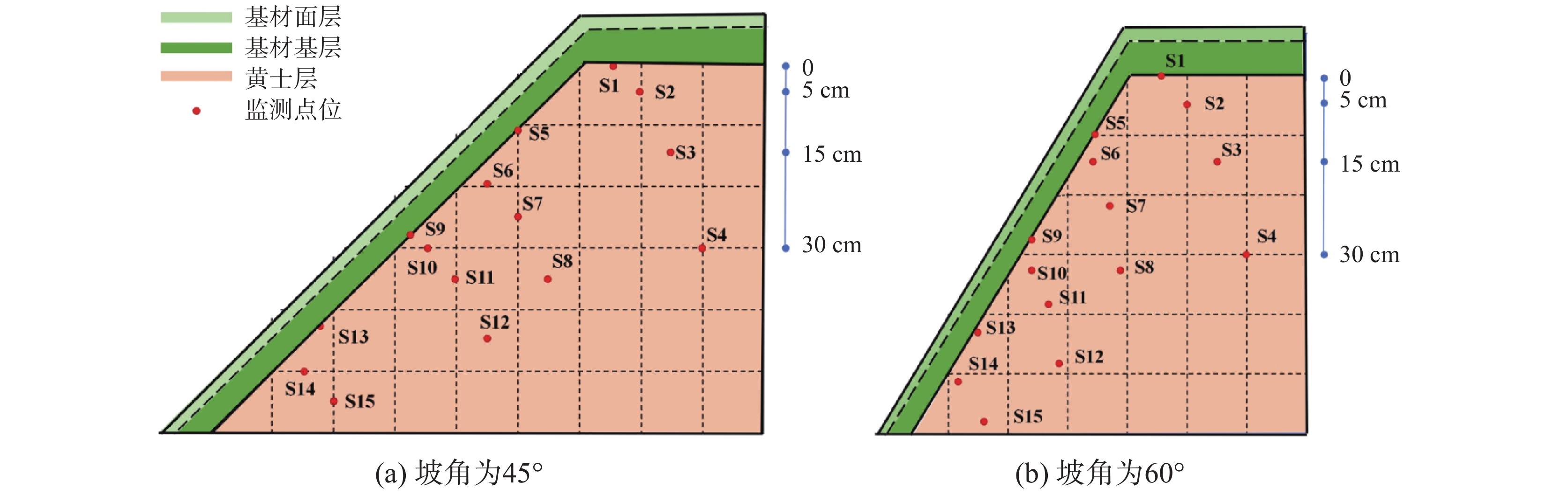

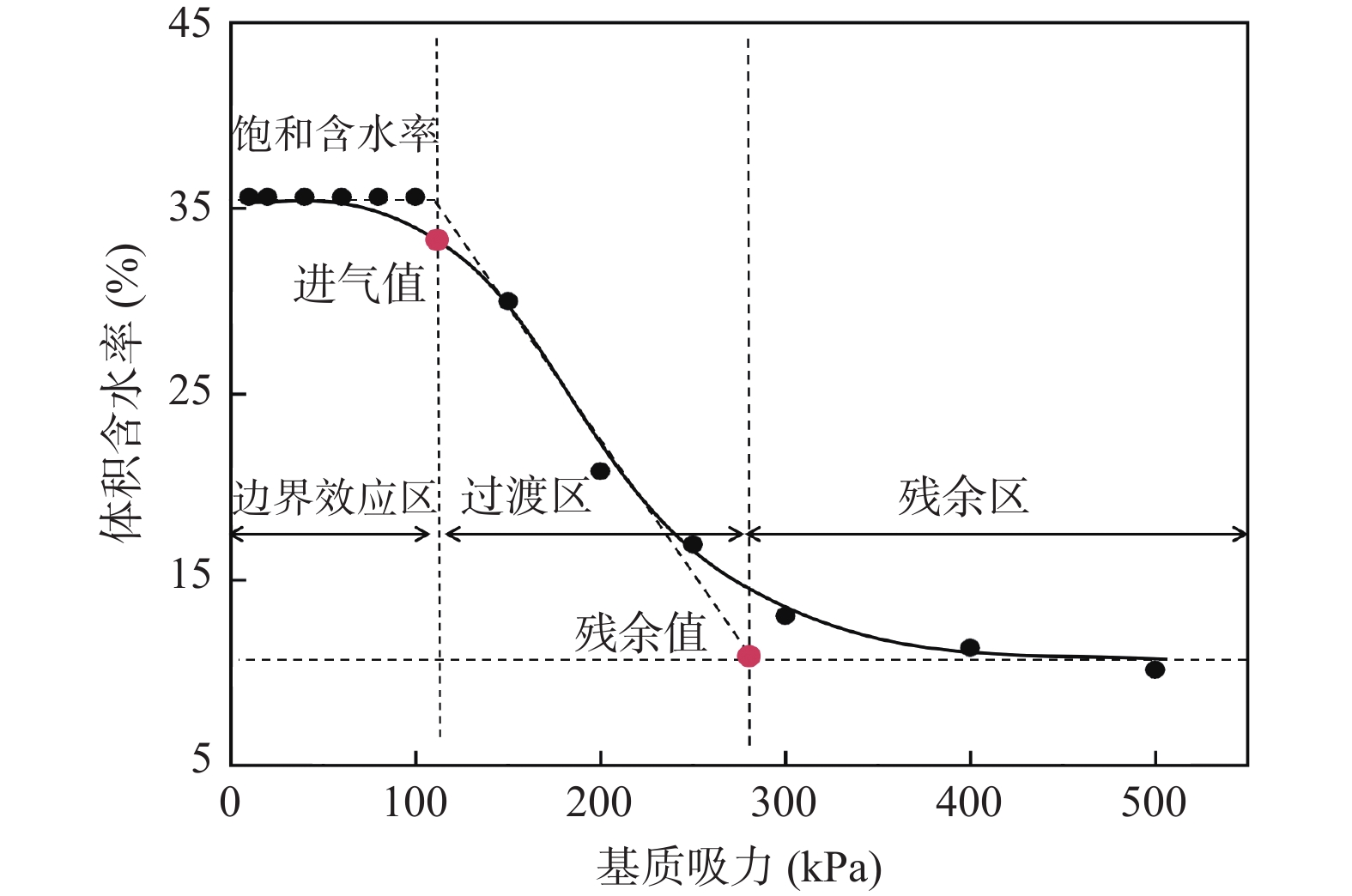

表 2 土样水力特征参数
Table 2. Hydraulic characteristic parameters of soil samples
土样类型 深度（cm） $ {\theta _{\text{r}}} $ （cm3/cm3）$ {\theta _{\text{s}}} $ （cm3/cm3）$ \alpha $ （cm−1）n $ {{\text{K}}_{\text{s}}} $ （cm/min）l 基材 0～7 0.1797 0.4240 0.0077 1.6201 0.019 0.5 黄土 7～67 0.0766 0.3537 0.0077 1.4940 0.0018 0.5 注：l为孔隙连通性参数。θr和θs为剩余水含量和饱和水含量，Ks为饱和水力传导度，参数α和n为影响水力函数形状的经验系数。
下载: 导出CSV
表 3 水分胁迫响应函数参数
Table 3. Parameters of the moisture stress response function
参数 数值 提取水分压头Po(mm) −10 提取水分压力水头最大速率Popt(mm) −25 极限压头P2H、P2L(mm) − 1000 凋萎点压头P3(mm) − 8000 潜在蒸腾速率r2H（cm/d） 3.47×10−4 潜在蒸腾速率r2L（cm/d ） 6.94×10−5
下载: 导出CSV

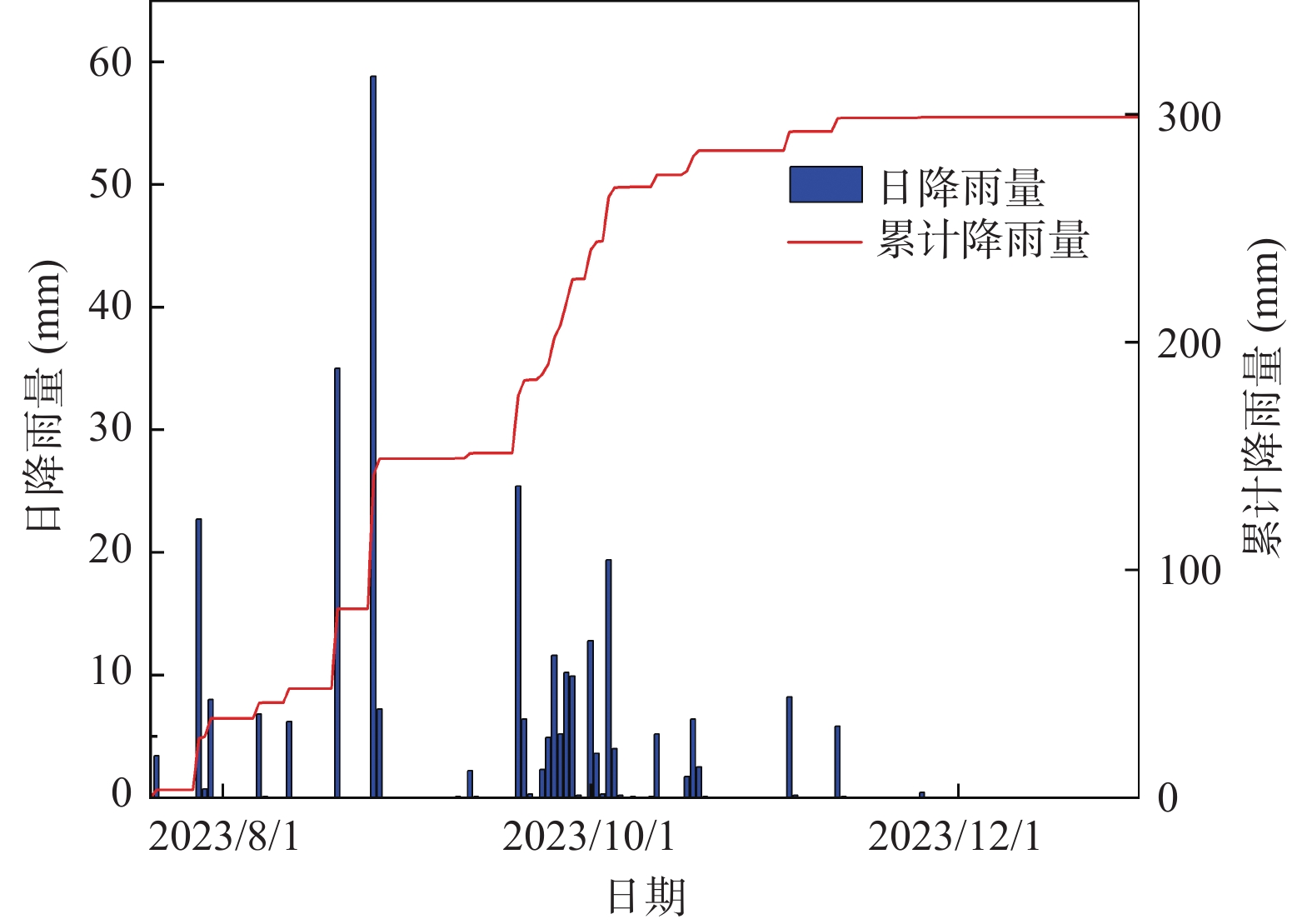

表 4 各量级降雨特征统计
Table 4. Statistics of rainfall characteristics of each magnitude
降雨类型 降雨次数 占总降雨次数的比例（%） 总降雨量（mm） 平均降雨量（mm） 占总降雨量的比例（%） 微量降雨 2 11.1 0.2 0.1 0.1 小雨 3 16.7 6.1 2.0 2.0 中雨 8 44.4 94.9 11.9 31.8 大雨 3 16.7 103.8 34.6 34.7 暴雨 2 11.1 93.8 46.9 31.4 总计 18 100 298.8 12.5 100
下载: 导出CSV

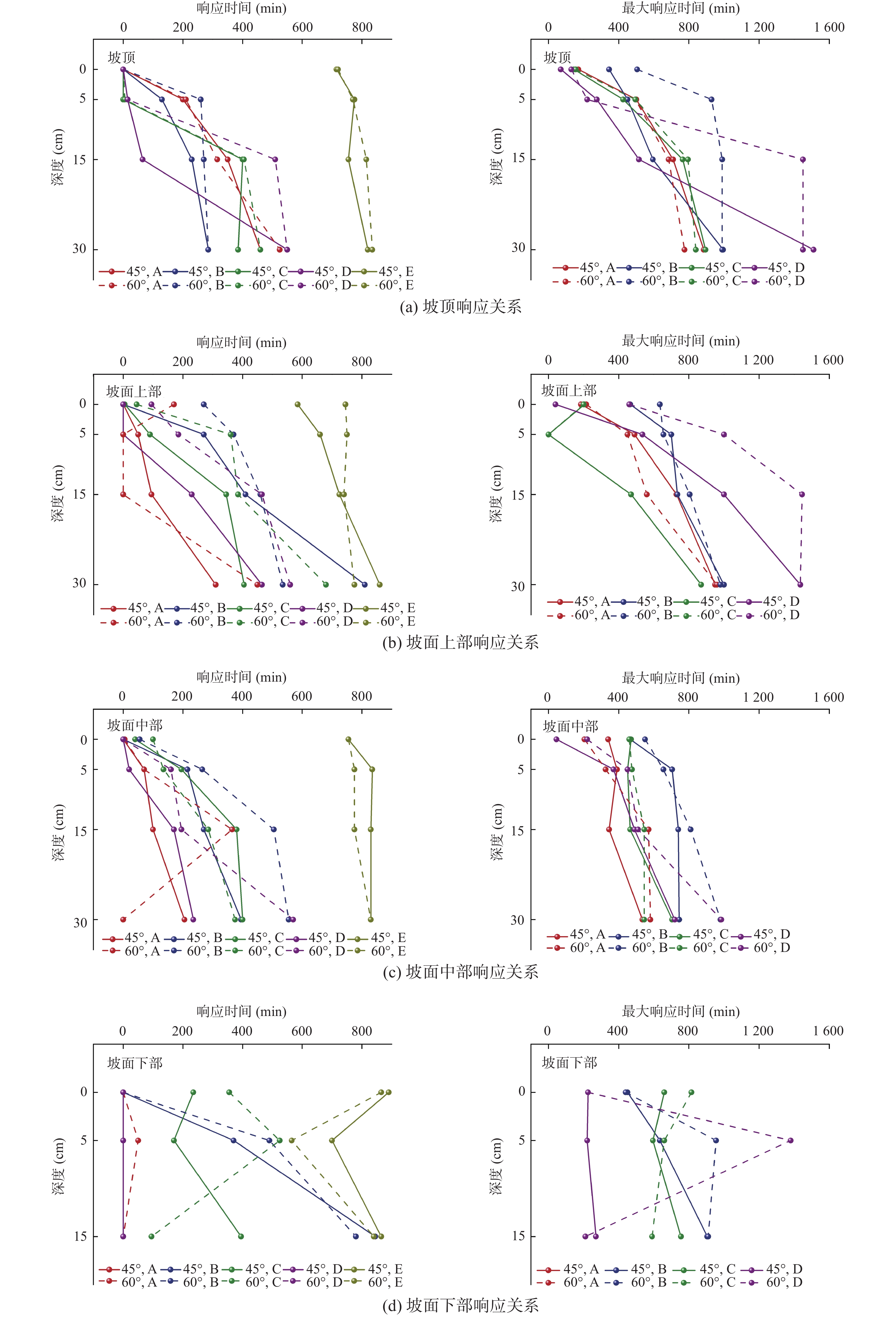

表 5 5次代表性降雨事件
Table 5. 5 Representative rainfall events
降雨事件 降雨日期 降雨量（mm） 降雨历时（h） 降雨等级 降雨特征 A 7.28 22.7 16.4 大雨 持续较强降雨 B 7.30 8 10.1 中雨 短时中等降雨 C 8.20 35 10.4 暴雨 短时强降雨 D 9.23~9.26 44.1 130.8 h 小雨-中雨 持续弱-中等降雨 E 11.03 8.2 12.7 中雨 短时中等降雨
下载: 导出CSV
-
