APPLICATION OF WIDE-AZIMUTH AND BROADBAND AMPLITUDE PRESERVING PROCESSING TECHNIQUE IN SHALE OIL EXPLORATION
-
摘要:

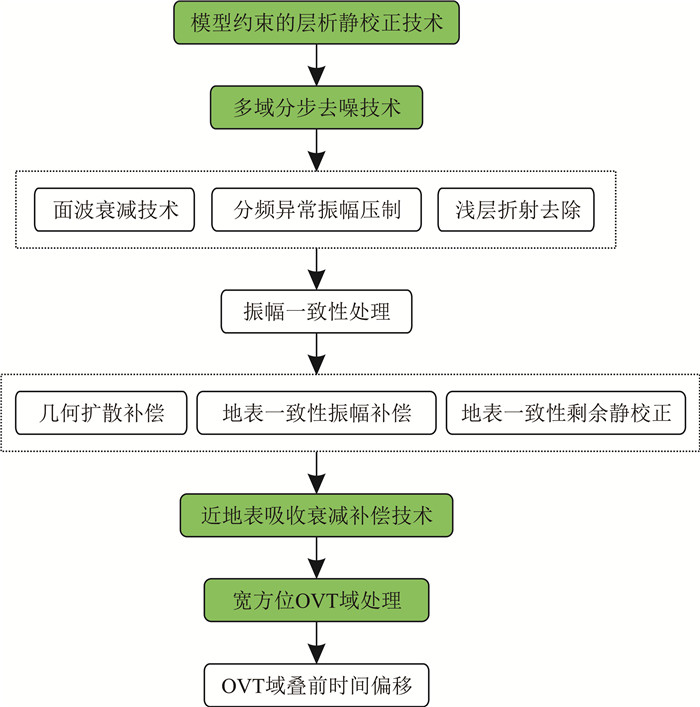

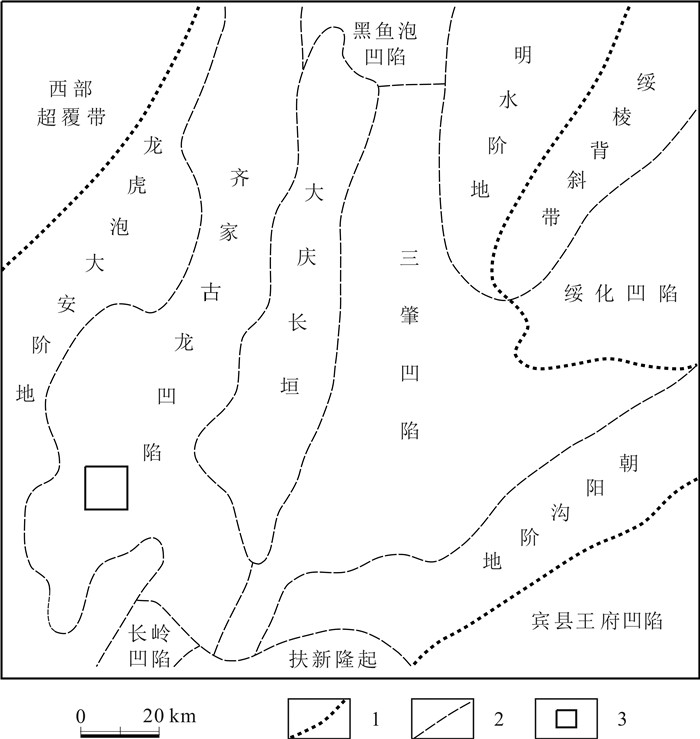

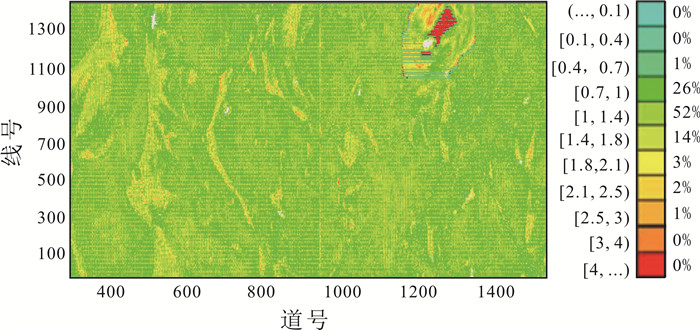

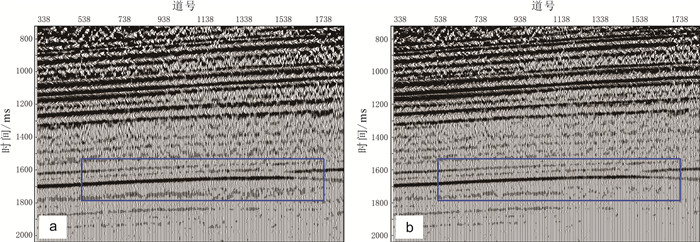

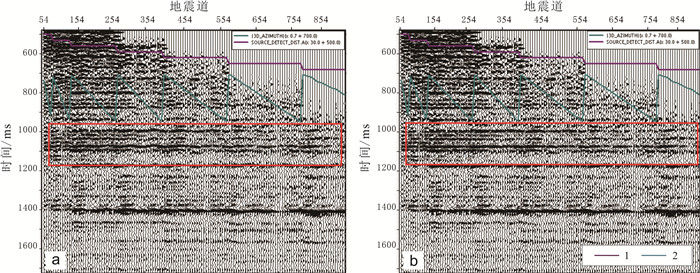

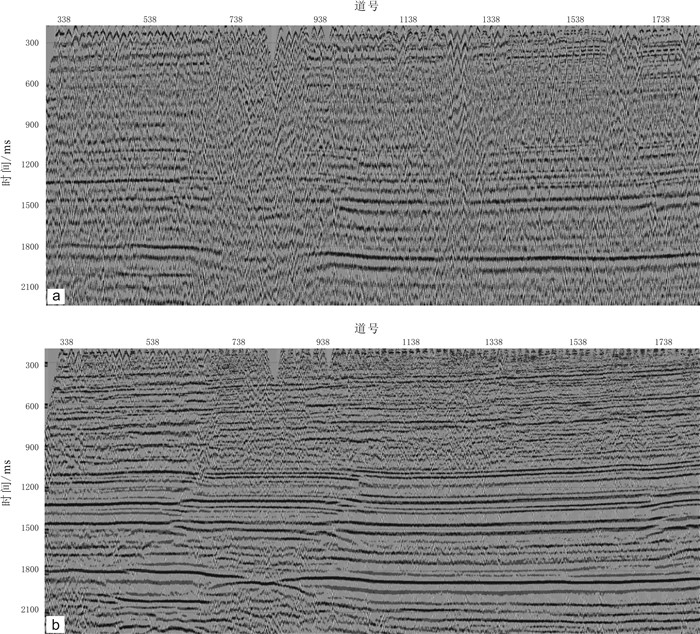

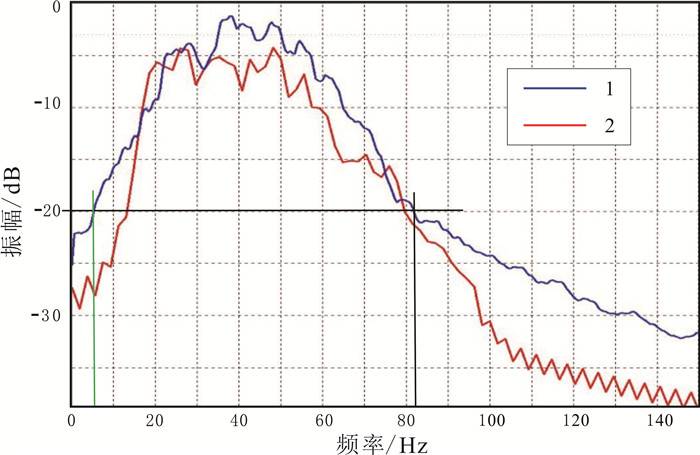

中国页岩油勘探进入了全新的勘探领域，页岩油储层比常规储层复杂得多，如何提高页岩油储层的成像精度是页岩油地震勘探的关键环节.宽方位三维地震技术是目前普遍采用的地震勘探技术，因为宽方位地震在提供高品质地震资料的同时还能够解决相对较难的地质问题.以松辽盆地齐家古龙凹陷Y88研究区为例，利用宽方位资料进行针对页岩油储层处理，分析了宽方位资料的波场特征、信噪比及频率等特征，在此基础上确定了宽方位资料的处理流程，并采用了宽方位、宽频带的高分辨率保幅特色处理技术进行处理，取得较好的成像结果.
Abstract:Shale oil exploration in China has entered a new field. As shale oil reservoir is much more complex than conventional reservoir, the improvement of imaging accuracy of shale oil reservoir is the key to shale oil seismic exploration. The wide-azimuth 3D seismic technique is widely used in seismic exploration currently as it can solve relatively difficult geological problems while providing high-quality seismic data. Taking the study area Y88 in Qijia-Gulong depression of Songliao Basin as an example, the paper conducts shale oil reservoir processing by wide-azimuth data, and analyzes the characteristics of wave field, signal-to-noise ratio and frequency. On this basis, the processing flow of wide-azimuth data is determined and the wide-azimuth and broadband high-resolution amplitude-preserving processing technique is adopted for better imaging.
-
Key words:
- shale oil exploration /
- wide azimuth /
- broadband /
- amplitude preserving /
- imaging accuracy
-
-

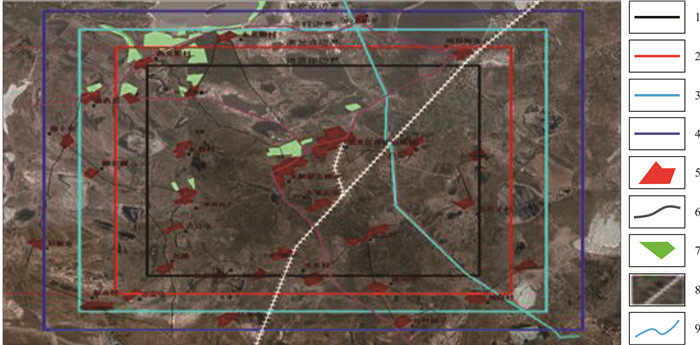

表 1 Y88北三维地震采集观测系统
Table 1. 3D seismic acquisition geometry in northern Y88 area
名称 参数 名称 参数 观测方式 正交 观测系统 24L4S256R 纵向排列方式 2550-10-20-10-2550 接收道数/道 6144 面元/（m×m） 10×20 覆盖次数 192 道距/m 20 激发点距/m 40 激发线距/m 160 最大炮检距/m 3180 接收线距/m 160 最小炮检距/m 10 束间滚动距/m 160 最大最小炮检距/m 205 横纵比 0.75 最大非纵距/m 1900 主要目的层（T2）横纵比 0.95 道密度/（道/km2） 312.5 炮道密度/（万道/km2） 96 炮密度/（炮/km2） 156 时间采样间隔/ms 1 记录长度/s 6
下载: 导出CSV
-
[1] 张保庆, 周辉, 左黄金, 等.宽方位地震资料处理技术及应用效果[J].石油地球物理勘探, 2011, 46(3):396-400, 406. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ201103011.htm
Zhang B Q, Zhou H, Zuo H J, et al. Wide Azimuth data processing techniques and their applications[J]. Oil Geophysical Prospecting, 2011, 46(3):396-400, 406. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ201103011.htm
[2] 张军华, 朱焕, 郑旭刚, 等.宽方位角地震勘探技术评述[J].石油地球物理勘探, 2007, 42(5):603-609. doi: 10.3321/j.issn:1000-7210.2007.05.021
Zhang J H, Zhu H, Zheng X G, et al. Summary of wide-azimuth seismic exploration technique[J]. Oil Geophysical Prospecting, 2007, 42(5):603-609. doi: 10.3321/j.issn:1000-7210.2007.05.021
[3] 王学军, 于宝利, 赵小辉, 等.油气勘探中"两宽一高"技术问题的探讨与应用[J].中国石油勘探, 2015, 20(5):41-53. doi: 10.3969/j.issn.1672-7703.2015.05.005
Wang X J, Yu B L, Zhao X H, et al. Development and application of "2W1H" technique in oil and gas exploration[J]. China Petroleum Exploration, 2015, 20(5):41-53. doi: 10.3969/j.issn.1672-7703.2015.05.005
[4] 孔德政, 于敏杰, 刘新文, 等.两宽一高地震采集技术在复杂山前带的应用及效果分析[J].新疆石油天然气, 2016, 12(1):33-38. doi: 10.3969/j.issn.1673-2677.2016.01.007
Kong D Z, Yu M J, Liu X W, et al. Application and effects of The "two-wide one-high" seismic acquisition technique in complex piedmont[J]. Xinjiang Oil & Gas, 2016, 12(1):33-38. doi: 10.3969/j.issn.1673-2677.2016.01.007
[5] 王兆磊, 公亭, 李隆梅, 等.高密度宽方位地震资料处理技术研究进展[J].物探化探计算技术, 2015, 37(4):465-471. doi: 10.3969/j.issn.1001-1749.2015.04.09
Wang Z L, Gong T, Li L M, et al. The new progress of high-density and width azimuth seismic data processing[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2015, 37(4):465-471. doi: 10.3969/j.issn.1001-1749.2015.04.09
[6] 裴家学.宽方位地震资料在陆西凹陷勘探中的应用[J].大庆石油地质与开发, 2015, 34(5):146-150. doi: 10.3969/J.ISSN.1000-3754.2015.05.028
Pei J X. Application of the wide azimuth seismic data in the exploration of Luxi Sag[J]. Petroleum Geology and Oilfield Development in Daqing, 2015, 34(5):146-150. doi: 10.3969/J.ISSN.1000-3754.2015.05.028
[7] 刘益永.吉林舒兰煤田地震勘探资料处理效果分析[J].地质与资源, 2013, 22(3):192-194. doi: 10.3969/j.issn.1671-1947.2013.03.005 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract8946.shtml
Liu Y Y. Analysis on the processing result for geophysical exploration data of Shulan coalfield in Jilin Province[J]. Geology and Resources, 2013, 22(3):192-194. doi: 10.3969/j.issn.1671-1947.2013.03.005 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract8946.shtml
[8] 冯魁, 张晓帆, 陈川, 等.开发地震技术及进展[J].地质与资源, 2009, 18(1):64-69. doi: 10.3969/j.issn.1671-1947.2009.01.014 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract9296.shtml
Feng K, Zhang X F, Chen C, et al. Advances in development seismic technology[J]. Geology and Resources, 2009, 18(1):64-69. doi: 10.3969/j.issn.1671-1947.2009.01.014 http://manu25.magtech.com.cn/Jweb_dzyzy/CN/abstract/abstract9296.shtml
[9] 徐明才, 高景华, 荣立新, 等.从金属矿地震方法的试验效果探讨其应用前景[J].中国地质, 2004, 31(1):108-112. doi: 10.3969/j.issn.1000-3657.2004.01.016
Xu M C, Gao J H, Rong L X, et al. Application prospects of the seismic method as discussed from the experimental effects of the method for metal exploration[J]. Geology in China, 2004, 31(1):108-112. doi: 10.3969/j.issn.1000-3657.2004.01.016
[10] Cary P W. Common-offset-vector gathers:an alternative to cross-spreads for wide-azimuth 3-D surveys[J]. SEG Technical Program Expanded Abstracts, 1999, 18(1):1496-1499. http://scitation.aip.org/getabs/servlet/GetabsServlet?prog=normal&id=SEGEAB000018000001001496000001&idtype=cvips&gifs=Yes
[11] Starr J. Method of creating common-offset/common-azimuth gathers in 3-D seismic surveys and method of conducting reflection attribute variation analysis: USA, 6026059[P]. 2000-02-15.
[12] Vermeer G J O. Processing orthogonal geometry:What is missing?[J]. SEG Technical Program Expanded Abstracts, 2005, 22:2201-2204. http://scitation.aip.org/getabs/servlet/GetabsServlet?prog=normal&id=SEGEAB000024000001002201000001&idtype=cvips&prog=normal
[13] Schapper S, Jefferson R, Calvert A, et al. Anisotropy velocities and offset vector tile prestack-migration set vector domain[J]. SEG Technical Program Expanded Abstracts, 2009, 28:1172-1176. http://www.istic.ac.cn/suoguan/detailed.htm?dbname=xw_qk&wid=0220100300302052
[14] Craft K L, Mallick S, Meister L J, et al. Azimuthal anisotropy analysis from P-wave seismic traveltime data[J]. SEG Technical Program Expanded Abstracts, 1997, 16(1):1214-1217. http://www.researchgate.net/publication/249855603_Azimuthal_anisotropy_analysis_from_P-wave_seismic_traveltime_data
[15] Fatkhan R, Urosevic M. The use of P-wave reflectivity to detect fractured sands and anisotropy clays[J]. SEG Technical Program Expanded Abstracts, 2001, 118-121. http://scitation.aip.org/getabs/servlet/GetabsServlet?prog=normal&id=SEGEAB000020000001000118000001&idtype=cvips&gifs=Yes
[16] Cordsen A, Galbraith M. Narrow-versus wide-azimuth land 3D seismic surveys[J]. The Leading Edge, 2002, 21(8):764-770. doi: 10.1190/1.1503181
[17] Thompson A, Rich J, Ammerman M. Fracture characterization through the use of azimuthally sectored attribute volumes[J]. SEG Technical Program Expanded Abstracts, 2010, 1433-1437. http://scitation.aip.org/getabs/servlet/GetabsServlet?prog=normal&id=SEGEAB000029000001001433000001&idtype=cvips&gifs=Yes
[18] Kallweit R S, Wood L C. The limits of resolution of zero-phase wavelets[J]. Geophysics, 1982, 47(7):1035-1047. doi: 10.1190/1.1441367
[19] Williams M, Jenner E. How important is the effect of azimuthal anisotrophy in 3-D seismic data? Enhancing data quality and extending the potential of the 3-D interpretation[J]. SEG Technical Program Expanded Abstracts, 2001, 126-128. http://scitation.aip.org/getabs/servlet/GetabsServlet?prog=normal&id=SEGEAB000020000001000126000001&idtype=cvips&gifs=Yes
[20] Williams M, Jenner E. Interpreting seismic data in the presence of azimuthal anisotropy; or azimuthal anisotropy in the presence of the seismic interpretation[J]. The leading Edge, 2002, 21(8):771-774. doi: 10.1190/1.1503192
[21] 赵忠华.炮检距矢量道集非刚性匹配方位各向异性时差校正[J].大庆石油地质与开发, 2019, 38(1):141-146. https://www.cnki.com.cn/Article/CJFDTOTAL-DQSK201901022.htm
Zhao Z H. Azimuthal anisotropy moveout correction by non-rigid matching for the offset vector gather[J]. Petroleum Geology and Oilfield Development in Daqing, 2019, 38(1):141-146. https://www.cnki.com.cn/Article/CJFDTOTAL-DQSK201901022.htm
[22] 马涛, 王彦春, 李扬胜, 等. OVT属性分析方法在采集设计中的应用[J].石油地球物理勘探, 2019, 54(1):1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ201901001.htm
Ma T, Wang Y C, Li Y S, et al. Application of OVT attribute analysis in seismic acquisition[J]. Oil Geophysical Prospecting, 2019, 54(1):1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ201901001.htm
[23] 孟阳, 许颖玉, 李静叶, 等. OVT域地震资料属性分析技术在断裂精细识别中的应用[J].石油地球物理勘探, 2018, 53(S2):289-294. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ2018S2045.htm
Meng Y, Xu Y Y, Li J Y, et al. Fault identification with OVT-domain seismic attribute analysis[J]. Oil Geophysical Prospecting, 2018, 53(S2):289-294. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ2018S2045.htm
-
