VERTICAL DISTRIBUTION CHARACTERISTICS OF GROUND SUBSTRATE BASED ON TRANSITION PROBABILITY MATRIX: A Case Study of Dingxing County, Hebei Province
-
摘要:
地表基质层为地表自然资源的承载体和赋存体的空间实体. 查明地表基质平面分布、垂向组合及空间变异是地表基质调查的关键. 将转移概率统计方法应用到河北省定兴县5 m以浅地表基质层, 通过极限概率分析、置换分析、熵分析和差值矩阵环流分析, 总结出定兴县及各地貌类型的地表基质的垂向组合与横向变化特征, 并构建地表基质结构序列. 研究表明, 该地区长地表基质受多种复杂成因因素的影响, 其类型剧烈变化, 自下至上的砂土基质-壤质砂土基质-砂质壤土基质-壤土基质为区内典型代表组合, 壤质砂土基质-黏质壤土基质为次级组合类型. 结果显示, 转移概率方法能够较为准确地刻画地表基质的空间分布, 能够从大量繁杂的编录中获取区域内地表基质垂向变化的宏观规律.

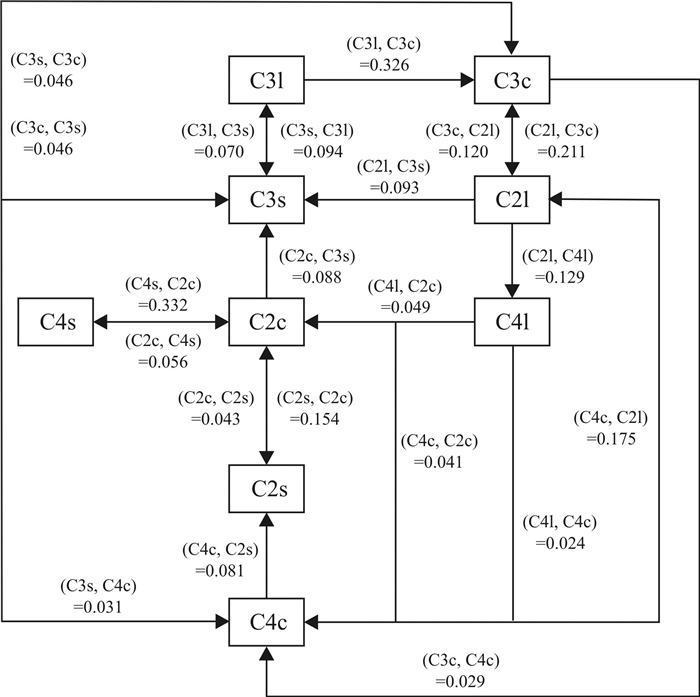

Abstract:Ground substrate serves as the carrier of surface natural resources and spatial entity of occurrence body. Finding out the characteristics of plane distribution, vertical assemblage and spatial variation of ground substrate is the key to ground substrate survey. The transition probability statistical method is applied to the ground substrate in the depth of 0-5 m in Dingxing County of Hebei Province. The vertical combination and lateral variation characteristics of ground substrate in Dingxing County and various geomorphic types are summarized and the structure sequence of ground substrate is constructed through limit probability analysis, displacement analysis, entropy analysis and difference matrix circulation analysis. The study shows that the types of ground substrate in the area vary dramatically under the influence of many complex genetic factors. The typical combination is sand-loamy sand-sandy loam-loam ground substrate from bottom to top, and the secondary combination loamy sand-clay loam ground substrate. The results indicate that the transition probability method can accurately describe the spatial distribution of ground substrate, and obtain the macroscopic rule of vertical change of ground substrate in the region from large numbers of miscellaneous catalogues.
-
-
表 1 熵分析结果
Table 1. Results of entropy analysis
H(down) 地表基质类型(i) H(up) 2.683 C2s 2.392 2.084 C2l 2.477 2.679 C2c 2.513 2.719 C3s 2.680 1.790 C3l 2.436 2.725 C3c 2.733 2.249 C4s 2.281 2.807 C4l 2.519 2.517 C4c 2.608
下载: 导出CSV
-
[1] 自然资源部. 自然资源调查监测体系构建总体方案[EB/OL].
https://www.gov.cn/zhengce/zhengceku/2020-01/18/content_5470398.htm?eqid=e54ad81800032f580000000264701404/2023-10-24 .Ministry of Natural Resources. The general scheme for construction of natural resources survey and monitoring system[EB/OL].
https://wwwgov.cn/zhengce/zhengceku/2020-01/18/content_5470398.htm?eqid=e54ad81800032f580000000264701404/2023-10-24 .[2] 葛良胜, 杨贵才. 自然资源调查监测工作新领域: 地表基质调查[J]. 中国国土资源经济, 2020, 33(9): 4-11, 67. https://www.cnki.com.cn/Article/CJFDTOTAL-ZDKJ202009003.htm
Ge L S, Yang G C. New field of natural resources survey and monitoring: Ground substrate survey[J]. Natural Resource Economics of China, 2020, 33(9): 4-11, 67. https://www.cnki.com.cn/Article/CJFDTOTAL-ZDKJ202009003.htm
[3] Li W D, Li B G, Shi Y C. Markov-chain simulation of soil textural profiles[J]. Geoderma, 1999, 92(1/2): 37-53.
[4] 王秋良, 李长安. 马尔柯夫链在江汉平原第四纪沉积环境分析中的应用[J]. 地质科技情报, 2008, 27(1): 38-41, 46. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200801007.htm
Wang Q L, Li C A. Markov chain in Quaternary sedimentary environment of Jianghan Plain[J]. Geological Science and Technology Information, 2008, 27(1): 38-41, 46. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200801007.htm
[5] 聂琼, 项伟, 杜水祥, 等. 马尔可夫链在小南海坝基软弱夹层分析中的应用[J]. 中南大学学报(自然科学版), 2014, 45(4): 1205-1213. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD201404027.htm
Nie Q, Xiang W, Du S X, et al. Application of Markov chain in analyzing weak intercalation in dam foundation of Xiao Nanhai[J]. Journal of Central South University (Science and Technology), 2014, 45(4): 1205-1213. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD201404027.htm
[6] 张成凤, 吕洪波, 夏邦栋, 等. 南盘江盆地中三叠统复理石韵律的马尔科夫链特征及其地质意义[J]. 地质论评, 2011, 57(5): 632-640. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP201105004.htm
Zhang C F, Lü H B, Xia B D, et al. Markov chain simulation on the rhythmic sequences of Middle Triassic flysch in Nanpanjing basin, SW China[J]. Geological Review, 2011, 57(5): 632-640. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP201105004.htm
[7] 李丹凤, 邵明安. 一维马尔可夫链模拟黑河中游流域土壤质地垂向变异[J]. 农业工程学报, 2013, 29(5): 71-80. https://www.cnki.com.cn/Article/CJFDTOTAL-NYGU201305012.htm
Li D F, Shao M A. One-dimensional Markov chain simulation of vertical change of soil texture in middle reaches of Heihe River, northwest China[J]. Transactions of the Chinese Society of Agricultural Engineering, 2013, 29(5): 71-80. https://www.cnki.com.cn/Article/CJFDTOTAL-NYGU201305012.htm
[8] 李丹凤. 黑河中游绿洲土壤物理性质的时空变异性研究[D]. 咸阳: 中国科学院研究生院(教育部水土保持与生态环境研究中心), 2014.
Li D F. Study on the spatial and temporal variability of soil physical properties in the middle basin oasis of the Heihe River[D]. Xianyang: Institute of Soil and Water Conservation of Chinese Academy of Sciences, 2014.
[9] 王绍武, 沈润平, 陈萍萍, 等. 基于马尔可夫链模型的华中地区土壤质地空间分布模拟研究[J]. 河南农业大学学报, 2019, 53(2): 282-288. https://www.cnki.com.cn/Article/CJFDTOTAL-NNXB201902019.htm
Wang S W, Shen R P, Chen P P, et al. Simulation study on spatial distribution of soil texture based on Markov-chain model in Central China[J]. Journal of Henan Agricultural University, 2019, 53(2): 282-288. https://www.cnki.com.cn/Article/CJFDTOTAL-NNXB201902019.htm
[10] 陈冲. 土壤水分特征曲线的预测及土壤属性三维空间制图[D]. 北京: 中国农业大学, 2015.
Chen C. Estimation of soil water retention curve and three dimensional mapping of soil properties[D]. Beijing: China Agricultural University, 2015.
[11] 祁小辉, 李典庆, 周创兵, 等. 基于钻孔资料的耦合马尔可夫链水平方向转移概率矩阵估计[J]. 应用基础与工程科学学报, 2017, 25(5): 967-984, doi:10.16058/j.issn.1005-0930.2017.05.009.
Qi X H, Li D Q, Zhou C B, et al. Estimation of horizontal transition probability matrix for coupled Markov chain based on borehole data[J]. Journal of Basic Science and Engineering, 2017, 25(5): 967-984, doi:10.16058/j.issn.1005-0930.2017.05.009.
[12] 黎治华, 高志强, 高炜, 等. 中国1999-2009年土地覆盖动态变化的时空特点[J]. 农业工程学报, 2011, 27(2): 312-322. https://www.cnki.com.cn/Article/CJFDTOTAL-NYGU201102056.htm
Li Z H, Gao Z Q, Gao W, et al. Spatio-temporal feature of land use/land cover dynamic changes in China from 1999 to 2009[J]. Transactions of the CASE, 2011, 27(2): 312-322. https://www.cnki.com.cn/Article/CJFDTOTAL-NYGU201102056.htm
[13] 邱凤婷, 过志峰, 张宗科, 等. 大湄公河次区域植被覆盖时空变化特征及其与气象因子的关系[J]. 南京林业大学学报(自然科学版), 2022, 46(2): 187-195. https://www.cnki.com.cn/Article/CJFDTOTAL-NJLY202202023.htm
Qiu F T, Guo Z F, Zhang Z K, et al. Spatio-temporal change characteristics of vegetation coverage and its relationship with meteorological factors in the Greater Mekong Subregion[J]. Journal of Nanjing Forestry University (Natural Sciences Edition), 2022, 46(2): 187-195. https://www.cnki.com.cn/Article/CJFDTOTAL-NJLY202202023.htm
[14] 侯红星, 葛良胜, 孙肖, 等. 地表基质在中国黑土地资源调查评价中的应用探讨——基于黑龙江宝清地区地表基质调查[J]. 自然资源学报, 2022, 37(9): 2264-2276. https://www.cnki.com.cn/Article/CJFDTOTAL-ZRZX202209005.htm
Hou H X, Ge L S, Sun X, et al. A study on the application of ground substrate in the survey and evaluation of China's black soil resources: Based on ground substrate survey in Baoqing, Heilongjiang Province[J]. Journal of Natural Resources, 2022, 37(9): 2264-2276. https://www.cnki.com.cn/Article/CJFDTOTAL-ZRZX202209005.htm
[15] 侯红星, 张蜀冀, 鲁敏, 等. 自然资源地表基质层调查技术方法新经验——以保定地区地表基质层调查为例[J]. 西北地质, 2021, 54(3): 277-288. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI202103026.htm
Hou H X, Zhang S J, Lu M, et al. Technology and method of the ground substrate layer survey of natural resources: Taking Baoding area as an example[J]. Northwestern Geology, 2021, 54(3): 277-288. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI202103026.htm
[16] 李响, 周效华, 相振群, 等. 地表基质调查的工作思路刍议: 以海南岛为例[J]. 地质通报, 2023, 42(1): 68-75. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD202301006.htm
Li X, Zhou X H, Xiang Z Q, et al. Simply discussion on the work of ground substrate survey: Taking Hainan Island as an example[J]. Geological Bulletin of China, 2023, 42(1): 68-75. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD202301006.htm
[17] 殷志强, 秦小光, 张蜀冀, 等. 地表基质分类及调查初步研究[J]. 水文地质工程地质, 2020, 47(6): 8-14. https://www.cnki.com.cn/Article/CJFDTOTAL-SWDG202006003.htm
Yin Z Q, Qin X G, Zhang S J, et al. Preliminary study on classification and investigation of surface substrate[J]. Hydrogeology & Engineering Geology, 2020, 47(6): 8-14. https://www.cnki.com.cn/Article/CJFDTOTAL-SWDG202006003.htm
[18] Anderson T W, Goodman L A. Statistical inference about Markov chains[J]. The Annals of Mathematical Statistics, 1957, 28(1): 89-110.
[19] 吕洪波, 夏邦栋. 浙西上奥陶统复理石韵律的马尔可夫链模拟[J]. 石油与天然气地质, 1987, 8(2): 219-230. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT198702016.htm
Lü H B, Xia B D. Markov chain simulation on flysch rhythmic sequences of the Upper Ordovician in west Zhejiang[J]. Oil & Gas Geology, 1987, 8(2): 219-230. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT198702016.htm
[20] 张光前, 刘承祚. 环流分解及其在沉积地层旋回分析中的应用[J]. 地质科学, 1989, 24(3): 288-296. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX198903008.htm
Zhang G Q, Liu C Z. Circulation decomposition and the application to cyclic analysis for a stratigraphic sequence[J]. Scientia Geologica Sinica, 1989, 24(3): 288-296. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKX198903008.htm
[21] 刘智荣, 薛怀宇, 王昌盛. 河北平原中部保定西伯章剖面晚第四纪沉积特征及其环境意义[J]. 地质力学学报, 2021, 27(6): 1011-1023. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLX202106010.htm
Liu Z R, Xue H Y, Wang C S. Late Quaternary depositional characteristics and environment significance of the Xibozhang section in Baoding, central Hebei Plain, China[J]. Journal of Geomechanics, 2021, 27(6): 1011-1023. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLX202106010.htm
[22] 辛亮亮. 土壤剖面构型改良与耕地质量提升研究[D]. 北京: 中国地质大学, 2015.
Xin L L. Research on soil profile pattern improvement and cultivated land quality promotion[D]. Beijing: China University of Geosciences, 2015.
-
