CORRELATION ANALYSIS OF PHYSICAL AND MECHANICAL INDEXES OF FLUVIAL SILTY CLAY LAYER IN TYPICAL RIVER BASINS
-
摘要:
基于辽宁省辽阳市平原区不同地点、不同深度粉质黏土的土工试验结果, 采用一元线性回归分析, 对粉质黏土16种物理力学指标的变异性及相互间关系进行数理统计. 研究结果表明: 1)不同深度、不同地点的土质类型主要是粉质黏土, 其含水率较高, 且多呈湿、可塑状态; 2)粉质黏土湿密度、天然重度、土粒比重、饱和度、孔隙率、液限、塑限7种物理指标的变异系数均较小, 压缩系数、压缩模量、黏聚力、内摩擦角4种力学指标的变异系数较大; 3)粉质黏土湿密度与天然重度、液限与塑性指数具有良好的线性关系.

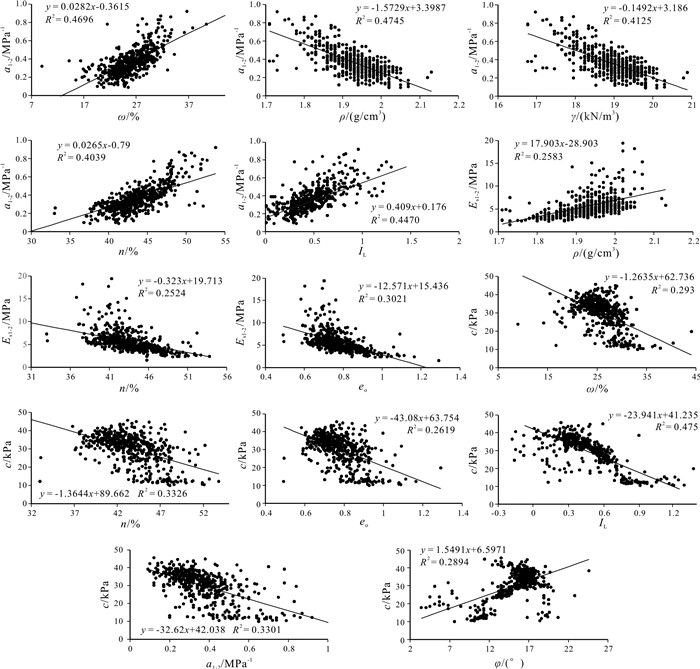

Abstract:Based on the soil test results of silty clay at different sites and depths in the plain area of Liaoyang City, Liaoning Province, the variability and correlation of 16 physical and mechanical indexes of silty clay are analyzed by unitary linear regression analysis. The results show that the soil types at different depths and locations are dominated by silty clay, with high water content, mostly in wet and plastic state. The variation coefficients of 7 physical indexes of silty clay including wet density, natural gravity, specific gravity of soil particles, saturation, porosity, liquid limit and plastic limit are small, while the variation coefficients of 4 mechanical indexes such as compression coefficient, compression modulus, cohesion and internal friction angle are large. There is a good linear relation between wet density and natural weight-specific density, and between liquid limit and plastic index of silty clay.
-
Key words:
- plain area /
- silty clay /
- soil test /
- physical and mechanical index /
- regression analysis /
- Liaoning Province
-
-
表 1 辽阳市平原区粉质黏土物理力学指标统计表
Table 1. Statistics of physical and mechanical indexes of silty clay in the plain area of Liaoyang City

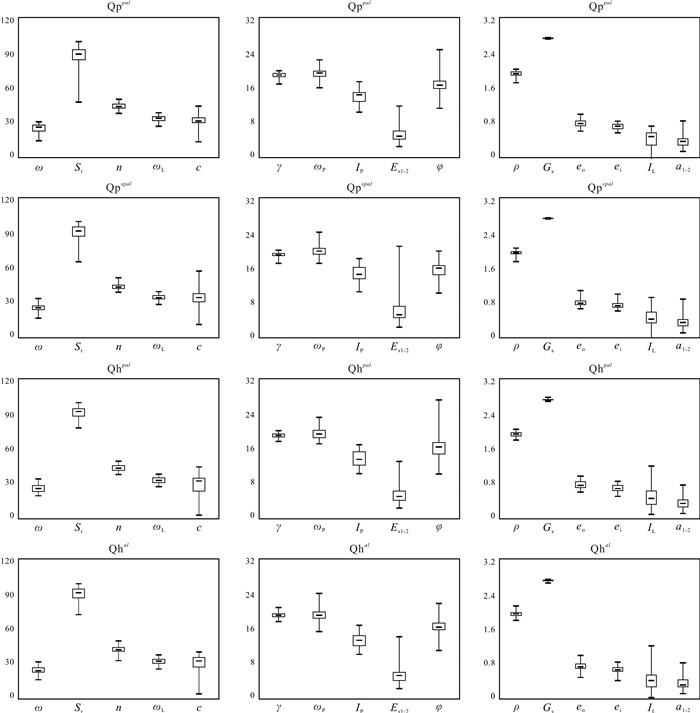

指标名称 代号/单位 总体指标值 不同成因指标均值 最小值 最大值 平均值 标准差 变异系数 Qhal Qhpal Qppal Qpspal 含水率 ω/% 9.00 44.10 25.85 3.63 0.14 24.74 26.22 25.08 25.87 湿密度 ρ/（g/cm3） 1.71 2.13 1.93 0.07 0.03 1.94 1.93 1.91 1.93 天然重度 γ/（kN/m3） 16.77 20.89 18.90 0.64 0.03 19.09 18.97 18.75 18.94 土粒比重 Gs /（g/cm3） 2.66 2.78 2.72 0.01 0.00 2.72 2.72 2.72 2.73 饱和度 Sr /% 44.70 99.90 90.29 6.42 0.07 90.24 91.44 87.23 90.56 孔隙率 n/% 0.81 53.80 43.67 3.58 0.08 42.55 43.71 43.83 43.71 孔隙比 eo 0.49 1.29 0.78 0.10 0.13 0.75 0.78 0.78 0.78 固结荷重 ei 0.42 1.04 0.71 0.08 0.11 0.67 0.70 0.71 0.71 液限 ωL /% 25.80 39.40 33.33 2.58 0.08 32.41 33.12 33.08 34.37 塑限 ωP /% 15.40 27.10 19.44 1.21 0.06 19.12 19.46 19.20 19.76 塑性指数 IP 9.80 17.30 13.88 1.74 0.13 12.47 13.66 13.88 14.61 液性指数 IL -0.73 1.38 0.47 0.24 0.52 1.25 0.51 0.42 0.43 压缩系数 a1-2 /MPa-1 0.09 1.47 0.37 0.15 0.41 0.35 0.36 0.39 0.33 压缩模量 Es1-2 /MPa 1.56 19.40 5.61 2.30 0.41 5.61 5.42 5.13 6.28 黏聚力 c/kPa 10.00 85.50 30.08 8.48 0.28 29.88 28.65 30.99 33.37 内摩擦角 φ/（°） 3.40 24.60 15.16 2.94 0.19 16.34 15.85 16.45 15.43
下载: 导出CSV
表 2 辽阳市平原区粉质黏土物理力学指标相关性统计表
Table 2. Statistics of physical and mechanical index correlation of silty clay in the plain area of Liaoyang City
指标 ω ρ γ Gs Sr n eo ei ωL ωP IP IL a1-2 Es1-2 c φ ω 1 ρ -0.539 1 γ -0.494 0.948 1 Gs 0.193 -0.018 -0.015 1 Sr 0.383 0.517 0.517 0.095 1 n 0.716 -0.709 -0.745 0.121 0.045 1 eo 0.835 -0.893 -0.833 0.187 -0.132 0.791 1 ei 0.642 -0.749 -0.785 0.168 -0.173 0.715 0.803 1 ωL 0.377 -0.164 -0.154 0.506 0.185 0.315 0.325 0.426 1 ωP 0.418 -0.264 -0.270 0.260 0.130 0.368 0.392 0.484 0.812 1 IP 0.267 -0.059 -0.040 0.568 0.183 0.210 0.208 0.293 0.914 0.506 1 IL 0.869 -0.469 -0.426 -0.029 0.345 0.609 0.707 0.455 -0.090 -0.011 -0.125 1 a1-2 0.685 -0.689 -0.642 0.031 -0.062 0.636 0.786 0.484 0.089 0.095 0.066 0.668 1 Es1-2 -0.489 0.508 0.489 0.084 0.035 -0.502 -0.550 -0.354 0.037 0.007 0.050 -0.531 -0.794 1 c -0.541 0.423 0.427 0.268 -0.151 -0.577 -0.512 -0.274 0.233 0.060 0.302 -0.689 -0.575 0.484 1 φ -0.369 0.258 0.301 0.222 -0.139 -0.332 -0.346 -0.297 -0.173 -0.238 -0.091 -0.294 -0.345 0.265 0.538 1
下载: 导出CSV
-
