三元体系Rb+, Mg2+//SO42--H2O 298 K稳定相平衡研究

陈瑜; 孙洪波; 曾英; 于旭东; 李陇岗

doi:10.13779/j.cnki.issn1001-0076.2019.01.015

三元体系Rb⁺, Mg²⁺//SO₄^2--H₂O 298 K稳定相平衡研究

1.
成都理工大学材料与化学化工学院，四川成都 610059

2.
攀西战略矿产资源综合利用四川省协同创新中心，四川成都 610059

3.
硫酸盐型盐湖资源综合利用青海省重点实验室，青海格尔木 816000

基金项目:
国家自然科学基金（No.U1607121）

详细信息

作者简介: 陈瑜(1993-), 女, 四川广安人, 硕士研究生, 化学工程专业, 主要研究方向为相平衡与相分离技术, E-mail:1182114086@qq.com

通讯作者: 曾英, 教授, 博士导师, 应用化学专业, 主要研究方向为矿产资源综合利用, E-mail:zengyster@163.com

中图分类号: TF01

收稿日期: 2018-08-22

刊出日期: 2019-02-25

Stable Phase Equilibrium in the Ternary System Rb⁺, Mg²⁺//SO₄^2--H₂O at 298 K

1.
College of Materials and Chemistry & Chemical Engineering, Chengdu University of Technology, Chengdu 610059, China

2.
Sichuan Collaborative Innovation Center of Panxi Strategic Mineral Resources Multipurpose Utilization, Chengdu 610059, China

3.
Qinghai Key Laboratory of Sulfate Salt Lakes Multipurpose Utilization, Golmud 816000, China

More Information

Corresponding author: ZENG Ying, zengyster@163.com

Received Date: 22 August 2018

Publish Date: 25 February 2019

摘要

摘要:
采用等温溶解平衡法研究了三元体系Rb⁺，Mg²⁺//SO₄^2--H₂O 298 K下的稳定相平衡，测定了该体系平衡液相组成和密度，确定了平衡固相组成及存在形式。根据试验数据绘制了该三元体系的稳定相图和密度-组成图。结果表明：该三元体系在298 K时有复盐Rb₂SO₄·MgSO₄·6H₂O生成，为复杂三元体系。其稳定相图包含有2个三元共饱点、3条单变量曲线和3个结晶区。2个共饱点均为相称共饱点；3个结晶区分别为单盐MgSO₄·7H₂O、Rb₂SO₄和复盐Rb₂SO₄·MgSO₄·6H₂O的结晶区。此外，采用经验方程式计算了该三元体系的密度，计算值与试验值显示了良好的吻合度，相对误差小于1%。
- 稳定相平衡 /
- 硫酸铷 /
- 硫酸镁 /
- 铷镁复盐
Abstract:
Isothermal dissolution method was employed to study the ternary system Rb⁺, Mg²⁺//SO₄^2--H₂O at 298 K, the composition and density of the equilibrium liquid phase as well as the composition and existing form of the equilibrium solid phases were determined. According to the experimental data, the stable phase diagram and the density versus composition diagram in the ternary system were plotted. The results show that the ternary system Rb⁺, Mg²⁺//SO₄^2--H₂O at 298 K is a complex one in which the double salt Rb₂SO₄·MgSO₄·6H₂O is formed. The stable phase diagram contains two invariant points (commensurate type saturation points), three univariant curves, and three crystallization fields corresponding to single salt MgSO₄·7H₂O, Rb₂SO₄ and commensurate double salt Rb₂SO₄·MgSO₄·6H₂O. Moreover, the density of the solution in the ternary system was calculated using the classical equation, and the calculated value shows good agreement with the experimental value with the relative error less than 1%.
- stable phase equilibrium /
- rubidium sulfate /
- magnesium sulfate /
- double salt for rubidium and magnesium

HTML全文

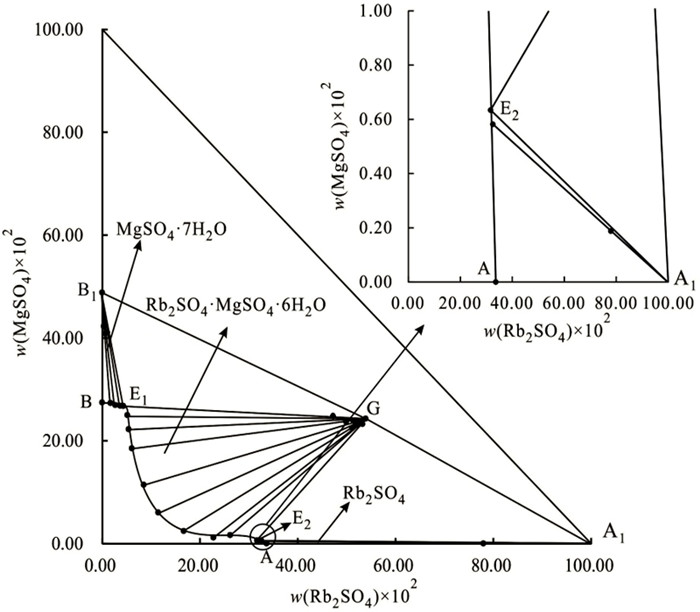

图 1 三元体系Rb⁺, Mg²⁺//SO₄^2- - H₂O 298 K稳定相图及其局部放大图

Figure 1.

下载: 全尺寸图片幻灯片

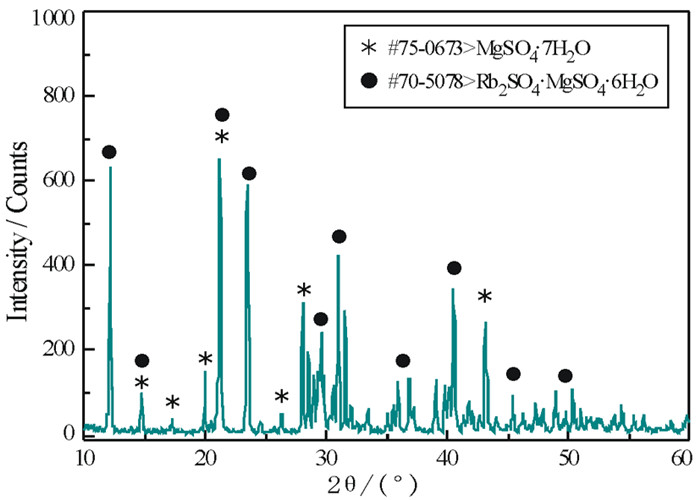

图 2 共饱点E₁对应的平衡固相盐XRD图

Figure 2.

下载: 全尺寸图片幻灯片

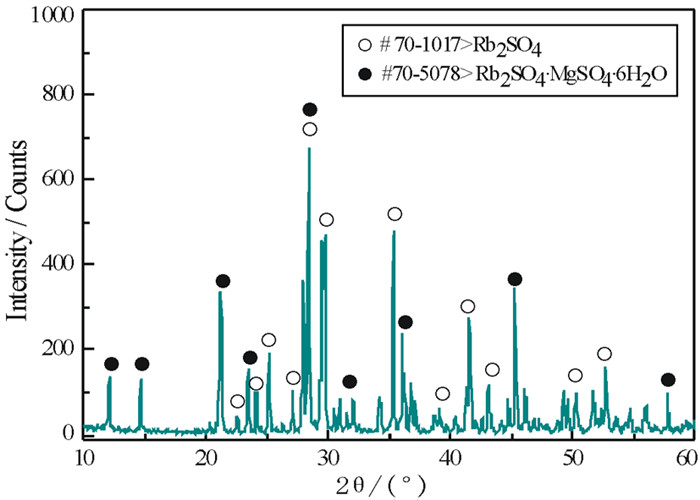

图 3 共饱点E₂对应的平衡固相盐XRD图

Figure 3.

下载: 全尺寸图片幻灯片

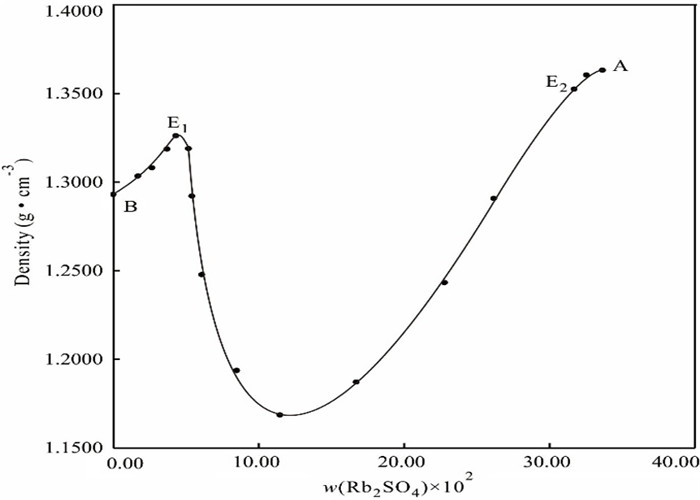

图 4 三元体系Rb⁺, Mg²⁺//SO₄^2- - H₂O 298 K密度-组成图

Figure 4.

下载: 全尺寸图片幻灯片

表 1 三元体系Rb⁺, Mg²⁺//SO₄^2- - H₂O 298 K稳定相平衡数据

Table 1. Stable phase equilibrium data of the ternary system Rb⁺, Mg²⁺//SO₄^2- - H₂O at 298 K

序号	密度(g·cm^-3)	平衡液相组成/%		湿固相组成/%		平衡固相
序号	密度(g·cm^-3)	w(Rb₂SO₄)	w(MgSO₄)	w(Rb₂SO₄)	w(MgSO₄)	平衡固相
1, B	1.293 0	0.00	27.43	-	-	Eps
2	1.303 4	1.70	27.30	0.32	42.25	Eps
3	1.308 0	2.67	26.92	0.65	40.83	Eps
4	1.318 6	3.70	26.76	1.05	41.01	Eps
5, E₁	1.326 1	4.31	26.75	10.60	37.23	Eps +RM
6	1.318 8	5.18	24.97	46.98	25.25	RM
7	1.292 1	5.41	22.23	47.25	24.74	RM
8	1.247 7	6.09	18.51	51.44	23.82	RM
9	1.193 6	8.50	11.43	49.91	23.68	RM
10	1.168 6	11.47	6.05	51.86	23.59	RM
11	1.187 1	16.70	2.44	51.12	22.44	RM
12	1.243 2	22.78	1.18	52.44	23.19	RM
13	1.290 7	26.18	1.63	53.26	23.22	RM
14, E₂	1.352 4	31.69	0.63	67.80	16.22	Rb₂SO₄+RM
15	1.360 4	32.55	0.58	77.97	0.19	Rb₂SO₄
16, A	1.363 1	33.65	0.00	-	-	Rb₂SO₄
注：Eps为MgSO₄·7H₂O；RM为Rb₂SO₄·MgSO₄·6H₂O。

下载: 导出CSV

表 2 三元体系Rb⁺, Mg²⁺//SO₄^2- - H₂O 298 K密度的计算值和试验值的比较

Table 2. Comparison of the calculated and experimental values of density in the ternary system Rb⁺, Mg²⁺//SO₄^2- - H₂O at 298 K

序号	ρ/(g·cm^-3)		相对误差
序号	试验值	计算值	相对误差
1, B	1.293 0	1.293 0	0.000 0
2	1.303 4	1.312 0	0.006 5
3	1.308 0	1.319 1	0.008 4
4	1.318 6	1.329 8	0.008 4
5, E₁	1.326 1	1.337 2	0.008 3
6	1.318 8	1.325 5	0.005 1
7	1.292 1	1.294 3	0.001 7
8	1.247 7	1.257 4	0.007 7
9	1.193 6	1.202 4	0.007 4
10	1.168 6	1.174 7	0.005 2
11	1.187 1	1.191 7	0.003 9
12	1.243 2	1.246 0	0.002 2
13	1.290 7	1.291 5	0.000 6
14, E₂	1.352 4	1.346 5	-0.004 4
15	1.360 4	1.356 7	-0.002 7
16, A	1.363 1	1.363 1	0.000 0
注：相对误差=(计算值-试验值)/计算值。

下载: 导出CSV
