Influence of Low Grade Rutile Concentrate on Properties of Glass Ceramics with Molybdenum Tailing
-
摘要:

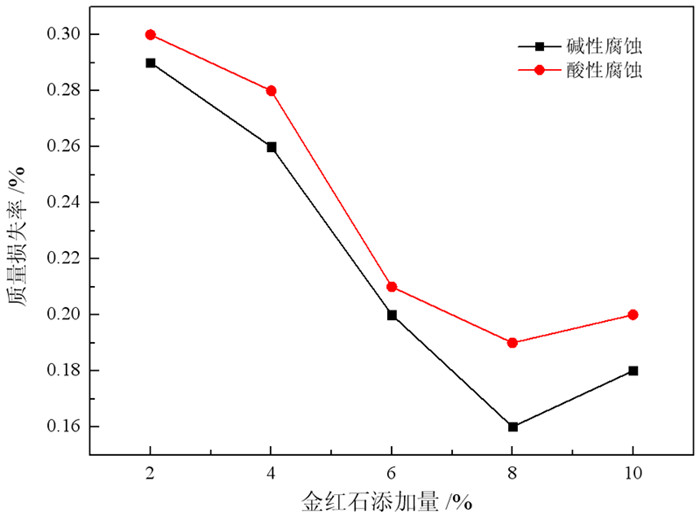

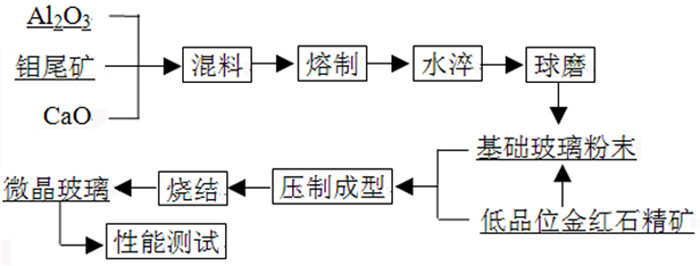

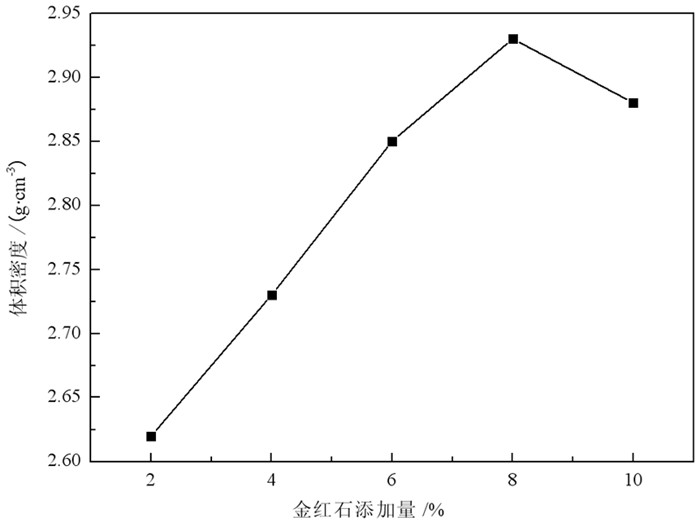

以陕西某钼尾矿为主要原料，低品位金红石精矿为成核剂，采用烧结法制备钙长石和透辉石相微晶玻璃。探讨低品位金红石精矿加入量对钼尾矿微晶玻璃机械性能和化学稳定性的影响。结果表明，低品位金红石精矿的最佳添加量为8%，此条件下所得微晶玻璃的抗压强度、抗折强度分别为162.3 MPa、86.1 MPa，体积密度为2.93 g/cm3，耐酸、耐碱质量损失率分别为0.19%、0.16%。研究成果可为钼尾矿及低品位金红石精矿资源的高效利用提供新思路、新方法。
Abstract:Using molybdenum tailings from Shaanxi as the main raw material and low grade rutile concentrate as the nucleating agent, glass ceramics with anorthite as the main crystal phase and diopside as the secondary crystal phase were prepared by sintering method. The effect of low grade rutile concentrate on mechanical properties and chemical stability of glass ceramics with molybdenum tailing was investigated. The results show that the optimum addition of low grade rutile concentrate is 8%. Under this condition, the compressive strength and flexural strength of glass ceramics are respectively 162.3 MPa and 86.1 MPa, the volume density is 2.93 g·cm-3, and the mass loss rate of acid resistance and alkali resistance are 0.19% and 0.16%, respectively. The research results can provide a new idea and method for efficient utilization of molybdenum tailings and low grade rutile concentrate resources.
-
Key words:
- molybdenum tailings /
- rutile /
- glass ceramics
-
-
表 1 钼尾矿化学成分
Table 1. Chemical composition of molybdenum tailings
/% 成分 SiO2 Fe2O3 Al2O3 CaO K2O Na2O 含量 77.48 4.79 4.20 1.87 2.42 1.38 成分 MgO TiO2 MnO2 P2O5 SO3 烧失量 含量 1.53 0.94 0.69 0.13 2.91 1.66
下载: 导出CSV
表 2 低品位金红石精矿化学成分
Table 2. Chemical composition of low grade rutile concentrate
/% 成分 TiO2 SiO2 Fe2O3 CaO Al2O3 MgO 含量 83.04 8.93 4.37 3.08 0.31 0.27
下载: 导出CSV
表 3 基础玻璃主要氧化物组成
Table 3. Main oxide composition of basic glass
/% 成分 SiO2 Al2O3 CaO Fe2O3 K2O MgO TiO2 含量 46.48 22.52 21.12 2.87 1.45 0.92 0.56
下载: 导出CSV
-
[1] 张晓伟, 张万益, 童英, 等. 全球钛矿资源现状与利用趋势[J]. 矿产保护与利用, 2019, 39(5): 68-75. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=1769126f-a57d-4fe3-8c8a-621ffa8f116f
ZHANG X W, ZHANG W Y, TONG Y, et al. Current Situation and Utilization Trend of Global Titanium Resources[J]. Conservation and Utilization of Mineral Resources, 2019, 39(5): 68-75. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=1769126f-a57d-4fe3-8c8a-621ffa8f116f
[2] 常田仓, 章晓林, 赵文迪, 等. 金红石选矿技术研究综述[J]. 矿产保护与利用, 2019, 39(5): 167-173. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=73847f33-e08d-40d8-aef3-e80b8270174a
CHANG T C, ZHANG X L, ZHAO W D, et al. Research progress on the mineral processing technology of rutile ore[J]. Conservation and Utilization of Mineral Resources, 2019, 39(5): 167-173. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=73847f33-e08d-40d8-aef3-e80b8270174a
[3] 朱诗曼, 李怡霏, 张喆怡, 等. 羟肟酸类捕收剂浮选金红石特性及其机理[J]. 矿产保护与利用, 2021, 41(4): 59-63. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=413f7969-972f-4776-8c76-2b7f21d5000e
ZHU S M, LI Y F, ZHANG Z Y, et al. Flotation characteristics and mechanism of rutile with hydroxamic acid collectors[J]. Conservation and Utilization of Mineral Resources, 2021, 41(4): 59-63. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=413f7969-972f-4776-8c76-2b7f21d5000e
[4] 尤皓, 孙红娟, 彭同江. 烧结温度对提钛渣微晶玻璃析晶及显微结构的影响[J]. 材料科学与工程学报, 2020, 38(3): 450-454. https://www.cnki.com.cn/Article/CJFDTOTAL-CLKX202003018.htm
YOU H, SUN H J, PENG T J. Effects of sintering temperature on crystallization and microstructure of glass ceramics from slags after extracting titanium[J]. Journal of Materials Science & Engineering, 2020, 38(3): 450-454. https://www.cnki.com.cn/Article/CJFDTOTAL-CLKX202003018.htm
[5] 张圣斌, 刘立强, 张亚洲, 等. 金渣-钢渣-钛渣微晶玻璃的析晶动力学研究[J]. 中国陶瓷, 2016, 52(8): 43-46. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGTC201608009.htm
ZHANG S B, LIU L Q ZHANG Y Z, et al. Research on crystallization kinetics of gold slag steel slag titanium slag glass ceramics[J]. China Ceramics, 2016, 52(8): 43-46. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGTC201608009.htm
[6] 贺东风, 潘江涛, 曾凡博. 中钛型含钛高炉渣制微晶玻璃及其性能研究[J]. 材料导报, 2017, 31(2): 126-129. https://www.cnki.com.cn/Article/CJFDTOTAL-CLDB201702027.htm
HE D F, PAN J T, ZENG F B. Preparation and characterization of glass ceramics based on medium titanium bearing blast furnace slag[J]. Materials Reports, 2017, 31(2): 126-129. https://www.cnki.com.cn/Article/CJFDTOTAL-CLDB201702027.htm
[7] 阎赞, 张玲杰, 智超. 不同亚熔盐对高品质富钛料制备的影响[J]. 矿业工程, 2019, 17(6): 48-50. https://www.cnki.com.cn/Article/CJFDTOTAL-GWKS201906017.htm
YAN Z, ZHANG L J, ZHI C. Influence of different sub-molten salts on the preparation of high quality titanium-rich materials[J]. Mining Engineering, 2019, 17(6): 48-50. https://www.cnki.com.cn/Article/CJFDTOTAL-GWKS201906017.htm
[8] 阎赞, 赵红星, 刘明宝, 等. 亚熔盐法制备富钛料技术研究[J]. 中国非金属矿工业导刊, 2020(1): 19-22. https://www.cnki.com.cn/Article/CJFDTOTAL-LGFK202001010.htm
YAN Z, ZHAO H X, LIU M B, et al. Study on the Preparation Technology of Titanium Rich Materials by Sub-molten Salt Method[J]. China Non-metallic Minerals Industry, 2020(1): 19-22. https://www.cnki.com.cn/Article/CJFDTOTAL-LGFK202001010.htm
[9] 刘明宝, 阎赞, 印万忠. 陕南地区角闪岩型难选金红石矿选矿试验研究[J]. 矿冶, 2018, 27(3): 7-12.
LIU M B, YAN Z, YIN W Z. Benefication study of anamphibolite-type refractory rutile ore in southern shaanxi[J]. Mining & Metallurgy, 2018, 27(3): 7-12.
[10] 卢安贤, 王宇, 肖卓豪. 碱金属氧化物对MgO-Al2O3-SiO2系统微晶玻璃析晶和性能的影响[J]. 中南大学学报(自然科学版), 2008(1): 42-47. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD200801009.htm
LU A X, WANG Y, XIAO Z H. Effects of alkalis on crystallization and properties of MgO-Al2O3-SiO2 system glass ceramics[J]. J. Cent. South Univ. (Science and Technology), 2008(1): 42-47. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD200801009.htm
[11] 石永恒, 芶立. 晶核剂对CMAS系微晶玻璃结构和性能的影响[J]. 材料导报, 2021, 35(5): 5027-5031. https://www.cnki.com.cn/Article/CJFDTOTAL-CLDB202105003.htm
SHI Y H, GOU L. Effects of nucleating agents on structure and properties of CMAS glass ceramics[J]. Materials Reports, 2021, 35(5): 5027-5031. https://www.cnki.com.cn/Article/CJFDTOTAL-CLDB202105003.htm
[12] 阎赞, 李峰, 孙武, 等. 钼尾矿微晶玻璃的制备及性能研究[J]. 非金属矿, 2020, 43(6): 43-45. https://www.cnki.com.cn/Article/CJFDTOTAL-FJSK202006013.htm
YAN Z, LI F, SUN W, et al. Research on preparation and performances of glass ceramics with molybdenum tailings[J]. Non-Metallic Mines, 2020, 43(6): 43-45. https://www.cnki.com.cn/Article/CJFDTOTAL-FJSK202006013.htm
[13] 王龙浩, 刘然, 刘小杰, 等. 化学成分对高炉炉渣冶金性能影响研究现状[J]. 铸造技术, 2018, 39(1): 232-235. https://www.cnki.com.cn/Article/CJFDTOTAL-ZZJS201801080.htm
WANG L H, LIU R, LIU X J, et al. Research status of chemical composition on metallurgical properties of blast furnace slag[J]. Foundry Technolog, 2018, 39(1): 232-235. https://www.cnki.com.cn/Article/CJFDTOTAL-ZZJS201801080.htm
[14] 孙睿杰, 何峰, 王立格, 等. TiO2含量对高炉渣微晶玻璃结构和性能的影响[J]. 硅酸盐通报, 2019, 38(8): 2542-2548. https://www.cnki.com.cn/Article/CJFDTOTAL-GSYT201908031.htm
SUN R J, HE F, WANG L G, et al. Influence of TiO2 content on structure and properties of blast furnace slag glass ceramics[J]. Bulletin of the Chinese Ceramic Society, 2019, 38(8): 2542-2548. https://www.cnki.com.cn/Article/CJFDTOTAL-GSYT201908031.htm
[15] 王瑞鑫, 王艺慈, 曹鹏飞, 等. 高炉渣和粉煤灰制备微晶玻璃晶核剂的优化[J]. 中国陶瓷, 2020, 56(11): 44-49. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGTC202011007.htm
WANG R X, WANG Y C, CAO P F, et al. Optimizaton of preparation of glass ceramics nucleating agent by blast furnace slag and fly ash[J]. China Ceramics, 2020, 56(11): 44-49. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGTC202011007.htm
[16] 谢春帅, 贵永亮, 王亚文, 等. TiO2和CaF2对高炉渣基础玻璃微观结构和高温黏度的影响[J]. 陶瓷学报, 2016, 37(5): 516-520. https://www.cnki.com.cn/Article/CJFDTOTAL-TCXB201605012.htm
XIE C S, GUI Y L, WANG Y W, et al. Effect of TiO2 and CaF2 on the microstructure and high temperature viscosity of parent glass from blast furnace slag[J]. Journal of Ceramics, 2016, 37(5): 516-520. https://www.cnki.com.cn/Article/CJFDTOTAL-TCXB201605012.htm
[17] 徐长伟, 于欣, 张家宝, 等. 晶核剂对MgO-Al2O3-SiO2系微晶玻璃析晶的影响[J]. 沈阳建筑大学学报(自然科学版), 2017, 33(1): 168-175. https://www.cnki.com.cn/Article/CJFDTOTAL-SYJZ201701021.htm
XU C W, YU X, ZHANG J B, et al. Effect of nucleating agent on crystallization properties of MgO-Al2O3-SiO2 glass ceramics[J]. Journal of Shenyang Jianzhu University (Natural Science), 2017, 33(1): 168-175. https://www.cnki.com.cn/Article/CJFDTOTAL-SYJZ201701021.htm
[18] 曹超, 彭同江, 孙红娟, 等. 热处理温度对CaO-Al2O3-SiO2系粉煤灰微晶玻璃析晶及性能的影响[J]. 非金属矿, 2013, 36(4): 5-8. https://www.cnki.com.cn/Article/CJFDTOTAL-FJSK201304001.htm
CAO C, PENG T J, SUN H J, et al. Effects of heat treatment temperature on crystallization behavior and performance of glass ceramics of CaO-Al2O3-SiO2 from coal fly ash[J]. Non-Metallic Mines, 2013, 36(4): 5-8. https://www.cnki.com.cn/Article/CJFDTOTAL-FJSK201304001.htm
-
