Application of Electron Microprobe to Study the Features of Tellurides in the Jinqingding Gold Deposit, Shandong Province
-

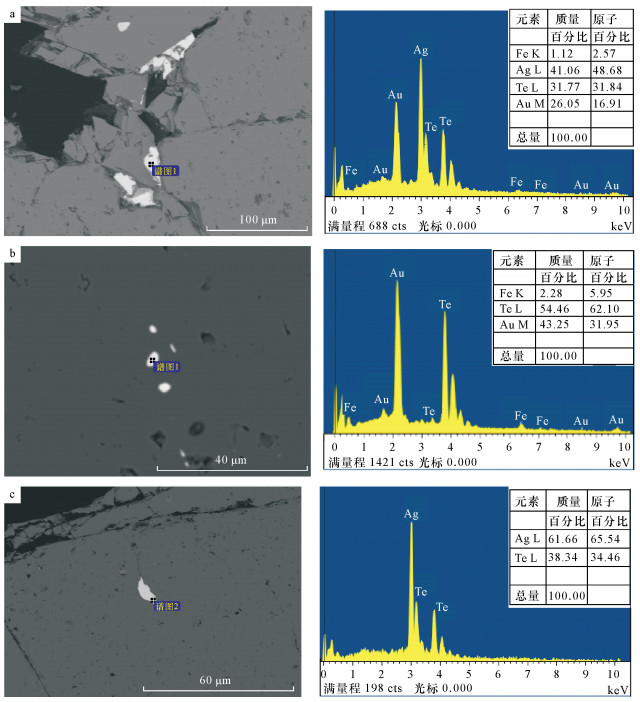

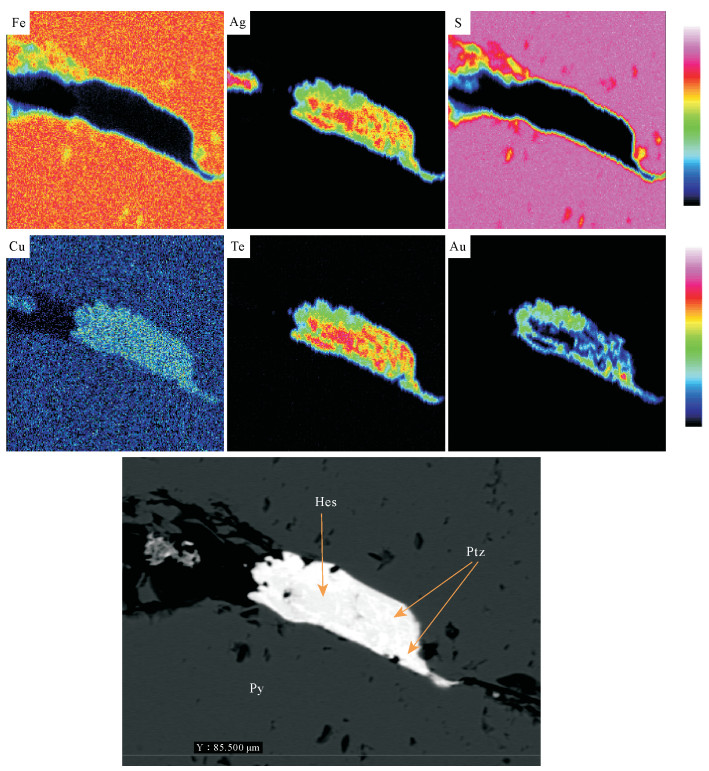

摘要: 对含碲金矿中碲化物物相组成和元素赋存特征开展系统的研究，有助于对此类金矿矿床成因的理解和找矿勘查工作。山东金青顶金矿床伴生的碲化物由于碲化物颗粒较小，不易被发现，以往的研究缺乏对碲化物元素分布的精细刻画。本文通过电子探针背散射图像、波谱分析、能谱分析结合面扫描技术对金青顶金矿床碲化物进行了分析，研究碲化物的种类、共生关系、化学成分以及元素分布特征等。结果表明：碲金银矿与碲银矿密切共生，常形成连生体，Au、Ag在连生体中不均匀分布，面扫描图局部可见碲金矿亮斑；Te总是优先和Ag结合，生成碲银矿，随着Ag的消耗碲金银矿开始出现，Ag被耗尽后Te与Au生成碲金矿，成矿后期热液中多余的金与碲金银矿或碲银矿反应生成非常规碲化物（如本文发现的Ag2.95Au1.83Te），当Te消耗完后生成自然金；金银矿物的生长顺序是碲银矿—碲金银矿—碲金矿—自然金。本研究为含碲金矿的综合利用提供了技术支持。Abstract: A systematic study of the phase composition and element occurrence characteristics of tellurides in tellurium-bearing gold deposits will be helpful for the genesis understanding of gold deposits of this type and for prospecting exploration. Tellurides in the Jinqingding gold deposit are too small and are difficult to identify. Previous research lacked the detailed studies of the element distribution characteristics of tellurides. In this study, the types, symbiotic relationship, chemical composition and element distribution characteristics of tellurides in the deposit were analyzed by electron probe using BSE, WDS, EDS and mapping modes. Results show that petzite is closely associated with hessite and intergrowths of these two minerals are common. Au and Ag are unevenly distributed in the intergrowths, and calaverite shows as a bright spot in the scanning map. Tellurium is always likely to combine with Ag to form hessite. With the consumption of Ag, petzite began to appear and Te combined with Au to form calaverite after exhausting Ag in magmatic hydrothermal fluids. The superfluous Au in the hydrothermal fluids at the later stage of mineralization reacted with hessite or petzit to produce unconventional tellurides, finally forming a native gold. The growth of gold-silver minerals follows the sequence, hessite, petzite, calaverite, and Au from early to late. This study provides technical support for the comprehensive utilization of tellurium-bearing gold deposits.
-
Key words:
- telluride /
- dispersed element /
- Electron Probe Micro-Analyzer /
- Jinqingding gold deposit
-
-
表 1 金青顶金矿床碲化物电子探针波谱分析数据
Table 1. The composition of telluride minerals from the Jinqingding gold deposit measured by EPMA
碲化物种类 含量(%) 总计
(%)Fe Co Ni Cu Zn S Te Au Ag Sb Pb Se 碲银矿 0.69 / / 0.01 0.14 37.26 0.02 61.89 / / / 100.01 碲银矿 0.26 / / / 0.01 0.15 36.48 / 61.66 / / / 98.56 碲银矿 0.61 / 0.01 0.04 0.04 0.17 37.53 0.03 61.64 / / / 100.06 碲银矿 1.56 0.02 / 0.02 / 0.25 36.82 0.15 60.97 / / / 99.79 碲金银矿 1.03 / 0.02 / / 0.12 32.30 24.81 40.56 / / 0.01 98.85 碲金银矿 1.21 / / / 0.04 0.11 32.30 25.20 40.54 / / 0.03 99.44 碲金银矿 1.18 / 0.03 0.18 0.04 0.24 31.57 24.73 40.07 / / 0.01 98.02 碲金银矿 1.06 / / / / 0.11 32.31 24.46 40.66 / / / 98.56 碲金银矿 0.27 / / 0.06 / 0.09 32.60 24.77 40.29 / / / 98.09 碲金矿 3.00 0.04 / 0.10 0.03 0.87 55.06 40.82 1.07 / / / 100.99 碲金矿 1.25 / / / / 0.05 54.89 40.55 0.89 / / 0.05 97.67 碲金矿 1.14 / / 0.06 0.09 0.05 55.29 40.71 0.96 / / 0.01 98.31 过渡矿物 0.66 / / 0.03 / 0.06 15.69 44.35 39.19 / / 0.04 100.02
下载: 导出CSV
-
[1] Cooke D R, McPhail D C.Epithermal Au-Ag-Te mine-ralization, Acupan, Baguio district, Philippines:Numerical simulations of mineral deposition[J].Economic Geology, 2001, 96(1):109-131. http://www.mendeley.com/catalog/epithermal-auagte-mineralization-acupan-baguio-district-philippines-numerical-simulations-mineral-de/
[2] Eary L E, Runnells D D, Esposito K J.Geochemical controls on ground water composition at the Cripple Creek mining district, Cripple Creek, Colorado[J].Applied Geochemistry, 2003, 18(1):1-24. doi: 10.1016/S0883-2927(02)00049-5
[3] Ahmad M, Solomon M, Walshe J L.Mineralogical and geochemical studies of the Emperor gold telluride deposit, Fiji[J].Economic Geology, 1987, 82:345-370. doi: 10.2113/gsecongeo.82.2.345
[4] Shackleton J M, Spry P G, Bateman R.Telluride mine-ralogy of the golden mile deposit, Kalgoorile, Western Australia[J].The Canadian Mineralogist, 2003, 41:1503-1524. doi: 10.2113/gscanmin.41.6.1503
[5] Gao S, Xu H, Zhang D S, et al.Ore petrography and chemistry of the tellurides from the Dongping gold deposit, Hebei Province, China[J].Ore Geology Reviews, 2015, 64:23-34. doi: 10.1016/j.oregeorev.2014.06.010
[6] 于学峰, 方宝明, 韩作振.鲁西归来庄金矿田成矿系列及成矿作用研究[J].地质学报, 2006, 83(1):55-64. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dizhixb200901006
Yu X F, Fang B M, Han Z Z.Study on ORE-forming series and mineralization of the Guilaizhuang gold field in Western Shandong[J].Acta Geologica Sinica, 2006, 83(1):55-64. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dizhixb200901006
[7] Xu W G, Fan H R, Hu F F, et al.Gold mineralization in the Guilaizhuang deposit, Southwestern Shandong Province, China:Insight from phase relations among sulfides, tellurides, selenides and oxides[J].Ore Geology Review, 2014, 56:276-291. doi: 10.1016/j.oregeorev.2013.06.010
[8] 胡勇平, 于学峰, 郑林伟, 等.高分辨率扫描电镜和X射线能谱Mapping技术研究碲矿物的成分和形态特征[J].岩矿测试, 2015, 34(6):643-651. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=ykcs201506006&dbname=CJFD&dbcode=CJFQ
Hu Y P, Yu X F, Zheng L W, et al.Application of high-resolution scanning electron microscope and X-ray energy dispersive spectroscope mapping technique to study the composition and morphology of tellurium minerals[J].Rock and Mineral Analysis, 2015, 34(6):643-651. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=ykcs201506006&dbname=CJFD&dbcode=CJFQ
[9] 胡勇平, 于学峰, 李大鹏, 等.山东省归来庄金矿田卓家庄含碲金矿床的碲化物赋存状态研究[J].矿床地质, 2016, 35(3):475-490. https://www.doc88.com/p-3387468670880.html
Hu Y P, Yu X F, Li D P, et al.Modes of occurrence of telluride in Zhuojiazhuang tellurium-bearing gold deposit within Guilaizhuang gold ore field, Shandong Province[J].Mineral Deposits, 2016, 35(3):475-490. https://www.doc88.com/p-3387468670880.html
[10] 许虹, 余宇星, 高燊, 等.黑龙江三道湾子金矿一种新的结晶质Au-Te化合物[J].地质通报, 2011, 30(11):1779-1784. doi: 10.3969/j.issn.1671-2552.2011.11.018
Xu H, Yu Y X, Gao S, et al.A new crystalline compounds of Au-Te in Sandaowanzi gold deposit, Heilongjiang Province[J].Geological Bulletin of China, 2011, 30(11):1779-1784. doi: 10.3969/j.issn.1671-2552.2011.11.018
[11] Liu J L, Bai X D, Zhao S J, et al.Geology of the Sandaowanzi telluride gold deposit of the Northern Great Xing'an Range, NE China:Geochronology and tectonic controls[J].Journal of Asian Earth Sciences, 2011, 41(2):107-118. doi: 10.1016/j.jseaes.2010.12.011
[12] Zhai D G, Liu J J.Gold-telluride-sulfide association in the Sandaowanzi epithermal Au-Ag-Te deposit, NE China:Implications for phase equilibrium and physicochemical conditions[J].Mineralogy and Petrology, 2014, 108:853-871. doi: 10.1007/s00710-014-0334-6
[13] 胡文瑄, 孙国曦, 张文兰, 等.山东乳山金矿中金-银碲化物的矿物学特征与沉淀机理[J].矿物学报, 2005, 25(2):177-182. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=kwxb200502014&dbname=CJFD&dbcode=CJFQ
Hu W X, Sun G X, Zhang W L, et al.Au-Ag telluride minerals and their precipitation mechanism in the Rushan gold deposit, Shandong[J].Acta Mineralogica Sinica, 2005, 25(2):177-182. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=kwxb200502014&dbname=CJFD&dbcode=CJFQ
[14] 刘建朝, 李旭芬, 刘亚非, 等.胶东牟平-乳山金矿带金青顶金矿碲化物矿物的特征及沉淀机制[J].地质通报, 2010, 29(9):1319-1328. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=zqyd201009008&dbname=CJFD&dbcode=CJFQ
Liu J C, Li X F, Liu Y F, et al.Mineralogical characteristics of telluride and their precipitation mechanism in the Jinqingding gold deposit, Eastern Shandong, China[J].Geological Bulletin of China, 2010, 29(9):1319-1328. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=zqyd201009008&dbname=CJFD&dbcode=CJFQ
[15] 周起凤, 李胜荣, 陈海燕, 等.胶东乳山英格庄金矿碲化物的发现及其意义[J].岩石学报, 2011, 27(6):1847-1856. https://www.wenkuxiazai.com/doc/f53faa9580eb6294dd886c71.html
Zhou Q F, Li S R, Chen H Y, et al.Discovery and geological significance of telluride minerals in the Yinggezhuang gold deposit, Rushan, Jiaodong[J].Acta Petrologica Sinca, 2011, 27(6):1847-1856. https://www.wenkuxiazai.com/doc/f53faa9580eb6294dd886c71.html
[16] Jian W, Lehmann B, Mao J W, et al.Telluride and Bi-sulfosalt mineralogy of the Yangzhaiyu gold deposit, Xiaoqinling region, Central China[J].The Canadian Minermalist, 2014, 52:883-898. doi: 10.3749/canmin.1400007
[17] Jian W, Lehmann B, Mao J W, et al.Mineralogy, fluid characteristics, and Re-Os age of the late Triassic Dahu Au-Mo deposit, Xiaoqinling region, Central China:Evidence for a magmatic-hydrothermal origin[J].Economic Geology, 2015, 100:119-145. http://economicgeology.org/content/110/1/119
[18] 王鹏, 叶会寿, 抄尉尉, 等.河南嵩县松里沟金矿床中碲化物的发现及其地质意义[J].岩石矿物学杂志, 2016, 35(4):627-646. http://cdmd.cnki.com.cn/Article/CDMD-10491-1014164922.htm
Wang P, Ye H S, Chao W W, et al.The discovery of tellurides in the Songligou gold deposit in Songxian county, Henan Province, and its geological significance[J].Acta Petrologica et Mineralogica, 2016, 35(4):627-646. http://cdmd.cnki.com.cn/Article/CDMD-10491-1014164922.htm
[19] 疏孙平, 张静, 陈衍景, 等.北山成矿带霍勒扎德盖金矿床碲化物的发现及其地质意义[J].岩石学报, 2017, 33(6):1859-1871. https://www.wenkuxiazai.com/word/c728c91d360cba1aa911da27-1.doc
Shu S P, Zhang J, Chen Y J, et al.Discovery and geological significance of tellurides in the Herzhedegai gold deposit, Beishan metallogenic belt[J].Acta Petrologica Sinica, 2017, 33(6):1859-1871. https://www.wenkuxiazai.com/word/c728c91d360cba1aa911da27-1.doc
[20] 薛建玲, 李胜荣, 崔举超.胶东牟乳成矿带金矿床石英热释光特征及意义[J].中国矿业, 2016, 25(增刊2):183-188. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201504015.htm
Xue J L, Li S R, Cui J C.Research on the characteristics of quartz thermoluminescence of the gold deposits in Mouping-Rushan gold belt, Jiaodong Peninsula[J].China Mining Magazine, 2016, 25(Supplement 2):183-188. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201504015.htm
[21] 李治平.胶东乳山金矿床成因[J].矿床地质, 1992, 11(2):165-178. http://www.wanfangdata.com.cn/details/detail.do?_type=conference&id=169164
Li Z P.The genesis of the Rushan gold deposit in East Shandong[J].Mineral Deposits, 1992, 11(2):165-178. http://www.wanfangdata.com.cn/details/detail.do?_type=conference&id=169164
[22] 李惠, 刘振昌, 王敬臣, 等.对山东金青顶金矿床原生叠加晕特征的跟踪研究及预测[J].地质找矿论丛, 2000, 15(2):151-158. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGDJ200010001009.htm
Li H, Liu Z C, Wang J C, et al.Overprint halo feature research on Jinqingding Au deposit and ore prediction following ore exploration[J].Contributions to Geology and Mineral Resources Research, 2000, 15(2):151-158. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGDJ200010001009.htm
[23] 陈海燕, 李胜荣, 张秀宝, 等.胶东金青顶金矿床围岩蚀变特征与金矿化[J].矿物岩石地球化学通报, 2012, 31(1):5-13. https://www.wenkuxiazai.com/doc/3d5bf4680b1c59eef8c7b484.html
Chen H Y, Li S R, Zhang X B, et al.Wall rock alteration and gold mineralization in the Jinqingding gold deposit, Eastern Shandong Province[J].Bulletin of Mineralogy, Petrology and Geochemistry, 2012, 31(1):5-13. https://www.wenkuxiazai.com/doc/3d5bf4680b1c59eef8c7b484.html
[24] 张运强, 李胜荣, 陈海燕, 等.胶东金青顶金矿床成矿流体来源的黄铁矿微量元素及He-Ar同位素证据[J].中国地质, 2012, 39(1):195-204. http://mall.cnki.net/magazine/magadetail/DIZI201201.htm
Zhang Y Q, Li S R, Chen H Y, et al.Trace element and He-Ar isotopic evidence of pyrite for the source of ore-forming fluids in the Jinqingding gold deposit, Eastern Shandong Province[J].Geology in China, 2012, 39(1):195-204. http://mall.cnki.net/magazine/magadetail/DIZI201201.htm
[25] 尹升, 张海芳, 王芳, 等.山东金青顶金矿床Ⅱ号矿体成矿特征[J].山东国土资源, 2015, 31(11):9-14. doi: 10.3969/j.issn.1672-6979.2015.11.003
Yin S, Zhang H F, Wang F, et al.Metallogenic charactetistics of No.Ⅱ orebody in Jinqingding gold deposit in Shandong Province[J].Land and Resources in Shangdong Province, 2015, 31(11):9-14. doi: 10.3969/j.issn.1672-6979.2015.11.003
[26] 刘亚非, 赵慧博, 高志文, 等.应用偏光显微镜和电子探针技术研究安徽铜官山矽卡岩型铜铁矿床伴生元素金银铂钯铀的赋存状态[J].岩矿测试, 2015, 34(2):187-193. http://www.ykcs.ac.cn/article/doi/10.15898/j.cnki.11-2131/td.2015.02.006
Liu Y F, Zhao H B, Gao Z W, et al.Study on the occurrence of associated metals Au, Ag, Pt, Pd, U in Tongguanshan skarn type copper-iron deposit of Anhui Province using microscope and electron microprobe[J].Rock and Mineral Analysis, 2015, 34(2):187-193. http://www.ykcs.ac.cn/article/doi/10.15898/j.cnki.11-2131/td.2015.02.006
[27] 涂光炽.初论碲的成矿问题[J].矿物岩石地球化学通报, 2000, 19(4):211-214. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY902.007.htm
Tu G C.A preliminary discussion on the mineralization of tellurium[J].Bulletin of Mineralogy, Petrology and Geochemistry, 2000, 19(4):211-214. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY902.007.htm
[28] 田澍章, 李秀梅.河北省东坪金矿几种新金矿物的初步研究[J].黄金地质, 1995, 1(1):61-67. http://www.cqvip.com/QK/96113A/199501/1790018.html
Tian S Z, Li X M.A preliminary study of some new minerals[J].Gold Geology, 1995, 1(1):61-67. http://www.cqvip.com/QK/96113A/199501/1790018.html
[29] 李增胜, 吴敏, 侯明兰, 等.山东归来庄金矿床Au2-xTe的发现及其成因探讨[J].地质论评, 2015, 61(增刊):339-340. http://www.geojournals.cn/georev/ch/reader/view_abstract.aspx?file_no=dzlp2015z1157
Li Z S, Wu M, Hou M L, et al.Discovery and origin of Au2-xTe in the Guilaizhuang gold deposit, Shandong[J].Geological Review, 2015, 61(Supplement):339-340. http://www.geojournals.cn/georev/ch/reader/view_abstract.aspx?file_no=dzlp2015z1157
-
