POTENTIAL ASSESSMENT, EXPLORATION AND PRODUCTION TEST OF NATURAL GAS HYDRATE
-
摘要:

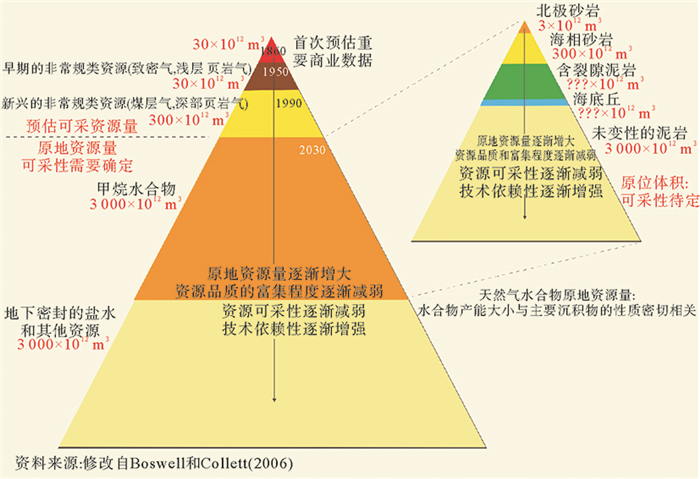

天然气水合物是一种清洁高效的环保型化石能源，分布于世界深水海域和多年冻土带环境之中，资源潜力巨大。最新的评价预测结果表明，全球水合物沉积物中碳资源量介于500~3 000 Gt。作为一种新型的非常规能源，目前其资源量评价预测尚存在不确定性，而且并非所有的天然气水合物都可开采利用。不同赋存形态的天然气水合物构成了能源金字塔，展示了不同类型水合物资源潜力大小及可开发利用的程度。因此，天然气水合物资源潜力评价预测与开发利用正越来越多地受到人们的关注与重视。尽管中国在南海的试采工作取得了重大突破，但如何经济、安全地世界性开采这种新能源仍需要开展更多的研究工作。
Abstract:Natural gas hydrate is a clean and efficient environment-friendly fossil energy, widely distributed in deep-sea and permafrost zones of the world.The latest assessment shows that the amount of carbon resources stored in global hydrate deposits is between 500~3000 Gt.As a new type of unconventional energy, the resource has a huge potential even though the current resource rating forecast is still uncertain, and not all natural gas hydrates are exploitable with present technology.Natural gas hydrates of different forms constitute an energy pyramid, which shows the potential of exploitation of different types of hydrate resources.As an extremely important energy source, the prediction and development of natural gas hydrate resources potential has attracted great attention from world societies.Although the production test in South China Sea has got a big breakthrough, more work is still required to recover this kind of new energy economically and safely.
-
Key words:
- Gas hydrate /
- energy pyramid /
- resources potential assessment /
- recoverable resources
-
-
表 1 天然气水合物试采结果统计
Table 1. Statistics of gas hydrate exploitation test results
试验场 位置 年份 方法 生产周期 累计产气量/m3 Mt.Elbert Well 阿拉斯加北斜坡 2007 降压法 11 h - 2002 热激法 5 d 516 Mallik Site 加拿大麦肯齐三角洲 2007 降压法 12.5 h 830 2007-2008 降压法 139 h 13 000 Ignik Sikumi 阿拉斯加北斜坡 2012 二氧化碳置换 约6周 24 085 Daini Atsumi Knoll 日本南海海槽 2013 降压法 6 d 120 000 神狐海域 南中国海 2017 降压法 60 d* 超过300 000* *为截止2017年7月9日的数据
下载: 导出CSV
-
[1] Dickens G.Down the rabbit hole:toward appropriate discussion of methane release from gas hydrate systems during the Paleocene-Eocene thermal maximum and other past hyperthermal events [J].Past, 2011, 7:831-846. doi: 10.5194/cp-7-831-2011
[2] WEA.Energy and the challenge of sustainability.World Energy Assessment [R].United Nations Development Programme, Bureau for Development Policy, New York, NY.2000.
[3] Boswell R, Collett T S.Current perspectives on gas hydrate resources [J].Energy Environ.Sci., 2011, 10:1206-1215. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=9723b0f517b667a1d2535417fb70a269
[4] Johnson A.Global resource potential of gas hydrate-a new calculation [C]//Proceedings of the 7th International Conference on Gas Hydrates (ICGH 2011), Edinburgh, Scotland, United Kingdom, July 17-21, 2011.
[5] Milkov A.Global estimates of hydrate-bound gas in marine sediments:How much is really out there? [J] Earth-Sci.Rev., 2004, 66:183-197. doi: 10.1016/j.earscirev.2003.11.002
[6] EIA.International energy outlook 2010 [R].Washington:U.S.Energy Information Administration, Department of Energy, 2010, Report No.DOE/EIA-0484.
[7] Ruppel C, Collett T, Boswell R, et al.A new global gas hydrate drilling map based on reservoir type, Fire in the Ice [R].Department of Energy, Office of Fossil Energy, National Energy Technology Laboratory, Methane Hydrate News Letter, 2011, 11:13-17.
[8] Kretschmer K, Biastoch A, Rüpke L, et al.Modeling the fate of methane hydrates under global warming [J].Glob.Biogeochem.Cycles, 2015, 29:610-625. doi: 10.1002/2014GB005011
[9] Masuda Y, Hariguchi Y, Konno Y, et al. Model calculation on economics of depressurization-induced gas production from oceanic methane hydrates [C]// Proceedings, Offshore Technology Conference, Houston, Texas, 3-6 May 2010.OTC-20787.
[10] Walsh M, Hancock S, Wilson S, et al.Preliminary report on the economics of gas production from natural gas hydrates [J].Journal of Energy Economics, 2009, 31:815-823. doi: 10.1016/j.eneco.2009.03.006
[11] Collett T, Agena W, Lee M, et al.Assessment of gas hydrate resources on the North Slope [M].Alaska:USGS Fact Sheet, 2008:2008-3073.
[12] Osadetz K, Chen Z.A re-evaluation of Beaufort Sea-Mackenzie Delta basin gas hydrate resource potential:Petroleum system approaches to non-conventional gas resource appraisal and geologically-sourced methane flux [J].Bulletin of Canadian Petroleum Geology, 2010, 58(1):56-71. doi: 10.2113/gscpgbull.58.1.56
[13] Frye M.Preliminary evaluation of in-place gas hydrate resources:Gulf of Mexico outer continental shelf [EB/OL].Minerals Management Service Report 2008-004, http://www.mms.gov/revaldiv/GasHydrateAssessment.htm. 2008.
[14] Fujii T, Saeki T, Kobayashi T, et al.Resource assessment of methane hydrate in the eastern Nankai Trough, Japan [C]// Proceedings, 6th Int'l Conf.on Gas Hydrates (ICGH-6), Vancouver, CA, 6-10 July, 2008.
[15] Wallmann K, Pi ero E, Burwicz E, et al.The global inventory of methane hydrate in marine sediments:a theoretical approach [J].Energies, 2012, 5:2449-2498. doi: 10.3390/en5072449
[16] Burwicz E B, Ruepke L, Wallmann K.Estimation of the global amount of submarine gas hydrates formed via microbial methane formation based on numerical reaction-transport modeling and a novel parameterization of Holocene sedimentation [J].Geochimica Cosmochimica Acta, 2011, 75:4562-4576. doi: 10.1016/j.gca.2011.05.029
[17] Marín-Moreno H, Giustiniani M, Tinivella U, et al.The challenges of quantifying the carbon stored in Arctic marine gas hydrate [J].Marine and Petroleum Geology, 2016, 3(71):76-82. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=378f408d339d7e56f5eafea0b79aba67
[18] Pi ero E, Marquardt M, Hensen C, et al.Estimation of the global inventory of methane hydrates in marine sediments using transfer functions [J].Biogeosciences, 2013, 10:959-975. doi: 10.5194/bg-10-959-2013
[19] Collett T.Energy resource potential of natural gas hydrates [J].AAPG Bulletin, 2002, 86(11):1971-1992. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=4cc7f4468db7f70503b21ab5e2fd2f09
[20] Inks T, Lee M, Agena W, et al.Seismic prospecting for gas hydrate and associated free-gas prospects in the Milne Point area of northern Alaska [C]//Collett T, Johnson A, Knapp C, et al.Natural gas hydrates-Energy resource potential and associated geologic hazards AAPG, 2009, Memoir 89.
[21] Hunter R, Collett T, Boswell R, et al.Mount Elbert gas hydrate stratigraphic test well, Alaska North Slope:Overview of scientific and technical program [J].J.Marine and Petroleum Geology, 2011, 28:295-310. doi: 10.1016/j.marpetgeo.2010.02.015
[22] Schoderbek D, Boswell R.Ignik Sikumi #1, Gas hydrate test well, successfully installed on the Alaska North Slope [J].Fire in the Ice, DOE-NETL.2011, 11(1):1-5. http://cn.bing.com/academic/profile?id=125d85b1ec67ba0f3ab842f2f88f3c07&encoded=0&v=paper_preview&mkt=zh-cn
[23] Collett T.Natural gas hydrates of the Prudhoe Bay and Kuparuk River Area, North Slope, Alaska [J].American Association of Petroleum Geologists Bulletin, 1993, 77:793-812. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=WYeVF+p1DB0E8wWyeoMKBBwRXazIC7au9idufUpXJh0=
[24] Collett T, Agena W, Lee M, et al.Assessment of gas hydrate resources on the North Slope [J].Alaska, 2008.USGS Fact Sheet 2008-3073.
http://cn.bing.com/academic/profile?id=f87c370c875658b6b356a55e02d049d7&encoded=0&v=paper_preview&mkt=zh-cn [25] Collett T.Gas hydrate resources of the United States [C]// Gautier D, Dolton G.Natl.Assessment of US Oil & Gas Resources, USGS Ser.1995, 30:78.
[26] Anderson B, Kurihara M, White M, et al.Regional long-term production modeling from a single well test, Mount Elbert Gas Hydrate Stratigraphic Test Well, Alaska North Slope [J].Journal of Marine and Petroleum Geology, 2010, 28:493-501. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=c8ae51cd288f2292cb3318d794853338
[27] Collett T, Lewis R, Winters W, et al.Downhole well log and core montages from the Mount Elbert Gas Hydrate Stratigraphic Test Well, Alaska North Slope [C]//Boswell R, Collett T, Anderson B, et al.Scientific results of the Mount Elbert Gas Hydrate Stratigraphic Test Well, Alaska North Slope.Journal of Marine and Petroleum Geology, 2011, 28(2):561-577.
[28] Tsuji Y, Fujii Y, Hayashi M, et al.Methane-hydrate occurrence and distribution in the Eastern Nankai Trough, Japan:Findings of the Tokai-oki to Kumano-nada methane-hydrate drilling program [C]//Collett T, Johnson A, Knapp C, et al.Natural gas hydrates-energy resource potential and associated geologic hazards.AAPG Memoir 2009, 89.
[29] Takano O, Fujii T, Saeki T.Seismic stratigraphic analysis of Pliocene to Pleistocene sedimentation and tectonics in the eastern Nankai Trough forearc basins.Proceedings [C]//Japan Geoscience Union Meeting, Chiba, Japan, 19-24th May 2007.G-120-006.
[30] Fujii T, Nakamizu M, Tsujii Y, et al.Methane-hydrate occurrence and saturation confirmed from core samples, Eastern Nankai Trough, Japan [C]// Collett T, Johnson A, Knapp C, et al. Natural gas hydrates-energy resource potential and associated geologic hazards.AAPG Memoir 2009, 89.
[31] Kurihara M, Sato A, Ouchi H, et al.Prediction of production test performances in eastern Nankai Trough methane hydrate reservoirs using 3-D reservoir model [C]//Proceedings, Offshore Technology Conference, 3-6th May 2010, Houston, Texas.19382.
[32] Sain K.Gas Hydrate:A Viable Future Major Energy Resource of India[M]//Earth System Processes and Disaster Management.Berlin, Heidelberg:Springer, 2013:205-211.
[33] Riedel M, Collett T S, Shankar U.Documenting channel features associated with gas hydrates in the Krishna-Godavari Basin, offshore India [J].Marine Geology, 2010, 2:79. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=b27ef93607b56323a5e2b6c06fc156b9
[34] Seol J, Lee H.Natural gas hydrate as a potential energy resource:From occurrence to production [J].Korean J.Chem.2013, 30(4):771-786. doi: 10.1007/s11814-013-0033-8
[35] Torres M E, Wallmann K, Tréhu A M, Bohrmann G, Borowski W S and Tomaru H.Earth Planet [J].Sci.Lett., 2004:226, 225. http://cn.bing.com/academic/profile?id=c55270f3d379bc4419b1635ed6577997&encoded=0&v=paper_preview&mkt=zh-cn
[36] Park K P, Bahk J J, Kwon Y, et al.Korean national program expedition confirms rich gas hydrate deposit in the Ulleung Basin, East Sea [J].Fire in the Ice Newsletter, USDOE-NETL, 2008, 8(2):6-9. http://cn.bing.com/academic/profile?id=2f11bb335607c7c700fbb453fcb90908&encoded=0&v=paper_preview&mkt=zh-cn
[37] Horozal S, Lee G H, Yi B Y, et al.Seismic indicators of gas hydrate and associated gas in the Ulleung Basin, East Sea (Japan Sea) and implications of heat flows derived from depths of the bottom-simulating reflector [J].Marine Geology, 2009, 258:126-138. doi: 10.1016/j.margeo.2008.12.004
[38] Beaudoin Y C, Dallimore S R, Boswell R.Frozen Heat:A UNEP Global Outlook on Methane Gas Hydrates[J].United Nations Environment Programme, GRID-Arendal, 2014, 1/2 [B]. https://www.researchgate.net/publication/278667640_Frozen_Heat_A_UNEP_Global_Outlook_on_Methane_Gas_Hydrates_Volume_1
[39] Moridis G, Sloan D.Gas production of disperse, low-saturation hydrate accumulations in oceanic sediments [J].Energy Conservation and Management, 2007, 48:1834-1849. doi: 10.1016/j.enconman.2007.01.023
[40] Li G, Moridis G, Zhang K, et al.Evaluation of gas production potential form marine gas hydrate deposits in the Shenhu area of South China Sea [J].Energy and Fuels, 2010, 24:6018-6033. doi: 10.1021/ef100930m
[41] Yang S, Zhang H, Wu N, et al. High concentration hydrate in disseminated forms obtained in Shenhu area, North Slope of South China Sea [C]//Proceedings of the 6th International Conference on Gas Hydrates, Vancouver, BC, Canada, July 6-10, 2008.
[42] Wu N, Yang S, Zhang H, et al.Gas hydrate system of Shenhu area, northern South China Sea:wire-line logging, geochemical results, and preliminary resource estimates [C]//Proceedings, Offshore Technology Conference, 3-6th May 2010, Houston, Texas.OTC20485.
[43] Kroeger K F, Plaza-Faverola A, Barnes P M, et al.Thermal evolution of the New Zealand Hikurangi subduction margin:Impact on natural gas generation and methane hydrate formation -A model study [J].Marine and Petroleum Geology, 2015, 63(5):97-114. http://cn.bing.com/academic/profile?id=991c9ca6caec749a562355b995d7aa05&encoded=0&v=paper_preview&mkt=zh-cn
[44] Le A N, Huuse M, Redfern J, et al.Gawthorpe, Duncan Irving, Seismic characterization of a Bottom Simulating Reflection (BSR) and plumbing system of the Cameroon margin, offshore West Africa [J].Marine and Petroleum Geology, 2015, 68: 629-647. doi: 10.1016/j.marpetgeo.2014.12.006
[45] 张炜.美国天然气水合物研发进展及对中国的启示[J].海洋地质信息, 2015, 9(1):1-8. http://www.cnki.com.cn/Article/CJFDTotal-KCDZ2014S1441.htm
[46] Osadetz K G.A Re-evaluation of Beaufort Sea-Mackenzie Delta Basin Gas Hydrate Resource Potential:Petroleum System Approaches To Non-Conventional Gas Resource Appraisal and Geologically-Sourced Methane Flux Bulletin of Canadian[J].Petroleum Geology, 2010, 58(1):56-71. doi: 10.2113/gscpgbull.58.1.56
[47] 杨胜雄, 梁金强, 刘昌岭, 等.海域天然气水合物资源勘查工程进展[J].中国地质调查, 2017, 2(4):1-8. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdzdc201702001
[48] 冯善书, 陈惠玲, 伍青.可燃冰商业化开采还需攻克关键技术[N], 南方日报, 2017-06-15.
[49] Singer D A, Menzie D W.矿产资源定量评价:一种综合方法[M].黄文斌, 吴西顺, 李莉, 等, 译.北京:地质出版社, 2013.
-
