Characterization of strongly heterogeneous reservoir architecture and intelligent classification evaluation of flow units
-
摘要:
为了评价珠江口盆地惠州A油田珠江组ZJ452强非均质性储层的储层质量及流体渗流规律，采用了储层构型分析与多层次自动聚类算法对强非均质性储层进行分类评价，筛选出孔隙度、渗透率、流动带指数（FZI）和储层质量参数作为判别参数。应用自组织映射神经网络和贝叶斯判别流动单元智能分类技术，将ZJ452储层定量划分出Ⅰ、Ⅱ、Ⅲ 3类流动单元。通过流动单元判别公式进行体计算，建立三维流动单元模型，分析流动单元空间分布特征，得出ZJ452储层虽然空间上表现为强非均质性，但平面上Ⅰ类流动单元和Ⅱ类流动单元连片分布连通的结论。本研究为惠州A油田ZJ452强非均质性储层油藏挖潜指明了方向。
Abstract:To evaluate the reservoir quality and fluid seepage law of reservoir ZJ452 that is strongly heterogeneous in the Zhujiang Formation in Huizhou A Oilfield in the Pearl River Mouth Basin, reservoir architecture analysis was carried out and multi-level automatic clustering algorithm were used to classify and evaluate the strongly heterogeneous reservoir. Porosity, permeability, flow zone index, and reservoir quality parameters were selected for discrimination. Self-organizing mapping neural network and Bayesian discriminant flow unit intelligent classification technology were applied, from which three types of flow units in reservoir ZJ452 were recognized: Class I, Class II, and Class III. In addition, volume calculation was perform with flow unit discrimination formulas, a three-dimensional flow unit model was established, and the spatial distribution characteristics of flow units was analyzed. Results show that although the reservoir ZJ452 was strongly heterogeneity in space; Class I and Class II flow units were connected in a continuous distribution on the plane. This study pointed out the direction for tapping the potential of the highly heterogeneous reservoir ZJ452 in Huizhou A Oilfield.
-
-

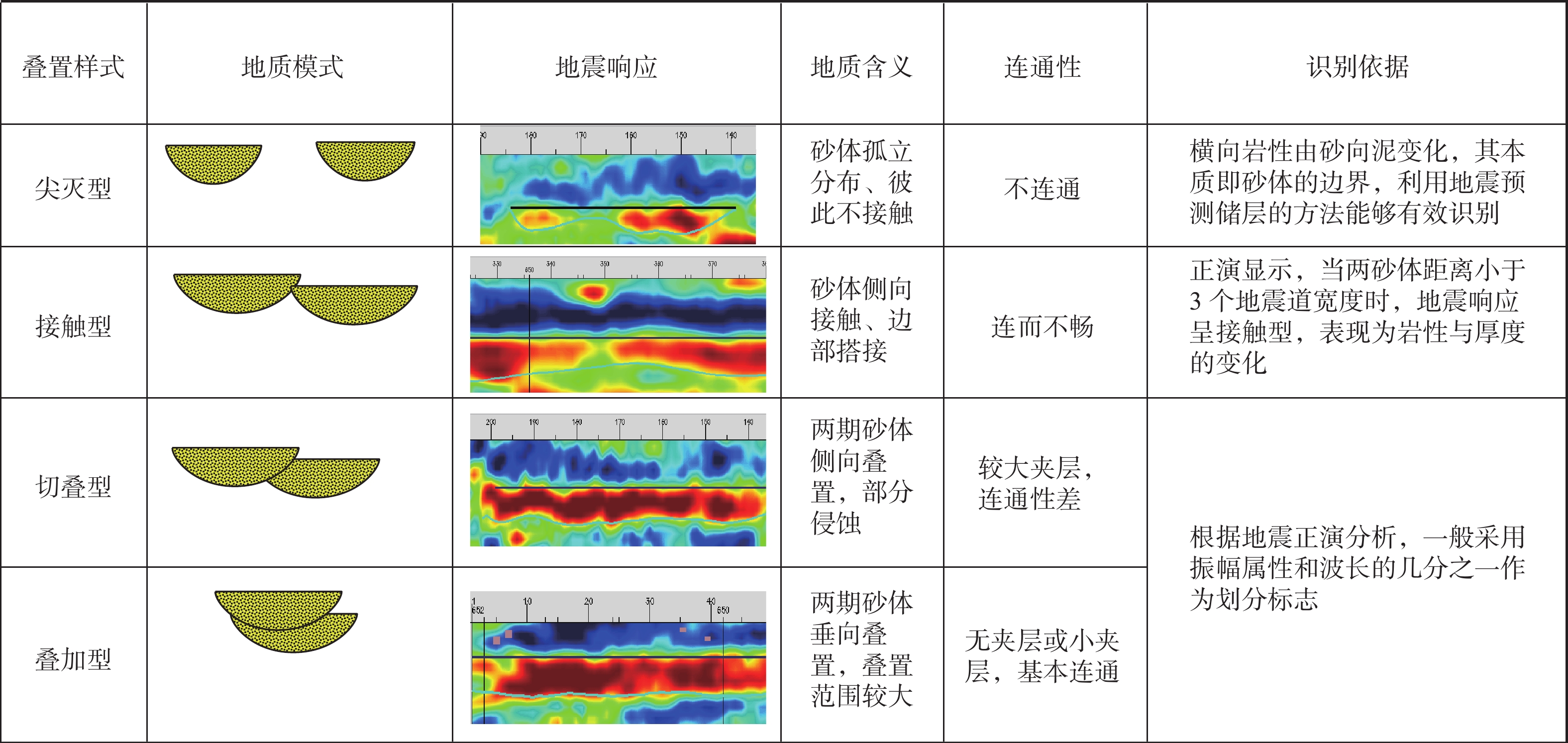

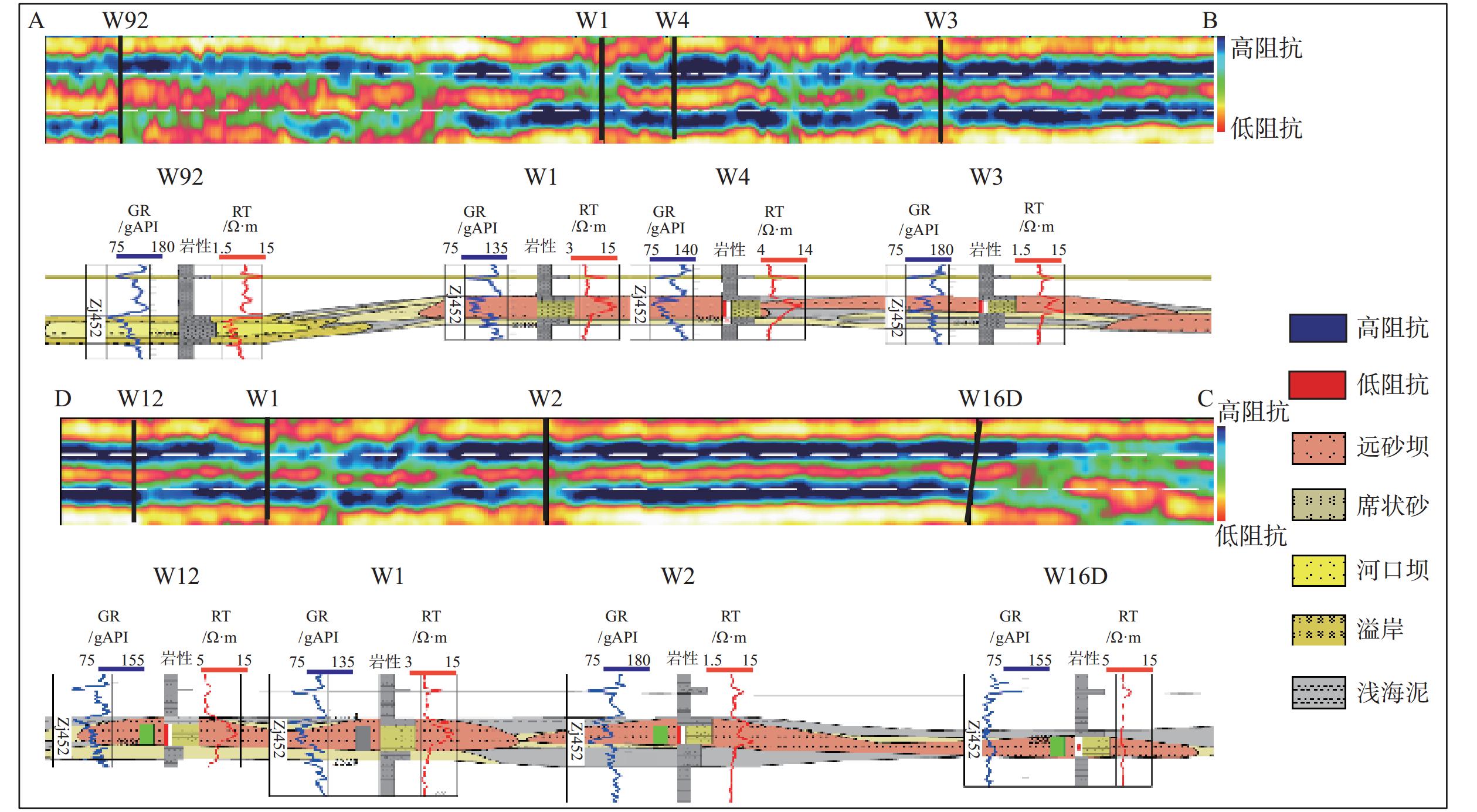

表 1 ZJ452复合砂体叠置样式与连通性
Table 1. Overlay style and connectivity in reservoir ZJ452 composite sand
下载: 导出CSV
-
