New progress of research on marine stratum in the southern part of South Yellow Sea Basin
-
摘要:

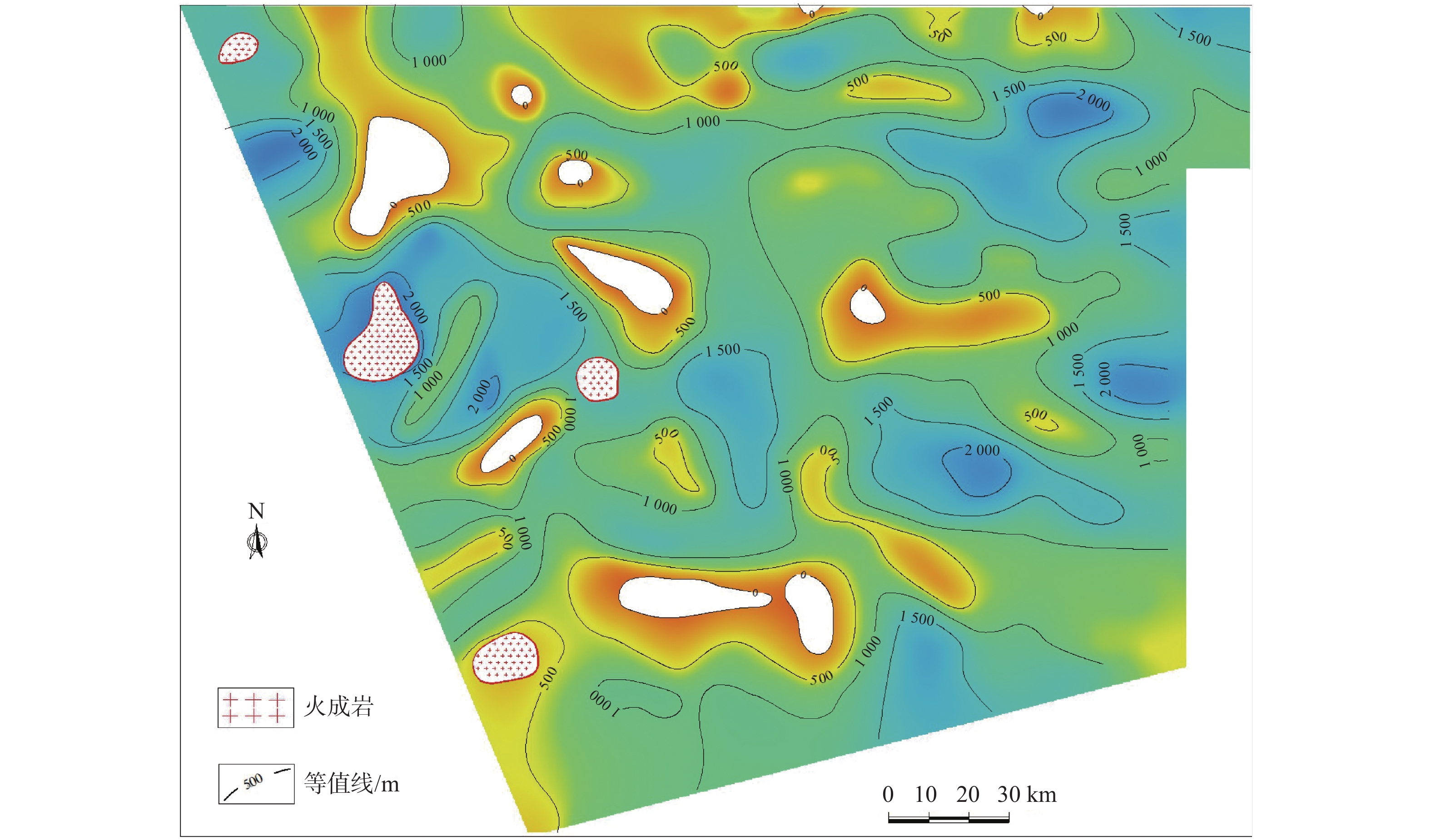

以南黄海盆地南部为研究区，二叠系上统—三叠系下统为研究对象，根据近年来新采集和处理的二维地震资料，对该区域的海相构造层进行了深入分析，取得了一些新的地质认识。研究表明：南黄海盆地南部广泛发育早三叠世—晚二叠世地层，最大残留厚度超过3 000 m；海相构造层的断裂系统主要呈NW—NWW和近EW走向，发育海相中—古生界的挤压断裂体系和陆相中—新生界的拉张断裂体系；根据断裂发育时间，可将其活动期次划分为印支期和燕山-喜山期；同时，根据断裂的平面展布及组合特征，可划分出4类构造样式和9种断裂组合。通过对油气地质条件的分析认为，上古生界是南黄海盆地南部海相构造层的油气勘探方向。该研究成果为南黄海海相油气勘探提供了新的拓展区域。
Abstract:This study focuses on the southern part of the South Yellow Sea Basin, targeting specifically at the Upper Permian and Lower Triassic layers. Utilizing newly acquired and processed 2D seismic data, the research provides an in-depth analysis of the marine facies in the study area, and explores the potential directions for oil and gas exploration. Results indicate that the Late Permian to Early Triassic strata are extensively developed in the study area, exceeding 3 000 m in the maximum residual thickness. Fault systems in the marine facies are mainly in NW-NWW and near-EW directions, comprising both compressional fault system in marine Meso-Paleozoic and extensional one in the terrestrial Meso-Cenozoic. The fault activity could be categorized into the Indosinian and Yanshan-Himalayan epochs. Based on the planar distribution and combination characteristics of the faults, four structural styles and nine types of the fault systems were recognized. By analyzing the geological conditions of oil and gas, we believe that the marine facies of the Upper Paleozoic should be the main target as a novel prospective area of oil and gas exploration in the southern part of the South Yellow Sea Basin.
-
-

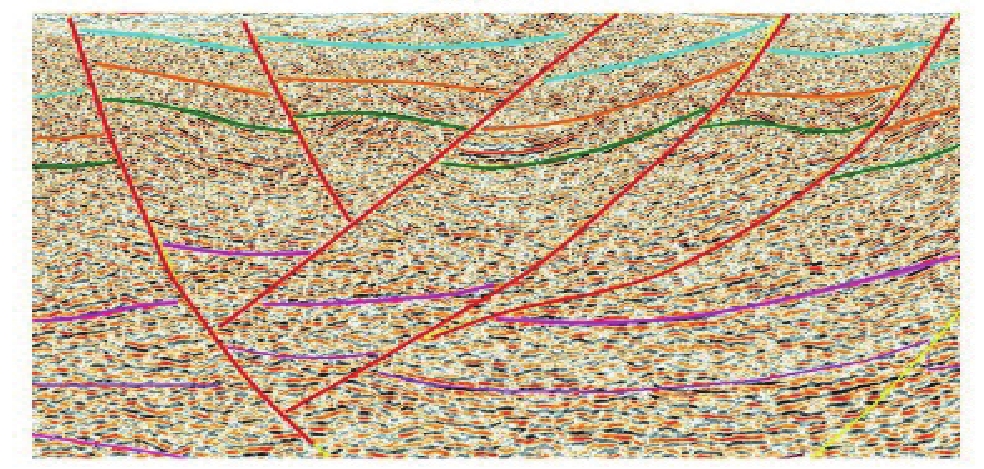

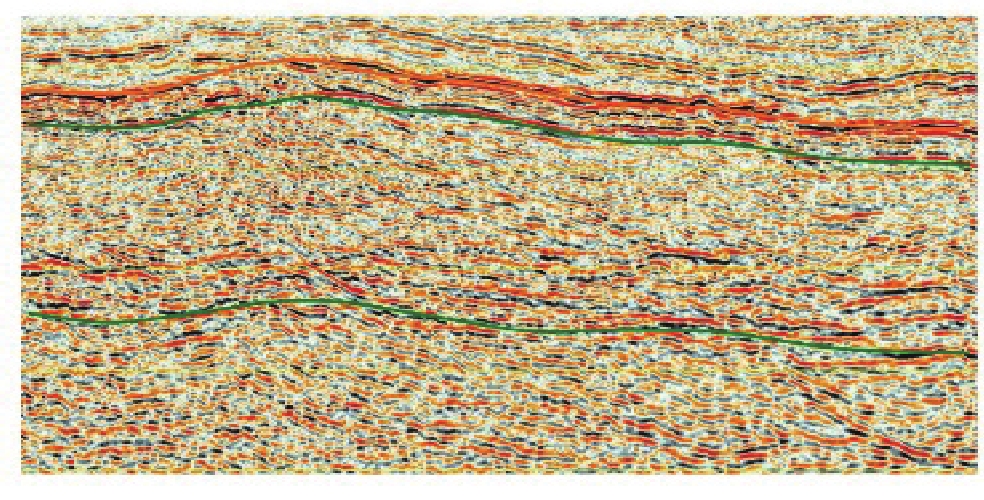

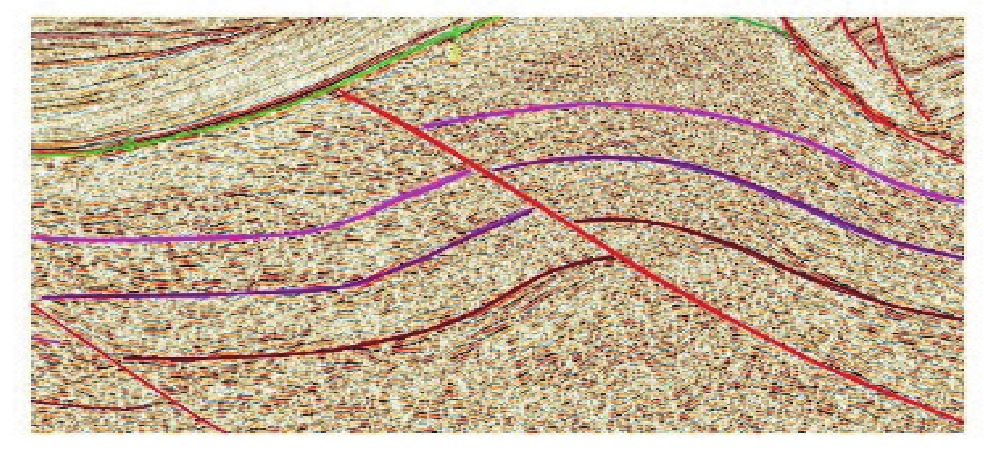

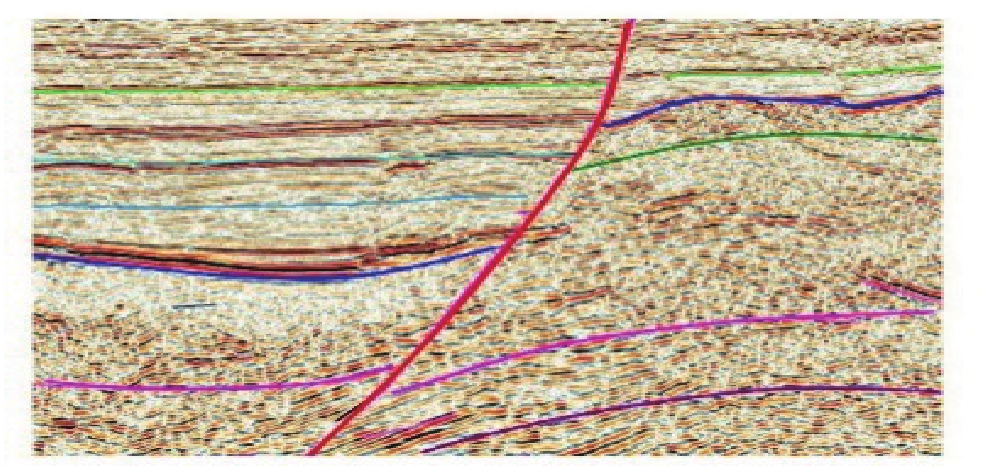

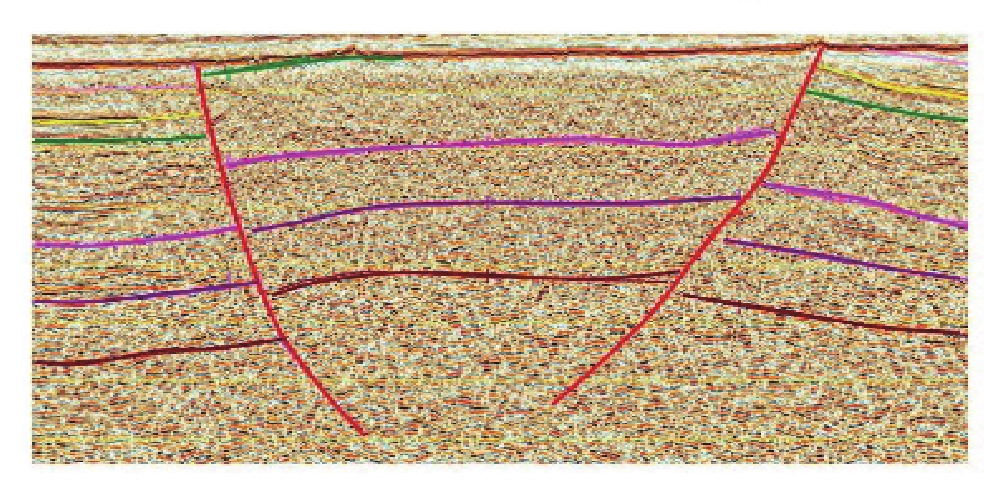

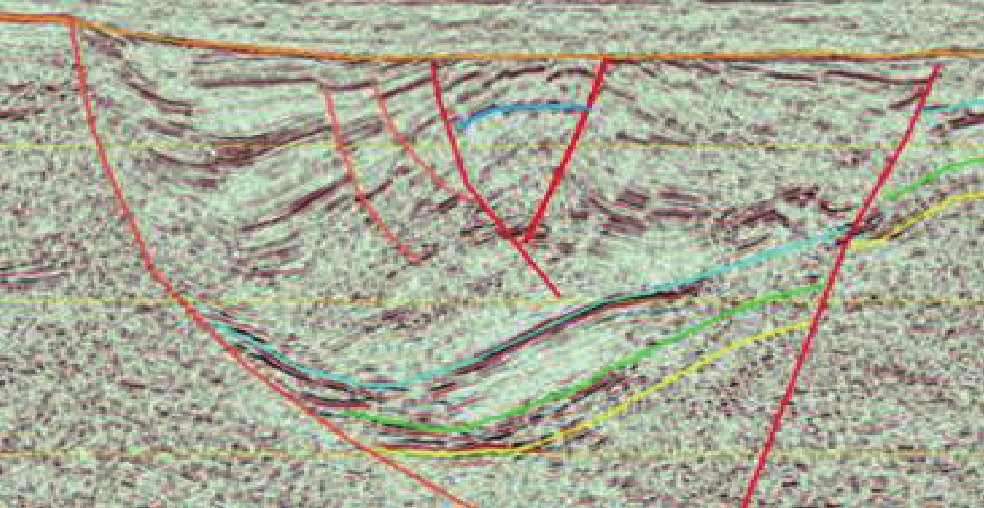

表 1 南黄海盆地南部主要构造样式
Table 1. Main structural styles in the southern part of the South Yellow Sea Basin
类型 构造组合 特征剖面 挤压构
造样式宽缓褶皱
断展褶皱
叠瓦状逆冲
冲起构造
反转构造样式 正反转构造
负反转构造
走滑构
造样式正花状构造
拉张构造样式 半地堑
地堑
下载: 导出CSV
-
[1] 林珍,姚永坚. 南黄海某典型剖面重磁震联合反演及综合解释[J]. 物探与化探,2009,33(4):361-367.
LIN Z,YAO Y J. Garvity-magnetic-seismic inversion and integrated interpretation of a typical section in South Yellow Sea[J]. Geophysical & Geochemical Exploration,2009,33(4):361-367.
[2] 李廷栋,莫杰. 黄海地质构造与油气资源[J]. 海洋地质动态,2002,18(11):4-7. doi: 10.3969/j.issn.1009-2722.2002.11.004
LI T D,MO J. Geologic structures and petroleum resources of the Yellow Sea[J]. Marine Geology Letters,2002,18(11):4-7. doi: 10.3969/j.issn.1009-2722.2002.11.004
[3] 王连进,叶加仁,吴冲龙. 南黄海前第三系油气地质特征[J]. 天然气工业,2005,25(7):1-3. doi: 10.3321/j.issn:1000-0976.2005.07.001
WANG L J,YE J R,WU C L. Petroleum geological characteristics of pre-tertiary in South Yellow Sea Basin[J]. Natural Gas Industry,2005,25(7):1-3. doi: 10.3321/j.issn:1000-0976.2005.07.001
[4] 林年添,高登辉,孙剑,等. 南黄海盆地青岛坳陷二叠系、三叠系地震属性及其地质意义[J]. 石油学报,2012,33(6):987-995. doi: 10.7623/syxb201206009
LIN N T,GAO D H,SUN J,et al. Seismic attributes of the Permian and Triassic in Qingdao Depression,South Yellow Sea Basin and their geological significance[J]. Acta Petrolei Sinica,2012,33(6):987-995. doi: 10.7623/syxb201206009
[5] 陈建文,梁杰,张银国,等. 中国海域油气资源潜力分析与黄东海海域油气资源调查进展[J]. 海洋地质与第四纪地质,2019,39(6):1-29.
CHEN J W,LIANG J,ZHANG Y G,et al. Regional evaluation of oil and gas resources in offshore China and exploration of marine Paleo-Mesozoic oil and gas in the Yellow Sea and East China Sea[J]. Marine Geology & Quaternary Geology,2019,39(6):1-29.
[6] 陈建文,张异彪,陈华,等. 南黄海盆地海相中—古生界地震探测技术攻关历程及效果[J]. 海洋地质前沿,2021,37(4):1-17.
CHEN J W,ZHANG Y B,CHEN H,et al. Research experiences and application of seismic exploration technology to the Mesozoic-Paleozoic marine strata in the South Yellow Sea Basin[J]. Marine Geology Frontiers,2021,37(4):1-17.
[7] 陈建文,雷宝华,梁杰,等. 南黄海盆地油气资源调查新进展[J]. 海洋地质与第四纪地质,2018,38(3):1-23.
CHEN J W,LEI B H,LIANG J,et al. New progress of petroleum resources survey in South Yellow Sea Basin[J]. Marine Geology & Quaternary Geology,2018,38(3):1-23.
[8] 高顺莉,谭思哲,陈春峰,等. 下扬子-南黄海二叠纪岩相古地理特征及油气勘探启示[J]. 海洋地质前沿,2021,37(4):53-60.
GAO S L,TAN S Z,CHEN C F,et al. Permian lithofacies paleogeography of the South Yellow Sea area,Lower Yangtze Plate and its implications for petroleum exploration[J]. Marine Geology Frontiers,2021,37(4):53-60.
[9] 张玉玺,陈建文,张银国. 下扬子-南黄海地区下三叠统“错时相”沉积及成因[J]. 海洋地质前沿,2021,37(4):68-76.
ZHANG Y X,CHEN J W,ZHANG Y G. Anachronistic facies and its origin of the Lower Triassic in the Lower Yangtze-South Yellow Sea area[J]. Marine Geology Frontiers,2021,37(4):68-76.
[10] 张田,朱伟林,胡森清,等. 南黄海盆地中部隆起构造特征及其成因机制[J]. 地球科学,2021,46(10):3481-3495.
ZHANG T,ZHU W L,HU S Q,et al. Structural characteristic and its genetic mechanism of central uplift in South Yellow Sea Basin[J]. Earth Science,2021,46(10):3481-3495.
[11] 雷宝华,张银国,王明健,等. 南黄海盆地崂山隆起构造特征与油气勘探方向[J]. 海洋地质与第四纪地质,2022,42(2):131-143.
LEI B H,ZHANG Y G,WANG M J,et al. Structural characteristics and hydrocarbon exploration prospect of the Laoshan Uplift in the Sout Yellow Sea Basin[J]. Marine Geology & Quaternary Geology,2022,42(2):131-143.
[12] 吴飘,陈建文,赵青芳,等. 南黄海盆地二叠系高-过成熟烃源岩的生物标志化合物特征及其地质意义[J]. 海洋地质与第四纪地质,2023,43(4):150-166.
WU P,CHEN J W,ZHAO Q F,et al. Characteristics of biomarkers and the geological significance in highly to over-mature Permian source rocks in the South Yellow Sea Basin[J]. Marine Geology & Quaternary Geology,2023,43(4):150-166.
[13] 吴淑玉,刘俊,陈建文,等. 南黄海崂山隆起石炭系—下二叠统孔隙型碳酸盐岩储层预测[J]. 海洋地质与第四纪地质,2020,40(5):136-148.
WU S Y,LIU J,CHEN J W,et al. Prediction of pore-dominated Carboniferous-Lower Permian carbonate reservoir at the Laoshan Uplift,South Yellow Sea Basin[J]. Marine Geology & Quaternary Geology,2020,40(5):136-148.
[14] 袁勇,陈建文,梁杰,等. 南黄海崂山隆起二叠系砂岩储层特征及其油气勘探前景[J]. 海洋地质与第四纪地质,2021,41(5):181-193.
YUAN Y,CHEN J W,LIANG J,et al. Characteristics and hydrocarbon prospects of the Permian sandstone reservoirs of the Laoshan Uplift,South Yellow Sea[J]. Marine Geology & Quaternary Geology,2021,41(5):181-193.
[15] 郭兴伟,卢辉楠,张训华,等. 大陆架科学钻探CSDP-2井揭示的南黄海中—古生代古生物地层框架[J]. 海洋地质前沿,2021,37(11):85-88.
GUO X W,LU H N,ZHANG X H,et al. Paleozoic paleostratigraphic framework in the South Yellow Sea revealed by Well CSDP-2 in Continental Shelf Scientific Drilling Program[J]. Marine Geology Frontiers,2021,37(11):85-88.
[16] 张升升,吴志强,朱俊江,等. 基于CSDP-2井的南黄海海相地层地球物理性质研究进展及其地质意义[J]. 世界地质,2022,41(3):583-606. doi: 10.3969/j.issn.1004-5589.2022.03.012
ZHANG S S,WU Z Q,ZHU J J,et al. Research progress and geological significance of geophysical properties of marine strata based on Well CSDP-2 in South Yellow Sea[J]. World Geology,2022,41(3):583-606. doi: 10.3969/j.issn.1004-5589.2022.03.012
[17] 张银国,陈建文,龚建明,等. 青岛海洋地质研究所 45 年来海域油气资源调查进展[J]. 海洋地质与第四纪地质,2024,44(3):2-23.
ZHANG Y G,CHEN J W,GONG J M,et al. Progress in marine oil and gas survey in Qiangdao Institute of Marine Geology over the past 45 years[J]. Marine Geology & Quaternary Geology,2024,44(3):2-23.
[18] 陈建文,杨长清,张莉,等. 中国海域前新生代地层分布及其油气勘探方向[J]. 海洋地质与第四纪地质,2022,42(1):1-25.
CHEN J W,YANG C Q,ZHANG L,et al. Distribution of pre-Cenozoic strata and petroleum prospecting direction in China Seas[J]. Marine Geology & Quaternary Geology,2022,42(1):1-25.
[19] FU Y L,YAN B,LIANG J,et al. Influence of basement high and detachment on the kinematics of a fold-and-thrust belt in the central South Yellow Sea Basin,China:insights from analog modeling[J]. Marine and Petroleum Geology,2024,160:106648. doi: 10.1016/j.marpetgeo.2023.106648
[20] 曹倩,李海华,单帅强,等. 南黄海盆地南部坳陷二叠系烃源岩演化及资源潜力[J]. 石油实验地质,2023,45(2):280-287. doi: 10.11781/sysydz202302280
CAO Q,LI H H,SHAN S Q,et al. Evolution and resource potential of Permian source rocks in the southern depression of the South Yellow Sea Basin[J]. Petroleum Geology & Experiment,2023,45(2):280-287. doi: 10.11781/sysydz202302280
[21] 黄建军,牛华伟. 南黄海盆地南部坳陷对冲挤压变形与拉张断陷叠加特征分析[J]. 特种油气藏,2019,26(4):15-20. doi: 10.3969/j.issn.1006-6535.2019.04.003
HUANG J J,NIU H W. Superposition characterization between hedging extrusion deformation and tensile fault-depression in the southern depression of the South Yellow Sea Basin[J]. Special Oil and Gas Reservoirs,2019,26(4):15-20. doi: 10.3969/j.issn.1006-6535.2019.04.003
[22] 戴春山,李刚. 黄海海域前第三系及油气勘探[J]. 海洋地质动态,2002,18(11):16-20.
DAI C S,LI G. Paleogene and oil and gas exploration in the South Yellow Sea[J]. Marine Geology Letters,2002,18(11):16-20.
[23] 杨艳秋,李刚,易春燕. 南黄海盆地海相地层地震反射特征及地震层序地质时代[J]. 东北石油大学学报,2015,39(3):50-59. doi: 10.3969/j.issn.2095-4107.2015.03.007
YANG Y Q,LI G,YI C Y. Characteristics of seismic reflection and geological ages of seismic sequences for marine strata in the South Yellow Sea Basin[J]. Journal Of Northeast Petroleum university,2015,39(3):50-59. doi: 10.3969/j.issn.2095-4107.2015.03.007
[24] 杨艳秋. 南黄海南部二叠系上统—三叠系下统的分布特征及油气勘探的意义[D]. 长春:吉林大学,2004.
YANG Y Q. Distribution characteristics of Upper Permian- Lower Trias and hydrocarbon exploration in the Southern Part of the Southern Yellow Sea[D]. Changchun:Jinlin University,2004.
[25] HU P P,YANG F L,LI S Z,et al. Opposite thrust system under the Subei-South Yellow Sea Basin:a synthesis on the closure of the eastern Tethyan Ocean in East China[J]. Earth-Science Reviews,2022,231:104075. doi: 10.1016/j.earscirev.2022.104075
[26] 王明健,陈晓辉,朱晓青,等. 中国东部海区重点盆地演化与中深层油气资源潜力[J]. 海洋地质前沿,2024,40(9):1-12.
WANG M J,CHEN X H,ZHU X Q,et al. Evolution and oil and gas resource potential of key sedimentary basins in the eastern China seas[J]. Marine Geology Frontiers,2024,40(9):1-12.
-
