中更新世黄土的湿陷特性及其湿陷预测模型

付昱凯; 李广林; 李同录; 张子然; 刘贺

doi:10.16030/j.cnki.issn.1000-3665.202307022

中更新世黄土的湿陷特性及其湿陷预测模型

1.
长安大学地质工程与测绘学院，陕西西安　710054

2.
黄土高原水循环与地质环境教育部野外科学观测研究站，甘肃正宁　745399

基金项目: 陕西省自然科学基础研究计划项目（2022JM-167）；国家自然科学基金项目(42474051)

详细信息

作者简介: 付昱凯（1983—），男，博士，讲师，主要从事岩土力学与地质灾害研究。E-mail：fw@chd.edu.cn

通讯作者: 李同录（1965—），男，博士，教授，主要从事黄土工程地质、地质灾害防治研究。E-mail：dcdgx08@chd.edu.cn

中图分类号: P642.3

收稿日期: 2023-07-15

修回日期: 2023-10-05

录用日期: 2023-10-11

刊出日期: 2025-01-15

Collapsible properties of Q₂loess and its collapsible prediction model

1.
School of Geological Engineering and Surveying, Chang’an University, Xi’an, Shaanxi　710054, China

2.
Water Cycle and Geological Environment Observation and Research Station for the Chinese Loess Plateau, Ministry of Education, Zhengning, Gansu　745399, China

More Information

Corresponding author: LI Tonglu, dcdgx08@chd.edu.cn

Received Date: 15 July 2023

Revised Date: 05 October 2023

Accepted Date: 11 October 2023

Publish Date: 15 January 2025

摘要

摘要:
间歇性的地表灌溉或工程运营引起的长期地表渗漏，会导致深层中更新世（Q₂）黄土的增湿变形，进而影响构建筑物安全。为了预测Q₂黄土的湿陷变形特性，对陕西泾阳原状Q₂黄土进行了多个含水率下的高压固结试验，得到不同含水率及压力下的湿陷系数，并基于试验结果，在δ_s-lgp半对数坐标系中，利用线性及Lorentz型函数构建Q₂黄土湿陷系数的压力相关模型，然后基于模型参数与含水率相关性，建立湿陷系数与压力和含水率的二元函数三维模型。试验结果表明：随着荷载的增大，黄土的湿陷系数在δ_s-lgp半对数坐标系中均呈现出线性缓增-骤增-峰值-减小的变化趋势，且各含水率下缓增-骤增阶段的分界压力不随含水率的变化而改变，均为饱和状态压缩曲线的结构屈服压力；各含水率下峰值湿陷系数和对应的压力均随含水率的增大逐渐减小。建立的湿陷系数模型能较好地描述Q₂黄土高压力范围内各含水率下湿陷系数随压力的变化，可用来预测Q₂黄土在不同含水率和荷载下的湿陷系数，对深厚层Q₂黄土的浸水、增湿湿陷评价具有实际意义。
- 中更新世黄土 /
- 湿陷变形 /
- 湿陷系数 /
- 压力 /
- 含水率 /
- 湿陷模型
Abstract:
Long-term surface leakage caused by intermittent surface irrigation or project operation can lead to the humidification and settlement deformation of deep Q₂ loess, compromising the safety of the structures. To predict the collapsible deformation properties of Q₂ loess, a series of high pressure consolidation tests were performed under different water contents on Q₂ loess from Jingyang of Shaanxi Province. The collapsible coefficients under different water contents were measured by using double-line method tests, and the collapsibility of Q₂ loess of different water contents and pressures within high pressure range were investigated. Based on these experimental results, a pressure-dependent collapsibility coefficient model in the δ_s-p semi-logarithmic coordinates was proposed by using linear and Lorentz-type joint functions. Furthermore, a 3D collapsible surface model related to the pressure and water content was proposed based on the correlation analysis between model parameters and water content. The test results indicates that all collapsible coefficients in the δ_s-p semi-logarithmic coordinates present the trend of linear slow increase-sudden increase-peak-decrease with the increasing pressure. The boundary pressure between the slow increase stage and sudden increase stage remains unaffected by changes in water content and corresponds to the structural yield pressure of the saturated compression curve. Additionally, the peak collapsible coefficient and its corresponding pressure decreases with the increase of water content. The proposed model can accurately describe the variation of collapsibility coefficient of Q₂ loess with different water contents throughout the high pressure consolidation, which is of practical significance to evaluate the collapsibility of deep and thick Q₂ loess under water immersion and humidification.
- Q₂ loess /
- collapsible deformation /
- collapsible coefficient /
- pressure /
- water content /
- collapsible model

HTML全文

图 1 取样黄土剖面和取样层位

Figure 1.

下载: 全尺寸图片幻灯片

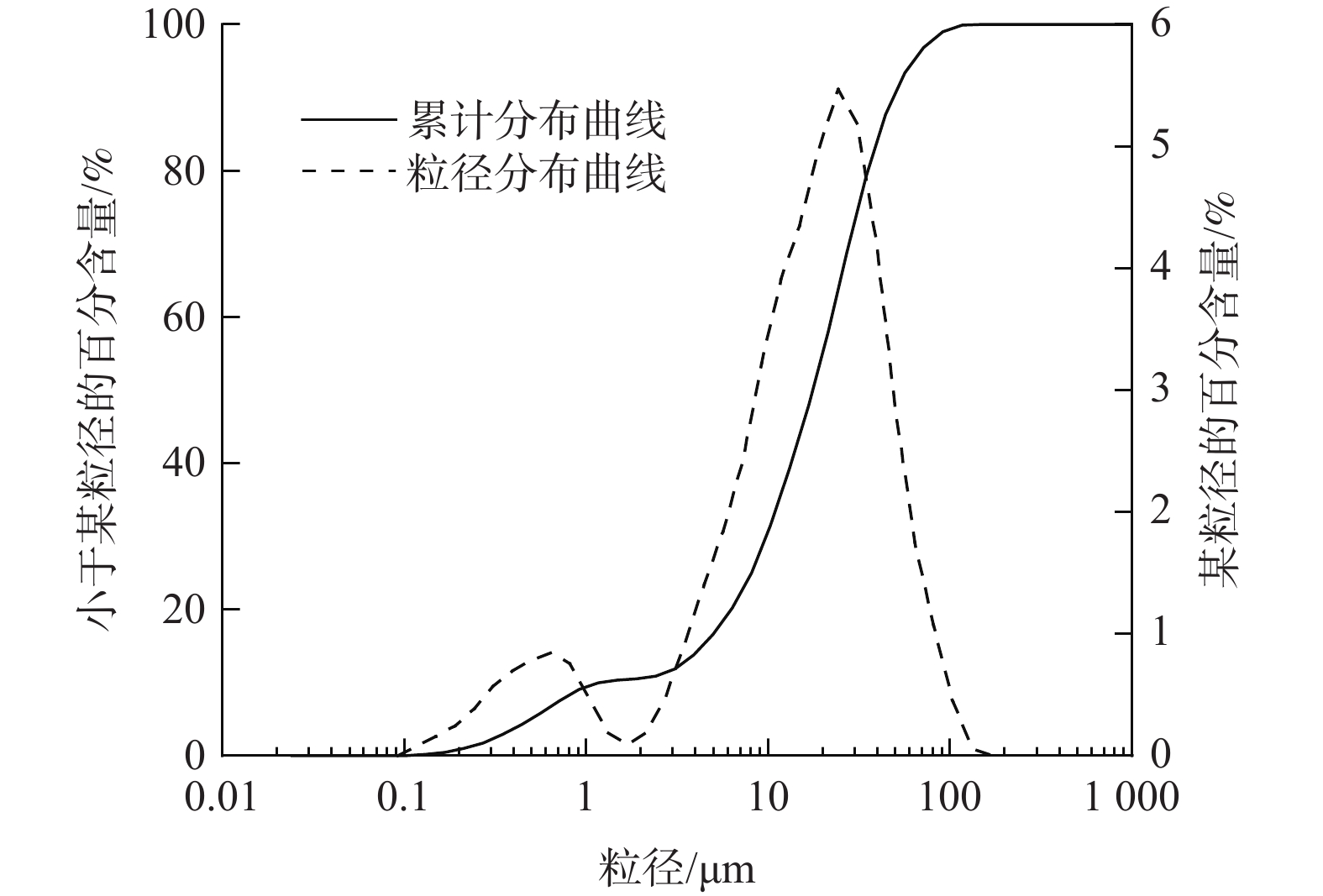

图 2 土样的粒径分布曲线

Figure 2.

下载: 全尺寸图片幻灯片

图 3 不同含水率试样的一维固结压缩曲线

Figure 3.

下载: 全尺寸图片幻灯片

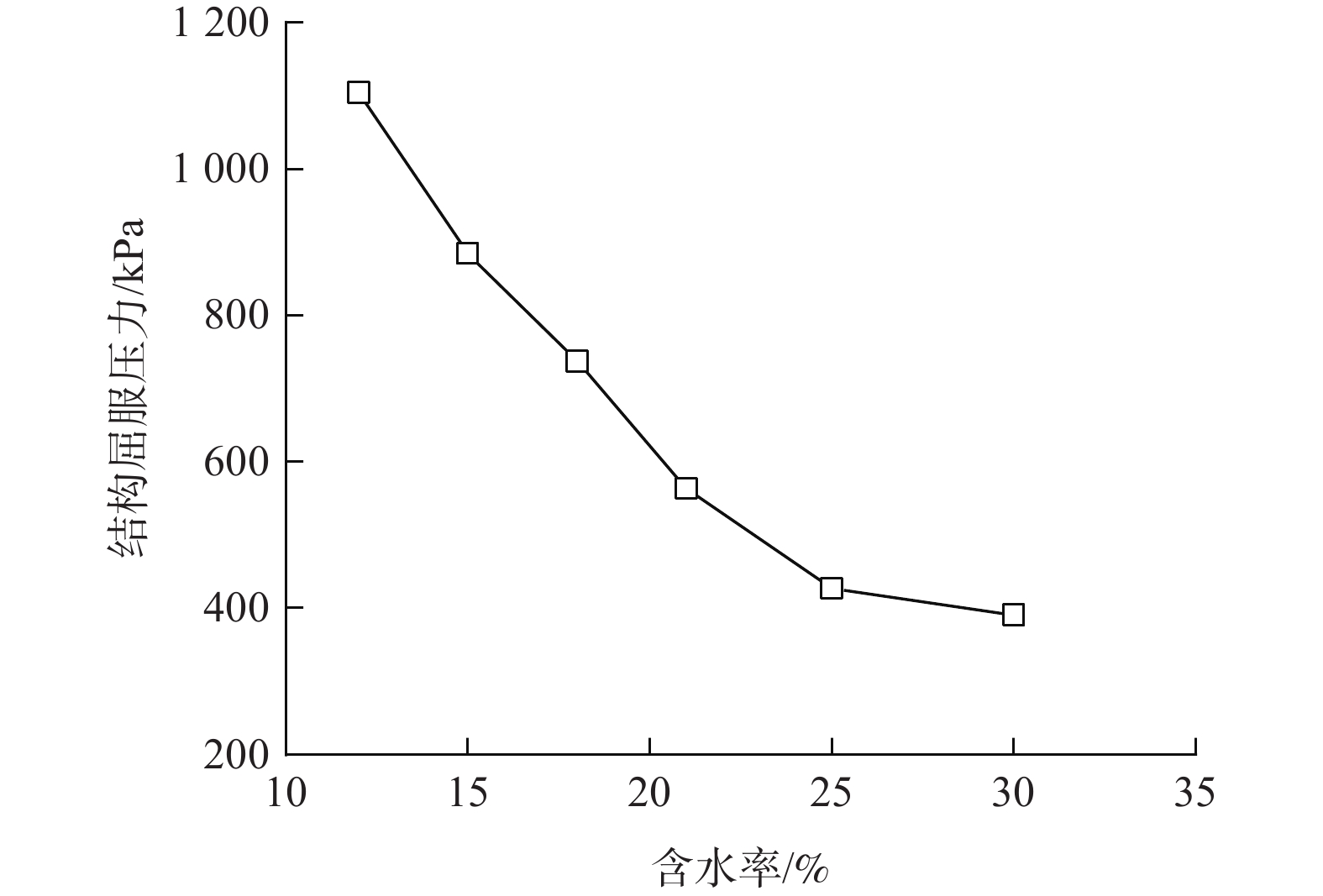

图 4 结构屈服压力随含水率变化曲线

Figure 4.

下载: 全尺寸图片幻灯片

图 5 不同含水率黄土湿陷系数随压力变化曲线

Figure 5.

下载: 全尺寸图片幻灯片

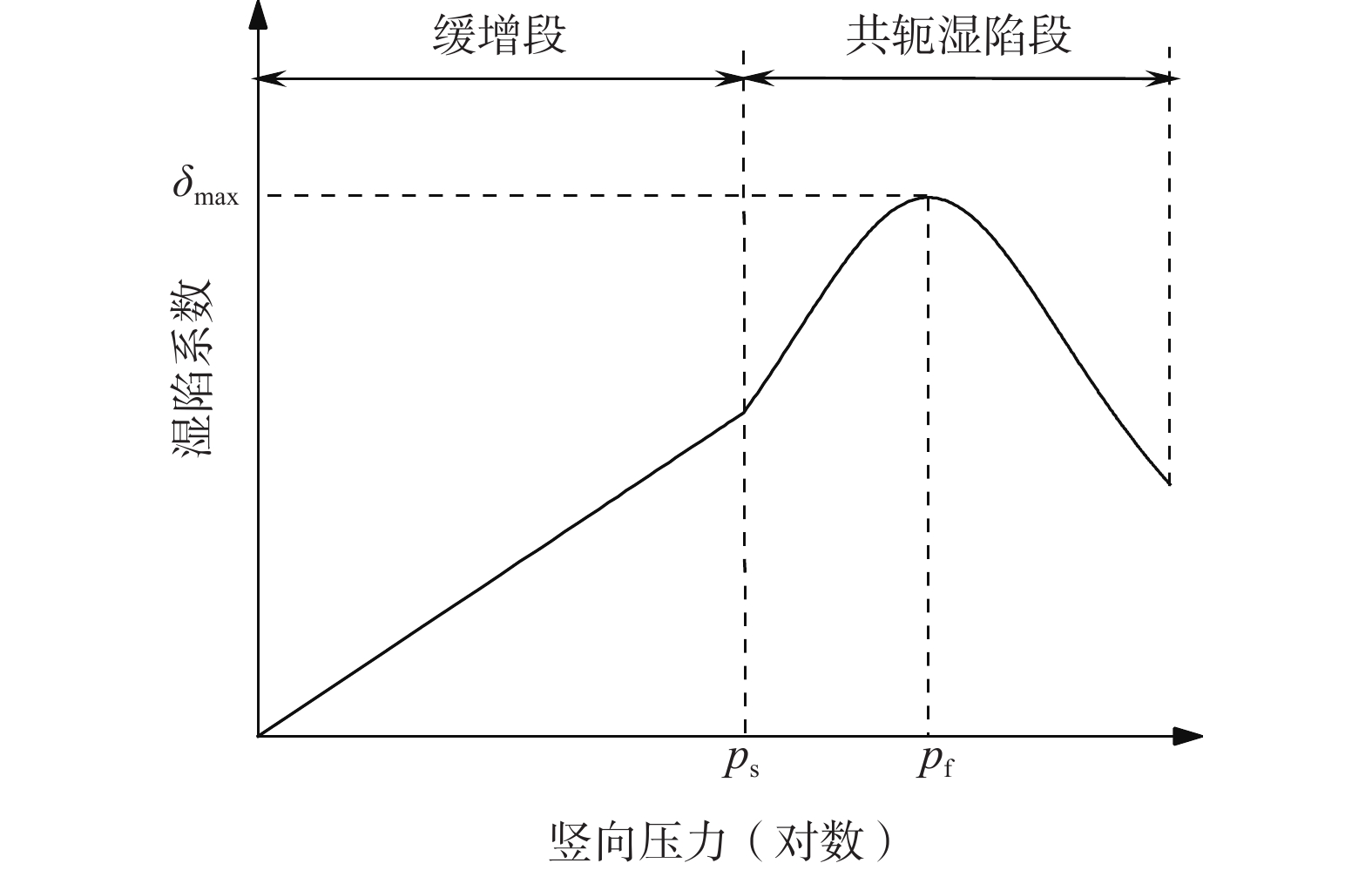

图 6 压力相关湿陷系数模型

Figure 6.

下载: 全尺寸图片幻灯片

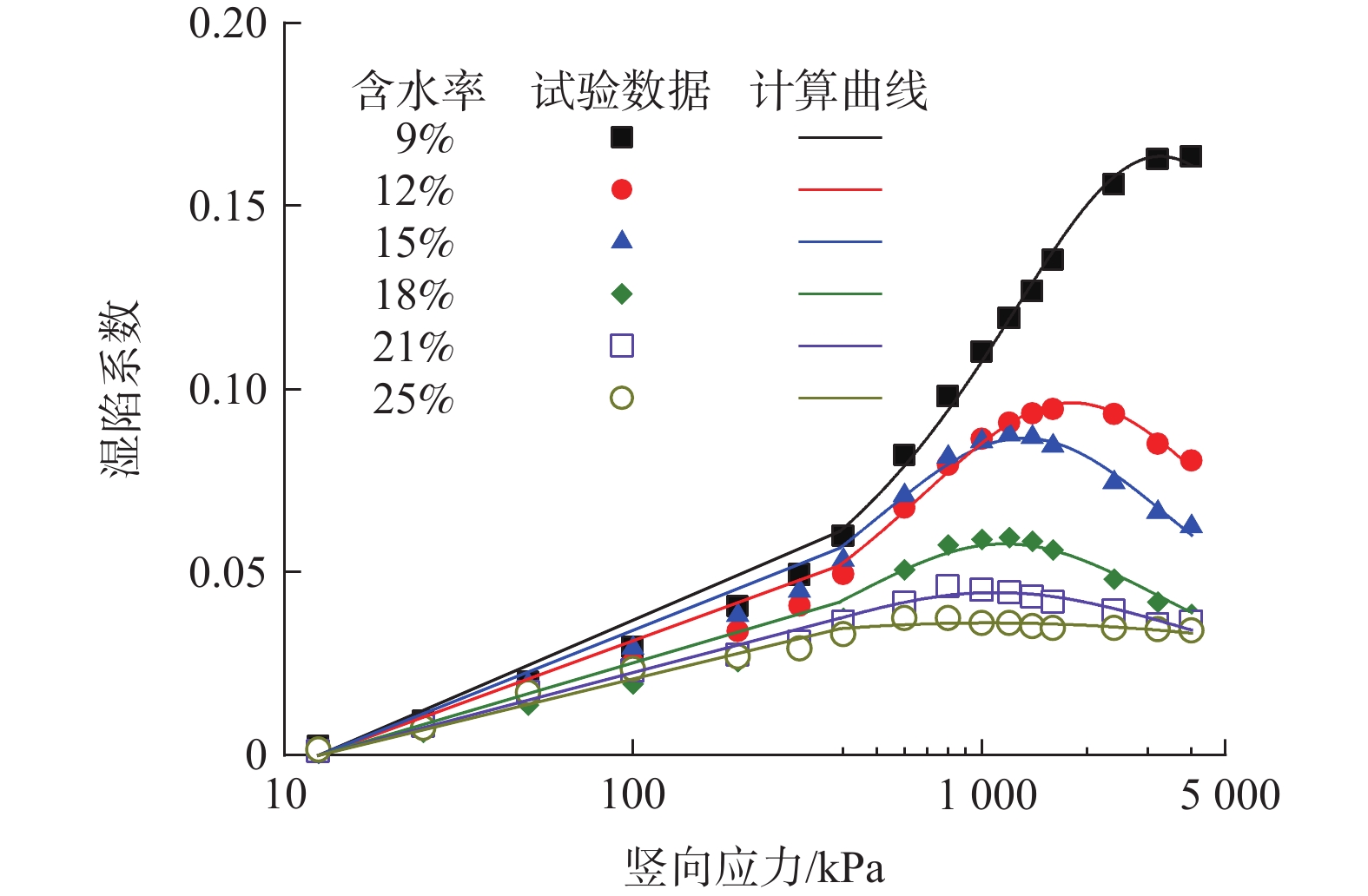

图 7 不同含水率黄土湿陷系数及模型计算曲线

Figure 7.

下载: 全尺寸图片幻灯片

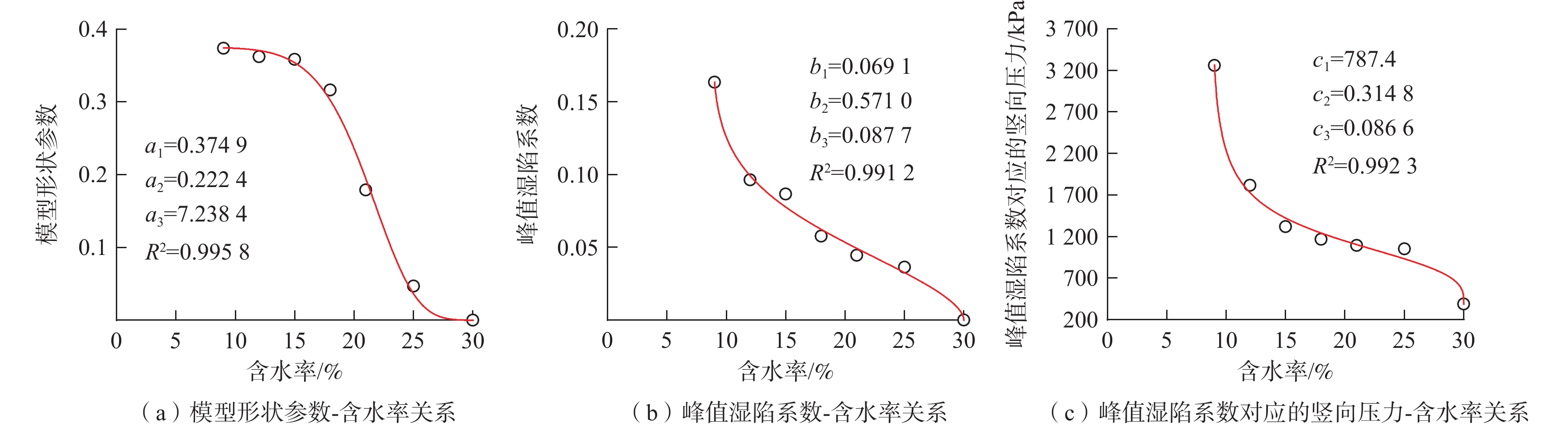

图 8 模型参数与含水率关系曲线

Figure 8.

下载: 全尺寸图片幻灯片

图 9 Q₂黄土湿陷系数与压力及含水率的关系

Figure 9.

下载: 全尺寸图片幻灯片

表 1 泾阳Q₂黄土基本物理指标

Table 1. Basic physical parameters of Q₂ loess in Jingyang

土样	孔隙比	干密度/（g·cm⁻³）	颗粒比重	天然含水率/%	液限/%	塑限/%
黄土	0.727	1.57	2.71	17.3	28.8	18.5

下载: 导出CSV

表 2 不同含水率下的结构屈服压力

Table 2. Structural yield pressure of different water content

含水率/%	12	15	18	21	25	30（饱和）
结构屈服压力/kPa	1104.0	883.6	737.3	563.1	426.7	390.9

下载: 导出CSV

表 3 不同含水率下模型拟合参数

Table 3. Model parameters with different water content

含水率/%	拟合参数
含水率/%	a	δ_max	p_f/kPa	R²
9	0.3737	0.1635	3259.9	0.994
12	0.3603	0.0962	1817.2	0.988
15	0.3585	0.0866	1321.1	0.985
18	0.3165	0.0577	1166.1	0.961
21	0.1739	0.0445	1094.3	0.985
25	0.0479	0.0362	1050.2	0.978

下载: 导出CSV
