摘要:
精确测定地下水中不同形态汞（Hg）的浓度变化，对于深入解析汞的迁移转化机制及其对水生态安全构成的潜在风险具有重要意义。然而，这一基础性研究工作目前面临挑战，瓶颈问题在于缺乏一种兼具高灵敏度、高可靠性且适宜现场快速部署的检测技术，以实现对地下水中超痕量Hg(II)的精准监测。鉴于此，文章介绍了基于脱氧核糖核酸（DNA）传感材料的新型检测手段，并深入探究了两种生物传感方法的可行性及优劣：其一是利用DNA功能化水凝胶直接检测地下水中的Hg(II)；其二则是通过结合薄膜扩散梯度技术（DGT）与DNA传感元件，构建DNA-DGT传感器，实现Hg(II)的即时采样与检测。通过对来自加拿大格兰德河流域具有多种水文地球化学特征的地下水进行测试，发现DNA功能化水凝胶能够快速检测溶解态Hg(II)，但不适用于低浓度Hg(II)（<1.60 μg/L），而DNA-DGT传感器可以根据测试时长捕获不同浓度的超痕量Hg(II)形态。进一步结合DNA-DGT传感器检测和水文地球化学计算对地下水中Hg(II)形态进行量化分析，发现温度、pH值、Cl−和溶解性有机质（dissolved organic matter，DOM）对痕量Hg(II)的形态分布、扩散效率及迁移能力产生显著影响。结合水文地球化学模拟分析，DNA-DGT测量结果揭示了Hg(II)的迁移转化过程与地下水中硫的氧化还原循环存在密切关联。研究强调了运用高灵敏度、便于现场部署的生物传感方法监测低浓度Hg(II)，对于认识地下水中汞的迁移转化规律及其对安全供水构成的潜在威胁具有重要意义。
Abstract:Accurate quantification of various mercury (Hg) species dynamics in groundwater is critical for understanding Hg mobilization, fate, and consequent impacts on water ecological security. This foundational work, however, faces challenges due to the lack of highly sensitive, reliable, and field-deployable detection technologies that can determine and monitor ultra-trace Hg(II) in groundwater. Here, this research presents and assesses two types of biosensing methods for dissolved Hg(II) based on a deoxyribonucleic acid (DNA) sensing material: the DNA-functionalized hydrogel for direct Hg(II) detection in groundwater and the DNA-DGT sensor for simultaneous sampling and detection with the diffusive gradients in thin films technique (DGT). Applying tests to hydrogeochemically diverse groundwaters from the Grand River Watershed, Canada, the results indicate that the DNA-functionalized hydrogel is able to quickly detect dissolved Hg(II) but inapplicable to low Hg(II) concentrations (<1.60 μg/L), whereas the DNA-DGT sensor can capture variably ultra-trace Hg(II) species depending on the deployment time. Quantification of Hg(II) species in groundwater via joint DNA-DGT sensing and hydrogeochemical calculation indicates that temperature, pH, Cl−, and dissolved organic matter significantly affected partitioning of trace Hg(II) between various mobile species, diffusion efficiency, and thus its mobility. Combined with hydrogeochemical modeling, the DNA-DGT measurements reveal that mobilization and transformation of Hg(II) are linked to redox cycling of sulfur in groundwater. This study therefore highlights that monitoring of low-level Hg(II) with ultra-sensitive, field-deployable biosensing methods is of significance to understanding mobility and fate of Hg in groundwater and its threat to safe drinking water supply.
-
Key words:
- mercury /
- bionanosensing /
- groundwater pollution /
- in-situ monitoring /
- hydrogeochemical modeling /
- mobilization
-
-

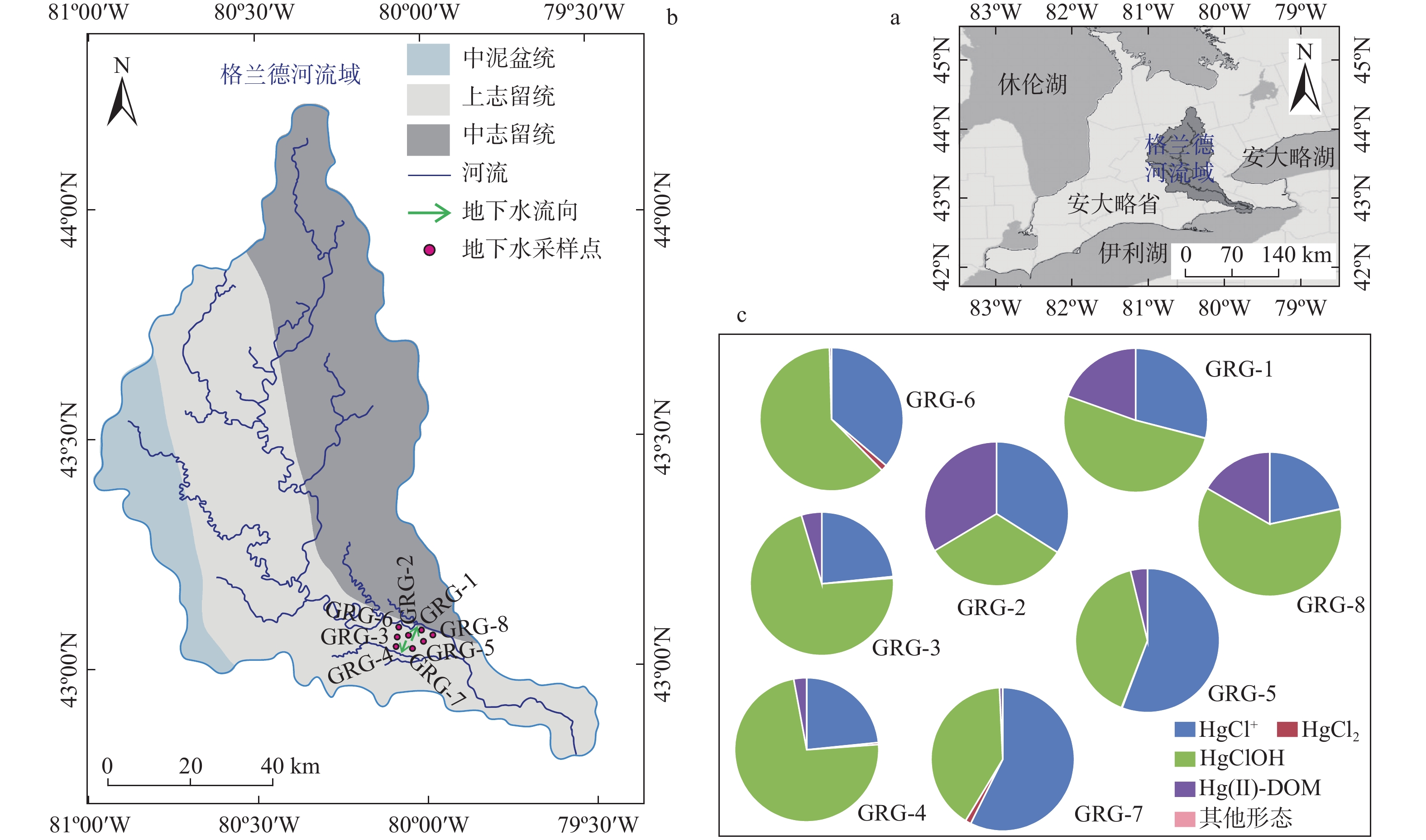

图 1 （a）研究区（格兰德河流域）地理位置；（b）格兰德河流域地层与水文地质概况及地下水采样点分布；（c）地下水样品中溶解性Hg(II)的形态分布（Hg(II)-DOM代表与DOM结合的Hg(II)）
Figure 1.

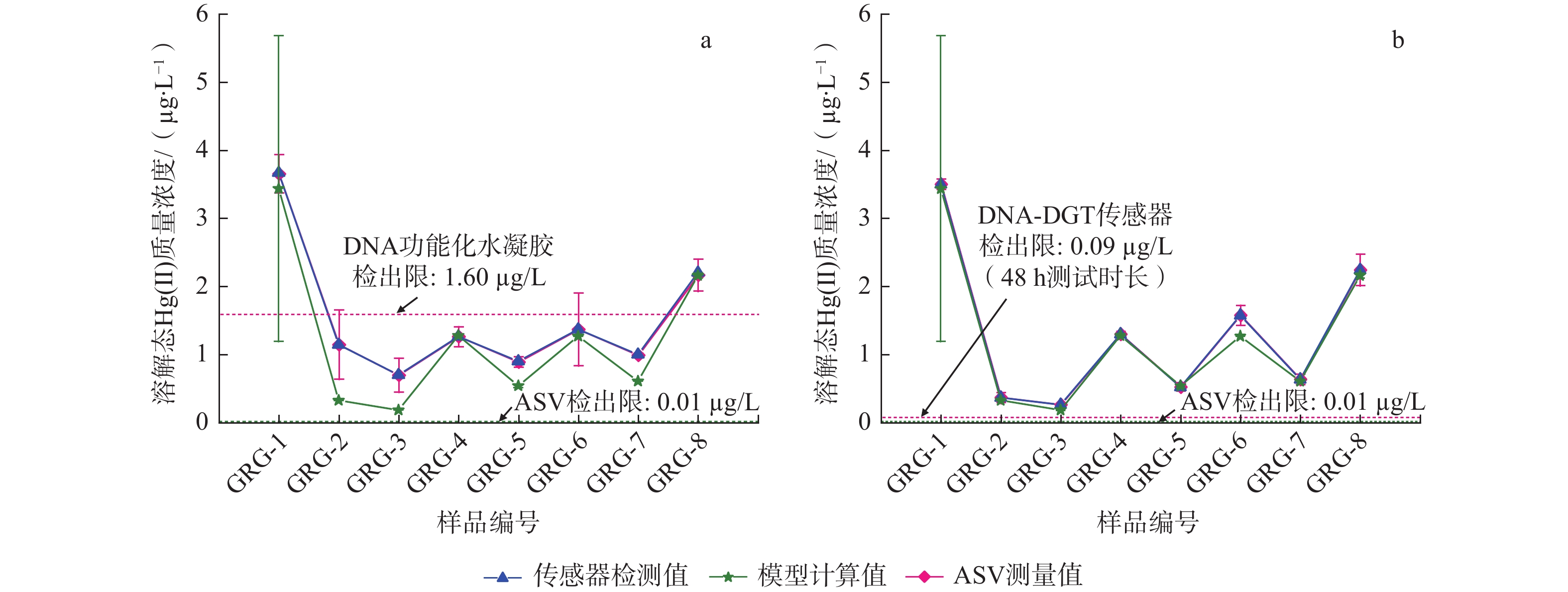

图 4 单一DNA功能化水凝胶传感器（a）和DNA-DGT传感器（b）对地下水中溶解态Hg(II)浓度的检测结果，及其与ASV法测量值和模型计算值的比较
Figure 4.

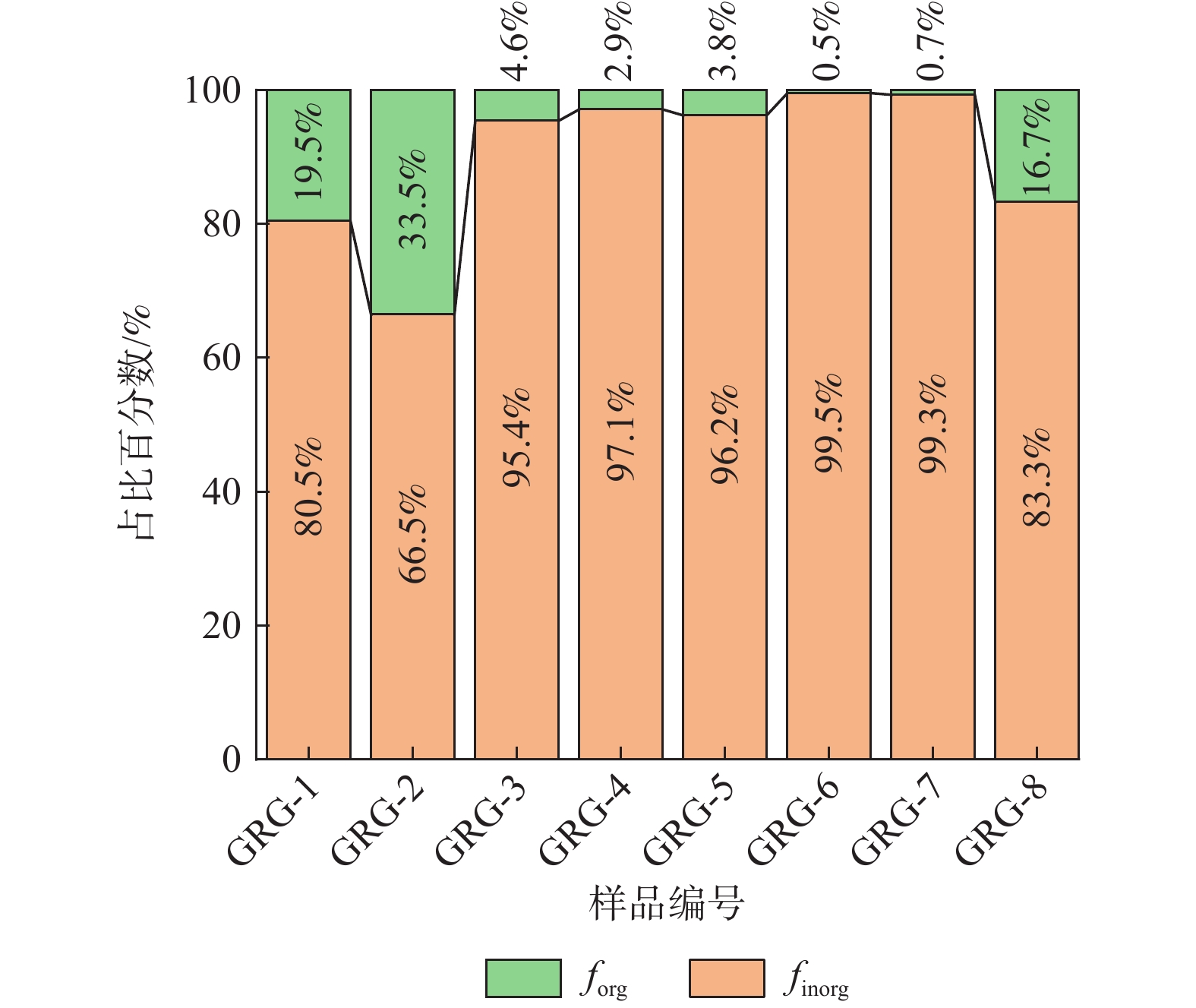

图 3 原始地下水样中总无机Hg(II)络合物（Hg2+与无机配体络合，finorg）和总有机Hg(II)络合物（Hg2+与溶解性有机质络合，forg）的百分比
Figure 3.

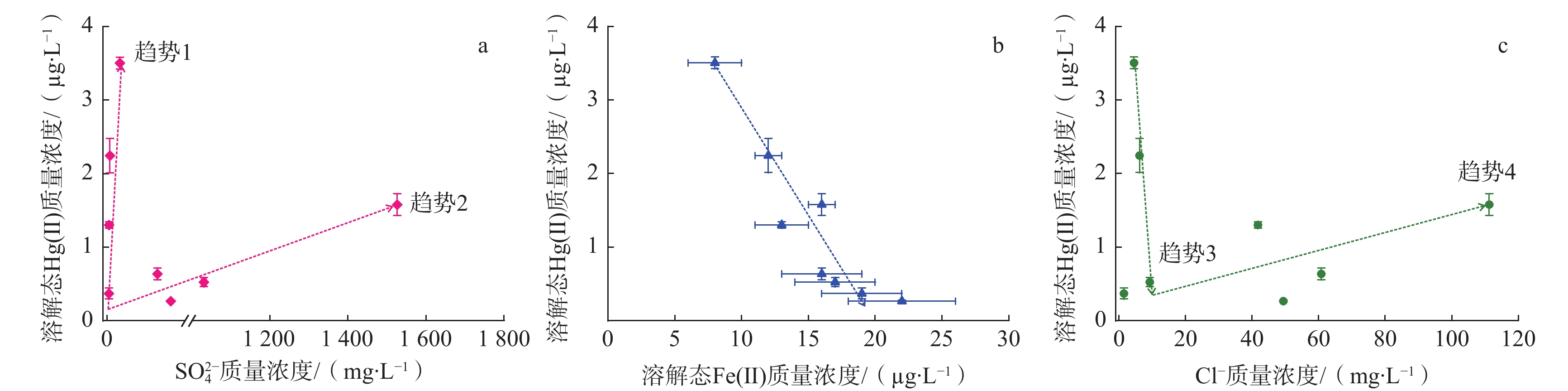

图 8 基于DNA-DGT传感器检测的溶解态Hg(II)浓度与地下水中
${\bf{SO}}_{\boldsymbol{4}}^{{\boldsymbol{2-}}} $ （a）、溶解态Fe(II)（b）和Cl−（c）浓度的相关性Figure 8.
表 1 25 °C条件下Hg2+与各种无机和有机配体络合反应的平衡常数（Kc）
Table 1. Equilibrium constants (Kc) of complexation reactions between Hg2+ and various inorganic and organic ligands at 25 °C
络合反应 lgKc（25 ℃） 参考文献 络合反应 lgKc（25 ℃） 参考文献 ${\mathrm{OH}}^{-} $ ${\mathrm{Hg}}^{2+} + {\mathrm{OH}}^{-} = {\mathrm{HgOH}}^{+} $ 10.42 [7] ${\mathrm{Cl}}^{-} $ $\text{Hg}^{2+} + \text{Cl}^- = \text{HgCl}^+ $ 7.30 [8] $\text{Hg}^{2+} + 2\text{OH}^- = \text{Hg(OH)}_2 $ 21.83 [7] $ \text{Hg}^{2+} + 2\text{Cl}^- = \text{HgCl}_2$ 14.00 [8] ${\mathrm{Hg}}^{2+} + 3{\mathrm{OH}}^{-} ={\mathrm{Hg(OH)}}_3^{-} $ 20.90 [7] ${\mathrm{Hg}}^{2+} + 3{\mathrm{Cl}}^{-} = {\mathrm{HgCl}}_3^- $ 15.00 [8] $2\text{Hg}^{2+} + \text{OH}^- = \text{Hg}_2\text{OH}^{3+} $ 10.70 [8] $\text{Hg}^{2+} + 4\text{Cl}^- = \text{HgCl}_4^{2-} $ 15.60 [8] $3\text{Hg}^{2+} + 3\text{OH}^- = \text{Hg}_3(\text{OH})_3^{3+} $ 35.60 [8] $\text{Hg}^{2+} + \text{Cl}^- + \text{OH}^- = \text{HgClOH} $ 18.25 [8] $\text{SO}_4^{2-} $ $\text{Hg}^{2+} + \text{SO}_4^{2-} = \text{HgSO}_4 $ 2.41 [8] $\text{NO}_3^- $ $ {\mathrm{Hg}}^{2+} + {\mathrm{NO}}_3^{-} = {\mathrm{HgNO}}_3^{+}$ −0.43 [8] $\text{Hg}^{2+} + 2\text{SO}_4^{2-} = \text{Hg(SO}_4)_2^{2-}$ 3.47 [8] $\text{Hg}^{2+} + 2\text{NO}_3^- = \text{Hg(NO}_3)_2 $ −0.81 [8] $ \text{SO}_3^{2-}$ $\text{Hg}^{2+} + \text{SO}_3^{2-} = \text{HgSO}_3$ 10.30 [9] ${\mathrm{F}}^- $ $\text{Hg}^{2+} + \text{F}^- = \text{HgF}^+ $ 1.60 [8] $\text{Hg}^{2+} + 2\text{SO}_3^{2-} = \text{Hg(SO}_3)_2^{2-} $ 23.40 [8] $ \text{Hg}^{2+} + 3\text{SO}_3^{2-} = \text{Hg(SO}_3)_3^{4-}$ 24.10 [8] $\text{S}^{2-}$ $ \text{Hg}^{2+} + \text{S}^{2-} = \text{HgS} $ 7.90 [8] $ \text{CO}_3^{2-}$ $ \text{Hg}^{2+} + \text{CO}_3^{2-} = \text{HgCO}_3 $ 12.07 [8] $ \text{Hg}^{2+} + 2\text{S}^{2-} = \text{HgS}_2^{2-}$ 51.02 [8] $\text{Hg}^{2+} + 2\text{CO}_3^{2-} = \text{Hg(CO}_3)_2^{2-}$ 15.57 [8] $ \text{Hg}^{2+}+\text{S}^{2-}+\text{OH}^-=\text{HgSOH}^- $ 18.50 [8] $\text{Hg}^{2+} + \text{CO}_3^{2-} + \text{H}^+ = \text{HgHCO}_3^+$ 16.34 [8] $\text{Hg}^{2+} + \text{S}^{2-} + \text{H}^+ = \text{HgHS}^+ $ 43.12 [9] $\text{Hg}^{2+} + \text{CO}_3^{2-} + \text{OH}^- = \text{HgOHCO}_3^- $ 19.20 [8] $ \text{Hg}^{2+} + 2\text{S}^{2-} + \text{H}^+ = \text{HgHS}_2^- $ 59.73 [8] $ \text{Hg}^{2+} + 2\text{S}^{2-} + 2\text{H}^+ = \text{HgH}_2\text{S}_2$ 66.12 [8] $ \text{NO}_3^- $ $\text{Hg}^{2+} + \text{NO}_3^- = \text{HgNO}_3^+$ −0.43 [8] $\text{PO}_4^{3-} $ $ \text{Hg}^{2+} + \text{PO}_4^{3-} = \text{HgPO}_4^-$ 12.38 [8] $\text{Hg}^{2+} + 2\text{NO}_3^- = \text{Hg(NO}_3)_2 $ −0.81 [8] $\text{Hg}^{2+} + \text{PO}_4^{3-} + \text{H}^+ = \text{HgHPO}_4 $ 20.09 [8] $\text{NO}_2^- $ $ \text{Hg}^{2+} + \text{NO}_2^- = \text{HgNO}_2^+ $ 6.35 [8] $\text{NH}_3 $ $\text{Hg}^{2+} + \text{NH}_3 = \text{HgNH}_3^{2+} $ 8.75 [8] $ \text{Hg}^{2+} + 2\text{NO}_2^- = \text{Hg(NO}_2)_2 $ 10.52 [8] $\text{Hg}^{2+} + 2\text{NH}_3 = \text{Hg(NH}_3)_2^{2+} $ 17.80 [8] $ \text{Hg}^{2+} + 3\text{NO}_2^- = \text{Hg(NO}_2)_3^-$ 12.06 [8] $\text{Hg}^{2+} + 3\text{NH}_3 = \text{Hg(NH}_3)_3^{2+} $ 18.20 [8] $\text{Hg}^{2+} + 4\text{NO}_2^- = \text{Hg(NO}_2)_4^{2-} $ 12.27 [8] $ \text{Hg}^{2+} + 4\text{NH}_3 = \text{Hg(NH}_3)_4^{2+} $ 19.30 [8]
下载: 导出CSV
表 1 加拿大格兰德河流域地下水样理化参数和组分一览
Table 1. Overview of physicochemical parameters and components of groundwater samples collected from the Grand River Watershed, Canada
参数 最大值 最小值 中位值 平均值 标准偏差 温度/°C 14.7 4.9 10.8 10.6 3.1 pH 7.98 7.29 7.72 7.67 0.28 电导率/（μS·cm−1） 2399 206 662 884 744 质
量
浓
度
（ρ）Na+ /（mg·L−1） 166.30 10.61 24.45 44.30 51.98 K+/（mg·L−1） 8.55 1.14 3.46 3.93 2.32 Ca2+/（mg·L−1） 500.90 35.78 106.90 183.90 187.70 Mg2+/（mg·L−1） 144.70 8.83 32.76 40.30 43.82 Si/（mg·L−1） 5.15 0.48 3.35 3.00 1.74 Sr/（mg·L−1） 10.34 0.19 0.69 2.42 3.59 Fe(II)/（μg·L−1） 22 8 16 15 4 $\text{HCO}_3^{-} $ /（mg·L−1）583.3 180.6 363.4 377.8 152.8 $\text{Cl}^{-} $ /（mg·L−1）111.30 1.46 25.49 35.57 38.33 $\text{SO}_4^{2-} $ /（mg·L−1）1526.00 4.84 81.06 362.50 583.70 溶解硫化物/（μg·L−1） <5 <5 <5 <5 — $\text{NO}_3^{-} $ /（mg·L−1）5.95 <0.01 0.68 1.20 1.99 $\text{NH}_4^{+} $ −N/（mg·L−1）0.12 0.03 0.06 0.06 0.03 总磷/（μg·L−1） 653 1 4 88 229 DOC/（mg·L−1） 5.13 1.79 3.13 3.04 1.04 溶解态汞/（μg·L−1） 3.79 0.21 0.98 1.32 1.21 溶解态Hg(II)a/（μg·L−1） 3.66 0.70 1.21 1.52 0.97 溶解态Hg(II)b/（μg·L−1） 3.50 0.27 0.97 1.30 1.12 溶解态Hg(II)c/（μg·L−1） 3.44 0.19 0.94 1.23 1.10 注：a表示通过单一DNA功能化水凝胶传感器测得的溶解态Hg(II)浓度；b表示DNA-DGT传感器测得的溶解态Hg(II)浓度；c表示阳极溶出伏安法测得的溶解态Hg(II)浓度。
下载: 导出CSV
表 2 Hg2+与DNA分子及竞争性配体络合反应的平衡常数（Kc）和反应摩尔焓变（ΔHm）
Table 2. Equilibrium constants (Kc) and reaction enthalpies (ΔHm) for complexation of Hg2+ with the DNA molecules and various competing ligands
络合反应 lgKc（25 °C） ΔHm/（kJ·mol−1） 参考文献 丙烯酰胺基-Hg-DNA $2\text{RNC}_5\text{H}_4\text{O}_2\text{NH} + \text{Hg}^{2+} = \text{Hg}(\text{RNC}_5\text{H}_4\text{O}_2\text{N})_2 + 2\text{H}^+ $ 19.80 −81.27 [4] ${\mathrm{OH}}^{-} $ ${\mathrm{Hg}}^{2+} + {\mathrm{OH}}^{-} = {\mathrm{HgOH}}^{+} $ 10.42 −25.68 [7] $ \text{Hg}^{2+} + 2\text{OH}^- = \text{Hg(OH)}_2$ 21.83 −66.32 [7] $\text{Hg}^{2+} + 3\text{OH}^- = \text{Hg(OH)}_3^- $ 20.90 −39.90 [7] $2\text{Hg}^{2+} + \text{OH}^- = \text{Hg}_2\text{OH}^{3+} $ 10.70 −30.34 [11] $3\text{Hg}^{2+} + 3\text{OH}^- = \text{Hg}_3(\text{OH})_3^{3+} $ 35.60 −80.23 [11] ${\text{Cl}^-} $ $\text{Hg}^{2+} + \text{Cl}^- = \text{HgCl}^+ $ 7.30 −22.65 [7] $\text{Hg}^{2+} + 2\text{Cl}^- = \text{HgCl}_2 $ 14.00 −52.87 [7] $\text{Hg}^{2+} + 3\text{Cl}^- = \text{HgCl}_3^- $ 15.00 −58.04 [7] $\text{Hg}^{2+} + 4\text{Cl}^- = \text{HgCl}_4^{2-} $ 15.60 −56.39 [7] $\text{Hg}^{2+} + \text{Cl}^- + \text{OH}^- = \text{HgClOH} $ 18.25 −62.53 [7] 注：在5～50 ℃的温度范围内，反应摩尔焓变值恒定，因此可用范特霍夫方程来校准变化地下水温度下的反应平衡常数。
下载: 导出CSV
表 3 5～40 ℃温度范围内Hg(II)的无机和有机络合物的扩散系数
Table 3. Diffusion coefficients of inorganic and organic complexes of Hg(II) at temperature range of 5−40 °C
温度/°C Dinorg/ （cm2·s−1） Dorg / （cm2·s−1） 5 4.86×10−6 5.29×10−7 10 5.76×10−6 6.28×10−7 15 6.75×10−6 7.35×10−7 20 7.83×10−6 8.53×10−7 25 9.00×10−6 9.80×10−7 30 1.03×10−5 1.12×10−6 35 1.16×10−5 1.26×10−6 40 1.30×10−5 1.42×10−6 注：Dinorg和Dorg分别代表无机Hg(II)（与Cl−、 $ \text{SO}_4^{2-} $ 、$\text{HCO}_3^{-} $ 和${{\mathrm{H}}_{2}{\mathrm{CO}}}_4^{-} $ 络合的Hg2+）和有机Hg(II)（与DOM络合的Hg2+）络合物的扩散系数。
下载: 导出CSV
-
