Susceptibility assessment of debris flow in the upper reaches of the Minjiang River before and after the Wenchuan earthquake
-
摘要:

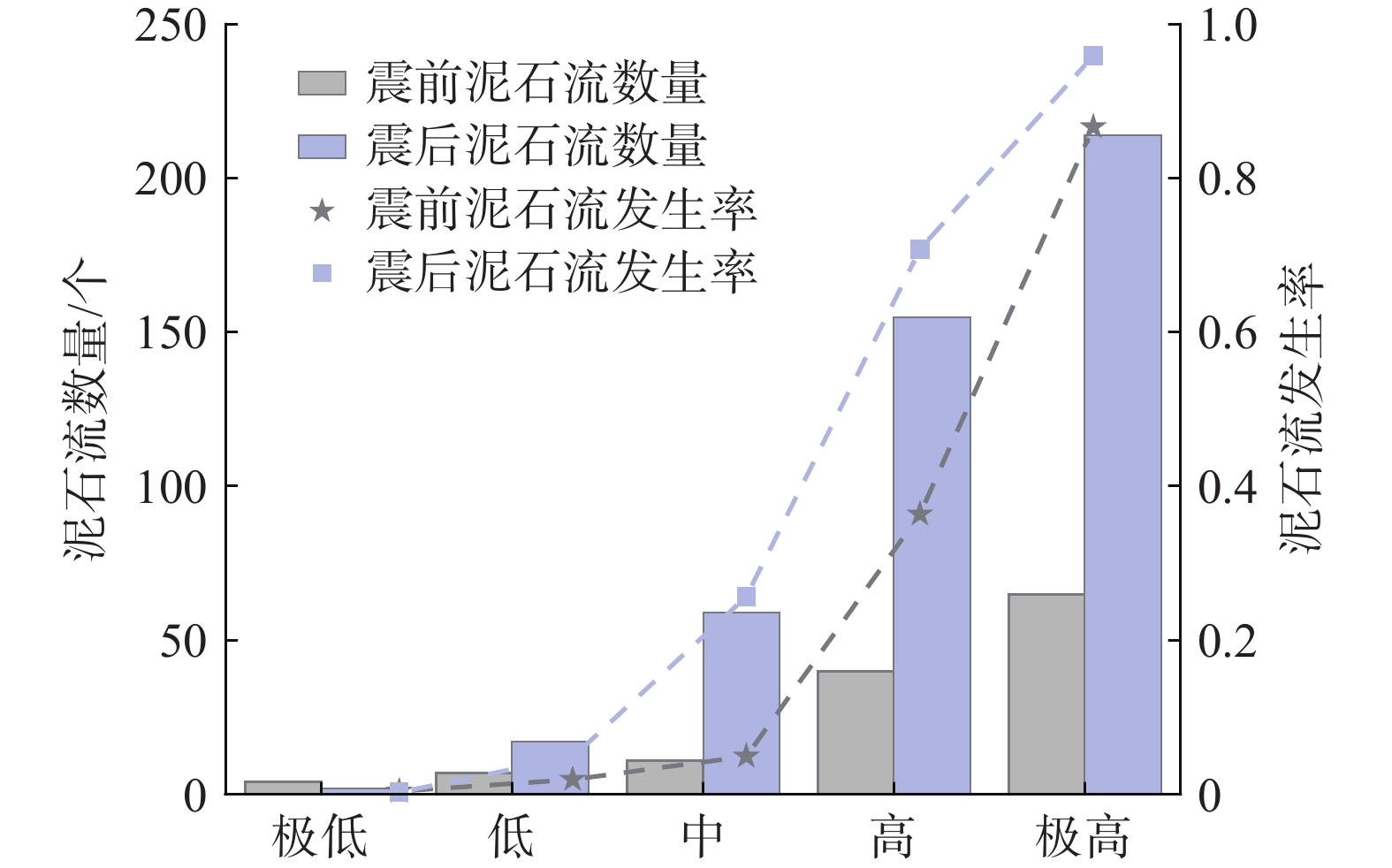

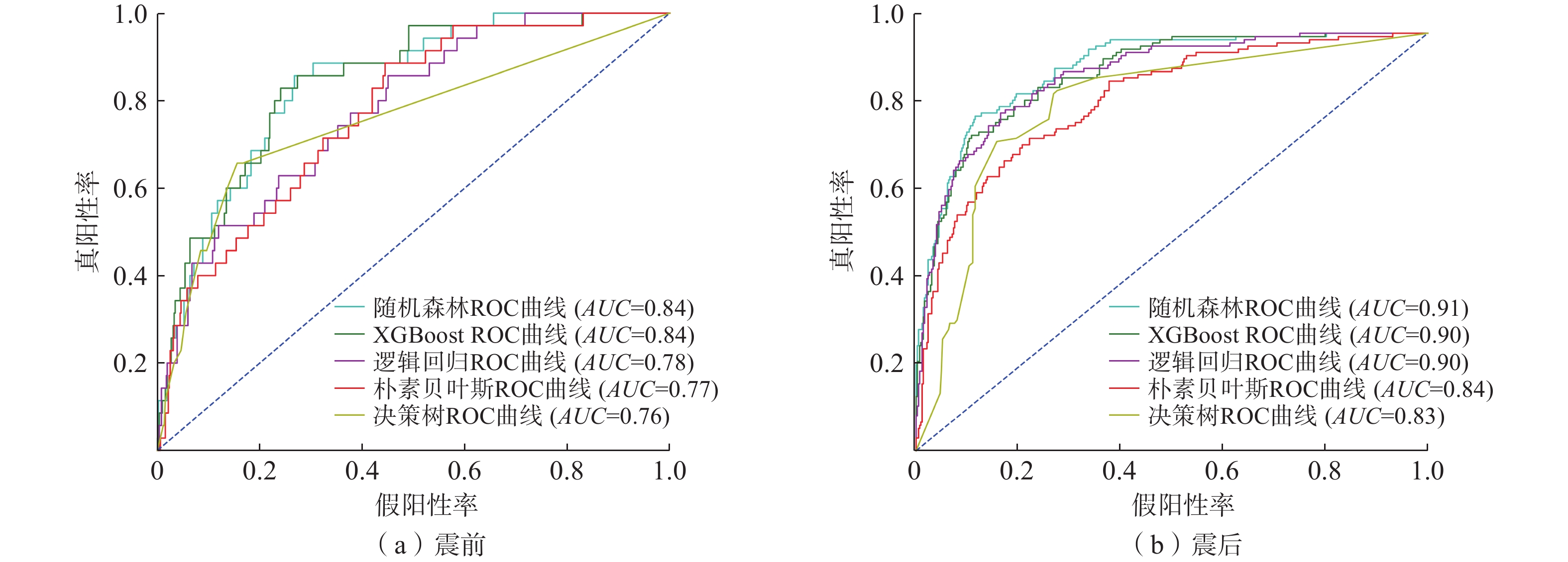

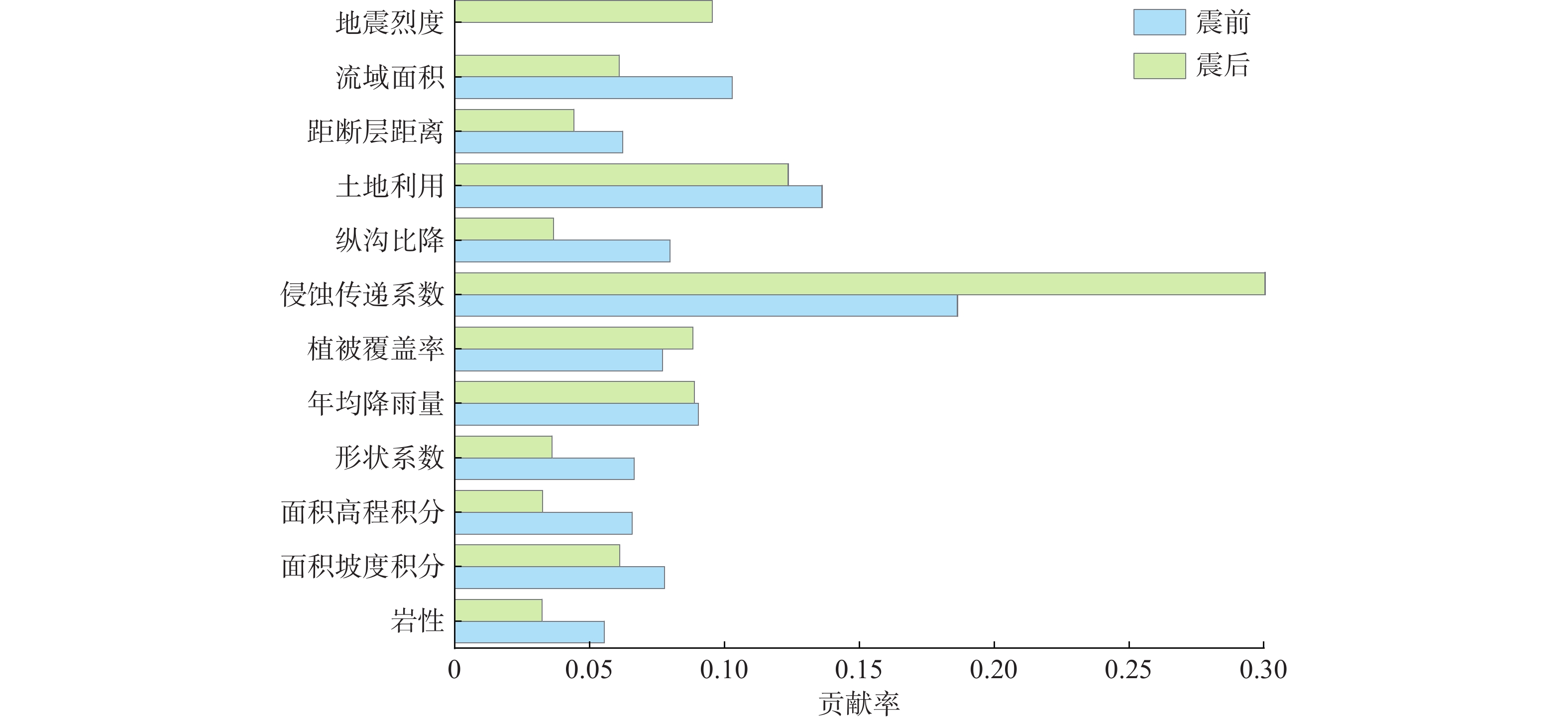

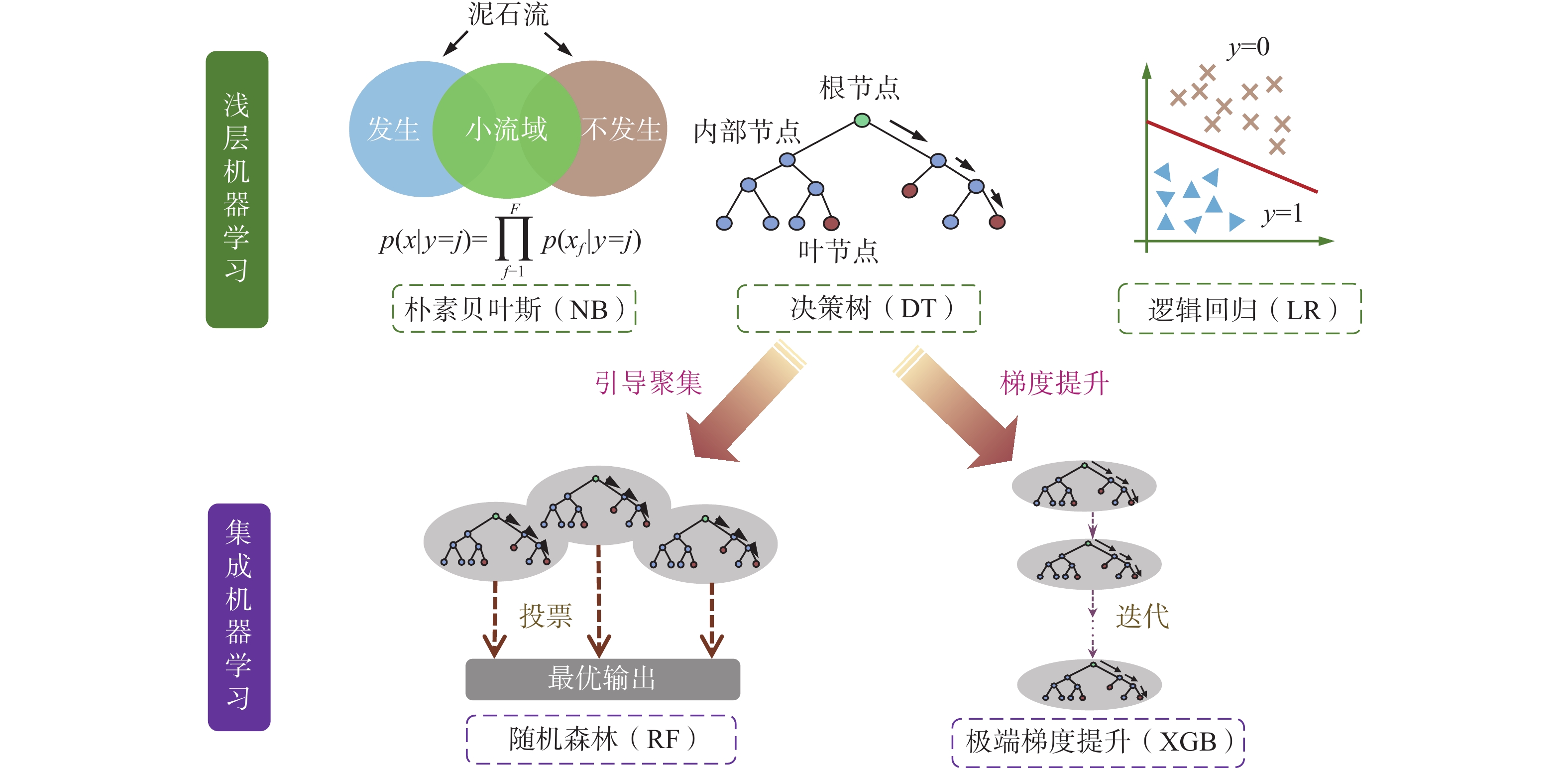

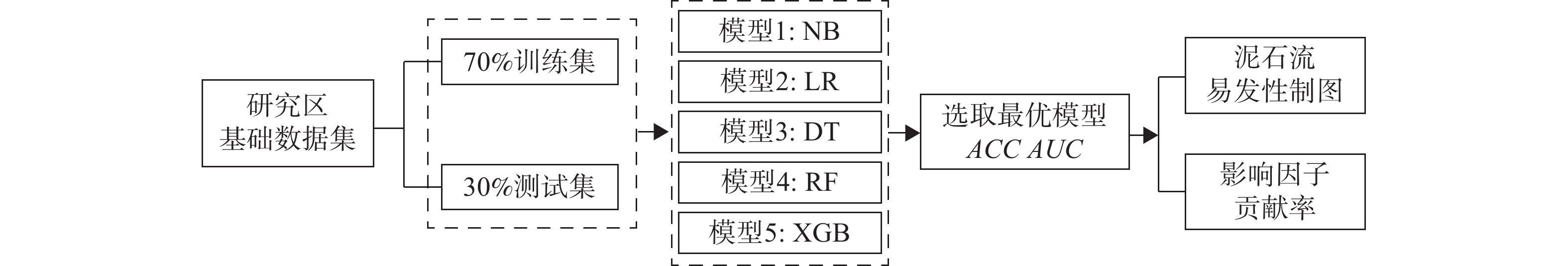

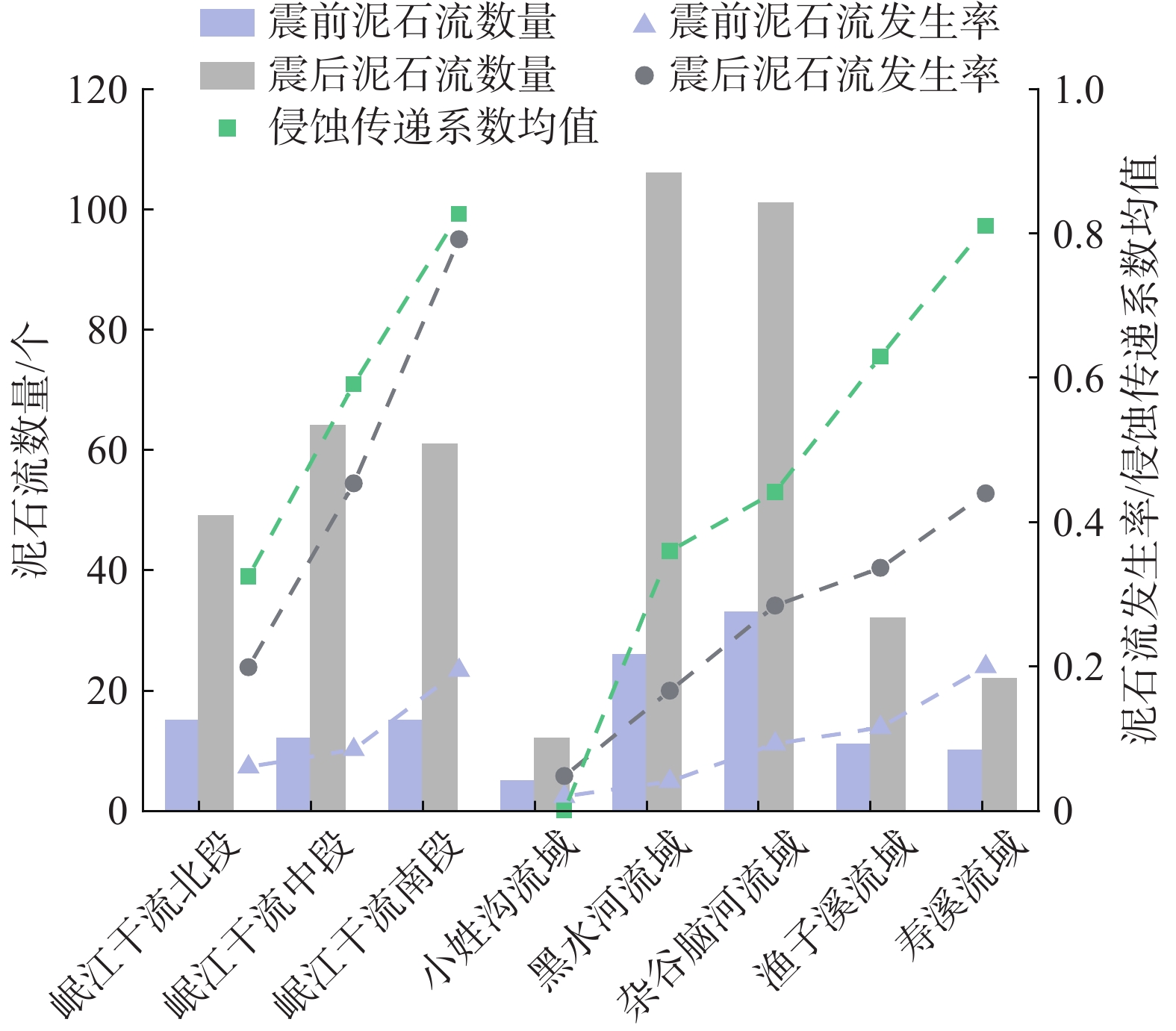

科学准确地绘制泥石流易发性区划图以及确定主控因子及其贡献率，是区域泥石流预警预报和风险管理的重要基础。文章以岷江上游为研究区，以小流域为评价单元，分别采用了5种机器学习模型构建了泥石流易发性评价模型，对汶川大地震前、后岷江上游泥石流易发性和评价因子贡献率进行了定量分析。结果表明：（1）集成机器学习模型的预测精度及受试者工作特征曲线下面积值均高于浅层机器学习模型，其中随机森林模型在地震前、后泥石流易发性评价中表现最优；（2）震前、震后泥石流发生率均随易发性等级的提高逐渐增大，且等级越高增量越大，各等级震后泥石流发生率均高于震前；（3）地震前、后侵蚀传递系数的贡献率均显著高于其他因子，与汶川大地震地震烈度空间分布特征叠加，加大了震后干流和支流泥石流由下游向上游发育程度逐渐降低的空间分布规律。
Abstract:Accurately and scientifically mapping debris flow susceptibility and the determination of key controlling factors and their contribution rates are essential foundations for regional debris flow early warning, forecasting and risk management. The article takes the upper reaches of the Minjiang River as the research area, with small watersheds as evaluation units. Five different machine learning models were employed to construct evaluation models for the susceptibility of debris flows in the upper reaches of the Minjiang River. Quantitative analyses were conducted on the susceptibility of debris flows and the contribution rates of evaluation factors before and after the Wenchuan earthquake. The results indicate that: (1) Integrated machine learning models exhibit higher ACC and AUC values than the shallow machine learning models, with the random forest model performing the best in the assessment of debris flow susceptibility before and after the earthquake; (2) The occurrence rate of debris flow before and after the earthquakes gradually increases with the rise in susceptibility level, and the increment increases with the increase of the level. The occurrence rate of debris flow at all levels is higher after the earthquake than before; (3) The contribution rate of the erosion transmission coefficients before and after the earthquake is significantly higher than that of other factors. This contribution is compounded by the spatial distribution characteristics of the Wenchuan earthquake intensity, further accentuating the spatial distribution pattern of decreasing debris flow development from downstream to upstream in both the main and tributaries following the earthquake.
-
-
表 2 测试集中各模型ACC及AUC值
Table 2. ACC and AUC values of the model on the test data set
NB RF XGB DT LR 震前 ACC 0.92 0.93 0.93 0.91 0.93 AUC 0.77 0.84 0.84 0.76 0.78 震后 ACC 0.83 0.86 0.85 0.81 0.85 AUC 0.84 0.91 0.90 0.83 0.90
下载: 导出CSV
-
[1] SIMONI S,ZANOTTI F,BERTOLDI G,et al. Modelling the probability of occurrence of shallow landslides and channelized debris flows using GEOtop-FS[J]. Hydrological Processes,2008,22(4):532 − 545. doi: 10.1002/hyp.6886
[2] 陈怡, 范宣梅. 震后地质灾害易发性评价——以映秀震区为例[J]. 科学技术与工程,2020,20(9):3516 − 3527. [CHEN Yi, FAN Xuanmei. Susceptibility assessment of post-earth-quake geo-hazard in the epicentral area of the 2008 Wenchuan eearthquake near yingxiu town[J]. Science Technology and Engineering,2020,20(9):3516 − 3527. (in Chinese with English abstract)]
CHEN Yi, FAN Xuanmei . Susceptibility assessment of post-earth-quake geo-hazard in the epicentral area of the 2008 Wenchuan eearthquake near yingxiu town［J］. Science Technology and Engineering,2020 ,20 （9 ）:3516 −3527 . （in Chinese with Englishabstract）[3] 崔鹏, 庄建琦, 陈兴长, 等. 汶川地震区震后泥石流活动特征与防治对策[J]. 四川大学学报(工程科学版),2010,42(5):10 − 19. [CUI Peng, ZHUANG Jianqi, CHEN Xingchang, et al. Characteristics and countermeasures of debris flow in Wenchuan Area after the earthquake[J]. Journal of Sichuan University (Engineering Science Edition),2010,42(5):10 − 19. (in Chinese with English abstract)]
CUI Peng, ZHUANG Jianqi, CHEN Xingchang, et al . Characteristics and countermeasures of debris flow in Wenchuan Area after the earthquake［J］. Journal of Sichuan University (Engineering Science Edition),2010 ,42 （5 ）:10 −19 . （in Chinese with Englishabstract）[4] 张文涛, 柳金峰, 游勇, 等. 泥石流防治工程损毁度评价——以汶川地区为例[J]. 中国地质灾害与防治学报,2022,33(4):77 − 83. [ZHANG Wentao, LIU Jinfeng, YOU Yong, et al. Damage evaluation of control works against debris flow:A case study in Wenchuan Area[J]. The Chinese Journal of Geological Hazard and Control,2022,33(4):77 − 83. (in Chinese with English abstract)]
ZHANG Wentao, LIU Jinfeng, YOU Yong, et al . Damage evaluation of control works against debris flow: A case study in Wenchuan Area［J］. The Chinese Journal of Geological Hazard and Control,2022 ,33 （4 ）:77 −83 . （in Chinese with Englishabstract）[5] 文强, 胡卸文, 刘波, 等. 四川丹巴梅龙沟“6•17” 泥石流成灾机理分析[J]. 中国地质灾害与防治学报,2022,33(3):23 − 30. [WEN Qiang, HU Xiewen, LIU Bo, et al. Analysis on the mechanism of debris flow in Meilong valley in Danba County on June 17, 2020[J]. The Chinese Journal of Geological Hazard and Control,2022,33(3):23 − 30. (in Chinese with English abstract)]
WEN Qiang, HU Xiewen, LIU Bo, et al . Analysis on the mechanism of debris flow in Meilong valley in Danba County on June 17, 2020［J］. The Chinese Journal of Geological Hazard and Control,2022 ,33 （3 ）:23 −30 . （in Chinese with Englishabstract）[6] 孙滨, 祝传兵, 康晓波, 等. 基于信息量模型的云南东川泥石流易发性评价[J]. 中国地质灾害与防治学报,2022,33(5):119 − 127. [SUN Bin, ZHU Chuanbing, KANG Xiaobo, et al. Susceptibility assessment of debris flows based on information model in Dongchuan, Yunnan Province[J]. The Chinese Journal of Geological Hazard and Control,2022,33(5):119 − 127. (in Chinese with English abstract)]
SUN Bin, ZHU Chuanbing, KANG Xiaobo, et al . Susceptibility assessment of debris flows based on information model in Dongchuan, Yunnan Province［J］. The Chinese Journal of Geological Hazard and Control,2022 ,33 （5 ）:119 −127 . （in Chinese with Englishabstract）[7] 王峰,杨帆,江忠荣,等. 基于沟域单元的康定市泥石流易发性评价[J]. 中国地质灾害与防治学报,2023,34(3):145 − 156. [WANG Feng, YANG Fan, JIANG Zhongrong, et al. Susceptibility assessment of debris flow based on watershed units in Kangding City, Sichuan Province[J]. The Chinese Journal of Geological Hazard and Control,2023,34(3):145 − 156. (in Chinese with English abstract)]
WANG Feng, YANG Fan, JIANG Zhongrong, et al . Susceptibility assessment of debris flow based on watershed units in Kangding City, Sichuan Province［J］. The Chinese Journal of Geological Hazard and Control,2023 ,34 （3 ）:145 −156 . （in Chinese with English abstract）[8] 杨得虎, 朱杰勇, 刘帅, 等. 基于信息量、加权信息量与逻辑回归耦合模型的云南罗平县崩滑灾害易发性评价对比分析[J]. 中国地质灾害与防治学报,2023,34(5):43 − 53. [YANG Dehu, ZHU Jieyong, LIU Shuai, et al. Comparative analyses of susceptibility assessment for landslide disasters based on information value, weighted information value and logistic regression coupled model in Luoping County, Yunnan Province[J]. The Chinese Journal of Geological Hazard and Control,2023,34(5):43 − 53. (in Chinese with English abstract)]
YANG Dehu, ZHU Jieyong, LIU Shuai, et al . Comparative analyses of susceptibility assessment for landslide disasters based on information value, weighted information value and logistic regression coupled model in Luoping County, Yunnan Province［J］. The Chinese Journal of Geological Hazard and Control,2023 ,34 （5 ）:43 −53 . （in Chinese with English abstract）[9] 易靖松,王峰,程英建,等. 高山峡谷区地质灾害危险性评价——以四川省阿坝县为例[J]. 中国地质灾害与防治学报,2022,33(3):134 − 142. [YI Jingsong, WANG Feng, CHENG Yingjian, et al. Study on the risk assessment of geological disasters in alpine valley area:A case study in Aba County, Sichuan Province[J]. The Chinese Journal of Geological Hazard and Control,2022,33(3):134 − 142. (in Chinese with English abstract)]
YI Jingsong, WANG Feng, CHENG Yingjian, et al . Study on the risk assessment of geological disasters in alpine valley area: A case study in Aba County, Sichuan Province［J］. The Chinese Journal of Geological Hazard and Control,2022 ,33 （3 ）:134 −142 . （in Chinese with English abstract）[10] 李巧. 模型融合算法的研究及应用[D]. 武汉:湖北大学,2016. [LI Qiao. Research and Application on Model Blending Algorithm[D]. Wuhan:Hubei University, 2016. (in Chinese with English abstract)]
LI Qiao. Research and Application on Model Blending Algorithm［D］. Wuhan: Hubei University, 2016. （in Chinese with English abstract） [11] 周聂, 侯精明, 陈光照, 等. 基于机器学习的山洪灾害快速预报方法[J]. 水资源保护,2022,38(2):32 − 40. [ZHOU Nie, HOU Jingming, CHEN Guangzhao, et al. A rapid forecasting method for mountain flood disaster based on machine learning algorithms[J]. Water Resources Protection,2022,38(2):32 − 40. (in Chinese with English abstract)]
ZHOU Nie, HOU Jingming, CHEN Guangzhao, et al . A rapid forecasting method for mountain flood disaster based on machine learning algorithms［J］. Water Resources Protection,2022 ,38 （2 ）:32 −40 . （in Chinese with English abstract）[12] ABID F. A survey of machine learning algorithms based forest fires prediction and detection systems[J]. Fire Technology,2021,57(2):559 − 590. doi: 10.1007/s10694-020-01056-z
[13] KERN A N,ADDISON P,OOMMEN T,et al. Machine learning based predictive modeling of debris flow probability following wildfire in the intermountain western United States[J]. Mathematical Geosciences,2017,49(6):717 − 735. doi: 10.1007/s11004-017-9681-2
[14] 李奋生, 赵国华, 李勇, 等. 青藏高原东缘的隆升及其水系的响应[J]. 长江流域资源与环境,2016,25(3):420 − 428. [LI Fensheng, ZHAO Guohua, LI Yong, et al. The uplift of the Longmen Shan and the drainage response[J]. Resources and Environment in the Yangtze Basin,2016,25(3):420 − 428. (in Chinese with English abstract)]
LI Fensheng, ZHAO Guohua, LI Yong, et al . The uplift of the Longmen Shan and the drainage response［J］. Resources and Environment in the Yangtze Basin,2016 ,25 （3 ）:420 −428 . （in Chinese with English abstract）[15] AZARAFZA M,AZARAFZA M,AKGÜN H,et al. Deep learning-based landslide susceptibility mapping[J]. Scientific Reports,2021,11:24112. doi: 10.1038/s41598-021-03585-1
[16] 贺香勇, 蒋勇, 胡勇. 改进朴素贝叶斯算法在火灾预警 中的应用[J]. 中国科学技术大学学报,2022(6):50 − 58+70. [HE Xiangyong, JIANG Yong, HU Yong. Application of a newly developed naive Bayes algorithm in fire alarm[J]. Journal of University of Science and Technology of China,2022(6):50 − 58+70. (in Chinese with English abstract)]
HE Xiangyong, JIANG Yong, HU Yong . Application of a newly developed naive Bayes algorithm in fire alarm［J］. Journal of University of Science and Technology of China,2022 （6 ）:50 −58+70 . （in Chinese with English abstract）[17] CHOI J,OH H J,LEE Hongjin,et al. Combining landslide susceptibility maps obtained from frequency ratio,logistic regression,and artificial neural network models using ASTER images and GIS[J]. Engineering Geology,2012,124:12 − 23.
[18] MELO R,ZÊZERE J L,ROCHA J,et al. Combining data-driven models to assess susceptibility of shallow slides failure and Run-out[J]. Landslides,2019,16(11):2259 − 2276.
[19] 丁愫, 陈报章, 王瑾, 等. 基于决策树的统计预报模型在臭氧浓度时空分布预测中的应用研究[J]. 环境科学学报,2018,38(8):3229 − 3242. [DING Su, CHEN Baozhang, WANG Jin, et al. An applied research of decision-tree based statistical model in forecasting the spatial-temporal distribution of O3[J]. Acta Scientiae Circumstantiae,2018,38(8):3229 − 3242. (in Chinese with English abstract)]
DING Su, CHEN Baozhang, WANG Jin, et al . An applied research of decision-tree based statistical model in forecasting the spatial-temporal distribution of O3［J］. Acta Scientiae Circumstantiae,2018 ,38 （8 ）:3229 −3242 . （in Chinese with English abstract）[20] HERNÁNDEZ V A S,MONROY R,MEDINA-PÉREZ M A,et al. A practical tutorial for decision tree induction:evaluation measures for candidate splits and opportunities[J]. ACM Computing Surveys,54(1):18.
[21] ZHOU Xinzhi,WEN Haijia,ZHANG Yalan,et al. Landslide susceptibility mapping using hybrid random forest with GeoDetector and RFE for factor optimization[J]. Geoscience Frontiers,2021,12(5):101211. doi: 10.1016/j.gsf.2021.101211
[22] STATISTICS L B,BREIMAN L. Random Forests[J]. Machine Learning,2001,5 − 32.
[23] BENTÉJAC C,CSÖRGŐ A,MARTÍNEZ-MUÑOZ G. A comparative analysis of gradient boosting algorithms[J]. Artificial Intelligence Review,2021,54(3):1937 − 1967. doi: 10.1007/s10462-020-09896-5
[24] CHEN Tianqi,GUESTRIN C. XGBoost:a scalable tree boosting system[C]//Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. August 13 - 17,2016,San Francisco,California,USA. ACM,2016:785 − 794.
[25] 张静. 河谷地貌分异下岷江上游泥石流流域演化趋势研究[D]. 绵阳:西南科技大学,2021. [ZHANG Jing. The evolution trend of debris flow basins in the upper Minjiang River under the diversion of river valley geomorphology[D]. Mianyang: Southwest University of Science and Technology, 2021. (in Chinese with English abstract)]
ZHANG Jing. The evolution trend of debris flow basins in the upper Minjiang River under the diversion of river valley geomorphology［D］. Mianyang: Southwest University of Science and Technology, 2021. （in Chinese with English abstract）
[26] 高大钊. 《岩土工程勘察规范》(GB 50021—2001)的修订[J]. 建筑结构,2002,32(12):62 − 65. [GAO Dazhao. The revision of code for investigation of geotechnical engineering[J]. Building Structure,2002,32(12):62 − 65. (in Chinese with English abstract)]
GAO Dazhao . The revision of code for investigation of geotechnical engineering［J］. Building Structure,2002 ,32 （12 ）:62 −65 . （in Chinese with English abstract）[27] 刘纪远. 国家资源环境遥感宏观调查与动态监测研究[J]. 遥感学报,1997,1(3):225 − 230. [LIU Jiyuan. Study on national resources & environment survey and dynamic monitoring using remote sensing[J]. Journal of Remote Sensing,1997,1(3):225 − 230. (in Chinese with English abstract)]
LIU Jiyuan . Study on national resources & environment survey and dynamic monitoring using remote sensing［J］. Journal of Remote Sensing,1997 ,1 （3 ）:225 −230 . （in Chinese with English abstract）[28] 张晓龙, 江川, 骆名剑. ROC分析技术在机器学习中的应用[J]. 计算机工程与应用,2007,43(4):243 − 248. [ZHANG Xiaolong, JIANG Chuan, LUO Mingjian. Application of ROC analysis in machine learning[J]. Computer Engineering and Applications,2007,43(4):243 − 248. (in Chinese with English abstract)]
ZHANG Xiaolong, JIANG Chuan, LUO Mingjian . Application of ROC analysis in machine learning［J］. Computer Engineering and Applications,2007 ,43 （4 ）:243 −248 . （in Chinese with English abstract）[29] RAHMATI O,TAHMASEBIPOUR N,HAGHIZADEH A,et al. Evaluation of different machine learning models for predicting and mapping the susceptibility of gully erosion[J]. Geomorphology,2017,298:118 − 137. doi: 10.1016/j.geomorph.2017.09.006
[30] DI B,ZHANG H,LIU Y,et al. Assessing Susceptibility of Debris Flow in southwest China Using Gradient Boosting Machine[J]. Scientific Reports,2019,9:12532. doi: 10.1038/s41598-019-48986-5
[31] GAROSI Y,SHEKLABADI M,POURGHASEMI H R,et al. Comparison of differences in resolution and sources of controlling factors for gully erosion susceptibility mapping[J]. Geoderma,2018,330:65 − 78. doi: 10.1016/j.geoderma.2018.05.027
-
