Analysis on the distribution and formation mechanism of ground collapse in gypsum mining area in Yingcheng of Hubei Province
-
摘要:

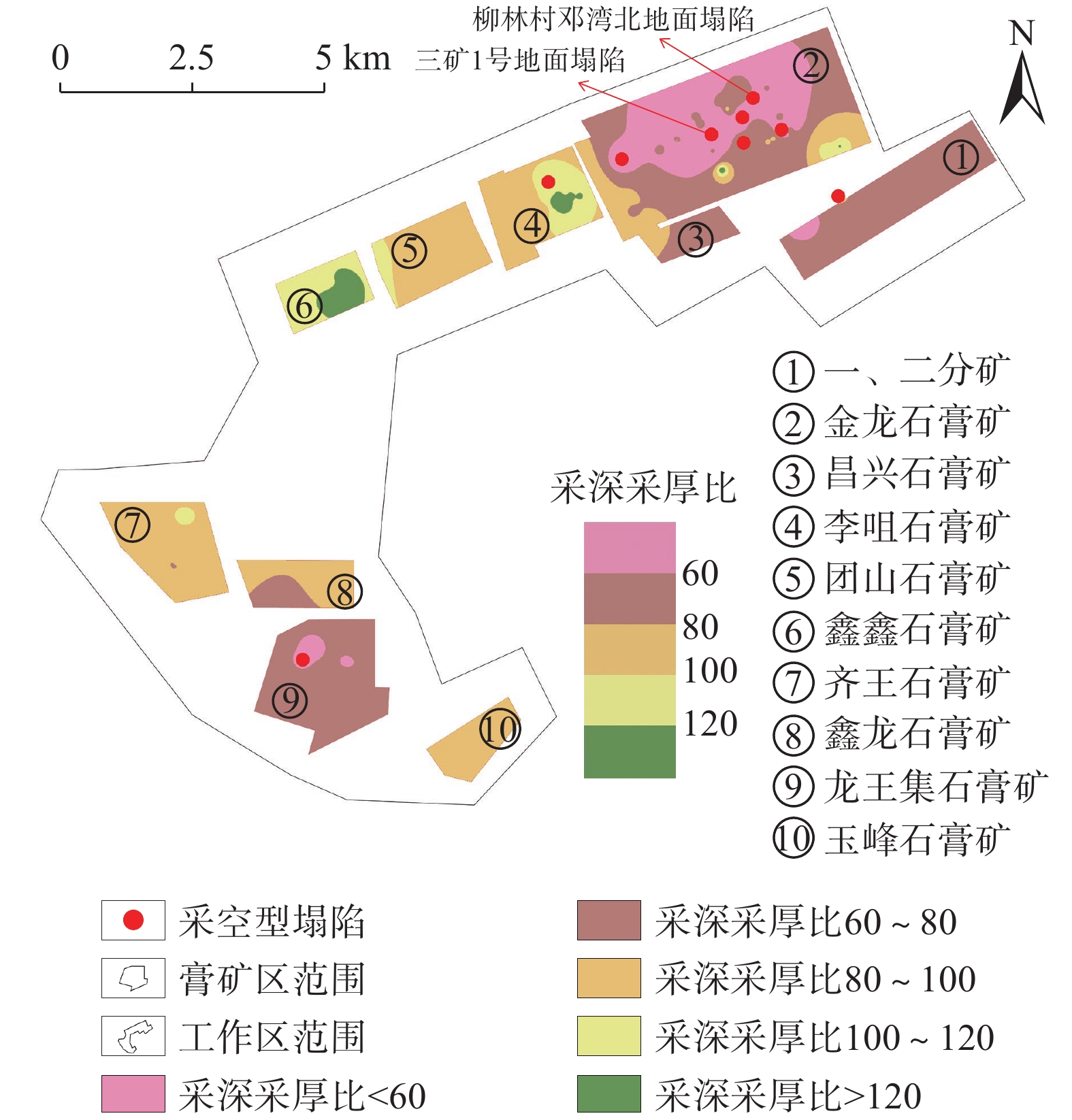

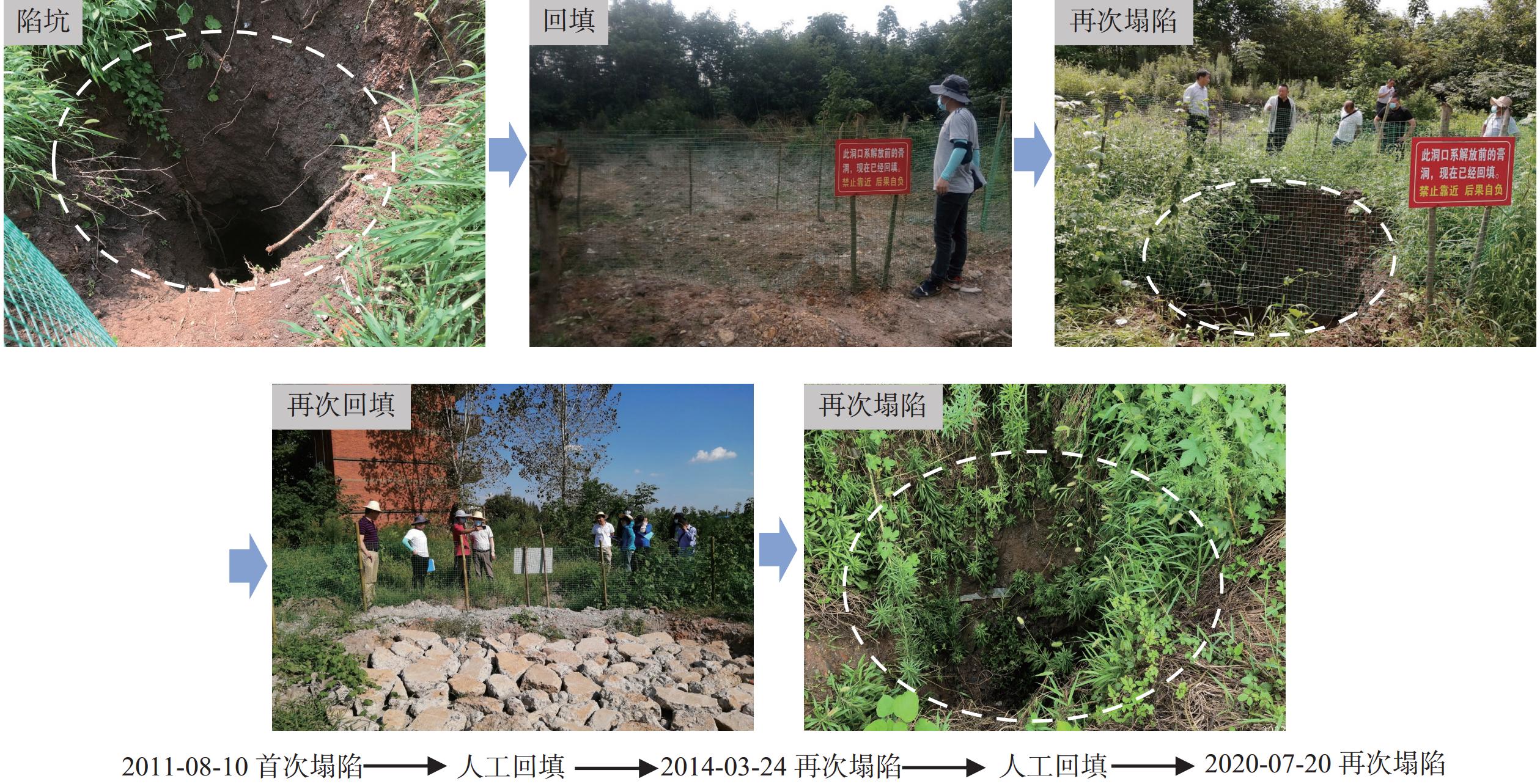

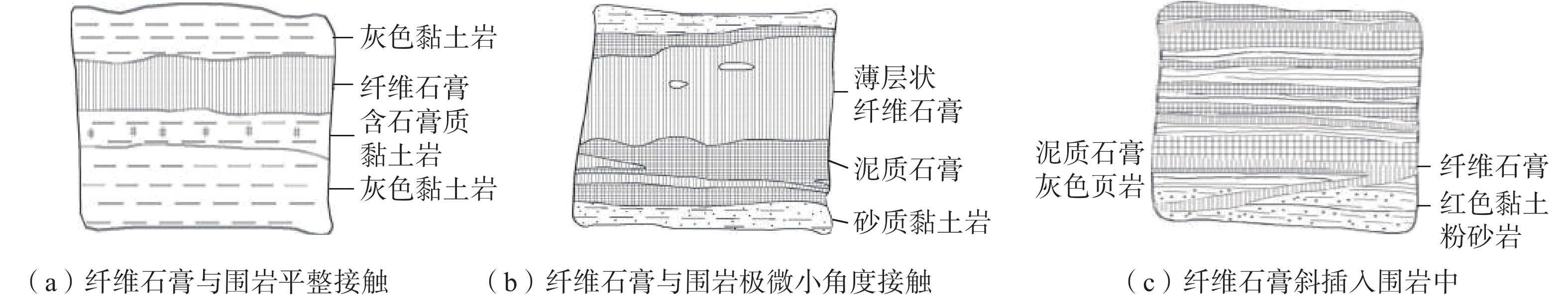

矿区地面塌陷地质灾害对道路、管道等基础设施及居民生命财产和矿区安全生产具有重要的影响。湖北应城石膏矿距今有近400年的开采历史，长期地下开采形成了较大范围的采空区和地面塌陷。在系统收集矿区前期资料和补充调（勘）查的基础上，采取多因子综合分析和地质分析法，分析了地面塌陷类型及发育分布规律，基于“三带”理论，对老窿型和采空型地面塌陷的成因机制进行了分析。研究表明，应城石膏矿地面塌陷主要为小-中型，地面塌陷分为采空型和老窿型。采空型地面塌陷主要包含矿柱破坏型和弯曲沉降型两类，矿柱破坏型主要为房柱法开采导致矿柱和顶板的破坏垮落，弯曲沉降型主要为长壁式充填法开采充填率不足导致顶板垮落。采空型地面塌陷的主要控制因素为采空区充填情况和采深采厚比，当采深采厚比小于60时，地表多发育塌陷现象，而随着采深采厚比的增大，采空区地面塌陷逐渐减少；老窿型地面塌陷变形程度取决于老窿是否与规模化采空区连通及是否充水。研究成果对石膏矿风险管理、安全评估、监测预警体系构建等具有指导意义。

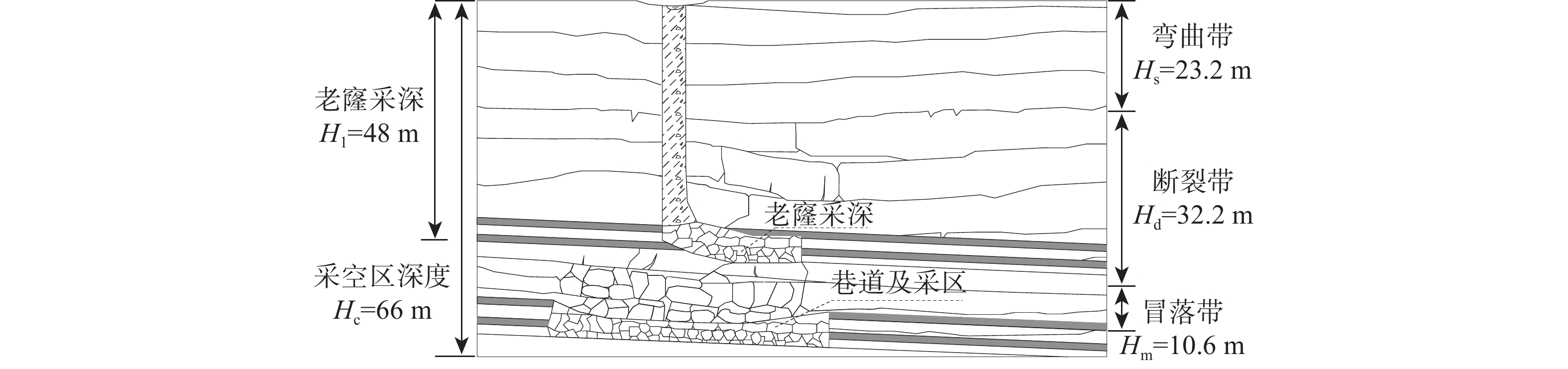

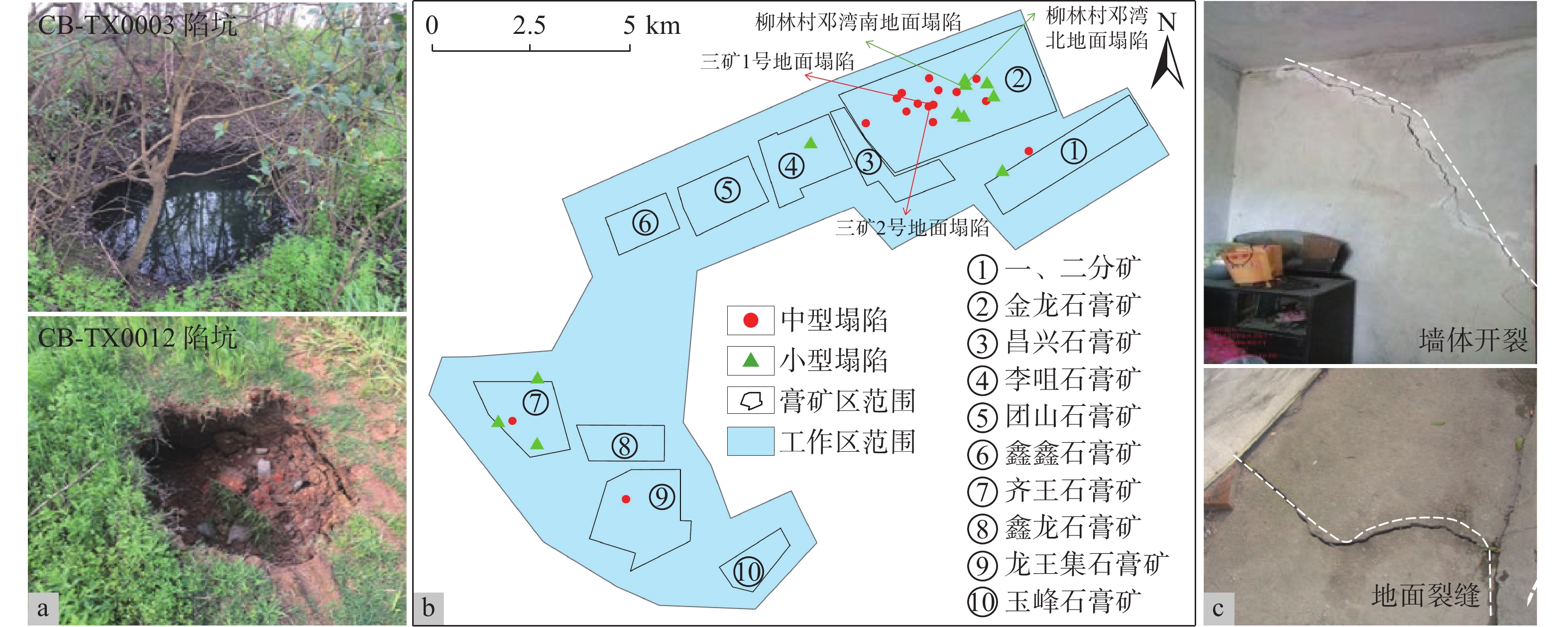

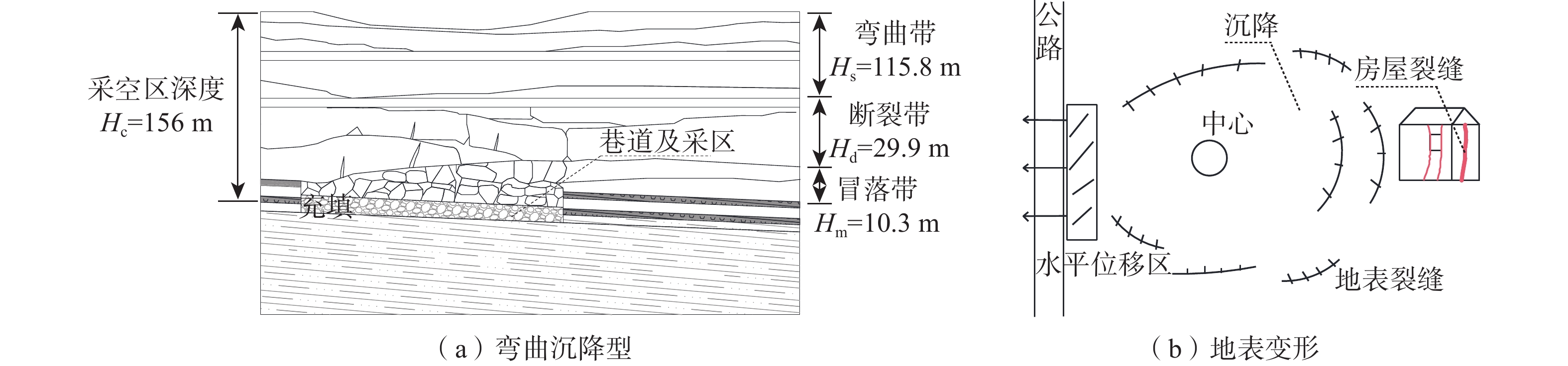

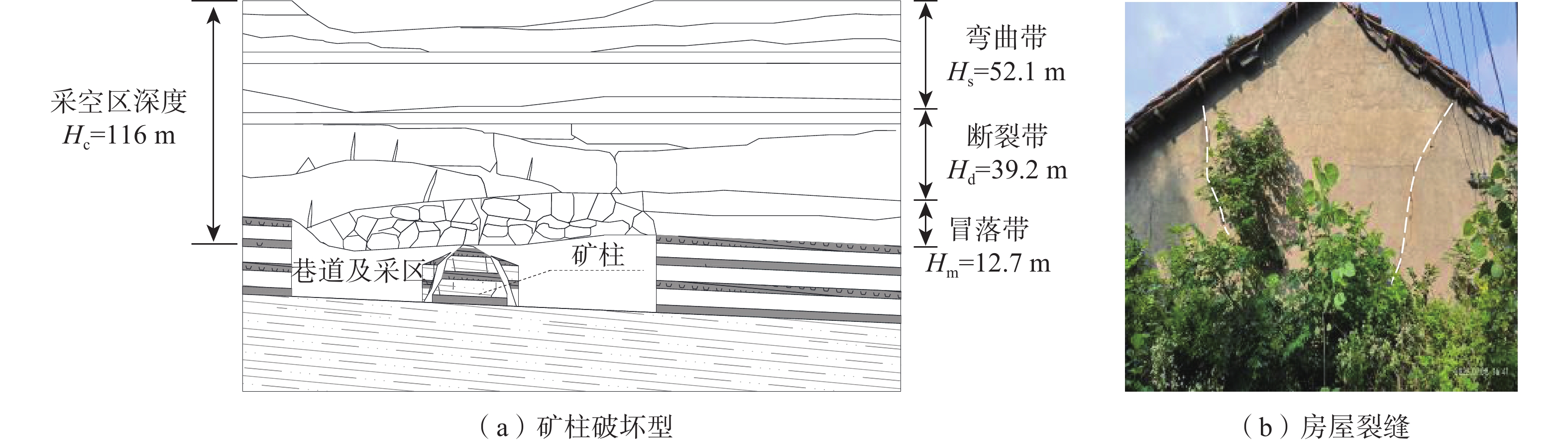

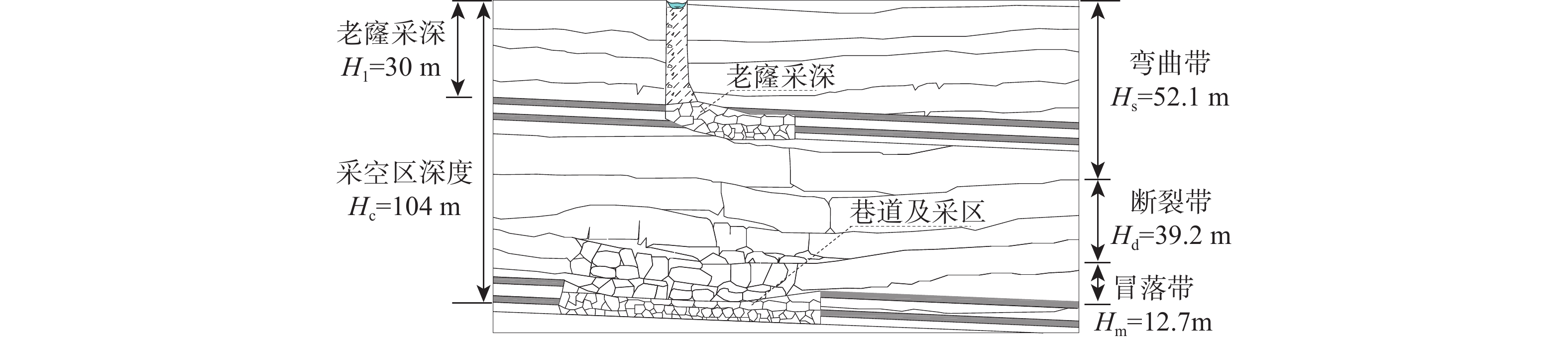

Abstract:Geological disasters of ground collapse in mining area have a significant impact on infrastructure, such as roads, pipelines, residents’ lives and property, and safety production in mining area. Yingcheng gypsum mine in Hubei Province has a mining history of nearly 400 years, and long-term underground mining has formed a large range of goaf and ground collapse. Based on the systematic collection of pre-mining data and supplementary survey, the types and distribution rules of ground collapse were analyzed by multi-factor comprehensive and geological method. Based on the theory of "three zones", the cause mechanism of ground collapse of old hole type and mining cavity type were studied. The research shows that the ground collapse of gypsum mine is mainly small to medium in Yingcheng, and the geological hazards of ground collapse are divided into mining cavity type and old hole type. The caving type of ground collapse mainly includes two types: pillar breakage type and bending settlement type. Pillar breakage type is mainly the pillar and roof collapse caused by room and pillar mining, and bending settlement type is mainly the roof collapse caused by insufficient filling rate of longwall filling method mining. The main controlling factors of goaf-type surface collapse are the goaf filling condition and the ratio of depth to thickness. When the ratio of depth to thickness is less than 60, the surface collapse occurs more often, and with the increase of the ratio of depth to thickness, the ground collapse gradually decreases. The degree of subsidence deformation in the old hole type depends on whether the old hole is connected with the large-scale goaf and whether it is filled with water. The research results have guiding significance for gypsum mine risk management, safety assessment, monitoring and early warning system construction.
-
Key words:
- gypsum mine /
- goaf /
- ground collapse /
- distribution law /
- genetic mechanism
-
-
[1] 汤志刚,蔡承刚,王艳红,等. 基于光纤传感的石膏矿地面塌陷监测预警系统[J]. 中国地质灾害与防治学报,2022,35(5):93-101. [TANG Zhigang,CAI Chenggang,WANG Yanhong,et al. Monitoring and warning system for ground subsidence of gypsum mine based on fiber sensing[J]. The Chinese Journal of Geological Hazard and Control,2022,35(5):93-101. (in Chinese with English abstract)]
TANG Zhigang, CAI Chenggang, WANG Yanhong, et al. Monitoring and warning system for ground subsidence of gypsum mine based on fiber sensing[J]. The Chinese Journal of Geological Hazard and Control, 2022, 35（5）: 93-101. （in Chinese with English abstract）
[2] 杨宜军,侯轶攀,李业. 荆门市石膏矿采空地面塌陷破坏模式及影响因素分析[J]. 资源环境与工程,2023,37(1):73 − 81. [YANG Yijun,HOU Yipan,LI Ye. Failure mode and influencing factors of mined-out ground collapse in gypsum mine in Jingmen City[J]. Resources Environment and Engineering,2023,37(1):73 − 81. (in Chinese with English abstract)] doi: 10.16536/j.cnki.issn.1671-1211.2023.01.010
YANG Yijun, HOU Yipan, LI Ye. Failure mode and influencing factors of mined-out ground collapse in gypsum mine in Jingmen City［J］. Resources Environment and Engineering, 2023, 37（1）: 73 − 81. （in Chinese with English abstract） doi: 10.16536/j.cnki.issn.1671-1211.2023.01.010
[3] 何伟,王星,李同鹏. 某石膏矿地下开采诱发的地表沉降分析[J]. 金属矿山,2021(6):210 − 215. [HE Wei,WANG Xing,LI Tongpeng. Analysis of surface subsidence induced by underground mining in a gypsum mine[J]. Metal Mine,2021(6):210 − 215. (in Chinese with English abstract)] doi: 10.19614/j.cnki.jsks.202106028
HE Wei, WANG Xing, LI Tongpeng. Analysis of surface subsidence induced by underground mining in a gypsum mine［J］. Metal Mine, 2021（6）: 210 − 215. （in Chinese with English abstract） doi: 10.19614/j.cnki.jsks.202106028
[4] 刘硕,王汉勋,张彬,等. 基于Hoek-Brown强度准则的硬石膏采房群稳定性分析[J]. 长江科学院院报,2020,37(3):162 − 169. [LIU Shuo,WANG Hanxun,ZHANG Bin,et al. Stability analysis of anhydrite cavern group based on hoek-brown failure criterion[J]. Journal of Yangtze River Scientific Research Institute,2020,37(3):162 − 169. (in Chinese with English abstract)] doi: 10.11988/ckyyb.20191131
LIU Shuo, WANG Hanxun, ZHANG Bin, et al. Stability analysis of anhydrite cavern group based on hoek-brown failure criterion［J］. Journal of Yangtze River Scientific Research Institute, 2020, 37（3）: 162 − 169. （in Chinese with English abstract） doi: 10.11988/ckyyb.20191131
[5] 夏开宗,陈从新,刘秀敏,等. 石膏矿矿柱-护顶层支撑体系的流变力学模型分析[J]. 岩土力学,2017,38(10):2923 − 2930. [XIA Kaizong,CHEN Congxin,LIU Xiumin,et al. Rheological mechanical model of pillar-protective roof supporting system in gypsum mines[J]. Rock and Soil Mechanics,2017,38(10):2923 − 2930. (in Chinese with English abstract)] doi: 10.16285/j.rsm.2017.10.020
XIA Kaizong, CHEN Congxin, LIU Xiumin, et al. Rheological mechanical model of pillar-protective roof supporting system in gypsum mines［J］. Rock and Soil Mechanics, 2017, 38（10）: 2923 − 2930. （in Chinese with English abstract） doi: 10.16285/j.rsm.2017.10.020
[6] 陈乐求,彭振斌,徐力生,等. 石膏矿采空区充填加固技术的试验研究[J]. 中国地质灾害与防治学报,2009,20(4):72 − 77. [CHEN Leqiu,PENG Zhenbin,XU Lisheng,et al. Experimental study on the filling reinforcement techniques in gypsum mined-out area[J]. The Chinese Journal of Geological Hazard and Control,2009,20(4):72 − 77. (in Chinese with English abstract)] doi: 10.3969/j.issn.1003-8035.2009.04.015
CHEN Leqiu, PENG Zhenbin, XU Lisheng, et al. Experimental study on the filling reinforcement techniques in gypsum mined-out area［J］. The Chinese Journal of Geological Hazard and Control, 2009, 20（4）: 72 − 77. （in Chinese with English abstract） doi: 10.3969/j.issn.1003-8035.2009.04.015
[7] 刘轩廷,陈从新,刘秀敏,等. 充填开采下顶板-间柱支撑体系的突变失稳分析[J]. 岩土力学,2021,42(9):2461 − 2471. [LIU Xuanting,CHEN Congxin,LIU Xiumin,et al. Analysis of catastrophic instability of roof-rib pillar support system under backfill mining[J]. Rock and Soil Mechanics,2021,42(9):2461 − 2471. (in Chinese with English abstract)]
LIU Xuanting, CHEN Congxin, LIU Xiumin, et al. Analysis of catastrophic instability of roof-rib pillar support system under backfill mining［J］. Rock and Soil Mechanics, 2021, 42（9）: 2461 − 2471. （in Chinese with English abstract）
[8] 魏军才. 邵东县城石膏矿老采空区地面变形原因及防治对策[J]. 湖南地质,2001,20(1):47 − 52. [WEI Juncai. Discussing about the reasons of surface deformation in the empty area of gypsum deposit in Shaodong,Hunan and how to prevent them[J]. Hunan Geology,2001,20(1):47 − 52. (in Chinese with English abstract)]
WEI Juncai. Discussing about the reasons of surface deformation in the empty area of gypsum deposit in Shaodong, Hunan and how to prevent them［J］. Hunan Geology, 2001, 20（1）: 47 − 52. （in Chinese with English abstract）
[9] 郑怀昌,张晓君,王劼,等. 采空区顶板大面积冒落规律研究[J]. 化工矿物与加工,2005,34(1):8 − 11. [ZHENG Huaichang,ZHANG Xiaojun,WANG Jie,et al. Study on the rule caused by roof fall over great extent of worked-out area in mine[J]. Industrial Minerals and Processing,2005,34(1):8 − 11. (in Chinese with English abstract)] doi: 10.3969/j.issn.1008-7524.2005.01.003
ZHENG Huaichang, ZHANG Xiaojun, WANG Jie, et al. Study on the rule caused by roof fall over great extent of worked-out area in mine［J］. Industrial Minerals and Processing, 2005, 34（1）: 8 − 11. （in Chinese with English abstract） doi: 10.3969/j.issn.1008-7524.2005.01.003
[10] 章求才,贺桂成,黄炳香,等. 浅埋石膏矿顶板破断机理及应用研究[J]. 采矿与安全工程学报,2018,35(4):773 − 779. [ZHANG Qiucai,HE Guicheng,HUANG Bingxiang,et al. Investigation on the fracture mechanism of the immediate roof in shallow buried gypsum mine and its application[J]. Journal of Mining & Safety Engineering,2018,35(4):773 − 779. (in Chinese with English abstract)] doi: 10.13545/j.cnki.jmse.2018.04.015
ZHANG Qiucai, HE Guicheng, HUANG Bingxiang, et al. Investigation on the fracture mechanism of the immediate roof in shallow buried gypsum mine and its application［J］. Journal of Mining & Safety Engineering, 2018, 35（4）: 773 − 779. （in Chinese with English abstract） doi: 10.13545/j.cnki.jmse.2018.04.015
[11] 郑怀昌,张晓君,刘志河. 石膏矿山顶板破坏机理探讨[J]. 金属矿山,2007(7):23 − 24. [ZHENG Huaichang,ZHANG Xiaojun,LIU Zhihe. Discussion on roof failure mechanism of gypsum mines[J]. Metal Mine,2007(7):23 − 24. (in Chinese with English abstract)] doi: 10.3321/j.issn:1001-1250.2007.07.006
ZHENG Huaichang, ZHANG Xiaojun, LIU Zhihe. Discussion on roof failure mechanism of gypsum mines［J］. Metal Mine, 2007（7）: 23 − 24. （in Chinese with English abstract） doi: 10.3321/j.issn:1001-1250.2007.07.006
[12] 张向阳. 采空区顶板蠕变损伤断裂分析[J]. 辽宁工程技术大学学报(自然科学版),2009,28(5):777 − 780. [ZHANG Xiangyang. Analysis of creep damage fracture of upper roof[J]. Journal of Liaoning Technical University (Natural Science),2009,28(5):777 − 780. (in Chinese with English abstract)]
ZHANG Xiangyang. Analysis of creep damage fracture of upper roof［J］. Journal of Liaoning Technical University （Natural Science）, 2009, 28（5）: 777 − 780. （in Chinese with English abstract）
[13] 贺桂成,刘永,张志军,等. 衡山石膏矿地面塌陷机理的FLAC3D模拟[J]. 矿业研究与开发,2013,33(1):73 − 76. [HE Guicheng,LIU Yong,ZHANG Zhijun,et al. FLAC3D simulation of mechanism of surface subsidence in a gypsum mine,Hengshan[J]. Mining Research and Development,2013,33(1):73 − 76. (in Chinese with English abstract)]
HE Guicheng, LIU Yong, ZHANG Zhijun, et al. FLAC3D simulation of mechanism of surface subsidence in a gypsum mine, Hengshan［J］. Mining Research and Development, 2013, 33（1）: 73 − 76. （in Chinese with English abstract）
[14] CASTELLANZA R,GEROLYMATOU E,NOVA R. An attempt to predict the failure time of abandoned mine Pillars[J]. Rock Mechanics and Rock Engineering,2008,41(3):377 − 401. doi: 10.1007/s00603-007-0142-y
-
