Analysis of shear characteristics and strength parameters in Jiangdingya landslide, Zhouqu County
-
摘要:

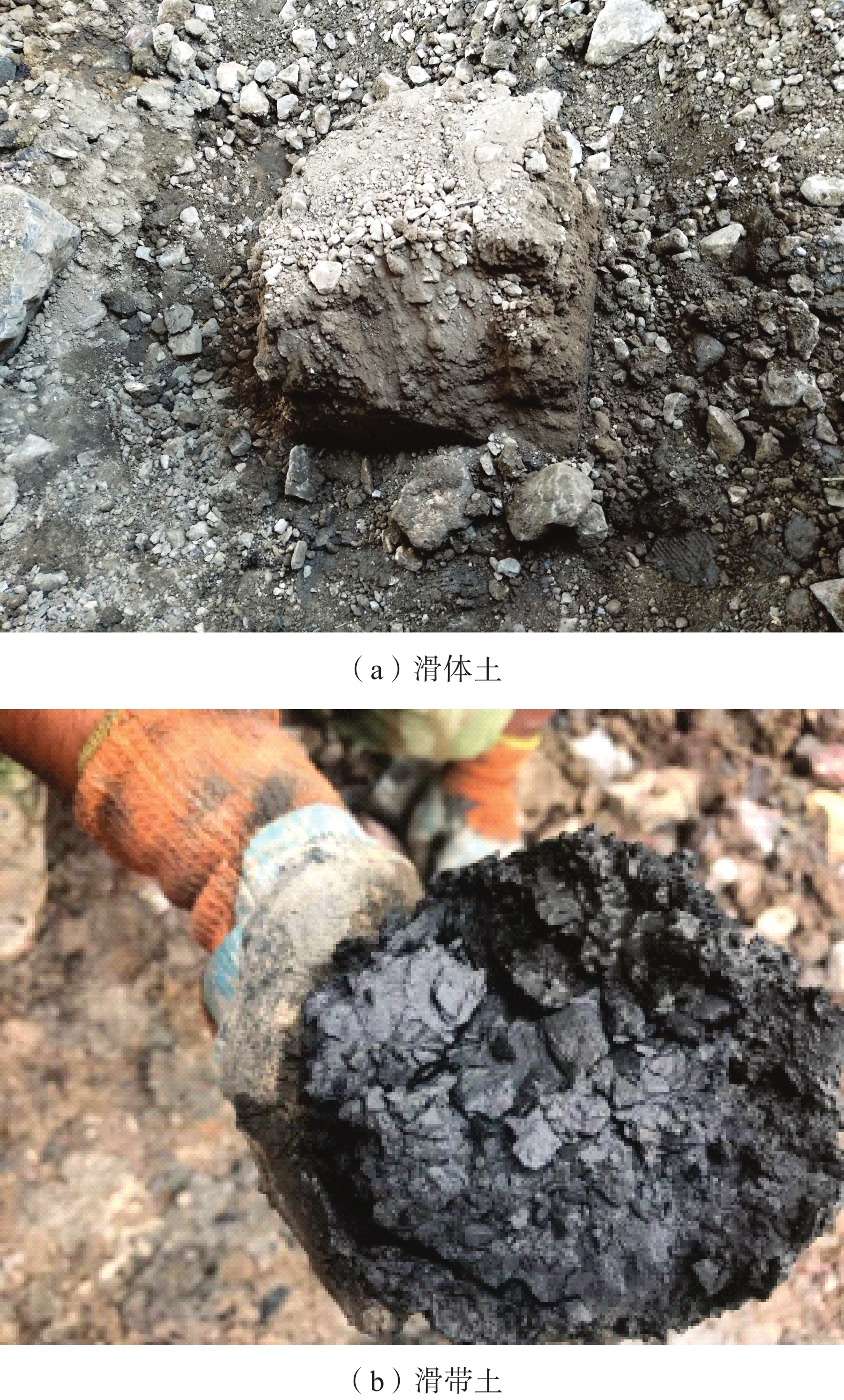

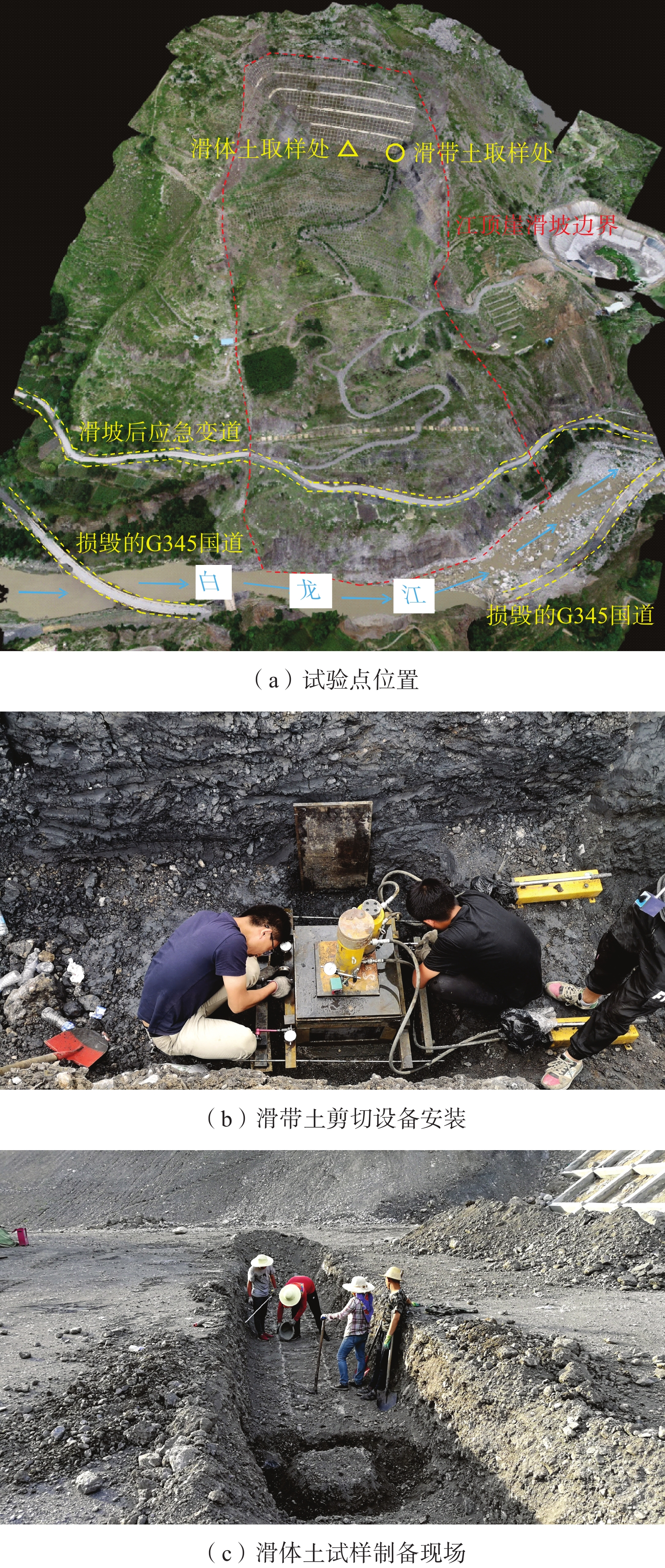

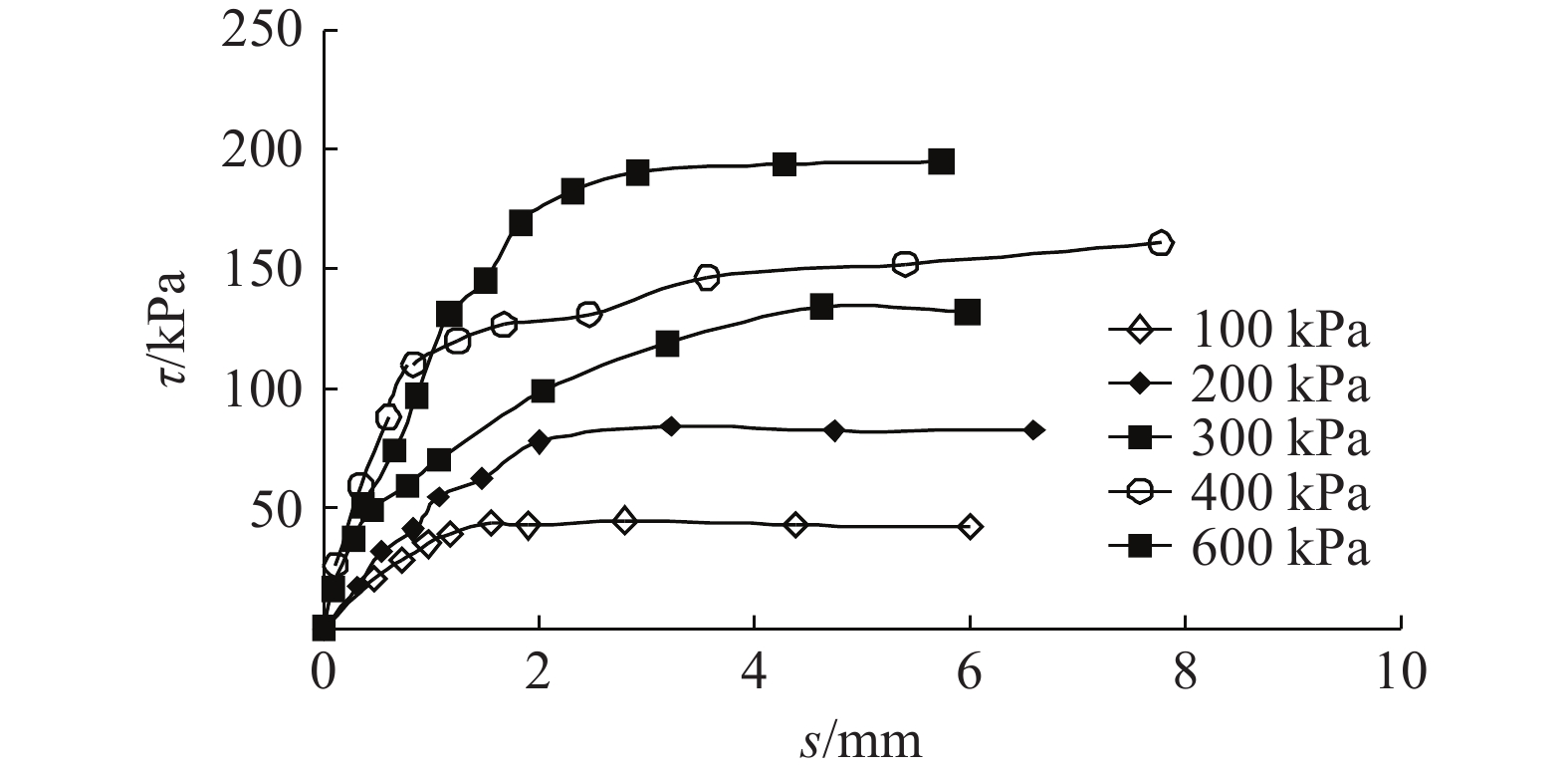

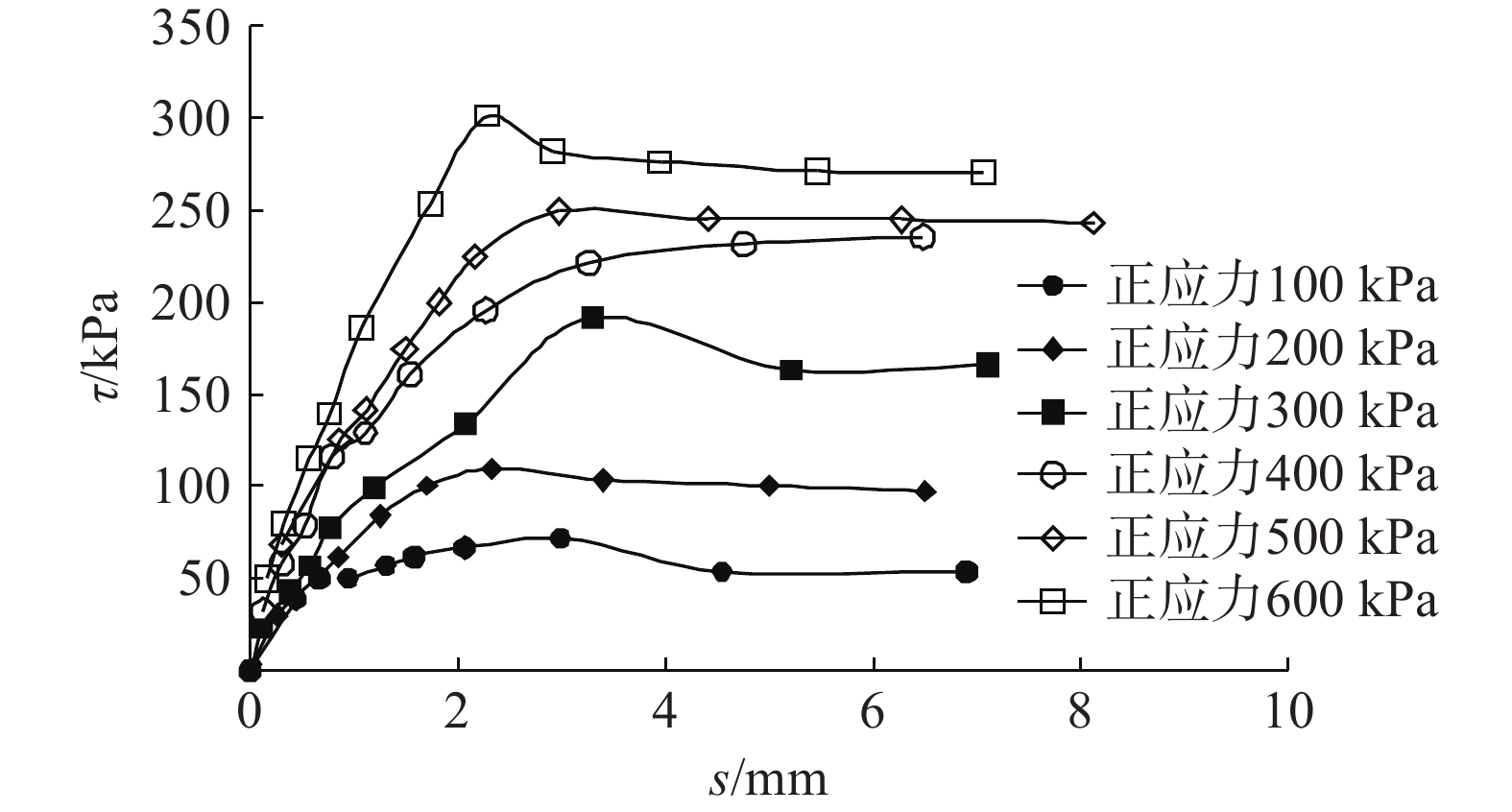

研究古滑坡中堆积层的强度特性是进行滑坡稳定性验算及其防治的重要环节，为合理确定古滑坡堆积层稳定性分析中的强度参数，依托甘肃舟曲江顶崖古滑坡治理工程，以滑体土（碎石土）、滑带土（含砾黏土）为研究对象，分别取2个典型地段采用平推法进行现场大型剪切试验。将试验结果与基于工程类比法的力学参数建议值进行了对比分析，结果发现：（1）滑带土剪切应变较小时，剪应力-剪切位移关系曲线有交叉现象，土样的剪应力随正应力与剪应变的增大呈现递增；（2）滑体土正应力越大，应变软化表现得越明显；（3）滑坡土的残余强度较峰值强度有一定衰减，但主要表现为黏聚力的减弱，其内摩擦角几乎没有变化，是因为在滑体土发生剪切后，滑带土中的胶结物被破坏，胶结作用减弱；泄流坡滑体土的天然残余强度参数内摩擦角在18.2°到24.6°之间，黏聚力在10.2 kPa到12.4 kPa之间，滑体土的残余强度参数与工程类比值得到的参数更加接近；（4）舟曲江顶崖堆积层滑坡滑带土和滑体土的岩体力学参数建议值：滑带土黏聚力7.0～14.8 kPa，内摩擦角15.0°～17.5°；滑体土黏聚力15.8～30.9 kPa，内摩擦角23.9°～24.4°。
Abstract:Studying the strength characteristics of the accumulation layer in ancient landslides is an important aspect of landslide stability analysis and control. In order to reasonably determine the strength parameters in the stability analysis of ancient landslide accumulation layers, this study focuses on the Jiangdingya ancient landslide treatment project in Zhouqu County, Gansu Province. The study targets the the sliding body soil (gravel soil) and sliding zone soil (gravelly clay) and conducts large-scale field shear tests at two typical sections using the horizontal pushing method. The test results are compared and analyzed with the suggested mechanical parameters based on engineering analogy method. Based on the above research, the following conclusions are drawn: (1) When the shear strain of the sliding zone soil is small, the shear stress-shear displacement relationship curve has crossed, and the shear stress of the soil sample increases with the increase of normal stress and shear strain; (2) The larger the normal stress of the sliding body soil, the more significant the strain softening behavior; (3) The residual strength of the landslide soil has a certain attenuation compared to the peak strength, mainly manifested as a weakening of cohesion, while the internal friction angle remains almost unchanged. This is because the cementitious material in the sliding zone soil is destroyed after shear deformation, leading to a weakening of cementation. The natural residual strength parameters of the sliding body soil on the discharge slope are: the internal friction angle ranges from 18.2° to 24.6°, and the cohesion ranges from 10.2 kPa to 12.4 kPa. The residual strength parameters of the sliding body soil are closer to the values obtained by the engineering analogy method; (4) The recommended values of rock mass mechanical parameters for the sliding zone soil and sliding body soil of the accumulation layer landslide at Jiangdingya are as follows : For the sliding zone soil, the cohesion ranges from 7.0 kPa to 14.8 kPa, and the internal friction angle ranges from 15.0° to 17.5°; for the sliding body soil, the cohesion ranges from 15.8 kPa to 30.9 kPa, and the internal friction angles from 23.9° to 24.4°.
-
Key words:
- ancient landslide /
- accumulation layer /
- in-situ shear test /
- shear strength /
- residual strength
-
-

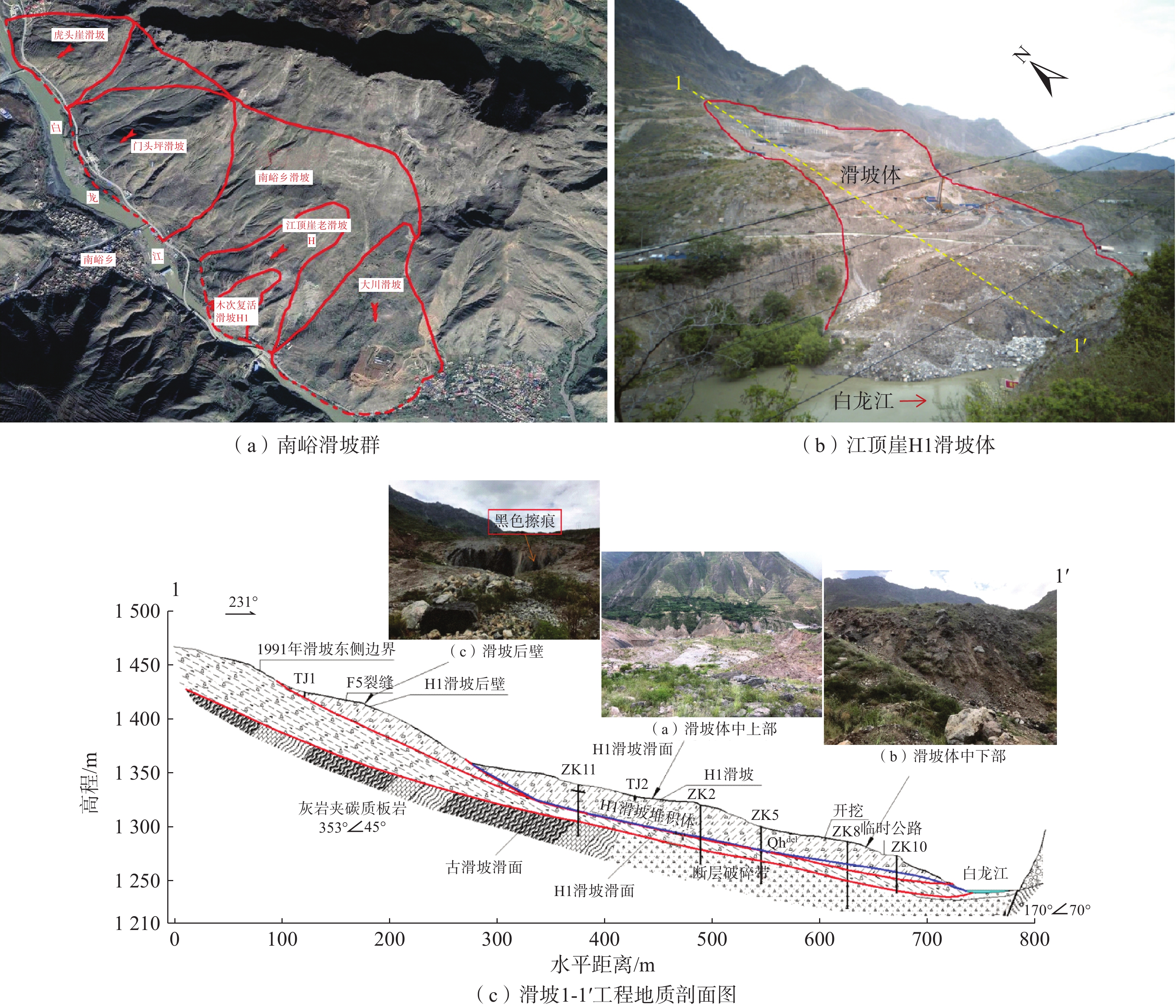

表 1 滑坡基本特征
Table 1. Basic characteristics of landslide
编号 类型 规模 主滑
方向
/（°）前缘
高程
/m后缘
高程
/m滑面形态 滑带特征 滑床特征 规模 长
/m宽
/m平均
厚度/m体积
/（104 m3）H 堆积层滑坡 1041 350 40.2 1493 221 1241 1593 折线形 炭质板岩碎屑 上部灰岩全风化层，
中下部碎石土特大型 H1 堆积层滑坡 553 210 26.5 382 225 1241 1418 折线形 黑色含砾黏土 碎石土 大型
下载: 导出CSV
表 2 滑坡岩土体物理力学性质参数
Table 2. Parameters of physical and mechanical properties of rock and soil mass of landslide
强度指标 滑带土 滑体土 含水率/% 11.85 13.1 天然密度/（g·cm−3） 2.02 1.99 干密度/（g·cm−3） 1.63 1.74 内摩擦角/（°） 16.40 21.8 黏聚力/kPa 6.40 11.3
下载: 导出CSV

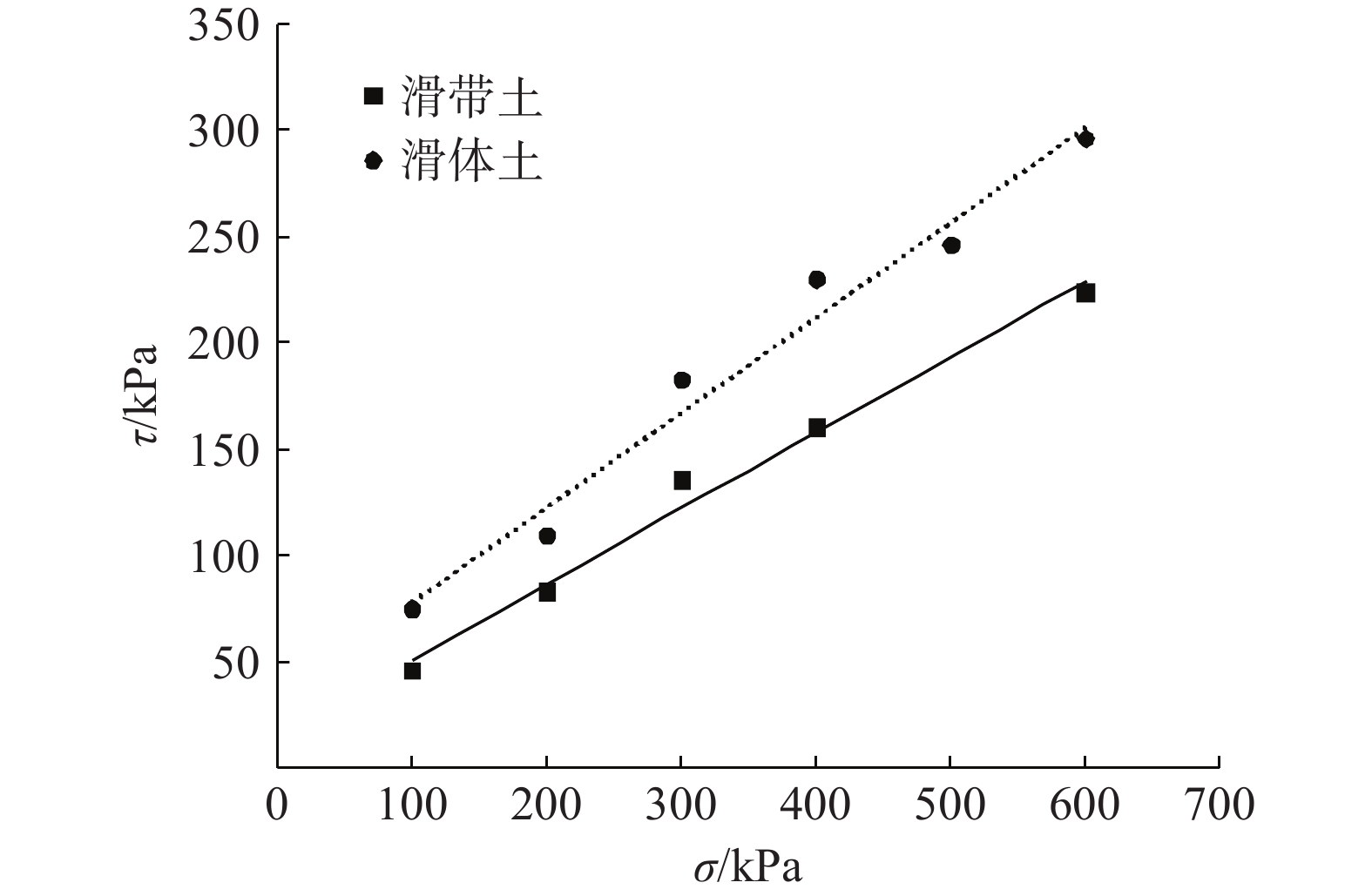

表 3 抗剪强度参数
Table 3. Shear strength parameters
试验
类型试件类型 抗剪峰值强度 残余强度 c/kPa φ/（°） c/kPa φ/（°） 现场
试验滑带土 14.7 19.7 — — 滑体土 30.9 24.4 15.8 23.9
下载: 导出CSV
-
[1] 唐家凯,吴玮江,刘韬,等. 甘肃灵台县南店子滑坡活动特征及成因分析[J]. 中国地质灾害与防治学报,2023,34(6):20 − 29. [TANG Jiakai,WU Weijiang,LIU Tao,et al. Characteristics and causes analysis of Nandianzi landslide in Lingtai County,Gansu Province[J]. The Chinese Journal of Geological Hazard and Control,2023,34(6):20 − 29. (in Chinese with English abstract)]
TANG Jiakai, WU Weijiang, LIU Tao, et al. Characteristics and causes analysis of Nandianzi landslide in Lingtai County, Gansu Province［J］. The Chinese Journal of Geological Hazard and Control, 2023, 34（6）: 20 − 29. （in Chinese with English abstract）
[2] 何坤,胡卸文,马国涛,等. 四川省盐源玻璃村特大型玄武岩古滑坡复活机制[J]. 岩土力学,2020,41(10):3443 − 3455. [HE Kun,HU Xiewen,MA Guotao,et al. The reactivated mechanism of Boli Village giant ancient basalt landslide in Yanyuan,Sichuan[J]. Rock and Soil Mechanics,2020,41(10):3443 − 3455. (in Chinese with English abstract)]
HE Kun, HU Xiewen, MA Guotao, et al. The reactivated mechanism of Boli Village giant ancient basalt landslide in Yanyuan, Sichuan［J］. Rock and Soil Mechanics, 2020, 41（10）: 3443 − 3455. （in Chinese with English abstract）
[3] 刘筱怡,张永双,郭长宝,等. 川西鲜水河呷拉宗古滑坡发育特征与形成演化过程[J]. 地质学报,2019,93(7):1767 − 1777. [LIU Xiaoyi,ZHANG Yongshuang,GUO Changbao,et al. Development characteristics and evolution process of the Garazong ancient rockslide along the Xianshuihe River in western Sichuan[J]. Acta Geologica Sinica,2019,93(7):1767 − 1777. (in Chinese with English abstract)] doi: 10.3969/j.issn.0001-5717.2019.07.015
LIU Xiaoyi, ZHANG Yongshuang, GUO Changbao, et al. Development characteristics and evolution process of the Garazong ancient rockslide along the Xianshuihe River in western Sichuan［J］. Acta Geologica Sinica, 2019, 93（7）: 1767 − 1777. （in Chinese with English abstract） doi: 10.3969/j.issn.0001-5717.2019.07.015
[4] IVERSON R M,GEORGE D L,ALLSTADT K,et al. Landslide mobility and hazards:Implications of the 2014 Oso disaster[J]. Earth and Planetary Science Letters,2015,412:197 − 208. doi: 10.1016/j.jpgl.2014.12.020
[5] 窦晓东,张泽林. 甘肃舟曲垭豁口滑坡复活机理及成因探讨[J]. 中国地质灾害与防治学报,2021,32(2):9 − 18. [DOU Xiaodong,ZHANG Zelin. Mechanism and causal analysis on the Yahuokou landslide reactivation and causes (Zhouqu County,Gansu,China)[J]. The Chinese Journal of Geological Hazard and Control,2021,32(2):9 − 18. (in Chinese with English abstract)]
DOU Xiaodong, ZHANG Zelin. Mechanism and causal analysis on the Yahuokou landslide reactivation and causes （Zhouqu County, Gansu, China）［J］. The Chinese Journal of Geological Hazard and Control, 2021, 32（2）: 9 − 18. （in Chinese with English abstract）
[6] 吴玮江,王国亚,张国信,等. 甘肃岷县永光1#流滑型黄土滑坡的远程滑动特征[J]. 中国地质灾害与防治学报,2023,34(6):3 − 12. [WU Weijiang,WANG Guoya,ZHANG Guoxin,et al. Long-runout characteristics of the Yongguang 1# loess flowslide in Minxian County,Gansu Province[J]. The Chinese Journal of Geological Hazard and Control,2023,34(6):3 − 12. (in Chinese with English abstract)]
WU Weijiang, WANG Guoya, ZHANG Guoxin, et al. Long-runout characteristics of the Yongguang 1# loess flowslide in Minxian County, Gansu Province［J］. The Chinese Journal of Geological Hazard and Control, 2023, 34（6）: 3 − 12. （in Chinese with English abstract）
[7] 刘兴荣,魏新平,陈豫津,等. 基于增量加载法的泥石流拦挡坝抗冲击力数值模拟——以甘肃舟曲三眼峪沟泥石流拦挡坝为例[J]. 中国地质灾害与防治学报,2021,32(2):78 − 83. [LIU Xingrong,WEI Xinping,CHEN Yujin,et al. Numerical simulation of impact resistance of debris flow dam:A case study of the debris flow dam in Sanyanyu Gully,Zhouqu County,Gansu Province[J]. The Chinese Journal of Geological Hazard and Control,2021,32(2):78 − 83. (in Chinese with English abstract)]
LIU Xingrong, WEI Xinping, CHEN Yujin, et al. Numerical simulation of impact resistance of debris flow dam: A case study of the debris flow dam in Sanyanyu Gully, Zhouqu County, Gansu Province［J］. The Chinese Journal of Geological Hazard and Control, 2021, 32（2）: 78 − 83. （in Chinese with English abstract）
[8] 范志强,唐辉明,谭钦文,等. 滑带土环剪试验及其对水库滑坡临滑强度的启示[J]. 岩土工程学报,2019,41(9):1698 − 1706. [FAN Zhiqiang,TANG Huiming,TAN Qinwen,et al. Ring shear tests on slip soils and their enlightenment to critical strength of reservoir landslides[J]. Chinese Journal of Geotechnical Engineering,2019,41(9):1698 − 1706. (in Chinese with English abstract)]
FAN Zhiqiang, TANG Huiming, TAN Qinwen, et al. Ring shear tests on slip soils and their enlightenment to critical strength of reservoir landslides［J］. Chinese Journal of Geotechnical Engineering, 2019, 41（9）: 1698 − 1706. （in Chinese with English abstract）
[9] 张怡颖,郭长宝,杨志华,等. 四川茂县周场坪深层滑坡滑带土环剪试验强度研究[J]. 工程地质学报,2021,29(3):764 − 776. [ZHANG Yiying,GUO Changbao,YANG Zhihua,et al. Study on shear strength of deep-seated sliding zone soil of Zhouchangping landslide in Maoxian,Sichuan[J]. Journal of Engineering Geology,2021,29(3):764 − 776. (in Chinese with English abstract)]
ZHANG Yiying, GUO Changbao, YANG Zhihua, et al. Study on shear strength of deep-seated sliding zone soil of Zhouchangping landslide in Maoxian, Sichuan［J］. Journal of Engineering Geology, 2021, 29（3）: 764 − 776. （in Chinese with English abstract）
[10] 张玉,徐卫亚,李德亮. 大型滑坡演化机制及滑带剪切特性试验研究[J]. 岩石力学与工程学报,2013,32(增刊1):2606 − 2616. [ZHANG Yu,XU Weiya,LI Deliang. Experimental study on evolution mechanism of large landslide and shear characteristics of sliding zone[J]. Chinese Journal of Rock Mechanics and Engineering,2013,32(Sup 1):2606 − 2616. (in Chinese with English abstract)]
ZHANG Yu, XU Weiya, LI Deliang. Experimental study on evolution mechanism of large landslide and shear characteristics of sliding zone［J］. Chinese Journal of Rock Mechanics and Engineering, 2013, 32（Sup 1）: 2606 − 2616. （in Chinese with English abstract）
[11] 张永双,郭长宝,周能娟. 金沙江支流冲江河巨型滑坡及其局部复活机理研究[J]. 岩土工程学报,2013,35(3):445 − 453. [ZHANG Yongshuang,GUO Changbao,ZHOU Nengjuan. Characteristics of Chongjianghe landslide at a branch of Jinsha River and its local reactivation mechanism[J]. Chinese Journal of Geotechnical Engineering,2013,35(3):445 − 453. (in Chinese with English abstract)]
ZHANG Yongshuang, GUO Changbao, ZHOU Nengjuan. Characteristics of Chongjianghe landslide at a branch of Jinsha River and its local reactivation mechanism［J］. Chinese Journal of Geotechnical Engineering, 2013, 35（3）: 445 − 453. （in Chinese with English abstract）
[12] 刘斯宏,臧德记,汪易森,等. 便携式现场和室内两用直剪仪的研制[J]. 岩土工程学报,2010,32(6):938 − 943. [LIU Sihong,ZANG Deji,WANG Yisen,et al. Development of a portable direct shear apparatus for both in situ and laboratory tests[J]. Chinese Journal of Geotechnical Engineering,2010,32(6):938 − 943. (in Chinese with English abstract)]
LIU Sihong, ZANG Deji, WANG Yisen, et al. Development of a portable direct shear apparatus for both in situ and laboratory tests［J］. Chinese Journal of Geotechnical Engineering, 2010, 32（6）: 938 − 943. （in Chinese with English abstract）
[13] 李东升,刘东升. 固结煤矸石抗剪强度特征试验[J]. 重庆大学学报,2015,38(3):58 − 65. [LI Dongsheng,LIU Dongsheng. Experimental research on the shear strength of consolidation gangue[J]. Journal of Chongqing University,2015,38(3):58 − 65. (in Chinese with English abstract)] doi: 10.11835/j.issn.1000-582X.2015.03.008
LI Dongsheng, LIU Dongsheng. Experimental research on the shear strength of consolidation gangue［J］. Journal of Chongqing University, 2015, 38（3）: 58 − 65. （in Chinese with English abstract） doi: 10.11835/j.issn.1000-582X.2015.03.008
[14] 张建华,姚志华,冯世清,等. 基于现场和室内剪切试验的原状黄土强度特性研究[J]. 水利水电技术(中英文),2021,52(6):188 − 197. [ZHANG Jianhua,YAO Zhihua,FENG Shiqing,et al. Strength characteristics of undisturbed loess based on field and laboratory shear tests[J]. Water Resources and Hydropower Engineering,2021,52(6):188 − 197. (in Chinese with English abstract)]
ZHANG Jianhua, YAO Zhihua, FENG Shiqing, et al. Strength characteristics of undisturbed loess based on field and laboratory shear tests［J］. Water Resources and Hydropower Engineering, 2021, 52（6）: 188 − 197. （in Chinese with English abstract）
[15] 邢皓枫,刘振红,叶观宝,等. 南水北调西线工程现场剪切试验及成果分析[J]. 岩土力学,2007,28(增刊1):69 − 73. [XING Haofeng,LIU Zhenhong,YE Guanbao,et al. Field shear test and result analysis of the west route project of south-to-north water Transfer Project[J]. Rock and Soil Mechanics,2007,28(Sup 1):69 − 73. (in Chinese with English abstract)]
XING Haofeng, LIU Zhenhong, YE Guanbao, et al. Field shear test and result analysis of the west route project of south-to-north water Transfer Project［J］. Rock and Soil Mechanics, 2007, 28（Sup 1）: 69 − 73. （in Chinese with English abstract）
[16] 张娟,李博融,曹升亮,等. 黄土边坡原位直剪与抗滑桩模型试验[J]. 中国公路学报,2019,32(8):35 − 48. [ZHANG Juan,LI Borong,CAO Shengliang,et al. Model test of vertical shear and anti-slide pile in situ on loess slope[J]. China Journal of Highway and Transport,2019,32(8):35 − 48. (in Chinese with English abstract)]
ZHANG Juan, LI Borong, CAO Shengliang, et al. Model test of vertical shear and anti-slide pile in situ on loess slope［J］. China Journal of Highway and Transport, 2019, 32（8）: 35 − 48. （in Chinese with English abstract）
[17] 朱彦鹏,张强,马天忠,等. 舟曲某千枚岩与砾石土质高边坡现场剪切试验及稳定性分析研究[J]. 防灾减灾工程学报,2015,35(3):404 − 410. [ZHU Yanpeng,ZHANG Qiang,MA Tianzhong,et al. Field shearing test and stability analysis of a Zhouqu phyllite and gravel soil high slope[J]. Journal of Disaster Prevention and Mitigation Engineering,2015,35(3):404 − 410. (in Chinese with English abstract)]
ZHU Yanpeng, ZHANG Qiang, MA Tianzhong, et al. Field shearing test and stability analysis of a Zhouqu phyllite and gravel soil high slope［J］. Journal of Disaster Prevention and Mitigation Engineering, 2015, 35（3）: 404 − 410. （in Chinese with English abstract）
[18] 胡再强,林山,李宏儒,等. 洛川Q2黄土残余强度影响因素试验研究[J]. 岩土工程学报,2017,39(增刊1):6 − 11. [HU Zaiqiang,LIN Shan,LI Hongru,et al. Experimental study on influencing factors of residual strength of Q2 loess in Luochuan[J]. Chinese Journal of Geotechnical Engineering,2017,39(Sup 1):6 − 11. (in Chinese with English abstract)]
HU Zaiqiang, LIN Shan, LI Hongru, et al. Experimental study on influencing factors of residual strength of Q2 loess in Luochuan［J］. Chinese Journal of Geotechnical Engineering, 2017, 39（Sup 1）: 6 − 11. （in Chinese with English abstract）
[19] 张永双,吴瑞安,郭长宝,等. 古滑坡复活问题研究进展与展望[J]. 地球科学进展,2018,33(7):728 − 740. [ZHANG Yongshuang,WU Ruian,GUO Changbao,et al. Research progress and prospect on reactivation of ancient landslides[J]. Advances in Earth Science,2018,33(7):728 − 740. (in Chinese with English abstract)] doi: 10.11867/j.issn.1001-8166.2018.07.0728
ZHANG Yongshuang, WU Ruian, GUO Changbao, et al. Research progress and prospect on reactivation of ancient landslides［J］. Advances in Earth Science, 2018, 33（7）: 728 − 740. （in Chinese with English abstract） doi: 10.11867/j.issn.1001-8166.2018.07.0728
[20] 张卫雄,翟向华,丁保艳,等. 甘肃舟曲江顶崖滑坡成因分析与综合治理措施[J]. 中国地质灾害与防治学报,2020,31(5):7 − 14. [ZHANG Weixiong,ZHAI Xianghua,DING Baoyan,et al. Causative analysis and comprehensive treatment of the Jiangdingya Landslide in Zhouqu County of Gansu Province[J]. The Chinese Journal of Geological Hazard and Control,2020,31(5):7 − 14. (in Chinese with English abstract)]
ZHANG Weixiong, ZHAI Xianghua, DING Baoyan, et al. Causative analysis and comprehensive treatment of the Jiangdingya Landslide in Zhouqu County of Gansu Province［J］. The Chinese Journal of Geological Hazard and Control, 2020, 31（5）: 7 − 14. （in Chinese with English abstract）
[21] 韩旭东, 付杰, 李严严, 等. 舟曲江顶崖滑坡的早期判识及风险评估研究[J]. 水文地质工程地质,2021,48(6):180 − 186. [HAN Xudong, FU Jie, LI Yanyan, et al. A study of the early identification and risk assessment of the Jiangdingya landslide in Zhouqu county[J]. Hydrogeology & Engineering Geology,2021,48(6):180 − 186. (in Chinese with English abstract)]
HAN Xudong, FU Jie, LI Yanyan, et al. A study of the early identification and risk assessment of the Jiangdingya landslide in Zhouqu county［J］. Hydrogeology & Engineering Geology, 2021, 48（6）: 180 − 186. （in Chinese with English abstract）
[22] 窦晓东,贾强,刘心彪,等. 舟曲县南峪乡江顶崖滑坡灾害应急治理工程勘察报告[R]. 兰州:甘肃省地质环境监测院,2018. [DOU Xiaodong,JIA Qiang,LIU Xinbiao, et al. Investigation report on emergency treatment project of Jiangdingya landslide disaster in Nanyu Township, Zhouqu County[R]. Lanzhou:Gansu Provincial Institute of Geological Environment Monitoring, 2018. (in Chinese)]
DOU Xiaodong, JIA Qiang, LIU Xinbiao, et al. Investigation report on emergency treatment project of Jiangdingya landslide disaster in Nanyu Township, Zhouqu County［R］. Lanzhou: Gansu Provincial Institute of Geological Environment Monitoring, 2018. （in Chinese）
[23] 肖卫国,兑关锁,陈铁林,等. 剪胀和破坏耦合的节理岩体本构模型的研究[J]. 岩石力学与工程学报,2009,28(12):2535 − 2543. [XIAO Weiguo,DUI Guansuo,CHEN Tielin,et al. A study of constitutive model coupling dilatancy and degradation for jointed rock[J]. Chinese Journal of Rock Mechanics and Engineering,2009,28(12):2535 − 2543. (in Chinese with English abstract)] doi: 10.3321/j.issn:1000-6915.2009.12.021
XIAO Weiguo, DUI Guansuo, CHEN Tielin, et al. A study of constitutive model coupling dilatancy and degradation for jointed rock［J］. Chinese Journal of Rock Mechanics and Engineering, 2009, 28（12）: 2535 − 2543. （in Chinese with English abstract） doi: 10.3321/j.issn:1000-6915.2009.12.021
[24] 唐志成,夏才初,肖素光. 节理剪切应力–位移本构模型及剪胀现象分析[J]. 岩石力学与工程学报,2011,30(5):917 − 925. [TANG Zhicheng,XIA Caichu,XIAO Suguang. Constitutive model for joint shear stress-displacement and analysis of dilation[J]. Chinese Journal of Rock Mechanics and Engineering,2011,30(5):917 − 925. (in Chinese with English abstract)]
TANG Zhicheng, XIA Caichu, XIAO Suguang. Constitutive model for joint shear stress-displacement and analysis of dilation［J］. Chinese Journal of Rock Mechanics and Engineering, 2011, 30（5）: 917 − 925. （in Chinese with English abstract）
[25] 高丙丽, 韦兆恒, 任建喜, 等. 降雨作用下考虑结构面劣化的边坡块体稳定性评价[J]. 土木工程学报,2024,57(10):95 − 107. [GAO Bingli, WEI Zhaoheng, REN Jianxi, et al. Stability evaluation of slope block considering structural plane degradation under rainfall[J]. Journal of Civil Engineering,2024,57(10):95 − 107. (in Chinese with English abstract)]
GAO Bingli, WEI Zhaoheng, REN Jianxi, et al. Stability evaluation of slope block considering structural plane degradation under rainfall［J］. Journal of Civil Engineering, 2024, 57（10）: 95 − 107. （in Chinese with English abstract）
-
