Study on rainfall threshold of different lithologic landslides in Bailong River Basin of Gansu Province
-
摘要:

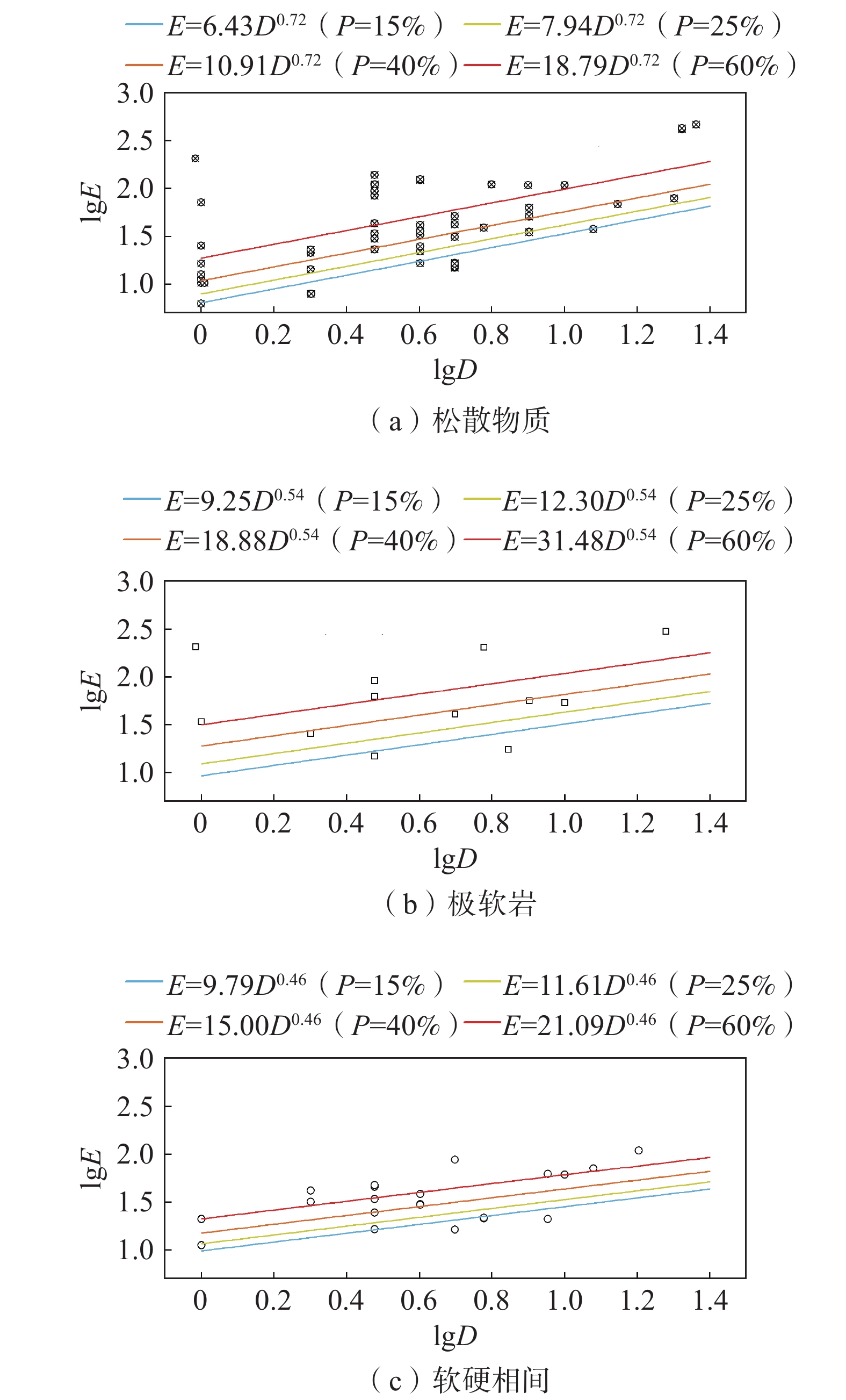

降雨引发斜坡破坏的阈值是地质灾害预警的基础。文章以2004—2019年白龙江流域甘肃段5个县区内因长期强降雨引发的滑坡作为研究对象，采用频数法研究不同岩性特征的滑坡降雨预警阈值。构建了不同概率等级下，引发滑坡的事件降雨量（event rainfall）与降雨历时（duration of rainfall）之间的关系模型，并给出了下限临界累计降雨阈值。通过2020年陇南武都区暴洪灾害引发的滑坡特征及降雨数据验证，滑坡前雨量计监测获得的累计降雨量与模型给出的临界累计降雨阈值基本相符，对持续强降雨引发的滑坡灾害的预警具有指导意义。
Abstract:The research results regarding the threshold values for slope disasters caused by rainfall are crucial for geological disaster prevention. In this study, landslides induced by long-term heavy rainfall occurred in five counties within the Gansu section of the Bailongjiang Basin between 2004 and 2019. Using the frequency method, the rainfall thresholds for early warning of rainfall type landslides with different rock characteristics were investigated. A relationship model between event rainfall and the duration of rainfall leading to landslides was constructed under different probability levels, and a lower threshold for critical cumulative rainfall was provided. Through verification of landslide characteristics and rainfall data resulting from a flash flood disaster in Wudu District in 2020, the accumulated rainfall measured by the rainfall gauge before the landslide is found to be consistent with the threshold given by the model. This finding is of guiding significance for early warning of landslide disasters caused by sustained heavy rainfall.
-
-
表 1 岩性类型的划分标准
Table 1. Classification Standards for Lithological Types
软硬类型 主要岩性类型 极软 层状碎屑岩：古近系砾岩；新近系砾岩、页岩、泥质砂岩 坚硬 块状岩浆岩：花岗岩、辉绿岩、辉长岩、闪长岩、
闪长玢岩、闪斜煌斑岩等较软 层状碎屑岩：白垩系砾岩、砂岩、泥岩 较硬 层状碳酸盐岩：三叠系、二叠系灰岩、砂岩、页岩等
泥盆系板岩、砂岩、页岩、灰岩等软硬相间 ①层状变质岩：二叠系砂岩、砂质板岩、凝灰岩、千枚岩；
志留系砂岩、石灰岩、千枚岩、板岩
②层状碳酸盐岩：泥盆系板岩、千枚岩、灰岩
③层状碎屑岩：侏罗系砂岩、泥岩、砾岩、页岩松散物质 第四系残坡积碎石土、粉质黏土、强风化千枚岩、砾石
下载: 导出CSV
表 2 不同岩性类型的斜坡在各预警等级下发生滑坡前不同降雨历时下的累计雨量
Table 2. Duration and cumulative rainfall before landslides occur on slopes of different rock types at different warning levels
/mm 滑坡类型 预警等级 降雨历时/d 1 2 3 4 5 6 7 8 9 10 11 12 松散物质 低（P=15%） 6.43 10.59 14.18 17.45 20.49 23.36 26.10 28.74 31.28 33.75 36.14 38.48 中（P=25%） 7.94 13.08 17.51 21.54 25.30 28.85 32.23 35.49 38.63 41.67 44.63 47.52 高（P=40%） 10.91 17.97 24.06 29.60 34.76 39.64 44.29 48.76 53.07 57.26 61.32 65.29 极高（P=60%） 18.79 30.95 41.44 50.98 59.87 68.26 76.28 83.98 91.41 98.61 105.62 112.44 极软岩类 低（P=15%） 9.25 13.45 16.74 19.55 22.06 24.34 26.45 28.43 30.30 32.07 33.77 35.39 中（P=25%） 12.30 17.88 22.26 26.00 29.33 32.37 35.18 37.81 40.29 42.65 44.90 47.06 高（P=40%） 18.88 27.45 34.17 39.91 45.02 49.68 54.00 58.03 61.84 65.46 68.92 72.24 极高（P=60%） 31.48 45.77 56.97 66.55 75.07 82.84 90.03 96.76 103.12 109.15 114.92 120.45 软硬相间 低（P=15%） 9.79 13.47 16.23 18.52 20.53 22.32 23.96 25.48 26.90 28.23 29.50 30.70 中（P=25%） 11.61 15.97 19.24 21.97 24.34 26.47 28.42 30.22 31.90 33.48 34.98 36.41 高（P=40%） 15.00 20.63 24.86 28.38 31.45 34.20 36.71 39.04 41.21 43.26 45.20 47.05 极高（P=60%） 21.09 29.01 34.96 39.90 44.22 48.09 51.62 54.89 57.95 60.82 63.55 66.15
下载: 导出CSV
表 3 不同岩性类型滑坡事件对应的预警等级
Table 3. Warning levels corresponding to landslide events of various lithologic types

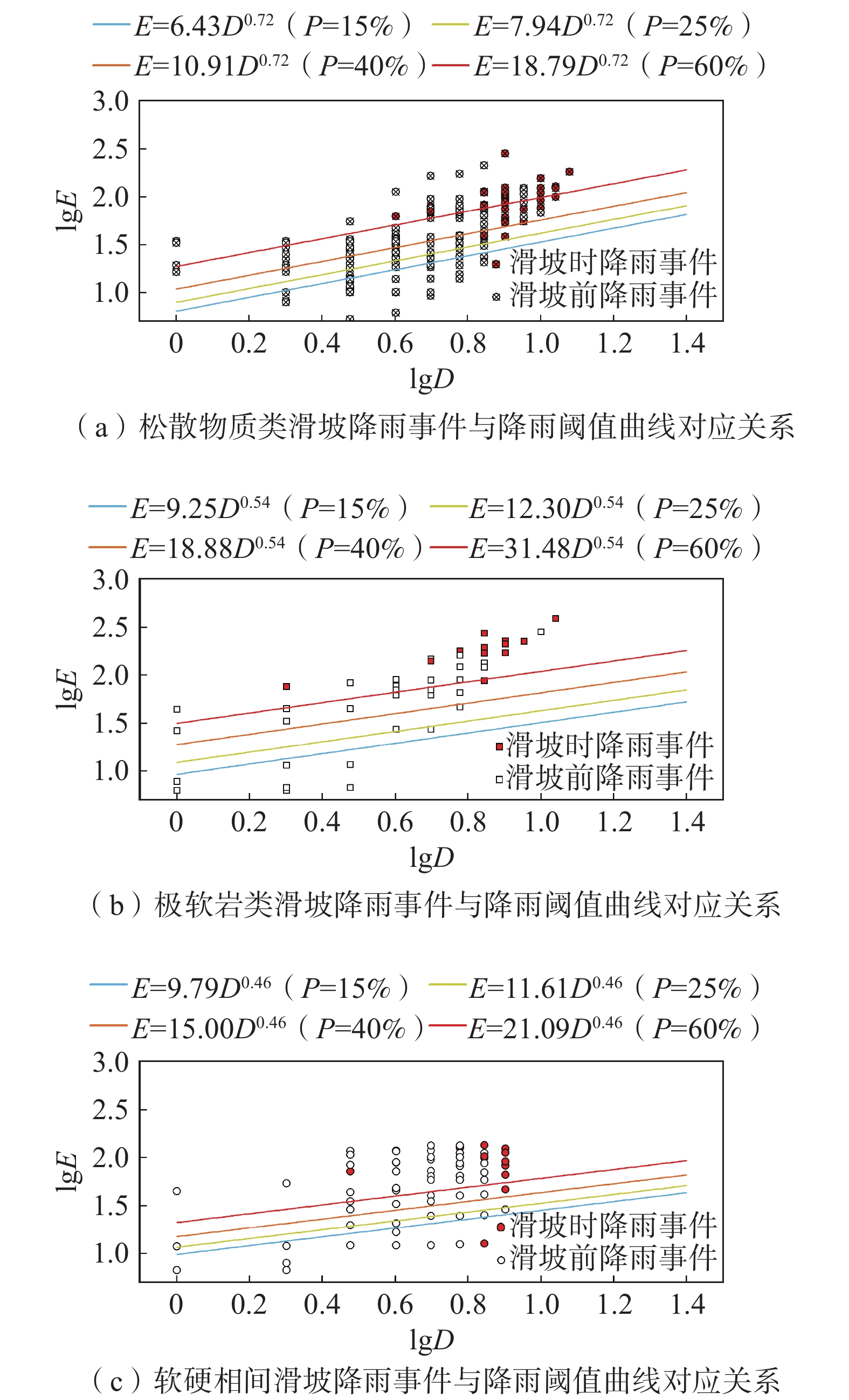

滑坡类型 预警等级 滑坡/处 事件比例/% 松散物质 低（P<25%） 0 0 中（25%≤P<40%） 3 7.89 高（40%≤P<60%） 10 26.32 极高（P≥60%） 25 65.79 极软岩类 低（P<25%） 0 0 中（25%≤P<40%） 0 0 高（40%≤P<60%） 1 11.11 极高（P≥60%） 8 88.89 软硬相间 低（P<25%） 1 8.33 中（25%≤P<40%） 0 0 高（40%≤P<60%） 1 8.33 极高（P≥60%） 10 83.33
下载: 导出CSV
-
[1] 刘传正,刘艳辉,温铭生,等. 中国地质灾害区域预警方法与应用[M]. 北京:地质出版社,2009. [LIU Chuanzheng,LIU Yanhui,WEN Mingsheng,et al. Regional early warning method and application of geological disasters in China[M]. Beijing:Geological Publishing House,2009. (in Chinese)]
LIU Chuanzheng, LIU Yanhui, WEN Mingsheng, et al. Regional early warning method and application of geological disasters in China［M］. Beijing: Geological Publishing House, 2009. （in Chinese）
[2] 黄润秋,戚国庆. 滑坡基质吸力观测研究[J]. 岩土工程学报,2004,26(2):216 − 219. [HUANG Runqiu,QI Guoqing. Observation of suction in a landslide[J]. Chinese Journal of Geotechnical Engineering,2004,26(2):216 − 219. (in Chinese with English abstract)]
HUANG Runqiu, QI Guoqing. Observation of suction in a landslide［J］. Chinese Journal of Geotechnical Engineering, 2004, 26（2）: 216 − 219. （in Chinese with English abstract）
[3] GUZZETTI F,PERUCCACCI S,ROSSI M,et al. The rainfall intensity–duration control of shallow landslides and debris flows:An update[J]. Landslides,2008,5(1):3 − 17. doi: 10.1007/s10346-007-0112-1
[4] SHARIR K,ROSLEE R,LEE K E,et al. Landslide factors and susceptibility mapping on natural and artificial slopes in kundasang,Sabah[J]. Sains Malaysiana,2017,46(9):1531 − 1540. doi: 10.17576/jsm-2017-4609-23
[5] 朱智杰,卢书强. 基于有效降雨量的滑坡位移-降雨相关性研究[J]. 长江科学院院报,2022,40(12):162 − 168. [ZHU Zhijie,LU Shuqiang. Correlation between landslide displacement and rainfall on account of effective rainfall [J]. Journal of Yangtze River Scientific Research Institute,2022,40(12):162 − 168. (in Chinese with English abstract)]
ZHU Zhijie, LU Shuqiang. Correlation between landslide displacement and rainfall on account of effective rainfall ［J］. Journal of Yangtze River Scientific Research Institute, 2022, 40（12）: 162 − 168. （in Chinese with English abstract）
[6] 康璇,徐光黎,刘府生,等. 降雨条件下多层结构喷出岩滑坡孔隙水压力变化与稳定性分析[J]. 中国地质灾害与防治学报,2018,29(1):15 − 22. [KANG Xuan,XU Guangli,LIU Fusheng,et al. Pore pressure and stability analysis of a multi-layered volcanic rock landslide under continuous rainfall[J]. The Chinese Journal of Geological Hazard and Control,2018,29(1):15 − 22. (in Chinese with English abstract)]
KANG Xuan, XU Guangli, LIU Fusheng, et al. Pore pressure and stability analysis of a multi-layered volcanic rock landslide under continuous rainfall［J］. The Chinese Journal of Geological Hazard and Control, 2018, 29（1）: 15 − 22. （in Chinese with English abstract）
[7] 赵衡,宋二祥. 诱发区域性滑坡的降雨阈值[J]. 吉林大学学报(地球科学版),2011,41(5):1481 − 1487. [ZHAO Heng,SONG Erxiang. Rainfall thresholds for regional landslides[J]. Journal of Jilin University (Earth Science Edition),2011,41(5):1481 − 1487. (in Chinese with English abstract)]
ZHAO Heng, SONG Erxiang. Rainfall thresholds for regional landslides［J］. Journal of Jilin University （Earth Science Edition）, 2011, 41（5）: 1481 − 1487. （in Chinese with English abstract）
[8] 王锡稳,张铁军,冯军,等. 甘肃地质灾害气象等级预报研究[J]. 干旱气象,2004,22(1):8 − 12. [WANG Xiwen,ZHANG Tiejun,FENG Jun,et al. Study of the geological calamity meteorological grade prediction in Gansu Province[J]. Journal of Arid Meteorology,2004,22(1):8 − 12. (in Chinese with English abstract)] doi: 10.3969/j.issn.1006-7639.2004.01.002
WANG Xiwen, ZHANG Tiejun, FENG Jun, et al. Study of the geological calamity meteorological grade prediction in Gansu Province［J］. Journal of Arid Meteorology, 2004, 22（1）: 8 − 12. （in Chinese with English abstract） doi: 10.3969/j.issn.1006-7639.2004.01.002
[9] 郭富赟,宋晓玲,谢煜,等. 甘肃地质灾害气象预警技术方法探讨[J]. 中国地质灾害与防治学报,2015,26(1):127 − 133. [GUO Fuyun,SONG Xiaoling,XIE Yu,et al. A discussion on the geological hazards meteorological warning system in Gansu Province[J]. The Chinese Journal of Geological Hazard and Control,2015,26(1):127 − 133. (in Chinese with English abstract)]
GUO Fuyun, SONG Xiaoling, XIE Yu, et al. A discussion on the geological hazards meteorological warning system in Gansu Province［J］. The Chinese Journal of Geological Hazard and Control, 2015, 26（1）: 127 − 133. （in Chinese with English abstract）
[10] 刘艳辉,温铭生,苏永超,等. 台风暴雨型地质灾害时空特征及预警效果分析[J]. 水文地质工程地质,2016,43(5):119 − 126. [LIU Yanhui,WEN Mingsheng,SU Yongchao,et al. Characteristics of geo-hazards induced by typhoon rainstorm and evaluation of geo-hazards early warning[J]. Hydrogeology & Engineering Geology,2016,43(5):119 − 126. (in Chinese with English abstract)]
LIU Yanhui, WEN Mingsheng, SU Yongchao, et al. Characteristics of geo-hazards induced by typhoon rainstorm and evaluation of geo-hazards early warning［J］. Hydrogeology & Engineering Geology, 2016, 43（5）: 119 − 126. （in Chinese with English abstract）
[11] 刘传正,刘艳辉,温铭生,等. 中国地质灾害气象预警实践:2003—2012[J]. 中国地质灾害与防治学报,2015,26(1):1 − 8. [LIU Chuanzheng,LIU Yanhui,WEN Mingsheng,et al. arly warning for regional geo-hazards during 2003—2012E,China[J]. The Chinese Journal of Geological Hazard and Control,2015,26(1):1 − 8. (in Chinese with English abstract)]
LIU Chuanzheng, LIU Yanhui, WEN Mingsheng, et al. arly warning for regional geo-hazards during 2003—2012E, China［J］. The Chinese Journal of Geological Hazard and Control, 2015, 26（1）: 1 − 8. （in Chinese with English abstract）
[12] 王高峰,高幼龙,姚亚辉,等. 甘肃省白龙江流域降雨型潜在泥石流危险性预报模型[J]. 中国地质,2022,49(3):732 − 748. [WANG Gaofeng,GAO Youlong,YAO Yahui,et al. Prediction model of potential debris flow hazard of rainfall type in Bailong River Basin,Gansu Province[J]. Geology in China,2022,49(3):732 − 748. (in Chinese with English abstract)] doi: 10.12029/gc20220305
WANG Gaofeng, GAO Youlong, YAO Yahui, et al. Prediction model of potential debris flow hazard of rainfall type in Bailong River Basin, Gansu Province［J］. Geology in China, 2022, 49（3）: 732 − 748. （in Chinese with English abstract） doi: 10.12029/gc20220305
[13] 谢正团. 白龙江流域地质灾害高发区典型城镇地质环境承载力评价与防灾对策[D]. 兰州:兰州大学,2019. [XIE Zhengtuan. Geological environment bearing capacity assessment and hazard prevention strategy in typical urban centers with high-frequency geological hazards in Bailong River Basin[D]. Lanzhou:Lanzhou University,2019. (in Chinese with English abstract)]
XIE Zhengtuan. Geological environment bearing capacity assessment and hazard prevention strategy in typical urban centers with high-frequency geological hazards in Bailong River Basin［D］. Lanzhou: Lanzhou University, 2019. （in Chinese with English abstract）
[14] 蒋万钰. 基于贝叶斯概率的降雨数据稀缺山区滑坡预警模型研究——以白龙江中下游为例[D]. 兰州:兰州大学,2022. [JIANG Wanyu. Landslides early warning model of mountainous areas with scarce rainfall data based on Bayesian probability[D]. Lanzhou:Lanzhou University,2022. (in Chinese with English abstract)]
JIANG Wanyu. Landslides early warning model of mountainous areas with scarce rainfall data based on Bayesian probability［D］. Lanzhou: Lanzhou University, 2022. （in Chinese with English abstract）
[15] BRUNETTI M T,PERUCCACCI S,ROSSI M,et al. Rainfall thresholds for the possible occurrence of landslides in Italy[J]. Natural Hazards and Earth System Sciences,2010,10(3):447 − 458. doi: 10.5194/nhess-10-447-2010
[16] 朱文慧, 晏鄂川, 邹浩, 等. 湖北省黄冈市降雨型滑坡气象预警判据[J]. 地质科技通报,2022,41(6):45 − 53. [ZHU Wenhui, YAN Echuan, ZOU Hao, et al. Meteorological early warning criterion for rainfall-induced landslides in Huanggang City, Hubei Province[J]. Bulletin of Geological Science and Technology,2022,41(6):45 − 53. (in Chinese with English abstract)]
ZHU Wenhui, YAN Echuan, ZOU Hao, et al. Meteorological early warning criterion for rainfall-induced landslides in Huanggang City, Hubei Province［J］. Bulletin of Geological Science and Technology, 2022, 41（6）: 45 − 53. （in Chinese with English abstract）
[17] ABRAHAM M T,SATYAM N,ROSI A,et al. Usage of antecedent soil moisture for improving the performance of rainfall thresholds for landslide early warning[J]. CATENA,2021,200:105147. doi: 10.1016/j.catena.2021.105147
[18] ZHAO Binru,DAI Qiang,HAN Dawei,et al. Probabilistic thresholds for landslides warning by integrating soil moisture conditions with rainfall thresholds[J]. Journal of Hydrology,2019,574:276 − 287. doi: 10.1016/j.jhydrol.2019.04.062
[19] 汪美华,李勇,裴叶青. 甘肃临夏盆地韩集北山滑坡群致灾特征与稳定性评价[J]. 地质通报,2023,42(2/3):460 − 468. [WANG Meihua,LI Yong,PEI Yeqing. Disaster-causing characteristics and stability evaluation of landslide group in Hanjibei Mountain, Linxia Basin, Gansu Province[J]. Geological Bulletin of China, 2023, 42(2/3):460 − 468. (in Chinese with English abstract)]
WANG Meihua, LI Yong, PEI Yeqing. Disaster-causing characteristics and stability evaluation of landslide group in Hanjibei Mountain, Linxia Basin, Gansu Province［J］. Geological Bulletin of China, 2023, 42（2/3）: 460 − 468. （in Chinese with English abstract）
[20] 卢海峰,陈海龙,杨勇,等. 甘肃武威盆地南缘断裂带晚第四纪活动特征及变形分析[J]. 地质通报, 2022,41(2/3):327 − 346. [LU Haifeng, CHEN Hailong, YANG Yong, et al. Late quaternary activity characteristics and deformation analysis of the southern margin fault zone in Wuwei Basin, Gansu Province[J]. Geological Bulletin of China, 2022, 41(2/3): 327 − 346. (in Chinese with English abstract)]
LU Haifeng, CHEN Hailong, YANG Yong, et al. Late quaternary activity characteristics and deformation analysis of the southern margin fault zone in Wuwei Basin, Gansu Province［J］. Geological Bulletin of China, 2022, 41（2/3）: 327 − 346. （in Chinese with English abstract）
-
