甘肃积石山<i>M</i><sub>s</sub>6.2级地震区滑坡危险性评价与区划

王秀琴; 牛全福; 王浩; 程西安; 李克恭; 牛虎林

doi:10.16031/j.cnki.issn.1003-8035.202405010

甘肃积石山M_s6.2级地震区滑坡危险性评价与区划

1.
甘肃省地图院，甘肃兰州　730000

2.
兰州理工大学土木工程学院，甘肃兰州　730050

3.
甘肃省测绘工程院，甘肃兰州　730000

4.
甘肃省地质矿产勘查开发局第三地质矿产勘查院，甘肃兰州　730050

基金项目: 国家自然科学基金项目（42261069）；甘肃省科技厅重点研发计划项目（22YF7FA074）

详细信息

作者简介: 王秀琴（1974—），甘肃甘谷人，地图学与地理信息系统专业，硕士，研究方向为灾害遥感。E-mail：330398304@qq.com

通讯作者: 牛全福（1973—），甘肃甘谷人，地图学与地理信息系统专业，博士，教授，研究方向为环境遥感。E-mail：Niuqf@lut.edu.cn

中图分类号: P642.22

收稿日期: 2024-05-08

修回日期: 2024-09-05

录用日期: 2025-01-03

刊出日期: 2025-02-25

Risk assessment of landslides induced by the M_s6.2 earthquake in Jishishan, Gansu Province

1.
The Map Institute of Gansu Province, Lanzhou, Gansu　730000, China

2.
School of Civil Engineering, Lanzhou University of Technology, Lanzhou, Gansu　730050, China

3.
Gansu Provincial Institute of Surveying and Mapping, Lanzhou, Gansu　730000, China

4.
The Third Geological and Mineral Exploration Institute of Gansu Provincial Geological and Mineral Exploration and Development Bureau, Lanzhou, Gansu　730050, China

More Information

Corresponding author: NIU Quanfu, Niuqf@lut.edu.cn

Received Date: 08 May 2024

Revised Date: 05 September 2024

Accepted Date: 03 January 2025

Publish Date: 25 February 2025

摘要

摘要:
2023年12月18日23时59分，甘肃省积石山县发生M_s6.2级地震，造成大量人员伤亡及崩塌和滑坡等地震次生灾害。基于震前震后高分辨率卫星影像，利用目视解译的灾害点和影响因子特征集构建MaxEnt模型进行地震后滑坡灾害危险性评价，研究认为：（1）地震诱发滑坡灾害点主要分布在1700～2250 m高程带、坡度20°～25°的阳坡范围内，在距道路距离1.5 km、距断裂带距离1.7 km、距地震中心距离5 km区间广布；（2）由影响因子的贡献率和置换重要性、测试效益值、AUC 值和正则化训练增益值综合得到地震诱发滑坡的主要影响因子为距断裂带的距离、海拔和人口分布；（3）基于构建的MaxEnt模型，得出极高和高危险区主要分布于地震烈度为Ⅷ度区，其面积为5.368 km²，占极高和高危险区总面积的77.82%，而低和极低危险区主要分布于Ⅵ和Ⅶ度区，面积百分比分别为75.33%和97.55%。文章在影响因子重要性分析基础上构建MaxEnt 模型进行震区滑坡灾害危险性评价，研究结果将为震区灾后重建提供参考。
- 积石山6.2级地震 /
- 滑坡 /
- 因子 /
- 重要性分析 /
- MaxEnt模型 /
- 危险性评价
Abstract:
On December 18, 2023, at 23:59, a magnitude M_s6.2 earthquake occurred in Jishishan County, Gansu Province, resulting in significant casualties and triggering numerous secondary geological disasters such as landslides and collapses. Utilizing high-resolution satellite imagery from before and after the earthquake, this study employs a MaxEnt model, constructed with visually interpreted disaster points and a set of impact factor characteristics, to assess the post-earthquake landslide hazard post-earthquake landslide hazard. The research conclusions are as follows: 1) Earthquake-induced landslide disasters are predominantly distributed within sunny slopes at elevations of 1800 to 2300 m and slope gradient of 20° to 25°, extensively across areas 1.5 km from roads, 1.7 km from fault zones, and within 5 km of the earthquake’s epicenter. The majority of the disasters occurred in cropland and loam areas with higher population density in the earthquake region. 2) The main influencing factors for earthquake-induced landslides determined by factor contribution rates, permutation importance, test benefit values, AUC values, and regularization training gain value were comprehensively determined as follows: Distance from the fault zone, Elevation, and Population density; 3) Based on the constructed MaxEnt model, it is found that there is a good consistency between the extremely high and high-risk areas of landslide disasters in the earthquake zone and the seismic intensity. Among them, the extremely high and high-risk areas are mainly distributed in the intensity Ⅷ zone, with an area of 5.368km², accounting for 77.82% of the total area of the extremely high and high-risk zones. The low and very low-risk areas are mainly distributed in the intensity Ⅵ and Ⅶ zones, accounting for 92.80% of the total area of the study region. This study constructs the MaxEnt model based on the importance analysis of impact factors to evaluate the landslide hazard in the earthquake area, providing references for post-disaster reconstruction in the earthquake zone.
- Jishishan M_s6.2 earthquake /
- landslide /
- factor /
- importance analysis /
- MaxEnt model /
- risk assessment

HTML全文

图 1 研究区概况

Figure 1.

下载: 全尺寸图片幻灯片

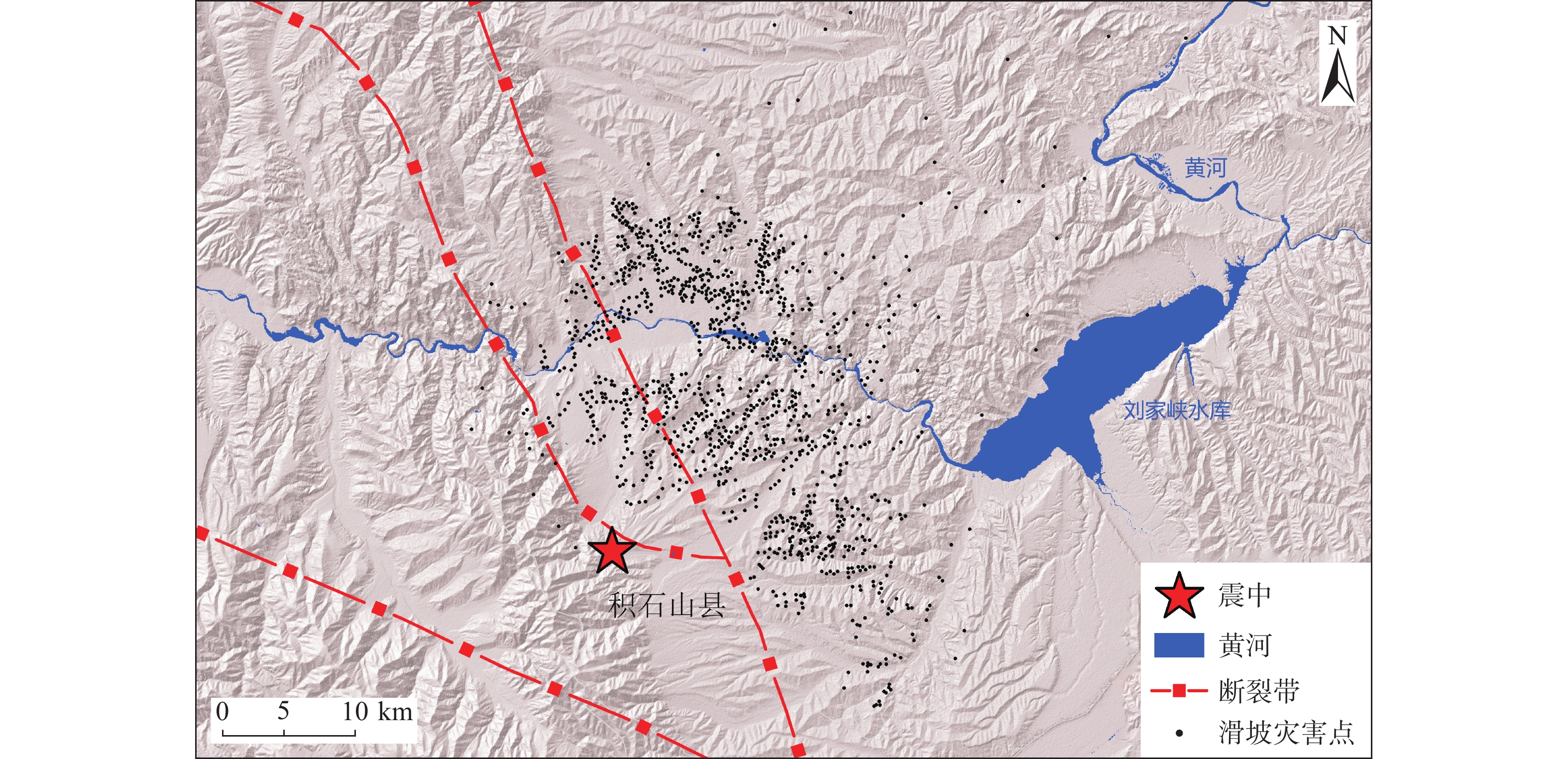

图 2 积石山地震诱发滑坡灾害点空间分布

Figure 2.

下载: 全尺寸图片幻灯片

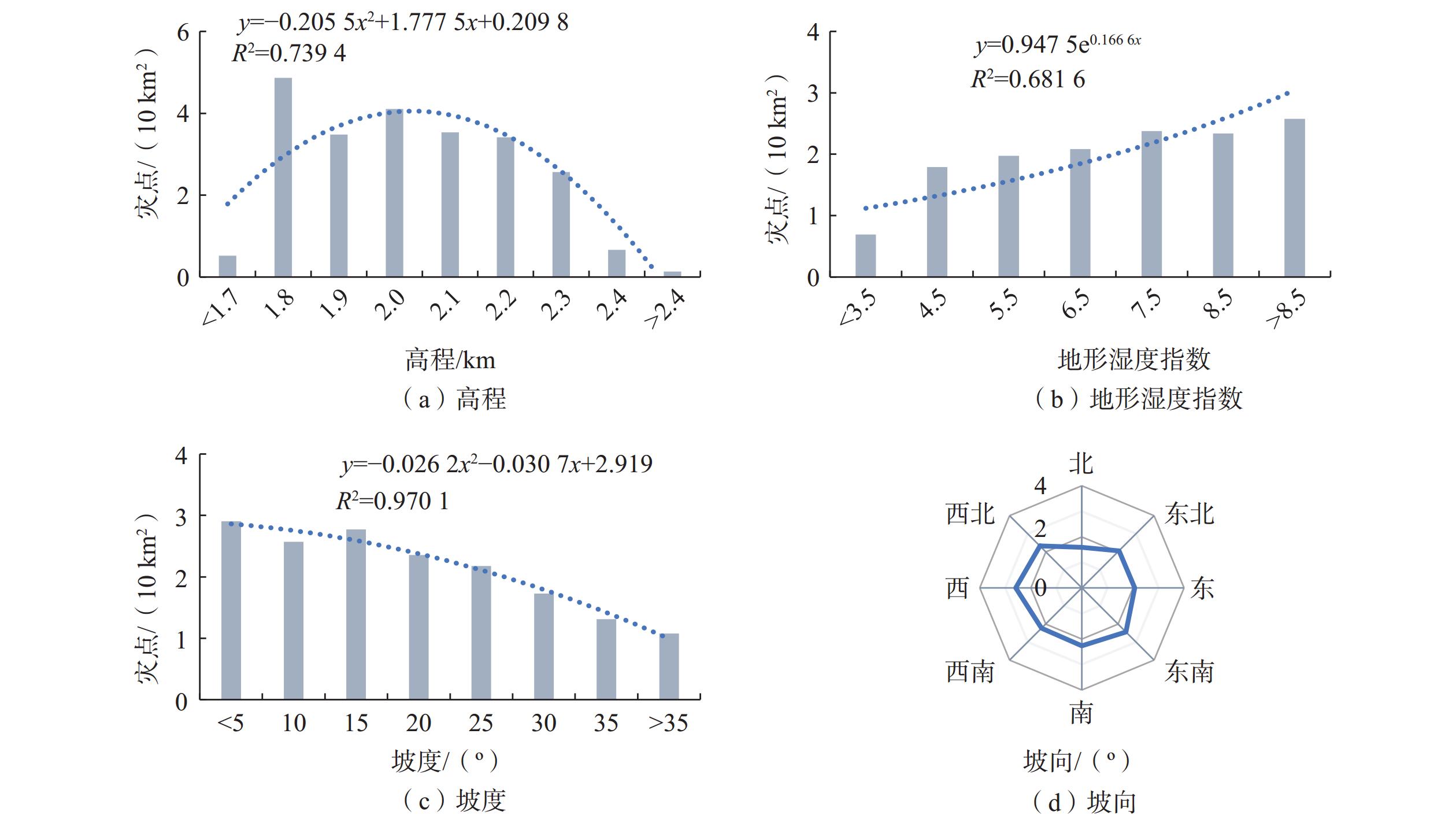

图 3 滑坡灾害点的地形因子分布

Figure 3.

下载: 全尺寸图片幻灯片

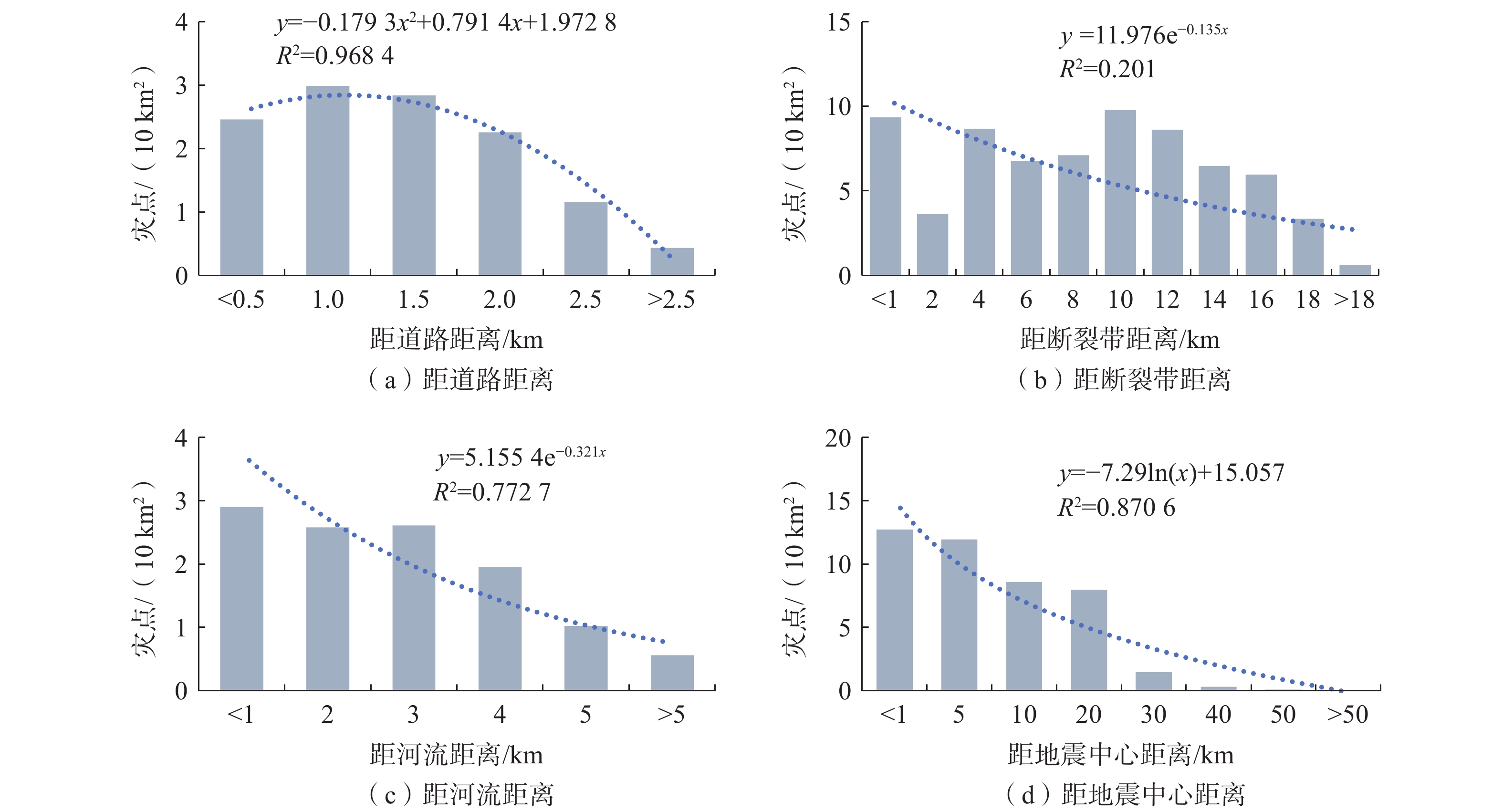

图 4 滑坡灾害点的各距离因子分布

Figure 4.

下载: 全尺寸图片幻灯片

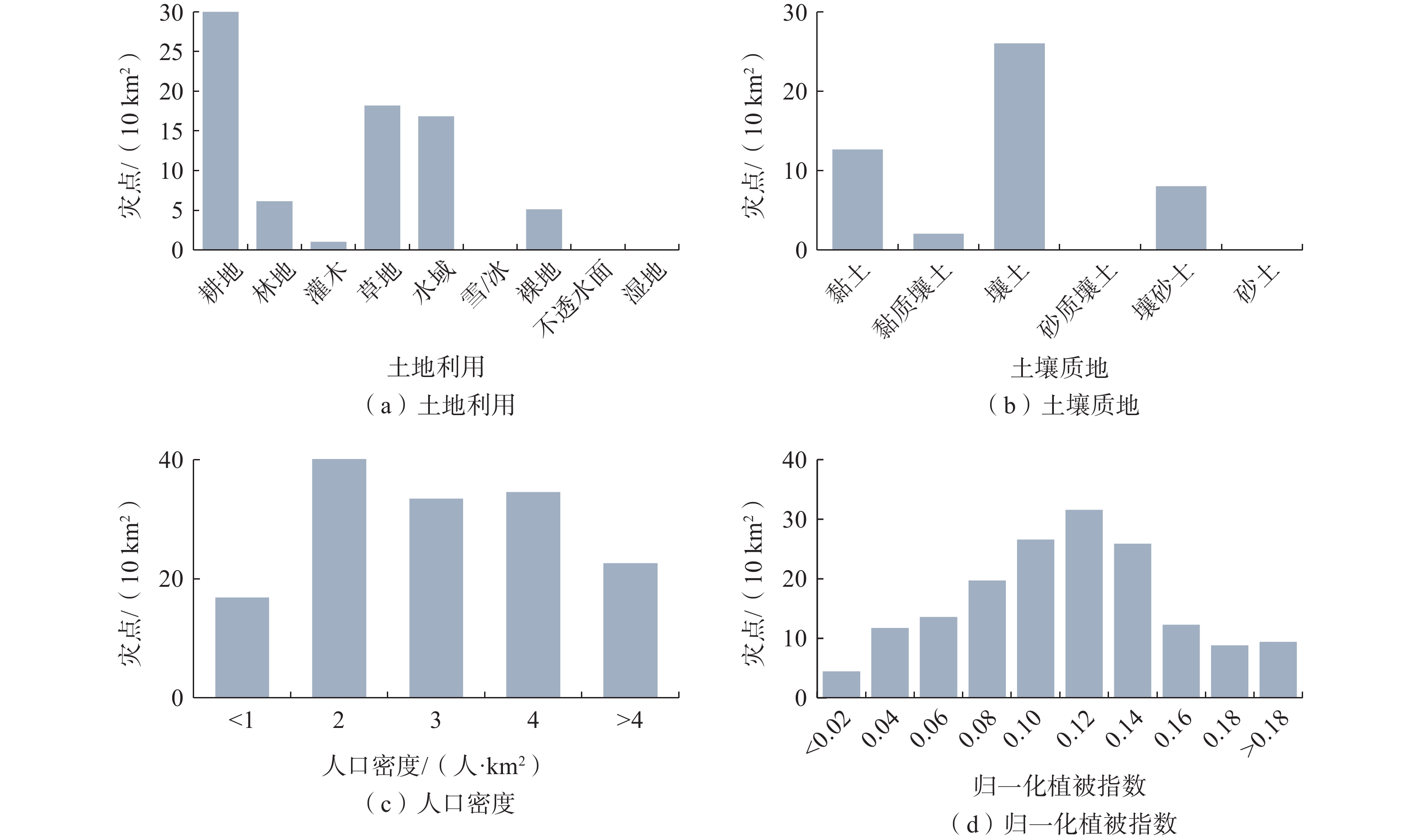

图 5 滑坡灾害点的其他因子分布

Figure 5.

下载: 全尺寸图片幻灯片

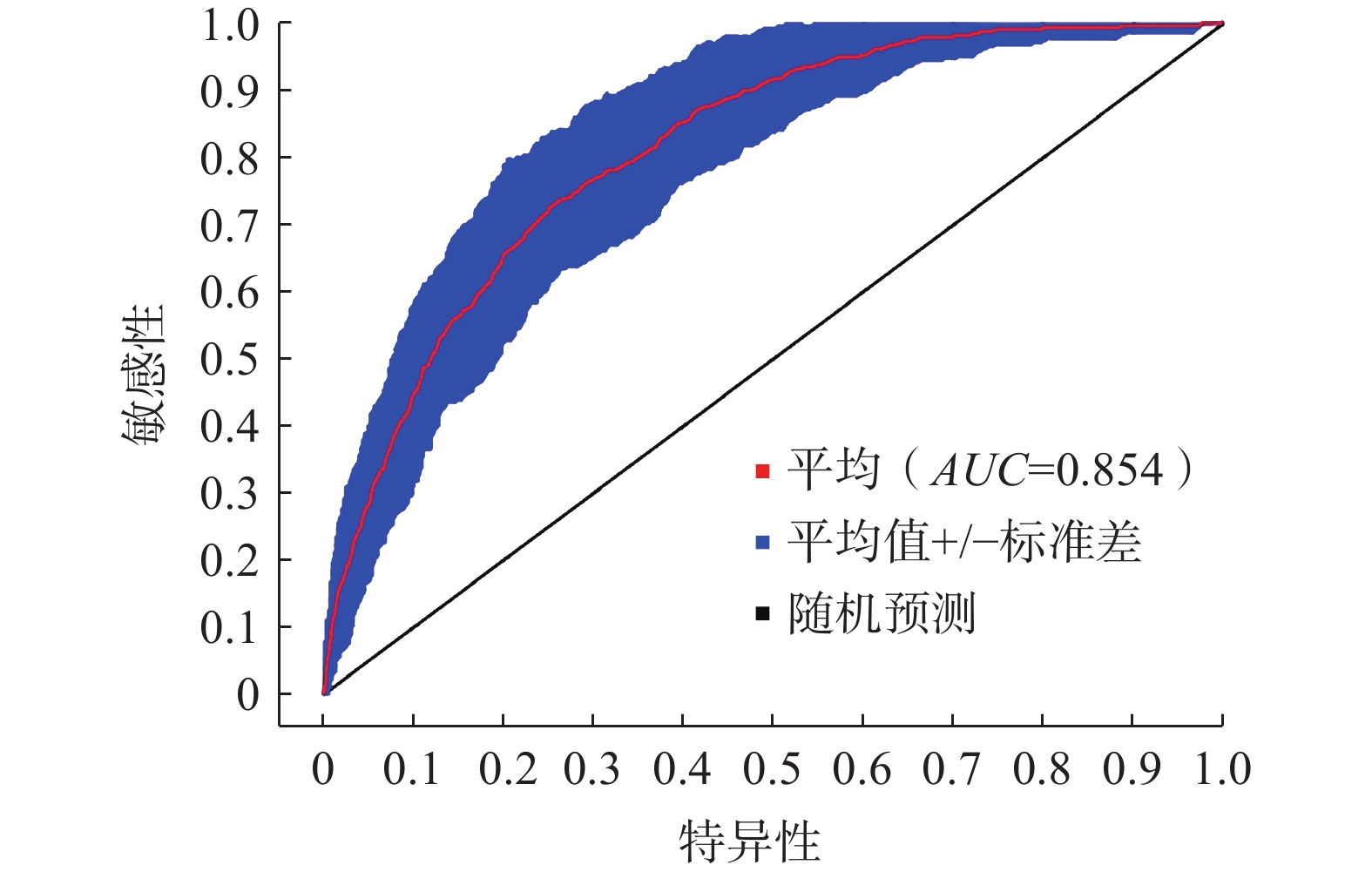

图 6 ROC评价结果

Figure 6.

下载: 全尺寸图片幻灯片

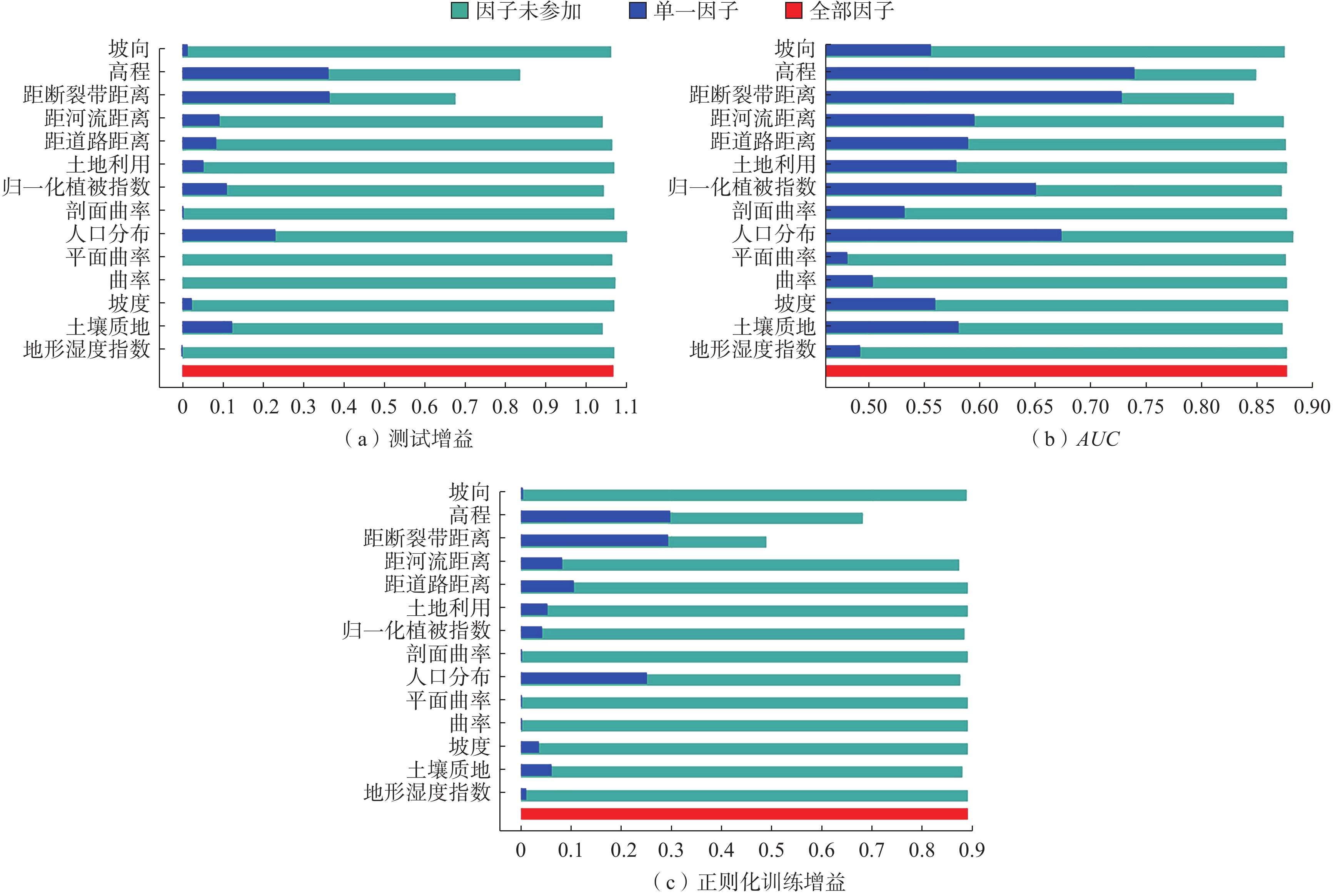

图 7 影响因子刀切法检验结果

Figure 7.

下载: 全尺寸图片幻灯片

图 8 影响因子响应曲线

Figure 8.

下载: 全尺寸图片幻灯片

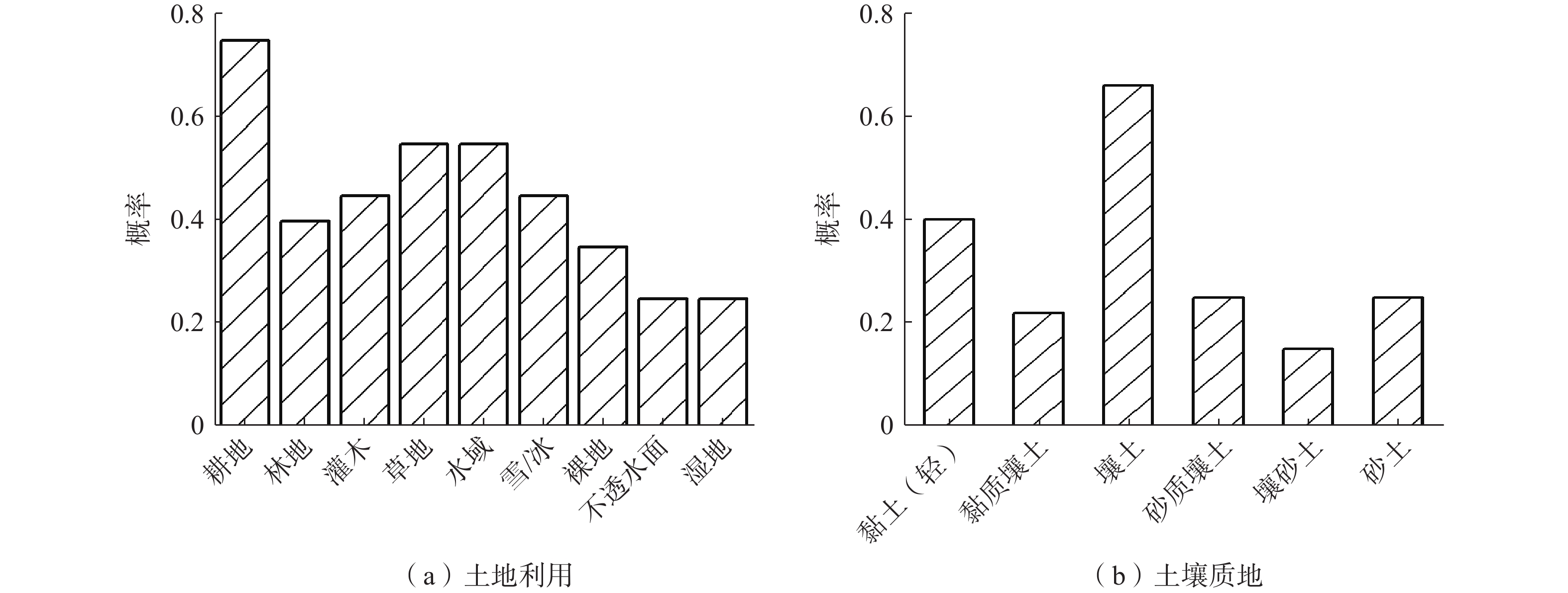

图 9 土地利用与土壤质地的滑坡响应直方图

Figure 9.

下载: 全尺寸图片幻灯片

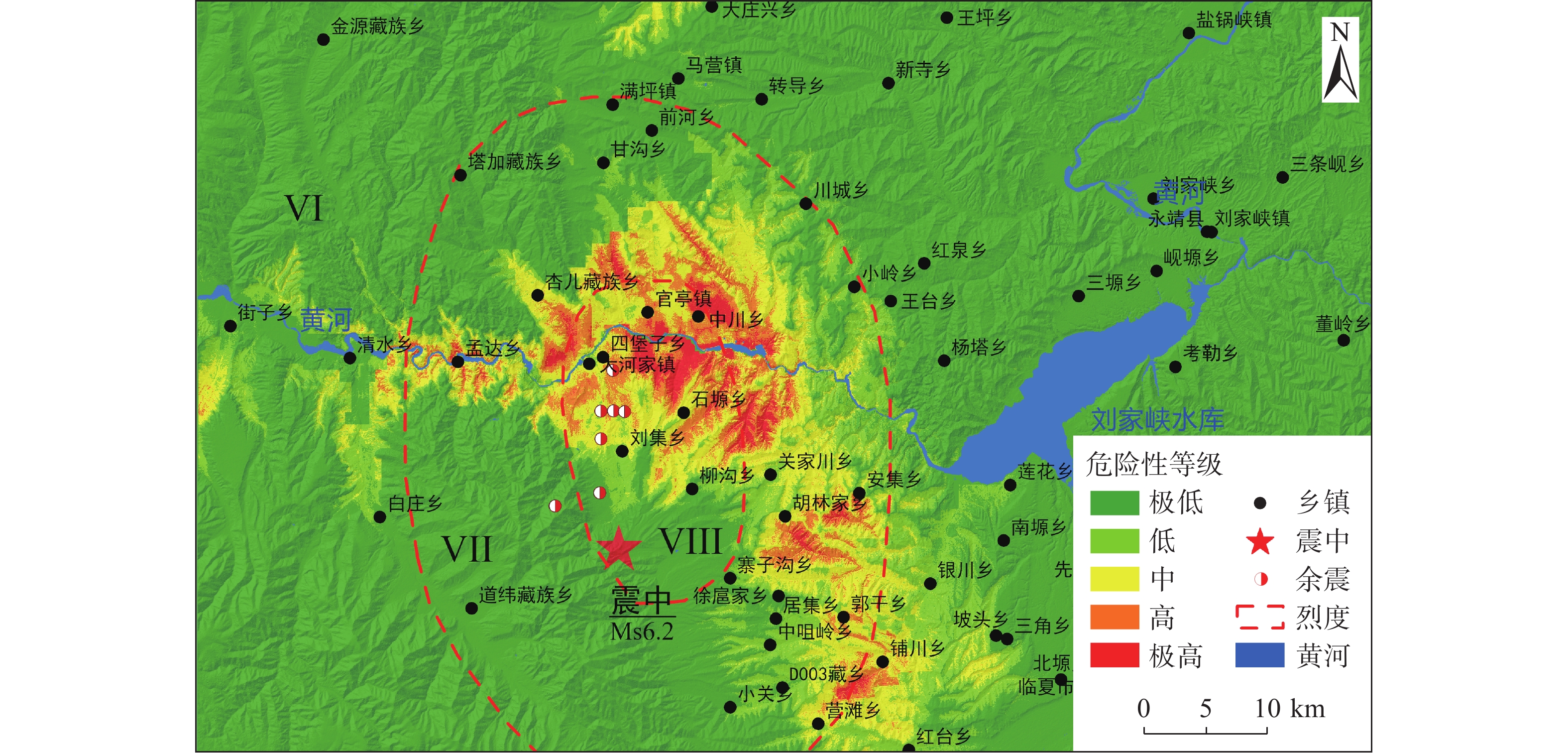

图 10 积石山M_s6.2级地震诱发的滑坡危险性评价结果

Figure 10.

下载: 全尺寸图片幻灯片

图 11 积石山震区典型滑坡

Figure 11.

下载: 全尺寸图片幻灯片

表 1 甘肃积石山M_s6.2级地震及余震数据

Table 1. M_s6.2 Jishishan earthquake and its aftershocks in Gansu Province

序号	发震时刻	纬度	经度	深度/km	震级/M_s	地名	备注
1	2023-12-18T23:59:30.0	35°42′	102°47′	10	6.2	积石山县	震中
2	2023-12-19T00:24:49.9	35°44′	102°47′	10	3.9	积石山县	余震
3	2023-12-19T00:36:18.3	35°47′	102°47′	10	4.0	积石山县	余震
4	2023-12-19T00:43:12.9	35°47′	102°46′	10	3.4	积石山县	余震
5	2023-12-19T00:56:51.3	35°42′	102°47′	10	3.4	积石山县	余震
6	2023-12-19T00:59:11.3	35°44′	102°46′	10	3.1	积石山县	余震
7	2023-12-19T00:59:39.0	35°50′	102°47′	10	4.1	积石山县	余震
8	2023-12-19T01:10:31.4	35°48′	102°47′	10	3.2	积石山县	余震
9	2023-12-19T01:20:12.6	35°48′	102°46′	10	3.2	积石山县	余震
10	2023-12-19T02:10:06.4	35°50′	102°46′	10	3.2	积石山县	余震
11	2023-12-19T00:32:52.9	35°46′	102°47′	9	3.4	积石山县	余震

下载: 导出CSV

表 2 甘肃积石山M_s6.2级地震诱发滑坡灾害影响因子数据

Table 2. Disaster-causing factors of landslides induced by the M_s6.2 Jishishan earthquake in Gansu Province

环境变量	影响因子	数据来源
地形因子	高程、坡度、坡向、剖面曲率、平面曲率、曲率、距河流距离、TWI	高程数据为数字高程模型（DEM），下载自ASF官网（https://search.asf.alaska.edu/#/），其它因子数据为DEM的派生数据
断裂带	距断裂带的距离	断裂带数据下载自国家地震科学数据中心（https://search.asf.alaska.edu/#/）
土壤质地	土壤质地数据	下载自世界土壤数据库（https://www.fao.org/）
道路	距道路的距离	OSM官网（https://www.openstreetmap.org/）
人口	人口分布密度	OSM官网（https://www.openstreetmap.org/）
土地利用	地表覆盖	武汉大学CLCD数据集（https://zenodo.org/）
植被	归一化植被指数	国家青藏高原科学数据中心（https://data.tpda.ac.cn/home ）

下载: 导出CSV

表 3 AUC评价标准

Table 3. AUC evaluation criteria

AUC值	精度评价
[0, 0.6）	很差
[0.6, 0.7）	较差
[0.7, 0.8）	一般
[0.8, 0.9）	好
[0.9, 1]	极好

下载: 导出CSV

表 4 滑坡灾害主要影响因子贡献率和置换重要性

Table 4. Contribution rates and permutation importance of main disaster-causing factors of landslides

序号	因子	贡献率/%	置换重要性/%
1	距断裂带距离	39	48.3
2	高程	38.1	45.1
3	人口分布	17.8	1.4
4	土壤质地	1.3	1.3
5	距河流距离	1.2	2.4
6	归一化植被指数	0.8	0.6
7	坡度	0.8	0.1
8	距道路距离	0.6	0.5
9	坡向	0.3	0.2
10	地形湿度指数	0.1	0
11	土地利用	0	0
12	平面曲率	0	0
13	剖面曲率	0	0
14	曲率	0	0

下载: 导出CSV

表 5 不同地震烈度区的危险性等级面积百分比统计

Table 5. Area percentage of different risk grades in various seismic intensity zones

地震烈度	极高危险/%	高危险/%	中危险/%	低危险/%	极低危险/%
Ⅷ区	6.91	19.47	28.82	11.76	33.05
Ⅶ区	1.80	5.95	16.92	16.12	59.21
Ⅵ区	0.03	0.23	2.19	6.15	91.40

下载: 导出CSV
