CENOZOIC MAGMATIC ACTIVITIES AND STAGES IN THE BAIYUN SAG, NORTHERN MARGIN OF SOUTH CHINA SEA
-
摘要:

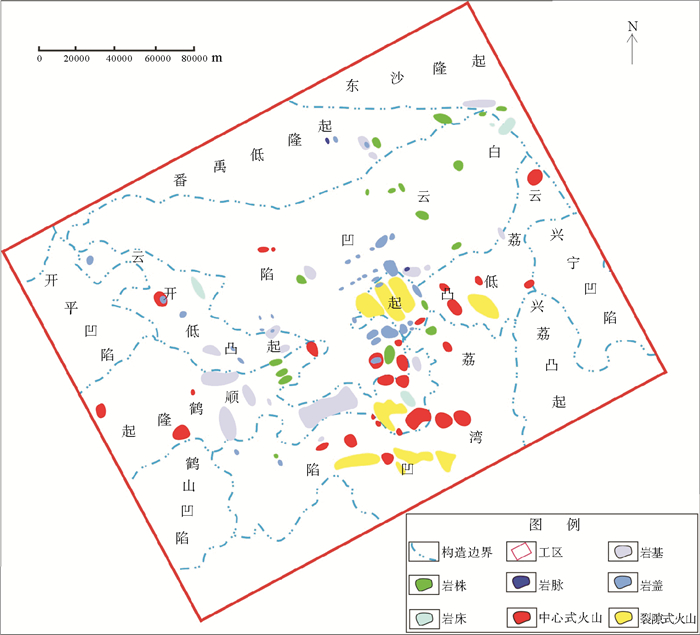

白云凹陷隶属于南海北缘珠江口盆地珠二坳陷，进入新生代以后白云凹陷及其邻区发育了剧烈的、多期次的岩浆活动，表现为强烈的火山喷发与岩浆侵入作用。从白云凹陷地质资料、井资料、地震资料出发，井震结合总结了不同类型岩浆岩体地震响应特征, 并识别出了白云凹陷新生代发育的岩浆岩体，绘制了岩浆岩体平面分布图。白云凹陷新生代岩浆岩体主要分布于白云凹陷周围的隆起或凸起部位，且以白云凹陷南侧为主要分布区，白云凹陷内部岩浆岩体发育较少，在凹陷内部呈零星分布。利用岩浆活动期次划分方法(接触关系法、上覆沉积地层厚度法、两侧地层对比法)，将白云凹陷新生代岩浆活动分为4期：32~23.8、23.8~10.5、10.5~5.5、5.5 Ma至今，绘制了各时期岩浆岩发育平面图，第1期对应构造演化阶段中的断拗转换期，后3期对应构造演化阶段中的拗陷期，并且随着区域构造演化的进行岩浆活动具有减弱的特征。
Abstract:The Baiyun Sag is a second-order depression of the Pearl River Mouth Basin located on the northern margin of the South China Sea. Since Cenozoic, it has suffered strong magmatic activities characterized by both intensive eruption and intrusion. By integration of geological and seismic data, this paper summarized the seismic features of different types of magmatic bodies and some Cenozoic magmatic bodies were distinguished from the others. Spatial distribution pattern of the magmatic bodies was mapped. It is found that the Cenozoic magmatic bodies are mainly distributed on uplifts or higher parts around the Baiyun sag, especially on the south side. Magmatic bodies are few within the sag. Using the traditional classification of magmatic stages based upon contact relationship, thickness of sediment cover and stratigraphic correlation, the Cenozoic magmatic activities in the Baiyun sag might be grouped into four periods: 32~23.8 Ma, 23.8~10.5 Ma, 10.5~5.5 Ma, and 5.5 Ma up to present. Spatial distribution maps are compiled for each period. The first period corresponds to the transforming stage from faulting to depression. The next three, however, are all within the stage of depression. The magmatic activities weakened with time.
-
Key words:
- magmatic activity /
- tectonic evolution /
- seismic response /
- Baiyun Sag /
- Pearl River Mouth Basin
-
-
表 1 珠江口盆地新生界钻井揭示岩浆岩特征(据文献[15])
Table 1. Characteristics of Cenozoic igneous rocks revealed by drilling in Pearl River Mouth Basin (modified after reference [15])
构造单元 井号 层位 岩性 揭示厚度/m 来源 一级 二级 珠二坳陷 云开低凸起 ZJK-14 珠江组 凝灰岩夹玄武岩 416 [15] 恩平组 火山角砾岩 15 [15] 文昌组 安山质凝灰熔岩 72 [15] 白云凹陷 ZJK-15 凝灰岩 约140 [15] 珠三坳陷 阳春凹陷 ZJK-16 文昌组 流纹质凝灰熔岩 8 [15] 阳江低凸起 ZJK-17 珠海组 玄武岩 52 [15] 文昌A凹陷 ZJK-18 文昌组 凝灰岩 不详 [15] 文昌B凹陷 ZJK-19 神狐组 英安斑流岩 不详 [15] 蚀变珍珠岩 不详 [15] 番禺低隆起 ZJK-20 文昌组 玄武岩 14 [10] 东沙隆起 ZJK-21 文昌组 玄武岩 24 [15] ZJK-22 文昌组 流纹质凝灰岩 219 [15] ZJK-23 神狐组、珠海组 凝灰岩 不详 [15] ZJK-24 神狐组 凝灰岩、凝灰熔岩、集块岩、玄武岩 281 [15]
下载: 导出CSV
表 2 研究区钻井资料岩浆岩统计(据中海油深圳分公司资料)
Table 2. Igneous rocks found in drilling holes in the study area (from CNOOC Shenzhen branch)
井号 韩江组 珠江组 珠海组 恩平组 前第三系 岩浆岩总厚/m BY6-1-1 0 123.7 158 0 0 281.7 BY7-1-1 0 302.5 44.5 0 0 347.0 LH18-1-1 0 0 0 0 30.5 30.5 LH18-2-1 0 0 0 0 20.3 20.3 PY27-1-1 0 0 0 0 32.15 32.15 PY29-1-1 0 0 0 0 12.23 12.23
下载: 导出CSV
-
[1] 吴泰然.普通地质学第2版[M].北京:北京大学出版社, 2011: 243-246.
WU Tairan. The second edition of general geology[M]. Beijing: Peking University Press, 2011: 243-246.
[2] 李捷.岩浆岩与变质岩简明教程[M].北京:石油工业出版社, 2008: 23-27.
LI Jie. A concise course on magmatic rocks and metamorphic rocks[M]. Beijing: Petroleum Industry Press, 2008: 23-27.
[3] 王璞珺, 印长海, 朱如凯, 等.中基性火山作用喷出物类型、特征与成因[J].吉林大学学报:地球科学版, 2010, 40(3): 469-481. http://d.old.wanfangdata.com.cn/Periodical/cckjdxxb201003001
WANG Pujun, YIN Changhai, ZHU Rukai, et al. Classification, Description and interpretation of the volcanic products:Ancient and modern examples from China[J]. Journal of Jilin University(Earth Science Edition), 2010, 40(3): 469-481. http://d.old.wanfangdata.com.cn/Periodical/cckjdxxb201003001
[4] 刘进, 吴冲龙.胶莱盆地岩浆活动特征及其油气地质意义[J].大庆石油地质与开发, 2007, 26(5): 36-40. doi: 10.3969/j.issn.1000-3754.2007.05.010
LIU Jin, WU Chonglong. Characteristics and geologic meaning of the magmatic activities in Jiaolai basin[J]. Petroleum Geology and Oilfield Development in Daqing, 2007, 26(5): 36-40. doi: 10.3969/j.issn.1000-3754.2007.05.010
[5] 胡治华, 申春生, 刘宗宾, 等.渤海湾盆地火山岩喷发旋回和期次研究的方法及应用[J].油气地球物理, 2013, 11(2): 30-33. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QKC20132013062700063073
HU Zhihua, SHEN Chunsheng, LIU Zongbin, et al. The research method and application of the volcanic rock eruption cycle and stage in the Bohai Bay Basin[J]. Petroleum Geophysics, 2013, 11(2): 30-33. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QKC20132013062700063073
[6] 孙杰, 詹文欢, 丘学林.珠江口盆地白云凹陷构造演化与油气系统的关系[J].海洋地质与第四纪地质, 2011, 31(1): 101-107. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201101012
SUN Jie, ZHAN Wenhuan, QIU Xuelin. Relationship between tectonic evolution and petroleum systems in Baiyun Sag, Pearl River Mouth Basin[J]. Marine Geology and Quaternary Geology, 2011, 31(1): 101-107. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201101012
[7] 王玲, 靳久强, 张研.松辽盆地徐家围子断陷营城组一、三段火山喷发期次划分及意义[J].中国石油勘探, 2009, 14(2): 6-14. doi: 10.3969/j.issn.1672-7703.2009.02.002
WANG Ling, JIN Jiuqiang, ZHANG Yan. Division of volcanic eruption periods of the first and third members of Yingcheng Formation in Xujiaweizi Fault Depression in Songliao Basin[J]. China Petroleum Exploration, 2009, 14(2): 6-14. doi: 10.3969/j.issn.1672-7703.2009.02.002
[8] 陈建文, 王德发, 张晓东, 等.松辽盆地徐家围子断陷营城组火山岩相和火山机构分析[J].地学前缘, 2000, 7(4): 371-379. doi: 10.3321/j.issn:1005-2321.2000.04.004
CHEN Jianwen, WANG Defa, ZHANG Xiaodong, et al. Analysis of volcanic facies and apparatus of Ying Cheng formation in Xu Jia Wei Zi faulting depression, Song Liao Basin Northeast China[J]. Earth Science Frontiers, 2000, 7(4): 371-379. doi: 10.3321/j.issn:1005-2321.2000.04.004
[9] 杜景霞, 石文武, 王全利, 等.南堡凹陷火山岩时空展布特征及岩石类型[J].石油地质与工程, 2013, 27(6): 11-14. doi: 10.3969/j.issn.1673-8217.2013.06.004
DU Jingxia, SHI Wenwu, WANG Quanli, et al. Study on space-time distribution characteristics of volcanic rock and rock types of Nanpu depression[J]. Petroleum Geology and Engineering, 2013, 27(6): 11-14. doi: 10.3969/j.issn.1673-8217.2013.06.004
[10] 赵海玲, 邓晋福, 李凯明, 等.东南沿海及南海新生代火山作用与南海的形成演化[J].地质论评, 1999, 45(S1): 809-816. http://d.old.wanfangdata.com.cn/Conference/45510
ZHAO Hailing, DENG Jinfu, LI Kaiming, et al. Cenozoic volcanism in the Southeast Coast of China and the South China Sea and the formation and evolution of the South China Sea[J]. Geological Review, 1999, 45(S1): 809-816. http://d.old.wanfangdata.com.cn/Conference/45510
[11] 阙晓铭, 李元森, 陈会霞, 等.深部地幔在白云凹陷的岩浆记录:基于BY7火山岩的地球化学研究[J].华南地质与矿产, 2013, 29(2): 105-115. http://d.old.wanfangdata.com.cn/Periodical/hndzykc201302004
QUE Xiaoming, LI Yuansen, CHEN Huixia, et al. Geochemistry research on the deep mantle activity in Baiyun Sag during the Cenozoic from the volcanic rocks of well BY7[J]. Geology and Mineral Resources of South China, 2013, 29(2): 105-115. http://d.old.wanfangdata.com.cn/Periodical/hndzykc201302004
[12] 米立军, 张功成, 王良书, 等.南海北部陆坡深水海域油气资源战略调查及评价[M].北京:地质出版社, 2011: 136-137.
MI Lijun, ZHANG Gongcheng, WANG Liangshu, et al. Strategic Survey and Evaluation of Oil and Gas Resources in Deep Waters of Northern Slope of the South China Sea[M]. Beijing: Geological Publishing House, 2011: 136-137.
[13] 李志珍.南海深海表层沉积物中的火山碎屑矿物及火山作用[J].海洋学报(中文版), 1989, 11(2): 176-184. doi: 10.3321/j.issn:0253-4193.1989.02.002
LI Zhizhen. Pyroclastic minerals and volcanism in the deep sea surface sediments of the South China Sea[J]. Acta Oceanologica Sinica, 1989, 11(2): 176-184. doi: 10.3321/j.issn:0253-4193.1989.02.002
[14] 聂逢君, 姜美珠, 吴克强, 等.珠江口盆地构造岩浆活动与热流体的形成[J].东华理工学院学报, 2005, 28(2): 107-111. doi: 10.3969/j.issn.1674-3504.2005.02.002
NIE Fengjun, JIANG Meizhu, WU Keqiang, et al. Tectono-magmatism and hot fluid flow in the Pearl River Mouth Basin South China Sea[J]. Journal of East China Institute of Technology, 2005, 28(2): 107-111. doi: 10.3969/j.issn.1674-3504.2005.02.002
[15] 张斌, 王璞珺, 张功成, 等.珠—琼盆地新生界火山岩特征及其油气地质意义[J].石油勘探与开发, 2013, 40(6): 657-665. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syktykf201306003
ZHANG Bin, WANG Pujun, ZHANG Gongcheng, et al. Cenozoic volcanic rocks in the Pearl River Mouth and Southeast Hainan Basins of South China Sea and their implications for petroleum geology[J]. Petroleum Exploration and Development, 2013, 40(6): 657-665. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=syktykf201306003
[16] 张功成, 杨海长, 陈莹, 等.白云凹陷——珠江口盆地深水区一个巨大的富生气凹陷[J].天然气工业, 2014, 34(11): 11-25. doi: 10.3787/j.issn.1000-0976.2014.11.002
ZHANG Gongcheng, YANG Haizhang, CHEN Ying, et al. The Baiyun Sag:A giant rich gas-generation sag in the deepwater area of the Pearl River Mouth Basin[J]. Natural Gas Industry, 2014, 34(11): 11-25. doi: 10.3787/j.issn.1000-0976.2014.11.002
[17] 孙珍, 庞雄, 钟志洪, 等.珠江口盆地白云凹陷新生代构造演化动力学[J].地学前缘, 2005, 12(4): 489-498. doi: 10.3321/j.issn:1005-2321.2005.04.018
SUN Zhen, PANG Xiong, ZHONG Zhihong, et al. Dynamics of Tertiary tectonic evolution of the Baiyun Sag in the Pearl River Mouth Basin[J]. Earth Science Frontiers, 2005, 12(4): 489-498. doi: 10.3321/j.issn:1005-2321.2005.04.018
[18] 孙龙涛, 周蒂, 陈长民, 等.珠江口盆地白云凹陷断裂构造特征及其活动期次[J].热带海洋学报, 2008, 27(2): 25-31. doi: 10.3969/j.issn.1009-5470.2008.02.005
SUN Longtao, ZHOU Di, CHEN Changmin, et al. Fault structure and evolution of Baiyun Sag in Zhujiang River Mouth Basin[J]. Journal of Tropical Oceanography, 2008, 27(2): 25-31. doi: 10.3969/j.issn.1009-5470.2008.02.005
[19] Sun Z, Xu Y, Yao J, et al. Numerical simulation of produced water reinjection technology for water-soluble gas recovery[J]. Journal of Natural Gas Science and Engineering, 2014, 21: 700-711. doi: 10.1016/j.jngse.2014.09.032
[20] 庞雄, 陈长民, 彭大钧, 等.南海北部白云深水区之基础地质[J].中国海上油气, 2008, 20(4): 215-222. doi: 10.3969/j.issn.1673-1506.2008.04.001
PANG Xiong, CHEN Changmin, PENG Dajun, et al. Basic geology of Baiyun deep-water area in the northern South China Sea[J]. China Offshore Oil and Gas, 2008, 20(4): 215-222. doi: 10.3969/j.issn.1673-1506.2008.04.001
[21] 陈长民, 施和生, 许仕策, 等.珠江口盆地(东部)第三系油气藏形成条件[M].北京:科学出版社, 2003: 5-8.
CHEN Changmin, SHI Hesheng, XU Shice, et al. Formation Conditions of the Tertiary Reservoir in the Pearl River Mouth Basin (East)[M]. Beijing: Science Press, 2003: 5-8.
[22] 庞雄, 陈长民, 邵磊, 等.白云运动:南海北部渐新统—中新统重大地质事件及其意义[J].地质论评, 2007, 53(2): 145-151. doi: 10.3321/j.issn:0371-5736.2007.02.001
PANG Xiong, CHEN Changmin, SHAO Lei, et al. Baiyun Movement, a great tectonic event on the Oligocene-Miocene boundary in the Northern South China Sea and its implications[J]. Geological Review, 2007, 53(2): 145-151. doi: 10.3321/j.issn:0371-5736.2007.02.001
[23] 李云.珠江口盆地白云凹陷中新统珠江组深水沉积学[D].成都理工大学, 2012.
http://cdmd.cnki.com.cn/Article/CDMD-10616-1012500810.htm LI Yun. Deep-water Sedimentology of the Miocene Zhujiang Formation in Baiyun Sag, Pearl River Mouth Basin[D]. Chengdu University of Technology, 2012.
[24] 张峤, 吴时国, 吕福亮, 等.南海西北陆坡火成岩体地震识别及分布规律[J].大地构造与成矿学, 2014, 38(4): 919-938. doi: 10.3969/j.issn.1001-1552.2014.04.017
ZHANG Jiao, WU Shiguo, LV Fuliang, et al. The Seismic Characteristics and the Distribution of the Igneous Rocks in the Northernwest Slope of the South China Sea[J]. Geotectonica et Metallogenia, 2014, 38(4): 919-938. doi: 10.3969/j.issn.1001-1552.2014.04.017
[25] 司学强, 陈薇, 杨志力, 等.火山岩岩相-地震相响应关系及其应用——以三塘湖盆地马朗凹陷哈尔加乌组为例[J].岩性油气藏, 2012, 24(2): 53-60. doi: 10.3969/j.issn.1673-8926.2012.02.011
SI Xueqiang, CHEN Wei, YANG Zhili, et al. Response relation between volcanic lithofacies and seismic facies and its application: A case study from Haerjiawu Formation in Malang Sag, Santanghu Basin[J]. Lithologic Reservoirs, 2012, 24(2): 53-60. doi: 10.3969/j.issn.1673-8926.2012.02.011
[26] 姚新玉, 何正怀, 吴建华.准噶尔盆地火山岩地震相及分布特征[J].新疆石油地质, 1994, 15(3): 214-219. http://d.old.wanfangdata.com.cn/Conference/57582
YAO Xinyu, HE Zhenghuai, WU Jianhua. Seismic facies and distribution characteristics of volcanic rocks in Junggar Basin[J]. Xinjiang Petroleum Geology, 1994, 15(3): 214-219. http://d.old.wanfangdata.com.cn/Conference/57582
[27] Zhang K, Wan Z, Zhan S, et al. Seismic attribute illumination of an igneous reservoir in China[J]. The Leading Edge. 2011, 30: 266-270. doi: 10.1190/1.3567256
[28] Sun Q, Wu S, Cartwright J, et al. Neogene igneous intrusions in the northern South China Sea: Evidence from high-resolution three dimensional seismic data[J]. Marine and Petroleum Geology, 2014, 54: 83-95. doi: 10.1016/j.marpetgeo.2014.02.014
-
